Sinotruck HOWO 12 Ton ANFO Explosive Mixing And Charging Trucks

Sinotruck HOWO 12 Ton ANFO Explosive Mixing And Charging Trucks
BCLH-12 Explosives Mixing & Charging Truck
Price for refer only. Final Price Offer Discount.
Price: $ 198000
Discount Price: $ 186000
Availability:
Quantity:

  • 5262THASHTR

  • HOWO

  • 8705909990

  • Shanghai, China

  • 300

  • T/T

  • 1

Sinotruck HOWO 12 Ton ANFO Explosive Mixing And Charging Trucks

Site mixed explosives vehicle 、ANFO / Explosive Delivery Trucks ANFO mix units

Bulk Explosives Loading Trucks

BCLH-15G Field mixed loading granular ammonium frying truck

On site mixing of granular ammonium frying vehicle ( BCLH Series of products can be mixed with porous granular ANFO in the field. It is mainly used for dry hole loading explosives in open-pit mines. It adopts the diagonal spiral drug delivery system, with high efficiency and full computer operation control. 450kg/min It has the function of stopping material and shutting down, and is safe and reliable.

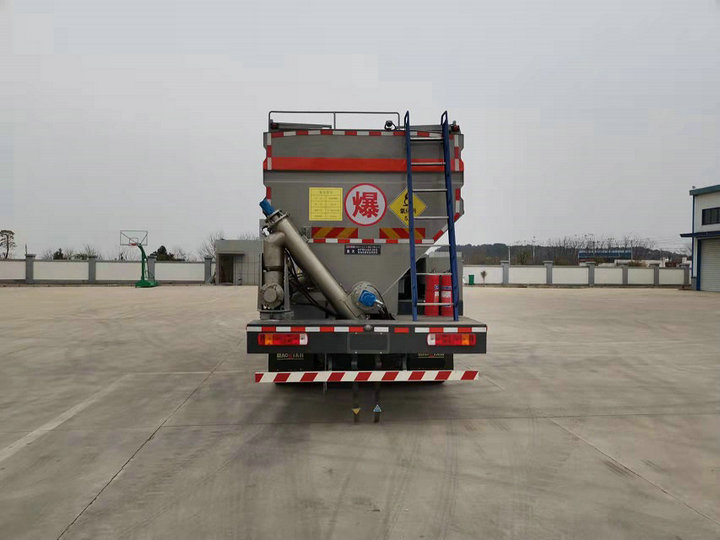

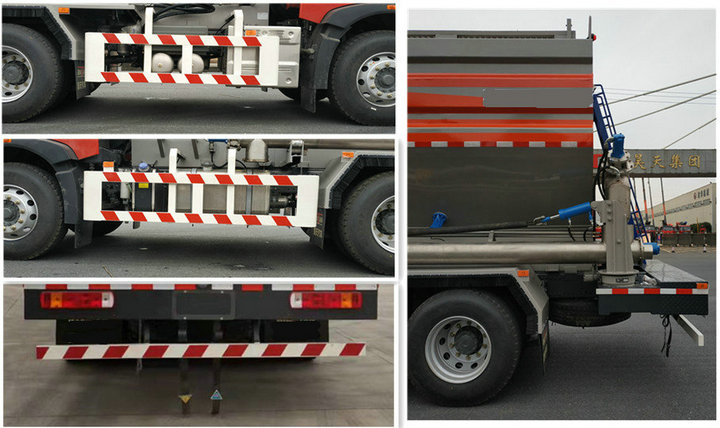

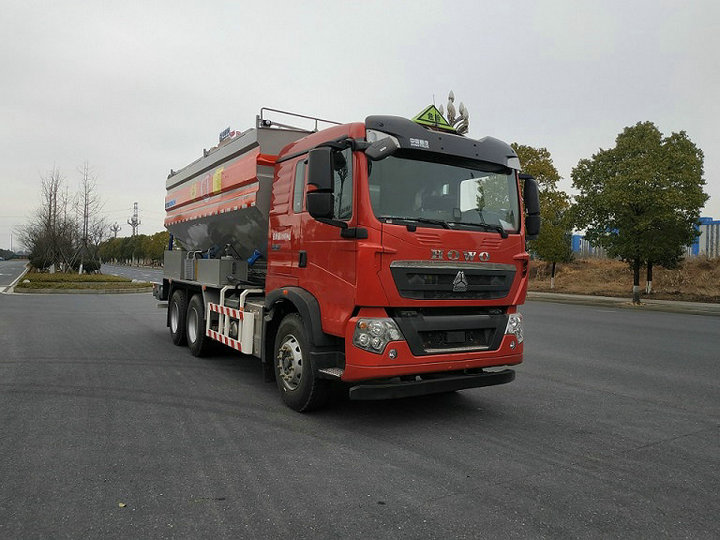

 The field mixed loading of granular ammonium has explosives.HOWO ANFO Explosive Mixing And Charging Trucks (6)HOWO ANFO Explosive Mixing And Charging Trucks (4)HOWO ANFO Explosive Mixing And Charging Trucks (5)

The special equipment consists of a power take-off device, material bin, screw conveying system, screw mixing system, hydraulic system and electrical control system. Operated by the electrical system, it mixes various raw materials in a certain proportion and fills them into blast holes; the mixture reacts to form ammonium nitrate fuel oil explosive.

On-site Mixed Ammonium Nitrate Fuel Oil Truck

Main technical performance parameters

project

Model

BCLH-15 BCLH-12 BCLH-8 BCLH-4
Loading capacity (ton) 15 12 8 4
Charge efficiency (kg/min) 450 400

Measurement error 2% 2% 2% 2%
Outline size: length * width * height (mm) 10010×2500×3680 9105×2480×3470 7216×2450×3280 6728×2400×2670

  ANFO TRUCK

Item

Details

Item

Details

Overall Dimensions

9090×2500×3600(mm)

Gross Mass

26000(Kg)

Gross Mass

26000(Kg)

Steering Mode

Steering Wheel

Curb Mass

13150(Kg)

Rated Payload

12720(Kg)

Approach Angle/Departure Angle

19/10(°)

Front Overhang/Rear Overhang

1430/2485(mm)

Fuel Type

Diesel

Emission Standard

Euro 6

Axle Load

7000/19000(two-axle group)

Wheelbase

3175+1400, 3775+1400, 4075+1400,

Number of Axles

3

Max Speed

80(km/h)

Number of Tires

10

Tire Specifications

315/80R22.5 18PR, 295/80R22.5, 12R22.5, 12.00R20 18PR, 11.00R20

Fuel Consumption

33.3(L/100Km)

Leaf Spring Quantity

4/-/-, 3/-/-, 2/-/-, 2/1+-/1+-, 3/1+-/1+-, 3/2+-/2+-, 4/2+-/2+-

Front Track

2015, 2035(mm)

Rear Track

1850/1850, 1870/1870(mm)

Steering Mode

Steering Wheel

Starting Mode

Engine Parameters

Engine Model

Manufacturer

Displacement(ml)

Power(kw)

MC07H.33-60; MC11.40-60; MC09.38-60; MC07.34-60; MC07.27-60; MC11.40-61; MC07H.29-60; MC07.33-60; MC09.35B-60; MC07.29-60; MC09.35-60; MC07.31-60; WP9H350E62; MC07H.35-60; WP8.350E61; WP10H400E62

Sinotruk Group Co., Ltd.; Sinotruk Group Co., Ltd.; Sinotruk Group Co., Ltd.; Sinotruk Group Co., Ltd.; Sinotruk Group Co., Ltd.; Sinotruk Group Co., Ltd.; Sinotruk Group Co., Ltd.; Sinotruk Group Co., Ltd.; Sinotruk Group Co., Ltd.; Sinotruk Group Co., Ltd.; Sinotruk Group Co., Ltd.; Sinotruk Group Co., Ltd.; Weichai Power Co., Ltd.; Sinotruk Group Co., Ltd.; Weichai Power Co., Ltd.; Sinotruk Group Co., Ltd.

7360; 10518; 8765; 6870; 6870; 10518; 7360; 6870; 8765; 6870; 8765; 6870; 8800; 7360; 7800; 9500

240; 297; 279; 251; 202; 297; 213; 240; 260; 213; 260; 228; 257; 257; 257; 294
