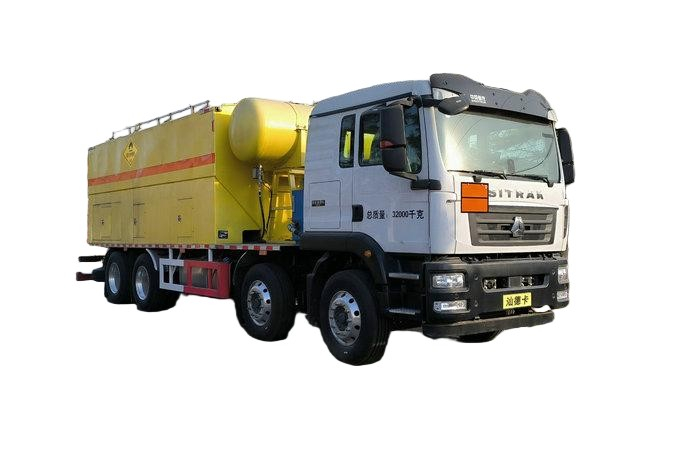

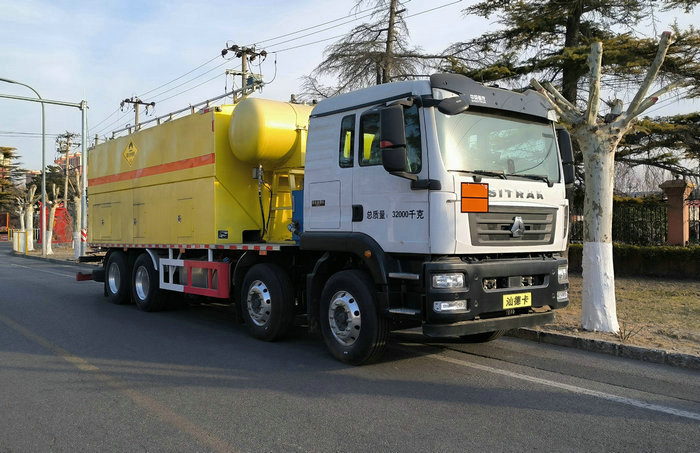

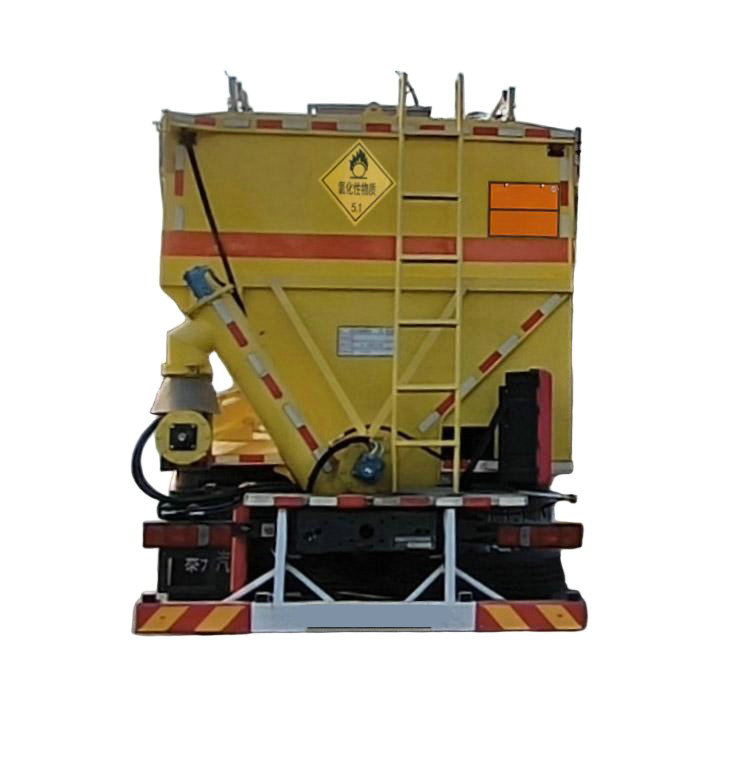

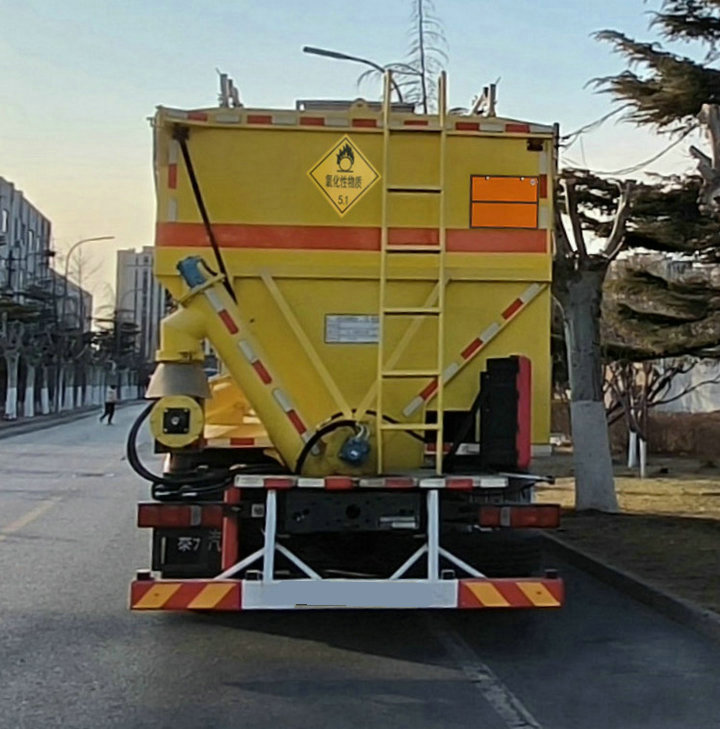

SITRAK 16T-17T Bulk Delivery Loading On-site Mixed ANFO (Ammonium Nitrate Fuel Oil) Explosives Mixing And Charging Truck
ANFO Explosive Delivery Truck for Onsite Mixing and Loading
Price for refer only. Final Price Offer Discount.
| Quantity: | |
|---|---|
|
| |
-
5323THAETAG
-
SITRAK
-
8705909990
-
Shanghai, China
-
300
-
T/T
-
1
SITRAK 16T-17T Bulk Delivery Loading On-site Mixed ANFO (Ammonium Nitrate Fuel Oil) Explosives Mixing And Charging Truck
Item | Details | |||||
Overall Dimensions | 10995×2500×3675 mm | |||||
Gross Weight | 32000 kg | |||||
Curb Weight | 15000, 15700 kg | |||||
Rated Payload | 16870, 16805, 16170, 16105 kg | |||||
Approach/Departure Angle | 16°/11° | |||||
Front/Rear Overhang | 1450/2570 mm | |||||
Axles | 4 | |||||
Max Speed | 80 km/h | |||||
Tires | 12 pcs | |||||
Tire Specs | 295/80R22.5 18PR; 12R22.5 18PR; 11.00R20 18PR | |||||
Wheelbase | 1800+3775+1400 / 1800+3975+1400 / 1800+4175+1400 / 1800+4375+1400 / 1800+4575+1400 mm | |||||
Engine Model | Manufacturer | Displacement (ml) | Power (kW) | |||
MC07H.29-60 | CNHTC | 7360 | 213 | |||
MC07.34-60 | CNHTC | 6870 | 251 | |||
MC07.31-60 | CNHTC | 6870 | 228 | |||
MC07.33-60 | CNHTC | 6870 | 240 | |||
WP8.350E61 | Weichai | 7800 | 257 | |||
MC07H.35-60 | CNHTC | 7360 | 257 | |||
WP8T380E62 | Weichai | 8240 | 279 | |||
The medium of this vehicle is ammonium nitrate emulsion matrix and porous granular ammonium nitrate. The class number for ammonium nitrate emulsion matrix is 5.1, and porous granular ammonium nitrate is also 5.1. The dangerous goods mark complies with Class 5.1. The dangerous goods transport vehicle type is EX/Ⅲ.
MC07.31-60 / MC07.33-60 / MC07.34-60 / WP8.350E61 / MC07H.35-61: 38.2 L/100km
MC07H.35-60: 35.15 L/100km
Mixed Emulsion Explosive Truck 、Explosive Mixing And Charging Trucks
Site mixed explosives vehicle 、ANFO / Explosive Delivery Trucks ANFO mix units
ANFO TRUCK Dong Runze Special Vehicle Heavy ANFO Units — Heavy ANFO Manufacture
The components of ANFO are usually mixed close to the point of operation for safety reasons. The final product, once mixed, is relatively safe and easy to handle. It is used by augering it into drill holes.
Ammonium Nitrate/Fuel Oil
is widely used in
coal mining,
quarrying, metal
mining, and civil construction. It’s best used in undemanding applications where its low cost and relative ease of use makes it a cost effective solution. It is estimated that ANFO accounts for an estimated 80% of explosives used annually around the world. To keep costs as low as possible, bulk ANFO is used, i.e. it is mixed on-site, near the borehole by a bulk truck
Emulsion explosives type BCRH-15;
Granulated explosives of ANFO type BCLH-15;
Mixed Heavy ANFO explosives BCZH-15.
The main container of the truck has two multifunctional tanks, which allow transporting emulsion UN 3375 or ammonium nitrate UN 1942.
when the truck is loaded only with components of the emulsion explosive (manufacturing and charging boreholes only with emulsion explosive) the truck’s capacity is 10~22 tons;
when the truck is loaded only with components of ANFO (manufacturing and charging boreholes only with ANFO) the truck’s capacity is 14,5 tons;
when the truck is loaded only with components of mixed explosives (30% ANFO + 70% emulsion explosives) the truck’s capacity is 16 tons;
The truck has the ability to charge the industrial explosives of varying density that allows you to charge units with different spacing.
Technological equipment of the truck enables the production of explosives on the basis of various emulsions both hot and cold type. For this purpose, the truck has two tanks for gassing agent of two different formulations.
Truck equipment is mounted on Sinotruck HOWO 8x4 chassis with MAN Tech MC Engine , which provides the truck with improved driving characteristics on the charging unit (reducing the likelihood of boreholes filling up, receiving better handling, and the geometric flotation).
Series Classification
BCLH Series: On-site Mixed ANFO Explosive Truck
BCRH / BCZH Series: On-site Mixed Emulsion Explosive Truck
Core Technical Parameters
1. BCLH Series ANFO Explosive Truck
| Model | Power | Porous Granular Ammonium Nitrate | Diesel Oil | Charging Efficiency |
|---|---|---|---|---|
| BCLH-15 | 273kW | 14500kg | 1000kg | 450kg/min |
| BCLH-15G | 273kW | 14500kg | 1000kg | 350kg/min |
| BCLH-8 | 202kW | 8000kg | 600kg | 300kg/min |
| BCLH-8G | 202kW | 8000kg | 600kg | 250kg/min |
2. BCRH / BCZH Series Emulsion Explosive Truck
| Model | Power | Loading Materials | Charging Efficiency |
|---|---|---|---|
| BCRH-15B | 248kW | Water-based material:14500kg, Oil-based material:1000kg, Sensitizer:120kg | 280kg/min |
| BCRH-15C | 248kW | Water-based material:12500kg, Oil-based material:800kg, Dry material:2500kg, Sensitizer:120kg | 280kg/min |
| BCRH-15D | 248kW | Emulsion base:15000kg, Catalyst:120kg, Sensitizer:120kg | 280kg/min |
| BCRH-15D Export Version | 248kW | Emulsion base:15000kg, Catalyst:120kg, Sensitizer:120kg | 280kg/min |
| BCRH-15E | 248kW | Emulsion base:13000kg, Dry material:2500kg, Catalyst:120kg, Sensitizer:120kg | 280kg/min |
| BCZH-15 | 248kW | Emulsion base:11000/4500kg, Dry material:4500/11000kg, Catalyst:150kg, Sensitizer:150kg | 200-280kg/min |
Main Features
Rated power: 202kW, 248kW, 273kW optional
Load capacity: 8-ton grade & 20-ton
Working efficiency: 250~450kg/min
Stable output of emulsion type: 280kg/min; higher efficiency for ANFO type
Application: Mining and engineering blasting, realizing on-site mixing and charging with high safety and efficiency
Charge efficiency: Emulsion Explosive 250～280Kg/Min,
Ammonium Oil Explosive 300～450Kg/Min,
Heavy Ammonium Oil Explosives 300～400Kg/Min,
Heavy Emulsion Explosives 200～280Kg/Min
Charge efficiency charge water hole 100-200kg / min
Charge dry hole 300-450kg / min
Measurement error ± 2%
