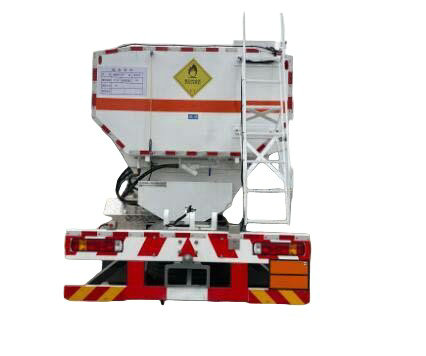

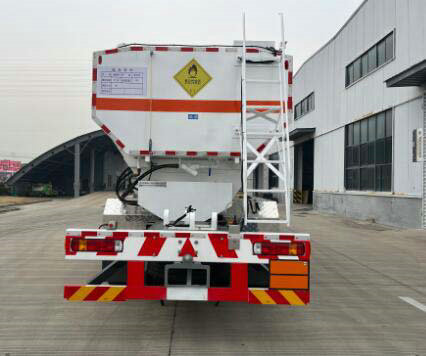

HOWO Dry Hole On-site Mixed 16 T Explosives ANFO Truck Mixing And Charging Truck

HOWO 16 Ton On-site Mixed ANFO Explosive Truck Mixing And Charging Truck
Price for refer only. Final Price Offer Discount.
Price: $ 218000
Discount Price: $ 198000
Availability:
Quantity:

  • 5320THACBBQ

  • HOWO

  • 8705909990

  • Shanghai, China

  • 300

  • T/T

  • 1

HOWO Dry Hole On-site Mixed 16 T Explosives ANFO Truck Mixing And Charging Truck

On-site Mixed Ammonium Nitrate Fuel Oil Explosive Mixing And Charging Truck

Carrying capacity:Porous granular ammonium nitrate 15500kg diesel 1000kg

Delivery efficiency:450kg/min

Measurement error:± 2%

Side helix rotation Angle:150 °

The main special equipment consists of power take-off assembly, dry material tank, fuel system, screw conveying system, hydraulic system, and computer digital control system.

It is mainly used for explosive charging in dry blastholes in open-pit mines. It operates through a three-stage screw conveying system including side screws to accurately fill properly proportioned explosives into blastholes.

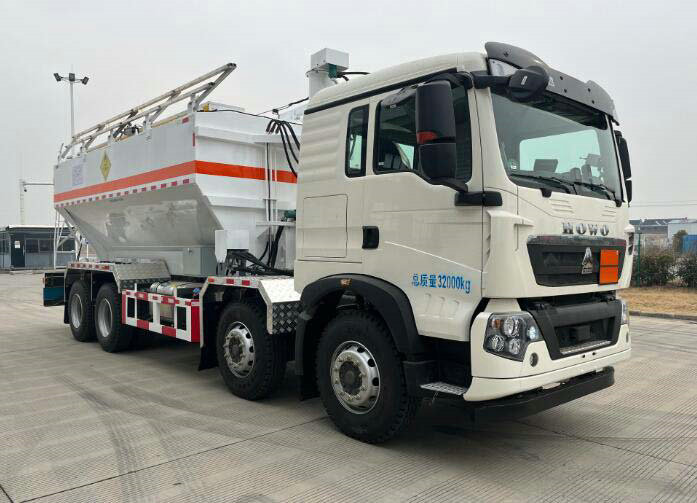

On-site Mixed Explosives ANFO Truck (3)

Item

Details

Item

Details

Overall Dimensions

10610×2500×3960 mm

Steering

Steering Wheel

Gross Mass

32000 kg

Payload

Curb Mass

15630 kg

Rated Payload

16240 / 16175 kg

Approach/Departure Angle

19°/11°

Front/Rear Overhang

1430/2205 mm

Fuel

Diesel

Euro 6


Axle Load

6500/7000/18500 (tandem axle)

Wheelbase

1800+3775+1400, 1800+4275+1400, 1800+4575+1400, 1950+3800+1400, 1950+4600+1400, 1800+3200+1400, 1950+4300+1400, 2100+3500+1400, 2300+3500+1400 mm

Axles

4

Max Speed

80 km/h

Tires

12

Tire Size

315/80R22.5 18PR, 295/80R22.5 18PR, 12R22.5 18PR, 12.00R20 18PR, 11.00R20 18PR

Fuel Consumption

38.13, 37.44, 37.21 L/100km

Leaf Springs

3/3/-/-, 2/2/-/-, 4/4/-/-, 2/2/1+-/1+-, 3/3/1+-/1+-, 3/3/2+-/2+-, 4/4/2+-/2+-, 11/11/-/-, 11/11/-

Front Track

2015/2015, 2035/2035, 2060/2060, 2000/2000 mm

Rear Track

1850/1850, 1870/1870 mm

Engine Model

Manufacturer

Displacement (ml)

Power (kW)

MC11.43-61; MC11.44-60; MC07H.33-60; MC09.35B-60; MC09.35-60; MC07.31-60; MC07.34-60; WP10H400E62; MC07H.35-60; MC09.38-60; MC07.33-60; WP9H350E62; MC11.40-60; MC11.40-61; WP8.350E61; MC11.46-61; MC11H.46-61; WP10.5H430E62; WP12.430E62; WP12.490E62; WP12.460E62; MC07H.31-61; M

Sinotruk; Weichai; Weichai

10518; 10518; 7360; 8765; 8765; 6870; 6870; 9500; 7360; 8765; 6870; 8800; 10518; 10518; 7800; 10518; 11050; 10520; 11596; 11596; 11596; 7360; 7360; 7800; 8240

319; 327; 240; 260; 260; 228; 251; 294; 257; 279; 240; 257; 297; 297; 257; 341; 341; 316; 316; 360; 338; 228; 254; 257; 265

Site mixed explosives vehicle 、ANFO / Explosive Delivery Trucks ANFO mix units


ANFO TRUCK  Dong Runze Special Vehicle  Heavy ANFO Units — Heavy ANFO Manufacture
