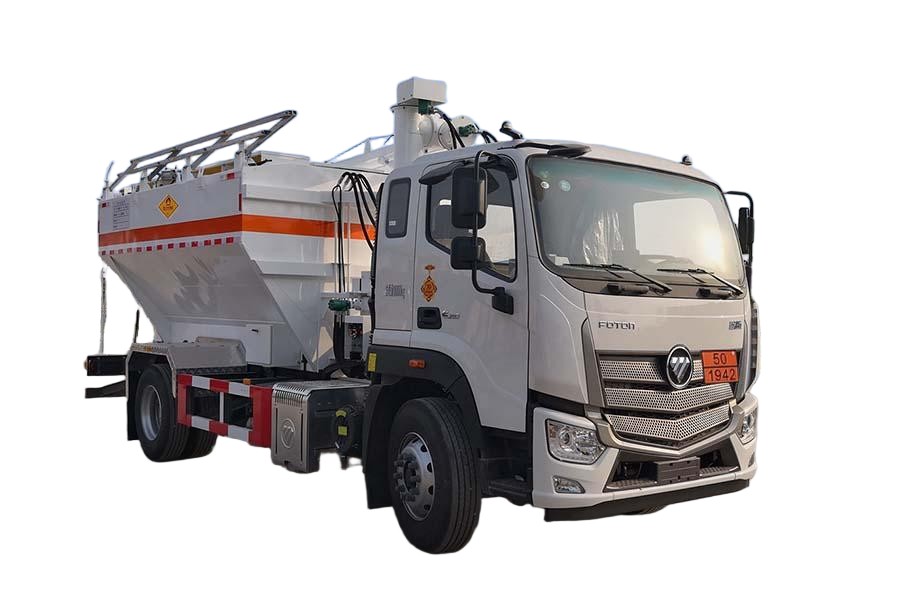

FOTON 8T Bulk On-site Mixed ANFO Explosives Mixing And Charging Truck

FOTON 8T Bulk On-site Mixed ANFO Explosives Mixing And Charging Truck
Price for refer only. Final Price Offer Discount.
Price: $ 168000
Discount Price: $ 158000
Availability:
Quantity:

  • 5180THABBQ

  • FOTON

  • 8705909990

  • Shanghai, China

  • 300

  • T/T

  • 1

FOTON 8T Bulk On-site Mixed ANFO Explosives Mixing And Charging Truck

This vehicle’s special equipment consists of power take-off assembly, dry material tank, fuel system, screw conveying system, hydraulic system, computer numerical control system, etc. It is mainly used for dry-hole explosive charging in open-pit mines. It operates through a three-stage screw conveying system including side screws, enabling precise charging of properly proportioned explosives into blast holes. The medium is ammonium nitrate, with UN number 5.1.

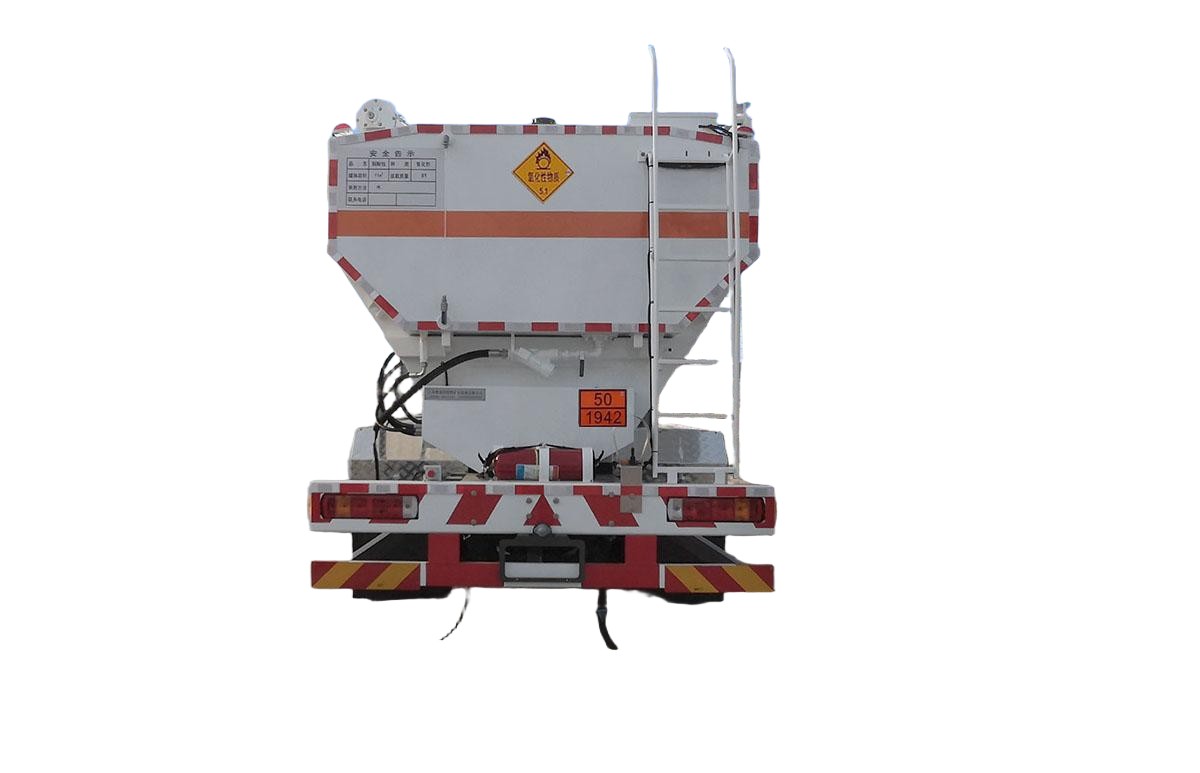

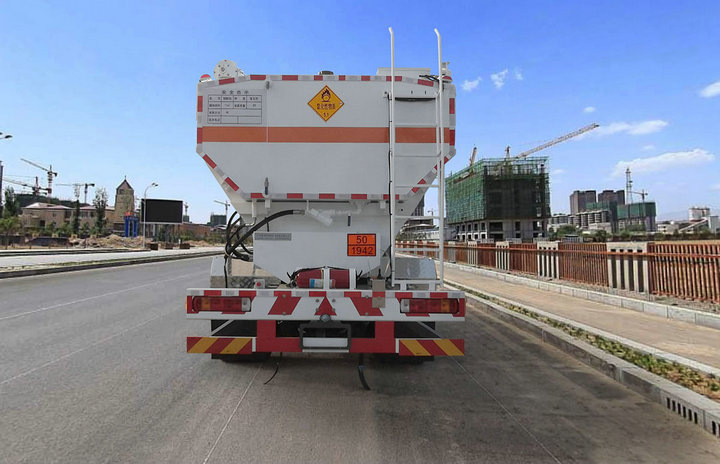

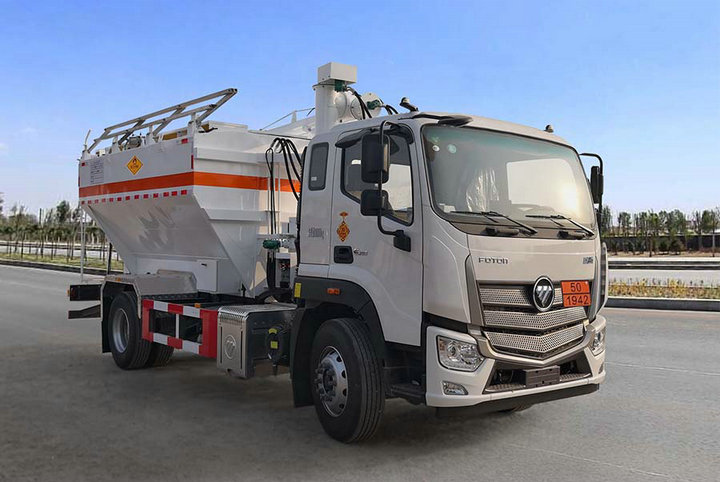

FOTON 8T Bulk On-site Mixed ANFO Explosives Mixing And Charging Truck (2)FOTON 8T Bulk On-site Mixed ANFO Explosives Mixing And Charging Truck (1)


 Mixed Emulsion Explosive Truck 、Explosive Mixing And Charging Trucks

Item

Details

Item

Details

Overall Dimensions (L×W×H)

8310×2500×3695 mm

Gross Weight

18000 kg

Curb Weight

9870 kg

Rated Payload

8000 / 7935 kg

Approach / Departure Angle

18° / 12°

Front / Rear Overhang

1270 / 2340 mm

Fuel Type

Diesel

Emission Standard

China Stage VI

Axle Load

6500 / 11500 kg

Wheelbase

4500, 5500, 5150, 5750, 4700, 5000 mm

Number of Axles

2

Max Speed

80 km/h

Number of Tires

6

Tire Specifications

10.00R20 18PR; 11R22.5 18PR; 275/80R22.5 18PR; 295/60R22.5 18PR

Fuel Consumption

26.0 L/100km

Leaf Spring

10/8+8; 10/10+8; 3/4+3; 10/–

Front Track

2008, 1960, 1931, 1982, 1952 mm

Rear Track

1860, 1840 mm


Engine Model

Manufacturer

Displacement (ml)

Power (kW)

CA6DH1-22E6

FAW Group Corporation

5700

165

B6.2NS6B210

Dongfeng Cummins Engine Co., Ltd.

6200

154

B6.2NS6B230

Dongfeng Cummins Engine Co., Ltd.

6200

169

F4.5NS6B190

Beijing Foton Cummins Engine Co., Ltd.

4500

140

D6.7NS6B230

Dongfeng Cummins Engine Co., Ltd.

6700

169

D6.7NS6B260

Dongfeng Cummins Engine Co., Ltd.

6700

191

F4.5NS6B220

Beijing Foton Cummins Engine Co., Ltd.

4500

162

B6.2NS6B245

Dongfeng Cummins Engine Co., Ltd.

6200

180

YCS06220-60

Guangxi Yuchai Machinery Co., Ltd.

6234

162

YCS04220-61A

Guangxi Yuchai Machinery Co., Ltd.

4295

162

F4.5NS6B240A

Beijing Foton Cummins Engine Co., Ltd.

4500

176

YCS06245-60A

Guangxi Yuchai Machinery Co., Ltd.

6234

180

YCS04200-68

Guangxi Yuchai Machinery Co., Ltd.

4156

147


Site mixed explosives vehicle 、ANFO / Explosive Delivery Trucks ANFO mix units

ANFO TRUCK  Dong Runze Special Vehicle  Heavy ANFO Units — Heavy ANFO Manufacture

The components of ANFO are usually mixed close to the point of operation for safety reasons. The final product, once mixed, is relatively safe and easy to handle. It is used by augering it into drill holes.

Ammonium Nitrate/Fuel Oil
is widely used in
coal mining,
quarrying, metal
mining, and civil construction. It’s best used in undemanding applications where its low cost and relative ease of use makes it a cost effective solution. It is estimated that ANFO accounts for an estimated 80% of explosives used annually around the world. To keep costs as low as possible, bulk ANFO is used, i.e. it is mixed on-site, near the borehole by a bulk truck

  • Emulsion explosives type BCRH-15;

  • Granulated explosives of ANFO type BCLH-15;

  • Mixed Heavy ANFO explosives BCZH-15.

The main container of the truck has two multifunctional tanks, which allow transporting emulsion UN 3375 or ammonium nitrate UN 1942.

  • when the truck is loaded only with components of the emulsion explosive (manufacturing and charging boreholes only with emulsion explosive) the truck’s capacity is 10~22 tons;

  • when the truck is loaded only with components of ANFO (manufacturing and charging boreholes only with ANFO) the truck’s capacity is 14,5 tons;

  • when the truck is loaded only with components of mixed explosives (30% ANFO + 70% emulsion explosives) the truck’s capacity is 16 tons;

The truck has the ability to charge the industrial explosives of varying density that allows you to charge units with different spacing.

Technological equipment of the truck enables the production of explosives on the basis of various emulsions both hot and cold type. For this purpose, the truck has two tanks for gassing agent of two different formulations.

Truck equipment is mounted on  Sinotruck HOWO 8x4 chassis with MAN Tech MC Engine , which provides the truck with improved driving characteristics on the charging unit (reducing the likelihood of boreholes filling up, receiving better handling, and the geometric flotation).

HS Code: 8705909990
Divided into two main series: ANFO Explosive Truck and Emulsion Explosive Truck, covering 10 models in total.

Series Classification

  1. BCLH Series: On-site Mixed ANFO Explosive Truck

  2. BCRH / BCZH Series: On-site Mixed Emulsion Explosive Truck


Core Technical Parameters

1. BCLH Series ANFO Explosive Truck

Model Power Porous Granular Ammonium Nitrate Diesel Oil Charging Efficiency
BCLH-15 273kW 14500kg 1000kg 450kg/min
BCLH-15G 273kW 14500kg 1000kg 350kg/min
BCLH-8 202kW 8000kg 600kg 300kg/min
BCLH-8G 202kW 8000kg 600kg 250kg/min

2. BCRH / BCZH Series Emulsion Explosive Truck

Model Power Loading Materials Charging Efficiency
BCRH-15B 248kW Water-based material:14500kg, Oil-based material:1000kg, Sensitizer:120kg 280kg/min
BCRH-15C 248kW Water-based material:12500kg, Oil-based material:800kg, Dry material:2500kg, Sensitizer:120kg 280kg/min
BCRH-15D 248kW Emulsion base:15000kg, Catalyst:120kg, Sensitizer:120kg 280kg/min
BCRH-15D Export Version 248kW Emulsion base:15000kg, Catalyst:120kg, Sensitizer:120kg 280kg/min
BCRH-15E 248kW Emulsion base:13000kg, Dry material:2500kg, Catalyst:120kg, Sensitizer:120kg 280kg/min
BCZH-15 248kW Emulsion base:11000/4500kg, Dry material:4500/11000kg, Catalyst:150kg, Sensitizer:150kg 200-280kg/min

Main Features

  • Rated power: 202kW, 248kW, 273kW optional

  • Load capacity: 8-ton grade & 20-ton

  • Working efficiency: 250~450kg/min

  • Stable output of emulsion type: 280kg/min; higher efficiency for ANFO type

  • Application: Mining and engineering blasting, realizing on-site mixing and charging with high safety and efficiency

  • Charge efficiency: Emulsion Explosive 250~280Kg/Min,

  • Ammonium Oil Explosive 300~450Kg/Min,

  • Heavy Ammonium Oil Explosives 300~400Kg/Min,

  • Heavy Emulsion Explosives 200~280Kg/Min

  • Charge efficiency charge water hole 100-200kg / min

  • Charge dry hole 300-450kg / min

  • Measurement error  ± 2%

— Heavy ANFO Manufacture
