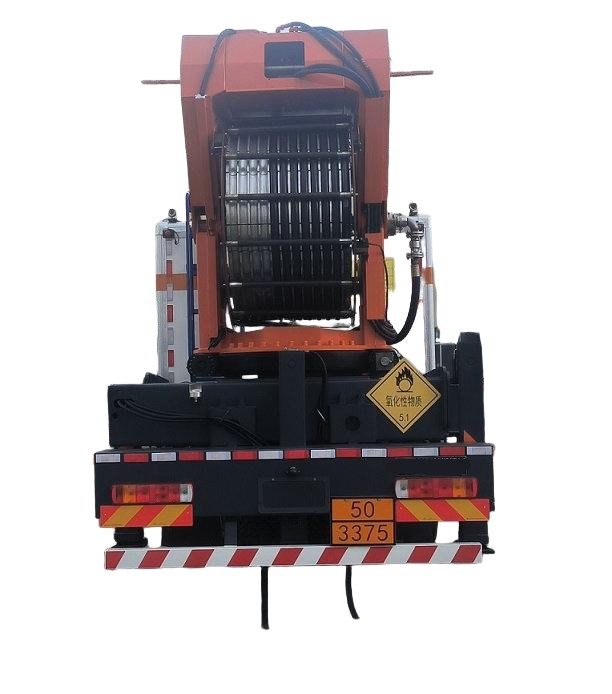

HOWO 8T Onsite Blend Mixing Charging Emulsion ANFO Explosives Bulk Delivery Truck with Loading Boom

HOWO 8T Onsite Blend Mixing Charging Emulsion ANFO Explosives Bulk Delivery Truck with Loading Boom
bulk explosive trucks Price for refer only. Final Price Offer Discount.
Price: $ 444444
Availability:
Quantity:

  • 5322THRSHTR

  • HOWO

  • 8705909990

  • Shanghai, China

  • 300

  • T/T

  • 1

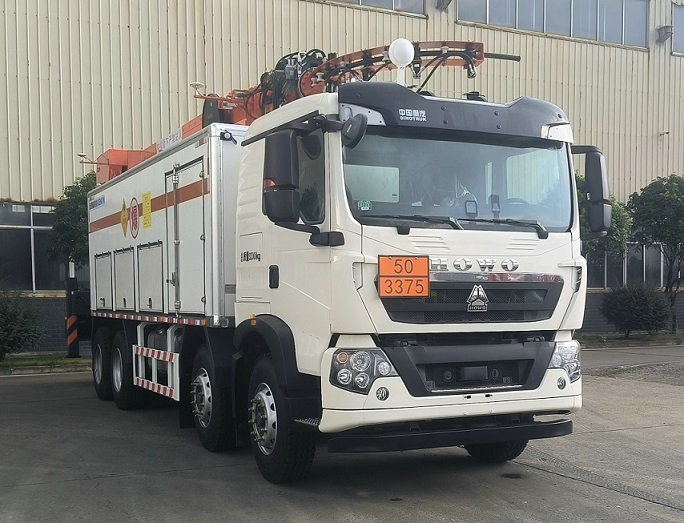

HOWO 8T Onsite Blend Mixing Charging Emulsion ANFO Explosives Bulk Delivery Truck with Loading Boom  ANFO Explosive Delivery Truck for Onsite Mixing and Loading (13)

Item

Specifications

Overall Dimensions

11540×2550×3970 mm

Gross Weight

32000 kg

Curb Weight

23100 kg

Rated Payload

8770 kg

Approach/Departure Angle

19/9 °

Front/Rear Overhang

1430/3135 mm

Axles

4

Max Speed

80 km/h

Tires

12

Tire Specifications

315/80R22.5 18PR, 295/80R22.5 18PR, 12R22.5 18PR, 12.00R20 18PR, 11.00R20 18PR

Fuel Consumption

33.32 L/100km

Engine Model

Manufacturer

Displacement (ml)

Power (kW)


MC07H.35-60 / -61 / -35P-61

Sinotruk

7360

257, 254, 258


MC11H.40-61 / .46-61 / .49-61

Sinotruk

11050

297, 341, 363


WP9H350E62; WP8T360/380E62

Weichai Power

8800; 8240

257; 265; 279


This is a special operation vehicle. Its special equipment includes power take-off assembly, emulsion matrix tank, fuel system, screw pumping system, hydraulic system, and electric control system. It is mainly used for explosive charging in wet blast holes of open-pit mines. Through delivery pump, telescopic boom and conveying pipe, it can accurately charge explosives with proper proportion into blast holes. Transport medium: Ammonium Nitrate Emulsion Matrix, Class 5.1 (Oxidizing Substances).
  • Side & rear underride protection: Material Q235; Side protection bolted; Rear protection welded.

  • Rear protection: Section 120×80 mm, ground clearance 485 mm.

  • Radial tires, front & rear disc brakes; Front exhaust pipe.

  • Tire blowout emergency protection device on steering wheels.

  • Fixed wheelbase: 1800+3775+1400 mm

  • Speed limiter: 80 km/h; Driving recorder with satellite positioning.

  • EBS controller: WABCO (Shanghai) / EBS3.

  • Optional: ETC on-board device.

  • Fuel consumption: MC07H.35-60: 33.32 L/100km

  ON-SITE MIXED EMULSION EXPLOSIVE TRUCK

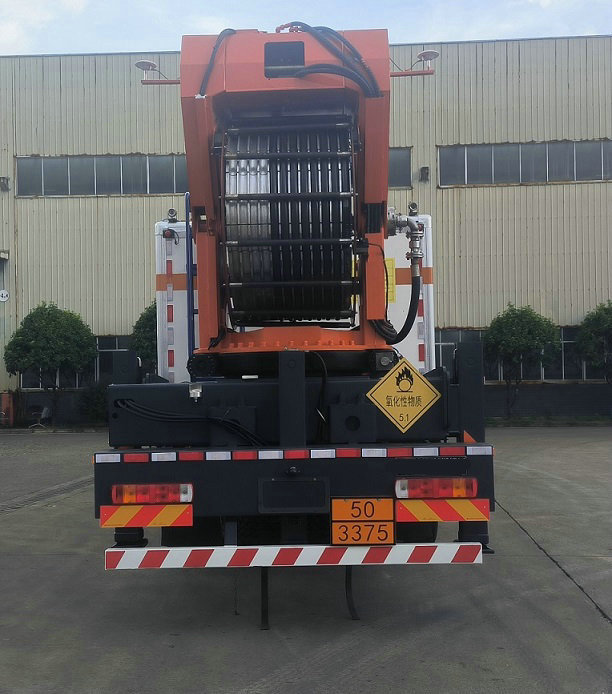

ANFO Explosive Delivery Truck for Onsite Mixing and Loading (14)

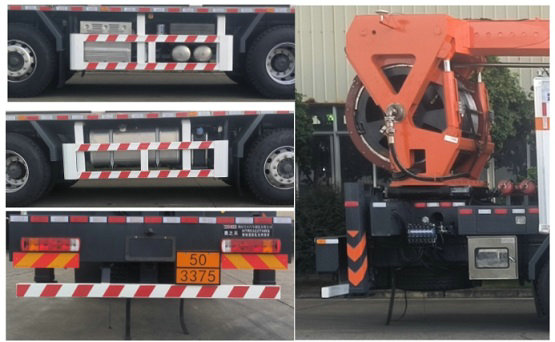

Site mixed explosives vehicle 、ANFO / Explosive Delivery Trucks ANFO mix unitsANFO Explosive Delivery Truck for Onsite Mixing and Loading (15)

ANFO TRUCK  Dong Runze Special Vehicle  Heavy ANFO Units — Heavy ANFO Manufacture
