Special Vehicles

EMAIL:Sale@tictrucks.com
Wechat: +8615271357675
MOB: 86-152-71357675
ADD: NO.1 TAIZONG AVENUE GAOQIAO INDUSTRY PARK TAIWANESE INVESTMENT AREA DONGXIHU DISTRICT WUHAN CITY, HUBEI PROVINCE, P.R CHINA

HOWO 12-13T On-site Heavy Emulsion ANFO Bulk Explosives Auger Mixing And Charging Truck

Share to:

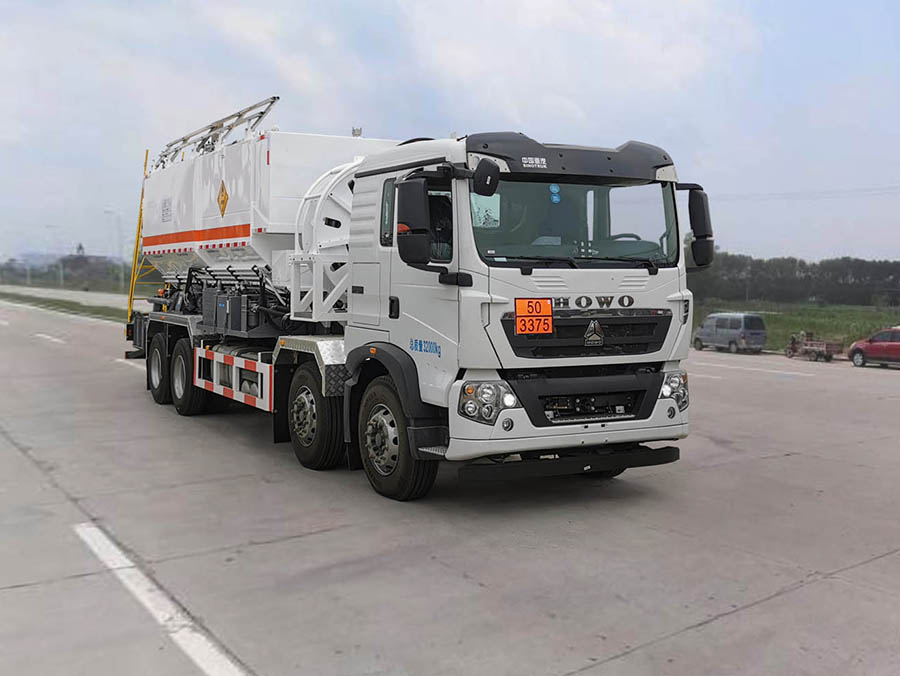

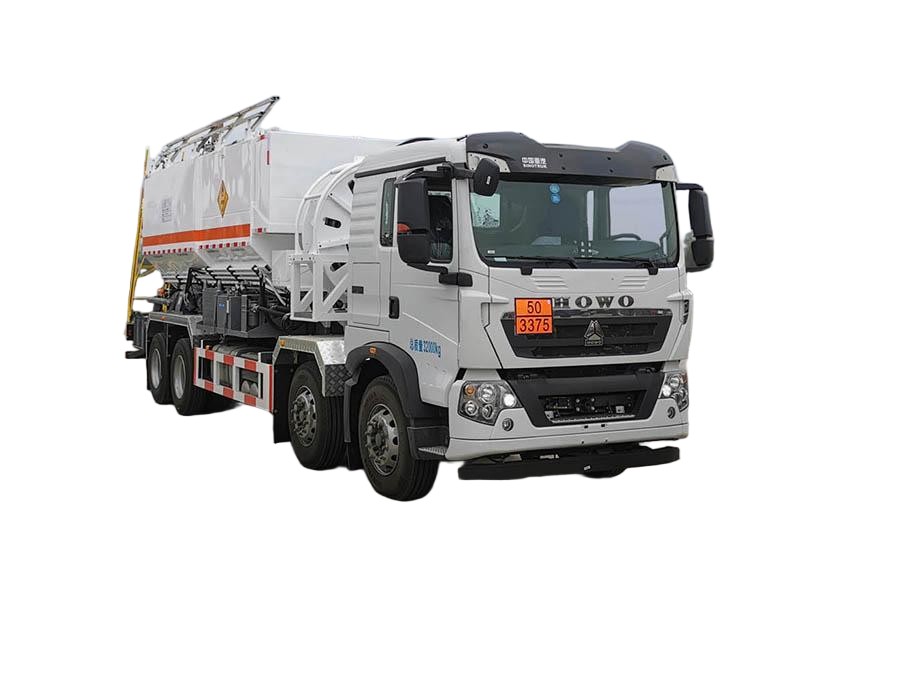

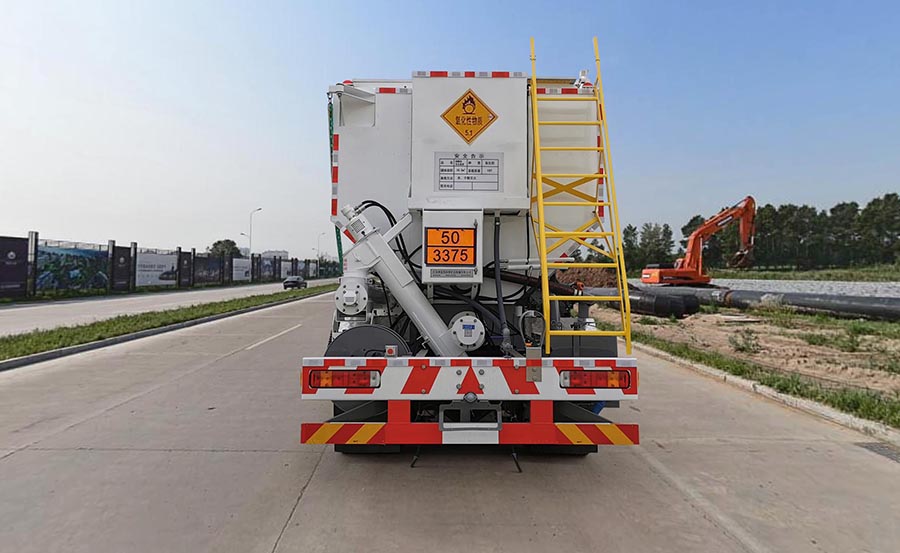

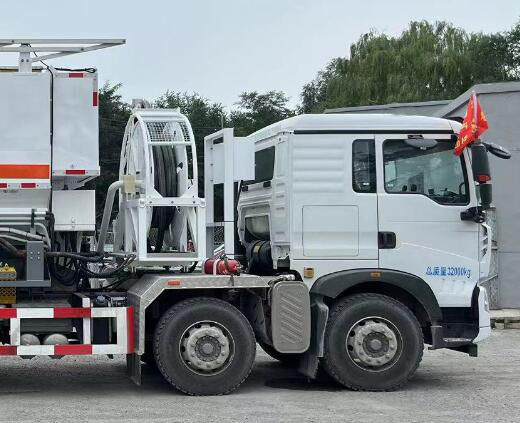

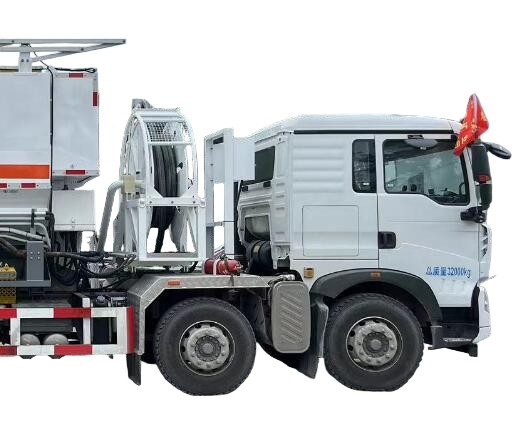

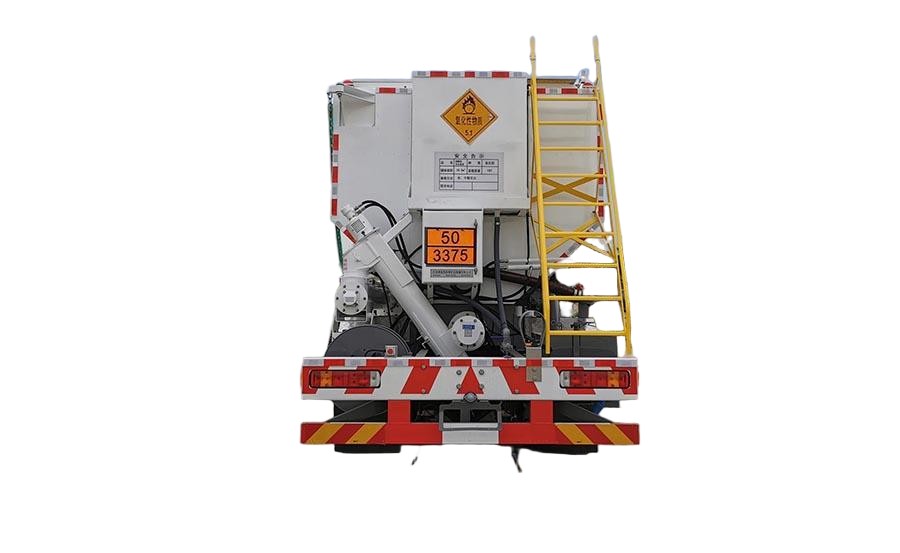

HOWO 12-13T On-site Heavy Emulsion ANFO Bulk Explosives Auger Mixing And Charging Truck

HOWO 12-13T On-site Heavy Emulsion ANFO Bulk Explosives Auger Mixing And Charging Truck
ammonium nitrate emulsion matrix and ammonium nitrate .
Price for refer only. Final Price Offer Discount.

Price: $ 298000

Discount Price: $ 288000

Availability:

Quantity:

Model:
5320THZBBQ
Brand:
HOWO
Code:
8705909990
Port:
Shanghai, China
Production Capacity:
300
Payment Terms:
T/T
Min. Order:
1

Product Description

HOWO 12-13T On-site Heavy Emulsion ANFO Bulk Explosives Auger Mixing And Charging Truck

Item		Value
Overall Dimensions (mm)		11670×2500×3938
Gross Mass (kg)		32000
Curb Weight (kg)		18900
Rated Payload (kg)		12970 / 12905
Axles		4
Wheelbase (mm)		1800+4575+1400
Max Speed (km/h)		80
Tires		12×12R22.5 18PR
Fuel Consumption (L/100km)		38.0 / 37.4 / 37.21
Model	Manufacturer	Displacement (ml)	Power (kW)
MC07.34-60	Sinotruk	6870	251
MC07H.35-60	Sinotruk	7360	257

Special Equipment & Purpose

Equipped with PTO, dry material tank, fuel system, screw conveyor, hydraulic system, and digital control system.Used for dry-hole explosive charging in open-pit mines via 3-stage screw conveying.AT vehicle; Dangerous goods: Class 5.1 (ammonium nitrate latex matrix & ammonium nitrate).

wheelbase: 1800+4575+1400 mm;

Delivery ammonium nitrate emulsion matrix and ammonium nitrate, both Class 5.1.

Chassis model: ZZ1327N466GF1K

Engine Model	Manufacturer	Displacement (ml)	Power (kW)
MC11.43-61	Sinotruk	10518	319
MC11.44-60	Sinotruk	10518	327
MC07H.33-60	Sinotruk	7360	240
MC09.35B-60	Sinotruk	8765	260
MC09.35-60	Sinotruk	8765	260
MC07.31-60	Sinotruk	6870	228
MC07.34-60	Sinotruk	6870	251
WP10H400E62	Weichai	9500	294
MC07H.35-60	Sinotruk	7360	257
MC09.38-60	Sinotruk	8765	279
MC07.33-60	Sinotruk	6870	240
WP9H350E62	Weichai	8800	257
MC11.40-60	Sinotruk	10518	297
MC11.40-61	Sinotruk	10518	297
WP8.350E61	Weichai	7800	257
MC11.46-61	Sinotruk	10518	341
MC11H.46-61	Sinotruk	11050	341
WP10.5H430E62	Weichai	10520	316
WP12.430E62	Weichai	11596	316
WP12.490E62	Weichai	11596	360
WP12.460E62	Weichai	11596	338
MC07H.31-61	Sinotruk	7360	228
MC07H.35-61	Sinotruk	7360	254
WP8.350E62	Weichai	7800	257

BCRH-15 Emulsion truck utilizes load-sensing proportional hydraulics and a closed loop control system to efficiently and accurately control the ratio of the pumped emulsion and chemical gassing agents. Emulsion is pumped through a progressive cavity pump, while high pressure piston pumps supply gassing agent and water flow. Emulsion hauling capacity is 15MT, and the delivery rate can be varied from 100-300kg/min. The control system is fully automated and features on-board data logging and diagnostics. The emulsion re-pump truck utilizes a configurable static mixer column and water ring lubrication system to reduce pumping pressure through the length of the hose.

BCLH-15 ANFO truck utilizes load-sensing proportional hydraulics and a closed loop control system to efficiently and accurately control the mixing and loading of ANFO. The control system delivers automation, wireless remote control, on-board data logging and diagnostics. The body is available with either an overhead or side boom auger configuration. ANFO hauling capacity is 15MT, and the ANFO discharge rate can be varied from 100-1000kg/min. The ANFO unit utilizes proportional computer-control and well-designed diesel fuel injection to increase the wetted surface area of AN prill for maximum fuel distribution and absorption.

BCZH quad multi-functional truck utilizes load-sensing proportional hydraulics and a closed loop control system to efficiently and accurately control the mixing ratio of ANFO, emulsion, and chemical gassing agents. The quad vehicle is capable of pumping or augering a full range of bulk products: 100% bulk emulsion, various heavy ANFO blends and100% ANFO. The control system is fully automated and feature on-board data logging and diagnostics. The unit utilizes a configurable static mixer column and water ring lubrication system to reduce pumping pressure through the length of the hose.

Dong Runze Special Vehicle	BCLH-15 ANFO Truck	BCRH-15 Emulsion Re-pump Truck	BCZH Quad Mixing/Loading Truck
Dimension(mm)	11700×2495×3895	11700×2495×3895	11850×2490×4400mm
Automotive chassis	BEIBEN (North-Benz)/Shananxi SHACMAN / Sinotruck HOWO/DFAC/FAW/FOTON	BEIBEN (North-Benz)/Shananxi SHACMAN / Sinotruck HOWO/DFAC/FAW/FOTON	BEIBEN (North-Benz)/Shananxi SHACMAN / Sinotruck HOWO/DFAC/FAW/FOTON SX1316DR366
Max. speed	90km/h	90km/h	90km/h
Max.load	16000kg	16000kg	25000kg
Charging quantity	15000kg	15000kg	Maximum 23400kg
Charging speed	Standard 200-450kg/min Maximum 1000kg/min	120~280kg/min	Standard 200~630kg/min Maximum 1000kg/min
Filling bore diameter	≥φ90mm	≥φ40mm	≥φ32mm
Hose specification		One hose each for 1”and 2”	One hose each for 1”and 2”
Hose length		40m	40m

Mixed Emulsion Explosive Truck 、Explosive Mixing And Charging Trucks

Other Instructions

Site mixed explosives vehicle 、ANFO / Explosive Delivery Trucks ANFO mix units

ANFO TRUC K Dong Runze Special Vehicle Heavy ANFO Units — Heavy ANFO Manufacture

The components of ANFO are usually mixed close to the point of operation for safety reasons. The final product, once mixed, is relatively safe and easy to handle. It is used by augering it into drill holes.

Ammonium Nitrate/Fuel Oil
is widely used in
coal mining,
quarrying, metal
mining, and civil construction. It’s best used in undemanding applications where its low cost and relative ease of use makes it a cost effective solution. It is estimated that ANFO accounts for an estimated 80% of explosives used annually around the world. To keep costs as low as possible, bulk ANFO is used, i.e. it is mixed on-site, near the borehole by a bulk truck

Emulsion explosives type BCRH-15;
Granulated explosives of ANFO type BCLH-15;
Mixed Heavy ANFO explosives BCZH-15.

The main container of the truck has two multifunctional tanks, which allow transporting emulsion UN 3375 or ammonium nitrate UN 1942.

when the truck is loaded only with components of the emulsion explosive (manufacturing and charging boreholes only with emulsion explosive) the truck’s capacity is 10~22 tons;
when the truck is loaded only with components of ANFO (manufacturing and charging boreholes only with ANFO) the truck’s capacity is 14,5 tons;
when the truck is loaded only with components of mixed explosives (30% ANFO + 70% emulsion explosives) the truck’s capacity is 16 tons;

The truck has the ability to charge the industrial explosives of varying density that allows you to charge units with different spacing.

Technological equipment of the truck enables the production of explosives on the basis of various emulsions both hot and cold type. For this purpose, the truck has two tanks for gassing agent of two different formulations.

Truck equipment is mounted on Sinotruck HOWO 8x4 chassis with MAN Tech MC Engine , which provides the truck with improved driving characteristics on the charging unit (reducing the likelihood of boreholes filling up, receiving better handling, and the geometric flotation).

HS Code: 8705909990

Divided into two main series: ANFO Explosive Truck and Emulsion Explosive Truck, covering 10 models in total.

Series Classification

BCLH Series: On-site Mixed ANFO Explosive Truck
BCRH / BCZH Series: On-site Mixed Emulsion Explosive Truck

Core Technical Parameters

1. BCLH Series ANFO Explosive Truck

Model	Power	Porous Granular Ammonium Nitrate	Diesel Oil	Charging Efficiency
BCLH-15	273kW	14500kg	1000kg	450kg/min
BCLH-15G	273kW	14500kg	1000kg	350kg/min
BCLH-8	202kW	8000kg	600kg	300kg/min
BCLH-8G	202kW	8000kg	600kg	250kg/min

2. BCRH / BCZH Series Emulsion Explosive Truck

Model	Power	Loading Materials	Charging Efficiency
BCRH-15B	248kW	Water-based material:14500kg, Oil-based material:1000kg, Sensitizer:120kg	280kg/min
BCRH-15C	248kW	Water-based material:12500kg, Oil-based material:800kg, Dry material:2500kg, Sensitizer:120kg	280kg/min
BCRH-15D	248kW	Emulsion base:15000kg, Catalyst:120kg, Sensitizer:120kg	280kg/min
BCRH-15D Export Version	248kW	Emulsion base:15000kg, Catalyst:120kg, Sensitizer:120kg	280kg/min
BCRH-15E	248kW	Emulsion base:13000kg, Dry material:2500kg, Catalyst:120kg, Sensitizer:120kg	280kg/min
BCZH-15	248kW	Emulsion base:11000/4500kg, Dry material:4500/11000kg, Catalyst:150kg, Sensitizer:150kg	200-280kg/min

Main Features

Rated power: 202kW, 248kW, 273kW optional
Load capacity: 8-ton grade & 20-ton
Working efficiency: 250~450kg/min
Stable output of emulsion type: 280kg/min; higher efficiency for ANFO type
Application: Mining and engineering blasting, realizing on-site mixing and charging with high safety and efficiency
Charge efficiency: Emulsion Explosive 250～280Kg/Min,
Ammonium Oil Explosive 300～450Kg/Min,
Heavy Ammonium Oil Explosives 300～400Kg/Min,
Heavy Emulsion Explosives 200～280Kg/Min
Charge efficiency charge water hole 100-200kg / min
Charge dry hole 300-450kg / min
Measurement error ± 2%

— Heavy ANFO Manufacture
