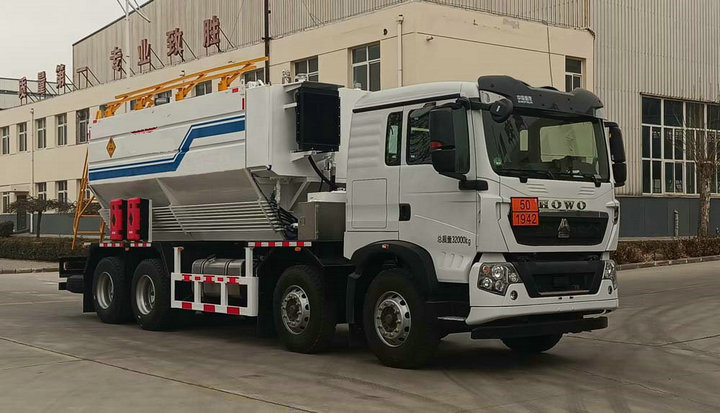

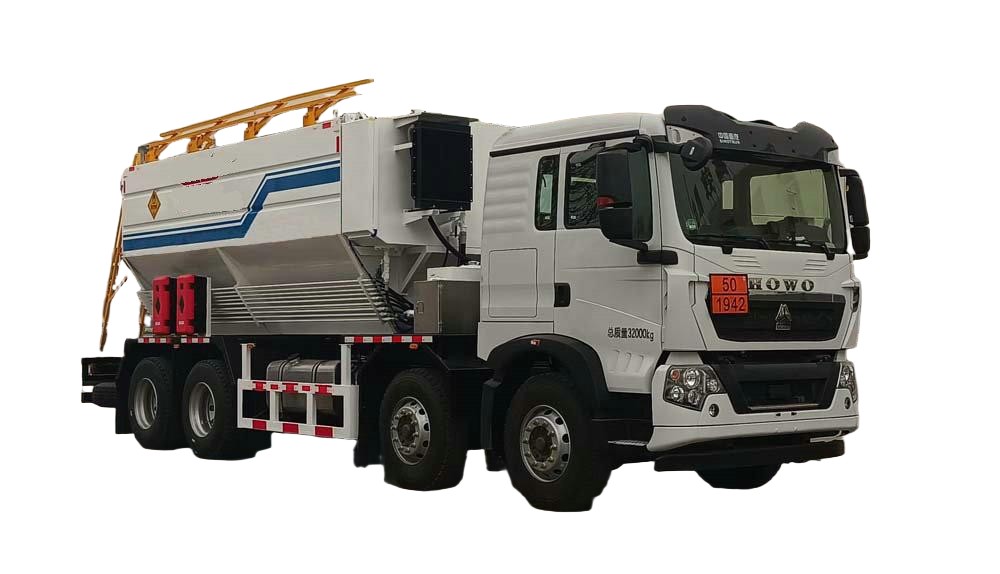

HOWO 12T On-site Mixed Granular ANFO Bulk Explosives Mixing And Charging Truck
Mixed Emulsion Explosive Truck 、Explosive Mixing And Charging Trucks
Item | Details |
Overall Dimensions | 10410×2500×3680(mm) |
Gross Mass | 32000(Kg) |
Curb Mass | 14470(Kg) |
Rated Load Mass | 17400(Kg) |
Approach Angle/Departure Angle | 19/13(°) |
Front Overhang/Rear Overhang | 1430/2005(mm) |
Fuel Type | Diesel |
Emission Standard | China VI E6 |
Axle Load | 6500/7000/18500(tandem axle group) |
Wheelbase | 1800+3775+1400, 1800+4275+1400, 1800+4575+1400, 1950+3800+1400, 1950+4600+1400, 1800+3200+1400, 1950+4300+1400, 2100+3500+1400, 2300+3500+1400(mm) |
Number of Axles | 4 |
Max Speed | 80(km/h) |
Number of Tires | 12 |
Tire Specifications | 315/80R22.5 18PR, 295/80R22.5 18PR, 12R22.5 18PR, 12.00R20 18PR, 11.00R20 18PR |
Fuel Consumption | 38.0, 38.5, 37.21(L/100Km) |
Leaf Spring Quantity | 3/3/-/-, 2/2/-/-, 4/4/-/-, 2/2/1+-/1+-, 3/3/1+-/1+-, 3/3/2+-/2+-, 4/4/2+-/2+-, 11/11/-/-, 11/11/- |
Front Track | 2015/2015, 2035/2035, 2060/2060, 2000/2000(mm) |
Rear Track | 1850/1850, 1870/1870(mm) |
Engine Model | Manufacturer | Displacement(ml) | Power(kw) |
MC11.43-61; MC11.44-60; MC07H.33-60; MC09.35B-60; MC09.35-60; MC07.31-60; MC07.34-60; WP10H400E62; MC07H.35-60; MC09.38-60; MC07.33-60; WP9H350E62; MC11.40-60; MC11.40-61; WP8.350E61; MC11.46-61; MC11H.46-61; WP10.5H430E62; WP12.430E62; WP12.490E62; WP12.460E62; MC07H.31-61; M | Sinotruk Group Co., Ltd.; Weichai Power Co., Ltd | 10518; 10518; 7360; 8765; 8765; 6870; 6870; 9500; 7360; 8765; 6870; 8800; 10518; 10518; 7800; 10518; 11050; 10520; 11596; 11596; 11596; 7360; 7360; 7800; 8240 | 319; 327; 240; 260; 260; 228; 251; 294; 257; 279; 240; 257; 297; 297; 257; 341; 341; 316; 316; 360; 338; 228; 254; 257; 265 |
Other Instructions
The material of the vehicle side protection device is Q235-A, and the rear lower protection device is made of Q345. The overall dimension of the rear protection cross-section is 140mm×80mm. The side and rear protections are connected by bolts, and the ground clearance of the rear lower protection device is 450mm.
The medium carried by this vehicle is ammonium nitrate emulsion matrix and ammonium nitrate, both of which are of Class 5.1 (oxidizing substances).
This product can be equipped with an additive system as an option.
Side box plates with different structures are optional.
This vehicle is equipped with a rear marking plate conforming to national standards.
It is equipped with dangerous goods warning signs and marker lamps.
The vehicle type for transporting dangerous goods is Type AT.
This vehicle adopts engines of models MC07.34-60, MC07H.35-60, and MC07H.35-61, with declared fuel consumption of 38.0L/100km, 38.5L/100km, and 37.21L/100km respectively, and net power of 248kW, 254kW, and 251kW respectively.
The wheelbase of the selected chassis is 1800+3775+1400mm.
The Class II chassis of this vehicle is equipped with ABS (model: 4460046300, manufacturer: WABCO (Shanghai) Management Co., Ltd.). EBS (controller manufacturer: WABCO (Shanghai) Management Co., Ltd., model: EBS3) is optional with the chassis. All steering wheels are fitted with tire blowout emergency protection devices and radial tires. It is also equipped with a driving recorder with satellite positioning function, GPS/Beidou dual-mode positioning device, speed limiter (limited to 80km/h), ETC device, front exhaust system, front wheel disc brake, exhaust auxiliary brake device meeting standards, seat belts, rearview mirrors, etc.
The rear axles of this vehicle adopt air suspension with the chassis.

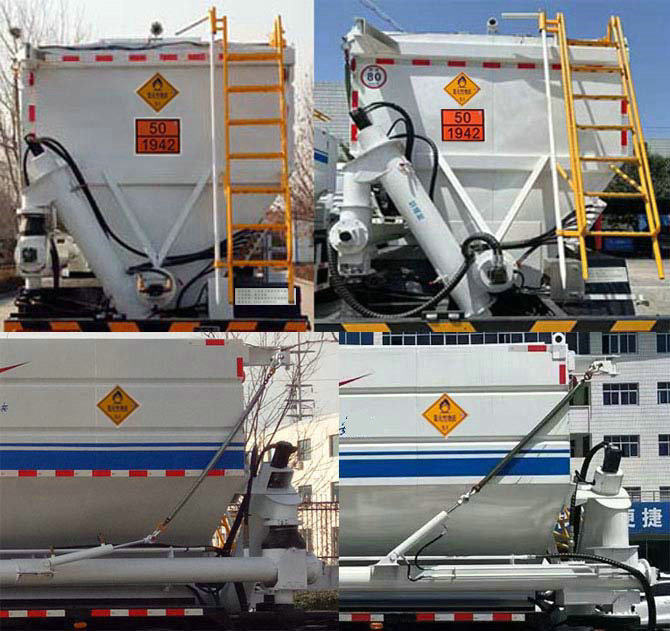

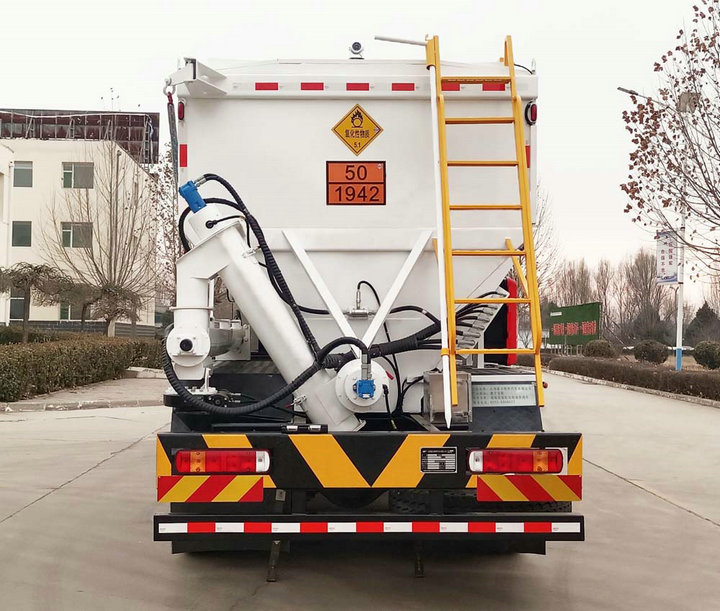

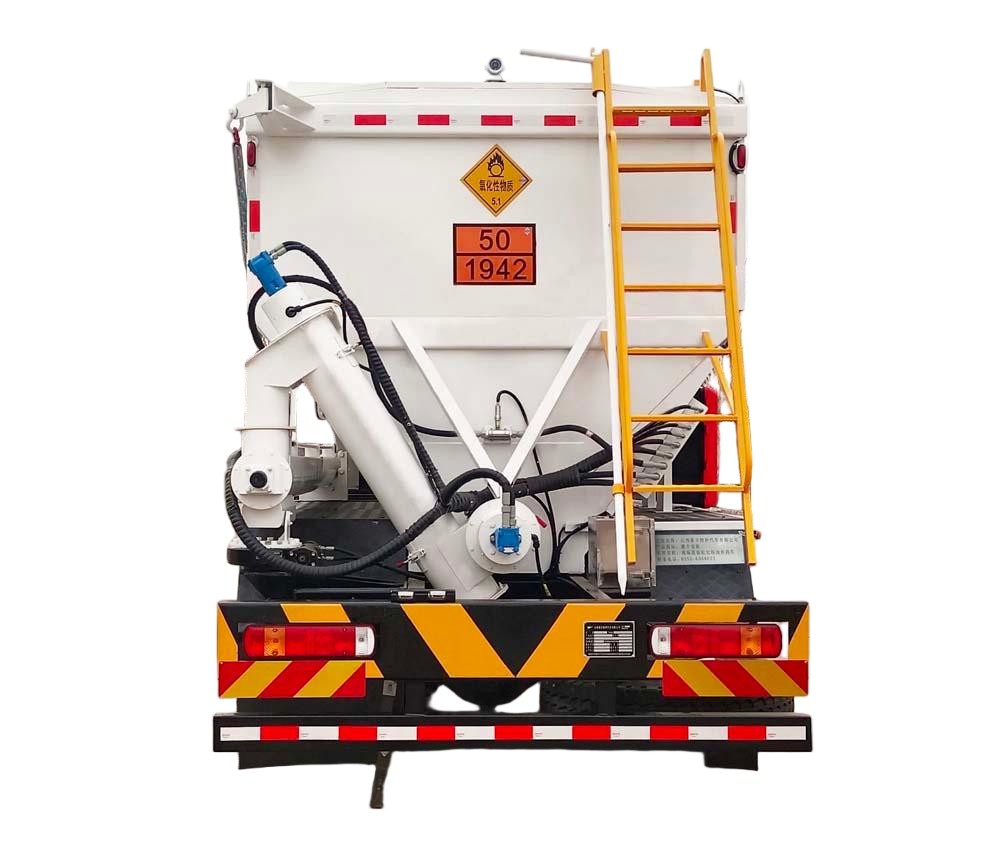

It is mainly suitable for dry hole explosive charging in open-pit mines. The special device consists of a box body, support, screw conveyor, hydraulic system, etc.
The appearance of the chassis cab is optional.
Two types of screw conveyor structures are optional.
Site mixed explosives vehicle 、ANFO / Explosive Delivery Trucks ANFO mix units
ANFO TRUCK Dong Runze Special Vehicle Heavy ANFO Units — Heavy ANFO Manufacture
The components of ANFO are usually mixed close to the point of operation for safety reasons. The final product, once mixed, is relatively safe and easy to handle. It is used by augering it into drill holes.
Ammonium Nitrate/Fuel Oil
is widely used in
coal mining,
quarrying, metal
mining, and civil construction. It’s best used in undemanding applications where its low cost and relative ease of use makes it a cost effective solution. It is estimated that ANFO accounts for an estimated 80% of explosives used annually around the world. To keep costs as low as possible, bulk ANFO is used, i.e. it is mixed on-site, near the borehole by a bulk truck
Emulsion explosives type BCRH-15;
Granulated explosives of ANFO type BCLH-15;
Mixed Heavy ANFO explosives BCZH-15.
The main container of the truck has two multifunctional tanks, which allow transporting emulsion UN 3375 or ammonium nitrate UN 1942.
when the truck is loaded only with components of the emulsion explosive (manufacturing and charging boreholes only with emulsion explosive) the truck’s capacity is 10~22 tons;
when the truck is loaded only with components of ANFO (manufacturing and charging boreholes only with ANFO) the truck’s capacity is 14,5 tons;
when the truck is loaded only with components of mixed explosives (30% ANFO + 70% emulsion explosives) the truck’s capacity is 16 tons;
The truck has the ability to charge the industrial explosives of varying density that allows you to charge units with different spacing.
Technological equipment of the truck enables the production of explosives on the basis of various emulsions both hot and cold type. For this purpose, the truck has two tanks for gassing agent of two different formulations.
Truck equipment is mounted on Sinotruck HOWO 8x4 chassis with MAN Tech MC Engine , which provides the truck with improved driving characteristics on the charging unit (reducing the likelihood of boreholes filling up, receiving better handling, and the geometric flotation).
Series Classification
BCLH Series: On-site Mixed ANFO Explosive Truck
BCRH / BCZH Series: On-site Mixed Emulsion Explosive Truck
Core Technical Parameters
1. BCLH Series ANFO Explosive Truck
| Model | Power | Porous Granular Ammonium Nitrate | Diesel Oil | Charging Efficiency |
|---|---|---|---|---|
| BCLH-15 | 273kW | 14500kg | 1000kg | 450kg/min |
| BCLH-15G | 273kW | 14500kg | 1000kg | 350kg/min |
| BCLH-8 | 202kW | 8000kg | 600kg | 300kg/min |
| BCLH-8G | 202kW | 8000kg | 600kg | 250kg/min |
2. BCRH / BCZH Series Emulsion Explosive Truck
| Model | Power | Loading Materials | Charging Efficiency |
|---|---|---|---|
| BCRH-15B | 248kW | Water-based material:14500kg, Oil-based material:1000kg, Sensitizer:120kg | 280kg/min |
| BCRH-15C | 248kW | Water-based material:12500kg, Oil-based material:800kg, Dry material:2500kg, Sensitizer:120kg | 280kg/min |
| BCRH-15D | 248kW | Emulsion base:15000kg, Catalyst:120kg, Sensitizer:120kg | 280kg/min |
| BCRH-15D Export Version | 248kW | Emulsion base:15000kg, Catalyst:120kg, Sensitizer:120kg | 280kg/min |
| BCRH-15E | 248kW | Emulsion base:13000kg, Dry material:2500kg, Catalyst:120kg, Sensitizer:120kg | 280kg/min |
| BCZH-15 | 248kW | Emulsion base:11000/4500kg, Dry material:4500/11000kg, Catalyst:150kg, Sensitizer:150kg | 200-280kg/min |
Main Features
Rated power: 202kW, 248kW, 273kW optional
Load capacity: 8-ton grade & 20-ton
Working efficiency: 250~450kg/min
Stable output of emulsion type: 280kg/min; higher efficiency for ANFO type
Application: Mining and engineering blasting, realizing on-site mixing and charging with high safety and efficiency
Charge efficiency: Emulsion Explosive 250～280Kg/Min,
Ammonium Oil Explosive 300～450Kg/Min,
Heavy Ammonium Oil Explosives 300～400Kg/Min,
Heavy Emulsion Explosives 200～280Kg/Min
Charge efficiency charge water hole 100-200kg / min
Charge dry hole 300-450kg / min
Measurement error ± 2%
— Heavy ANFO Manufacture
