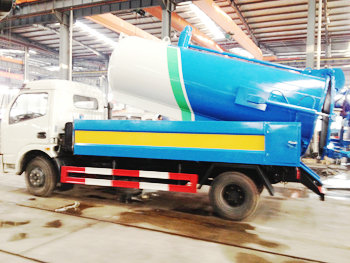

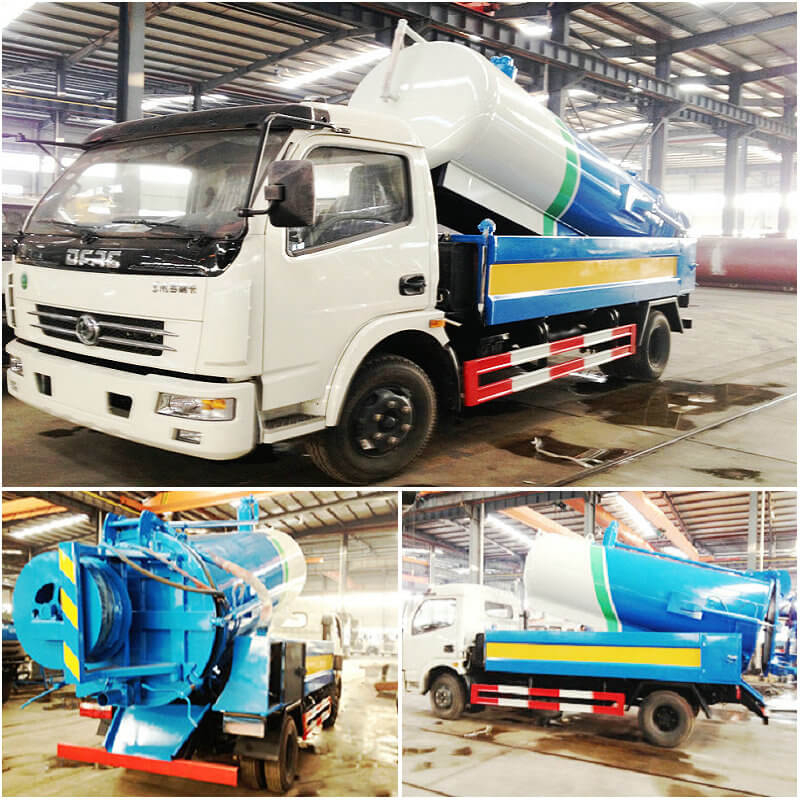

8-10CBM High-pressure Sewer Jet Truck
| Quantity: | |
|---|---|
vacuum tanker with pressure water clean truck
| Technical Parameters | |||
| Total Mass(kg) | 9400 | Curb Weight(Kg) | 5805 |
| Rated Quality(kg) | 3400 | Chassis Model | EQ1090 |
| Approach/ Departure Angle | 22/13 | Front /Rear Overhang | 990/1500 |
| Dimensions(mm) | 7260*2350*2800 | compression volume | 8CBM |
| Number of axes | 2 | Maximum speed(km/h) | 95 |
| Tire Specifications | 8.25-16,7.50-16,8.25R16,7.50R16 | Number of Tires | 6 |
| Front track(mm) | 1831 | Rear track(mm) | 1640 |
| Wheelbase(mm) | 3800 | Number of spring | 11/9+7 |
| Emission standards | Euro 3 | Type of fuel | Diesel |
| Engine Parameters | |||
| Engine Model | CY4102E3C | Engine Manufacturer | Chaoyang engine power co., LTD. |
| Engine displacement | 3856ml | Engine Power | 91(kw) |
| Brief Description | 1.Equipped with Italy high-pressure water pump, 60m high-pressure pipe and 10 punch. With observation hole, 1 artesian bores, hand washing device, 5m absorption of soil pipe,. With vacuum pipe and water and oil separator. | ||
| 2. Material: 5mm high quality plate | |||
| .3.Time for full tank: ≤5min, suction distance: ≥10m | |||
