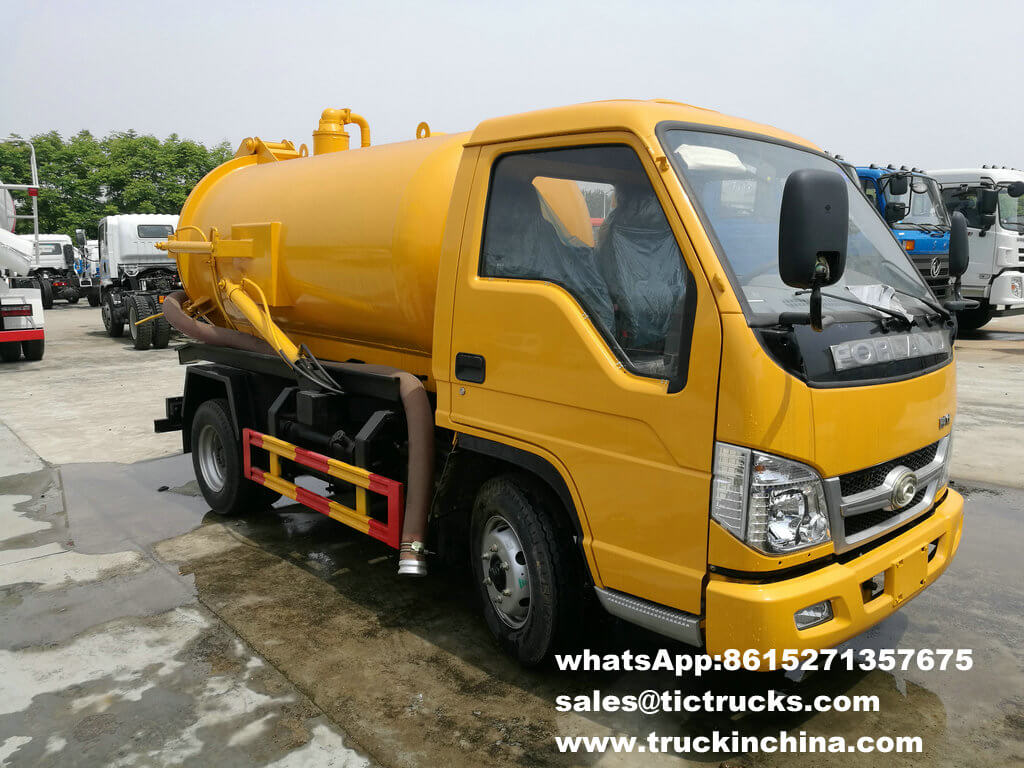

Forton Forland 3000 liter Capacity Sewage Vacuum Suction tank Truck RHD /LHD

Forton Forland 3000 liter Capacity Sewage Vacuum Suction tank Truck RHD /LHD
Tank Capacity 3,000 Litres
Tank Material Carbon Steel
Vacuum Pump
Highly efficient, vacuum rate 93%, quick suction and discharge, suction lift 6m.
Hose High quality, wire strengthened hose
Rear door can be hydraulic opened for complete discharge of solid stuff.
All necessary accessories: anti-fill valve, level indicator, inlet, discharge, high quality suction hose, etc.
Price: $ 15000  -  18000
Discount Price: $ 13500  -  15800
FOB:
Availability:
Quantity:

  • DRZ5073GXWB

  • Forland

  • 8705909990

 Forton Forland 3000 liter Capacity Sewage Vacuum Suction tank Truck RHD /LHD

Tank Capacity 3,000 Litres

Tank Material Carbon Steel

Vacuum Pump

Highly efficient, vacuum rate 93%, quick suction and discharge, suction lift 6m.

Hose High quality, wire strengthened hose

Rear door can be hydraulic opened for complete discharge of solid stuff.

All necessary accessories: anti-fill valve, level indicator, inlet, discharge, high quality suction hose, etc.

vacuum tanker sewage suction--02T-.jpgvacuum tanker sewage suction-02T-_1.jpgvacuum tanker sewage suction-01T-_1.jpgvacuum tanker sewage suction-03T-_1.jpgvacuum tanker sewage suction-04T-_1.jpgvacuum tanker sewage suction-05T-_1.jpgvacuum tanker sewage suction-06T-_1.jpgvacuum tanker sewage suction-4000L-_1.jpegvacuum tanker sewage suction-5000L-_1.jpeg


 Forton Forland 3000 liter Capacity Sewage Vacuum Suction tank Truck RHD /LHD

Tank Capacity 3,000 Litres

Tank Material Carbon Steel

Vacuum Pump

Highly efficient, vacuum rate 93%, quick suction and discharge, suction lift 6m.

Hose High quality, wire strengthened hose

Rear door can be hydraulic opened for complete discharge of solid stuff.

All necessary accessories: anti-fill valve, level indicator, inlet, discharge, high quality suction hose, etc.

Vehicle parameters

 Forton Forland 3000 liter Capacity Sewage Vacuum Suction tank Truck RHD /LHD @ 78HP

Vehicle brand

FOTON



Overall dimensions

5970x1960x2950mm

Curb weight

3740kg

Van dimensions

4100x1900x1880mm

Loading weight

4000kg

Vaccum tank body structrues

 Carbon Steel,stainless steel,Alloy,

 Optional

Thickness

5mm,6mm

 Inner lined PE/plastic

 Optional

Color and Logo

Optional

ChassisParameters

Chassis model

BJ1073VEJEA-A

Chassis brand

FOTON

Overall dimensions

5875x1915x2150mm

Wheel base

3360mm

Front/rear wheel track

1415/1485mm

Front/rear suspensin

1085/1430mm

Approach/departure angle

23/19°



Maximum speed

95km/h

Cab

Configurantion

D1695 single row cab, allowable 3 passengers, with warm air, all English signs in car body, English instruction ,international general accessories, double front windshield, power switch

Color

White, other color is optional

Engine

Model

4DW92-73

Emission

Euro 2

Type

4 cylinders, in-line, direct injection, diesel engine

Rated power

78hp,rated power speed 3200rpm

Displacement

2540ml

Max.torque

188N.m

Bore x stroke

90x100mm

Tire



Size

6.50-16 Double Star nylon tire

Number

6+1 nos

Fuel tank

70L iron oil tank

Rear axle

1046 rear axle(4tons)

Drive form

4X2

Rated voltage

Camel brand,24V,DC

Transmissions

5 speed forward 1 reverse

Steering device

Power assisted steering

Configuration

Chassis, sub frame,

vacuum sewage tank,oil water separator, water gas separator, hydraulic cylinder for unloading device, domestic vacuum pump, pressure gauge,suction hose, gravity flow valve, connected device,observation tube, automatic anti overflow valve, hydraulic suite,rear door hydraulic opening.
Selective configuration Italy BP vacuum pump,Italy Hydraulic Motor

Italy BP vacuum pump
Model MEC9000 RPM 1400r/min
Flow 107L/min Pressure 174bar
Power 30kw Weight 145kg


Italy Hydraulic Motor
Code 6080200141 Model KM30.73-RO
R.P.M 1000r/min Capacity 73,82L/min
Output 17KW Torque 136Nm

optional liquid ring vaccum pump

Sewage Vacuum Suction Truck Forton Forland RHD /LHD 3000 liter Capacity  @Foton 108HP

   Sewage Vacuum Suction Truck Forton Forland RHD /LHD 3000 liter Capacity

General

Vehicle Brand

DRZ

Chassis Brand

Forland

Overall Dimension

5670x1900x2340 mm

GVW / Kerb Weight

6,300 kg / 3,160 kg

Cab

Cab Capacity

3 persons allowed

Air Conditioner

Air conditioner is optional

Chassis

Drive Type

4x2 right hand drive, power assisted steering

Fuel Type

Diesel

Engine Make & Model

Foton Engine

Power

108 Hp (80 KW)

Displacement

3500 ml

Emission Standard

Euro II

Transmission

5 front and 1 reverse

Wheelbase/No. of axle

3360 mm / 2

Tyre Specification

7.00-16

Tyre Number

6 tyres and 1 spare tyre

Max Speed

95 km/h

Paint

Metallic paint

Superstructure

Tank Capacity

3,000 Litres

Tank Material

Carbon Steel

Vacuum Pump

Highly efficient, vacuum rate 93%, quick suction and discharge, suction lift 6m.

Hose

High quality, wire strengthened hose

Rear door can be hydraulic opened for complete discharge of solid stuff.

All necessary accessories: anti-fill valve, level indicator, inlet, discharge, high quality suction hose, etc.

Optional

** Tank material could be carbon steel, stainless steel.
** Vacuum pump could be imported brand.
