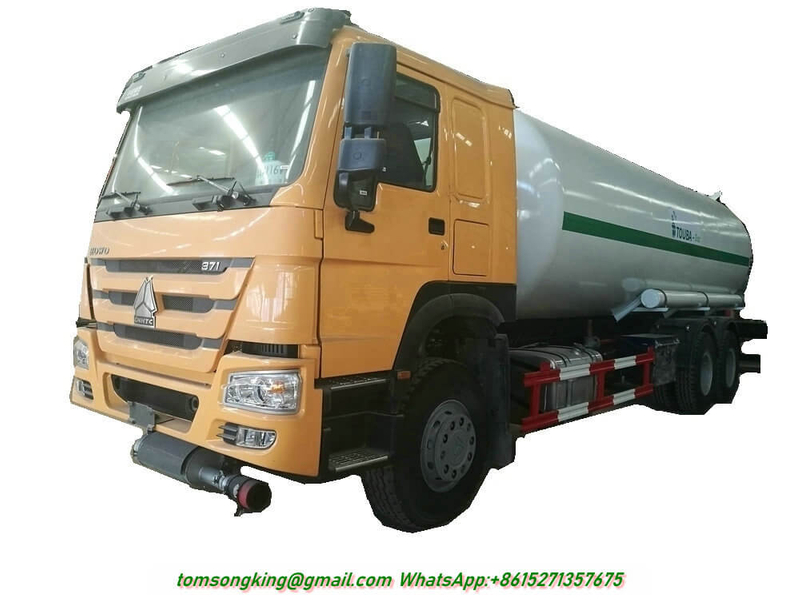

HOWO LPG Bobtail Truck 10 Wheels - 6X4 RHD,LHD 24,000L-30,000Liters
| FOB: | |
|---|---|
| Quantity: | |
|
| |
-
DRZ5250GJQ
-
DRZ
-
8705909990
HOWO LPG Bobtail Truck 10 Wheels - 6X4 RHD,LHD 24,000L-30,000Liters
LPG PUMP PTO
LPG Tank | Volume | 24m3,30m3 |
material | Q345R | |
Tanks thickness | 12 mm | |
Design pressure | 1.77 Mpa | |
Design temperature | -20~+50 °C | |
filling ratio | 0.42 T/ m³ | |
Main Accessories | Emergency Cut-off Valve, Safety Valve, Ball Valve, Liquid level meter, Pressure gauge, Temperature Gauge, Valve Boxes, LPG dispenser, LPG filling gun. |
Description | HOWO LPG BOBTAIL TRUCK 24,000L -30,000Liters 10 Wheels / 6X4 | ||
Condition | New condition/LHD | ||
Chassis
| Curb weight(kg) | 12870 | |
G.V.W.(kg) | 25000 | ||
Wheelbase(mm) | 5225+1350 | ||
Dimensions(mm) | 10900×2500×3750 | ||
Overhang (front/rear) (mm) | 1320/3080 | ||
Approach/Departure angle(°) | 20/13 | ||
Axle Load(kg) | 7000/18000 | ||
Max. driving speed(km/h) | 80 | ||
Brand | Sinotruk(HOWO) | ||
Model | ZZ1257 | ||
Tire | Number | 10pcs with one spare tire | |
Specifications | 12R22.5 | ||
Clutch | Reinforced diaphragm clutch | ||
Gear box | HW13710 10 Forwards & 2 reverses | ||
Engine | Model | WD615.62 266HP / 196KW WD615.69 /WD615.95E 336HP/247KW WD615.47 371HP / 273KW | |
Displacement(ml) | 9726 | ||
Horsepower(HP)/Power(kw) | 266HP / 196KW； 336HP / 247KW； 371HP / 273KW | ||
Emission standard | Euro 2 | ||
Brakes | Service brake: dual circuit compressed air brake Parking brake(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | ||
Cab | HW76, It can accommodate three people | ||
Steering Gear | ZF 8098, Power steering, hydraulic steering with power assistance | ||
Remarks | 1, 2 units Fire Extinguisher Cabinet 2, With Air conditioning | ||
Tank Attachments
1. Fitted with internal ring segments, drilled for assembly of 4 demountable and folded steel surge baffles. Baffle thickness - 3mm steel
2. Valve Box Cabinet on the side for the bottom discharge, complete with lockable door
3. Operational Decal on the inside of the valve box cabinet door
Tank Openings & Connections
1, Manhole: DN450/DN500
2, Safety Relief Valve: DN50
3, Liquid Line: DN50/DN80
4, Gas Line: DN25/DN50
5, LPG Pump:
6, Discharging system
7, Liquid control LPG follow meter:
8, Tempreture Gauge
9, Pressure Gauges
10, Liquid Level
11, Drain Valve
