25000 liter faw new model J6 6x4 mobile lpg dispenser truck for sale
The lpg dispenser truck is also called lpg road tanker truck, lpg transportation truck, lpg tanker truck, bulk lpg truck,lpg gas tank truck, lpg gas dispenser, etc. The lpg gas dispenser truck consists of truck chassis, lpg tank, thermometer, pressure gage, safety vavle,pipeline systems, gas pump, gas dispenser, etc.
The mobile lpg dispenser truck is mainly used to transport lpg gas and fueling the gas for other equipment.
The lpg tank of lpg trucks are made of Q345R or Q370R, one high quality steel produced by Chinese famous steel manufactuer---WUGANG. The Q345R is instead of 16 Manganese.It is special material for LPG gas tank.
Technical parameters of 25000 liter 6x4 faw lpg gas dispenser truck
General | Truck Name | LPG Dispenser truck |
Truck Model | 5240GYQC4 | |
Drive Type | 6*4 | |
Gross Vehicle Weight(kg) | 24420 | |
Curb Weight (kg) | 14210 | |
Overall Dimensions(mm) | 10590×2495×3350 | |
Engine | Engine Brand | Deutz(Da Lian) |
Fuel Type | Diesel | |
Power | 240HP/180KW | |
Emission Standard | Euro IV | |
Displacement(ml) | 7146 | |
Engine Type | 6 cylinder in line,water cooling, charged inter-cooling | |
Chassis | Cab | FAW J6 Single row and half cab,with air conditional |
Tire | 10 nos x 11.00-20 Steel tire | |
Wheelbase (mm) | 4800+1350 | |
Axle No. | 3 | |
Gear Box | 10 speed forward with 2 reverse, manual | |
Brake | Air brake | |
Steering Wheel | Left hand drive with power-assisted | |
Tank | Filling Medium | LPG(Propane) |
Tank Volume(L) | 25000 | |
Filling Mass(KG) | 10500 | |
Cylinder Design Thickness(mm) | 12 | |
Head Design Thickness(mm) | 12 | |
Tank Material | Q345R | |
Density of Medium(kg/m3) | 420(50°) | |
Design Pressure(Mpa) | 1.61 | |
Hydrostatic Test Pressure(Mpa) | 2.66 | |
Equipment | Gas pump, gas dispenser, gas gun,pressure gauge, thermometer,discharge valve,etc |
Why choose FAW 6X4 LPG truck?
1. Euro IV emission standard, FEUP+SCR technology engine,strong power,low fuel consumption, high reliable.
2.Special chassis for dangerous good transportation, with many safety device,such as front installed exhaust system,with spark arrester, front disc brake and with speed limiting device 79km/h, automatic slack adjuster and ABS,GPS,etc.
3.Strict production processing, 100% x-ray inspected lpg tank, high safety, long service time.
4.Professional LPG truck manufacturer, competitive price.

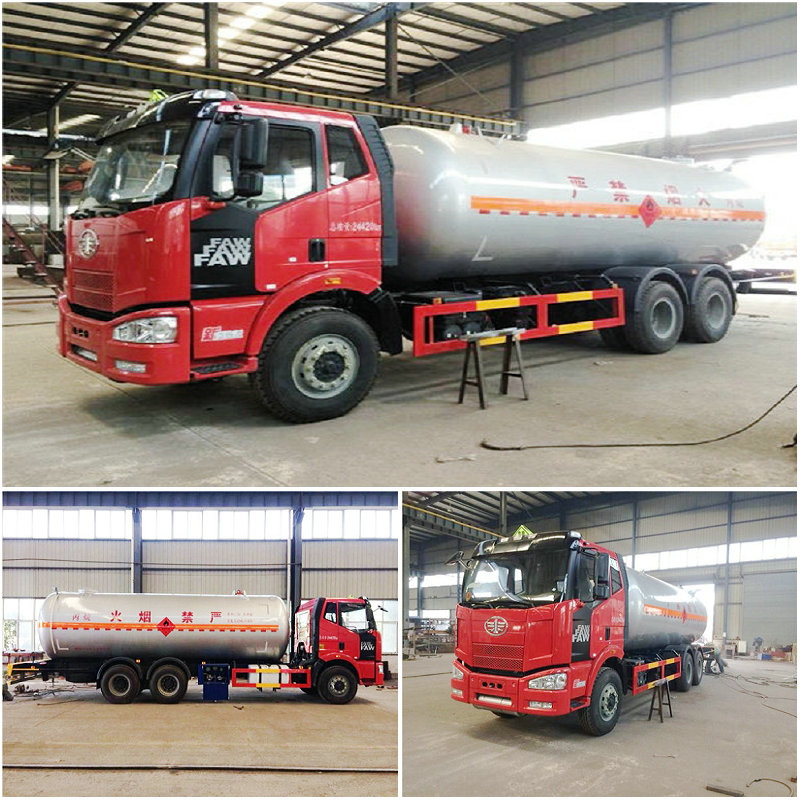

Pictures of 6x4 faw lpg transportation truck 25cbm for sale
