20MT Skid Mounted LPG Filling Stations 50000Liters 6Sets LPG Filling Weight Scales
20ton LPG skid-mounted filling station 50cbm LPG Tank for sale
| FOB: | |
|---|---|
| Availability: | |
| Quantity: | |
|
| |
-
50000L
-
DR
-
7311009000
20MT Skid Mounted LPG Filling Stations 50000Liters 6Sets LPG Filling Weight Scales
Gas Cylinders Refilling Plant 20000Liters Mobile LPG Filling Stations 8Tons -10Tons
LPG skid mounted station Mobile Filling Station for LPG with 12000Liters
LPG Gas Skid station , Cooking Gas Plant for LPG Cylinder With LPG Refilling Scales 40000Liters
10000LitersLPG skid-mounted filling station/lpg cylinder filling station/mobile filling station
LPG bobtail Road Tanker, LPG tanker truck ,LPG filling truck, LPG refilling truck,LPG GAS dispenser truck, WITH Corken pump and LC meter , pipe and gas dispenser for car , small tank , gas cylinder Portable Design Code ASME

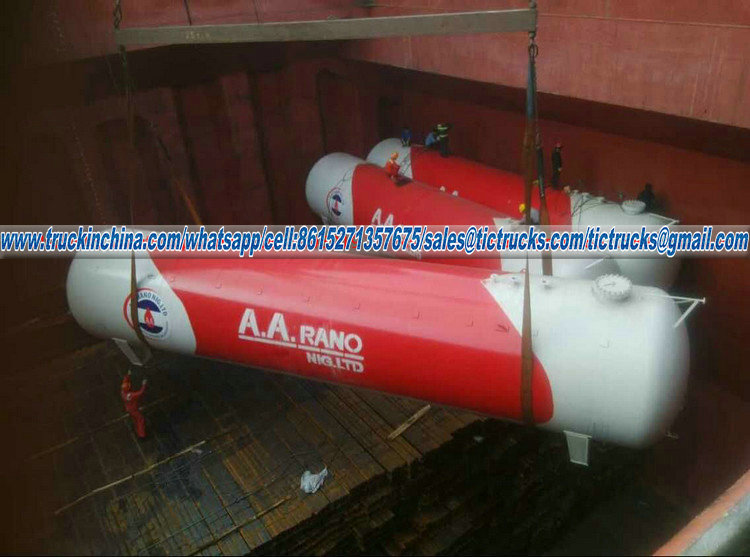

LPG Tank body is made by automatic bending machine and automatic welding machine.
all welding line is all welding line are checked by 100% X photoelectricity and aultransoni.
all tanks will be hot treatment by 10hours to get rid of the tress of tank body after weld.
Different type LPG Filling Scales for you Choice for your LPG Cylinder Refilling Plant:
20MT Skid Mounted LPG Filling Stations 50000Liters 6Sets LPG Filling Weight Scales
Gas Cylinders Refilling Plant 20000Liters Mobile LPG Filling Stations 8Tons -10Tons
LPG skid mounted station Mobile Filling Station for LPG with 12000Liters
LPG Gas Skid station , Cooking Gas Plant for LPG Cylinder With LPG Refilling Scales 40000Liters
10000LitersLPG skid-mounted filling station/lpg cylinder filling station/mobile filling station
LPG bobtail Road Tanker, LPG tanker truck ,LPG filling truck, LPG refilling truck,LPG GAS dispenser truck, WITH Corken pump and LC meter , pipe and gas dispenser for car , small tank , gas cylinder Portable Design Code ASME
LPG Tank body is made by automatic bending machine and automatic welding machine.
all welding line is all welding line are checked by 100% X photoelectricity and aultransoni.
all tanks will be hot treatment by 10hours to get rid of the tress of tank body after weld.
Different type LPG Filling Scales for you Choice for your LPG Cylinder Refilling Plant:
20MT Skid Mounted LPG Filling Stations 50000Liters 6Sets LPG Filling Weight Scales

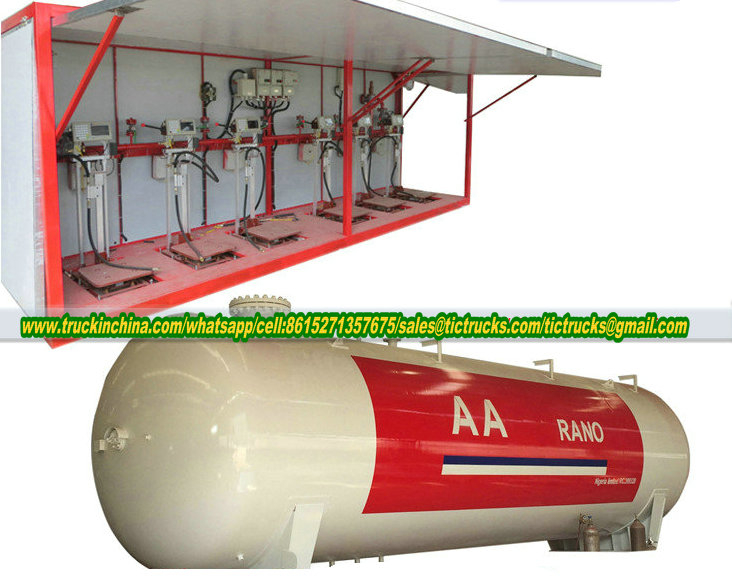

LPG Gas Skid Filling Station with 6 sets Filling Scales for LPG Cylinder Cooking gas 50000Liters 20MT Nigeria Market LPG Tank Specifications:
| item | data | item | data | |
| Tanker body | Loading medium | DIMETHYLMETHANE | Kerb mas | 11775kg |
| Capacity | 50m3 | Loading mass | 20178kg | |
| Designed pressure | 1.77MPa | Outside dimension | 2600× 14 ×9908 | |
| Designed thickness of tank body | 13.23mm | (ID ×thickness× L) | ||
| Designed thickness of head | 13.2mm | Filling ratio | 0.9 | |
| Material | Q345R | Hydraulic testing pressure | 2.21Mpa | |
| Corrosion allowance | 1mm | leak testing Pressure | 1.77MPa | |
| Hot treatment | Hot treatment after welding, Stress Relief Heat Treatment | Density (kg/m3) | 448.4(50℃) | |
With complete accessories , with all valve, pressure meter, temperature meter,
with 6 sets LPG Gas Filling Scales.
With 2 sets LPG Pump and LPG Motor special for customers needed.
with Compressor machine filling and refilling LPG Gas from LPG Tank body in speed.
Mobile LPG Gas Stations optional one set, two sets filling scales to 6 LPG Filling Scales can filling LPG Gas to Car , Cylinder one times.
Gas Cylinders Refilling Plant 20000Liters Mobile LPG Filling Stations 8Tons -10Tons
specification of LPG Gas Cyinders Refilling Plant 20000Liters:
| LPG Filling Plant | Item | data |
| Filling medium | LPG | |
| capacity | 20000Liters | |
| Design pressure | 1.724Mpa | |
| Thickness of body | 10mm | |
| Thickness of head | 10mm | |
| Material | Q345 | |
| Corrosion allowance | 1mm | |
| Hot treatment type | Stress relieved hot treatment | |
| Kerb weight | 4330kgs | |
| Loading weight | 8400kgs | |
| Outside dimension(inner diameter*thickness*length | 1800*10*8170mm | |
| Filling ratio | 0.95 | |
| Hydraulic test pressure | 2.14Mpa | |
| Service year | 20 | |
| Filling ratio | 420(50℃) |
With Rotation LeveL Meter, Safe Valve, Pressure Meter, Temperature Meter.
With LPG Filling Scale Weight 1set to 6sets.
With Special LPG Motor with Return Valve to make sure saftly operate ,
LPG Pump and LPG Compressor Machine.
20000Liters LPG Filling Stations can filling LPG into tank body and refilling LPG to Cylinder for Cooking Gas, and other LPG Cars
Information for LPG tank skid station | ||
General | Item Name | Portable LPG Gas Station |
loading Weight (kg) | 8400 kg | |
Tank volume (liters) | 20000 liters | |
working Medium | LPG (propane) ,0.42 Kg/M3 | |
Gas Dispenser | Rate of flow (m³/min) | 1.5 |
Speed (R/m³) | 730 | |
Motor power(KW) | 22 | |
Equipment | gas dispenser, gas gun,flow meter, pressure gauge, thermometer,discharge valve,etc | |
LPG storage tanks | ||||
tank diameter | 1800mm | 2000mm | 2100mm | 2200mm |
tank type | III | III | III | III |
working Medium | LPG (propane) | LPG(propane) | LPG(propane) | LPG(propane) |
Design Specific Gravity | 0.42 Kg/M3 | 0.42 Kg/M3 | 0.42 Kg/M3 | 0.42 Kg/M3 |
media characteristics | Flammable and explosive | flammable and | flammable and | flammable and |
capacity | 20M3 | 20M3 | 20M3 | 20M3 |
External Dimensions (length*width*height) | 8174*1820*2410mm | 6724*2024*2614mm | 6154*2124*2714mm | 5608*2224*28514mm |
tank weight (nominal) | 4820kg | 5150kg | 5050kg | 5080kg |
max payload weight | 7980kg | 7980kg | 7980kg | 7980kg |
tank material | Q345R | Q345R | Q345R | Q345R |
Barrel design thickness | 10mm | 12mm | 12mm | 12mm |
Head design thickness | 12mm | 12mm | 12mm | 14mm |
welded joint coefficient | 1.0 | 1.0 | 1.0 | 1.0 |
design temperature | 50ºC | 50ºC | 50ºC | 50ºC |
working temperature | -20~50 ºC | -20~50 ºC | -20~50 ºC | -20~50 ºC |
Corrosion allowance | 1.0 mm | 1.0 mm | 1.0 mm | 1.0 mm |
design pressure | 1.77 MPa | 1.77 MPa | 1.77 MPa | 1.77 MPa |
Hydraulic test pressure | 2.22 MPa | 2.22 MPa | 2.22 MPa | 2.22 MPa |
leak test pressure | 1.77 MPa | 1.77 MPa | 1.77 MPa | 1.77 MPa |
Heat treatment type | Wholly get rid of tress | Wholly get rid of tress | Wholly get rid of tress | Wholly get rid of tress |
Paint | paint white color, or paint the color you request. | paint white color, or paint the color you request. | paint white color, or paint the color you request. | paint white color, or paint the color you request. |
The first install Accessories | Safe valve, Disconnecting valve, Level gauge, Pressure meter, Temperature meter | Safe valve, Disconnecting valve, Level gauge, Pressure meter, Temperature meter | Safe valve, Disconnecting valve, Level gauge, Pressure meter, Temperature meter | Safe valve, Disconnecting valve, Level gauge, Pressure meter, Temperature meter |
Filling accessories for MOBILE SKID LPG STATION | ||
Item | Specification | Quantity |
Hydrocarbon pump | YQB15-5 | 1 |
Anti-static motor | MM2JA160MBB | 1 |
alarm | QJ-D-99F | 2 |
Liquid meter | L=1800mm DN20 | 1 |
Safety valve | A42F-25 DN50 | 1 |
Safety reflux valve | AH42F-25 DN25 | 1 |
Check valve | H42N-40 DN50 | 2 |
Stop valve | J41N-40 DN50 | 25 |
J41N-40 DN32 | 1 | |
J41N-40 DN25 | 4 | |
J41N-40 DN20 | 2 | |
J41N-40 DN20 | 10 | |
Pipe safety valve | A21F-25 DN15 | 1 |
Discharge pipe | L=4M DN50/DN25 | 1 |
Shock tube | L=500MM DN50 | 2 |
Filling gun with pipe | L=2M | 3 |
Elbow | DN65 | 2 |
DN50 | 10 | |
Flange | 2.5mpa DN65 | 1 |
2.5mpa DN50 | 50 | |
2.5mpa DN32 | 1 | |
2.5mpa DN25 | 8 | |
2.5mpa DN15 | 20 | |
Electric filling scale | BSC-150 | 1 |
Metal pads | DN65 | 5 |
DN50 | 80 | |
DN32 | 2 | |
DN25 | 10 | |
DN20 | 2 | |
DN15 | 30 | |
bolt | 16*70 | 300 |
16*55 | 100 | |
LPG skid mounted station Mobile Filling Station for LPG with 12000Liters
| Specification of 2.5ton 5cbm LPG Tank | ||
| Volume of Tank | 5CBM(5,000liters) 5ton | |
| Filling Weight | 2500 kg | |
| Tank Weight | 2030kg | |
| Thickness of Shell (mm) | 10 mm | |
| Thickness of Endplate (mm) | 10 mm | |
| Tank Diameter (mm) | 1600 mm | |
| Tank Dimensions (mm) (length x width x height) | 2960*1620*2210mm | |
| Material of Tank and Main Pressure Parts | Carbon Steel Q345R | |
| Filling Medium | Liquefied Petroleum Gas ( Propane) | |
| Design Pressure | 1.77 MPa | |
| Corrosion Allowance | 1 mm | |
| Medium Density | 500-590 kg/ cbm | |
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | ||
| Specification of LPG Pump and Motor | ||
| Item | Specification | |
| Specification of the Motor | ||
| Model | M2JA160M88 | |
| Revolving speed | 1470 r/min | |
| Power | 5.5 kw | |
| Voltage | 380 V | |
| Protection grade | Anti explosive | |
| Specification of the hydrocarbon Pump | ||
| Model | YQB15-5 | |
| Medium | Liquid petroleum gas | |
| Speed | 15 m3/h | |
| Input and Output Diameter | 50 mm | |
| Working pressure | 2.0 Mpa | |
| Working temperature | -40℃- 50℃ | |
| Material | carbon steel | |
50m3 SKID TYPE LPG FILLING STATION INCLUDING LPG DISPENSER, LPG LOADING AND DISCHARGING PUMP, VAPOUR RECOIVERY PIPELINE
LPG skid-mounted filling station/lpg cylinder filling station/mobile filling station
Design,Manufacture,Installation,Commissioning,Maintenance
Economy, small, simple, flexible and fast
1. Skid-mounted LPG stations is constructed according to internation gas station standards. It's of very dependable quality and safety.
2. Integrate single device (such as tanks, pumps, valves, piping, etc.) to the metal skid body and formed a complete small LPG stations.
3. The volume of the tank can be customized according to customer's request: 10cbm/20cbm/30cbm/50cbm/60/cbm
4. In one LPG station, you can place several LPG dispensers of different nozzles.
Main Functions:
*Feeding gas to gas vehicles: high quality dispenser is equipped and its measurement is accurate and stable.
*Unloading: The LPG tank car can unload the medium to the storage tank on the skid-mounted plant smoothly
*Drainage: The sundries like water-logging in the storage tank will e drained through the drain outlet.
*Emptying:The residual pressure in storage tank can be released through the emptying port during overgauling.
*Alternative Pumps: Under fault condition, gas filling pump and unloading pump can be mutually alternative.
*Reverse unloading:The liquid on the storage tank can be unloaded to the gas tank car and delivered.
*Emergency cut-off :Air-operated emergency cut-off valve is installed a the liquid outlet on the storage tank, by which the emergency cut-off under abnormal conditions can be achieved.
*Leakage Alarm: Leakage probes are installed in the key positons of the skid-mounted gas station, so as to dect the equipment's security status.
*Liquid Level Alarm: Upper and lower liquid level limit switch are installed. Therefore, it has liquid alarm and control function.
Main Technical features of the LPG Storage Tank station:
Design parameter | Volume (m³) | Nomidal Diameter(mm) | Thickness(mm) | Weight(KG) | External Dimensions (Length×Width×Height) | ||
Shell | Head | Tank | Filling | ||||
Filling Medium:Liquefied Petroleum Gas Design Pressure:1.77MPa |
10 |
1600 |
10 |
10 |
2950 |
3950 |
5260*1620*2210 |
12 |
1800 |
10 |
12 |
3360 |
4788 |
5034*1820*2410 | |
40 |
2300 |
12 |
14 |
8630 |
15960 |
10040*2324*2914 | |
Main part of Tank | Item | Specification | Quantity(pc) | ||||
Drain hole | DN50 | 1 | |||||
Liquid inlet | DN50 | 1 | |||||
Liquid outlet | DN50 | 1 | |||||
Manhole | DN450 | 1 | |||||
Empty valve | DN50 | 1 | |||||
Gas line | DN50 | 2 | |||||
Safe valve | DN80 | 2 | |||||
Thermometer | M33x2 | 2 | |||||
Level meter | DN25 | 1 | |||||
Pressure gauge | M20x1.5 | 2 | |||||
Equipment | 1, Explosion-proof Motor 2, LPG Pump 3, Filling machine(LPG dispenser or LPG filling scale) | ||||||
Material of Tank and Main Pressure Parts | Q345R/Q370R | ||||||
Carried Standard | Pressure vessels,Supervision Regulation on Safety Technology for Stationary Vessels | ||||||
Safety Valve of Selection Fitting | Safety valve,Column magnetic reversible level meter,Pressure gauge,Thermometer,Cut-off valve | ||||||
20MT Skid Mounted LPG Filling Stations 50000Liters 6Sets LPG Filling Weight Scales
LPG Gas Skid Filling Station with 6 sets Filling Scales for LPG Cylinder Cooking gas 50000Liters 20MT Nigeria Market LPG Tank Specifications:
| item | data | item | data | |
| Tanker body | Loading medium | DIMETHYLMETHANE | Kerb mas | 11775kg |
| Capacity | 50m3 | Loading mass | 20178kg | |
| Designed pressure | 1.77MPa | Outside dimension | 2600× 14 ×9908 | |
| Designed thickness of tank body | 13.23mm | (ID ×thickness× L) | ||
| Designed thickness of head | 13.2mm | Filling ratio | 0.9 | |
| Material | Q345R | Hydraulic testing pressure | 2.21Mpa | |
| Corrosion allowance | 1mm | leak testing Pressure | 1.77MPa | |
| Hot treatment | Hot treatment after welding, Stress Relief Heat Treatment | Density (kg/m3) | 448.4(50℃) | |
With complete accessories , with all valve, pressure meter, temperature meter,
with 6 sets LPG Gas Filling Scales.
With 2 sets LPG Pump and LPG Motor special for customers needed.
with Compressor machine filling and refilling LPG Gas from LPG Tank body in speed.
Mobile LPG Gas Stations optional one set, two sets filling scales to 6 LPG Filling Scales can filling LPG Gas to Car , Cylinder one times.
Gas Cylinders Refilling Plant 20000Liters Mobile LPG Filling Stations 8Tons -10Tons
specification of LPG Gas Cyinders Refilling Plant 20000Liters:
| LPG Filling Plant | Item | data |
| Filling medium | LPG | |
| capacity | 20000Liters | |
| Design pressure | 1.724Mpa | |
| Thickness of body | 10mm | |
| Thickness of head | 10mm | |
| Material | Q345 | |
| Corrosion allowance | 1mm | |
| Hot treatment type | Stress relieved hot treatment | |
| Kerb weight | 4330kgs | |
| Loading weight | 8400kgs | |
| Outside dimension(inner diameter*thickness*length | 1800*10*8170mm | |
| Filling ratio | 0.95 | |
| Hydraulic test pressure | 2.14Mpa | |
| Service year | 20 | |
| Filling ratio | 420(50℃) |
With Rotation LeveL Meter, Safe Valve, Pressure Meter, Temperature Meter.
With LPG Filling Scale Weight 1set to 6sets.
With Special LPG Motor with Return Valve to make sure saftly operate ,
LPG Pump and LPG Compressor Machine.
20000Liters LPG Filling Stations can filling LPG into tank body and refilling LPG to Cylinder for Cooking Gas, and other LPG Cars
Information for LPG tank skid station | ||
General | Item Name | Portable LPG Gas Station |
loading Weight (kg) | 8400 kg | |
Tank volume (liters) | 20000 liters | |
working Medium | LPG (propane) ,0.42 Kg/M3 | |
Gas Dispenser | Rate of flow (m³/min) | 1.5 |
Speed (R/m³) | 730 | |
Motor power(KW) | 22 | |
Equipment | gas dispenser, gas gun,flow meter, pressure gauge, thermometer,discharge valve,etc | |
LPG storage tanks | ||||
tank diameter | 1800mm | 2000mm | 2100mm | 2200mm |
tank type | III | III | III | III |
working Medium | LPG (propane) | LPG(propane) | LPG(propane) | LPG(propane) |
Design Specific Gravity | 0.42 Kg/M3 | 0.42 Kg/M3 | 0.42 Kg/M3 | 0.42 Kg/M3 |
media characteristics | Flammable and explosive | flammable and | flammable and | flammable and |
capacity | 20M3 | 20M3 | 20M3 | 20M3 |
External Dimensions (length*width*height) | 8174*1820*2410mm | 6724*2024*2614mm | 6154*2124*2714mm | 5608*2224*28514mm |
tank weight (nominal) | 4820kg | 5150kg | 5050kg | 5080kg |
max payload weight | 7980kg | 7980kg | 7980kg | 7980kg |
tank material | Q345R | Q345R | Q345R | Q345R |
Barrel design thickness | 10mm | 12mm | 12mm | 12mm |
Head design thickness | 12mm | 12mm | 12mm | 14mm |
welded joint coefficient | 1.0 | 1.0 | 1.0 | 1.0 |
design temperature | 50ºC | 50ºC | 50ºC | 50ºC |
working temperature | -20~50 ºC | -20~50 ºC | -20~50 ºC | -20~50 ºC |
Corrosion allowance | 1.0 mm | 1.0 mm | 1.0 mm | 1.0 mm |
design pressure | 1.77 MPa | 1.77 MPa | 1.77 MPa | 1.77 MPa |
Hydraulic test pressure | 2.22 MPa | 2.22 MPa | 2.22 MPa | 2.22 MPa |
leak test pressure | 1.77 MPa | 1.77 MPa | 1.77 MPa | 1.77 MPa |
Heat treatment type | Wholly get rid of tress | Wholly get rid of tress | Wholly get rid of tress | Wholly get rid of tress |
Paint | paint white color, or paint the color you request. | paint white color, or paint the color you request. | paint white color, or paint the color you request. | paint white color, or paint the color you request. |
The first install Accessories | Safe valve, Disconnecting valve, Level gauge, Pressure meter, Temperature meter | Safe valve, Disconnecting valve, Level gauge, Pressure meter, Temperature meter | Safe valve, Disconnecting valve, Level gauge, Pressure meter, Temperature meter | Safe valve, Disconnecting valve, Level gauge, Pressure meter, Temperature meter |
Filling accessories for MOBILE SKID LPG STATION | ||
Item | Specification | Quantity |
Hydrocarbon pump | YQB15-5 | 1 |
Anti-static motor | MM2JA160MBB | 1 |
alarm | QJ-D-99F | 2 |
Liquid meter | L=1800mm DN20 | 1 |
Safety valve | A42F-25 DN50 | 1 |
Safety reflux valve | AH42F-25 DN25 | 1 |
Check valve | H42N-40 DN50 | 2 |
Stop valve | J41N-40 DN50 | 25 |
J41N-40 DN32 | 1 | |
J41N-40 DN25 | 4 | |
J41N-40 DN20 | 2 | |
J41N-40 DN20 | 10 | |
Pipe safety valve | A21F-25 DN15 | 1 |
Discharge pipe | L=4M DN50/DN25 | 1 |
Shock tube | L=500MM DN50 | 2 |
Filling gun with pipe | L=2M | 3 |
Elbow | DN65 | 2 |
DN50 | 10 | |
Flange | 2.5mpa DN65 | 1 |
2.5mpa DN50 | 50 | |
2.5mpa DN32 | 1 | |
2.5mpa DN25 | 8 | |
2.5mpa DN15 | 20 | |
Electric filling scale | BSC-150 | 1 |
Metal pads | DN65 | 5 |
DN50 | 80 | |
DN32 | 2 | |
DN25 | 10 | |
DN20 | 2 | |
DN15 | 30 | |
bolt | 16*70 | 300 |
16*55 | 100 | |
LPG skid mounted station Mobile Filling Station for LPG with 12000Liters
| Specification of 2.5ton 5cbm LPG Tank | ||
| Volume of Tank | 5CBM(5,000liters) 5ton | |
| Filling Weight | 2500 kg | |
| Tank Weight | 2030kg | |
| Thickness of Shell (mm) | 10 mm | |
| Thickness of Endplate (mm) | 10 mm | |
| Tank Diameter (mm) | 1600 mm | |
| Tank Dimensions (mm) (length x width x height) | 2960*1620*2210mm | |
| Material of Tank and Main Pressure Parts | Carbon Steel Q345R | |
| Filling Medium | Liquefied Petroleum Gas ( Propane) | |
| Design Pressure | 1.77 MPa | |
| Corrosion Allowance | 1 mm | |
| Medium Density | 500-590 kg/ cbm | |
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | ||
| Specification of LPG Pump and Motor | ||
| Item | Specification | |
| Specification of the Motor | ||
| Model | M2JA160M88 | |
| Revolving speed | 1470 r/min | |
| Power | 5.5 kw | |
| Voltage | 380 V | |
| Protection grade | Anti explosive | |
| Specification of the hydrocarbon Pump | ||
| Model | YQB15-5 | |
| Medium | Liquid petroleum gas | |
| Speed | 15 m3/h | |
| Input and Output Diameter | 50 mm | |
| Working pressure | 2.0 Mpa | |
| Working temperature | -40℃- 50℃ | |
| Material | carbon steel | |
50m3 SKID TYPE LPG FILLING STATION INCLUDING LPG DISPENSER, LPG LOADING AND DISCHARGING PUMP, VAPOUR RECOIVERY PIPELINE
LPG skid-mounted filling station/lpg cylinder filling station/mobile filling station
Design,Manufacture,Installation,Commissioning,Maintenance
Economy, small, simple, flexible and fast
1. Skid-mounted LPG stations is constructed according to internation gas station standards. It's of very dependable quality and safety.
2. Integrate single device (such as tanks, pumps, valves, piping, etc.) to the metal skid body and formed a complete small LPG stations.
3. The volume of the tank can be customized according to customer's request: 10cbm/20cbm/30cbm/50cbm/60/cbm
4. In one LPG station, you can place several LPG dispensers of different nozzles.
Main Functions:
*Feeding gas to gas vehicles: high quality dispenser is equipped and its measurement is accurate and stable.
*Unloading: The LPG tank car can unload the medium to the storage tank on the skid-mounted plant smoothly
*Drainage: The sundries like water-logging in the storage tank will e drained through the drain outlet.
*Emptying:The residual pressure in storage tank can be released through the emptying port during overgauling.
*Alternative Pumps: Under fault condition, gas filling pump and unloading pump can be mutually alternative.
*Reverse unloading:The liquid on the storage tank can be unloaded to the gas tank car and delivered.
*Emergency cut-off :Air-operated emergency cut-off valve is installed a the liquid outlet on the storage tank, by which the emergency cut-off under abnormal conditions can be achieved.
*Leakage Alarm: Leakage probes are installed in the key positons of the skid-mounted gas station, so as to dect the equipment's security status.
*Liquid Level Alarm: Upper and lower liquid level limit switch are installed. Therefore, it has liquid alarm and control function.
Main Technical features of the LPG Storage Tank station:
Design parameter | Volume (m³) | Nomidal Diameter(mm) | Thickness(mm) | Weight(KG) | External Dimensions (Length×Width×Height) | ||
Shell | Head | Tank | Filling | ||||
Filling Medium:Liquefied Petroleum Gas Design Pressure:1.77MPa |
10 |
1600 |
10 |
10 |
2950 |
3950 |
5260*1620*2210 |
12 |
1800 |
10 |
12 |
3360 |
4788 |
5034*1820*2410 | |
40 |
2300 |
12 |
14 |
8630 |
15960 |
10040*2324*2914 | |
Main part of Tank | Item | Specification | Quantity(pc) | ||||
Drain hole | DN50 | 1 | |||||
Liquid inlet | DN50 | 1 | |||||
Liquid outlet | DN50 | 1 | |||||
Manhole | DN450 | 1 | |||||
Empty valve | DN50 | 1 | |||||
Gas line | DN50 | 2 | |||||
Safe valve | DN80 | 2 | |||||
Thermometer | M33x2 | 2 | |||||
Level meter | DN25 | 1 | |||||
Pressure gauge | M20x1.5 | 2 | |||||
Equipment | 1, Explosion-proof Motor 2, LPG Pump 3, Filling machine(LPG dispenser or LPG filling scale) | ||||||
Material of Tank and Main Pressure Parts | Q345R/Q370R | ||||||
Carried Standard | Pressure vessels,Supervision Regulation on Safety Technology for Stationary Vessels | ||||||
Safety Valve of Selection Fitting | Safety valve,Column magnetic reversible level meter,Pressure gauge,Thermometer,Cut-off valve | ||||||
shipping parking
keywords 20MT Mobile LPG Gas Stations, 50000L Lpg Portable Gas Station, 50cbm LPG Cylinder Filling Station, Chinese Supplier LPG Mobile Skid-Mounted Station, Cooking Gas LPG Filling Station, Low Price LPG Skid Mounted Tank, LPG Filling Stations, LPG Gas Skid Filling Station, Mobile Gas station, Mobile LPG Gas Stations, Skid Mounted LPG Filling Stations
10000Liters LPG Cylinders Refilling Stations, 10000Liters LPG Filling station, 10000Liters LPG Gas Skid Filling Station, 10000Liters Mobile LPG Refilling Station, 10000Liters Skid Mounted LPG Filling Stations, 10Tons LPG Gas Refilling Plant, 10Tons Mobile LPG Gas Filling Stations, 12000L LPG Filling Plant, 12000L LPG Filling Station, 12000L LPG Refilling Plant, 20000Liters Cooking Gas LPG Refilling Stations, 20000Liters LPG Cylinder refilling Plant, 20000Liters LPG Skid Plant, 20000Liters Moble LPG Gas Stations, 20000Lites LPG Skid Stations Mounted LPG Tank, 20MT Mobile LPG Gas Stations, 50cbm LPG Cylinder Filling Station, 5Tons LPG Cylinders Refilling Stations, 5Tons Mobile LPG Refilling Station, 5Tons Skid Mounted LPG Filling Stations, China LPG Gas Cylinders Refilling Plants, Chinese Supplier LPG Mobile Skid-Mounted Station, LPG Filling Stations, LPG Gas Cylinders Refiling Station, LPG Gas Skid Filling Station, Mobile Gas station, Mobile LPG Gas Stations, Skid Mounted LPG Filling Stations - See more at: http://www.truckinchina.com/2-5ton-LPG-skid-mounted-filling-station-5cbm-LPG-Tank-for-sale-id533174.html#sthash.ut6ZPZk6.dpuf
shipping parking
keywords 20MT Mobile LPG Gas Stations, 50000L Lpg Portable Gas Station, 50cbm LPG Cylinder Filling Station, Chinese Supplier LPG Mobile Skid-Mounted Station, Cooking Gas LPG Filling Station, Low Price LPG Skid Mounted Tank, LPG Filling Stations, LPG Gas Skid Filling Station, Mobile Gas station, Mobile LPG Gas Stations, Skid Mounted LPG Filling Stations
10000Liters LPG Cylinders Refilling Stations, 10000Liters LPG Filling station, 10000Liters LPG Gas Skid Filling Station, 10000Liters Mobile LPG Refilling Station, 10000Liters Skid Mounted LPG Filling Stations, 10Tons LPG Gas Refilling Plant, 10Tons Mobile LPG Gas Filling Stations, 12000L LPG Filling Plant, 12000L LPG Filling Station, 12000L LPG Refilling Plant, 20000Liters Cooking Gas LPG Refilling Stations, 20000Liters LPG Cylinder refilling Plant, 20000Liters LPG Skid Plant, 20000Liters Moble LPG Gas Stations, 20000Lites LPG Skid Stations Mounted LPG Tank, 20MT Mobile LPG Gas Stations, 50cbm LPG Cylinder Filling Station, 5Tons LPG Cylinders Refilling Stations, 5Tons Mobile LPG Refilling Station, 5Tons Skid Mounted LPG Filling Stations, China LPG Gas Cylinders Refilling Plants, Chinese Supplier LPG Mobile Skid-Mounted Station, LPG Filling Stations, LPG Gas Cylinders Refiling Station, LPG Gas Skid Filling Station, Mobile Gas station, Mobile LPG Gas Stations, Skid Mounted LPG Filling Stations - See more at: http://www.truckinchina.com/2-5ton-LPG-skid-mounted-filling-station-5cbm-LPG-Tank-for-sale-id533174.html#sthash.ut6ZPZk6.dpuf
Related Products
SUCCESS CASES
More >>-
2025-04-034 Units T14 ISO Tank Container PE Lined for Hydrofluoric HF Hydrochloric Acid HCL, Ferric Chloride Potassium Hydroxide KOH Tank Container Export To India4 Units T14 ISO Tank Container PE Lined for Hydrofluoric HF Hydrochloric Acid HCL, Ferric Chloride Potassium Hydroxide KOH Tank Container Export To India DTAU2502011 DTAU2502027 DTAU2502032 DTAU2502048 20 FT TANK CONTAINER FOR HYDROCHLORIC ACID UN1789 HCL, HYDROFLUORIC ACID UN1790 HF ACID CARON STEEL AND LINED WITH 16MM LLDPE TANKS CAPACITY 21 KL FOR ROAD INLAND MOVEMENTS SHELL THICKNESS 6MM ,HEAD 8MM LLDPE 16MM, TOP UNLOADING TARE WEIGHT 5200KG 1UNIT 20FT TANK CONTAINER FOR UN1814 KOH POTASSIUM HYDROXIDE 45% SOLUTION DISH HEAD TYPE TANK CAPACITY: 19000LITERS FOR ROAD INLAND MOVEMENTS SHELL THICKNESS 6MM ,HEAD 8MM LLDPE 16MM, BOTTOM UNLOADING TARE WEIGHT 5300KG 1UNIT 20FT TANK CONTAINER FOR UN2014 H2O2 HYDROGEN PEROXIDE 31% SOLUTION DISH HEAD TYPE TANK CAPACITY: 19000LITERS FOR ROAD INLAND MOVEMENTS SHELL THICKNESS 6MM ,HEAD 8MM LLDPE 16MM, BOTTOM UNLOADING TARE WEIGHT 5300KG 2UNITS
-
2025-04-01Steel Lined PE Plastic ISO Tank for Hydrochloric Acid HCL12KL,15KL/16KL/19KL/22KL To VietnamSteel Lined PE Plastic ISO Tank for Hydrochloric Acid HCL12KL,15KL/16KL/19KL/22KL To Vietnam Description of goods Quantity N.W PE LINED STEEL TANK 5100X 2350 X 1400MM / 12.5M3 (EMPTY AND NEW TANKS) MODEL: DTA5212 HS CODE : 7309000000 、6300KGS PE LINED STEEL TANK 6040 X 2400 X 1600MM / 15.8M3 (EMPTY AND NEW TANKS) MODEL: DTA5215 HS CODE : 7309000000 1 3650KG PE LINED STEEL TANK 7190 X 2300X 1300MM / 16.2M3 (EMPTY AND NEW TANKS) MODEL: DTA5316 HS CODE : 7309000000 、4350KG PE LINED STEEL TANK 8520 X 2260 X 1350MM / 19.5M3 (EMPTY AND NEW TANKS) MODEL: DTA5319 HS CODE : 7309000000 、4850KG 20 FT TANK CONTAINER 6058X2438X2591MM / 22.8M3 (EMPTY AND NEW TANKS) MODEL: DTAU2501015 、5800KG
-
2025-02-261000L SS304 Stainless Steel Lined PE Plastic Tank for Hydrochloric Acid to GUAYAQUIL, EC1000L SS304 Stainless Steel Lined PE Plastic Tank for Hydrochloric Acid to GUAYAQUIL, EC STORAGE TANK 304 STAINLESS STEEL LINED PLASTIC TANK VERTICAL TANK STAINLESS STEEL 304 THICKNESS 5MM+PE 16MM CAPACITY: 1,000 L RESIST 15%~38% HYDROCHLORIC ACID HS CODE:730900
-
2025-01-1920PCS Metal Alky TEAL C480 T21 UN Portable Tank Cylinders To USA20Units UN T21 Portable Tank Container 1880L Cylinder For TEAL Metal Alkyls UN3394 UN3399 to USA with 30pcs Spare PSV RELIEF VALVES SF/A412F-25P(3B) Manufacturer (SHENYANG XINGUANG VALVE ） KS1880-T21 Portable Tanks Max. gross mass : 4000 kg Tare : 1050 kg Payload : 2950 kg KSVU240016 -KSVU240035 Adr/Rid Organometallic Substance, Liquid, Water- Reactive C-480 Saddle Type Portable Tank, tank capacity 1880L
-
2024-12-206 Sets Thermal Insulated LLDPE Lined Tanks 25KL for Sodium Hypochlorite Hydrochloric Acid Storage Transport Tanker To Saudi Arabia6 Sets Thermal Insulated LLDPE Lined Tanks 25KL for Sodium Hypochlorite Hydrochloric Acid To Saudi Arabia Lined PE Tanks 6604Gallon For Truck Trailer mounted FROM WUHAN PORT CHINA TO DAMMAM, SAUDI ARABIA BY SEA. + Port of loading : WUHAN PORT + Port of unloading :DAMMAM SAUDI ARABIA
-
2024-12-022 Units T14 Hydrofluoric Hydrochloric Acid UN1789 UN1790 ISOTank Container Road Transport For ASCOR2 Units T14 Hydrofluoric Hydrochloric Acid UN1789 UN1790 ISOTank Container Road Transport For ASCOR 20FT Tank Container (EMPTY AND NEW TANKS) FOR HYDROCHLORIC ACID UN1789 HCL HYDROFLUORIC ACID HF ACID UN1790 CARBON STEEL AND LINED WITH 16MM LLDPE DTAU2404015, DTAU2404020
-
2024-10-245 Units C480 Keystone Vessel T21 TEAL Cylinder UN Portable Tanks To SAUDI ARABIA5 Units Keystone Vessel T21 TEAL UN Portable Tank C480 Cylinder To SAUDI ARABIA KS1880-T21 Portable Tanks Max. gross mass : 4000 kg Tare : 1050 kg Payload : 2950 kg KSVU2400114 KSVU2400120 KSVU2400135 KSVU2400140 KSVU2400156
-
2024-09-247 Units T14 Hydrofluoric Acid ISO Tank Container For Export to India7 Units T14 Hydrofluoric Acid ISO Tank Container For Export to India 20FT TANK CONTAINER (EMPTY AND NEW TANKS) 20 FT TANK CONTAINER FOR HYDROFLUORIC ACID UN1790 HF ACID, CARON STEEL AND LINED WITH 16 MM LLDPE TANKS CAPACITY 21 KL COUNTRY OF ORIGIN : CHINA MARKING TANK NO.: DTAU2407014 DTAU2407020 DTAU2407035 DTAU2407040 DTAU2407056 DTAU2407061 DTAU2407077
-
2024-08-202 UNITS 20FT Sodium Cyanide ISO Tank Container for West Africa Global Mine Operations2 UNITS 20FT Sodium Cyanide ISO Tank Container for West Africa Global Mine Operations 20FT Tank Container for Sodium Cyanide carbon steel and lined with 16mm LLDPE Specialized Tank Container, Sodium Cyanide Tank T6, Capacity 20000litre Hydrochloric acid with the concentration of 1789 (38%) 2X20TK DTAU2024611 DTAU2024627
-
2024-08-14PE Lined 20FT ISOTank Container For HCL Acid KOH 18KL To VietnamPE Lined 20FT ISOTank Container For HCL Acid KOH 18KL To Vietnam (EMPTY AND NEW TANKS) TANK CAPACITY: 18M3 DTAU2407082
-
2024-07-2720Ft Stainless Steel Tank Container For Water Road Transport TO PORT OF SPAIN, TT20Ft Stainless Steel Tank Container For Water Road Transport TO PORT OF SPAIN, TT 20FT Tank Container For store water capacity 25KL DTAU2407098
-
2024-06-1810PCS T21 TEAL PORTABLE TANK CONTAINER to BUSAN KOREA10PCS T21 TEAL PORTABLE TANK CONTAINER to BUSAN KOREA 10UNITS T21 PORTABLE TANK (EMPTY AND NEW TANKS WITH ADDITIONAL SPARE VALVES AND GASKETS) HS CODE:8609009000 KSVU2400011 KSVU2400027 KSVU2400032 KSVU2400048 KSVU2400053 KSVU2400069 KSVU2400074 KSVU2400080 KSVU2400095 KSVU2400109 10 UNITS 10700.000 KGS 33.9000 CBM
-
2024-04-0910 Units T14 ISOTank Container For Hydrofluoric Acid Export to India10 Units T14 ISOTank Container For Hydrofluoric Acid Export to India 20FT TANK CONTAINER (EMPTY AND NEW TANKS) 20 FT TANK CONTAINER FOR HYDROCHLORIC ACID UN1789 HCL, HYDROFLUORIC ACID UN1790 HF ACID CARON STEEL AND LINED WITH 16MM LLDPE TANKS CAPACITY 21 KL FOR ROAD INLAND MOVEMENTS
-
2023-12-226 pcs Metal Alky T21 UN3394 UN3399 Portable Tank TEAL DEAC MAO to SGP6 pcs Metal Alky T21 UN3394 UN3399 Portable Tank TEAL DEAC MAO to SGP Max. gross weight : 4000 kg Tare : 1050 kg Payload : 2950 kg Portable Tank instruction : T21 ADR/RID tank code : N/A Special provisions : TP2 TP7 TP36 TP41 Model : KS1880-T21 ISO size/type code : N/A Type : UN Portable Tank Dimensions : 1148(E.D) x2128 (L) x1388 (H) mm Nominal capacity : 1880 L Measured capacity : 1880 L at 20°C Maximum allowable working pressure : 14 bar Test pressure : 21 bar APPROVALS ADR/RID: F/9151/BV/23 IMDG: F/BV/23/194-T21 US DOT: UN Portable Tank TIR*: GB/C 26839 BV/2023 SUBSTANCES SUITABLE FOR TRANSPORT: In accordance with the requirements of the applicable regulations and the construction of the tank and its equipment. (Substances not compatible with the tank and/or its accessories are excluded for transport) UN3394 & UN3399
-
2024-01-29Customized Hydrochloric Acid HCL Tank Container Lined PE 24m3 for Trailer Mounted to VietnamCustomized Hydrochloric Acid HCL Tank Container Lined PE 24m3 for Trailer Mounted to Vietnam TANK CONTAINER VOLUME 24M3 STEEL SHEET 5MM, HEAD 6MM,Lined LLDPE 16mm for Hydrochloric Acid, Sulfuric Acid Transport 3 CHAMBERS HS CODE: 7309.00
