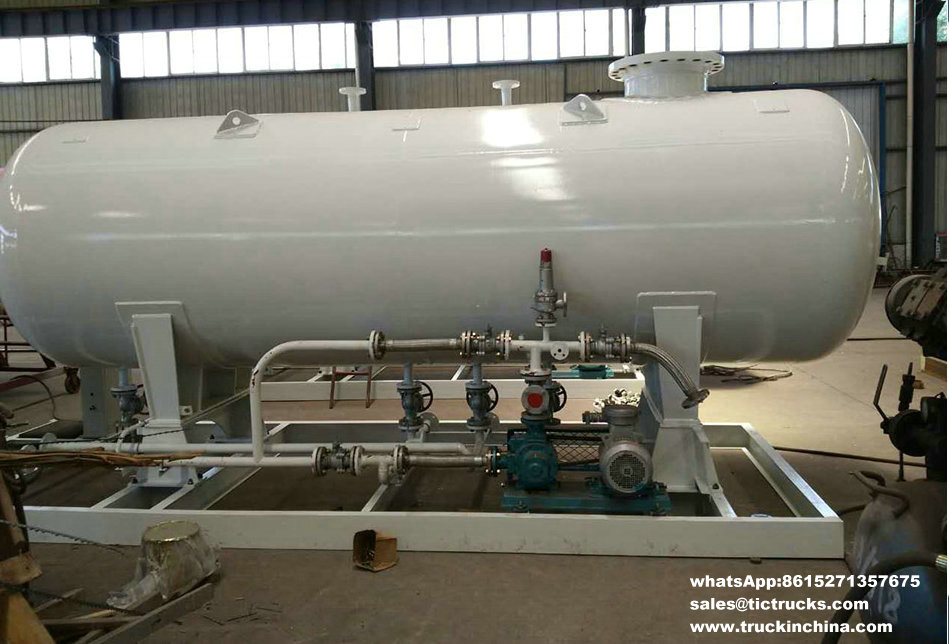

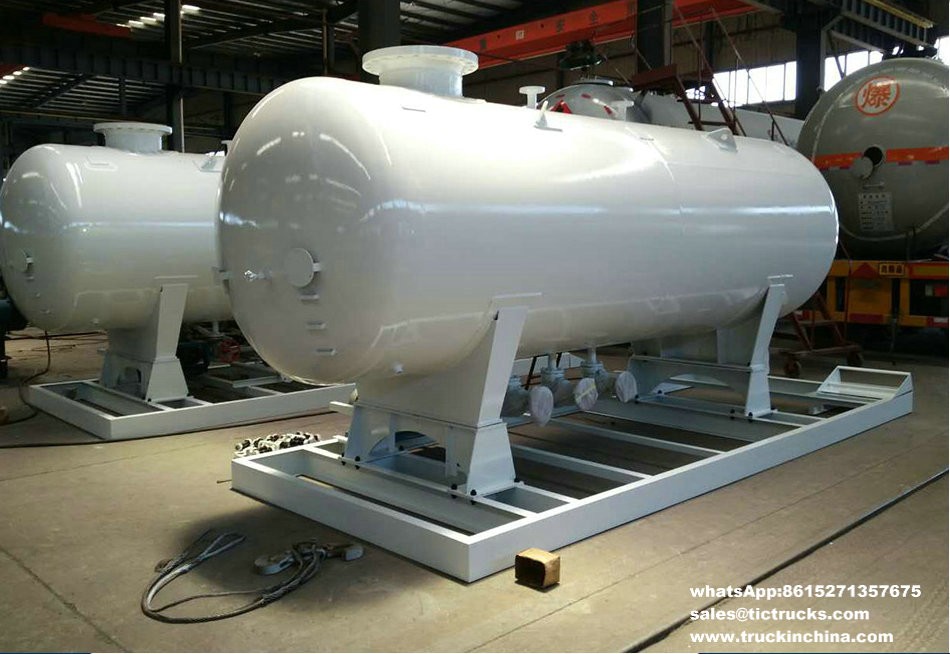

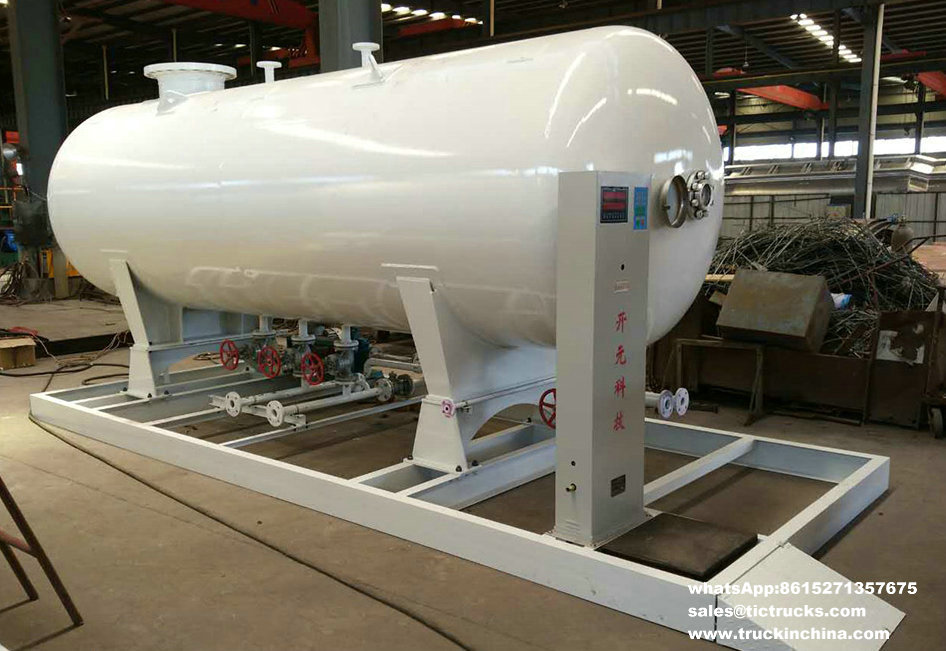

5000Liters LPG Gas Skid Filling Station with Mobile Refilling LPG Scales for LPG Bottle

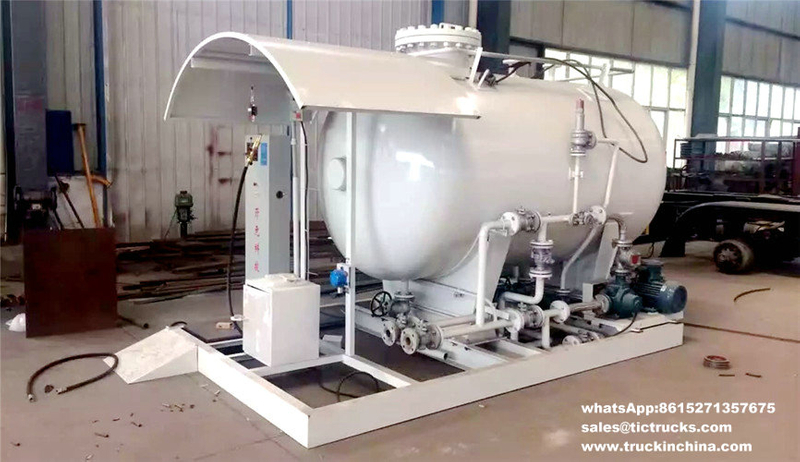

2.5ton LPG skid-mounted filling station 5cbm LPG Tank for sale
US $16,000-26,000 / Unit
20M3 LPG SKID Station $24000
10m3 LPG SKID Station $21000
5m3 LPG SKID Station $19000
| FOB: | |
|---|---|
| Availability: | |
| Quantity: | |
|
| |
-
5000L
-
DR
-
7311009000
LPG skid-mounted filling station/lpg cylinder filling station/mobile filling station
20M3 LPG SKID Station $24000
10m3 LPG SKID Station $21000
5m3 LPG SKID Station $19000
LPG bobtail Road Tanker, LPG tanker truck ,LPG filling truck, LPG refilling truck,LPG GAS dispenser truck, WITH Corken pump and LC meter , pipe and gas dispenser for car , small tank , gas cylinder Portable Design Code ASME
LPG Tank body is made by automatic bending machine and automatic welding machine.
all welding line is all welding line are checked by 100% X photoelectricity and aultransoni.
all tanks will be hot treatment by 10hours to get rid of the tress of tank body after weld.
Different type LPG Filling Scales for you Choice for your LPG Cylinder Refilling Plant:
LPG skid-mounted filling station/lpg cylinder filling station/mobile filling station
20M3 LPG SKID Station $24000
10m3 LPG SKID Station $21000
5m3 LPG SKID Station $19000
LPG bobtail Road Tanker, LPG tanker truck ,LPG filling truck, LPG refilling truck,LPG GAS dispenser truck, WITH Corken pump and LC meter , pipe and gas dispenser for car , small tank , gas cylinder Portable Design Code ASME
LPG Tank body is made by automatic bending machine and automatic welding machine.
all welding line is all welding line are checked by 100% X photoelectricity and aultransoni.
all tanks will be hot treatment by 10hours to get rid of the tress of tank body after weld.
Different type LPG Filling Scales for you Choice for your LPG Cylinder Refilling Plant:
LPG skid-mounted filling station/lpg cylinder filling station/mobile filling station
| Specification of 2.5ton 5cbm LPG Tank | ||
| Volume of Tank | 5CBM(5,000liters) 5ton | |
| Filling Weight | 2500 kg | |
| Tank Weight | 2030kg | |
| Thickness of Shell (mm) | 10 mm | |
| Thickness of Endplate (mm) | 10 mm | |
| Tank Diameter (mm) | 1600 mm | |
| Tank Dimensions (mm) (length x width x height) | 2960*1620*2210mm | |
| Material of Tank and Main Pressure Parts | Carbon Steel Q345R | |
| Filling Medium | Liquefied Petroleum Gas ( Propane) | |
| Design Pressure | 1.77 MPa | |
| Corrosion Allowance | 1 mm | |
| Medium Density | 500-590 kg/ cbm | |
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | ||
| Specification of LPG Pump and Motor | ||
| Item | Specification | |
| Specification of the Motor | ||
| Model | M2JA160M88 | |
| Revolving speed | 1470 r/min | |
| Power | 5.5 kw | |
| Voltage | 380 V | |
| Protection grade | Anti explosive | |
| Specification of the hydrocarbon Pump | ||
| Model | YQB15-5 | |
| Medium | Liquid petroleum gas | |
| Speed | 15 m3/h | |
| Input and Output Diameter | 50 mm | |
| Working pressure | 2.0 Mpa | |
| Working temperature | -40℃- 50℃ | |
| Material | carbon steel | |
2.5ton LPG gas station 5m3 skid-mounted station 5000L gas station tank
1.Tank material:Q345R carbon steel
2.Tank volume:5m3 5000L 5000Liters
3.Filling medium:Propane
4.Computer controlled cutting and rolling.each vertical and circular welding seam will be X-ray tested. To Prevent Welding Defective like Bubble & Cracks
5.Heat treatment.To Release the Stress of Steel Sheet and Prepare the Tanker for High Pressure Impact
6.Water pressure test. Make the tanker meet designed pressure.
LPG GAS dispenser truck, WITH Corken pump and LC meter , pipe and gas dispenser for car , small tank , gas cylinder Portable
Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675
50m3 SKID TYPE LPG FILLING STATION INCLUDING LPG DISPENSER, LPG LOADING AND DISCHARGING PUMP, VAPOUR RECOIVERY PIPELINE
lpg filling skid station
LPG skid-mounted filling station/lpg cylinder filling station/mobile filling station
Design,Manufacture,Installation,Commissioning,Maintenance
Economy, small, simple, flexible and fast
1. Skid-mounted LPG stations is constructed according to internation gas station standards. It's of very dependable quality and safety.
2. Integrate single device (such as tanks, pumps, valves, piping, etc.) to the metal skid body and formed a complete small LPG stations.
3. The volume of the tank can be customized according to customer's request: 10cbm/20cbm/30cbm/50cbm/60/cbm
4. In one LPG station, you can place several LPG dispensers of different nozzles.
Main Functions:
*Feeding gas to gas vehicles: high quality dispenser is equipped and its measurement is accurate and stable.
*Unloading: The LPG tank car can unload the medium to the storage tank on the skid-mounted plant smoothly
*Drainage: The sundries like water-logging in the storage tank will e drained through the drain outlet.
*Emptying:The residual pressure in storage tank can be released through the emptying port during overgauling.
*Alternative Pumps: Under fault condition, gas filling pump and unloading pump can be mutually alternative.
*Reverse unloading:The liquid on the storage tank can be unloaded to the gas tank car and delivered.
*Emergency cut-off :Air-operated emergency cut-off valve is installed a the liquid outlet on the storage tank, by which the emergency cut-off under abnormal conditions can be achieved.
*Leakage Alarm: Leakage probes are installed in the key positons of the skid-mounted gas station, so as to dect the equipment's security status.
*Liquid Level Alarm: Upper and lower liquid level limit switch are installed. Therefore, it has liquid alarm and control function.
Main Technical features of the LPG Storage Tank station:
| Product Model | LPG-T5000 |
| Structural form | Integral type, separated type |
| Install Method | Above-ground, under-ground |
| System Approach | Double pump system, single pump system |
| Storage Tank Volume(M⊃3;) | 5, 6, 10,15,20, 30 , 40 , 50 , 60 |
| Design pressure of storage tank | 1.77Mpa |
| Design pressure of pipe | 2.5Mpa |
| Opening pressure of safety valve | 1.75Mpa |
| Ambient Temperature | -40-55°C |
| Ambint Humidity | 10~95% |
| Dimension of skid-mounted body | Up to customer's requirement |
www.truckinchina.com
LPG skid-mounted filling station/lpg cylinder filling station/mobile filling station
| Specification of 2.5ton 5cbm LPG Tank | ||
| Volume of Tank | 5CBM(5,000liters) 5ton | |
| Filling Weight | 2500 kg | |
| Tank Weight | 2030kg | |
| Thickness of Shell (mm) | 10 mm | |
| Thickness of Endplate (mm) | 10 mm | |
| Tank Diameter (mm) | 1600 mm | |
| Tank Dimensions (mm) (length x width x height) | 2960*1620*2210mm | |
| Material of Tank and Main Pressure Parts | Carbon Steel Q345R | |
| Filling Medium | Liquefied Petroleum Gas ( Propane) | |
| Design Pressure | 1.77 MPa | |
| Corrosion Allowance | 1 mm | |
| Medium Density | 500-590 kg/ cbm | |
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | ||
| Specification of LPG Pump and Motor | ||
| Item | Specification | |
| Specification of the Motor | ||
| Model | M2JA160M88 | |
| Revolving speed | 1470 r/min | |
| Power | 5.5 kw | |
| Voltage | 380 V | |
| Protection grade | Anti explosive | |
| Specification of the hydrocarbon Pump | ||
| Model | YQB15-5 | |
| Medium | Liquid petroleum gas | |
| Speed | 15 m3/h | |
| Input and Output Diameter | 50 mm | |
| Working pressure | 2.0 Mpa | |
| Working temperature | -40℃- 50℃ | |
| Material | carbon steel | |
2.5ton LPG gas station 5m3 skid-mounted station 5000L gas station tank
1.Tank material:Q345R carbon steel
2.Tank volume:5m3 5000L 5000Liters
3.Filling medium:Propane
4.Computer controlled cutting and rolling.each vertical and circular welding seam will be X-ray tested. To Prevent Welding Defective like Bubble & Cracks
5.Heat treatment.To Release the Stress of Steel Sheet and Prepare the Tanker for High Pressure Impact
6.Water pressure test. Make the tanker meet designed pressure.
LPG GAS dispenser truck, WITH Corken pump and LC meter , pipe and gas dispenser for car , small tank , gas cylinder Portable
Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675
50m3 SKID TYPE LPG FILLING STATION INCLUDING LPG DISPENSER, LPG LOADING AND DISCHARGING PUMP, VAPOUR RECOIVERY PIPELINE
lpg filling skid station
LPG skid-mounted filling station/lpg cylinder filling station/mobile filling station
Design,Manufacture,Installation,Commissioning,Maintenance
Economy, small, simple, flexible and fast
1. Skid-mounted LPG stations is constructed according to internation gas station standards. It's of very dependable quality and safety.
2. Integrate single device (such as tanks, pumps, valves, piping, etc.) to the metal skid body and formed a complete small LPG stations.
3. The volume of the tank can be customized according to customer's request: 10cbm/20cbm/30cbm/50cbm/60/cbm
4. In one LPG station, you can place several LPG dispensers of different nozzles.
Main Functions:
*Feeding gas to gas vehicles: high quality dispenser is equipped and its measurement is accurate and stable.
*Unloading: The LPG tank car can unload the medium to the storage tank on the skid-mounted plant smoothly
*Drainage: The sundries like water-logging in the storage tank will e drained through the drain outlet.
*Emptying:The residual pressure in storage tank can be released through the emptying port during overgauling.
*Alternative Pumps: Under fault condition, gas filling pump and unloading pump can be mutually alternative.
*Reverse unloading:The liquid on the storage tank can be unloaded to the gas tank car and delivered.
*Emergency cut-off :Air-operated emergency cut-off valve is installed a the liquid outlet on the storage tank, by which the emergency cut-off under abnormal conditions can be achieved.
*Leakage Alarm: Leakage probes are installed in the key positons of the skid-mounted gas station, so as to dect the equipment's security status.
*Liquid Level Alarm: Upper and lower liquid level limit switch are installed. Therefore, it has liquid alarm and control function.
Main Technical features of the LPG Storage Tank station:
| Product Model | LPG-T5000 |
| Structural form | Integral type, separated type |
| Install Method | Above-ground, under-ground |
| System Approach | Double pump system, single pump system |
| Storage Tank Volume(M⊃3;) | 5, 6, 10,15,20, 30 , 40 , 50 , 60 |
| Design pressure of storage tank | 1.77Mpa |
| Design pressure of pipe | 2.5Mpa |
| Opening pressure of safety valve | 1.75Mpa |
| Ambient Temperature | -40-55°C |
| Ambint Humidity | 10~95% |
| Dimension of skid-mounted body | Up to customer's requirement |
www.truckinchina.com
