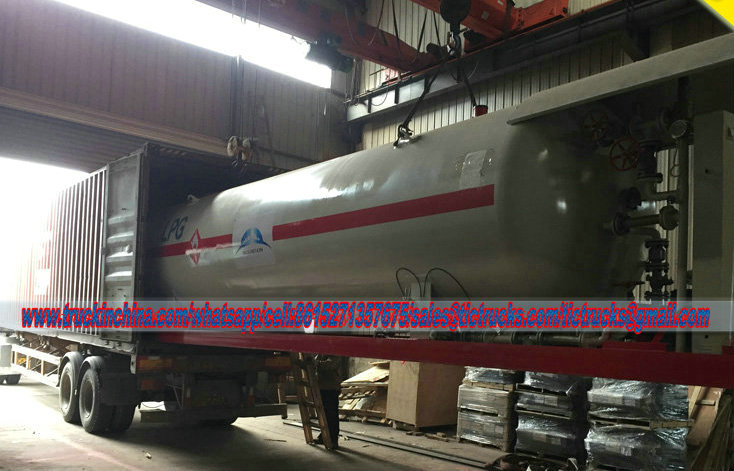

Gas Cylinders Refilling Plant 20000Liters Mobile LPG Filling Stations 8Tons -10Tons
8ton LPG skid-mounted filling station 20cbm LPG Tank for sale
40M3 LPG SKID Station $42000
20M3 LPG SKID Station $24000
12M3 LPG SKID Station $22000
10m3 LPG SKID Station $21000
5m3 LPG SKID Station $19000
| FOB: | |
|---|---|
| Availability: | |
| Quantity: | |
|
| |
-
20000L
-
DR
-
7311009000
Gas Cylinders Refilling Plant 20000Liters Mobile LPG Filling Stations 8Tons -10Tons
LPG skid mounted station Mobile Filling Station for LPG with 12000Liters
LPG Gas Skid station , Cooking Gas Plant for LPG Cylinder With LPG Refilling Scales 40000Liters
10000LitersLPG skid-mounted filling station/lpg cylinder filling station/mobile filling station
LPG bobtail Road Tanker, LPG tanker truck ,LPG filling truck, LPG refilling truck,LPG GAS dispenser truck, WITH Corken pump and LC meter , pipe and gas dispenser for car , small tank , gas cylinder Portable Design Code ASME
LPG Tank body is made by automatic bending machine and automatic welding machine.
all welding line is all welding line are checked by 100% X photoelectricity and aultransoni.
all tanks will be hot treatment by 10hours to get rid of the tress of tank body after weld.
Different type LPG Filling Scales for you Choice for your LPG Cylinder Refilling Plant:
Gas Cylinders Refilling Plant 20000Liters Mobile LPG Filling Stations 8Tons -10Tons
LPG skid mounted station Mobile Filling Station for LPG with 12000Liters
LPG Gas Skid station , Cooking Gas Plant for LPG Cylinder With LPG Refilling Scales 40000Liters
10000LitersLPG skid-mounted filling station/lpg cylinder filling station/mobile filling station
LPG bobtail Road Tanker, LPG tanker truck ,LPG filling truck, LPG refilling truck,LPG GAS dispenser truck, WITH Corken pump and LC meter , pipe and gas dispenser for car , small tank , gas cylinder Portable Design Code ASME
LPG Tank body is made by automatic bending machine and automatic welding machine.
all welding line is all welding line are checked by 100% X photoelectricity and aultransoni.
all tanks will be hot treatment by 10hours to get rid of the tress of tank body after weld.
Different type LPG Filling Scales for you Choice for your LPG Cylinder Refilling Plant:
Gas Cylinders Refilling Plant 20000Liters Mobile LPG Filling Stations 8Tons -10Tons
specification of LPG Gas Cyinders Refilling Plant 20000Liters:
| LPG Filling Plant | Item | data |
| Filling medium | LPG | |
| capacity | 20000Liters | |
| Design pressure | 1.724Mpa | |
| Thickness of body | 10mm | |
| Thickness of head | 10mm | |
| Material | Q345 | |
| Corrosion allowance | 1mm | |
| Hot treatment type | Stress relieved hot treatment | |
| Kerb weight | 4330kgs | |
| Loading weight | 8400kgs | |
| Outside dimension(inner diameter*thickness*length | 1800*10*8170mm | |
| Filling ratio | 0.95 | |
| Hydraulic test pressure | 2.14Mpa | |
| Service year | 20 | |
| Filling ratio | 420(50℃) |
With Rotation LeveL Meter, Safe Valve, Pressure Meter, Temperature Meter.
With LPG Filling Scale Weight 1set to 6sets.
With Special LPG Motor with Return Valve to make sure saftly operate ,
LPG Pump and LPG Compressor Machine.
20000Liters LPG Filling Stations can filling LPG into tank body and refilling LPG to Cylinder for Cooking Gas, and other LPG Cars
Information for LPG tank skid station | ||
General | Item Name | Portable LPG Gas Station |
loading Weight (kg) | 8400 kg | |
Tank volume (liters) | 20000 liters | |
working Medium | LPG (propane) ,0.42 Kg/M3 | |
Gas Dispenser | Rate of flow (m⊃3;/min) | 1.5 |
Speed (R/m⊃3;) | 730 | |
Motor power(KW) | 22 | |
Equipment | gas dispenser, gas gun,flow meter, pressure gauge, thermometer,discharge valve,etc | |
LPG storage tanks | ||||
tank diameter | 1800mm | 2000mm | 2100mm | 2200mm |
tank type | III | III | III | III |
working Medium | LPG (propane) | LPG(propane) | LPG(propane) | LPG(propane) |
Design Specific Gravity | 0.42 Kg/M3 | 0.42 Kg/M3 | 0.42 Kg/M3 | 0.42 Kg/M3 |
media characteristics | Flammable and explosive | flammable and | flammable and | flammable and |
capacity | 20M3 | 20M3 | 20M3 | 20M3 |
External Dimensions (length*width*height) | 8174*1820*2410mm | 6724*2024*2614mm | 6154*2124*2714mm | 5608*2224*28514mm |
tank weight (nominal) | 4820kg | 5150kg | 5050kg | 5080kg |
max payload weight | 7980kg | 7980kg | 7980kg | 7980kg |
tank material | Q345R | Q345R | Q345R | Q345R |
Barrel design thickness | 10mm | 12mm | 12mm | 12mm |
Head design thickness | 12mm | 12mm | 12mm | 14mm |
welded joint coefficient | 1.0 | 1.0 | 1.0 | 1.0 |
design temperature | 50ºC | 50ºC | 50ºC | 50ºC |
working temperature | -20~50 ºC | -20~50 ºC | -20~50 ºC | -20~50 ºC |
Corrosion allowance | 1.0 mm | 1.0 mm | 1.0 mm | 1.0 mm |
design pressure | 1.77 MPa | 1.77 MPa | 1.77 MPa | 1.77 MPa |
Hydraulic test pressure | 2.22 MPa | 2.22 MPa | 2.22 MPa | 2.22 MPa |
leak test pressure | 1.77 MPa | 1.77 MPa | 1.77 MPa | 1.77 MPa |
Heat treatment type | Wholly get rid of tress | Wholly get rid of tress | Wholly get rid of tress | Wholly get rid of tress |
Paint | paint white color, or paint the color you request. | paint white color, or paint the color you request. | paint white color, or paint the color you request. | paint white color, or paint the color you request. |
The first install Accessories | Safe valve, Disconnecting valve, Level gauge, Pressure meter, Temperature meter | Safe valve, Disconnecting valve, Level gauge, Pressure meter, Temperature meter | Safe valve, Disconnecting valve, Level gauge, Pressure meter, Temperature meter | Safe valve, Disconnecting valve, Level gauge, Pressure meter, Temperature meter |
Filling accessories for MOBILE SKID LPG STATION | ||
Item | Specification | Quantity |
Hydrocarbon pump | YQB15-5 | 1 |
Anti-static motor | MM2JA160MBB | 1 |
alarm | QJ-D-99F | 2 |
Liquid meter | L=1800mm DN20 | 1 |
Safety valve | A42F-25 DN50 | 1 |
Safety reflux valve | AH42F-25 DN25 | 1 |
Check valve | H42N-40 DN50 | 2 |
Stop valve | J41N-40 DN50 | 25 |
J41N-40 DN32 | 1 | |
J41N-40 DN25 | 4 | |
J41N-40 DN20 | 2 | |
J41N-40 DN20 | 10 | |
Pipe safety valve | A21F-25 DN15 | 1 |
Discharge pipe | L=4M DN50/DN25 | 1 |
Shock tube | L=500MM DN50 | 2 |
Filling gun with pipe | L=2M | 3 |
Elbow | DN65 | 2 |
DN50 | 10 | |
Flange | 2.5mpa DN65 | 1 |
2.5mpa DN50 | 50 | |
2.5mpa DN32 | 1 | |
2.5mpa DN25 | 8 | |
2.5mpa DN15 | 20 | |
Electric filling scale | BSC-150 | 1 |
Metal pads | DN65 | 5 |
DN50 | 80 | |
DN32 | 2 | |
DN25 | 10 | |
DN20 | 2 | |
DN15 | 30 | |
bolt | 16*70 | 300 |
16*55 | 100 | |
LPG skid mounted station Mobile Filling Station for LPG with 12000Liters
specification of Mobile Filling Station for LPG with 12000Liters LPG Storage Tank :
| Tanker body | Item | data |
| Filling medium | LPG | |
| capacity | 12m3/12000Liters | |
| Design pressure | 1.71Mpa | |
| Thickness of body | 9.68mm | |
| Thickness of head | 9.66mm | |
| Material | Q345 | |
| Corrosion allowance | 1mm | |
| Hot treatment type | Stress relieved hot treatment | |
| Kerb weight | 4800kgs | |
| Loading weight | 5040kgs | |
| Outside dimension(inner diameter*thickness*length | 2000*10*5300mm | |
| Filling ratio | 0.95 | |
| Hydraulic test pressure | 2.14Mpa | |
| Service year | 20 | |
| Filling ratio | 420(50℃) |
With Rotation LeveL Meter, Safe Valve, Pressure Meter, Temperature Meter.
40000Liters LPG Gas Skid station , Cooking Gas Plant for LPG Cylinder With LPG Refilling Scales
| 40 M3 LPG SKID TANK DIMENSIONS | |||
| Volume of Tank | 40CBM | ||
| Filling Weight | 20000kgs | ||
| Tank Weight | 9380kg | ||
| Thickness of Shell (mm) | 14 mm | ||
| Thickness of End plate (mm) | 14 mm | ||
| Tank Diameter (mm) | 2400 mm | ||
| Tank Dimensions (mm) (length x width x height) | 9270 x 2428 x 3018 mm | ||
| Overall Dimensions (mm) (length x width x height) | 11270 x 2500 x3900mm | ||
| Material of Tank and Main Pressure Parts | Carbon Steel Q345R | ||
| Filling Medium | Liquefied Petroleum Gas ( Propane) | ||
| Design Pressure | 1.77 MPa | ||
| Corrosion Allowance | 1 mm | ||
| Medium Density | 500 kg/ M3 | ||
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |||
| Main parts of LPG Tank | |||
| Item | Specification | Quantity | |
| Discharge Pipe | DN80 | 1 | |
| Inflow Pipe | DN80 | 1 | |
| Outlet | DN50 | 1 | |
| Gas phase balance pipes | DN50 | 2 | |
| Manhole | DN450 | 1 | |
| Drain Hole | DN50 | 1 | |
| Main accessories： Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. Skid Parts List will be show in separated page below. | |||
| LPG Skid Part list (All above price include parts as below) | ||
| Item | Model Number | Quantity |
| LPG Tanker | / | 1 piece |
| Metal Bottom Base | / | 1 Piece |
| Electronic LPG Filling scale for Gas Cylinder | Find photos in next pages | 1 unit |
| Filling pump(Corken Brand) | Z2000EGAEE | 1 Pieces |
| Motor(ABB Brand) | M2JA160M8B | 1 Pieces |
| Cooling system for tanker | / | 1 set |
| Pipes | / | 1 sets |
| Cut-off Valve | J41N-40 DN50 | 25 Pieces |
| Cut-off Valve | J41N-40 DN32 | 1 Piece |
| Cut-off Valve | J41N-40 DN25 | 4 Pieces |
| Cut-off Valve | J41N-40 DN20 | 2 Pieces |
| Cut-off Valve | J41N-40 DN15 | 10 Pieces |
| Safety Valve | A42F-25 DN50 | 1 Piece |
| Safety Reverse Valve | AH42F-25DN25 | 1 Piece |
| Check Valve | H42N-40DN50 | 2 Pieces |
| Pipe Safety Valve | A21F-25 DN15 | 1 Piece |
| Magnetic reversible level gauge | UZFAL-2.5RF2640-0.50 | 1 Piece |
| Discharging pipe | L=4M DN50/DN25 | 1 Piece |
| Shock-absorbing Tube | L=500mm DN50 | 2 Pieces |
| Elbow Cap | DN65 | 2 Pieces |
| Elbow Cap | DN50 | 10 Pieces |
| Alarm system | QJ-D-99F | 2 Pieces |
| Flange | 2.5MPaDN65 | 1 Piece |
| Flange | 2.5MPaDN50 | 50 Pieces |
| Flange | 2.5MPaDN32 | 1 Piece |
| Flange | 2.5MPaDN25 | 8 Pieces |
| Flange | 2.5MPaDN15 | 20 Pieces |
| Metal gasket | DN65 | 5 Pieces |
| Metal gasket | DN50 | 80 Pieces |
| Metal gasket | DN32 | 2 Pieces |
| Metal gasket | DN25 | 10 Pieces |
| Metal gasket | DN20 | 2 Pieces |
| Metal gasket | DN15 | 30 Pieces |
| 8.8 degree Bolt | 16*70 | 300 Pieces |
| 8.8 degree Bolt | 12*55 | 100 Pieces |
40000Liters Cooking Gas Plant for LPG Cylinder With LPG Refilling Scales:optional 2
| Tanker body | Item | data |
| Filling medium | LPG | |
| capacity | 40000Liters | |
| Design pressure | 1.724Mpa | |
| Thickness of body | 12mm | |
| Thickness of head | 12mm | |
| Material | Q345 | |
| Corrosion allowance | 1mm | |
| Hot treatment type | Stress relieved hot treatment | |
| Kerb weight | 15400kgs | |
| Loading weight | 16800kgs | |
| Outside dimension(inner diameter*thickness*length | 2200*12*11000mm | |
| Filling ratio | 0.95 | |
| Hydraulic test pressure | 2.14Mpa | |
| Service year | 20 | |
| Filling ratio | 420(50℃) |
With Rotation LeveL Meter, Safe Valve, Pressure Meter, Temperature Meter.
With LPG Filling Scale Weight 1set to 6sets.
With Special LPG Motor with Return Valve to make sure saftly operate ,
LPG Pump and LPG Compressor Machine.
10000Liters LPG skid-mounted filling station/lpg cylinder filling station/mobile filling station
10000Liters LPG Gas Skid Filling Station, equipment 6sets With LPG Gas Cylinder Filling Scales, LPG Motors and LPG PUMP, LPG Filling and refilling, LPG Cylinder, LPG Cooking Gas, LPG Gas Cars.
specification of 10000Liters LPG Gas Skid Filling Station with Mobile Refilling LPG Scales for LPG Bottle:
| Tanker body | Item | data |
| Filling medium | LPG | |
| capacity | 10m3/10000Liters | |
| Design pressure | 1.71Mpa | |
| Thickness of body | 9.68mm | |
| Thickness of head | 9.66mm | |
| Material | Q345 | |
| Corrosion allowance | 1mm | |
| Hot treatment type | Stress relieved hot treatment | |
| Kerb weight | 3800kgs | |
| Loading weight | 4200kgs | |
| Outside dimension(inner diameter*thickness*length | 1800*10*5300mm | |
| Filling ratio | 0.95 | |
| Hydraulic test pressure | 2.14Mpa | |
| Service year | 20 | |
| Filling ratio | 420(50℃) |
With Rotation LeveL Meter, Safe Valve, Pressure Meter, Temperature Meter.
With LPG Filling Scale Weight 1set to 6sets.
With Special LPG Motor with Return Valve to make sure saftly operate ,
LPG Pump and LPG Compressor Machine.
20000Liters LPG Filling Stations can filling LPG into tank body and refilling LPG to Cylinder for Cooking Gas, and other LPG Cars.
It is widely used in Nigeria and other Africa Country.
| Specification of 2.5ton 5cbm LPG Tank | ||
| Volume of Tank | 5CBM(5,000liters) 5ton | |
| Filling Weight | 2500 kg | |
| Tank Weight | 2030kg | |
| Thickness of Shell (mm) | 10 mm | |
| Thickness of Endplate (mm) | 10 mm | |
| Tank Diameter (mm) | 1600 mm | |
| Tank Dimensions (mm) (length x width x height) | 2960*1620*2210mm | |
| Material of Tank and Main Pressure Parts | Carbon Steel Q345R | |
| Filling Medium | Liquefied Petroleum Gas ( Propane) | |
| Design Pressure | 1.77 MPa | |
| Corrosion Allowance | 1 mm | |
| Medium Density | 500-590 kg/ cbm | |
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | ||
| Specification of LPG Pump and Motor | ||
| Item | Specification | |
| Specification of the Motor | ||
| Model | M2JA160M88 | |
| Revolving speed | 1470 r/min | |
| Power | 5.5 kw | |
| Voltage | 380 V | |
| Protection grade | Anti explosive | |
| Specification of the hydrocarbon Pump | ||
| Model | YQB15-5 | |
| Medium | Liquid petroleum gas | |
| Speed | 15 m3/h | |
| Input and Output Diameter | 50 mm | |
| Working pressure | 2.0 Mpa | |
| Working temperature | -40℃- 50℃ | |
| Material | carbon steel | |
2.5ton LPG gas station 5m3 skid-mounted station 5000L gas station tank
1.Tank material:Q345R carbon steel
2.Tank volume:5m3 5000L 5000Liters
3.Filling medium:Propane
4.Computer controlled cutting and rolling.each vertical and circular welding seam will be X-ray tested. To Prevent Welding Defective like Bubble & Cracks
5.Heat treatment.To Release the Stress of Steel Sheet and Prepare the Tanker for High Pressure Impact
6.Water pressure test. Make the tanker meet designed pressure.
LPG GAS dispenser truck, WITH Corken pump and LC meter , pipe and gas dispenser for car , small tank , gas cylinder Portable
Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675
50m3 SKID TYPE LPG FILLING STATION INCLUDING LPG DISPENSER, LPG LOADING AND DISCHARGING PUMP, VAPOUR RECOIVERY PIPELINE
lpg filling skid station
LPG skid-mounted filling station/lpg cylinder filling station/mobile filling station
Design,Manufacture,Installation,Commissioning,Maintenance
Economy, small, simple, flexible and fast
1. Skid-mounted LPG stations is constructed according to internation gas station standards. It's of very dependable quality and safety.
2. Integrate single device (such as tanks, pumps, valves, piping, etc.) to the metal skid body and formed a complete small LPG stations.
3. The volume of the tank can be customized according to customer's request: 10cbm/20cbm/30cbm/50cbm/60/cbm
4. In one LPG station, you can place several LPG dispensers of different nozzles.
Main Functions:
*Feeding gas to gas vehicles: high quality dispenser is equipped and its measurement is accurate and stable.
*Unloading: The LPG tank car can unload the medium to the storage tank on the skid-mounted plant smoothly
*Drainage: The sundries like water-logging in the storage tank will e drained through the drain outlet.
*Emptying:The residual pressure in storage tank can be released through the emptying port during overgauling.
*Alternative Pumps: Under fault condition, gas filling pump and unloading pump can be mutually alternative.
*Reverse unloading:The liquid on the storage tank can be unloaded to the gas tank car and delivered.
*Emergency cut-off :Air-operated emergency cut-off valve is installed a the liquid outlet on the storage tank, by which the emergency cut-off under abnormal conditions can be achieved.
*Leakage Alarm: Leakage probes are installed in the key positons of the skid-mounted gas station, so as to dect the equipment's security status.
*Liquid Level Alarm: Upper and lower liquid level limit switch are installed. Therefore, it has liquid alarm and control function.
Main Technical features of the LPG Storage Tank station:
| Product Model | LPG-T5000 |
| Structural form | Integral type, separated type |
| Install Method | Above-ground, under-ground |
| System Approach | Double pump system, single pump system |
| Storage Tank Volume(M⊃3;) | 5, 6, 10,15,20, 30 , 40 , 50 , 60 |
| Design pressure of storage tank | 1.77Mpa |
| Design pressure of pipe | 2.5Mpa |
| Opening pressure of safety valve | 1.75Mpa |
| Ambient Temperature | -40-55°C |
| Ambint Humidity | 10~95% |
| Dimension of skid-mounted body | Up to customer's requirement |
www.truckinchina.com
Gas Cylinders Refilling Plant 20000Liters Mobile LPG Filling Stations 8Tons -10Tons
specification of LPG Gas Cyinders Refilling Plant 20000Liters:
| LPG Filling Plant | Item | data |
| Filling medium | LPG | |
| capacity | 20000Liters | |
| Design pressure | 1.724Mpa | |
| Thickness of body | 10mm | |
| Thickness of head | 10mm | |
| Material | Q345 | |
| Corrosion allowance | 1mm | |
| Hot treatment type | Stress relieved hot treatment | |
| Kerb weight | 4330kgs | |
| Loading weight | 8400kgs | |
| Outside dimension(inner diameter*thickness*length | 1800*10*8170mm | |
| Filling ratio | 0.95 | |
| Hydraulic test pressure | 2.14Mpa | |
| Service year | 20 | |
| Filling ratio | 420(50℃) |
With Rotation LeveL Meter, Safe Valve, Pressure Meter, Temperature Meter.
With LPG Filling Scale Weight 1set to 6sets.
With Special LPG Motor with Return Valve to make sure saftly operate ,
LPG Pump and LPG Compressor Machine.
20000Liters LPG Filling Stations can filling LPG into tank body and refilling LPG to Cylinder for Cooking Gas, and other LPG Cars
Information for LPG tank skid station | ||
General | Item Name | Portable LPG Gas Station |
loading Weight (kg) | 8400 kg | |
Tank volume (liters) | 20000 liters | |
working Medium | LPG (propane) ,0.42 Kg/M3 | |
Gas Dispenser | Rate of flow (m⊃3;/min) | 1.5 |
Speed (R/m⊃3;) | 730 | |
Motor power(KW) | 22 | |
Equipment | gas dispenser, gas gun,flow meter, pressure gauge, thermometer,discharge valve,etc | |
LPG storage tanks | ||||
tank diameter | 1800mm | 2000mm | 2100mm | 2200mm |
tank type | III | III | III | III |
working Medium | LPG (propane) | LPG(propane) | LPG(propane) | LPG(propane) |
Design Specific Gravity | 0.42 Kg/M3 | 0.42 Kg/M3 | 0.42 Kg/M3 | 0.42 Kg/M3 |
media characteristics | Flammable and explosive | flammable and | flammable and | flammable and |
capacity | 20M3 | 20M3 | 20M3 | 20M3 |
External Dimensions (length*width*height) | 8174*1820*2410mm | 6724*2024*2614mm | 6154*2124*2714mm | 5608*2224*28514mm |
tank weight (nominal) | 4820kg | 5150kg | 5050kg | 5080kg |
max payload weight | 7980kg | 7980kg | 7980kg | 7980kg |
tank material | Q345R | Q345R | Q345R | Q345R |
Barrel design thickness | 10mm | 12mm | 12mm | 12mm |
Head design thickness | 12mm | 12mm | 12mm | 14mm |
welded joint coefficient | 1.0 | 1.0 | 1.0 | 1.0 |
design temperature | 50ºC | 50ºC | 50ºC | 50ºC |
working temperature | -20~50 ºC | -20~50 ºC | -20~50 ºC | -20~50 ºC |
Corrosion allowance | 1.0 mm | 1.0 mm | 1.0 mm | 1.0 mm |
design pressure | 1.77 MPa | 1.77 MPa | 1.77 MPa | 1.77 MPa |
Hydraulic test pressure | 2.22 MPa | 2.22 MPa | 2.22 MPa | 2.22 MPa |
leak test pressure | 1.77 MPa | 1.77 MPa | 1.77 MPa | 1.77 MPa |
Heat treatment type | Wholly get rid of tress | Wholly get rid of tress | Wholly get rid of tress | Wholly get rid of tress |
Paint | paint white color, or paint the color you request. | paint white color, or paint the color you request. | paint white color, or paint the color you request. | paint white color, or paint the color you request. |
The first install Accessories | Safe valve, Disconnecting valve, Level gauge, Pressure meter, Temperature meter | Safe valve, Disconnecting valve, Level gauge, Pressure meter, Temperature meter | Safe valve, Disconnecting valve, Level gauge, Pressure meter, Temperature meter | Safe valve, Disconnecting valve, Level gauge, Pressure meter, Temperature meter |
Filling accessories for MOBILE SKID LPG STATION | ||
Item | Specification | Quantity |
Hydrocarbon pump | YQB15-5 | 1 |
Anti-static motor | MM2JA160MBB | 1 |
alarm | QJ-D-99F | 2 |
Liquid meter | L=1800mm DN20 | 1 |
Safety valve | A42F-25 DN50 | 1 |
Safety reflux valve | AH42F-25 DN25 | 1 |
Check valve | H42N-40 DN50 | 2 |
Stop valve | J41N-40 DN50 | 25 |
J41N-40 DN32 | 1 | |
J41N-40 DN25 | 4 | |
J41N-40 DN20 | 2 | |
J41N-40 DN20 | 10 | |
Pipe safety valve | A21F-25 DN15 | 1 |
Discharge pipe | L=4M DN50/DN25 | 1 |
Shock tube | L=500MM DN50 | 2 |
Filling gun with pipe | L=2M | 3 |
Elbow | DN65 | 2 |
DN50 | 10 | |
Flange | 2.5mpa DN65 | 1 |
2.5mpa DN50 | 50 | |
2.5mpa DN32 | 1 | |
2.5mpa DN25 | 8 | |
2.5mpa DN15 | 20 | |
Electric filling scale | BSC-150 | 1 |
Metal pads | DN65 | 5 |
DN50 | 80 | |
DN32 | 2 | |
DN25 | 10 | |
DN20 | 2 | |
DN15 | 30 | |
bolt | 16*70 | 300 |
16*55 | 100 | |
LPG skid mounted station Mobile Filling Station for LPG with 12000Liters
specification of Mobile Filling Station for LPG with 12000Liters LPG Storage Tank :
| Tanker body | Item | data |
| Filling medium | LPG | |
| capacity | 12m3/12000Liters | |
| Design pressure | 1.71Mpa | |
| Thickness of body | 9.68mm | |
| Thickness of head | 9.66mm | |
| Material | Q345 | |
| Corrosion allowance | 1mm | |
| Hot treatment type | Stress relieved hot treatment | |
| Kerb weight | 4800kgs | |
| Loading weight | 5040kgs | |
| Outside dimension(inner diameter*thickness*length | 2000*10*5300mm | |
| Filling ratio | 0.95 | |
| Hydraulic test pressure | 2.14Mpa | |
| Service year | 20 | |
| Filling ratio | 420(50℃) |
With Rotation LeveL Meter, Safe Valve, Pressure Meter, Temperature Meter.
40000Liters LPG Gas Skid station , Cooking Gas Plant for LPG Cylinder With LPG Refilling Scales
| 40 M3 LPG SKID TANK DIMENSIONS | |||
| Volume of Tank | 40CBM | ||
| Filling Weight | 20000kgs | ||
| Tank Weight | 9380kg | ||
| Thickness of Shell (mm) | 14 mm | ||
| Thickness of End plate (mm) | 14 mm | ||
| Tank Diameter (mm) | 2400 mm | ||
| Tank Dimensions (mm) (length x width x height) | 9270 x 2428 x 3018 mm | ||
| Overall Dimensions (mm) (length x width x height) | 11270 x 2500 x3900mm | ||
| Material of Tank and Main Pressure Parts | Carbon Steel Q345R | ||
| Filling Medium | Liquefied Petroleum Gas ( Propane) | ||
| Design Pressure | 1.77 MPa | ||
| Corrosion Allowance | 1 mm | ||
| Medium Density | 500 kg/ M3 | ||
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |||
| Main parts of LPG Tank | |||
| Item | Specification | Quantity | |
| Discharge Pipe | DN80 | 1 | |
| Inflow Pipe | DN80 | 1 | |
| Outlet | DN50 | 1 | |
| Gas phase balance pipes | DN50 | 2 | |
| Manhole | DN450 | 1 | |
| Drain Hole | DN50 | 1 | |
| Main accessories： Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. Skid Parts List will be show in separated page below. | |||
| LPG Skid Part list (All above price include parts as below) | ||
| Item | Model Number | Quantity |
| LPG Tanker | / | 1 piece |
| Metal Bottom Base | / | 1 Piece |
| Electronic LPG Filling scale for Gas Cylinder | Find photos in next pages | 1 unit |
| Filling pump(Corken Brand) | Z2000EGAEE | 1 Pieces |
| Motor(ABB Brand) | M2JA160M8B | 1 Pieces |
| Cooling system for tanker | / | 1 set |
| Pipes | / | 1 sets |
| Cut-off Valve | J41N-40 DN50 | 25 Pieces |
| Cut-off Valve | J41N-40 DN32 | 1 Piece |
| Cut-off Valve | J41N-40 DN25 | 4 Pieces |
| Cut-off Valve | J41N-40 DN20 | 2 Pieces |
| Cut-off Valve | J41N-40 DN15 | 10 Pieces |
| Safety Valve | A42F-25 DN50 | 1 Piece |
| Safety Reverse Valve | AH42F-25DN25 | 1 Piece |
| Check Valve | H42N-40DN50 | 2 Pieces |
| Pipe Safety Valve | A21F-25 DN15 | 1 Piece |
| Magnetic reversible level gauge | UZFAL-2.5RF2640-0.50 | 1 Piece |
| Discharging pipe | L=4M DN50/DN25 | 1 Piece |
| Shock-absorbing Tube | L=500mm DN50 | 2 Pieces |
| Elbow Cap | DN65 | 2 Pieces |
| Elbow Cap | DN50 | 10 Pieces |
| Alarm system | QJ-D-99F | 2 Pieces |
| Flange | 2.5MPaDN65 | 1 Piece |
| Flange | 2.5MPaDN50 | 50 Pieces |
| Flange | 2.5MPaDN32 | 1 Piece |
| Flange | 2.5MPaDN25 | 8 Pieces |
| Flange | 2.5MPaDN15 | 20 Pieces |
| Metal gasket | DN65 | 5 Pieces |
| Metal gasket | DN50 | 80 Pieces |
| Metal gasket | DN32 | 2 Pieces |
| Metal gasket | DN25 | 10 Pieces |
| Metal gasket | DN20 | 2 Pieces |
| Metal gasket | DN15 | 30 Pieces |
| 8.8 degree Bolt | 16*70 | 300 Pieces |
| 8.8 degree Bolt | 12*55 | 100 Pieces |
40000Liters Cooking Gas Plant for LPG Cylinder With LPG Refilling Scales:optional 2
| Tanker body | Item | data |
| Filling medium | LPG | |
| capacity | 40000Liters | |
| Design pressure | 1.724Mpa | |
| Thickness of body | 12mm | |
| Thickness of head | 12mm | |
| Material | Q345 | |
| Corrosion allowance | 1mm | |
| Hot treatment type | Stress relieved hot treatment | |
| Kerb weight | 15400kgs | |
| Loading weight | 16800kgs | |
| Outside dimension(inner diameter*thickness*length | 2200*12*11000mm | |
| Filling ratio | 0.95 | |
| Hydraulic test pressure | 2.14Mpa | |
| Service year | 20 | |
| Filling ratio | 420(50℃) |
With Rotation LeveL Meter, Safe Valve, Pressure Meter, Temperature Meter.
With LPG Filling Scale Weight 1set to 6sets.
With Special LPG Motor with Return Valve to make sure saftly operate ,
LPG Pump and LPG Compressor Machine.
10000Liters LPG skid-mounted filling station/lpg cylinder filling station/mobile filling station
10000Liters LPG Gas Skid Filling Station, equipment 6sets With LPG Gas Cylinder Filling Scales, LPG Motors and LPG PUMP, LPG Filling and refilling, LPG Cylinder, LPG Cooking Gas, LPG Gas Cars.
specification of 10000Liters LPG Gas Skid Filling Station with Mobile Refilling LPG Scales for LPG Bottle:
| Tanker body | Item | data |
| Filling medium | LPG | |
| capacity | 10m3/10000Liters | |
| Design pressure | 1.71Mpa | |
| Thickness of body | 9.68mm | |
| Thickness of head | 9.66mm | |
| Material | Q345 | |
| Corrosion allowance | 1mm | |
| Hot treatment type | Stress relieved hot treatment | |
| Kerb weight | 3800kgs | |
| Loading weight | 4200kgs | |
| Outside dimension(inner diameter*thickness*length | 1800*10*5300mm | |
| Filling ratio | 0.95 | |
| Hydraulic test pressure | 2.14Mpa | |
| Service year | 20 | |
| Filling ratio | 420(50℃) |
With Rotation LeveL Meter, Safe Valve, Pressure Meter, Temperature Meter.
With LPG Filling Scale Weight 1set to 6sets.
With Special LPG Motor with Return Valve to make sure saftly operate ,
LPG Pump and LPG Compressor Machine.
20000Liters LPG Filling Stations can filling LPG into tank body and refilling LPG to Cylinder for Cooking Gas, and other LPG Cars.
It is widely used in Nigeria and other Africa Country.
| Specification of 2.5ton 5cbm LPG Tank | ||
| Volume of Tank | 5CBM(5,000liters) 5ton | |
| Filling Weight | 2500 kg | |
| Tank Weight | 2030kg | |
| Thickness of Shell (mm) | 10 mm | |
| Thickness of Endplate (mm) | 10 mm | |
| Tank Diameter (mm) | 1600 mm | |
| Tank Dimensions (mm) (length x width x height) | 2960*1620*2210mm | |
| Material of Tank and Main Pressure Parts | Carbon Steel Q345R | |
| Filling Medium | Liquefied Petroleum Gas ( Propane) | |
| Design Pressure | 1.77 MPa | |
| Corrosion Allowance | 1 mm | |
| Medium Density | 500-590 kg/ cbm | |
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | ||
| Specification of LPG Pump and Motor | ||
| Item | Specification | |
| Specification of the Motor | ||
| Model | M2JA160M88 | |
| Revolving speed | 1470 r/min | |
| Power | 5.5 kw | |
| Voltage | 380 V | |
| Protection grade | Anti explosive | |
| Specification of the hydrocarbon Pump | ||
| Model | YQB15-5 | |
| Medium | Liquid petroleum gas | |
| Speed | 15 m3/h | |
| Input and Output Diameter | 50 mm | |
| Working pressure | 2.0 Mpa | |
| Working temperature | -40℃- 50℃ | |
| Material | carbon steel | |
2.5ton LPG gas station 5m3 skid-mounted station 5000L gas station tank
1.Tank material:Q345R carbon steel
2.Tank volume:5m3 5000L 5000Liters
3.Filling medium:Propane
4.Computer controlled cutting and rolling.each vertical and circular welding seam will be X-ray tested. To Prevent Welding Defective like Bubble & Cracks
5.Heat treatment.To Release the Stress of Steel Sheet and Prepare the Tanker for High Pressure Impact
6.Water pressure test. Make the tanker meet designed pressure.
LPG GAS dispenser truck, WITH Corken pump and LC meter , pipe and gas dispenser for car , small tank , gas cylinder Portable
Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675
50m3 SKID TYPE LPG FILLING STATION INCLUDING LPG DISPENSER, LPG LOADING AND DISCHARGING PUMP, VAPOUR RECOIVERY PIPELINE
lpg filling skid station
LPG skid-mounted filling station/lpg cylinder filling station/mobile filling station
Design,Manufacture,Installation,Commissioning,Maintenance
Economy, small, simple, flexible and fast
1. Skid-mounted LPG stations is constructed according to internation gas station standards. It's of very dependable quality and safety.
2. Integrate single device (such as tanks, pumps, valves, piping, etc.) to the metal skid body and formed a complete small LPG stations.
3. The volume of the tank can be customized according to customer's request: 10cbm/20cbm/30cbm/50cbm/60/cbm
4. In one LPG station, you can place several LPG dispensers of different nozzles.
Main Functions:
*Feeding gas to gas vehicles: high quality dispenser is equipped and its measurement is accurate and stable.
*Unloading: The LPG tank car can unload the medium to the storage tank on the skid-mounted plant smoothly
*Drainage: The sundries like water-logging in the storage tank will e drained through the drain outlet.
*Emptying:The residual pressure in storage tank can be released through the emptying port during overgauling.
*Alternative Pumps: Under fault condition, gas filling pump and unloading pump can be mutually alternative.
*Reverse unloading:The liquid on the storage tank can be unloaded to the gas tank car and delivered.
*Emergency cut-off :Air-operated emergency cut-off valve is installed a the liquid outlet on the storage tank, by which the emergency cut-off under abnormal conditions can be achieved.
*Leakage Alarm: Leakage probes are installed in the key positons of the skid-mounted gas station, so as to dect the equipment's security status.
*Liquid Level Alarm: Upper and lower liquid level limit switch are installed. Therefore, it has liquid alarm and control function.
Main Technical features of the LPG Storage Tank station:
| Product Model | LPG-T5000 |
| Structural form | Integral type, separated type |
| Install Method | Above-ground, under-ground |
| System Approach | Double pump system, single pump system |
| Storage Tank Volume(M⊃3;) | 5, 6, 10,15,20, 30 , 40 , 50 , 60 |
| Design pressure of storage tank | 1.77Mpa |
| Design pressure of pipe | 2.5Mpa |
| Opening pressure of safety valve | 1.75Mpa |
| Ambient Temperature | -40-55°C |
| Ambint Humidity | 10~95% |
| Dimension of skid-mounted body | Up to customer's requirement |
www.truckinchina.com
shipping parking
keywords
10000Liters LPG Cylinders Refilling Stations, 10000Liters LPG Filling station, 10000Liters LPG Gas Skid Filling Station, 10000Liters Mobile LPG Refilling Station, 10000Liters Skid Mounted LPG Filling Stations, 10Tons LPG Gas Refilling Plant, 10Tons Mobile LPG Gas Filling Stations, 12000L LPG Filling Plant, 12000L LPG Filling Station, 12000L LPG Refilling Plant, 20000Liters Cooking Gas LPG Refilling Stations, 20000Liters LPG Cylinder refilling Plant, 20000Liters LPG Skid Plant, 20000Liters Moble LPG Gas Stations, 20000Lites LPG Skid Stations Mounted LPG Tank, 20MT Mobile LPG Gas Stations, 50cbm LPG Cylinder Filling Station, 5Tons LPG Cylinders Refilling Stations, 5Tons Mobile LPG Refilling Station, 5Tons Skid Mounted LPG Filling Stations, China LPG Gas Cylinders Refilling Plants, Chinese Supplier LPG Mobile Skid-Mounted Station, LPG Filling Stations, LPG Gas Cylinders Refiling Station, LPG Gas Skid Filling Station, Mobile Gas station, Mobile LPG Gas Stations, Skid Mounted LPG Filling Stations - See more at: http://www.truckinchina.com/2-5ton-LPG-skid-mounted-filling-station-5cbm-LPG-Tank-for-sale-id533174.html#sthash.ut6ZPZk6.dpuf
shipping parking
keywords
10000Liters LPG Cylinders Refilling Stations, 10000Liters LPG Filling station, 10000Liters LPG Gas Skid Filling Station, 10000Liters Mobile LPG Refilling Station, 10000Liters Skid Mounted LPG Filling Stations, 10Tons LPG Gas Refilling Plant, 10Tons Mobile LPG Gas Filling Stations, 12000L LPG Filling Plant, 12000L LPG Filling Station, 12000L LPG Refilling Plant, 20000Liters Cooking Gas LPG Refilling Stations, 20000Liters LPG Cylinder refilling Plant, 20000Liters LPG Skid Plant, 20000Liters Moble LPG Gas Stations, 20000Lites LPG Skid Stations Mounted LPG Tank, 20MT Mobile LPG Gas Stations, 50cbm LPG Cylinder Filling Station, 5Tons LPG Cylinders Refilling Stations, 5Tons Mobile LPG Refilling Station, 5Tons Skid Mounted LPG Filling Stations, China LPG Gas Cylinders Refilling Plants, Chinese Supplier LPG Mobile Skid-Mounted Station, LPG Filling Stations, LPG Gas Cylinders Refiling Station, LPG Gas Skid Filling Station, Mobile Gas station, Mobile LPG Gas Stations, Skid Mounted LPG Filling Stations - See more at: http://www.truckinchina.com/2-5ton-LPG-skid-mounted-filling-station-5cbm-LPG-Tank-for-sale-id533174.html#sthash.ut6ZPZk6.dpuf
Related Products
SUCCESS CASES
More >>-
2023-12-226 pcs Metal Alky T21 UN3394 UN3399 Portable Tank TEAL DEAC MAO to SGP6 pcs Metal Alky T21 UN3394 UN3399 Portable Tank TEAL DEAC MAO to SGP Max. gross weight : 4000 kg Tare : 1050 kg Payload : 2950 kg Portable Tank instruction : T21 ADR/RID tank code : N/A Special provisions : TP2 TP7 TP36 TP41 Model : KS1880-T21 ISO size/type code : N/A Type : UN Portable Tank Dimensions : 1148(E.D) x2128 (L) x1388 (H) mm Nominal capacity : 1880 L Measured capacity : 1880 L at 20°C Maximum allowable working pressure : 14 bar Test pressure : 21 bar APPROVALS ADR/RID: F/9151/BV/23 IMDG: F/BV/23/194-T21 US DOT: UN Portable Tank TIR*: GB/C 26839 BV/2023 SUBSTANCES SUITABLE FOR TRANSPORT: In accordance with the requirements of the applicable regulations and the construction of the tank and its equipment. (Substances not compatible with the tank and/or its accessories are excluded for transport) UN3394 & UN3399
-
2024-01-29Customized Hydrochloric Acid HCL Tank Container Lined PE 24m3 for Trailer Mounted to VietnamCustomized Hydrochloric Acid HCL Tank Container Lined PE 24m3 for Trailer Mounted to Vietnam TANK CONTAINER VOLUME 24M3 STEEL SHEET 5MM, HEAD 6MM,Lined LLDPE 16mm for Hydrochloric Acid, Sulfuric Acid Transport 3 CHAMBERS HS CODE: 7309.00
-
2023-02-226 units Metal Alky C480 Portable Tank TEAL DEAC Cylinder for Singapore6 units Metal Alky C480 Portable Tank TEAL DEAC Cylinder for Singapore 360 DEG. ROTATABLE TOP FLANGE VALVE (KV-MTFF DN15 PN 40), 360 DEG. ROTATABLE TOP FLANGE VALVE (KV-MTFE DN20 PN 40) K4430 Gaskets
-
2023-12-246 Units 40KL 44KL 40FT ISO Steel Lined PE Dilute Sulfuric Acid Tank Container To Kazakhstan6 Units 40KL 44KL 40FT ISO Steel Lined PE dilute sulfuric acid Tank Container to Kazakhstan40FT Tank Container PE Lined TankUsed to contain: HCl (max 35%), NaOH (max 50%), PAC (max 17%),H2SO4(max 94%) etc…Sulphuric Acid Tank Capacity: 40,000 Liters;44,000 LitersSteel sheet 6mm, head 6mmLiner thickness: 16mm PE01p
-
2023-09-222 Sets HOWO Offroad AWD 6x6 Mixing And Charging ANFO Explosive Trucks Delivery2 Sets HOWO Offroad AWD 6x6 Mixing And Charging ANFO Explosive Trucks Delivery
-
2023-09-1510 Units Hydrochloric Acid HCL PE LINED ISO Tank Containers to Vietnam10 Units Hydrochloric Acid HCL PE LINED ISO Tank Containers to Vietnam 20FT Tank Container PE Lined Tank Used to contain: HCl (max 35%), NaOH (max 50%), PAC (max 17%),H2SO4(max 94%) etc… Tank Capacity: 21,900 Liters Steel sheet 6mm, head 6mm Liner thickness: 16mm PE
-
2023-08-1417m3 , 22m3 Lined PE Tank Container for Hydrochloric Acid HCL to Vietnam17m3 , 22m3 Lined PE Tank Container for Hydrochloric Acid HCL to Vietnam 20FT TANK CONTAINER TANK VOLUME/ STEEL THICKNESS 22M3/ 6MM (SOC / EMPTY AND NEW TANKS) BRAND: DONG RUNZE MODEL: DRAU2308018 STORAGE TANK CONTAINER TANK FOR HCL CARGO TRUCK TANK VOLUME/STEEL THICKNESS:17M3/ 6MM ( EMPTY AND NEW TANKS) BRAND: DONG RUNZE MODEL: DTA5260 HS CODE : 7309000000
-
2023-07-104 Sets Polyethylene Lined Steel Offshore T14 Tanks For Hydrochloric Acid Transport to Kazakhstan4 Sets Polyethylene Lined Steel Offshore T14 Tanks For Hydrochloric Acid Transport to Kazakhstan Marks DTAU2305012 DTAU2305028 DTAU2305033 DTAU2305049
-
2022-12-2780Units Metal Alky C480 UN Portable Tank T21 TEAL Cylinders to USA80Units Metal Alky C480 UN Portable Tank T21 TEAL Cylinders to USA 80Units UN T21 Portable Tank Container 1880L Cylinder For TEAL Metal Alkyls UN3394 UN3399 to USA Adr/Rid Organometallic Substance, Liquid, Water- Reactive C-430 Saddle Type Portable Tank , tank capacity 1630L C-480 Saddle Type Portable Tank, tank capacity 1880L C-1980 TEAL TMGa ,TEGa,TMIn, TMAl DEAC Metal Alky C-1980 T21 Metal Alky 7495L
-
2023-04-056 Sets Polyethylene Lined Steel Tanks 6600Gallon For Hydrochloric Acid Storage Transport Hydrochloric Acid (HCl) to SAU Chemical Factory6 Sets Polyethylene Lined Steel Tanks 6600Gallon For Hydrochloric Acid Storage Transport Hydrochloric Acid (HCl) to SAU Chemical Factory This the 4th LOT HCL ,NaCLO Tanks For this SAU Chemical Facttory . The 1 st Order date will go back to Date 13-1-2021. CAST IRON STORAGE TANK FOR CHEMICAL MATERIALS STORAGE TANK CAPACITY: 25M3 HS CODE:7309000000
-
2023-03-063 Sets Lined PE Tanks 6604Gallon For Storage Transport Sodium Hypochlorite to Saudi Arabia3 Sets Lined PE Tanks 6604Gallon For Storage Transport Sodium Hypochlorite to Saudi Arabia FROM WUHAN PORT CHINA TO DAMMAM, SAUDI ARABIA BY SEA. + Port of loading : WUHAN PORT + Port of unloading :DAMMAM CAST IRON STORAGE TANK FOR CHEMICAL MATERIALS STORAGE TANK CAPACITY: 25M3 HS CODE:730900 10.2x2.1x2.5*3 160.65cbm 3X40HQ
-
2023-01-054PCS Power Take-off PTO FOR JMC TRANSMISSION MODEL DN3-7003-EC 6MT1420 to URUGUAY4PCS Power Take-off PTO FOR JMC TRANSMISSION MODEL DN3-7003-EC 6MT1420 to URUGUAY Sdq51/65 (Gearbox Power Take off For ISUZU QINGLING Transmission DN3-70030-E0, 6MT1420 PTO Assembly) HWP-G32/65CHQ ,32/65 PQ1
-
2023-02-0812PCS PTO Wanliyang Transmission Power Take-off For WLY6T40 WLY6TS40 to Mexico12PCS PTO Wanliyang Transmission Power Take-off For WLY6T40 WLY6TS40 to Mexico 1 PC SDQ211/60LGQ1 PTO FOR 6DS60T-D TO SAUDI ARABIA
-
2022-12-282 Units Righ Hand Drive Shacman F3000 Hydro Excavators Truck Combined Vacuum Sewer Jetting to Suva Port Fiji2 Units Righ Hand Drive Shacman F3000 Hydro Excavators Truck Combined Vacuum Sewer Jetting to Suva Port Fiji Shacman F3000 Hydro Excavators Truck Sewer Jet Suction Units (RHD 13500L Sewage+4000L Clean Water ) PTO, transmission shaft, vacuum pump, tanker, hydraulic system and jetting pipe system. Combined Sewer Suction & Jetting Unit SZW Aluminium Alloy Liquid Water Ring Compressor Vacuum Pump XW-2800 VAC Flow 2800 M³/h ,1648 Cfm 46.7M3/min 75KW
-
2022-12-276 Sets Lined PE Tanks 6604Gallon For Storage Transport Hydrochloric Acid (HCl) to Saudi Arabia6 Sets Lined PE Tanks 6604Gallon For Storage Transport Hydrochloric Acid (HCl) to Saudi Arabia FROM WUHAN PORT CHINA TO DAMMAM, SAUDI ARABIA BY SEA. Port of loading : WUHAN PORT + Port of unloading :DAMMAM DONG RUN ZE CAST IRON STORAGE TANK FOR CHEMICAL MATERIALS STORAGE TANK CAPACITY: 25M3 HS CODE:7309000000 9.7x2.2x2.5*6
