HOWO LPG bobtail truck 12CBM RHD/LHD

HOWO,12000l Lpg Bobtail With Right Hand Drive or left hand drive
Price: $ 28000  -  45000
Discount Price: $ 26000  -  40000
FOB:
Availability:
Quantity:

  • DRZ5120GJQ

  • DRZ

  • 8705909990

HOWO LPG bobtail truck 12CBM RHD/LHD

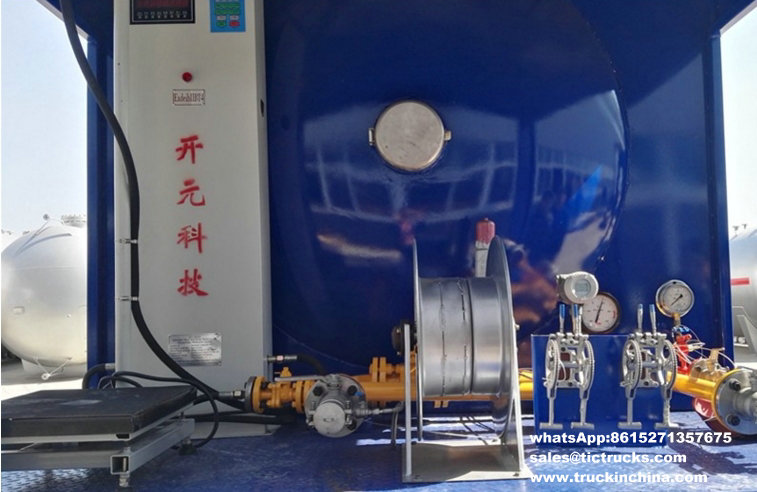

HOWO LPG bobtail with filling scale _1.jpgk LPG bobtail with filling scale_1.jpgLPG bobtail truck -06T-_1.jpgLPG bobtail truck -6T-HOWO_1.jpgLPG bobtail truck -09T-_1.jpgHOWO LPG bobtail with filling scale_1_1.jpg

 LPG bobtail truck 12000L  RHD/LHD

LPG bobtail truck -3tone-_1.jpgLPG bobtail truck -4tone-_1.jpgLPG bobtail truck -5tone-_1.jpgLPG bobtail truck -6tone-_1.jpgLPG bobtail truck -8tone-_1.jpgLPG bobtail truck -9tone-_1.jpg

Mini LPG refill tanker Bobtail tanker LPG bobtail truck,LPG bobtail Road Tanker, LPG tanker truck ,LPG filling truck, LPG refilling truck,LPG GAS dispenser truck, WITH Corken pump and LC meter , pipe and gas dispenser for car , small tank , gas cylinder Portable Design Code ASME

mini LPG Bobtailraod tanks-00-  mini LPG Bobtail-tankermini LPG Bobtailraod tanks-13-  mini LPG Bobtail-tanker

HOWO LPG Mobile Truck Dispenser 5Tons LPG Bobtail Truck for Cooking Gas Cylinder Refilling 12000Liters for Door to Door LPG Gas Cylinders



12000Liters (6   tons) LPG bobtail howo chassis

Item No.

Parameters

Overall Dimension

8450x2500x3500mm

Drive model

4x2, new condition , RHD, or LHD

Gross Vehicle Weight

14900kg

Curb Weight

8700 kg

Loading Weight

6200 Kg

Wheel Base

4700 mm

Front/rear Overhang

1240/2460 mm

Front/rear Tread

1515/1495 mm

Approach/Departure Angle

16/13 degree

Engine

Yuchai Engine, YC4E160-20, Diesel Engine,   Four Stroke,

  4   Cylinder in line.

Engine horsepower

160 HP Euro II,China Yuchai engine

Displacement

4.257 L(Diesel)

Full loading Fuel
  Consumption Rate

200G/KW.H

Max Driving Speed

90 km/h

Gear Box

DC6J65TC, 6 Forward Gear, 1 Backward Gear

Cabin

Right Hand Driving, 3 Passengers Allowed

Tire

9.00R20, 6 pieces with 1 spare tire.

Tank Capacity

12,000 Liters 6   TONS

Filling Content

Liquefied Petroleum Gas (Propane)

Tank Material

Q345R high tension steel, 8mm Thick Tank   Body.

Standard Equipment

1 .Emergency Cut-off Valve, Safety Valve,   Ball Valve, Liquid level meter,  Pressure gauge, Temperature Gauge, 2   Valve Boxes in both sides.Anti-static Grounding Tape.
  2. Famous brand Pump, Filling gun and flow-meter

Specification

Designed Pressure: 1.66Mpa
  Liquid Density: 500-590 kg/m3
  Working Temperature: under 50 centi-degree
  Corrosion Allowance: 1mm


LPG Tank System

l Volume of tank:10-12 CBM

l Filling Medium: Liquefied Petroleum Gas (propane)

l Medium Density:420-590 kg/ cbm

l Design Temperature(℃):Under 50℃

l Water Pressure Test(MPa) : 2.1 Mpa / 21 Bar

l Design Pressure(MPa): 1.61 Mpa / 16.1 Bar

l Corrosion Allowance(mm): 1mm

l Tank Material: Q345R high tension steel, 10 mm Thick Tank Body.

l With filling system , lpg pump ,meter, filling hoses , filling nozzle.

l  Main Accessories: Safety Valve DN80,Emergency Cut-off Valves, DN25 for gas phase,DN50 for liquid phase;Ball Valves,DN25 for gas phase,DN50 for liquid phase;Liquid level meter, Pressure gauges,Temperature Gauge, Valve Box.

6MT LPG gas truck 12m3 lpg bobtail

12CBM LPG dispenser truck 12cbm lpg gas truck

Technique Parameters

Specification

Item No.

Parameters

Overall Dimension

8000x2500x3500 mm

Gross Vehicle Weight

14100 kg

Curb Weight

8757 kg

Loading Weight

4200 Kg

Wheel Base

4500 mm

Front/rear Overhang

1245/2287 mm

Approach/Departure Angle

25/14 degree

Engine

Dongfeng Cummins B190 33 Diesel Engine, Four Stroke,

6 Cylinder in line.

Engine horsepower

190 HP Euro III

Displacement

5.9 L(Diesel)

Max Driving Speed

90 km/h

Gear Box

Dongfeng Brand, 6 Forward Gear, 1 Backward Gear

Cabin

Left Hand Driving, 3 Passengers Allowed

Tire

10.00-20 (7 pieces)

Tank Capacity

10 /12 CBM (10,000L/12000Liters)

Filling Content

Liquefied Petroleum Gas (Propane)

Tank Material

Q345R high tension steel, 8mm Thick Tank Body.

Standard Equipment

Safety Valve, Level Gauge, Pressure Gauge, Thermometer, Emergency Shut-off Valve, Tool Boxes, Anti-static Grounding Tape.

1 Filling Machine, 1 Filling Gun with Black Rubber Tube.

Specification

Designed Pressure: 1.66Mpa

Filling Ratio: 0.42 kg/L

Working Temperature: under 50 centi-degree

Corrosion Allowance: 1mm





Service and Warranty

Service

It tanks our company 1 days to finish the production plan, takes 25 working days to finish the production.



Warranty

1. One year free warranty for major 3 components of engine, gearbox, axles. Other spare parts can be supply in factories cost, please refer to below details.



2. Our company offer video guide, if customer need, our engineer will go to

  customer country teach install and operate.



3. Transportation warranty: our company offer Transportation insurance for customer.

To ensure customer’s product arrived at destination safely.



4. Our company provides two person come to china for training. Our company responsible for training all expenses, training time for one week or two weeks,arranged by the customer. Factory supplier 6MT LPG gas truck 12m3 lpg bobtail 12CBM LPG dispenser truck 12cbm lpg gas truck

bobtail propane truck

propane delivery trucks bobtail

lpg bobtail truck paper

bobtail delivery truck

bobtail fuel truck for sale

lpg bobtail trucks for sale


We offer tank vessels and new cabs and chassis to provide quick deliveries to our customers. Our large selection of tank sizes provides our customers with a customized bobtail that fits their individual needs. Our choices range from a 1200 water gallon tank up to a 5000 water gallon tank and a truck selection which includes International, Freightliner, Dongfeng,ISUZU,Beiben,JAC,JMC,HINO,FAW,SHACMAN. We also maintain a good selection of L.P. Gas Delivery Units, which have been refurbished and are ready to pump gas.


10m3  / 15m3 lpg tank bobtail truck  main technical parameter

Items

Data

Items

Data

Chassis model

EQ1141KJ

Over   dimension(mm)

9100*2500*3670

Engine

type

B170-33

Wheelbase   (mm)

3900

Horse   power

170

Fact   Cubage(m3)

15

Displacement(ml)

5900

tire

9.00-20

Total  Truck

Kerbweight

9700Kg

Tank

Designed   pressure(Mpa)

1.77

Payload(Product   weight)

6300Kg

Designed   thickness(mm)

11.47

Gross   Vehicles Weight (GVW)

16000kg

Rust   thickness(mm)

1

cubage

15m3

Heat   treatment

Wholly   get rid of stress

Sealed   pressure  (Mpa)

1.77

Material

11.47mm(Q345R)

External   Dimensions(mm)

(length×width×height)

9100*2500*3670

Loading   medium

LPG

Mass of   tank body


Full load

bolster


Testing   water pressure

2.66MPa

Rear axle


Max.   vehicle roll angle

≥350

Design   the limited velocity

Straight   road

60 Km/h

desingn   pressure

1.77MPa

 Turning

20 Km/h

Use Years

Ten years





Quality 4x2 propane bobtail tanker truck manufacturer's price

Technical parameters of Quality 4x2 propane bobtail tanker truck manufacturer's price

Total   Mass(kg)

15900

Curb   Weight(kg)

5500

Rated   qualityof(kg)

10205

Chassis   Model

DFL1162GKJ1

Approach/Departure   Angle

30/21(°)

Front/Rear   Overhang

1250/2300

Dimensions(mm)

7500x2480x3050

Number   of spring

11/13+8,9/11+8

Number   of axes

2

Maximum   speed

99

Tire   Specifications

10.00-20   16PR,10.00R20 16PR

Number   of tires

6

Front   track

1845,1810

Rear   track

1640,1800

Wheelbase

4200,4500,4700,5100

Axle load

5950/9950

Emission   Standards

Euro3/Euro4

Type of   fuel

Diesel

Engine   parameters

Engine Model

B190-33

Engine   Manufacturer

Dongfeng   Cummins Engine Co., Ltd

Engine   Displacement(ml)

5965

Engine   power(kw)

140

Chassis
  Description

1.   Dongfeng 4x2 chassis, flat cab with sleeper, left/right hand drive with AC;
  2. Dongfeng 6 cylinder 190HP diesel engine, 6 speed gear box, 10.00-20 tire;
  3. Power steering, air brake.

Modified
  Description

1.     Round   tanker,material:Q345R,thickness:12mm.

2.     Equipments:safety   valve,manhole,manhole cover,liquid phase flange,gas phase flange,outlet   flange,blowdown flap,thermometer by edge,level gauge flange,two DN25   flanges,two DN50 flanges.

3.     With   forging parts,single valve box,single tool kit,safty valve,liquidometer.

Component

Basic   composition:chassis,tanker,valves.

Application

This   truck series have to under strict production process requirement, it is a   kind of high pressure resistant, low temperature resistant special tank   transport vehicles. This truck is mainly used for liquedied petrolem gas,   liquefied petroleum gas (LPG), chemical gas and other gas transport materials.

Product advantage

reasonable   price,multiple functions,easy operation




LPG refill tanker Bobtail tanker LPG bobtail truck,LPG bobtail Road Tanker, LPG tanker truck ,LPG filling truck, LPG refilling truck,LPG GAS dispenser truck, WITH Corken pump and LC meter , pipe and gas dispenser for car , small tank , gas cylinder Portable

   Design Code ASME
