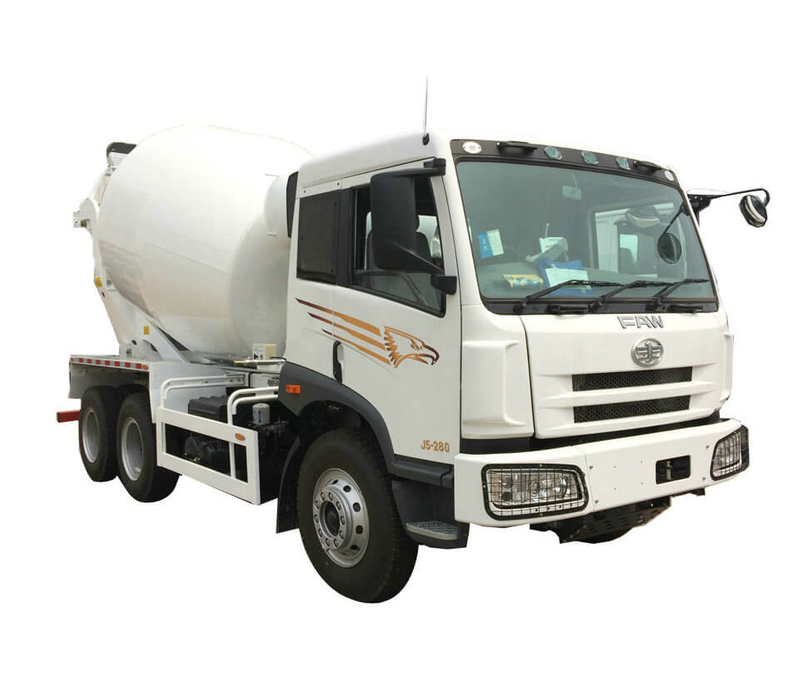

FAWConcrete Mixer Truck 8 - 12CBM Cement Drum RHD -LHD

FAW RHD Concrete Mixer Truck 8 - 12CBM 6x4 Cement Drum
Price: $ 58000
Discount Price: $ 56000
FOB:
Availability:
Quantity:

  • DRZ5-

  • Dong run ze

  • 8705400000

FAW RHD Concrete Mixer Truck Cement Drum

Mixer Body


Thickness

End plate6mm in high tensile strength steel
Mixer body6mm in high tensile strength steel
Mixer body VolumeM39 M3  ,10cbm,12cbm


Hydraulics

MotorImported brand
Gear boxImported brand
PumpImported brand
Concrete Mixer Truck

3 cbm Small J5M Mixer Truck 4*2

9 -12 cbm J5M Mixer Truck 6*4

Recommended Vehicle Model

CA5160GJBEA80

CA5250GJBA80

Mass Parameter(kg)

Chassis net weight kg

5850

8760

MAX gross kg

19500

31500

Dimension Parameter(mm)

Overall Dimension

8090*2490*2760

7525*2490*2760

wheel base mm

4210

3500+1350

Performance Parameter

Max. Speed(km/h)

92

84

Economic Speed(km/h)

60-70

50-60

Max. Gradeability(%)

45

55

Cabin

J5M flat top& semi-floating cabin& right

J5M flat top& semi-floating cabin& right

Engine

Model

WP6.210E32

CA6DL1-28

Rated Power(kw/rpm)

155/2300

209/2300

Max. Torque(Nm/rpm)

800/1400-1600

1100/1300-1700

Transmission

Model

CA7TB100M

CA9TB160M

Gears

 Manual Transmission, 7 forward gears, 1 reverse gears

Manual Transmission, 9 forward gears, 1 reverse gears

Axles

Steering Axle

 maximum load 6500kg

 maximum load  6500kg

Drive Axle

 457 single reduction, reduction ratio 5.286 ,  maximum load13000kg

 457 single reduction, reduction ratio 5.833,  maximum load13000kg

Body

 Suitable for 6 square

 Suitable for 8 square

mixer body

mixer body

 tyre

11.00R2016

10.00R2016

Emission Level

E2

E2

Certifications



Remarks



Exported countries

 Pakistan

 Kenya




Recommend Market Type

Cargo Type

 concrete

concrete

Main Working Condition

Round trip full load

Round trip full load

Operating Condition

short distance

short distance

Driver Position

right

 right

Customer Type

 Middle end, prefer quality and price

Middle end, prefer quality and price



Concrete Mixer Truck LHD 8 - 12CBM 6x4 Cement Drum



NEW J5P Concrete Mixer Truck 6*4 /7 cbm8 cbm J5P Concrete Mixer Truck 6*4
Recommended Vehicle ModelCA5250GJBEA80CA5250GJBEA80
Mass Parameter(kg)Curb Weight90409060
Max. GVW2500025000
Dimension Parameter(mm)Overall Dimension8193*2500*30758393*2500*3075
Wheelbase3800+13504000+1350
Performance ParameterMax. Speed(km/h)7878
Economic Speed(km/h)50-6050-60
Max. Gradeability(%)5252
CabinNEW J5P 15 models
Full floating flat top single lying
NEW J5P 15 models
Full floating flat top single lying
EngineModelWP10.340E32WP10.340E32
Rated Power(kw/rpm)250/2200250/2200
Max. Torque(Nm/rpm)1350/1200-16001350/1200-1600
TransmissionModel9JSD135T9JSD135T
GearsManual Transmission, 9 forward gears, 1 reverse gearsManual Transmission, 9 forward gears, 1 reverse gears
AxlesSteering Axlemaximum load 9000kgmaximum load9000kg
Drive Axle300 hub reduction, reduction ratio 5.921, maximum load16000kg*2300 hub reduction, reduction ratio 5.921, maximum load16000kg*2
BodySuitable for 8 m³Suitable for 8 m³
stir bodystir body
tyres12.00R20 18PR12.00R20 18PR
Emission LevelE2E2
Certifications

Remarks

Exported countriesthe Philippinesthe Philippines




Recommend Market TypeCargo Typeconcreteconcrete
Main Working ConditionRound trip full loadRound trip full load
Operating Conditionshort distanceshort distance
Driver Positionleftleft
Customer Type
mid-to-high end, prefer quality and price

mid-to-high end, prefer quality and price


Concrete Mixer Truck list

Vehicle model Chassis brand Chassis model Load Overall dimensions Wheel base Engine model hp/standard Tire FOB Price CIF
LHD RHD price add $2000 m3 mm mm USD

100%TT

50%+50%

DRZ5250GJBD DONGFENG DFL5250GJBA 10 8800X2500X3930 3650+1350 L340-30 340/Euro 3 11.00R20 353000 $51920 $57970
DRZ5142GJBB FOTON BJ5142GJB-G1 4 6460X2480X3450 3400 YCD4F22-110 110/Euro 2 8.25-16 112300 16520 $20500
DRZ5142GJBB1 FOTON BJ5142GJB-G1 5 6660X2480X3450 3600 YCD4D130-33 130/ Euro 2 8.25-20 129300 19020 $23090
DRZ5162GJBB FOTON BJ5162GJB-F1 7 6980X2490X3750 4200 YC6J190-33 190/Euro 2 10.00R20 199500 $29340 $33930
DRZ5252GJBB FOTON BJ5252GJB-S 10 8930X2495X3790 3575+1350 WP10.340E32 340/Euro 3 11.00R20 338900 $49840 $55820
DRZ5253GJBB FOTON BJ5253GJB-S2 12 9350X2495X3935 4100+1350 WP10.340E32 340/Euro 3 12.00R20 357000 $52500
DRZ5318GJBB FOTON BJ5318GJB-1 14 10752X2495X3998 1800+3450+1350 WP10.340E32 340/Euro 3 12.00R20 422200 $62090
DRZ5313GJBB FOTON BJ5313GJB-11 18 11230X2495X3995 1800+3650+1350 WP12.380E32 380/Euro 3 12.00R20 450300 $66230
DRZ5250GJBQ ISUZU QL1250DAFZY 14 10050X2490X3900 4000+1300 6HK1-TCSG40 280/Euro 4 11.00R20 496400 73000




DRZ5254GJBHTG384 SICA IVECO CQ3254HTG384 10 9125X2500X3950 3800+1400 C9.340 340/Euro 3 11.00R20 378000 $55590 $62030
DRZ5254GJBN North-Benz ND1254B38J 12 9300X2500X3900 3800+1450 WP10.340E32 340/Euro 3 12.00R20 369000 $54270 $60700
DRZ5316GJBN North-Benz ND1316D35J 16 10550X2500X3990 1500+3550+1450 WP12.375 375/Euro 3 12.00R20 443200 $65180 $65280
DRZ5255GJBFS364 SHACMAN SX5255GJBJR364 10 9130X2500X3900 3575+1400 WP10.340E32 340/Euro 3 12.00R20 344900 $50730 $57170
DRZ5255GJBFS424 SHACMAN SX5255GJBJR424 14 10050X2490X3900 4175+1400 WP10.340E32 340/Euro 3 12.00R20 353000 $51920 $58990
DRZ5315GJBFS326 SHACMAN SX5315GJBJT326 15 10870X2500X3900 1800+3175+1400 WP10.340E32 340/Euro 3 12.00R20 402100 $59140 $66750
DRZ5315GJBFS346 SHACMAN SX5315GJBJT346 16 10825X2500X3900 1800+3375+1400 WP10.340E32 340/Euro 3 12.00R20 405600 $59650 $67280
DRZ5315GJBFS386 SHACMAN SX5315GJBJT386 18 11800X2500X4000 1800+3775+1400 WP12.380E32 380/Euro 3 12.00R20 441700 $64960 $73220
DRZ5257GJBZ34 HOWO ZZ1257N4048W 12 9770X2500X3880 4025+1350 WD615.69 336/Euro 3 12.00-20 361800 $53205 $60040
DRZ5257GJBZ37 HOWO ZZ1257N4048W 12 9770X2500X3880 4025+1350 WD615.96 375/Euro 3 12.00-20 364800 $53640 $60470
DRZ317GJBZ416 HOWO

Zz1317n3261W


16 10304*2496*3999 1800+3200+1350 WD615.47 371/Euro 3 12.00R22.5 418000 61470 68700






Concrete mixer truck
Here the price is for standard configuration. Selective configuration and any change according to the buyer’s requirements please confirm the price with our company.
Standard configuration Less than 7m3:chassis,sub frame,mixer tank(main tank 5mm alloy steel wear resistant material,front tank head 6mm alloy steel wear resistant material),domestic reducer,hydraulic pump,hydraulic motor,radiator,water tank,cleaning hose,feed port, discharge port,climbing ladder,air pressure water supply device.
Selective configuration

1,American SALI56 hydraulic pump, SALI63 hydraulic motor

2,Italy P071 hydraulic pump, M063 hydraulic motor

3,A full set of imported parts (ZF3301 reducer)

Standard configuration chassis,sub frame,mixer tank,reducer, hydraulic pump,hydraulic motor, radiator,water tank,cleaning hose,feed port, discharge port,climbing ladder,air pressure water supply device.
8m3

Germany ZF3301 reducer,Germany REXROTH hydraulic pump,Germany REXROTH hydraulic motor,KAIPENG radiator,mixer tank(main tank 5mm alloy steel

wear resistant material,front tank head 8mm alloy steel wear resistant material)

9-10m3

Germany ZF5300 reducer,Germany REXROTH hydraulic pump,Germany REXROTH hydraulic motor,KAIPENG radiator,mixer tank(main tank 5mm alloy steel

wear resistant material,front tank head 8mm alloy steel wear resistant material)

11-14m3

Germany ZF7300 reducer,Germany REXROTH hydraulic pump,Germany REXROTH hydraulic motor,KAIPENG radiator,mixer tank(main tank 6mm alloy steel

wear resistant material,front tank head 8mm alloy steel wear resistant material)

15-20m3

Italy PMP reducer,Italy PMP hydraulic pump,Italy PMP hydraulic motor,KAIPENG radiator,mixer tank(main tank 6mm alloy steel wear resistant material,front

tank head 8mm alloy steel wear resistant material)

Selective configuration

Emergency high pressure oil hose(4 pieces),12m emergency oil hose(Italy),water cannon,large tool box,electric water supplying system.

Italy Bonfiglioli/Italy PMP reducer,Italy PMP/Italy MESSOR/America EATON/America SAUER hydraulic pump,Italy PMP/America EATON/America SAUER hydraulic motor.
