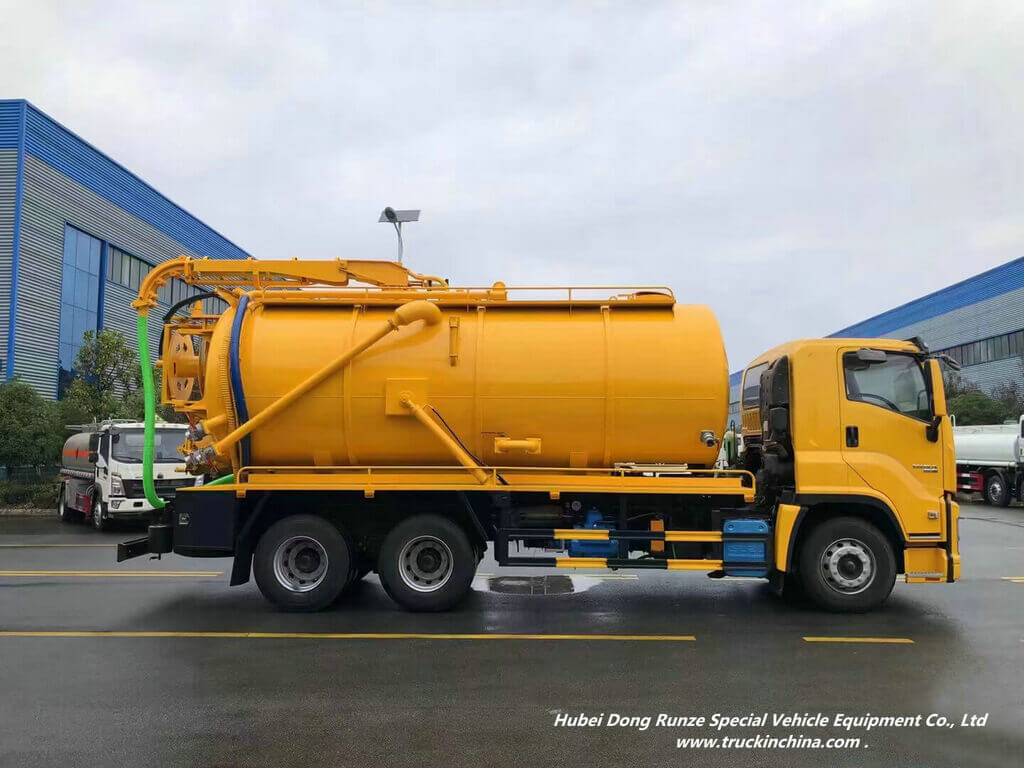

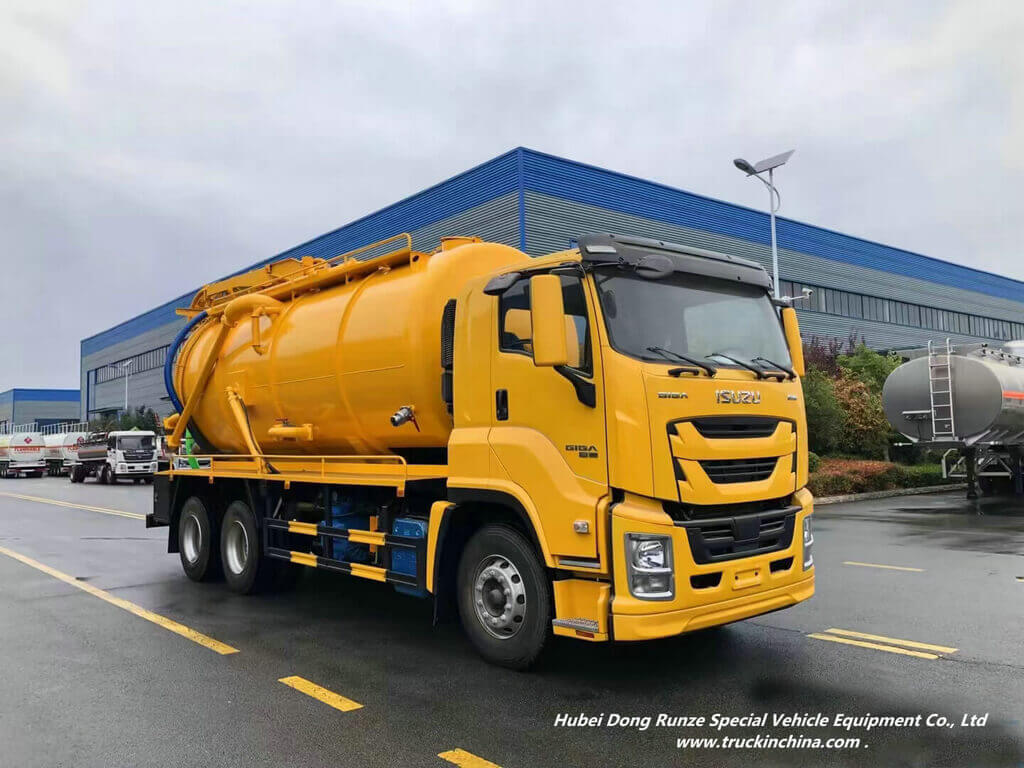

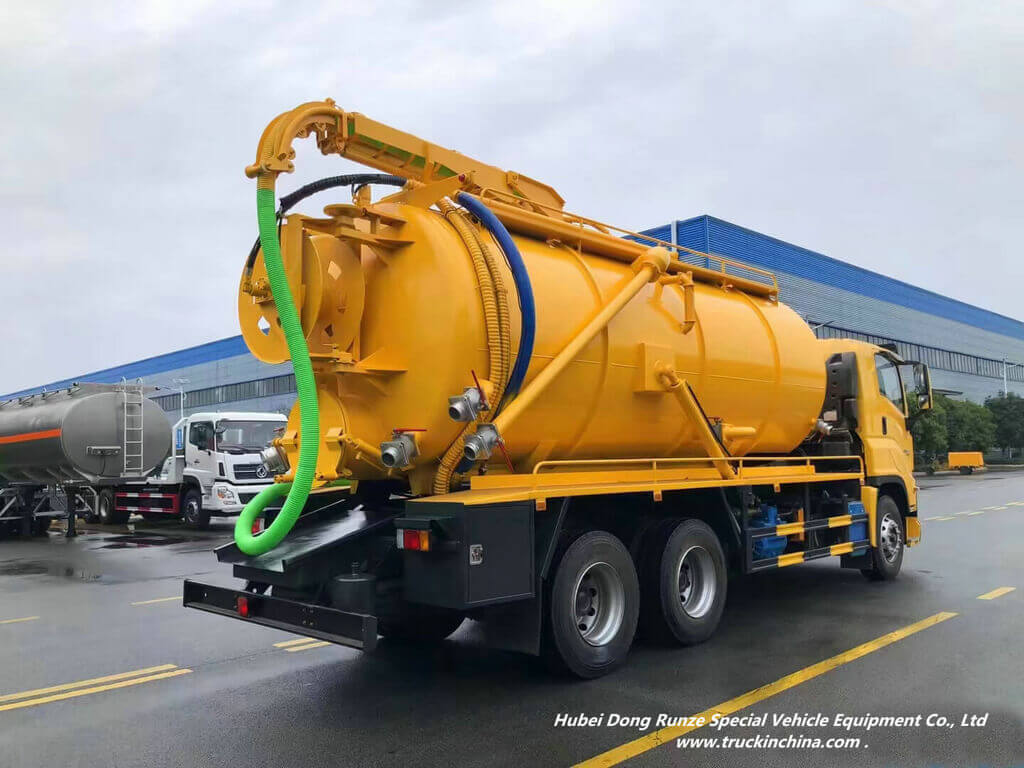

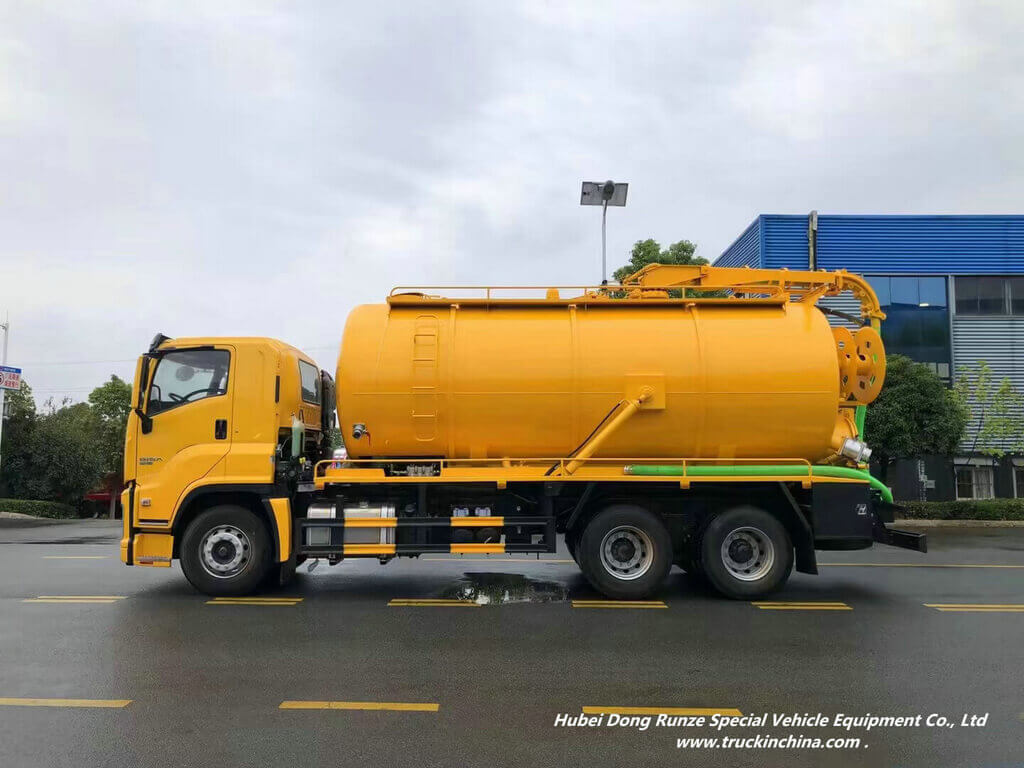

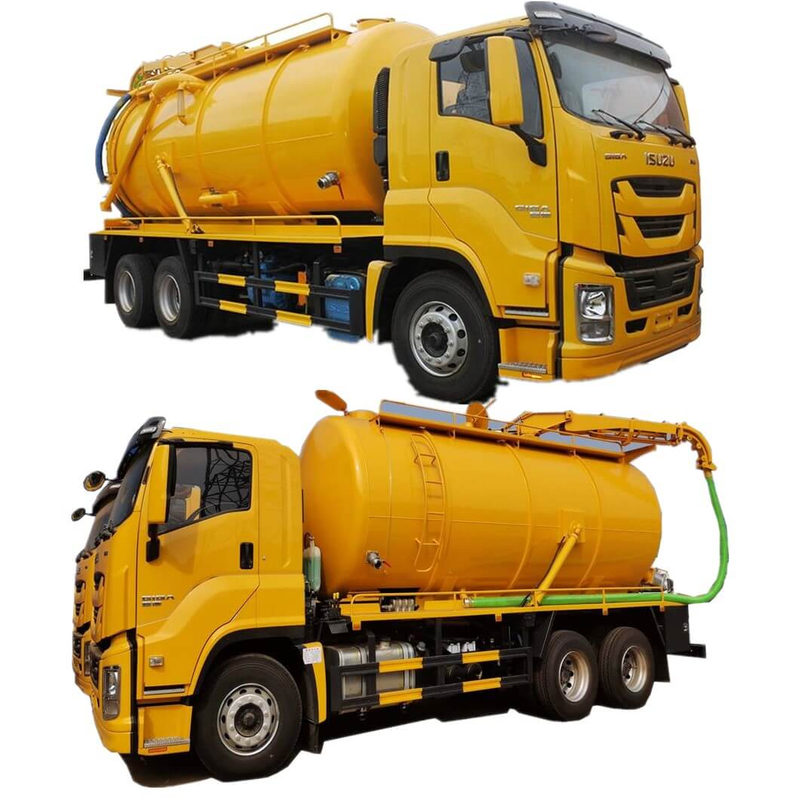

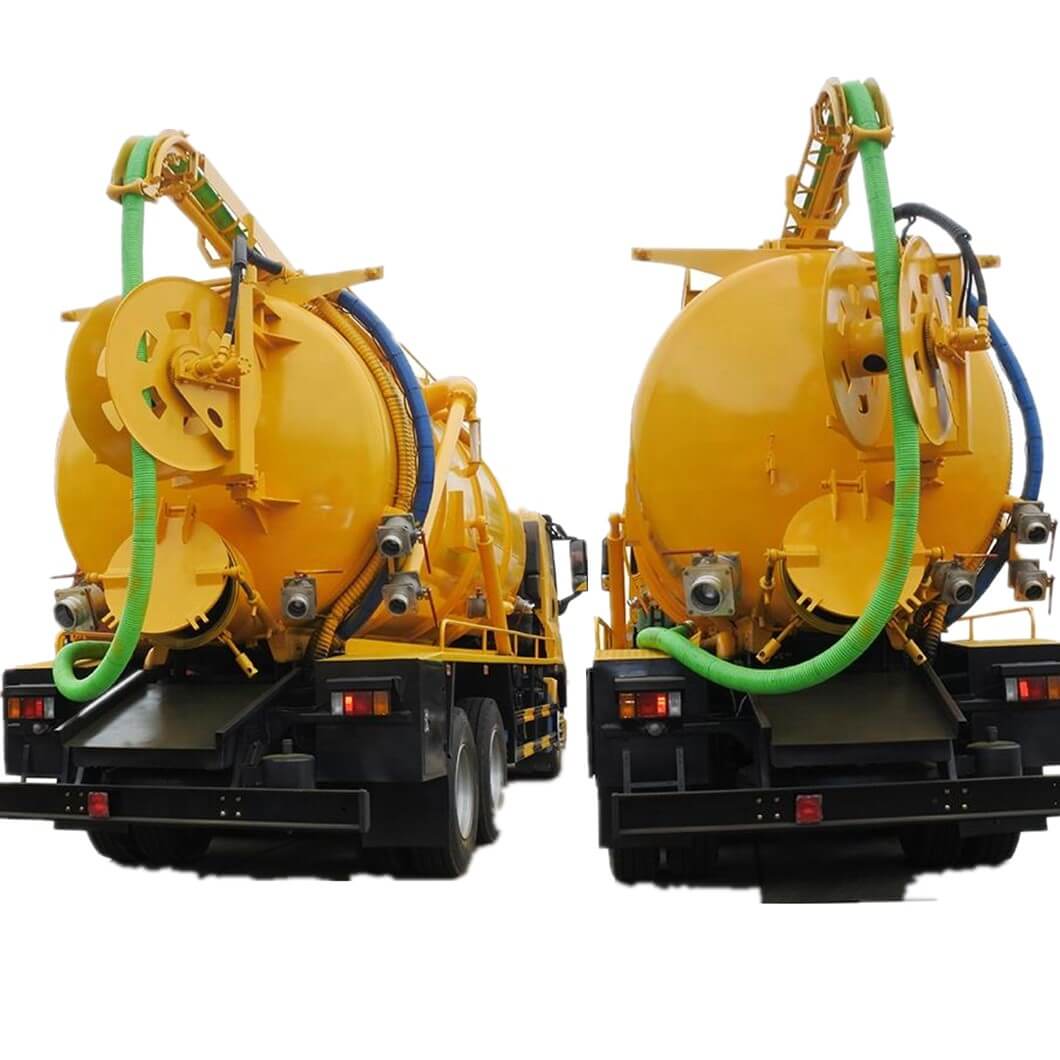

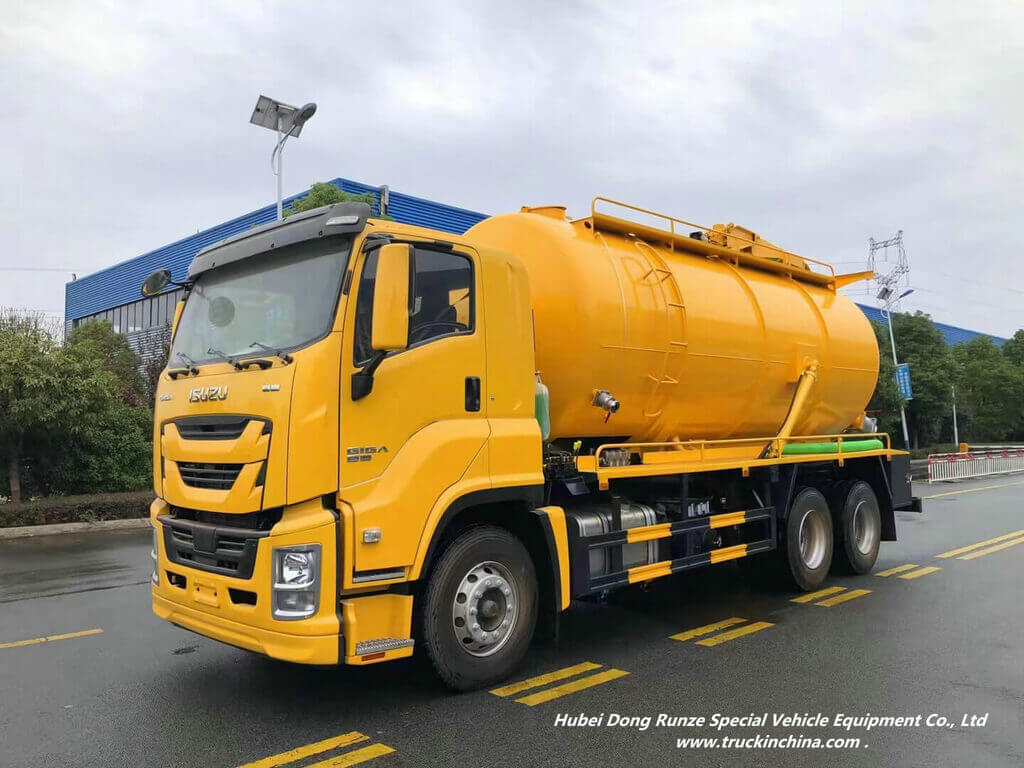

ISUSU GIGA 25Ton Combined Sewer Suction Jetting Hydrovacs Vacuum Hydro Excavation Truck (14m3 Drilling Wast+6m3 Jetting Water)
ISUSU GIGA 25Ton Combined Sewer Suction Jetting Hydrovacs Vacuum Hydro Excavation Truck (14m3 Drilling Wast+6m3 Jetting Water)
HYDRO EXCAVATION TRUCKS
PTO, transmission shaft, vacuum pump, tanker, hydraulic system and jetting pipe system.
Price for refer only. Final Price Offer Discount.
HYDRO EXCAVATION TRUCKS
PTO, transmission shaft, vacuum pump, tanker, hydraulic system and jetting pipe system.
Price for refer only. Final Price Offer Discount.
Price: $ 99000
Discount Price: $ 91800
| Quantity: | |
|---|---|
|
| |
-
DRZ5258GXWQL
-
Dong Run Ze
-
8705909990
ISUSU GIGA 25Ton Combined Sewer Suction Jetting Hydrovacs Vacuum Hydro Excavation Truck (14m3 Drilling Wast+6m3 Jetting Water)
ISUZU Giga Truck Combined Sewer Vacuum Jetting Hydro Excavation Vehicle (14m3 Drilling Wast+6m3 Jetting Water)
| Product Name | Combined Sewer Vacuum Jetting Hydro Excavation Vehicle / Sewage Suction Truck | |
| Chassis | Chassis Model | QL1251FTFZY |
| Wheelbase | 4650+1350 mm | |
| Gross Weight | 25000kgs | |
| Curb Weight | 17500kgs | |
| Engine | Engine Model | 6HK1-TCG60 |
| Type | Multi cylinder, 4stroke, 6-cylinder water cooled, direct fuel injection, turbo-diesel engine. | |
| Displacement Volume(ml) | 7790 | |
| Net Power(KW) | Min 300 HP at rated RPM | |
| Fuel Type | Diesel | |
| Emission Standard | Eour 6 | |
| Clutch System | Model | Single Plate, dry friction |
| Steering System | Power Steering | Left hand driving, |
| Transmission System | Manually Operated | RT-11509C |
| Brake System | Service Brake | Hydraulic disk brakes |
| Park Brake | Air Brake & Hand Brake | |
| Suspension System(Front & Rear) | Semi-elliptical leaf spring with telessopic shock absorber (both front & rear) | |
| Type | Type Quantity | 10 pcs |
| Type Specification | 295/80R22.5 18PR | |
| Cabin | The cabine of 3 person (including driver), cruise control, ABS, air conditgioning, electric glass, adjustable headlights, USB, etc. | |
| Sewage Tanker | Tank Capacity | 9.3 -14 m³ |
| Tank Material | 1. The tank body is made of 6mm high strengh carbon steel; 2. The tank head is made of 8mm carbon steel. | |
| Level inspection window | 2 units, the inside of the tank can be seen from the window | |
| Sewage outlet | 6-inch drain valve on the vack cover | |
| Hand Washing tank | 1pc stainless steel water tanker with tap. | |
| Water tanker | Tanker capacity | 4,000-7,500 Liters |
| Tanker material | The tanker body is made of 5mm high strength carbon steel material, the stainless steel is optional. | |
| PTO | PTO power take-off take power from the chassis engine and deliver it to the vacuum pump and high-pressure water pump respectively. | |
| Vacuum pump | Model | China famous vacuum pump or Italy imported pump |
| Ultimate vacuum | -0.093MPA | |
| Suction volume | 450m3/h | |
| Working speed | 460r/min | |
| Suction pipe | 8meters | |
| Suction time | 5 minutes | |
| High pressure water pump | Model | High pressure plunger pump |
| Rated pressure | 22MPa | |
| Limited Flow | 215L/min | |
| Maximum speed | 1450r/min | |
| Hydraulic system | 1. The whole tanker body is lifted by hydraulic cylinder; 2. The reare door is openned and closed by hydraulic cylinder; 3. The rotating boom of the suction pipe moves up, down, left and right by hydraulic cylinders. | |
| Security system | Liquid level alarm | liquid level exceeds the allowable alarm |
| Anti-overflow device | 2units | |
| Limit Valve | 1unit | |
| Paint | Tank color is according to client's requirements. | |
