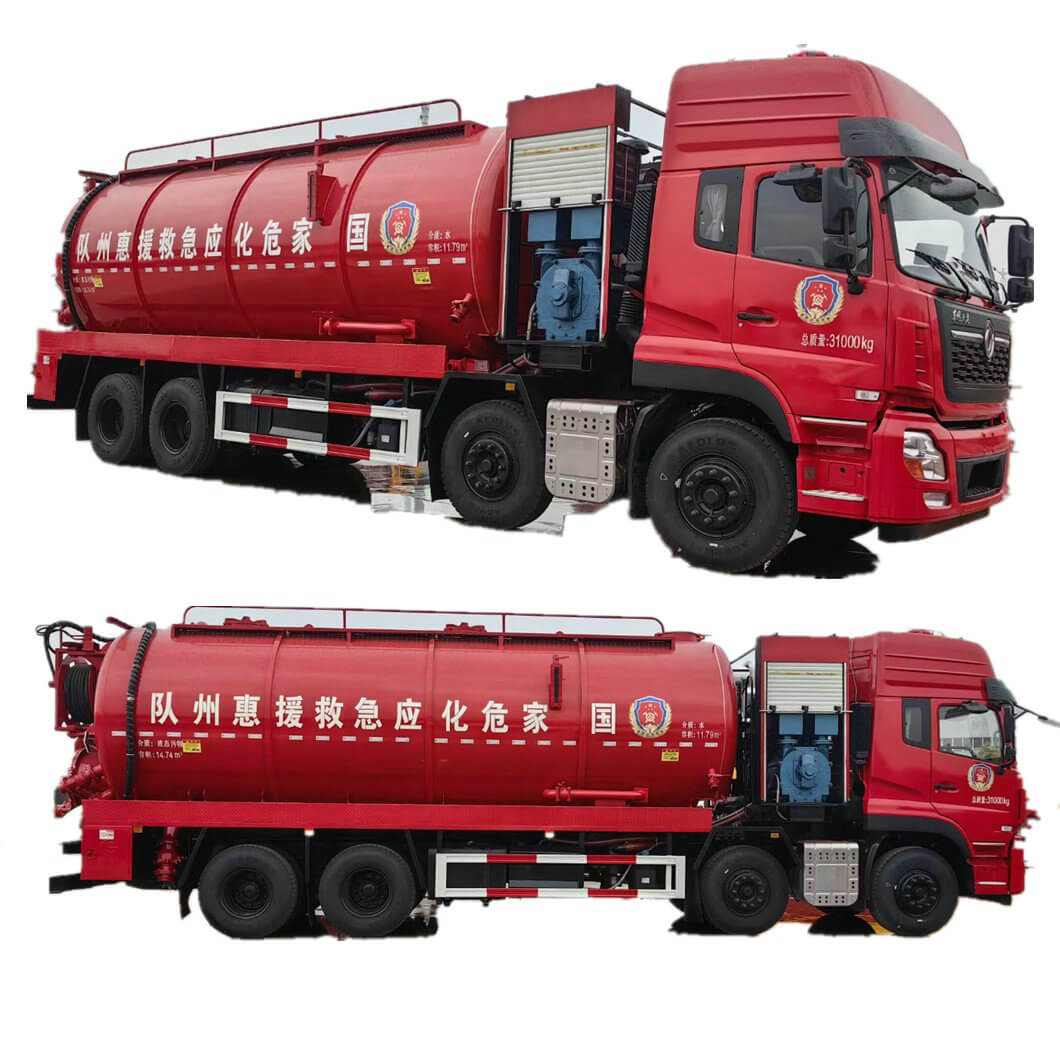

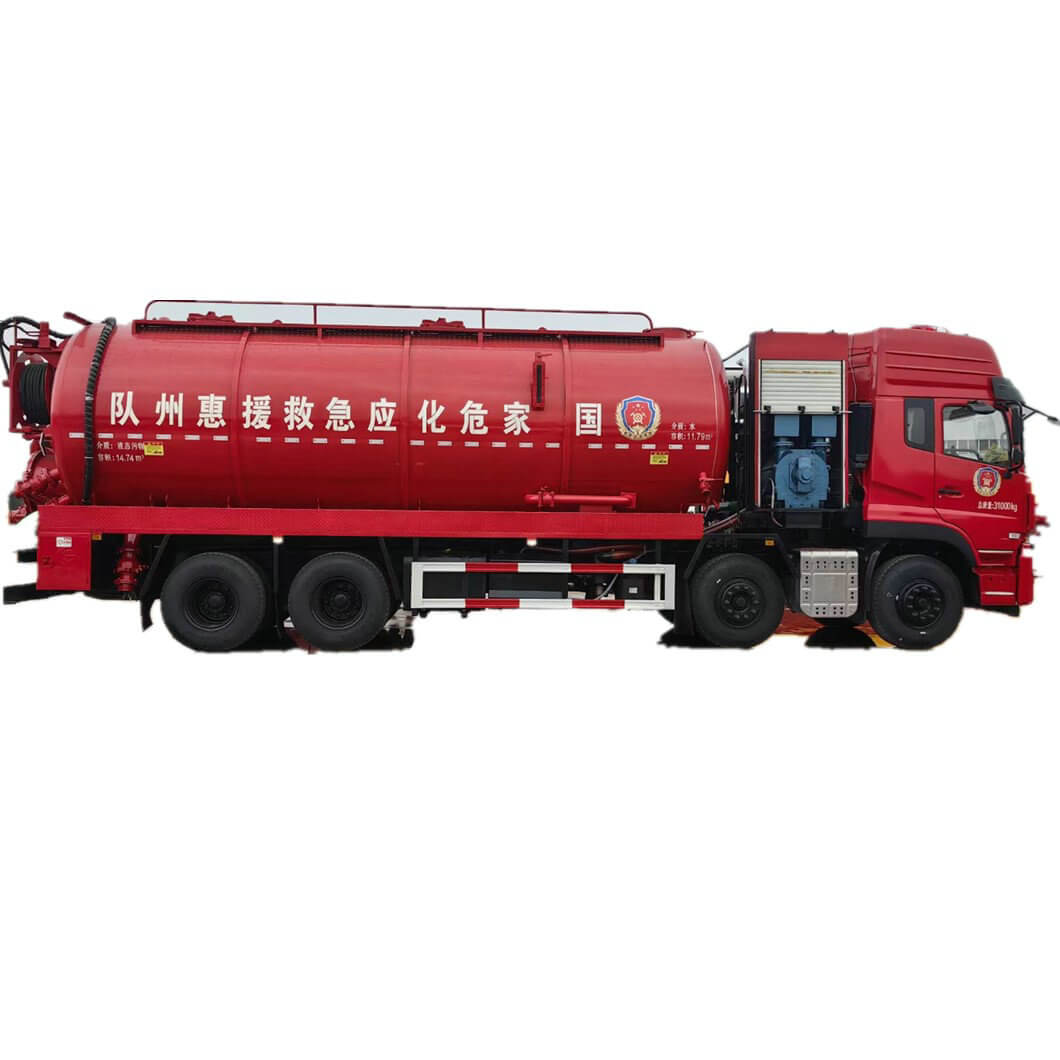

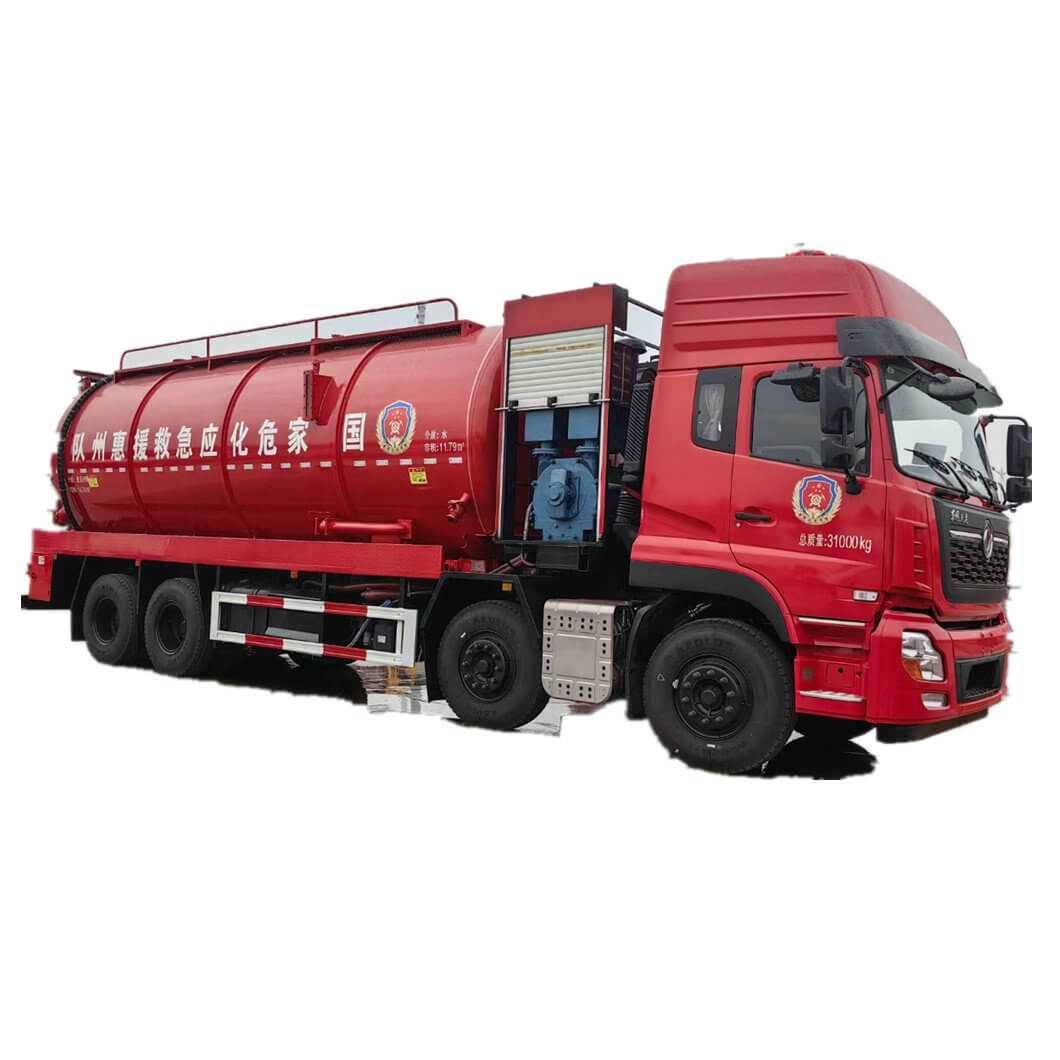

Dongfeng 25Ton Hydrovacs Vacuum Hydro Excavation Vehicle Combined Sewer Suction Jetting Truck (14m3 Sewage+11m3 Clean Water)
Dongfeng 25Ton Hydrovacs Vacuum Hydro Excavation Vehicle Combined Sewer Suction Jetting Truck (14m3 Sewage+11m3 Clean Water)
HYDRO EXCAVATION TRUCKS
PTO, transmission shaft, vacuum pump, tanker, hydraulic system and jetting pipe system.
Price for refer only. Final Price Offer Discount.
HYDRO EXCAVATION TRUCKS
PTO, transmission shaft, vacuum pump, tanker, hydraulic system and jetting pipe system.
Price for refer only. Final Price Offer Discount.
Price: $ 99000
Discount Price: $ 88000
| Quantity: | |
|---|---|
|
| |
-
DRZ5310GXWDF
-
Dong Run Ze
-
8705909990
Dongfeng 25Ton Hydrovacs Vacuum Hydro Excavation Vehicle Combined Sewer Suction Jetting Truck (14m3 Sewage+11m3 Clean Water)
Hydro excavation truck
25-30Ton Vacuum Sewer Sewage Cleaning Truck (Sewer Septic Tank High Pressure Combined Water Jetting Truck 18m3 Wast Sludge 10m3 Clean Water Tank )
Powerful Hydro Excavator Trucks
Cesspit Emptier Vacuum Tanker Truck
HydroExcavators For Cesspool Emptier
DFH1310A1
carbon - stainless steel
Hydrovac, Vacuum Truck And Excavation Services Truck DFH1310A1 Chassis
Technical specifications
| # | Engine model | Engine displacement | Engine power | Engine manufacturer | |||
|---|---|---|---|---|---|---|---|
| 1 | ISL9.5-292E51A | 9460 cc | 9.5 L | 577 cuin | 215 kW | 292 hp | Dongfeng Cummins Engine Co., Ltd. |
| 2 | ISL9.5-315E51A | 9460 cc | 9.5 L | 577 cuin | 232 kW | 315 hp | Dongfeng Cummins Engine Co., Ltd. |
| 3 | ISL9.5-340E51A | 9460 cc | 9.5 L | 577 cuin | 251 kW | 341 hp | Dongfeng Cummins Engine Co., Ltd. |
| 4 | ISL9.5-360E51A | 9460 cc | 9.5 L | 577 cuin | 268 kW | 364 hp | Dongfeng Cummins Engine Co., Ltd. |
| 5 | dCi350-51 | 11120 cc | 11.1 L | 679 cuin | 257 kW | 349 hp | Dongfeng Commercial Vehicle Co., Ltd. |
| 6 | dCi385-51 | 11120 cc | 11.1 L | 679 cuin | 283 kW | 385 hp | Dongfeng Commercial Vehicle Co., Ltd. |
| 7 | dCi420-51 | 11120 cc | 11.1 L | 679 cuin | 309 kW | 420 hp | Dongfeng Commercial Vehicle Co., Ltd. |
| 8 | DDi75S315-50 | 7530 cc | 7.5 L | 460 cuin | 232 kW | 315 hp | Dongfeng Commercial Vehicle Co., Ltd. |
| 9 | DDi75S350-50 | 7530 cc | 7.5 L | 460 cuin | 257 kW | 349 hp | Dongfeng Commercial Vehicle Co., Ltd. |
| Performance | ||||
|---|---|---|---|---|
| Fuel | diesel fuel | |||
| Environmental standard | GB17691-2005 National V / Euro 5, GB3847-2005 | |||
| Maximum speed | 90 km/h | 56 mph | ||
| ABS | have | |||
| Capacity | ||||
|---|---|---|---|---|
| Rated load capacity | 18170 kg, 18105 kg | 18.2 t, 18.1 t | 40,058 lbs, 39,915 lbs | |
| Quasi-total mass of trailer | 18000 kg | 18 t | 40,000 lbs | |
| Load factor (the ratio of the payload of a vehicle to its weight) | 1.44 | |||
| Weights and Ground pressure | ||||
|---|---|---|---|---|
| Curb weight | 12700 kg | 12.7 t | 28,000 lbs | |
| Gross vehicle weight rating | 31000 kg | 31 t | 68,000 lbs | |
| Axle load distribution | 6500 kg / 6500 kg / 18000 kg () 6.5 t / 6.5 t / 18 t () 14,300 lbs / 14,300 lbs / 40,000 lbs () | |||
| Dimensions | ||||
|---|---|---|---|---|
| Overall length | 11980 mm | 39′4″ | ||
| Overall width | 2500 mm / 2550 mm | 8′3″ / 8′5″ | ||
| Overall height | 3200 mm / 3870 mm | 10′6″ / 12′9″ | ||
| Cargo body | ||||
|---|---|---|---|---|
| Cargo body length | 9400 mm / 9600 mm | 30′11″ / 31′6″ | ||
| Cargo body width | 600 mm / 800 mm | 2′0″ / 2′8″ | ||
| Cargo body height | 2300 mm / 2400 mm / 2450 mm | 7′7″ / 7′11″ / 8′1″ | ||
| Undercarriage and Suspension | ||||
|---|---|---|---|---|
| Number of axles | 4 | |||
| Wheelbase | 1850+4600+1350 mm, 1850+4600+1400 mm, 2050+4400+1350 mm, 2050+4400+1400 mm | 6′1″+15′2″+4′6″, 6′1″+15′2″+4′8″, 6′9″+14′6″+4′6″, 6′9″+14′6″+4′8″ | ||
| Front track | 2040 mm / 2040 mm | 6′9″ / 6′9″ | ||
| Rear track | 1860 mm / 1860 mm | 6′2″ / 6′2″ | ||
| Front/rear overhang | 1500 mm / 2680 mm, 1500 mm / 2630 mm | 5′0″ / 8′10″, 5′0″ / 8′8″ | ||
| Angle of approach | 22° | |||
| Angle of departure | 9° | |||
| Leaf springs | 9 / 9 / 10, 8 / 8 / 10, 3 / 3 / 4, 9 / 9 / -, 3 / 3 / - | |||
| Tyres and Wheels | ||||
|---|---|---|---|---|
| Number of tyres | 12 | |||
| Tyres dimension | 11.00-20, 11.00R20, 295/80R22.5, 12R22.5 | |||
| Miscellaneous | ||||
|---|---|---|---|---|
| Seating capacity | 2, 3 | |||
| Steering control | steering wheel30Ton Vacuum Sewer Sewage Cleaning Truck (Sewer Septic Tank High Pressure Combined Water Jetting Truck ) | |||
30Ton Vacuum Sewer Sewage Cleaning Truck (Sewer Septic Tank High Pressure Combined Water Jetting Truck )
| Main technical parameters of DRZ5311GQWDV cleaning and suction truck | |||
| Product Name: | Cleaning and suction truck | Appearance size: | 11980 x 2550 x 3850 (mm) |
| Chassis type: | DFH1310A1 | Cargo size: | X (mm) |
| Total quality: | 31000 (Kg) | Approach / departure angle: | 22/11 (degree) |
| Rated quality: | 1387513810 (Kg) | Suspension ahead: | 1500/23001500/23601500/2410 (mm) |
| Preparation quality: | 16995 (Kg) | Maximum speed: | 90 (km/h) |
| Engine | Engine manufacturing enterprise | Displacement (ML) | Power (kw) |
| DCi350-51 DCi385-51 DCi420-51 DDi75S315-50 DDi75S350-50 DCi450-51 DCi465-51 | Dongfeng Cummins Engine Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Dongfeng Commercial Vehicle Co., Ltd. Dongfeng Commercial Vehicle Co., Ltd. Dongfeng Commercial Vehicle Co., Ltd. Dongfeng Commercial Vehicle Co., Ltd. | 9460 9460 9460 11120 11120 11120 7530 | 232/316 251/342 268/365 257/350 283/385 309/421 232/316 |
| Emission standards: | GB17691-2005 country V, GB3847-2005 | ||
| Axle number: | Four | Front tread: | (mm) |
| Wheelbase: | 1850+4600+1350 1850+4600+1400 2050+4400+1350 2050+4400+1400 1850+4100+1350 1995+4600+1350 | Rear wheelbase: | (mm) |
| Tires: | Tire specifications: | ||
| Fuel types: | diesel oil | Spring number: | |
| Axle load: | 6500/6500/18000 (two axis group) | Number of cab drivers: | 2,3 |
| Vehicle notes: | 1. The purpose of the vehicle is to clean and absorb pollutants. The main equipment is vacuum pump and tank. The size of the tank is straight section length * diameter (mm): 7100 * 2350, of which the tank front is clear water tank (the outer dimension is 2600mm), and the rear end is the sewage tank (the outer dimension is 4500mm). The two cans are independent and cannot be fully loaded at the same time. When cleaning function, use clean water tank and use sewage tank when absorbing sewage function. The effective volume of the sewage tank is 18 cubic meters, medium: liquid dirt, density: 800 kg / cubic meter; the effective volume of the water tank is 10 cubic meters, medium: water, density: 1000 kg / cubic meter, 2, wheelbase / rear suspension corresponding to (mm): 1850+4600+1350/26801850+4600+1400/ 26302050+4400+1350/26802050+4400+1400/2630. Optional rear valve; optional rear reel - pick up the aisle and guardrail on the top of the tank; the side / rear protective material is Q235, the side bolts are connected, the rear welding is welded, the section size is 300 50mm, the lower edge is 500mm from the ground. 3, with the chassis optional cab; install satellite positioning function of the travel recorder; ABS model / manufacturer: 3631010-C2000/ East knkner commercial vehicle braking system (Shiyan) Co., Ltd. | ||
VACUUM-Tank truck with JETTING and FLUSHING function
Type | Combined Jetting & Sewage Trucks |
Tank volume | Sludge & Water Tank Total:14,000L-18000L Tank A:Capacity: 10000-14000ltrs & solid Sludge /liquid human waste. Tank B: Capacity: 4000litrs & clean water for cleaning and flushing. |
Tank Material | Q235 |
Water Pump | 19MPa – 24MPa |
Jetting Pump Flow | 170lt/m – 330lt/m SY132-45 High Pressure Pump 22MPa 215L / min (Tongjie). |
Vacuum Pump | 30m³-42m³/min |
Jetting Hose and Reel | 60m-100m hose, hydraulic pressure. |
Vacuum pump drive systems | Dec. Transmission / Auxiliary Engine / PTO |
Pressure Regulator | Pneumatic – Mechanical |
Aluminium ally Water Ring Vacuum Pump (46.7 M3/Min )
Aluminium alloy light weight
Model | XW-2800 | Speed | 1400R/m |
Max Pressure | 33hpa | Power rate | 75KW |
Air flow | >46.7M3/min | Body Material | Aluminium ally |
Dongfeng 25Ton Hydrovacs Vacuum Hydro Excavation Vehicle Combined Sewer Suction Jetting Truck (14m3 Sewage+11m3 Clean Water)
Hydro excavation truck
25-30Ton Vacuum Sewer Sewage Cleaning Truck (Sewer Septic Tank High Pressure Combined Water Jetting Truck 18m3 Wast Sludge 10m3 Clean Water Tank )
Powerful Hydro Excavator Trucks
Cesspit Emptier Vacuum Tanker Truck
HydroExcavators For Cesspool Emptier
DFH1310A1
carbon - stainless steelHydrovac, Vacuum Truck And Excavation Services Truck DFH1310A1 Chassis
Technical specifications
| # | Engine model | Engine displacement | Engine power | Engine manufacturer | |||
|---|---|---|---|---|---|---|---|
| 1 | ISL9.5-292E51A | 9460 cc | 9.5 L | 577 cuin | 215 kW | 292 hp | Dongfeng Cummins Engine Co., Ltd. |
| 2 | ISL9.5-315E51A | 9460 cc | 9.5 L | 577 cuin | 232 kW | 315 hp | Dongfeng Cummins Engine Co., Ltd. |
| 3 | ISL9.5-340E51A | 9460 cc | 9.5 L | 577 cuin | 251 kW | 341 hp | Dongfeng Cummins Engine Co., Ltd. |
| 4 | ISL9.5-360E51A | 9460 cc | 9.5 L | 577 cuin | 268 kW | 364 hp | Dongfeng Cummins Engine Co., Ltd. |
| 5 | dCi350-51 | 11120 cc | 11.1 L | 679 cuin | 257 kW | 349 hp | Dongfeng Commercial Vehicle Co., Ltd. |
| 6 | dCi385-51 | 11120 cc | 11.1 L | 679 cuin | 283 kW | 385 hp | Dongfeng Commercial Vehicle Co., Ltd. |
| 7 | dCi420-51 | 11120 cc | 11.1 L | 679 cuin | 309 kW | 420 hp | Dongfeng Commercial Vehicle Co., Ltd. |
| 8 | DDi75S315-50 | 7530 cc | 7.5 L | 460 cuin | 232 kW | 315 hp | Dongfeng Commercial Vehicle Co., Ltd. |
| 9 | DDi75S350-50 | 7530 cc | 7.5 L | 460 cuin | 257 kW | 349 hp | Dongfeng Commercial Vehicle Co., Ltd. |
| Performance | ||||
|---|---|---|---|---|
| Fuel | diesel fuel | |||
| Environmental standard | GB17691-2005 National V / Euro 5, GB3847-2005 | |||
| Maximum speed | 90 km/h | 56 mph | ||
| ABS | have | |||
| Capacity | ||||
|---|---|---|---|---|
| Rated load capacity | 18170 kg, 18105 kg | 18.2 t, 18.1 t | 40,058 lbs, 39,915 lbs | |
| Quasi-total mass of trailer | 18000 kg | 18 t | 40,000 lbs | |
| Load factor (the ratio of the payload of a vehicle to its weight) | 1.44 | |||
| Weights and Ground pressure | ||||
|---|---|---|---|---|
| Curb weight | 12700 kg | 12.7 t | 28,000 lbs | |
| Gross vehicle weight rating | 31000 kg | 31 t | 68,000 lbs | |
| Axle load distribution | 6500 kg / 6500 kg / 18000 kg () 6.5 t / 6.5 t / 18 t () 14,300 lbs / 14,300 lbs / 40,000 lbs () | |||
| Dimensions | ||||
|---|---|---|---|---|
| Overall length | 11980 mm | 39′4″ | ||
| Overall width | 2500 mm / 2550 mm | 8′3″ / 8′5″ | ||
| Overall height | 3200 mm / 3870 mm | 10′6″ / 12′9″ | ||
| Cargo body | ||||
|---|---|---|---|---|
| Cargo body length | 9400 mm / 9600 mm | 30′11″ / 31′6″ | ||
| Cargo body width | 600 mm / 800 mm | 2′0″ / 2′8″ | ||
| Cargo body height | 2300 mm / 2400 mm / 2450 mm | 7′7″ / 7′11″ / 8′1″ | ||
| Undercarriage and Suspension | ||||
|---|---|---|---|---|
| Number of axles | 4 | |||
| Wheelbase | 1850+4600+1350 mm, 1850+4600+1400 mm, 2050+4400+1350 mm, 2050+4400+1400 mm | 6′1″+15′2″+4′6″, 6′1″+15′2″+4′8″, 6′9″+14′6″+4′6″, 6′9″+14′6″+4′8″ | ||
| Front track | 2040 mm / 2040 mm | 6′9″ / 6′9″ | ||
| Rear track | 1860 mm / 1860 mm | 6′2″ / 6′2″ | ||
| Front/rear overhang | 1500 mm / 2680 mm, 1500 mm / 2630 mm | 5′0″ / 8′10″, 5′0″ / 8′8″ | ||
| Angle of approach | 22° | |||
| Angle of departure | 9° | |||
| Leaf springs | 9 / 9 / 10, 8 / 8 / 10, 3 / 3 / 4, 9 / 9 / -, 3 / 3 / - | |||
| Tyres and Wheels | ||||
|---|---|---|---|---|
| Number of tyres | 12 | |||
| Tyres dimension | 11.00-20, 11.00R20, 295/80R22.5, 12R22.5 | |||
| Miscellaneous | ||||
|---|---|---|---|---|
| Seating capacity | 2, 3 | |||
| Steering control | steering wheel30Ton Vacuum Sewer Sewage Cleaning Truck (Sewer Septic Tank High Pressure Combined Water Jetting Truck ) | |||
30Ton Vacuum Sewer Sewage Cleaning Truck (Sewer Septic Tank High Pressure Combined Water Jetting Truck )
| Main technical parameters of DRZ5311GQWDV cleaning and suction truck | |||
| Product Name: | Cleaning and suction truck | Appearance size: | 11980 x 2550 x 3850 (mm) |
| Chassis type: | DFH1310A1 | Cargo size: | X (mm) |
| Total quality: | 31000 (Kg) | Approach / departure angle: | 22/11 (degree) |
| Rated quality: | 1387513810 (Kg) | Suspension ahead: | 1500/23001500/23601500/2410 (mm) |
| Preparation quality: | 16995 (Kg) | Maximum speed: | 90 (km/h) |
| Engine | Engine manufacturing enterprise | Displacement (ML) | Power (kw) |
| DCi350-51 DCi385-51 DCi420-51 DDi75S315-50 DDi75S350-50 DCi450-51 DCi465-51 | Dongfeng Cummins Engine Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Dongfeng Commercial Vehicle Co., Ltd. Dongfeng Commercial Vehicle Co., Ltd. Dongfeng Commercial Vehicle Co., Ltd. Dongfeng Commercial Vehicle Co., Ltd. | 9460 9460 9460 11120 11120 11120 7530 | 232/316 251/342 268/365 257/350 283/385 309/421 232/316 |
| Emission standards: | GB17691-2005 country V, GB3847-2005 | ||
| Axle number: | Four | Front tread: | (mm) |
| Wheelbase: | 1850+4600+1350 1850+4600+1400 2050+4400+1350 2050+4400+1400 1850+4100+1350 1995+4600+1350 | Rear wheelbase: | (mm) |
| Tires: | Tire specifications: | ||
| Fuel types: | diesel oil | Spring number: | |
| Axle load: | 6500/6500/18000 (two axis group) | Number of cab drivers: | 2,3 |
| Vehicle notes: | 1. The purpose of the vehicle is to clean and absorb pollutants. The main equipment is vacuum pump and tank. The size of the tank is straight section length * diameter (mm): 7100 * 2350, of which the tank front is clear water tank (the outer dimension is 2600mm), and the rear end is the sewage tank (the outer dimension is 4500mm). The two cans are independent and cannot be fully loaded at the same time. When cleaning function, use clean water tank and use sewage tank when absorbing sewage function. The effective volume of the sewage tank is 18 cubic meters, medium: liquid dirt, density: 800 kg / cubic meter; the effective volume of the water tank is 10 cubic meters, medium: water, density: 1000 kg / cubic meter, 2, wheelbase / rear suspension corresponding to (mm): 1850+4600+1350/26801850+4600+1400/ 26302050+4400+1350/26802050+4400+1400/2630. Optional rear valve; optional rear reel - pick up the aisle and guardrail on the top of the tank; the side / rear protective material is Q235, the side bolts are connected, the rear welding is welded, the section size is 300 50mm, the lower edge is 500mm from the ground. 3, with the chassis optional cab; install satellite positioning function of the travel recorder; ABS model / manufacturer: 3631010-C2000/ East knkner commercial vehicle braking system (Shiyan) Co., Ltd. | ||
VACUUM-Tank truck with JETTING and FLUSHING function
Type | Combined Jetting & Sewage Trucks |
Tank volume | Sludge & Water Tank Total:14,000L-18000L Tank A:Capacity: 10000-14000ltrs & solid Sludge /liquid human waste. Tank B: Capacity: 4000litrs & clean water for cleaning and flushing. |
Tank Material | Q235 |
Water Pump | 19MPa – 24MPa |
Jetting Pump Flow | 170lt/m – 330lt/m SY132-45 High Pressure Pump 22MPa 215L / min (Tongjie). |
Vacuum Pump | 30m³-42m³/min |
Jetting Hose and Reel | 60m-100m hose, hydraulic pressure. |
Vacuum pump drive systems | Dec. Transmission / Auxiliary Engine / PTO |
Pressure Regulator | Pneumatic – Mechanical |
Aluminium ally Water Ring Vacuum Pump (46.7 M3/Min )
Aluminium alloy light weight
Model | XW-2800 | Speed | 1400R/m |
Max Pressure | 33hpa | Power rate | 75KW |
Air flow | >46.7M3/min | Body Material | Aluminium ally |
