SINOTRUCK HOWO Combined Jet Suction Trucks- 10000Liters Sewage+2000Liters Clean Water

SINOTRUCK HOWO Combined Jet Suction Trucks- 10000Liters Sewage+2000Liters Clean Water
PTO, transmission shaft, vacuum pump, tanker, hydraulic system and pipe system.
Price: $ 66000
Discount Price: $ 62000
Availability:
Quantity:

  • DRZ5160GXWZ
  • Dong Run Ze
  • 8705909990

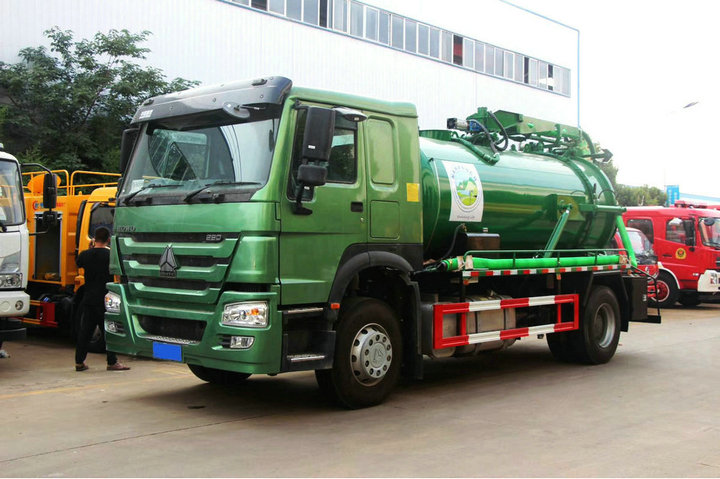

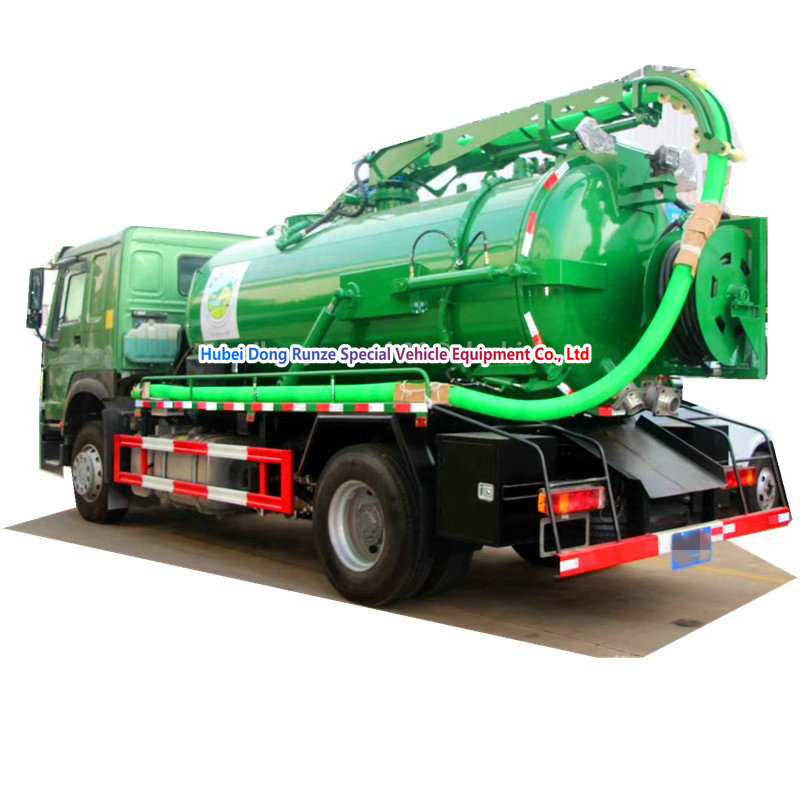

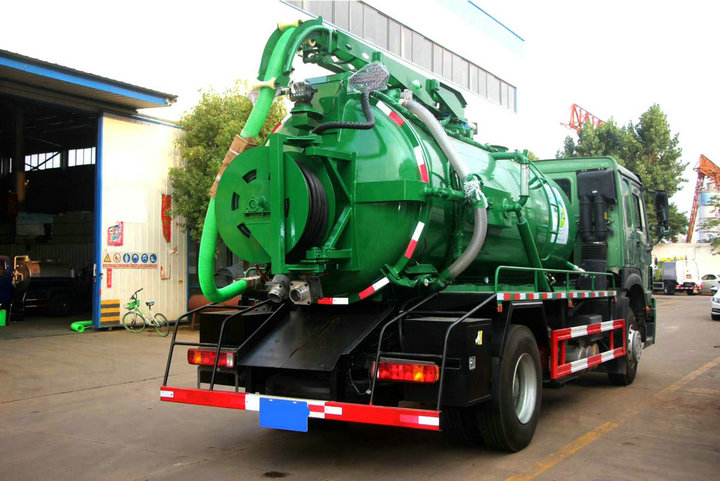

 SINOTRUCK HOWO Combined Jet Suction Trucks- 10000Liters Sewage+2000Liters Clean WaterSinotruck HOWO Vacuum Sewer Jetting Truck 10cbm (12)_1Sinotruck HOWO Vacuum Sewer Jetting Truck 10cbm (11)_1Sinotruck HOWO Vacuum Sewer Jetting Truck 10cbm (9)_1Sinotruck HOWO Vacuum Sewer Jetting Truck 10cbm (13)_1

Truck Technical :

Cabin

HW76 Cabin with two bunks, one sleeper.With A/C. 70° hydraulically tillable to the front as attached photo for ref.

Vehicle Main Dimensions

(L x W x H)mm

8800x2500x3200

Wheel base  (mm)

4600

Wheel track  (front/rear) (mm)

2022/1830

Approach/Departure angle(°)

16/14

Weight in KGS

Tare Weight

10150

Loading Capacity

13000

Front axles loading capacity

1x7000

Rear axles loading capacity

1x16000

Max. driving speed(km/h)

90

Engine

Brand

SINOTRUK

Model

WD615.87

Type

4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse Power(HP)

290HP

Emission standard

Euro Ⅱ

Gearbox

HW13710CL, 10 forwards & 2 reverse

Steering Gear

ZF8098,power steering, hydraulic steering with power assistance

Fuel tank (L)

300L

Tire

12 R22.5 all radial tubeless tire , 11 pieces

Brakes

Service brake: dual circuit compressed air brake
Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust valve brake

Tank specifications

1, Tank size: 10 cbm
2, with Hydraulic system, the Tank can be lifted up and the tank rear cover openable
3, Equipped with Jurop Vauum pump(Model:PNR155DFL  Serial no.K810231 Max Pressure:1.5ABS/Bar Max speed :1300(R.P.M  Made in Italy)
4, Equipped with power take off, transmission shaft, high pressure sewage tank, pipe network, sewage pipe for observing and cleanout equipment
5, Time for full suction<5min
