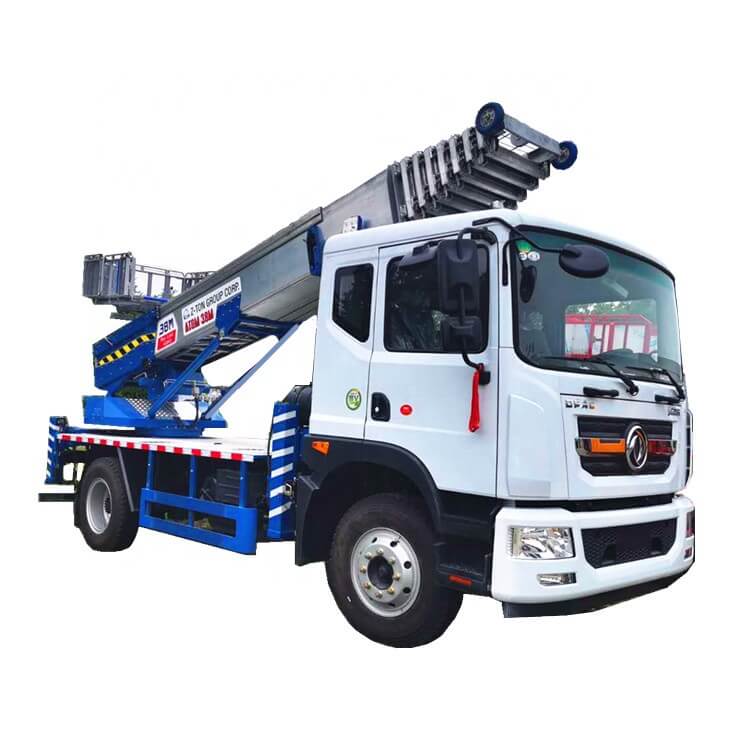

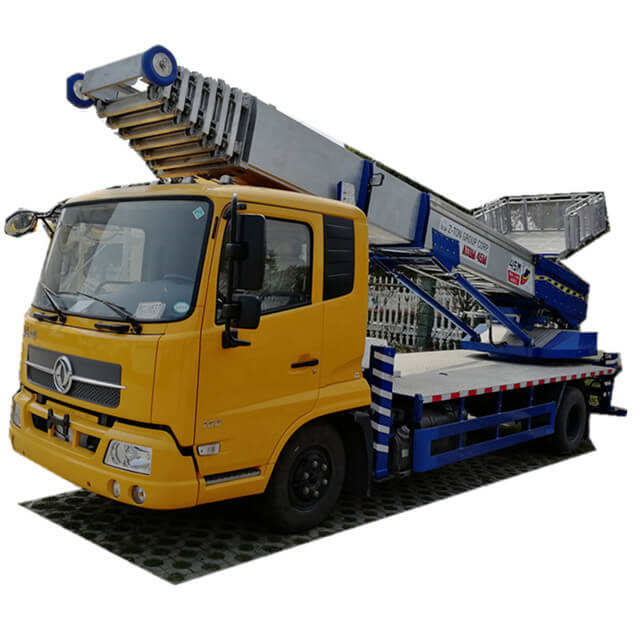

Truck Mounted Telescopic Ladder ( House Moving Services 38m -45m King Run Customizing)
House Building Goods Lift and Download (House Furniture Moving Cherry Picker Hydraulic Ladder
Dongfeng King Run Customizing Ask for better price
| Quantity: | |
|---|---|
|
| |
-
DRZ5*
-
Dong Run Ze
-
8705909990
Truck Mounted Telescopic Ladder ( House Moving Services 38m -45m)
House Building Goods Lift and Download (House Furniture Moving Cherry Picker Hydraulic Ladder
Dongfeng King Run Customizing Ask for better price
Sino 38m Lift High Altitude Ladder Truck
| Chassis Description | |
| Cab | HOWO / Dongfeng King Run |
| Color | Optional |
| Allowable person in cab | 2/3 |
| Wheel base (mm) | 4200 |
| Number of axles | 2 |
| Front axle | 5000 |
| Rear axle | 10000 |
| Traction system | 4×2 |
| Tire specification | 8.25R20,9.00R20, |
| Tire quantity | 6+1 |
| Engine Description | |
| Engine manufacture | Engines |
| Engine model | ISF3.8s5154; ISB180 50 |
| Emission standard | Euro 5 - 6 |
| Exhaust/output | 3760ml/115kw ;5900ml/132kw |
| Horse power | 156hp ;180HP |
| Up-parts Description | |
| Working height (m) | 38-45m |
| Max working radius (m) | 8.3 |
| Boom type | Two section folding arm |
| Rated loading in the bucket(kg) | 200 |
| Bucket size(mm) | 1200*600*1100 |
| Rotating speed (r/min) | 0-2 |
| Rotation Angle | 360 |
| Loading of hook (kg) | 1000 |
| Supporting leg | four H type hydraulic legs |
| Control mode | Hydraulic control or electronic control |
Features Of Dongfeng Tianjin 45m Ladder Truck:
1, Ladder Truck: Humanized Design, More Convenient, Landing Bucket From The Ground 45 Cm, More Labor Saving When Working
2, 100 Meters Remote Control Operation, 100 Meters Within The Remote Control Operation, No Longer Need To Worry About The Sun Work, Work More Convenient
3. The Hopper With Self-Discharging Function Can Automatically Unload Goods Or Sand, Greatly Saving Working Time
4, Hydraulic Support Leg, H Type Hydraulic Support Leg Plus Front Hydraulic Support Leg, Two Horizontal Support Legs Span Large, Good Stability, Can Be Operated Simultaneously Or Alone, Front Support Leg Strengthens The Stability Of The Vehicle
5, 220V Power Supply, Can Be Connected To The Work Site Electric Tools, Convenient Operation
6, The Air Pump Can Be Connected At The Work Site, Pneumatic Tools, Work Up Both Convenient And Labor Saving
7. Equipped With Navigation Device, Integrated With Navigation, Dashcam, Reversing Image And Video Playback Function, It Is Convenient To Drive
8, Trip Memory, Through The Computer Learning And Memory Of The First Operation Mode, a Key To Reach The Designated Position, Rise And Fall Speed Free Regulation, Suitable For The Same Height Of Many Times Back And Forth Operations
9, Manual Automatic Radiator, Self-Dynamic Temperature, When The Temperature Reaches 55 Degrees, Automatic Heat Dissipation, Reduce Losses
| Chassis: | BJ3045D8ADA-1 | Fuel type: | diesel fuel |
| Engine: | 4J28TC | Wheelbase (mm): | 3360 |
| Displacement (cc): | 2771 | Dimensions (mm): | 5985 × 2025 × 3270 |
| Power (kW): | 81 | Gross weight (kg): | 4495 |
| Chassis: | HFC1150PZ5K1D5 | Fuel type: | diesel fuel |
| Engine: | ISF3.8s4168; CA4DF4-17E4 | Wheelbase (mm): | 4000 |
| Displacement (cc): | 3760; 4750 | Dimensions (mm): | 7660 × 2490 × 3830 |
| Power (kW): | 125; 127 | Gross weight (kg): | 9685 |
| Chassis: | HFC1073R83K1C3 | Fuel type: | diesel fuel |
| Engine: | HFC4DA1-2C | Wheelbase (mm): | 3360 |
| Displacement (cc): | 2771 | Dimensions (mm): | 5995 × 1900 × 2950 |
| Power (kW): | 88 | Gross weight (kg): | 4495 |
