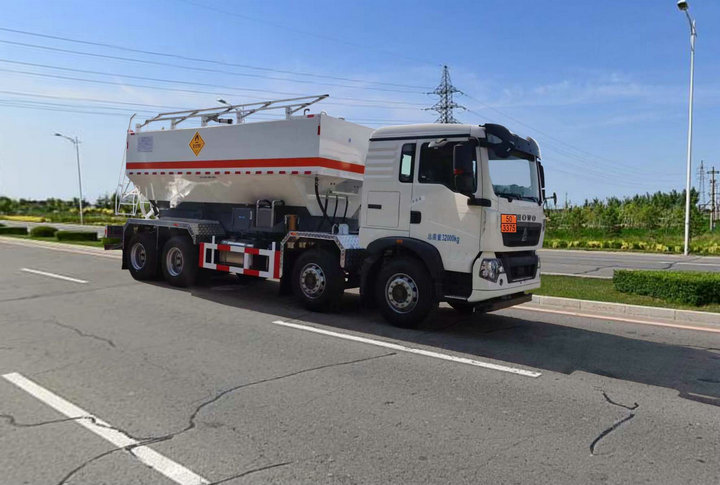

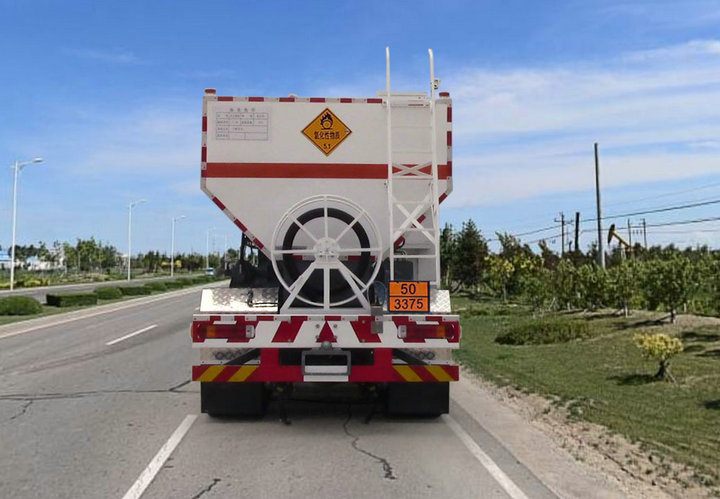

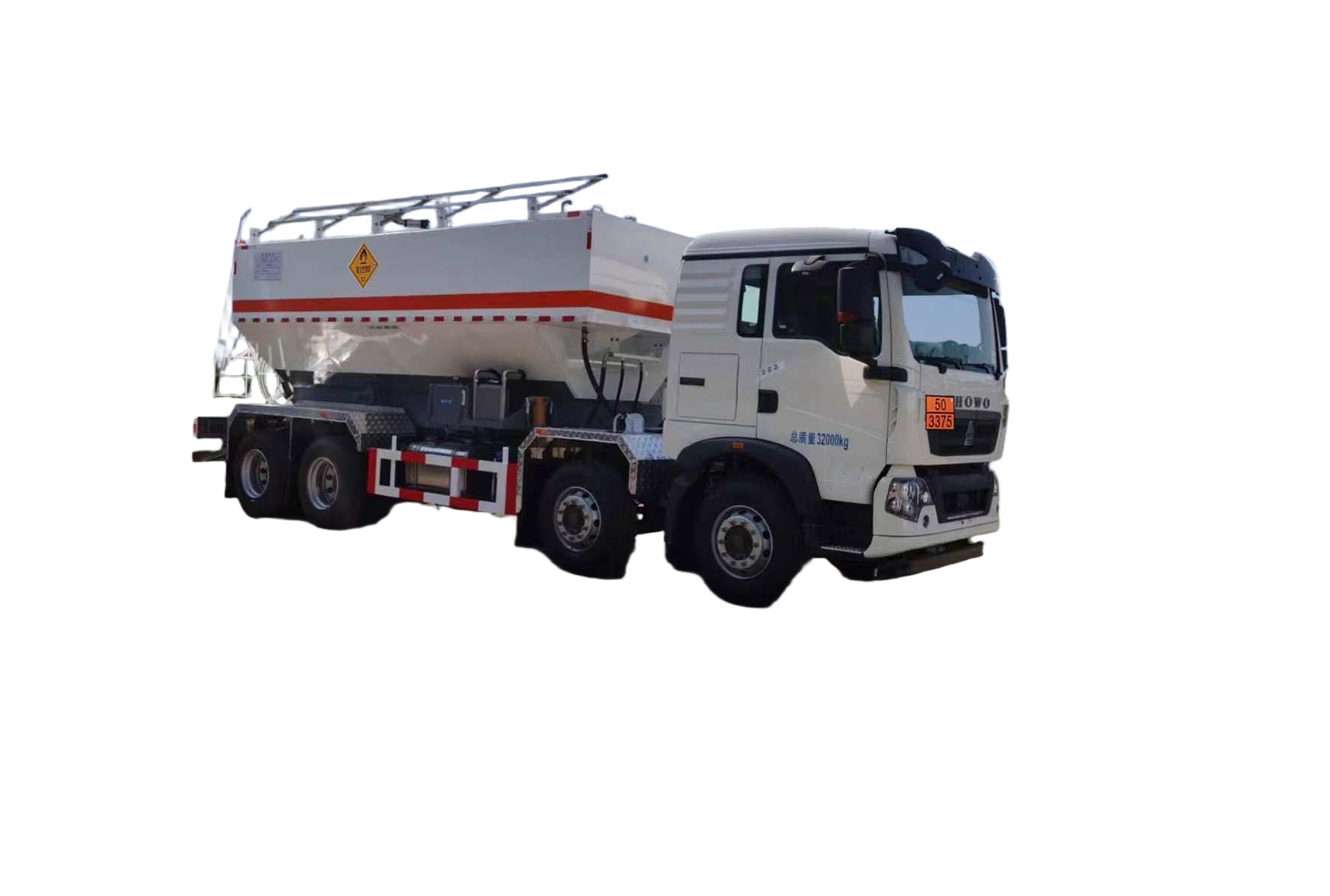

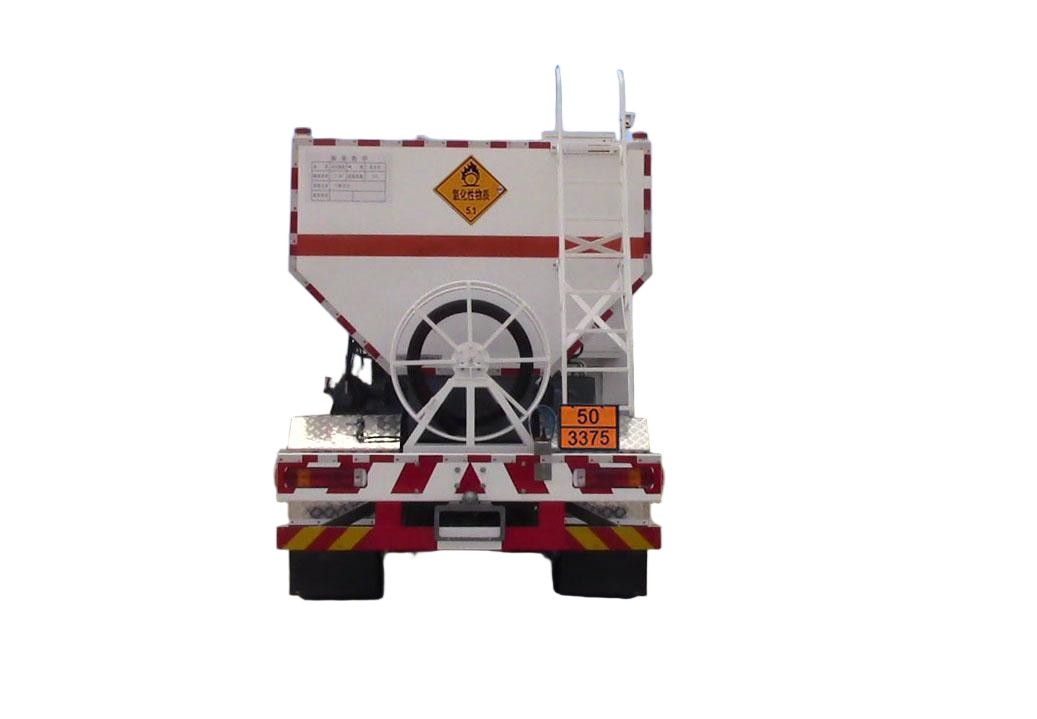

HOWO 17-18T Onsite Bulk Mixed and Charged Emulsion Explosive ANFO Truck

 HOWO 17-18T Onsite Bulk Mixed and Charged Emulsion Explosive  ANFO Truck

Main Technical Parameters

• Overall Dimensions: 9930×2520×3720 mm

• Gross Weight: 32000 kg

• Curb Weight: 14000 kg

• Rated Payload: 17870 kg / 17805 kg

• Approach / Departure Angle: 19° / 19°

• Front / Rear Overhang: 1430 mm / 1525 mm

• Axle Load: 6500 / 7000 / 18500 kg (tandem axle group)

• Wheelbase (optional): 1800+3775+1400, 1800+4275+1400, 1800+4575+1400, 1950+3800+1400, 1950+4600+1400, 1800+3200+1400, 1950+4300+1400, 2100+3500+1400, 2300+3500+1400 mm

• Number of Axles: 4

• Max Speed: 80 km/h

• Number of Tires: 12

• Tire Specifications: 315/80R22.5 18PR, 295/80R22.5 18PR, 12R22.5 18PR, 12.00R20 18PR, 11.00R20 18PR

• Fuel Consumption: 37.4 / 37.21 L/100km

• Front Track: 2015/2015, 2035/2035, 2060/2060, 2000/2000 mm

• Rear Track: 1850/1850, 1870/1870 mm

• Steering: Steering wheel

Engine Parameters

• Engine Models: MC11.43-61, MC11.44-60, MC07H.33-60, MC09.35B-60, MC09.35-60, MC07.31-60, MC07.34-60, WP10H400E62, MC07H.35-60, MC09.38-60, etc.

• Manufacturers: Sinotruk Group Co., Ltd.; Weichai Power Co., Ltd.

• Displacement: 6870–11596 ml

• Power: 228–360 kW

 ON-SITE MIXED EMULSION EXPLOSIVE TRUCK

HOWO 17-18TT Onsite Bulk Mixed & Charged Emulsion Explosive  ANFO Truck

 Mixed Emulsion Explosive Truck 、Explosive Mixing And Charging Trucks

Other Descriptions On-site Mixed & Charged Emulsion Explosive Truck

• MC07H.35‑60: 37.4 L/100 km

• MC07H.35‑61: 37.21 L/100 km

On-site Mixed Emulsion Explosive Truck 、ANFO / Explosive Delivery Trucks ANFO mix units

ANFO TRUCK  Dong Runze Special Vehicle  Heavy ANFO Units — Heavy ANFO Manufacture

BCRH-15 Emulsion truck utilizes load-sensing proportional hydraulics and a closed loop control system to efficiently and accurately control the ratio of the pumped emulsion and chemical gassing agents. Emulsion is pumped through a progressive cavity pump, while high pressure piston pumps supply gassing agent and water flow. Emulsion hauling capacity is 15MT, and the delivery rate can be varied from 100-300kg/min. The control system is fully automated and features on-board data logging and diagnostics. The emulsion re-pump truck utilizes a configurable static mixer column and water ring lubrication system to reduce pumping pressure through the length of the hose.

BCLH-15 ANFO truck utilizes load-sensing proportional hydraulics and a closed loop control system to efficiently and accurately control the mixing and loading of ANFO. The control system delivers automation, wireless remote control, on-board data logging and diagnostics. The body is available with either an overhead or side boom auger configuration. ANFO hauling capacity is 15MT, and the ANFO discharge rate can be varied from 100-1000kg/min. The ANFO unit utilizes proportional computer-control and well-designed diesel fuel injection to increase the wetted surface area of AN prill for maximum fuel distribution and absorption.

BCZH quad multi-functional truck utilizes load-sensing proportional hydraulics and a closed loop control system to efficiently and accurately control the mixing ratio of ANFO, emulsion, and chemical gassing agents. The quad vehicle is capable of pumping or augering a full range of bulk products: 100% bulk emulsion, various heavy ANFO blends and100% ANFO. The control system is fully automated and feature on-board data logging and diagnostics. The unit utilizes a configurable static mixer column and water ring lubrication system to reduce pumping pressure through the length of the hose.

ANFO TRUCK  Dong Runze Special Vehicle  Heavy ANFO Units — Heavy ANFO Manufacture

The components of ANFO are usually mixed close to the point of operation for safety reasons. The final product, once mixed, is relatively safe and easy to handle. It is used by augering it into drill holes.

Ammonium Nitrate/Fuel Oil
is widely used in
coal mining,
quarrying, metal
mining, and civil construction. It’s best used in undemanding applications where its low cost and relative ease of use makes it a cost effective solution. It is estimated that ANFO accounts for an estimated 80% of explosives used annually around the world. To keep costs as low as possible, bulk ANFO is used, i.e. it is mixed on-site, near the borehole by a bulk truck

• Emulsion explosives type BCRH-15;

• Granulated explosives of ANFO type BCLH-15;

• Mixed Heavy ANFO explosives BCZH-15.

The main container of the truck has two multifunctional tanks, which allow transporting emulsion UN 3375 or ammonium nitrate UN 1942.

• when the truck is loaded only with components of the emulsion explosive (manufacturing and charging boreholes only with emulsion explosive) the truck’s capacity is 10~22 tons;

• when the truck is loaded only with components of ANFO (manufacturing and charging boreholes only with ANFO) the truck’s capacity is 14,5 tons;

• when the truck is loaded only with components of mixed explosives (30% ANFO + 70% emulsion explosives) the truck’s capacity is 16 tons;

The truck has the ability to charge the industrial explosives of varying density that allows you to charge units with different spacing.

Technological equipment of the truck enables the production of explosives on the basis of various emulsions both hot and cold type. For this purpose, the truck has two tanks for gassing agent of two different formulations.

Truck equipment is mounted on  Sinotruck HOWO 8x4 chassis with MAN Tech MC Engine , which provides the truck with improved driving characteristics on the charging unit (reducing the likelihood of boreholes filling up, receiving better handling, and the geometric flotation).

Series Classification

1. BCLH Series: On-site Mixed ANFO Explosive Truck

2. BCRH / BCZH Series: On-site Mixed Emulsion Explosive Truck

Core Technical Parameters

1. BCLH Series ANFO Explosive Truck

2. BCRH / BCZH Series Emulsion Explosive Truck

Main Features

• Rated power: 202kW, 248kW, 273kW optional

• Load capacity: 8-ton grade & 20-ton

• Working efficiency: 250~450kg/min

• Stable output of emulsion type: 280kg/min; higher efficiency for ANFO type

• Application: Mining and engineering blasting, realizing on-site mixing and charging with high safety and efficiency

• Charge efficiency: Emulsion Explosive 250～280Kg/Min,

• Ammonium Oil Explosive 300～450Kg/Min,

• Heavy Ammonium Oil Explosives 300～400Kg/Min,

• Heavy Emulsion Explosives 200～280Kg/Min

• Charge efficiency charge water hole 100-200kg / min

• Charge dry hole 300-450kg / min

• Measurement error  ± 2%

— Heavy ANFO Manufacture
