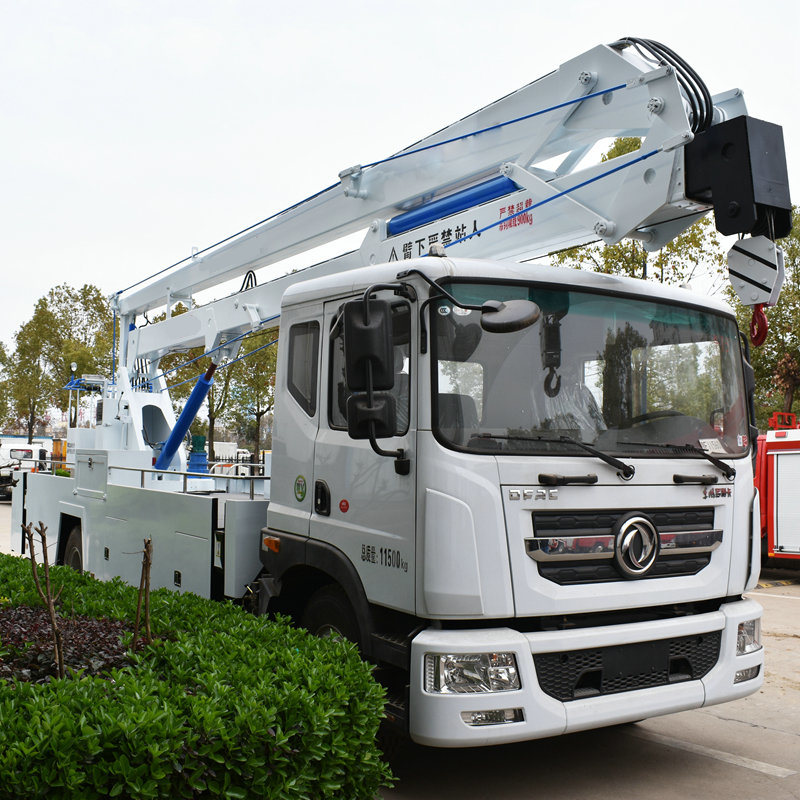

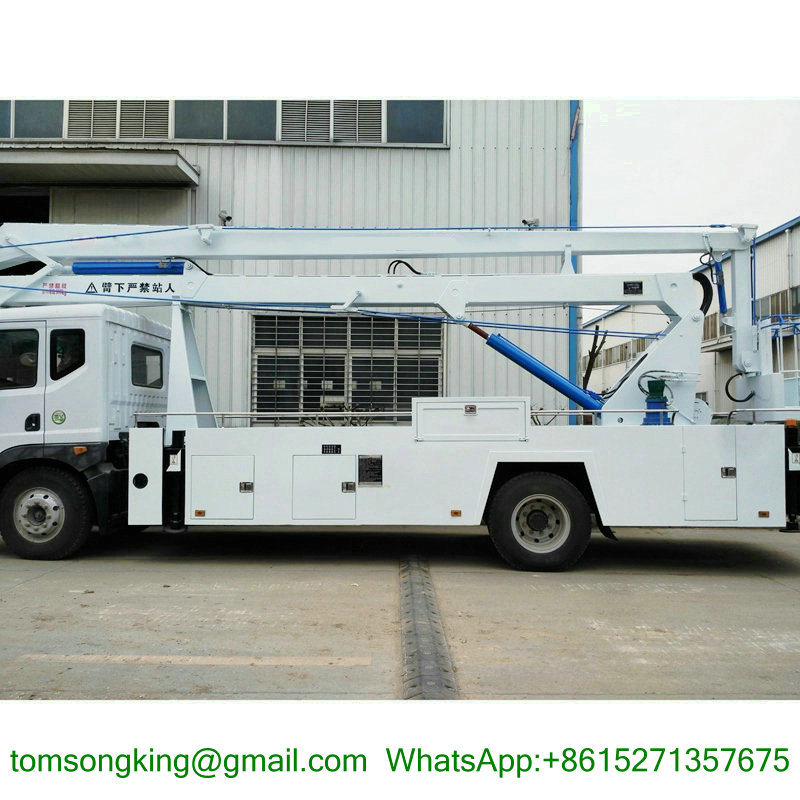

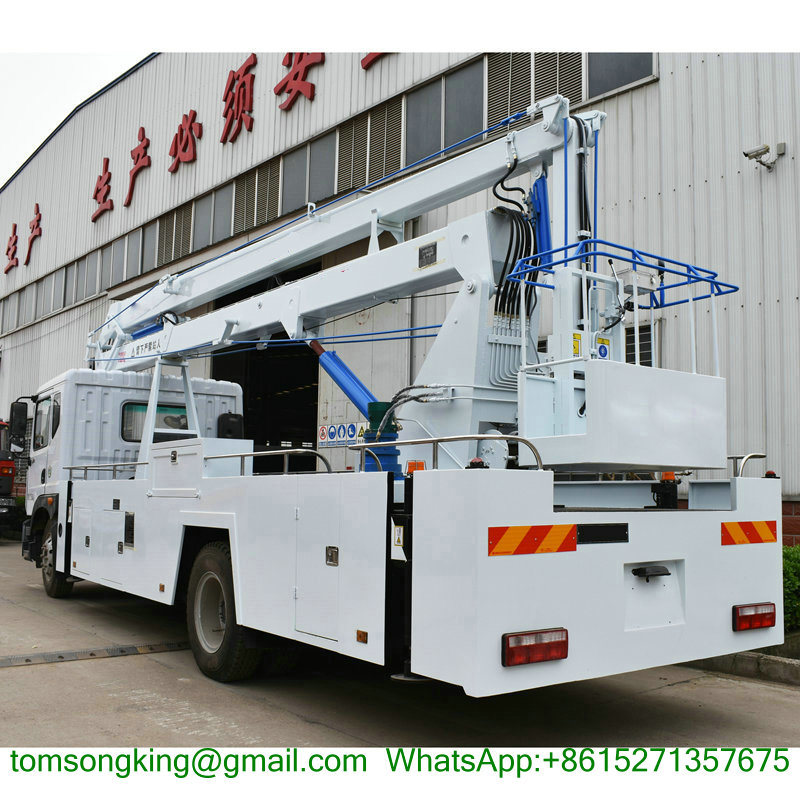

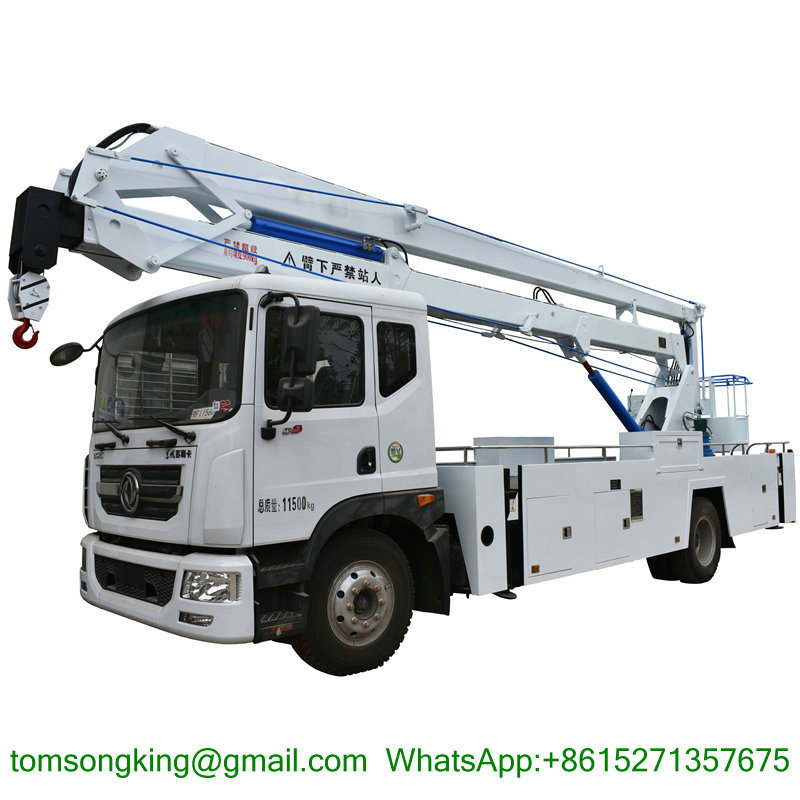

Dongfeng King Run 22-24m Overhead Working Truck Option 4X2.4X4 LHD. Rhd

Dongfeng King Run 22-24m Overhead Working Truck Option 4X2.4X4 LHD. Rhd
Availability:
Quantity:
  • Shanghai, China

  • 10000

  • T/T

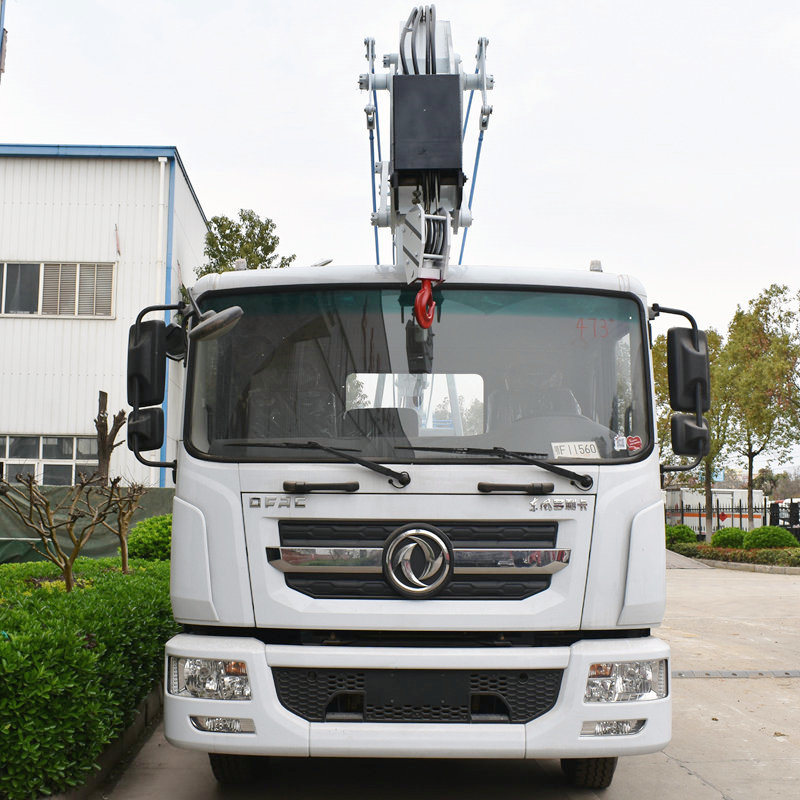

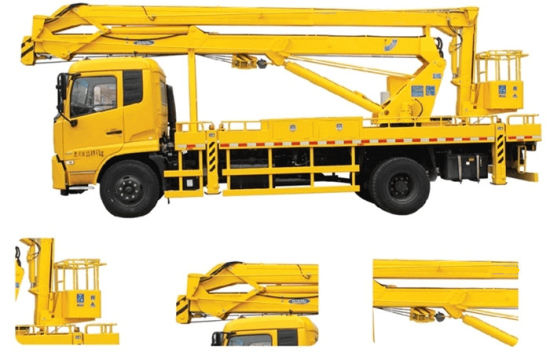

Dongfeng King Run 22-24M Overhead Working Truck Option 4X2.4X4 LHD. RHD

Dongfeng Offroad 4x4 Aerial Platform Truck
fully Hydraulically Operate Arial Work Platforms
Max operation height 16m,18m,20m
max operation radius 5.7m, 6.3m,7m
max working platform rating loading=200kg,

4x4 Off Road  Ask for better price

Cell /+8615271357675

The pictures are for your reference only.
Dongfeng King Run 22-24m Overhead Working Truck Option 4X2.4X4 LHD. RhdDongfeng King Run 22-24m Overhead Working Truck Option 4X2.4X4 LHD. Rhd

Dongfeng King Run 22-24m Overhead Working Truck Option 4X2.4X4 LHD. Rhd
Dongfeng King Run 22-24m Overhead Working Truck Option 4X2.4X4 LHD. Rhd
Dongfeng King Run 22-24m Overhead Working Truck Option 4X2.4X4 LHD. Rhd
Dongfeng King Run 22-24m Overhead Working Truck Option 4X2.4X4 LHD. Rhd

Aerial Working Platform High Altitude Working Truck for Street Lamp Maintenance Function:

Telescopic beam lifter truck (also called aerial telescopic platform truck, hydraulic aerial cage, overhead working truck, truck platform, beam lifter vehicle, truck mounted insulated aerial lift, telescopic boom truck, high-altitude operation truck) is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.

Features:

---- The working cage can be made of steel structure or reinforced fiberglass.
---- Dongfeng chassis ensures perfect driving performance.
---- Dongfeng Chaoyang engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- Massive, durable, long service life.

Specification:

Dongfeng 20m Telescopic Aerial Platform Truck

boom trucks  aerial bucket truck

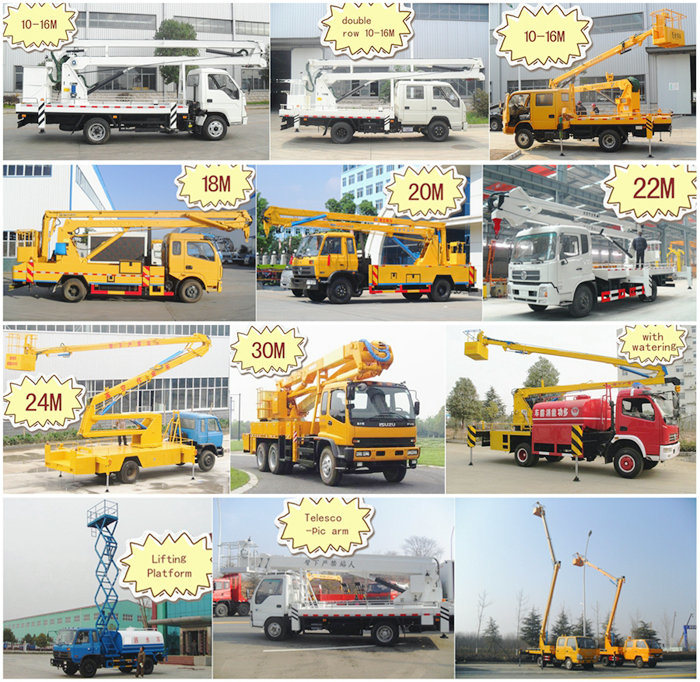

aerial work platforms are available of 8m-12m, 14m-16m, 18m, 20m-22m, 24-26m. Insulated cage is optional.

Features:


---- Working cage can be made of steel structure or reinforced fiberglass (insulated cage);
---- Working cage can rotate 90 degree in left and right;
---- 4pcs outriggers and front support improve operation stability and safety;
---- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.;
---- Wireless remote control system is available.

Aerial work truck refers to a special vehicle which work at high altitude (more than three meters), use a hydraulic or electric system multivessel hydraulic cylinders, can do up and down lifting operations, transport staff and equipment to the site, conduct high altitude operations, it is a modern advanced mechanical species equipment.


Aerial work truck is specially designed and produced for aerial work or operation, such as repairing road lights, maintain high buildings, windows, hanging ad boards, power grid maintenance, etc.

Dongfeng 20m Telescopic Aerial Platform Truck  boom trucks aerial bucket truck
Description

Technical parameters
The total mass(kg) 11050 Curb Weight(kg) 10855
Rated quality(kg) xx Chassis Model DFL1120
Approach /departure angle 20/10,20/12(°) Front/rear overhang 1430/2860, 1430/2560
Dimensions(mm) 9600,9200x2480x3620 Number of spring 7/9+6, 8/10+8
Number of axes 2 Maximum speed 90
Tire Specifications 9.00-20, 9.00R20, 255R70R22.5 Number of tires 6
Front track 1880 Rear track 1800
Wheelbase 5000 Axle load 4400/8095
Emission Standards Euro3/Euro4 Type of fuel Diesel
Engine parameters
Engine Model B190 40 Engine Manufacturer Dongfeng cummins engine co., LTD
EngineDisplacement 5900 ml Engine power 125 kw
Chassis
Description
1. Dongfeng 4x2 chassis, flat cab with sleeper, left/right hand drive/AC;
2. Dongfeng 6 cylinder 190HP diesel engine, 6 speed gear box, 9.00-20tire;
3. Power steeling, gas brake.
Modified
Description
1. Operational height:20-25m,rated load of cage:200-250kg,four H-type hydraulic telescopic legs.
2. 360°all rotation.
3. Two sets of operating system,operating mode:electronic control,cage operating and platform operating.

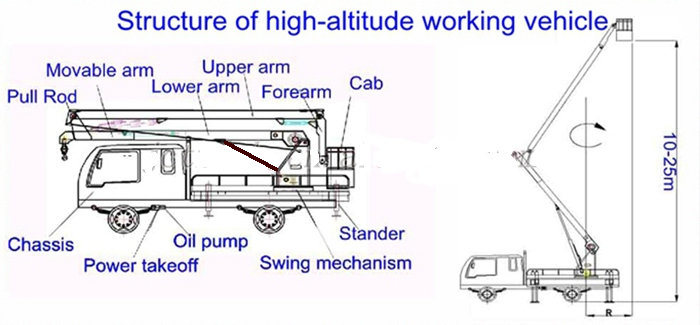

Component Basic composition:chassis,PTO,gear pump,chassis parts,folding arms/telescopic arms, oil cylinder,pipeline system,working cage, rotating mechanism,hydraulic system,electrical system.
Application Convenient moving,used in narrow roads and streets.Aerial work platform can be used in aloft working of electricity,street lamp,municipal administration,gardens,transportation and so on.
Product advantage reasonable price,multiple functions,easy operation


Dongfeng King Run 22-24m Overhead Working Truck Option 4X2.4X4 LHD. Rhd
Dongfeng King Run 22-24m Overhead Working Truck Option 4X2.4X4 LHD. Rhd
Specification:

Main parameters Product model DRZ5053JGKZ3
Gross weight (kg) 7640
Curb weight (kg) 7445
Cab seats 3
Number of axles 2
Overall dimension(mm) 7400x1980x3100
Wheel base(mm) 3300
Max speed (km/h) 85
Steering Left hand drive or right hand drive
Chassis parameters Chassis model EQ1060TJ20D3
Brand DongFeng
Fuel diesel
Number of wheels (mm) 6
Tire specification 7.50R16
Engine displacement (ml) 3856
Engine power (kw) 96
Emission standard Euro II
Upper High meters (m) 16
Max. Out reach (m) 11
Max. lifting weight (kg) 1000
Rotating speed 0~2 r/min
The whole boom outreaching time ≤30 S

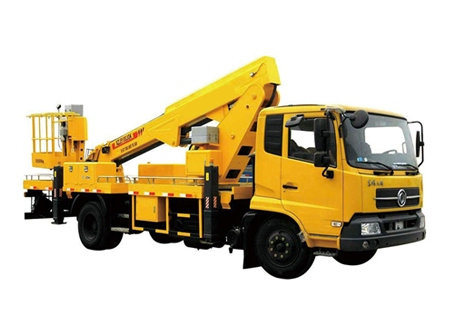

Articulated Boom Lift Dongfeng (14-16M)
General Vehicle Brand Dong run
Chassis Brand Dongfeng
Overall Dimension 7650 x 1980 x 3150 mm
GVW / Kerb Weight 7,300 kg / 6,975 kg
Cab Cab Capacity 2+3 persons allowed
Air Conditioner With air conditioner
Engine Fuel Type Diesel
Engine Brand Dongfeng engine
Power 95Ps (70KW)
Displacement 3856 ml
Emission Standard Euro III, IV
Chassis Drive Type 4X2, left hand drive or right hand drive
Transmission 5 forward gears & 1 reverse
Wheelbase/No. of axle 3300 mm / 2
Tyre Specification 7.00-16 14PR, 7.00R16
Tyre Number 6 tyres and 1 spare tyre
Max Speed 95 km/h
Paint Metallic paint
Superstructure Cage Rated Capacity 200 kg
Working Height 14m - 16 m
Outriggers 4pcs, H-type; Hydraulically extend and retract
Slewing 360° continuous rotation with base turntable
Control Control both on the ground and in the cage
Emergency electrical/manual pump is equipped to operate the equipment in case of engine failure.
Emergency stop switches at base and operator's cage.
Optional Insulated cage; Cargo box; Hoist hook with cables.


Similar Key Words: cost of aerial platform truck, truck mounted aerial work platforms for sale, aerial work platform price, aerial work platform trucks manufacturer, aerial truck with basket from China


PACKING & DELIVERY

Aerial platform truck 16m water tank and water pump ,Truck Mounted Aerial Work Platform water tank,Work Platform water tank truck,aerial bucket truck  water tank,bucket truck with water tank ,Truck Mounted water tank Aerial Work Platform

Dongfeng King Run 22-24m Overhead Working Truck Option 4X2.4X4 LHD. Rhd
Dongfeng King Run 22-24m Overhead Working Truck Option 4X2.4X4 LHD. Rhd

Telescopic aerial platforms 12m -14m-16m 4x4 all wheel drive offroad


Description of goods Quantity Unit price Total Amount

Telescopic aerial platforms

Type - telescopic 12M /bucket capacity 200kg

Dongfeng /wheelbase 3300 mm /4x4

Fuel - diesel engine CY4100Q/ 90HP

Cabin - single (7pcs)7.50-16 tires

Power steering, air brake Emission -EU3

1

FOB$3****

CIF $4****

FOB$3****

CIF $4****

Telescopic aerial platforms

Type - telescopic 12M /bucket capacity 200kg

Dongfeng /wheelbase 3300 mm /4x4

Fuel - diesel engine CY4100Q/ 90HP

Cabin -double cabin (7pcs)7.50-16 tires

Power steering, air brake Emission -EU3

1

FOB$3****

CIF $4****

FOB$3****

CIF $4****

single cabin & double cabin price deiffer $605

Height 14M price add $500;Height 16M price add $1000;4x2 & 4x4 price deiffer $2800

Telescopic aerial platforms

Type - telescopic 14M /bucket capacity 200kg

Dongfeng /wheelbase 3300 mm /4x4

Fuel - diesel engine CY4100Q/ 90HP

Cabin - single (7pcs)7.50-16 tires

Power steering, air brake Emission -EU3

1

FOB$3****

CIF $4****

FOB$3****

CIF $4****

Telescopic aerial platforms

Type - telescopic14M /bucket capacity 200kg

Dongfeng /wheelbase 3300 mm /4x4

Fuel - diesel engine CY4100Q/ 90HP

Cabin -double cabin (7pcs)7.50-16 tires

Power steering, air brake Emission -EU3

1

FOB$3****

CIF $4****

FOB$3****

CIF $4****

Telescopic aerial platforms

Type - telescopic16M /bucket capacity 200kg

Dongfeng /wheelbase 3300 mm /4x4

Fuel - diesel engine CY4100Q/ 90HP

Cabin - single (7pcs)7.50-16 tires

Power steering, air brake Emission -EU3

1

FOB$3****

CIF $4****

FOB$3****

CIF $4****

Telescopic aerial platforms

Type - telescopic 16M /bucket capacity 200kg

Dongfeng /wheelbase 3300 mm /4x4

Fuel - diesel engine CY4100Q/ 90HP

Cabin -double cabin (7pcs)7.50-16 tires

Power steering, air brake Emission -EU3

1

FOB$3****

CIF $4****

FOB$3****

CIF $4****

Telescopic aerial platforms 12m 4x2

Description of goods Quantity Unit price Total Amount

Telescopic aerial platforms

Type - telescopic 12M /bucket capacity 200kg

Dongfeng /wheelbase 3300 mm /4x2

Fuel - diesel engine CY4100Q/ 90HP

Cabin - single (7pcs)7.50-16 tires

Power steering, air brake Emission -EU3

10

FOB$3****

CIF $3****

FOB$3****

CIF $3****

Telescopic aerial platforms

Type - telescopic 12M /bucket capacity 200kg

Dongfeng /wheelbase 3300 mm /4x2

Fuel - diesel engine CY4100Q/ 90HP

Cabin -double cabin (7pcs)7.50-16 tires

Power steering, air brake Emission -EU3

10

FOB$3****

CIF $3***

FOB$3****

CIF $3****

single cabin & double cabin price deiffer $605

Height 14M price add $500;Height 16M price add $1000;4x2 & 4x4 price deiffer $2800

Telescopic aerial platforms

Type - telescopic 14M /bucket capacity 200kg

Dongfeng /wheelbase 3300 mm /4x2

Fuel - diesel engine CY4100Q/ 90HP

Cabin - single (7pcs)7.50-16 tires

Power steering, air brake Emission -EU3

10

FOB$3****

CIF $3****

FOB$3****

CIF $4****

Telescopic aerial platforms

Type - telescopic14M /bucket capacity 200kg

Dongfeng /wheelbase 3300 mm /4x2

Fuel - diesel engine CY4100Q/ 90HP

Cabin -double cabin (7pcs)7.50-16 tires

Power steering, air brake Emission -EU3

10

FOB$3****

CIF $3****

FOB$3****

CIF $4****

Telescopic aerial platforms

Type - telescopic16M /bucket capacity 200kg

Dongfeng /wheelbase 3300 mm /4x2

Fuel - diesel engine CY4100Q/ 90HP

Cabin - single (7pcs)7.50-16 tires

Power steering, air brake Emission -EU3

10

FOB$3****

CIF $3****

FOB$3****

CIF $4****

Telescopic aerial platforms

Type - telescopic 16M /bucket capacity 200kg

Dongfeng /wheelbase 3300 mm /4x2

Fuel - diesel engine CY4100Q/ 90HP

Cabin -double cabin (7pcs)7.50-16 tires

Power steering, air brake Emission -EU3

10

FOB$3****

CIF $4****

FOB$3****

CIF $4****

all wheel drive offroad Aerial platforms

Truck mounted aerial platform, which will be used to clean pole mounted solar panels for street lights. So it requires a special arrangement of truck mounted water tank as well as water hose at the basket.

The pole height is 6M so aerial lift should be 8-10M.
Water tank capacity can be 3000Ltr

Truck may be medium light truck of 3.% ton.
Welcome all around world customer visit our factory
