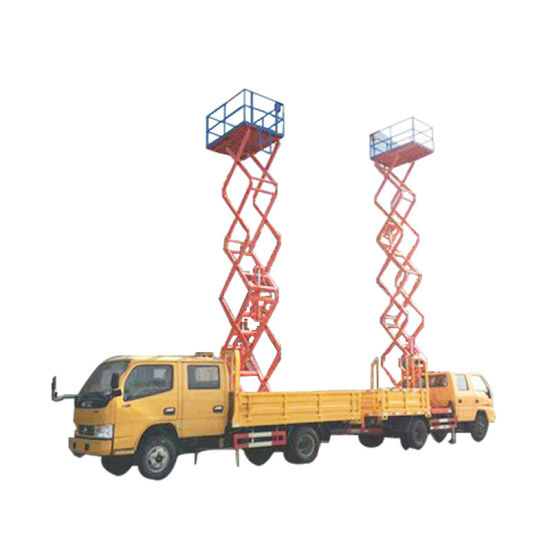

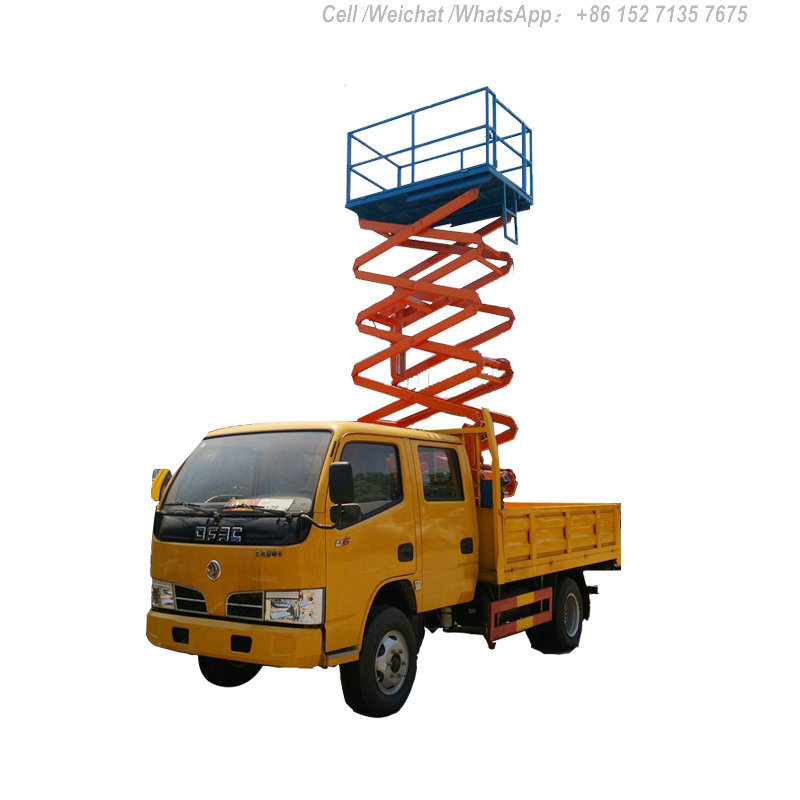

Aerial Work Platform Truck Mounted Vertical Man Lifting (10m-12m Scissor Lift Platform Bucket Man Lift)
| Quantity: | |
|---|---|
-
Shanghai, China
-
1000
-
T/T
Aerial Work Platform Truck Mounted Vertical Man Lifting (10m-12m Scissor Lift Platform Bucket Man Lift )
| China 6-12m vertical lifting platform truck for sale Philippines | |||
| Vehicle brand | DRZ | Chassis brand | JMC |
| Allowable person in cab | 2+3 | Color | Optional |
| Front/Rear axle load | 1720/2775(kg) | Wheel base | 3360 |
| Tire specification | 7.00R16LT 8PR | Traction system | 4*2 |
| Engine power | 85(kw) | Emission standard | Euro 3 |
| Working height | 6-12(m) | Lifting type | Vertical |
| Max loading in the bucket | 250(kg) | Cargo loading capacity | 1000(kg) |
| Supporting leg | Four H type hydraulic legs | Control mode | Hydraulic control or electronic control |
| MOQ | 1set | Warranty | 2 years |
The above information is for reference only. We can produce according to your needs so, If you have
any questions you can contact me at any time.Sinotruk HOWO Aerial Work Platform truck 18 meters Cherry Picker
fully Hydraulically Operate Arial Work Platforms

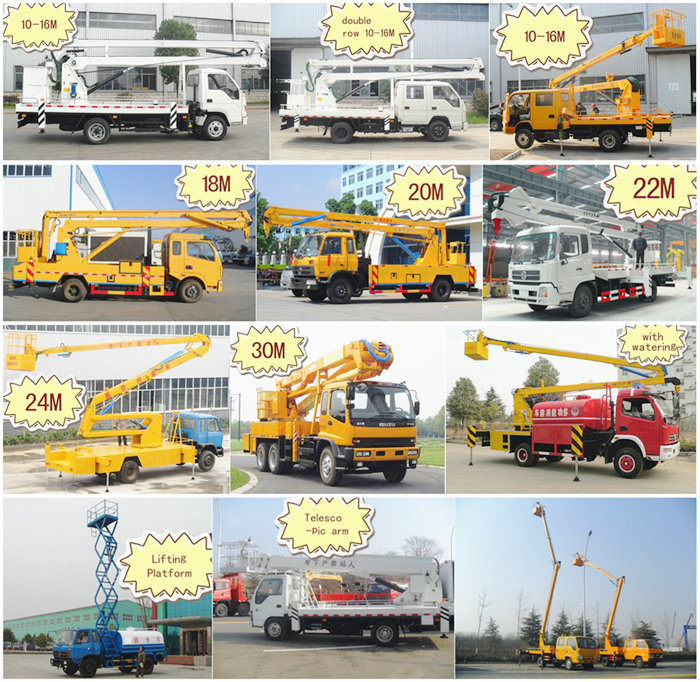

Max operation height 12m,14m,16m ,18m,22m,16m
max operation radius 5.7m, 6.3m,7m
max working platform rating loading=200kg,
Aerial Working Platform High Altitude Working Truck for Street Lamp Maintenance Function:
Telescopic beam lifter truck (also called aerial telescopic platform truck, hydraulic aerial cage, overhead working truck, truck platform, beam lifter vehicle, truck mounted insulated aerial lift, telescopic boom truck, high-altitude operation truck) is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.
Ask for better price
Aerial work truck is specially designed and produced for aerial work or operation, such as repairing road lights, maintain high buildings, windows, hanging ad boards, power grid maintenance, etc.
| CHASSIS MAIN DESCRIPTION | ||
| Chassis Brand | Sinotruk HOWO | |
| Cab | Right hand drive, 1880 single line , 3 seats | |
| Overall Dimensions | 6605*2200*2940 mm | |
| Tare Weight | 5370 kg | |
| Front Overhang | 1065/2180 mm | |
| Wheelbase | 3360 mm | |
| Approach/Departure angle(°) | 27/13 | |
| Engine | Brand | Chaochai |
| Model | CY4102-E3C | |
| Horse Power(HP) | 120hp | |
| Emission standard | Euro III | |
| Gear Box | WLY6T100, 6 forward & 1 reverse | |
| Axles number | 2 axles, front axle 2t, rear axle 3.5t | |
| Tires | 7.00R16, 6 pieces + 1 spare | |
| Leaf spring | 11/9+7H | |
| Power steering | Yes | |
| Brake | Air brake | |
| Electric heat | Yes | |
| Electric voltage | 24v | |
| Parameters for high altitude operation platform | ||
| Max working height | 12m | |
| Max working radius | 5.8m | |
| Max working radium while in the max working height | ≥5.6m | |
| Max working height while in the max working radius | ≥5.6m | |
| Max loading weight of the basket in the top | 200kg | |
| Landing gear | Type: H shape Quantity : 4 pieces Max outrigger transversal span :3300 mm Max Longitudinal span: 2700 mm | |
| Lifting hook | Lifting weight:≤1000kg, safe weight: 800kg Max lifting height: 6.4m | |
| Operation system | Rotary platform and lifting basket can operate; Operate type: manual or hydraulic | |
| Lifting arm | 3 joints folding arm | |
| slewer device | 360 degree continuous turning | |
| Walking floor | diamond plate | |
Specificatio
Truck mounted aerial platform, which will be used to clean pole mounted solar panels for street lights. So it requires a special arrangement of truck mounted water tank as well as water hose at the basket.
The pole height is 6M so aerial lift should be 8-10M.
Water tank capacity can be 3000Ltr
Truck may be medium light truck of 3.% ton.
Welcome all around world customer visit our factory
