Availability: | |
---|---|
Quantity: | |
Shanghai, China
10000
T/T

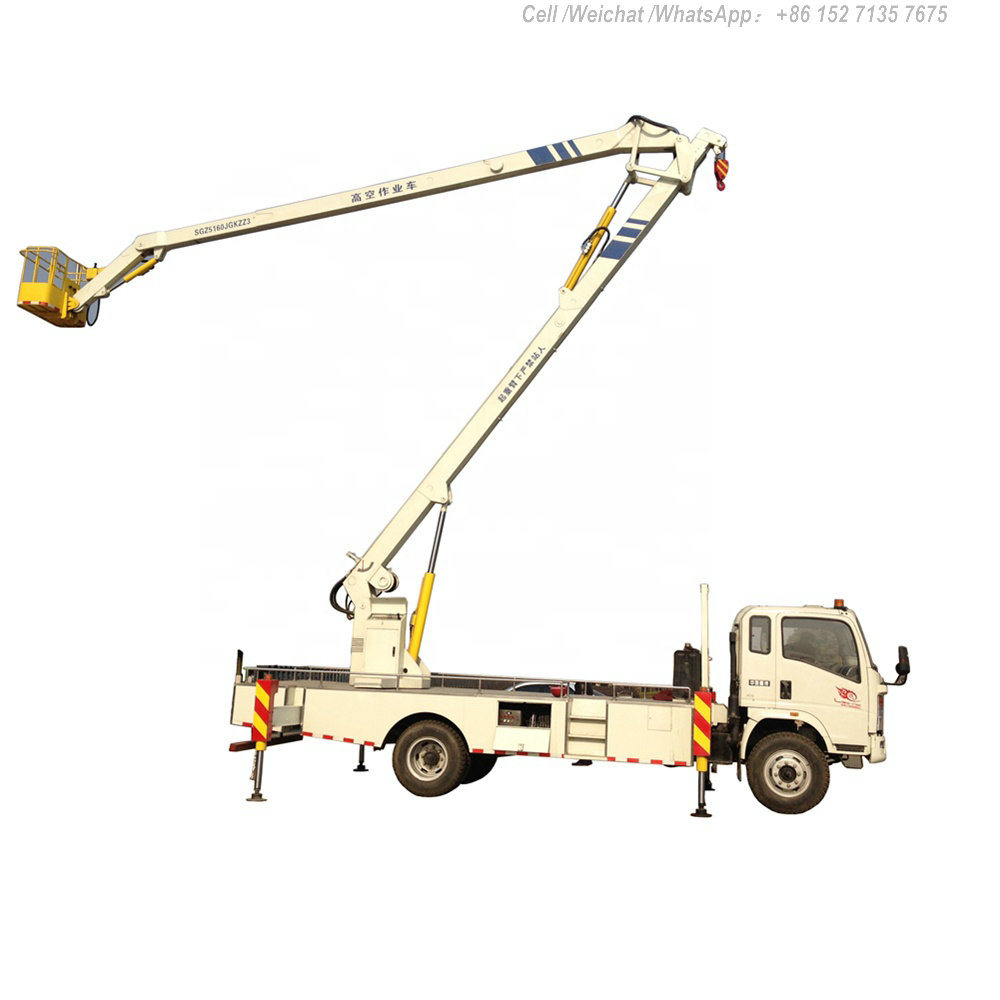

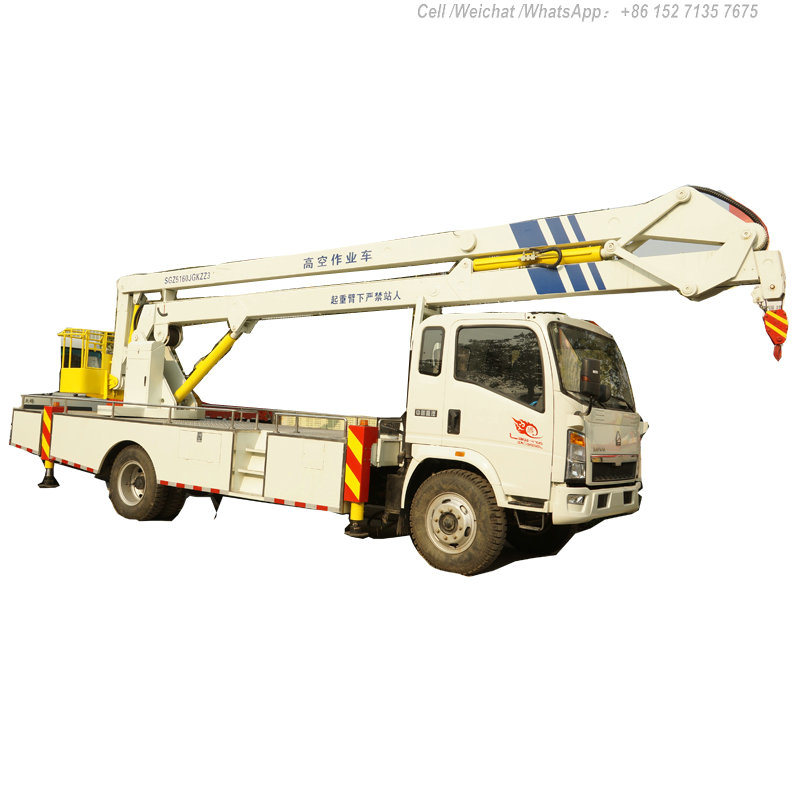

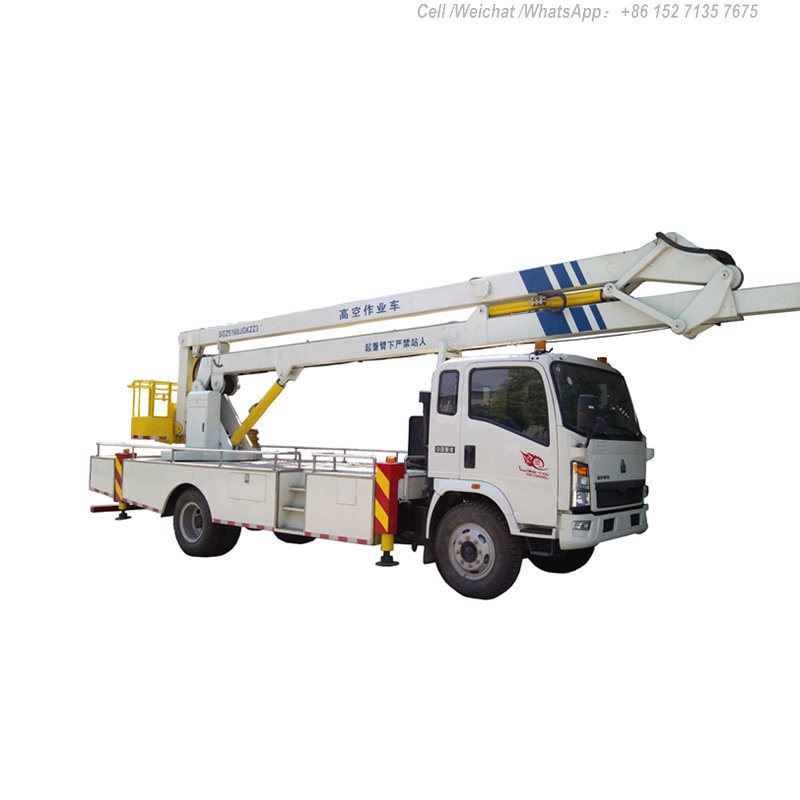

Aerial Work Platform HOWO Truck Mounted (14m-18m Bucket Man Lift )
fully Hydraulically Operate Arial Work Platforms
Model | DRZ5050JGKZZ | Curb weight | 5000 |
Over size | 7400x1980x3100(mm) | Type | 2 axles |
Wheelbase | 3360mm | Power steering | Equipped |
Front axle | 2ton | Rear axle | 4ton |
Gearbox | Manual | Tire | 7.00R-16 |
Engine | 120Hp | Working height | 12-16M |
Max speed | 95km/h | Emission standard | Euro II |
Color | according to you | Hydraulic legs | 4units |
AERIAL PLATFORM TRUCK | ||
# | Descriptions | Specifications and types |
General | Truck Brand | DRZ |
Chassis Brand | Sinotruk howo | |
Approx. Dimension | 7600*1995*3220 mm | |
GVW./Kerb Wt. | 5815 /5490kg | |
Cab | Cab Capacity | 2+3 persons' seat |
Air Conditioner | Air Conditioner is optional | |
Chassis | Drive Type | 4X2,LHD or RHD |
Fuel Type | Diesel | |
Engine Make & Model | Chaochai engine | |
Power | 120hp | |
Displacement | 3856 ml | |
Emission Standard | EURO II or EURO III or Euro IV | |
Wheelbase/No.of axle | 3300 mm / 2 | |
Tyre Specfication | 7.00-16 | |
Tyre Number | 6 tyres and 1 spare tyre | |
Max Speed | 90 km/h | |
Paint | Automative metallic paint | |
Superstructure | Max working height | 10m 12m 14m 16m |
Working cage | 200kg capacity | |
Beam | Hydraulic control | |
Slewing | 360 continuous rotation | |
Equipments | Four hydraulic outriggers are equipped, stable and reliable Dual control system both in the working cage and on the deck. Safety device: relief valve, balance valve, double way hydraulic lock , motor emergency system Insulated aerial platform ,hoist hook with cables optional |
The above information is for reference only. We can produce according to your needs so, If you have
any questions you can contact me at any time.Sinotruk HOWO Aerial Work Platform truck 18 meters Cherry Picker
fully Hydraulically Operate Arial Work Platforms
Max operation height 12m,14m,16m ,18m,22m,16m
max operation radius 5.7m, 6.3m,7m
max working platform rating loading=200kg,
Aerial Working Platform High Altitude Working Truck for Street Lamp Maintenance Function:
Telescopic beam lifter truck (also called aerial telescopic platform truck, hydraulic aerial cage, overhead working truck, truck platform, beam lifter vehicle, truck mounted insulated aerial lift, telescopic boom truck, high-altitude operation truck) is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.

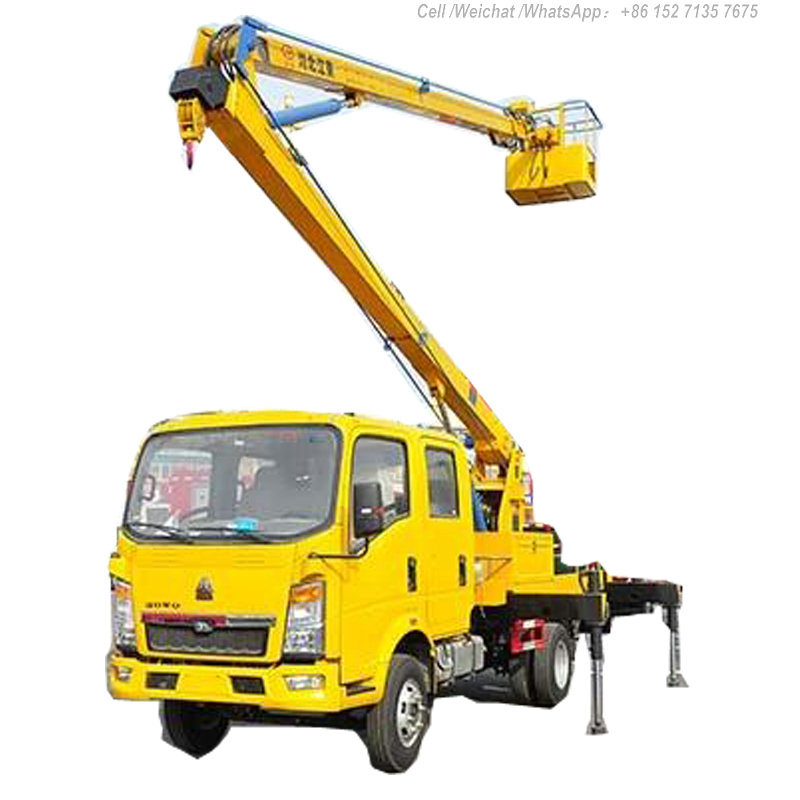

Sinotruk HOWO 4x2 Aerial Working Truck
Cabin | 2080 Standard cab, with two seats | |
Wheelbase | 3360 mm | |
Overall dimensions(LxWxH) | 6422*1990*2995mm | |
Tare Weight | 5450kg | |
Engine | YUNNEI , Euro II emission,116 HP | |
Clutch | Reinforced diaphragm clutch, diameter 430mm | |
Gear box | WLY6T46, 6 forwards & 1reverse | |
Breaks | Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | |
Steering Gear | power steering, hydraulic steering with power assistance | |
Tire | 8.25R16 All steel radial tire, 1pc including 1 spare tire | |
Working Platform | 360°turning(left or right), H-shape legs 360° | |
Dimensioin | 1100X570X1000mm | |
Extendable boom sectioin | 2002/3/4 | |
Max Lifting Weight | 990KG 1000KG,1500KG,2000KG | |
Max. Working Radius | 8m,10m,12m,13m,14m,15m,16m,17m,18m | |
Boom Type | Straight/Foldable | |
Lifting Max. Height | 8m,10m,12m,14m,16m,18m,20m |
Ask for better price
Aerial work truck is specially designed and produced for aerial work or operation, such as repairing road lights, maintain high buildings, windows, hanging ad boards, power grid maintenance, etc.
CHASSIS MAIN DESCRIPTION | ||
Chassis Brand | Sinotruk HOWO | |
Cab | Right hand drive, 1880 single line , 3 seats | |
Overall Dimensions | 6605*2200*2940 mm | |
Tare Weight | 5370 kg | |
Front Overhang | 1065/2180 mm | |
Wheelbase | 3360 mm | |
Approach/Departure angle(°) | 27/13 | |
Engine | Brand | Chaochai |
Model | CY4102-E3C | |
Horse Power(HP) | 120hp | |
Emission standard | Euro III | |
Gear Box | WLY6T100, 6 forward & 1 reverse | |
Axles number | 2 axles, front axle 2t, rear axle 3.5t | |
Tires | 7.00R16, 6 pieces + 1 spare | |
Leaf spring | 11/9+7H | |
Power steering | Yes | |
Brake | Air brake | |
Electric heat | Yes | |
Electric voltage | 24v | |
Parameters for high altitude operation platform | ||
Max working height | 12m | |
Max working radius | 5.8m | |
Max working radium while in the max working height | ≥5.6m | |
Max working height while in the max working radius | ≥5.6m | |
Max loading weight of the basket in the top | 200kg | |
Landing gear | Type: H shape Quantity : 4 pieces Max outrigger transversal span :3300 mm Max Longitudinal span: 2700 mm | |
Lifting hook | Lifting weight:≤1000kg, safe weight: 800kg Max lifting height: 6.4m | |
Operation system | Rotary platform and lifting basket can operate; Operate type: manual or hydraulic | |
Lifting arm | 3 joints folding arm | |
slewer device | 360 degree continuous turning | |
Walking floor | diamond plate |
Specificatio
Truck mounted aerial platform, which will be used to clean pole mounted solar panels for street lights. So it requires a special arrangement of truck mounted water tank as well as water hose at the basket.
The pole height is 6M so aerial lift should be 8-10M.
Water tank capacity can be 3000Ltr
Truck may be medium light truck of 3.% ton.
Welcome all around world customer visit our factory
Aerial Work Platform HOWO Truck Mounted (14m-18m Bucket Man Lift )
fully Hydraulically Operate Arial Work Platforms
Model | DRZ5050JGKZZ | Curb weight | 5000 |
Over size | 7400x1980x3100(mm) | Type | 2 axles |
Wheelbase | 3360mm | Power steering | Equipped |
Front axle | 2ton | Rear axle | 4ton |
Gearbox | Manual | Tire | 7.00R-16 |
Engine | 120Hp | Working height | 12-16M |
Max speed | 95km/h | Emission standard | Euro II |
Color | according to you | Hydraulic legs | 4units |
AERIAL PLATFORM TRUCK | ||
# | Descriptions | Specifications and types |
General | Truck Brand | DRZ |
Chassis Brand | Sinotruk howo | |
Approx. Dimension | 7600*1995*3220 mm | |
GVW./Kerb Wt. | 5815 /5490kg | |
Cab | Cab Capacity | 2+3 persons' seat |
Air Conditioner | Air Conditioner is optional | |
Chassis | Drive Type | 4X2,LHD or RHD |
Fuel Type | Diesel | |
Engine Make & Model | Chaochai engine | |
Power | 120hp | |
Displacement | 3856 ml | |
Emission Standard | EURO II or EURO III or Euro IV | |
Wheelbase/No.of axle | 3300 mm / 2 | |
Tyre Specfication | 7.00-16 | |
Tyre Number | 6 tyres and 1 spare tyre | |
Max Speed | 90 km/h | |
Paint | Automative metallic paint | |
Superstructure | Max working height | 10m 12m 14m 16m |
Working cage | 200kg capacity | |
Beam | Hydraulic control | |
Slewing | 360 continuous rotation | |
Equipments | Four hydraulic outriggers are equipped, stable and reliable Dual control system both in the working cage and on the deck. Safety device: relief valve, balance valve, double way hydraulic lock , motor emergency system Insulated aerial platform ,hoist hook with cables optional |
The above information is for reference only. We can produce according to your needs so, If you have
any questions you can contact me at any time.Sinotruk HOWO Aerial Work Platform truck 18 meters Cherry Picker
fully Hydraulically Operate Arial Work Platforms
Max operation height 12m,14m,16m ,18m,22m,16m
max operation radius 5.7m, 6.3m,7m
max working platform rating loading=200kg,
Aerial Working Platform High Altitude Working Truck for Street Lamp Maintenance Function:
Telescopic beam lifter truck (also called aerial telescopic platform truck, hydraulic aerial cage, overhead working truck, truck platform, beam lifter vehicle, truck mounted insulated aerial lift, telescopic boom truck, high-altitude operation truck) is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.
Sinotruk HOWO 4x2 Aerial Working Truck
Cabin | 2080 Standard cab, with two seats | |
Wheelbase | 3360 mm | |
Overall dimensions(LxWxH) | 6422*1990*2995mm | |
Tare Weight | 5450kg | |
Engine | YUNNEI , Euro II emission,116 HP | |
Clutch | Reinforced diaphragm clutch, diameter 430mm | |
Gear box | WLY6T46, 6 forwards & 1reverse | |
Breaks | Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | |
Steering Gear | power steering, hydraulic steering with power assistance | |
Tire | 8.25R16 All steel radial tire, 1pc including 1 spare tire | |
Working Platform | 360°turning(left or right), H-shape legs 360° | |
Dimensioin | 1100X570X1000mm | |
Extendable boom sectioin | 2002/3/4 | |
Max Lifting Weight | 990KG 1000KG,1500KG,2000KG | |
Max. Working Radius | 8m,10m,12m,13m,14m,15m,16m,17m,18m | |
Boom Type | Straight/Foldable | |
Lifting Max. Height | 8m,10m,12m,14m,16m,18m,20m |
Ask for better price
Aerial work truck is specially designed and produced for aerial work or operation, such as repairing road lights, maintain high buildings, windows, hanging ad boards, power grid maintenance, etc.
CHASSIS MAIN DESCRIPTION | ||
Chassis Brand | Sinotruk HOWO | |
Cab | Right hand drive, 1880 single line , 3 seats | |
Overall Dimensions | 6605*2200*2940 mm | |
Tare Weight | 5370 kg | |
Front Overhang | 1065/2180 mm | |
Wheelbase | 3360 mm | |
Approach/Departure angle(°) | 27/13 | |
Engine | Brand | Chaochai |
Model | CY4102-E3C | |
Horse Power(HP) | 120hp | |
Emission standard | Euro III | |
Gear Box | WLY6T100, 6 forward & 1 reverse | |
Axles number | 2 axles, front axle 2t, rear axle 3.5t | |
Tires | 7.00R16, 6 pieces + 1 spare | |
Leaf spring | 11/9+7H | |
Power steering | Yes | |
Brake | Air brake | |
Electric heat | Yes | |
Electric voltage | 24v | |
Parameters for high altitude operation platform | ||
Max working height | 12m | |
Max working radius | 5.8m | |
Max working radium while in the max working height | ≥5.6m | |
Max working height while in the max working radius | ≥5.6m | |
Max loading weight of the basket in the top | 200kg | |
Landing gear | Type: H shape Quantity : 4 pieces Max outrigger transversal span :3300 mm Max Longitudinal span: 2700 mm | |
Lifting hook | Lifting weight:≤1000kg, safe weight: 800kg Max lifting height: 6.4m | |
Operation system | Rotary platform and lifting basket can operate; Operate type: manual or hydraulic | |
Lifting arm | 3 joints folding arm | |
slewer device | 360 degree continuous turning | |
Walking floor | diamond plate |
Specificatio
Truck mounted aerial platform, which will be used to clean pole mounted solar panels for street lights. So it requires a special arrangement of truck mounted water tank as well as water hose at the basket.
The pole height is 6M so aerial lift should be 8-10M.
Water tank capacity can be 3000Ltr
Truck may be medium light truck of 3.% ton.
Welcome all around world customer visit our factory
