Availability: | |
---|---|
Quantity: | |
DRZ5160
HOWO
8705
Shanghai, China
800
T/T
Product Technical Specifications | ||||
Item | Descriptions | Spesifications and Types | ||
Vehicle | Brand | Dong Run Ze | ||
Overall Dimensions L*W*H | 8670*2500*3690mm | |||
Weights | GVW. | 16000kgs | ||
Kurb Weight | 10520kgs | |||
Rated Payload | 5350kgs | |||
Chassis | Chassis Brand | Sino truck | ||
Drive Type | 4x4 | |||
Steering | LHD or RHD | |||
Engine | Brand | Sinotruck engine | ||
Power | 266HP /196kw | |||
Emmission Level | EURO 2 or Euro 3 or EURO 4 | |||
Performance | Max. Speed | 76km/h | ||
Wheel base | 4300 mm | |||
Tyre Specifications | 11.00-20 18PR,11.00R20 18PR,12.00-20 | |||
No. of Tyre | 6 pcs (1 spare tyre included) | |||
Cab | Cab Capacity | 2 persons allowed | ||
Body/Superstructure | Tank | Capacity | 8-10 m³ | |
Material | 5mm or 6mm high quality carbon steel | |||
Vacuum pump | China famous vacuum pump | |||
Vacuum rate | 99% thorically | |||
Suction head | 6m | |||
Rotation speed | 500 rpm,low noise,high efficiency | |||
Basic Equipments | Install vacuum pumps and hydraulic systems driven by engine through PTO. One multi-way valve, pressure gauges, water-gas separator, oil-gas separator, hydraulic oil tank, a level inspection window, hand washing tank and a piece of 6m suction hose | |||
Paint | Tank color is according to client's requirements. | |||
Optional Equipments | Italy or Spain vacuum pumps | |||
Stainless steel | ||||
Anti-rust coating inside tank |
diameters:

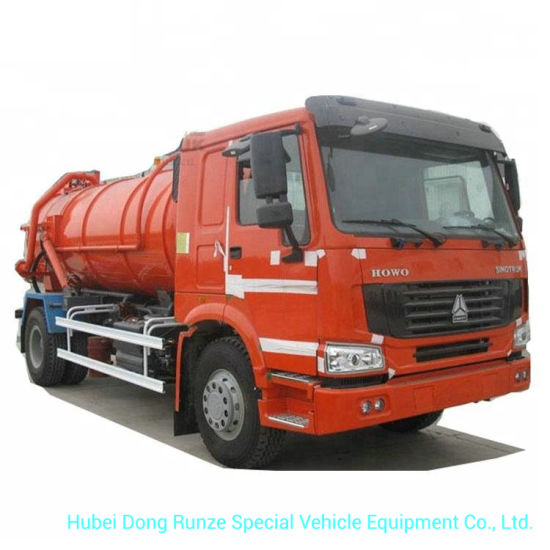

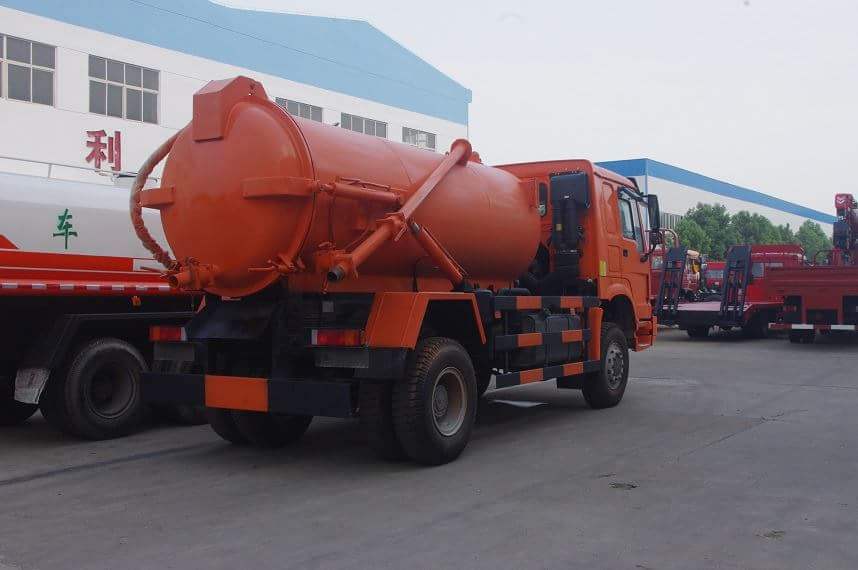

SINOTRUK HOWO 4x2 vacuum cleaning Truck | |
1. chassis Model: ZZ1167M4617C | |
Engine:266 HP Euro II | |
Gear Box: HW13710CL | |
Steering: ZF8098 hydraulic steering with power assistance | |
Driving Alex: ST16 | |
Cab:HW70 standard cab, without sleeper, with air conditioner | |
Wheelbase: 4600mm | |
Tyre: 80R22.5 tubeless tire | |
Front Axle: HF7 drum style | |
Safty belt | |
Carriage Internal Dimensions: | |
Color: red, blue, yellow, white, blue | |
The Configuration Of the Tank | |
vacuum pump:JuropPN58D | |
gear oil pump: CBGj2080 | |
motor: CMZ2040 (CMZ2040) | |
front elevation sylinder: DEFFAND φ150*3880 | |
open the door cylinder at the rear: DEFFANDφ63*φ40*870 | |
tank material: head:6/Q235-B / body:6/Q235-B | |
solution tank: 20L,plastic | |
rear sewage draining exit: 6″ butterfly bamper | |
tank preservative: no solvents ethylene paint | |
mudflap: PVC | |
Lateral reflective marking: red and white | |
rear reflective marking: red and white | |
polussion hose: 4″ black hose |
Tank | Capacity | 8000 -12000Liters | |
Material | 6mm high quality carbon steel Q235/Q345 | ||
Vacuum | Pump | China famous vacuum pump | |
Rating rotate speed | 1400R/M | ||
Min rotate speed | > 800R/M | ||
Max. Suction head lift | >6 meters | ||
Time for full suction | < 15min | ||
Basic Equipments | a. The vacuum pump and hydraulic system are driven by the engine power through the power take-off(PTO); b. The suction truck is equipped with a level inspection window and a self-flowing port, a hand washing device, an anti-overflow valve, a suction pipe of 8 meters, a hydraulic opening of the rear door, and a SK-15 water circulation vacuum pump. The suction truck has a large suction stroke and suction. Besides, the tank has a lifting function. | ||
Coating | a. The inside of the tank is made of epoxy resin with a thickness of 120 microns (three-pass process), which not only has anti-corrosion effect, but also has anti-seepage and plugging effects. b. The outer part of the tank is sprayed with iron red alkyd antirust paint, which has good adhesion and strong anti-rust ability. c. Tank color is customerized if necessary | ||
Optional Equipments | Italy or Spain vacuum pumps | ||
Stainless steel | |||
Anti-rust coating inside tank |
The above information is for reference only. We can produce according to your needs so, If you have any questions you can contact me at any time.
outside dimension (L×W×H)mm | 8400×2500×3100 |
Kerb mass | 10260 Kg |
Chassis Model /Manufacturer | ZZ1167 |
driving type | 4×2 |
Wheelbase | 4600 mm |
Engine | |
model | WD615.87 |
Type | Diesel, 6-cylinder in line with water cooling, turbo-charging |
Max. power/rotated speed | 213(KW) /2200(rpm) 290hp |
Displacement(ML) | 9720 |
Emission level | Euro 3- 5-6 |
Tyre | 12.00-20 With one spare tire |
Tool Kit + Wheel Spanner and Jack | |
Max Speed | 90 Km/h |
Construction | All steel welded construction with tilt cab. |
Pressure / Vacuum Tank | |
Dirty Water Tank Capacity | 4000L |
Material | Q235A |
Thickness of body/dish end | 6mm |
Water tank: | |
Volume | 2000L |
Material | Q235A 6mm thickness |
One 450mm manhole, with level gauge |
Product Technical Specifications | ||||
Item | Descriptions | Spesifications and Types | ||
Vehicle | Brand | Dong Run Ze | ||
Overall Dimensions L*W*H | 8670*2500*3690mm | |||
Weights | GVW. | 16000kgs | ||
Kurb Weight | 10520kgs | |||
Rated Payload | 5350kgs | |||
Chassis | Chassis Brand | Sino truck | ||
Drive Type | 4x4 | |||
Steering | LHD or RHD | |||
Engine | Brand | Sinotruck engine | ||
Power | 266HP /196kw | |||
Emmission Level | EURO 2 or Euro 3 or EURO 4 | |||
Performance | Max. Speed | 76km/h | ||
Wheel base | 4300 mm | |||
Tyre Specifications | 11.00-20 18PR,11.00R20 18PR,12.00-20 | |||
No. of Tyre | 6 pcs (1 spare tyre included) | |||
Cab | Cab Capacity | 2 persons allowed | ||
Body/Superstructure | Tank | Capacity | 8-10 m³ | |
Material | 5mm or 6mm high quality carbon steel | |||
Vacuum pump | China famous vacuum pump | |||
Vacuum rate | 99% thorically | |||
Suction head | 6m | |||
Rotation speed | 500 rpm,low noise,high efficiency | |||
Basic Equipments | Install vacuum pumps and hydraulic systems driven by engine through PTO. One multi-way valve, pressure gauges, water-gas separator, oil-gas separator, hydraulic oil tank, a level inspection window, hand washing tank and a piece of 6m suction hose | |||
Paint | Tank color is according to client's requirements. | |||
Optional Equipments | Italy or Spain vacuum pumps | |||
Stainless steel | ||||
Anti-rust coating inside tank |
diameters:
SINOTRUK HOWO 4x2 vacuum cleaning Truck | |
1. chassis Model: ZZ1167M4617C | |
Engine:266 HP Euro II | |
Gear Box: HW13710CL | |
Steering: ZF8098 hydraulic steering with power assistance | |
Driving Alex: ST16 | |
Cab:HW70 standard cab, without sleeper, with air conditioner | |
Wheelbase: 4600mm | |
Tyre: 80R22.5 tubeless tire | |
Front Axle: HF7 drum style | |
Safty belt | |
Carriage Internal Dimensions: | |
Color: red, blue, yellow, white, blue | |
The Configuration Of the Tank | |
vacuum pump:JuropPN58D | |
gear oil pump: CBGj2080 | |
motor: CMZ2040 (CMZ2040) | |
front elevation sylinder: DEFFAND φ150*3880 | |
open the door cylinder at the rear: DEFFANDφ63*φ40*870 | |
tank material: head:6/Q235-B / body:6/Q235-B | |
solution tank: 20L,plastic | |
rear sewage draining exit: 6″ butterfly bamper | |
tank preservative: no solvents ethylene paint | |
mudflap: PVC | |
Lateral reflective marking: red and white | |
rear reflective marking: red and white | |
polussion hose: 4″ black hose |
Tank | Capacity | 8000 -12000Liters | |
Material | 6mm high quality carbon steel Q235/Q345 | ||
Vacuum | Pump | China famous vacuum pump | |
Rating rotate speed | 1400R/M | ||
Min rotate speed | > 800R/M | ||
Max. Suction head lift | >6 meters | ||
Time for full suction | < 15min | ||
Basic Equipments | a. The vacuum pump and hydraulic system are driven by the engine power through the power take-off(PTO); b. The suction truck is equipped with a level inspection window and a self-flowing port, a hand washing device, an anti-overflow valve, a suction pipe of 8 meters, a hydraulic opening of the rear door, and a SK-15 water circulation vacuum pump. The suction truck has a large suction stroke and suction. Besides, the tank has a lifting function. | ||
Coating | a. The inside of the tank is made of epoxy resin with a thickness of 120 microns (three-pass process), which not only has anti-corrosion effect, but also has anti-seepage and plugging effects. b. The outer part of the tank is sprayed with iron red alkyd antirust paint, which has good adhesion and strong anti-rust ability. c. Tank color is customerized if necessary | ||
Optional Equipments | Italy or Spain vacuum pumps | ||
Stainless steel | |||
Anti-rust coating inside tank |
The above information is for reference only. We can produce according to your needs so, If you have any questions you can contact me at any time.
outside dimension (L×W×H)mm | 8400×2500×3100 |
Kerb mass | 10260 Kg |
Chassis Model /Manufacturer | ZZ1167 |
driving type | 4×2 |
Wheelbase | 4600 mm |
Engine | |
model | WD615.87 |
Type | Diesel, 6-cylinder in line with water cooling, turbo-charging |
Max. power/rotated speed | 213(KW) /2200(rpm) 290hp |
Displacement(ML) | 9720 |
Emission level | Euro 3- 5-6 |
Tyre | 12.00-20 With one spare tire |
Tool Kit + Wheel Spanner and Jack | |
Max Speed | 90 Km/h |
Construction | All steel welded construction with tilt cab. |
Pressure / Vacuum Tank | |
Dirty Water Tank Capacity | 4000L |
Material | Q235A |
Thickness of body/dish end | 6mm |
Water tank: | |
Volume | 2000L |
Material | Q235A 6mm thickness |
One 450mm manhole, with level gauge |
