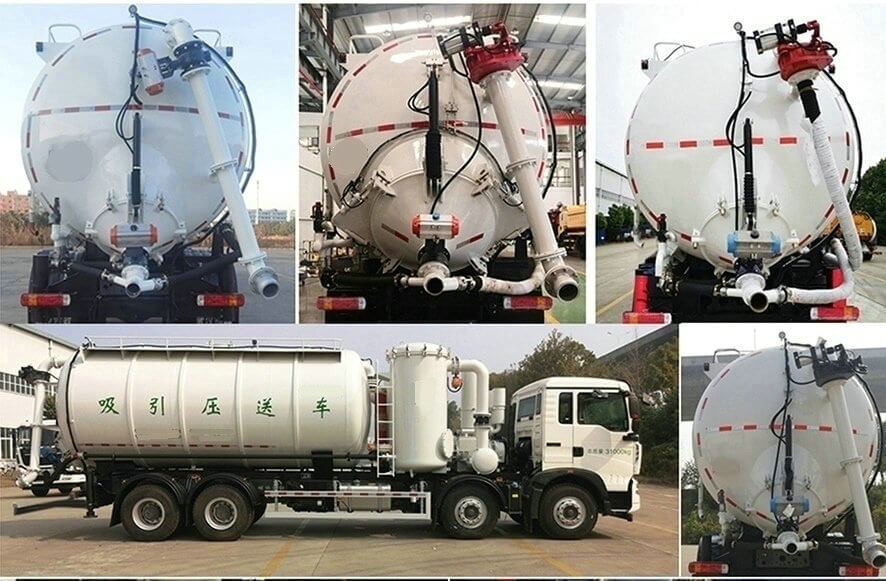

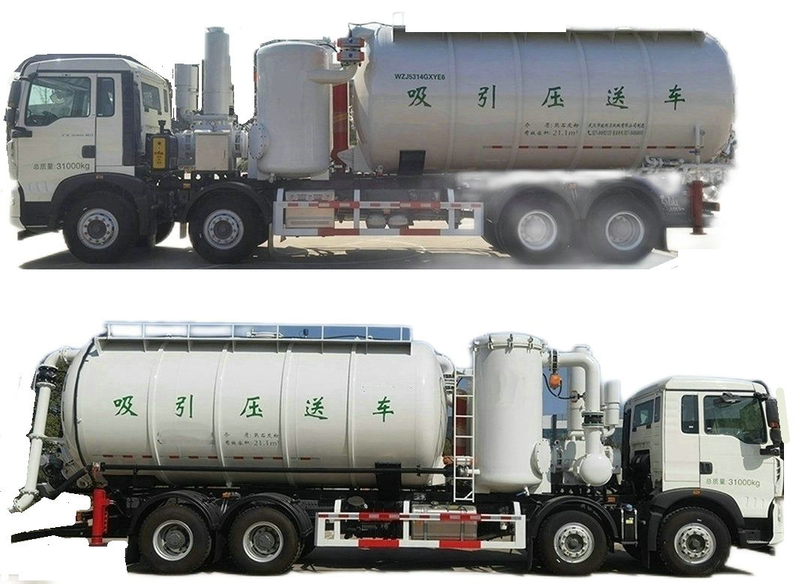

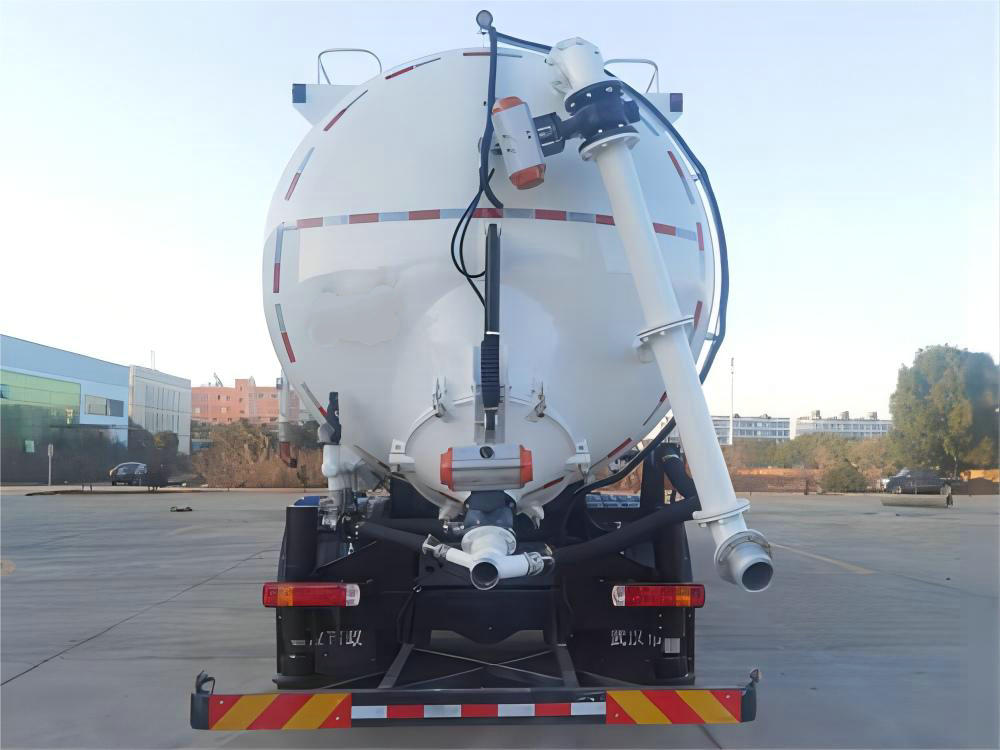

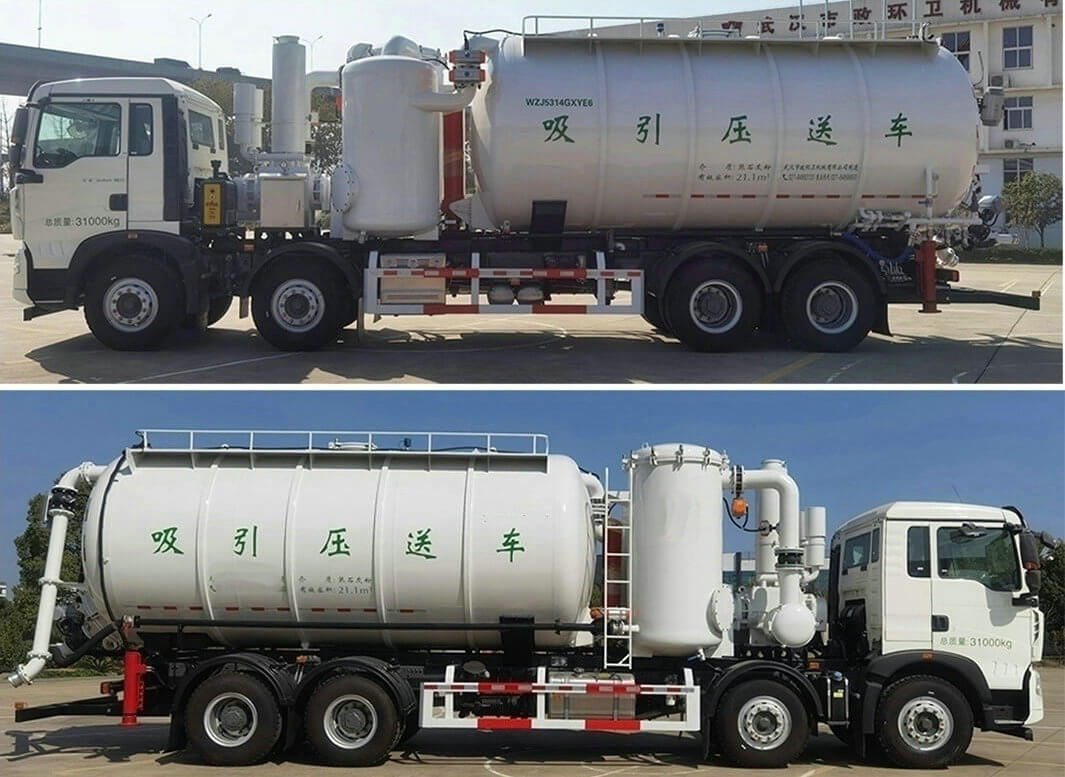

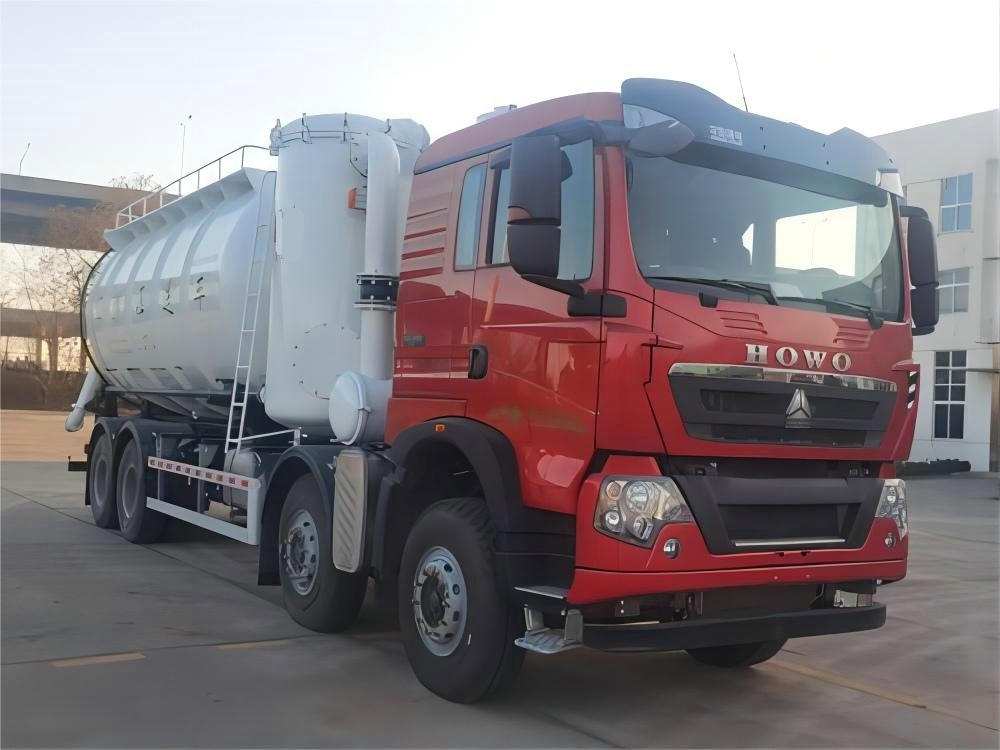

Customize HOWO Dry Lime Powder Dust Super Sucker Vaccum Trucks 20m3
Supersucker Dry Material Vacuum Suction Truck for Suck and Bow Dust or Powder
20-21m3 VAC tank, Equipped with air compressor, Roots vacuum pump
Chassis SINTRUCK HOWO ZZ1317N466GF1
| Quantity: | |
|---|---|
|
| |
-
5314GXYE6
-
DRZ
-
8705909990
Customize HOWO Dry Lime Powder Dust Super Sucker Vaccum Trucks 20m3
Supersucker Dry Material Vacuum Suction Truck for Suck and Bow Dust or Powder
20-21m3 VAC tank, Equipped with air compressor, Roots vacuum pump
Chassis SINTRUCK HOWO ZZ1317N466GF1
Main technical parameters
Overall dimensions: | 11990,11895,12100×2500,2530,2550×3980(mm) | Fuel Type: | Diesel oil |
GW | 31000(Kg) | ||
NW | 20755(Kg) | Rated load: | 10115,10050(Kg) |
Approach Angle/Departure Angle: | 17/11,19/11(°) | Front/rear overhang: | 1500/2565,1500/2715,1430/2715,1430/2920(mm) |
Axle Load: | 6500/7000/17500 (Two axes) | Wheelbase: | 1800+3800+1350,1800+3775+1400, 1800+4300+1350,1800+4275+1400, 1800+4600+1350,1800+4575+1400, 1950+3825+1350,1950+3800+1400, 1950+4625+1350,1950+4600+1400, 1800+3825+1350,1800+3800+1400, 1800+4625+1350,1800+4600+1400, 1800+3300+1350,1800+3275+1400(mm) |
Number of shafts: | 4 | Maximum speed: | 110,80,89(km/h) |
Number of tires: | 12(PCS) | Tire Specifications: | 315/80R22.5 18PR,295/80R22.5,12R22.5,12.00R20 18PR,11.00R20,315/60R22.5 20PR |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 11/11/12,11/11/10,3/3/10,3/3/5,3/3/4,2/2/4,3/3/-,2/2/-,3/3/-/-,2/2/-/-,4/4/5,4/4/-/-,4/4/12 |
Front wheel base: | 2015/2015203 5/2035206 0/2060 (mm) | Rear wheel base: | 1830/1830,1850/1850,1870/1870(mm) |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) | |
WP9H350E62; MC07H.33-60; MC11.40-60; MC11.44-60; MC09.38-60; WP8.350 E61. MC07.31-60; MC09.35 B - 60; WP10.5 H430E62; MC07.33-60; MC07H.35-60; WP10H400E62; MC09.35-60; MC11.43-61; MC07.34-60; MC11.46-61; MC11.40-61; MC11H.46-61; WP12.430 E62; WP12.460 E62; WP12.490 E62; MC07H.31-61; M | Weichai Power Co., LTD. China Heavy Duty Automobile Group Co., LTD.; | 8800; 7360; 10518; 10518; 8765; 7800; 6870; 8765; 10520; 6870; 7360; 9500; 8765; 10518; 6870; 10518; 10518; 11050; 11596; 11596; 11596; 7360; 7360; 7800; 11050; 11050 | 257; 240; 297; 327; 279; 257; 228; 260; 316; 240; 257; 294; 260; 319; 251; 341; 297; 341; 316; 338; 360; 228; 254; 257; 297; 319 | |
Equipped with tank body, air compressor, vacuum pump, lifting cylinder and other special devices, through the vacuum pump to produce negative pressure for the powder material vacuum suction loading, using the air compressor positive pressure discharge. The top closure cannot be slotted, and the rear cannot be opened.
Total tank capacity :21.1 cubic meters, effective volume :20.1 cubic meters. Tank size (diameter × length)(mm):2400×6200. Transport medium: hydrated lime powder, density :500 kg/m3.
Optional cab style with chassis, exhaust muffler style and installation position with chassis, urea tank installation position, optional rear metal suction tube, rear rubber suction tube, optional rear manual locking device, rear hydraulic locking device, optional rear pneumatic ball valve, rear pneumatic grinding disc valve. Optional rear hydraulic locking device style, optional operating box style and installation position, the valve of the pipeline can be optional pneumatic valve. Optional pipe ball valve of different specifications. Optional pipe for ground suction; hydraulically locked tailgate and pipe valve are installed at the rear. | ||||
