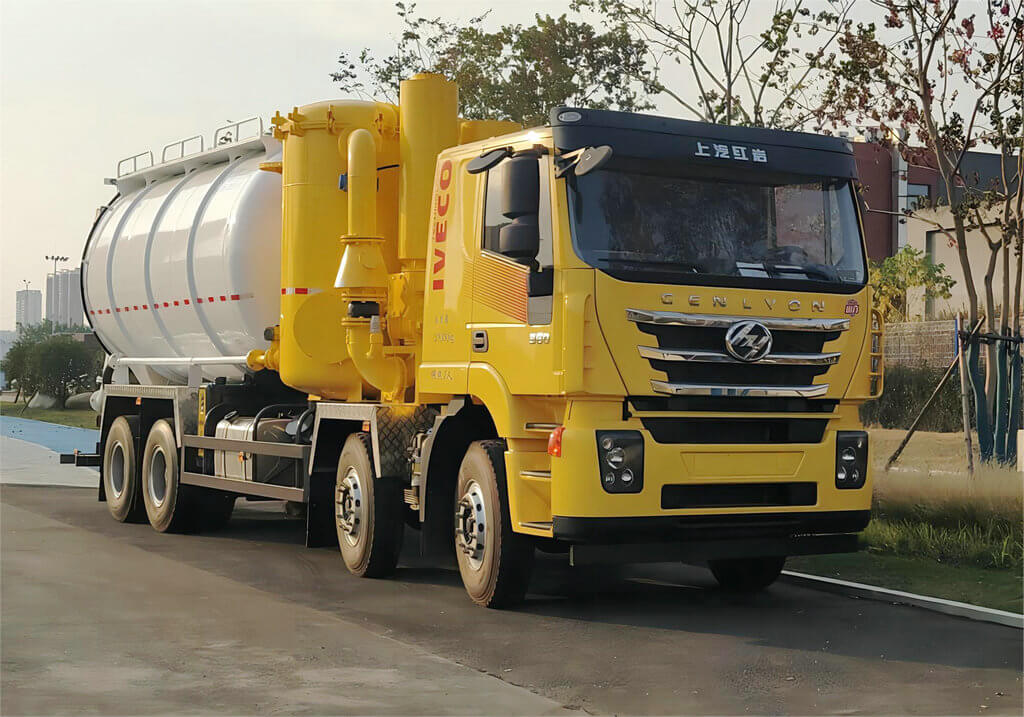

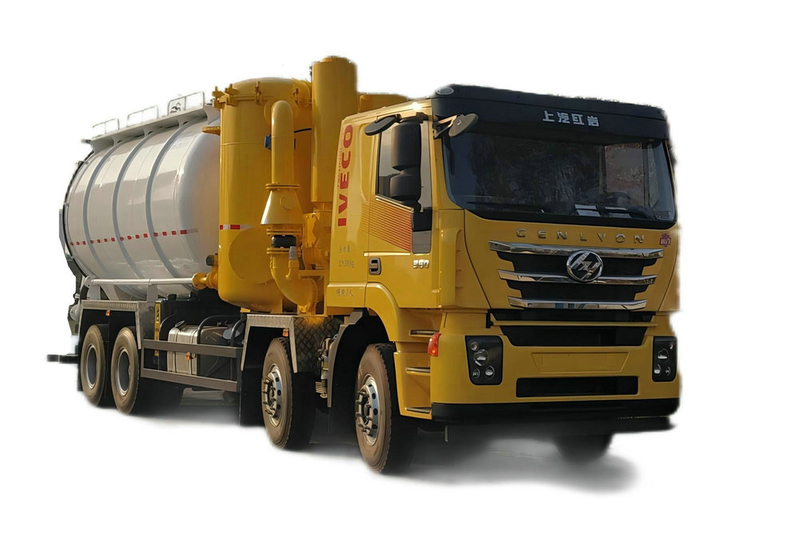

Customize SAIC Hongyan Industrial Vacuum Loader Trucks 20m3
Supersucker Vacuum Tanker For Dry Dust or Powder Pressure Suck and Blow
20-22m3 tank, Equipped with air compressor, Roots vacuum pump
Chassis SAIC Hongyan-IVECO CQ1317HL6Z
| Quantity: | |
|---|---|
|
| |
-
5313GXY6
-
DRZ
-
8705909990
Customize SAIC Hongyan Industrial Vacuum Loader Trucks 20m3
Supersucker Vacuum Tanker For Dry Dust or Powder Pressure Suck and Blow
20-22m3 tank, Equipped with air compressor, Roots vacuum pump
Chassis SAIC Hongyan-IVECO CQ1317HL6Z
Main technical parameters
Overall dimensions: | 12100×2550×4000(mm) | Fuel Type: | Diesel oil |
G.W | 31000(Kg) | ||
NET | 22200(Kg) | Rated load mass: | 8670(Kg) |
Approach Angle/Departure Angle: | 16/13 (°) | Front/rear overhang: | 1435/2865(mm) |
Axle Load: | 6500/6500/18000(Two axes) | Wheelbase: | 2000+2800+1400,2000+3000+1400, 2000+4000+1400,2000+3200+1400, 2150+4250+1400,2000+4400+1400, 1800+3400+1400,1800+3900+1400, 1800+4600+1400(mm) |
Number of shafts: | 4 | Maximum speed: | 80(km/h) |
Number of tires: | 12(PCS) | Tire Specifications: | 12R22.5 18PR,315/80R22.5 18PR,11.00R20 18PR,12.00R20 18PR,295/80R22.5 18PR,315/60R22.5 20PR |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 3/3/6,8/8/12,9/9/12,10/10/12,3/3/12 |
Front wheel base: | 2020/2020,2040/2040,2060/2060(mm) | Rear wheel base: | 1858/1858(mm) |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
SC10E400Q6; SC10E330Q6; SC10E370Q6; SC10E300Q6; SC10E420Q6; F2CCE611G*M; F2CCE611H*M; F2CCE611J*M; F2CCE611K*M | Shanghai New Power Automobile Technology Co., LTD Saic Fiat Hongyan Powertrain Co., LTD. | 10420; 10420; 10420; 10420; 10420; 8709; 8709; 8709; 8709 | 294; 243; 272; 221; 309; 287; 263; 243; 215 |

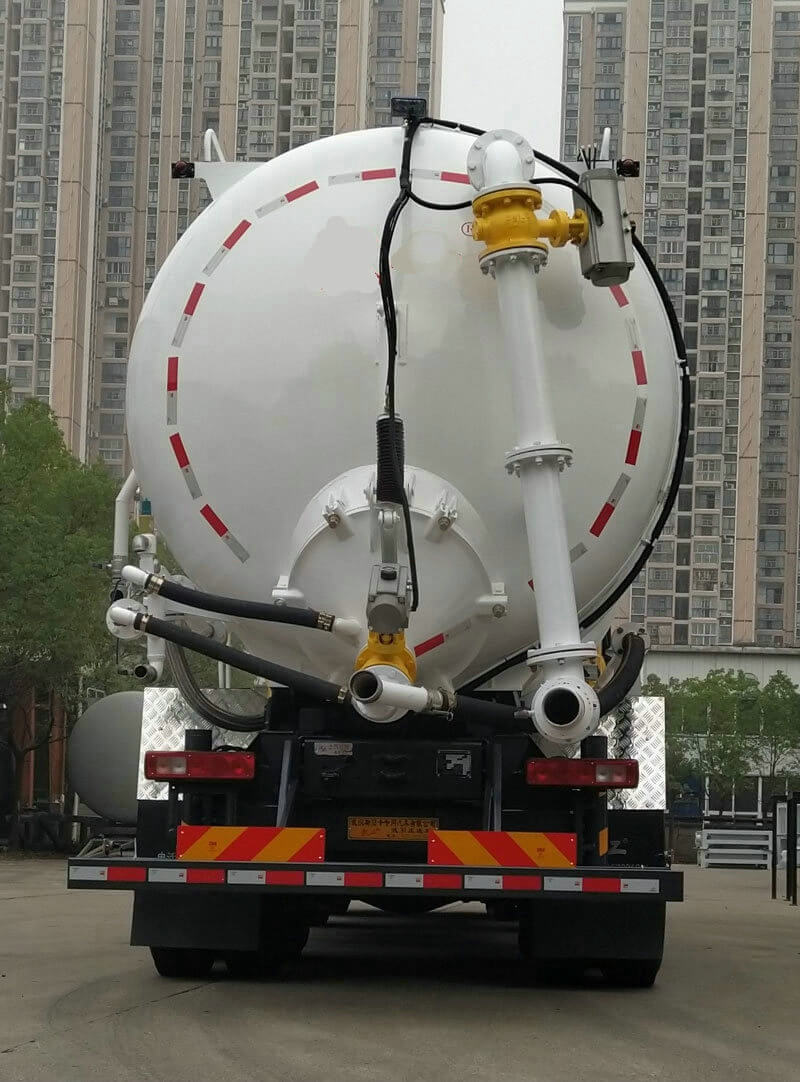

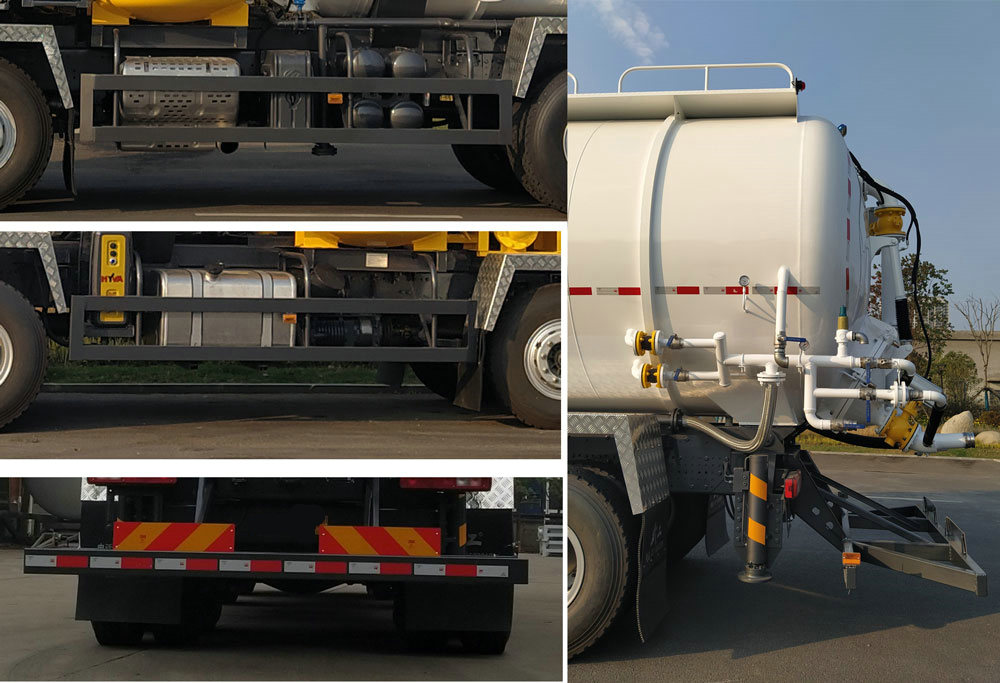

1. Equipped with tank body, vacuum pump, air compressor, motor, lifting cylinder and other special devices, through the vacuum pump to produce negative pressure for the powder material vacuum suction loading, after the tank is lifted by the air compressor positive pressure discharge. 2. Total capacity of the tank is 22 cubic meters, the effective volume of the tank is 20 cubic meters, the external dimension of the tank is 5610mm long (including the head), 2410mm in diameter, the transportation medium is soot powder, and the density is 400 kg/cubic meters. 3. The material of the protection device is Q235, and the protection device is welded. The section size of the rear protection device is 120mm×60mm, and the height off the ground is 490mm. 4. Chassis wheelbase 2000+4400+ 1400/2150 +4250+1400(mm) . 5. Optional hydraulic or bolt locking device for tailgate. Optional single row/row half cab with chassis, number of gas cylinders, cab LOGO.
| |||
Suction pressure delivery vehicle suction and discharge vehicle coal ash suction and discharge vehicle.
suction pressure conveyor, suction pressure conveyor, abbreviation suction discharge vehicle is suitable for metallurgy, chemical industry, energy, building materials, coal, mining, wharf transportation and other industries, for the collection, transfer and transportation of nearly 100 kinds of dust and powder materials under various working conditions. It can carry ironmaking, steelmaking, sintering, coking, raw materials, calcium carbide furnace purification and dust removal, gas burning lime density, refining desilication, dephosphorization agent, coke powder, aluminum powder, limestone, lime powder, mixed dust removal dust and other dust Material. Suction and discharge vehicle is a high-efficiency, safe and environment-friendly special vehicle for cleaning and transporting bulk materials.
Main technical parameters
Special devices include Roots vacuum pump, oil-free lubricating swing air compressor, filtration system, lifting oil cylinder, tank body, negative pressure suction, positive pressure discharge, dust filtration and transportation in the tank.
Suction operation steps:
1) When the suction pressure delivery tank truck arrives at the ground storage bin, the vacuum port of the vehicle is butted with the suction interface of the storage system;
2) After the butt joint is completed, the vacuum suction system of the vehicle is started, and the negative pressure in the storage bin is sucked into the bearing tank of the suction pressure delivery tank car through the ground device feeding system of the storage bin.
Layout operation steps:
1) When the material carried by the suction pressure conveying tank truck arrives at the ground material receiving bin, the material discharging interface of the positive pressure pressure discharging system of the vehicle is butted with the material receiving system input interface of the material receiving system device ①;
2) After the butt joint is completed, the positive pressure discharge system of the vehicle is started, and through the material receiving system of the ground device of the material receiving bin, the material in the vehicle bearing tank is pressurized and discharged to the ground material receiving bin by using the compressed gas of the vehicle
