5310GXY6ACC
-
DRZ
-
8705909990

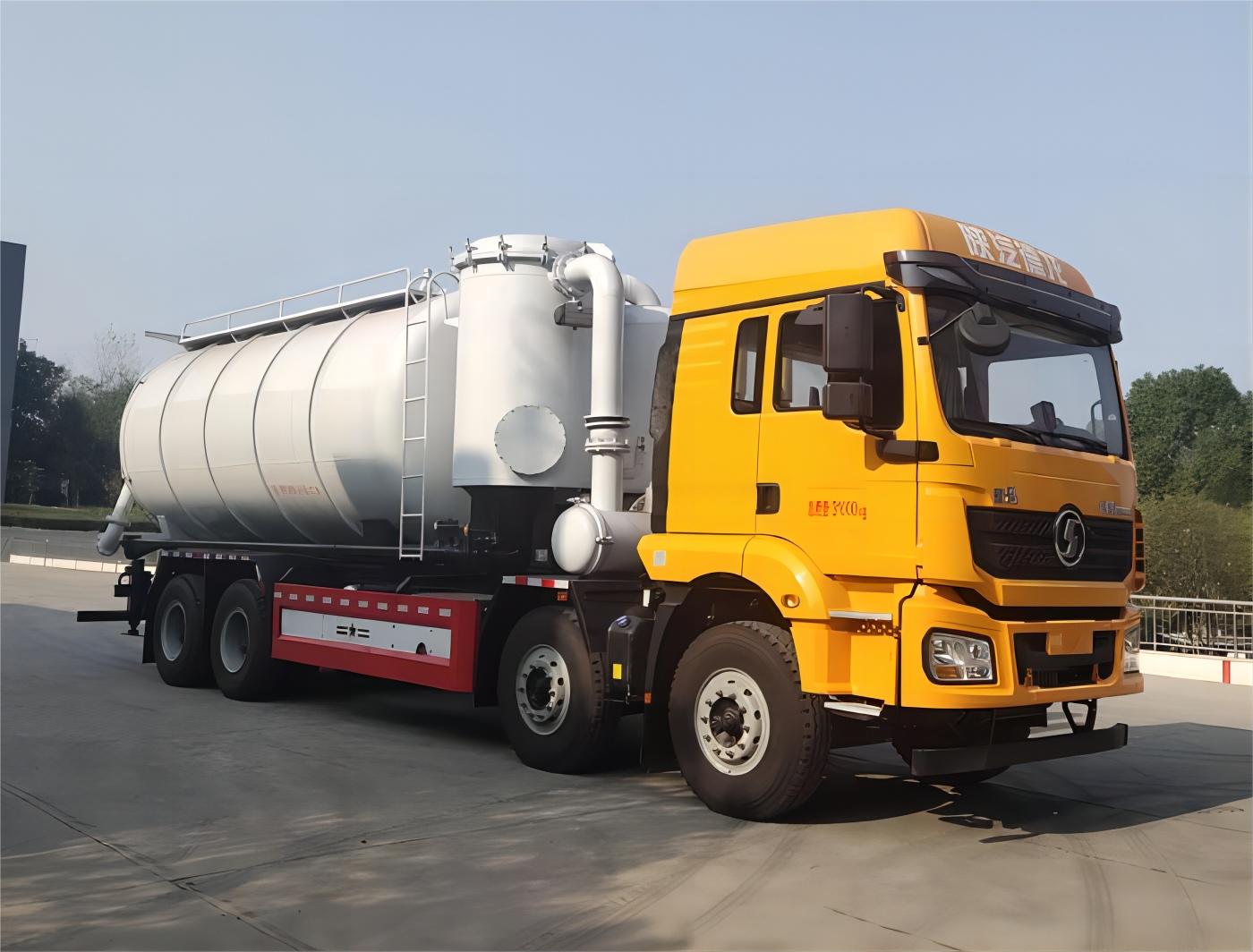

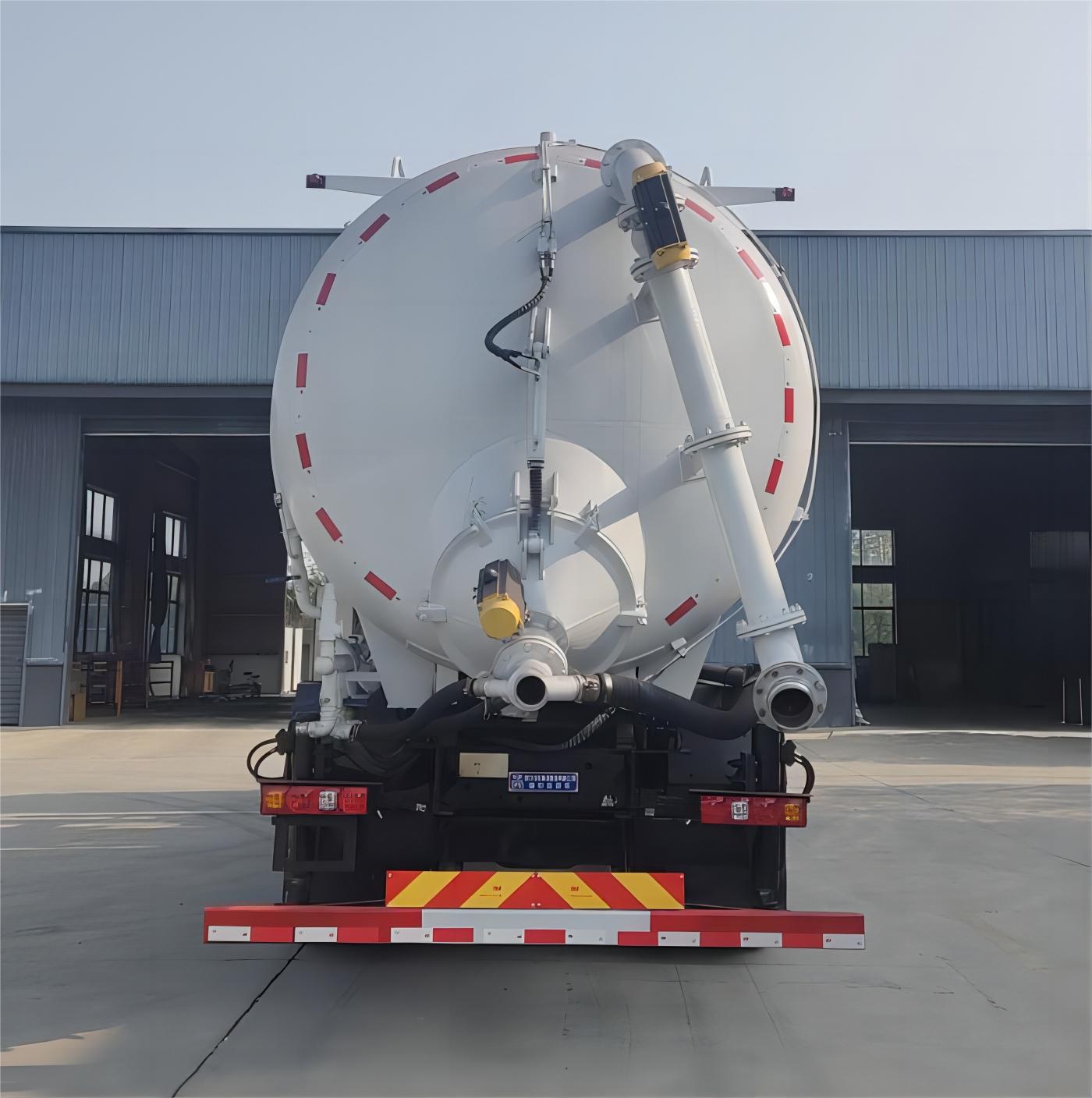

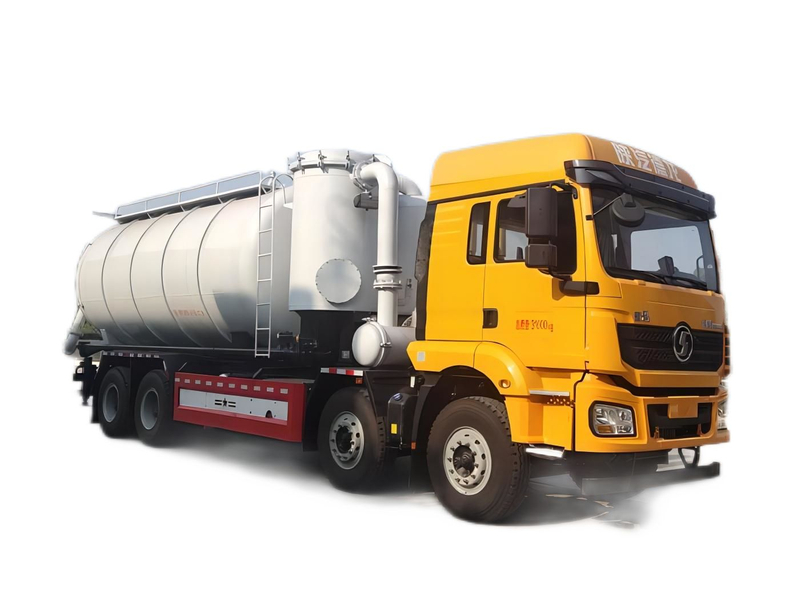

Customizing SHACMAN Industrial Vacuum Loaders Super Suckers
(EURO 6) Chassis SHACMAN SX1319MC6F1C
Main technical parameters
Overall dimensions: | 12390×2550×3990(mm) | Fuel Type: | Diesel oil | |||
G.W. | 31000(Kg) | |||||
Net | 20900(Kg) | Rated load mass: | 9970990 (5 Kg) | |||
Approach Angle/Departure Angle: | 16/8 (°) | Front/rear overhang: | 1525/3090(mm) | |||
Axle Load: | 6500/6500/18000(Two axes) | Wheelbase: | 1800+4575+1400, 1800+3775+1400, 1950+2850+1400, 1950+3225+1400, 1950+3425+1400, 1950+3825+1400,1950+4425+1400, 1950+3625+1400 (mm) | |||
Number of shafts: | 4 | Maximum speed: | 89(km/h) | |||
Number of tires: | 12(PCS) | Tire Specifications: | 11.00R20 18PR,12.00R20 18PR,12R22.5 18PR | |||
Fuel consumption: | (L/100Km) | Number of spring pieces: | 3/3/5,14/14/12 | |||
Front wheel base: | 2011/2011,2036/2036,2070/2070(mm) | Rear wheel base: | 1860/1860(mm) | |||
Engine type | Engine manufacturer | Volume (ml) | Power (kw) | |||
WP12.430 E62; WP12.400 E62; WP8.350 E61. WP12.460 E62; WP8.350 E62 | Weichai Power Co., LTD. | 11596; 11596; 7800; 11596; 7800 | 316; 294; 257; 338; 257 | |||

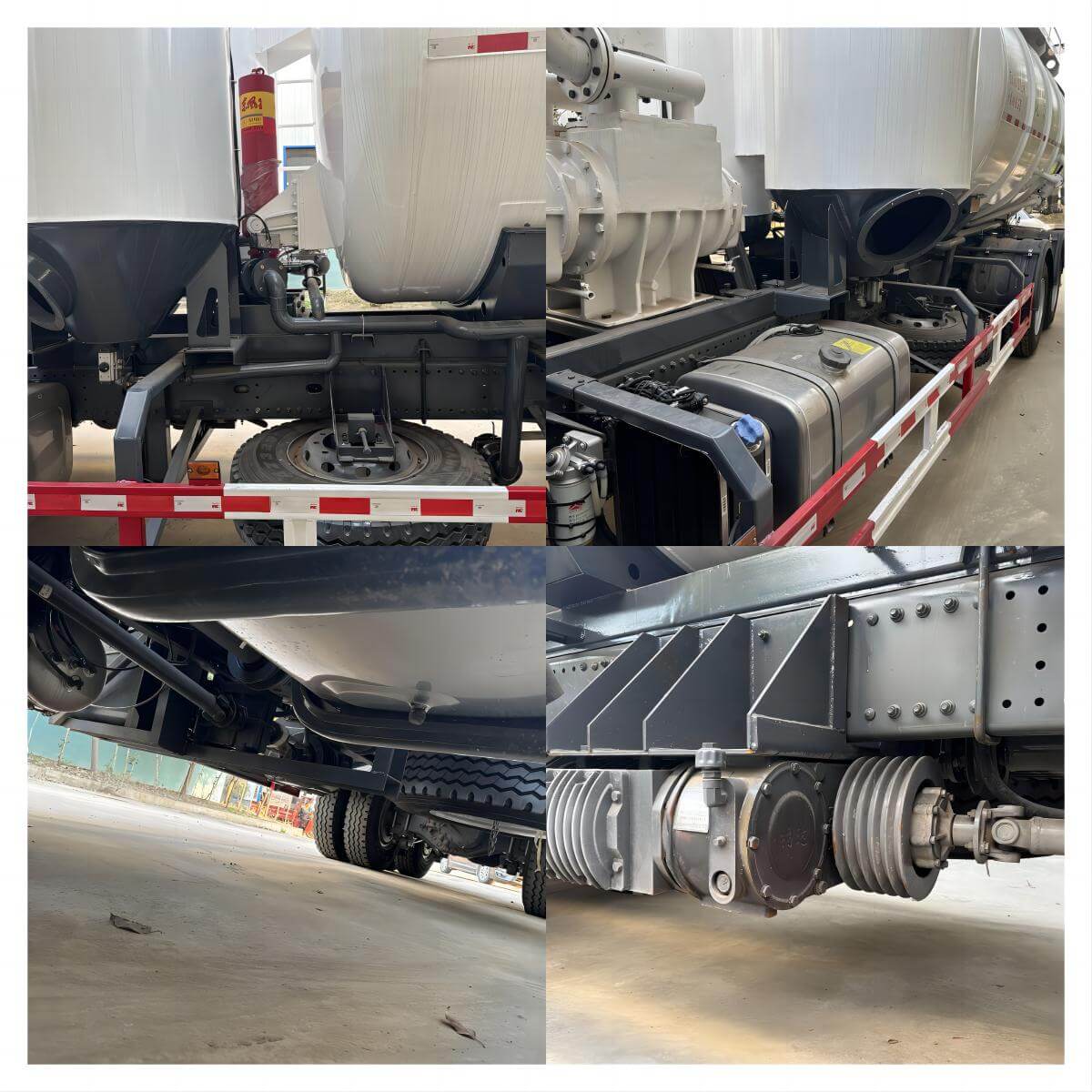

Chassis wheelbase 1800+4575+1400(mm) ; Equipped with VAC tank, air compressor, vacuum pump, lifting cylinder and other special devices, through the ground vacuum pump to produce negative pressure for powder material vacuum suction loading, using the air compressor positive pressure discharge. The top closure cannot be slotted, and the rear cannot be opened. The total capacity of the tank is 20.78 cbm, the effective volume is 19.81m3, the overall size of the tank (length × diameter)(mm): 6400×2400, Transport medium : hydrated lime powder,Density :500 kg/cubic meters. The materials used for side protection and rear protection are both Q235 and welded. | ||||||
