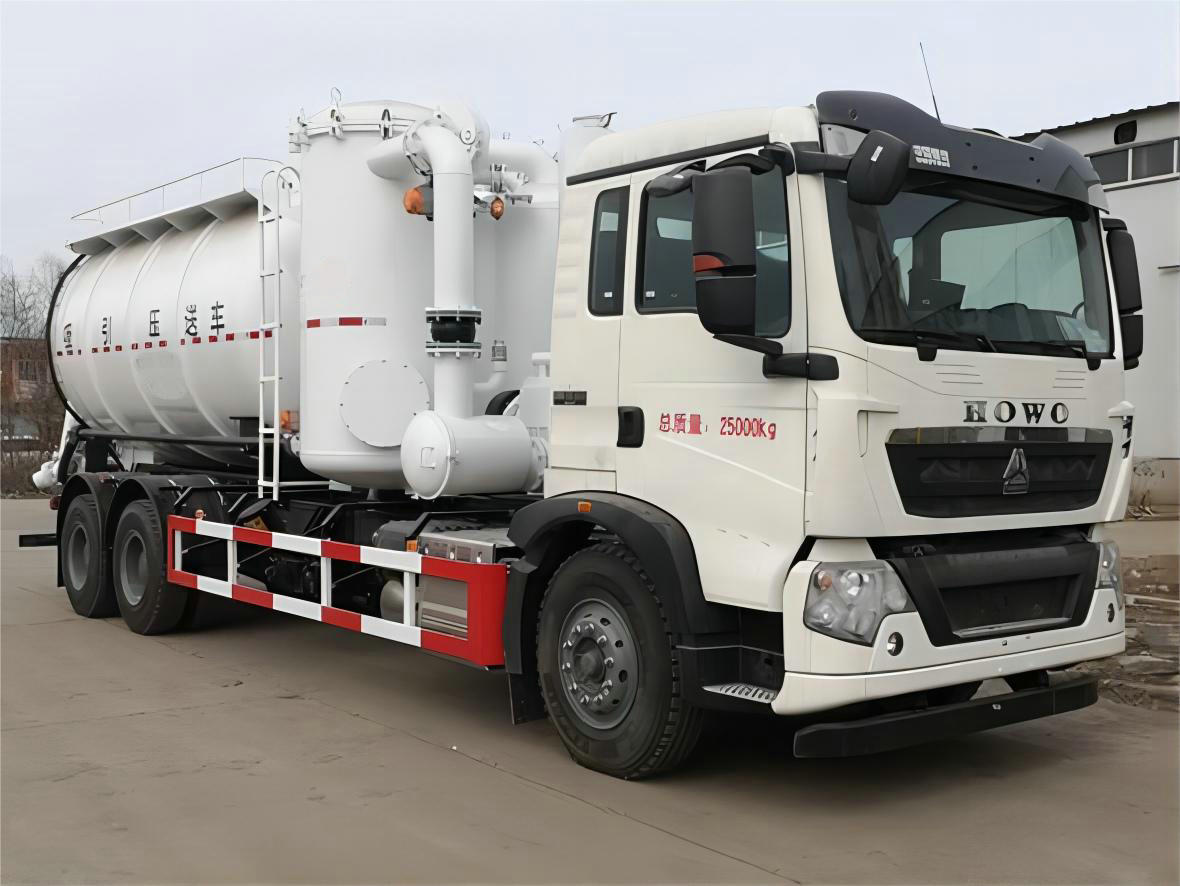

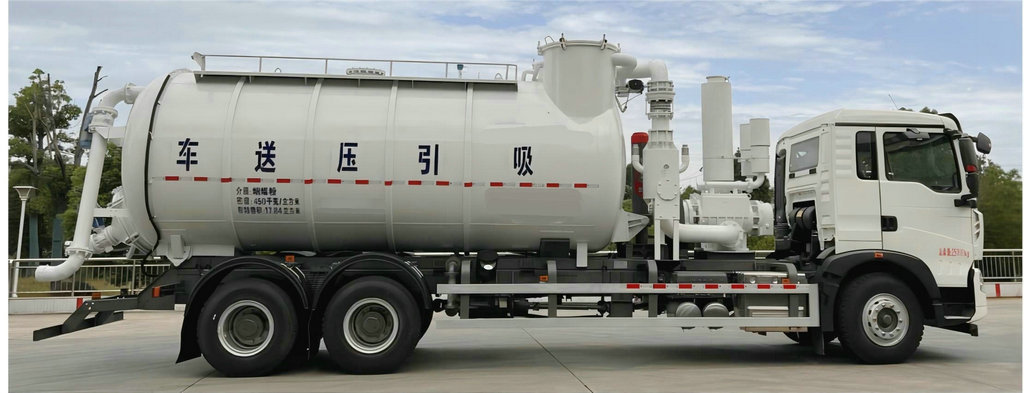

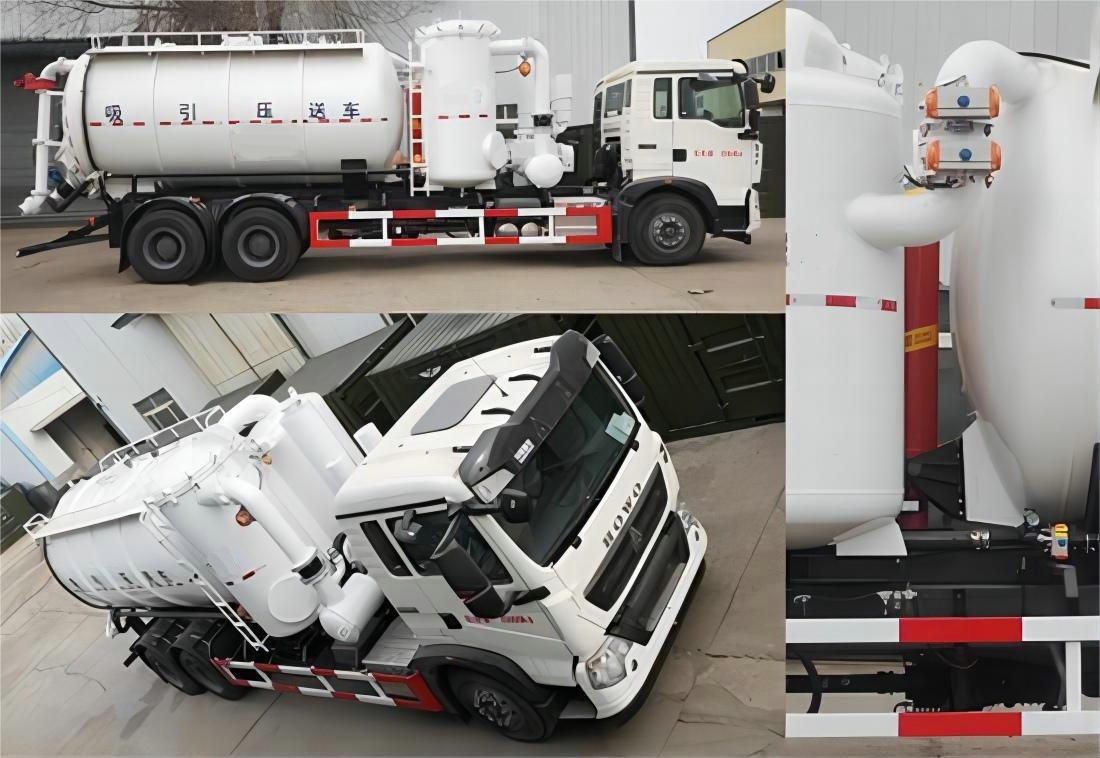

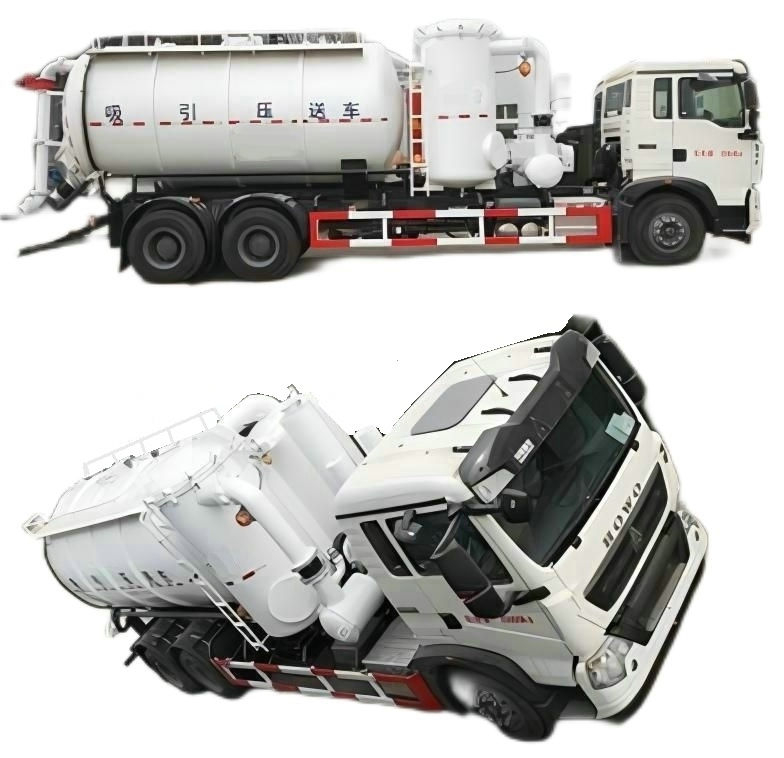

Customize Sinotruck Industrial Dry Vacuum Supersucker Truck 16m3
Supersucker Vacuum Tanker For Dry Dust or Powder Pressure Suck and Blow Vacuum Loader
16-18m3 Vac tank, Equipped with air compressor, Roots vacuum pump
HOWO Chassis ZZ1257N464GF1
| Quantity: | |
|---|---|
|
| |
-
5257GXYE6, 5250GXY4
-
DRZ
-
8705909990
Customize Sinotruck Industrial Dry Vacuum Supersucker Truck 16m3
Supersucker Vacuum Tanker For Dry Dust or Powder Pressure Suck and Blow Vacuum Loader
16-18m3 Vac tank, Equipped with air compressor, Roots vacuum pump
HOWO Chassis ZZ1257N464GF1
Main technical parameters
Overall dimensions: | 10980×2550×3780(mm) 11040,10990×2500,2530×3910(mm) | Fuel Type: | Diesel oil |
Total mass: | 25000(Kg) | ||
G.W | 17600(Kg) 16840(Kg) | Rated load mass: | 7270,7205(Kg) 8030(Kg) |
Approach Angle/Departure Angle: | 19/12 (°) 19/17(°) | Front/rear overhang: | 1430/2400(mm) 1500/2390,1500/2990, 1500/2340,1500/2940(mm) |
Axle Load: | 7000/18000(two-axis group) | Wheelbase: | 3200+1350,3175+1400,3800+1350, 3775+1400,4100+1350,4075+1400, 4300+1350,4275+1400,4600+1350, 4575+1400,4900+1350,4875+1400, 5200+1350,5175+1400,5800+1350, 5775+1400,5740+1470,5800+1470 (mm) |
Number of shafts: | 3 | Maximum speed: | 89,110(km/h) |
Number of tires: | 10(PCS) | Tire Specifications: | 315/80R22.5 16PR,295/80R22.5,12R22.5,12.00R20 16PR,11.00R20 |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 11/12,11/10,10/12,4/12,4/5,3/10, 3/4,2/4,4/-,3/-,2/-,4/-/-,3/-/-,2/-/- |
Front wheel base: | 2015,2035(mm) | Rear wheel base: | 1830/1830,1850/1850,1870/1870(mm) |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
MC07H.33-60; MC07H.29-60; MC09.35 B - 60; MC09.35-60; WP8.350 E61. MC11.40-60; MC07.31-60; MC07.27-60; MC07.34-60; MC07H.35-60; WP10H400E62; MC09.38-60; WP9H350E62; MC11.40-61; WP7H270E62; WP7H300E62; WP7H320E62; MC07.29-60 | China Heavy Duty Automobile Group Co., LTD Weichai Power Co., LTD. | 7360; 7360; 8765; 8765; 7800; 10518; 6870; 6870; 6870; 7360; 9500; 8765; 8800; 10518; 6800; 6800; 6800; 6870 | 240; 213; 260; 260; 257; 297; 228; 202; 251; 257; 294; 279; 257; 297; 199; 221; 235; 213 |
Equipped with tank body, air compressor, Roots vacuum pump, lifting cylinder, filtration system, suction and discharge pipeline system and other special devices; Negative pressure is generated by the vacuum pump, and the secondary pollutants are attracted to the tank in a vacuum closed way, and the dust removal and filtration system is used to separate the mixed air of secondary pollutants to remove dust and dust. During discharge, the air compressor generates positive pressure to discharge the secondary pollutants into a special storage container through a closed high-pressure discharge. Total tank capacity: 17.5 cubic meters, effective tank volume :16.75 cubic meters. Tank dimensions: Diameter × length (mm):Φ2212×5200. Transport medium is: soot powder, density :430 kg/m3. chassis wheelbase (mm) 5800+1350 leaf spring suspension; The materials used for side and rear protection devices are Q235B; The side protection device is bolted to the vehicle, and the rear lower protection device is bolted to the vehicle. Optional rotary adjusting clamp for rear suction pipe. Equipped with VAC tank body, vacuum pump, air compressor, lifting cylinder and other special devices, through the vacuum pump to produce negative pressure for the powder material vacuum suction loading, after the tank is lifted by the air compressor positive pressure discharge. Total capacity of the tank is 18.73 cubic meters, the effective volume of the tank is 17.84 cubic meters, size of the tank Φ2200X6072 mm, Transportation medium is soot powder, and the density is 450 kg/cubic meters. Optional tail cover hydraulic locking device, bolt locking device, side opening form, optional pneumatic ball valve at the rear, starting disk valve, optional cab with chassis. Select the installation method of the tail logo version. Optional side protection material aluminum alloy, which is connected with the vehicle bolt. Optional tail ash discharge valve. Optional rear lower protection style. optional speed limiting device, the maximum speed (km/h) 89. | |||
Suction pressure delivery vehicle suction and discharge vehicle coal ash suction and discharge vehicle.
suction pressure conveyor, suction pressure conveyor, abbreviation suction discharge vehicle is suitable for metallurgy, chemical industry, energy, building materials, coal, mining, wharf transportation and other industries, for the collection, transfer and transportation of nearly 100 kinds of dust and powder materials under various working conditions. It can carry ironmaking, steelmaking, sintering, coking, raw materials, calcium carbide furnace purification and dust removal, gas burning lime density, refining desilication, dephosphorization agent, coke powder, aluminum powder, limestone, lime powder, mixed dust removal dust and other dust Material. Suction and discharge vehicle is a high-efficiency, safe and environment-friendly special vehicle for cleaning and transporting bulk materials.
Special devices include Roots vacuum pump, oil-free lubricating swing air compressor, filtration system, lifting oil cylinder, tank body, negative pressure suction, positive pressure discharge, dust filtration and transportation in the tank.
Suction operation steps:
1) When the suction pressure delivery tank truck arrives at the ground storage bin, the vacuum port of the vehicle is butted with the suction interface of the storage system;
2) After the butt joint is completed, the vacuum suction system of the vehicle is started, and the negative pressure in the storage bin is sucked into the bearing tank of the suction pressure delivery tank car through the ground device feeding system of the storage bin.
Layout operation steps:
1) When the material carried by the suction pressure conveying tank truck arrives at the ground material receiving bin, the material discharging interface of the positive pressure pressure discharging system of the vehicle is butted with the material receiving system input interface of the material receiving system device ①;
2) After the butt joint is completed, the positive pressure discharge system of the vehicle is started, and through the material receiving system of the ground device of the material receiving bin, the material in the vehicle bearing tank is pressurized and discharged to the ground material receiving bin by using the compressed gas of the vehicle
