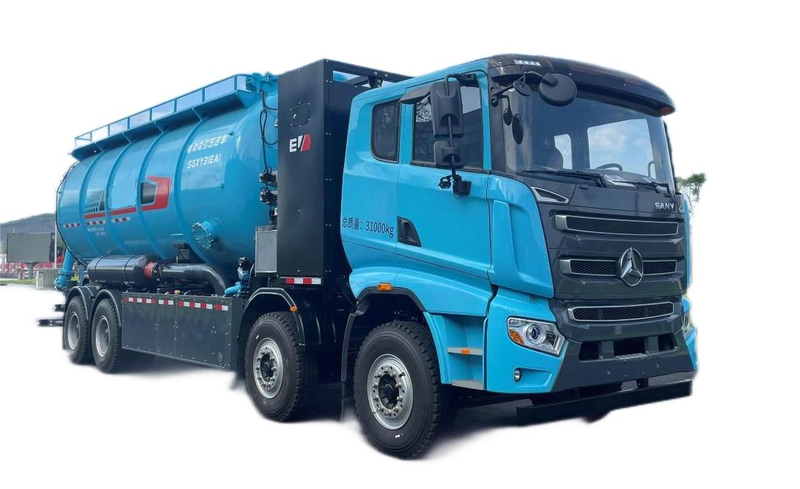

SANY EV Supersucker High Powered Industrial Vacuum Loader 16M3
Dry Powder Super Suckers
16-17m3 VAC tank, Equipped with air compressor, Roots vacuum pump
EV Chassis SANY SYM3312T4BEV
| Quantity: | |
|---|---|
|
| |
-
5310GXYSYABEV
-
DRZ
-
8705909990

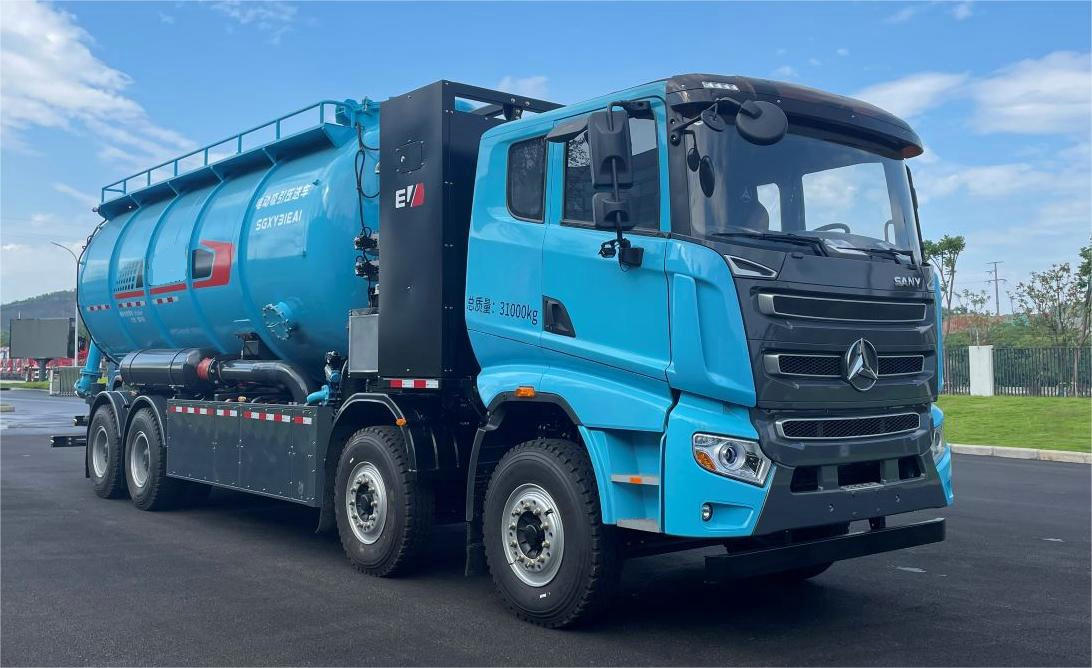

SANY Pure Electric Supersucker High Powered Industrial Vacuum Loader 16M3
Dry Powder Super Suckers
16-17m3 VAC tank, Equipped with air compressor, Roots vacuum pump
EV Chassis SANY SYM3312T4BEV
Main technical parameters
Overall dimensions: | 12225×2545×3955(mm) | Fuel Type: | Pure electric |
GW | 31000(Kg) | ||
NET | 24250(Kg) | Rated load mass: | 6620(Kg) |
Approach Angle/Departure Angle: | 18/12 (°) | Front/rear overhang: | 1500/2525(mm) |
Axle Load: | 6500/6500/18000(Two axes) | Wheelbase: | 2000+3700+1400, 2000+4200+1400, 2000+4400+1400, 2000+4600+1400, 2000+4800+1400, 2000+5000+1400, 2000+5200+1400, 2000+5400+1400(mm) |
Number of shafts: | 4 | Maximum speed: | 80(km/h) |
Number of tires: | 12(PCS) | Tire Specifications: | 12.00R20 18PR,11.00R20 18PR,12R22.5 18PR |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 10/10/12,8/8/12,8/8/10,9/9/10,9/9/12,10/10/14,11/11/14,12/12/14,10/10/13,14/14/12,14/14/13 |
Front wheel base: | 2048/2048,2114/2114,2080/2080,2135/2135(mm) | Rear wheel base: | 1860/1860,1880/1880(mm) |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) | |
TZ460XS-LKM2401; TZ460XS-LKM2405 | LVKON | 405; 450 | ||

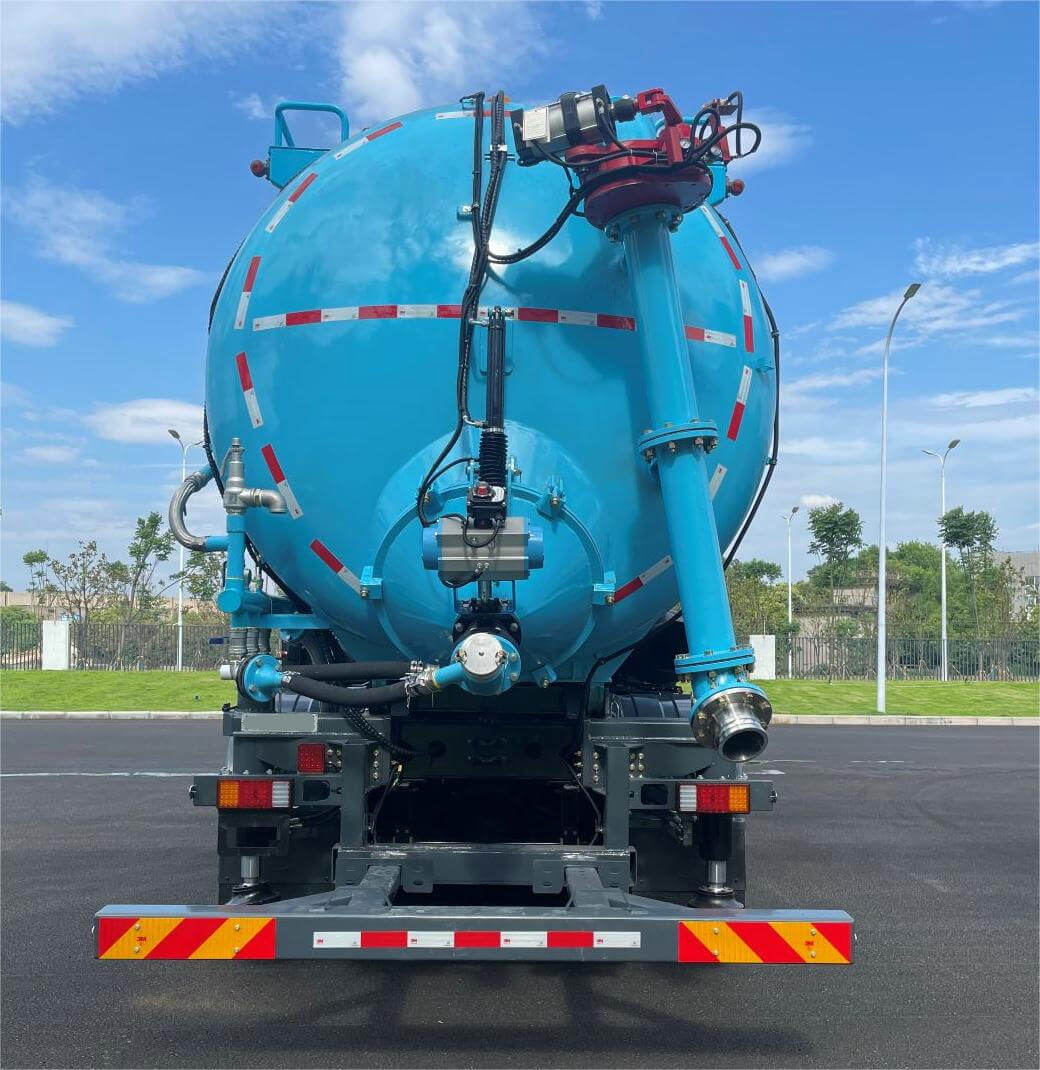

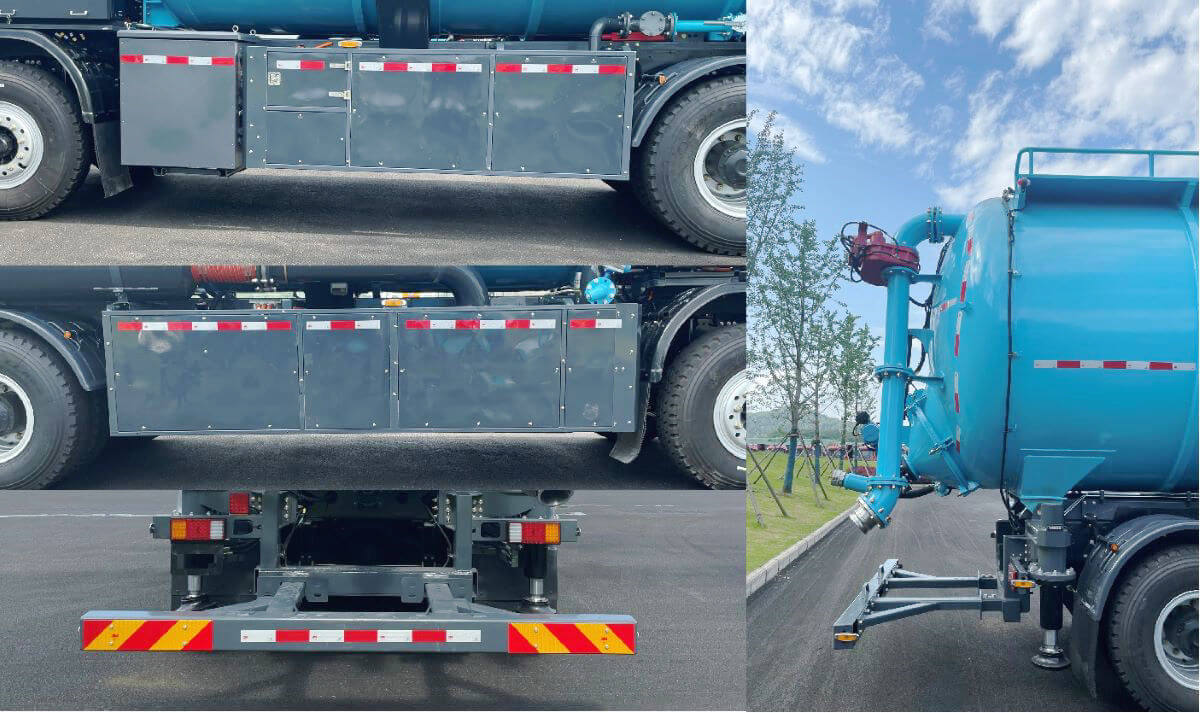

1, Equipped with tank, air compressor, dust removal filtration system, lifting cylinder and other special devices, through the ground vacuum pump to produce negative pressure, vacuum closed suction and loading of secondary pollutants, and through the dust removal filtration system to dust the mixed air of pollutants, and then through the air compressor to produce positive pressure to discharge secondary pollutants through the closed high pressure discharge to the special storage In a container; 2. Overall size of the tank body (total length × diameter)(mm):7410×2412, the inner part of the tank body is divided into two parts, the front section is the dust removal chamber (including the head), the size (total length × diameter):2442×2412mm; The rear section is a cylindrical material tank (including head), size (total length × diameter):4968×2412mm; 3,Total volume of the tank 17.3 cubic meters, the effective volume of the tank 16.55 cubic meters; 4, Transport medium is: ash powder, density :400 kg/cubic meter; 5, Side protection material is Q235B, the connection mode bolt connection, the rear protection material Q355, the connection mode bolt connection, the rear protection section :150×120mm, the lower edge height from the ground :465mm; 6. Wheelbase :2000+4800+1400mm 7. Type of energy storage device: lithium iron phosphate power battery; Type of drive motor: three-phase AC permanent magnet synchronous motor; Energy storage unit/model :CB230, model :L228H01; Drive motor model/Manufacturer :TZ460XS-LKM2401/ rated power 270kW, peak power 405kW, Drive motor controller model :KTZ54X73S-LKC2401, Manufacturer: Suzhou Green Control Transmission Technology Co., LTD. | ||||
