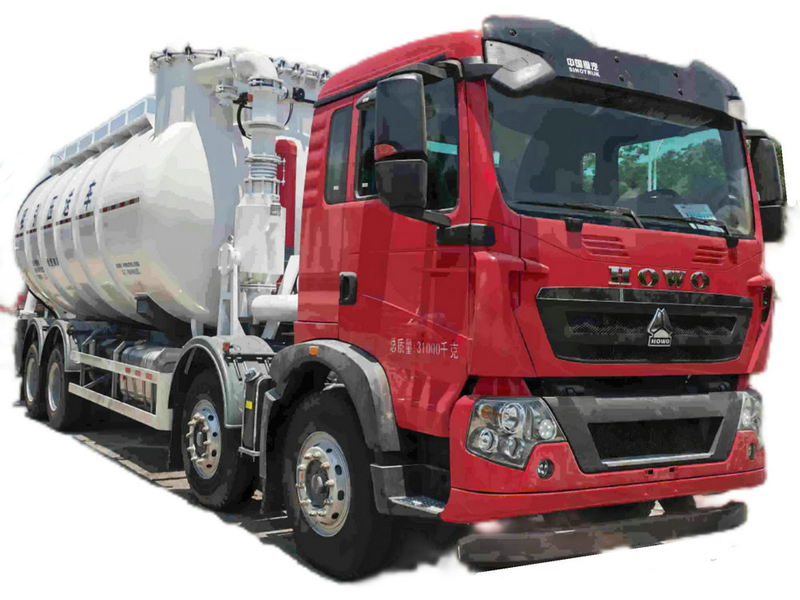

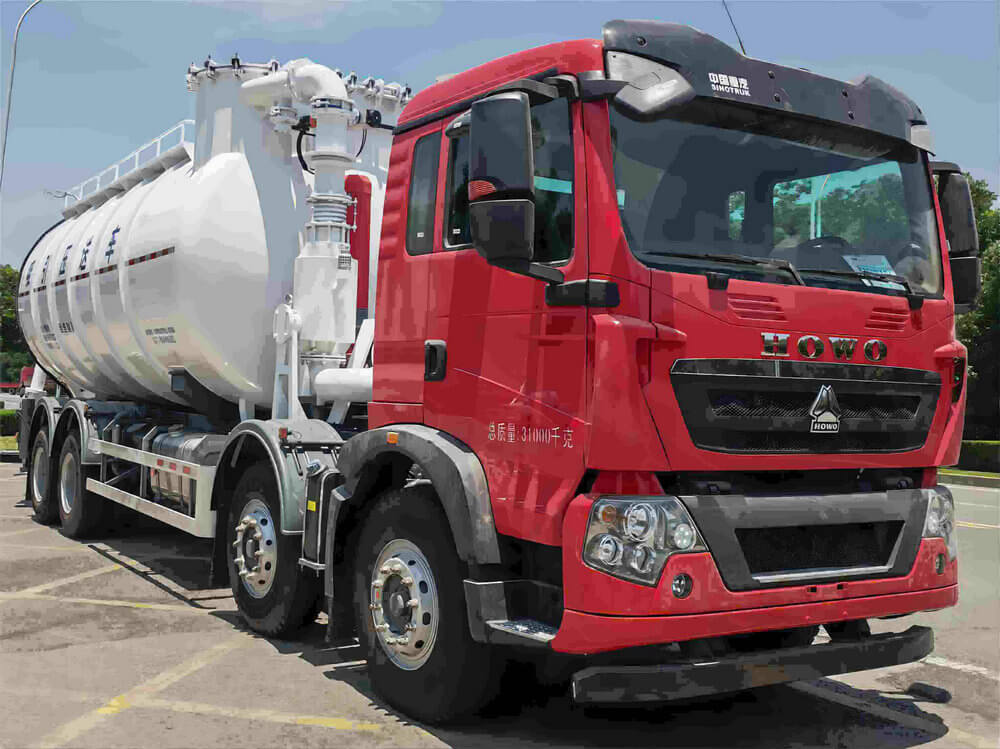

Customize HOWO Guzzler Industrial Vacuum Loaders 24m3
Supersucker Vacuum Trucks For Dry And Wet Substances
24-25m3 Guzzler tank, Equipped with air compressor, Roots vacuum pump
Chassis SINTRUCK HOWO ZZ1317N466GF1
| Quantity: | |
|---|---|
|
| |
-
5314GXY6
-
DRZ
-
8705909990
Customize HOWO Guzzler Industrial Vacuum Loaders 24m3
Supersucker Vacuum Trucks For Dry And Wet Substances
24-25m3 Guzzler tank, Equipped with air compressor, Roots vacuum pump
Chassis SINTRUCK HOWO ZZ1317N466GF1
Suction pressure delivery vehicle suction and discharge vehicle coal ash suction and discharge vehicle.
suction pressure conveyor, suction pressure conveyor, abbreviation suction discharge vehicle is suitable for metallurgy, chemical industry, energy, building materials, coal, mining, wharf transportation and other industries, for the collection, transfer and transportation of nearly 100 kinds of dust and powder materials under various working conditions. It can carry ironmaking, steelmaking, sintering, coking, raw materials, calcium carbide furnace purification and dust removal, gas burning lime density, refining desilication, dephosphorization agent, coke powder, aluminum powder, limestone, lime powder, mixed dust removal dust and other dust Material. Suction and discharge vehicle is a high-efficiency, safe and environment-friendly special vehicle for cleaning and transporting bulk materials.
Main technical parameters
Overall dimensions: | 12210,11995×2530,2550×4000,3990(mm) | Fuel Type: | Diesel oil |
GW | 31000(Kg) | ||
NET | 19670(Kg) | Rated load mass: | 11135,11200(Kg) |
Approach Angle/Departure Angle: | 17/11 (°) | Front/rear overhang: | 1500/2960,1500/2745(mm) |
Axle Load: | 6500/7000/17500(Two axes) | Wheelbase: | 1800+3800+1350,1800+3775+1400, 1800+4300+1350,1800+4275+1400, 1800+4600+1350,1800+4575+1400, 1950+3825+1350,1950+3800+1400, 1950+4625+1350,1950+4600+1400, 1800+3825+1350,1800+3800+1400, 1800+4625+1350,1800+4600+1400, 1800+3300+1350,1800+3275+1400(mm) |
Number of shafts: | 4 | Maximum speed: | 80,89,110(km/h) |
Number of tires: | 12(PCS) | Tire Specifications: | 315/80R22.5 18PR,295/80R22.5,12R22.5, 12.00R20 18PR,11.00R20,315/60R22.5 20PR |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 11/11/12,11/11/10,3/3/10,3/3/5,3/3/4,2/2/4,3/3/-, 2/2/-,3/3/-/-,2/2/-/-,4/4/5,4/4/-/-,4/4/12 |
Front wheel base: | 2015/2015,2035/2035,2060/2060(mm) | Rear wheel base: | 1830/1830,1850/1850,1870/1870(mm) |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) | |
WP9H350E62; MC07H.33-60; MC11.40-60; MC11.44-60; MC09.38-60; WP8.350 E61. MC07.31-60; MC09.35 B - 60; WP10.5 H430E62; MC07.33-60; MC07H.35-60; WP10H400E62; MC09.35-60; MC11.43-61; MC07.34-60; MC11.46-61; MC11.40-61; MC11H.46-61; WP12.430 E62; WP12.460 E62; WP12.490 E62; MC07H.31-61; M | Weichai Power Co., LTD. China Heavy Duty Automobile Group Co., LTD.; | 8800; 7360; 10518; 10518; 8765; 7800; 6870; 8765; 10520; 6870; 7360; 9500; 8765; 10518; 6870; 10518; 10518; 11050; 11596; 11596; 11596; 7360; 7360; 7800; 11050; 11050 | 257; 240; 297; 327; 279; 257; 228; 260; 316; 240; 257; 294; 260; 319; 251; 341; 297; 341; 316; 338; 360; 228; 254; 257; 297; 319 | |

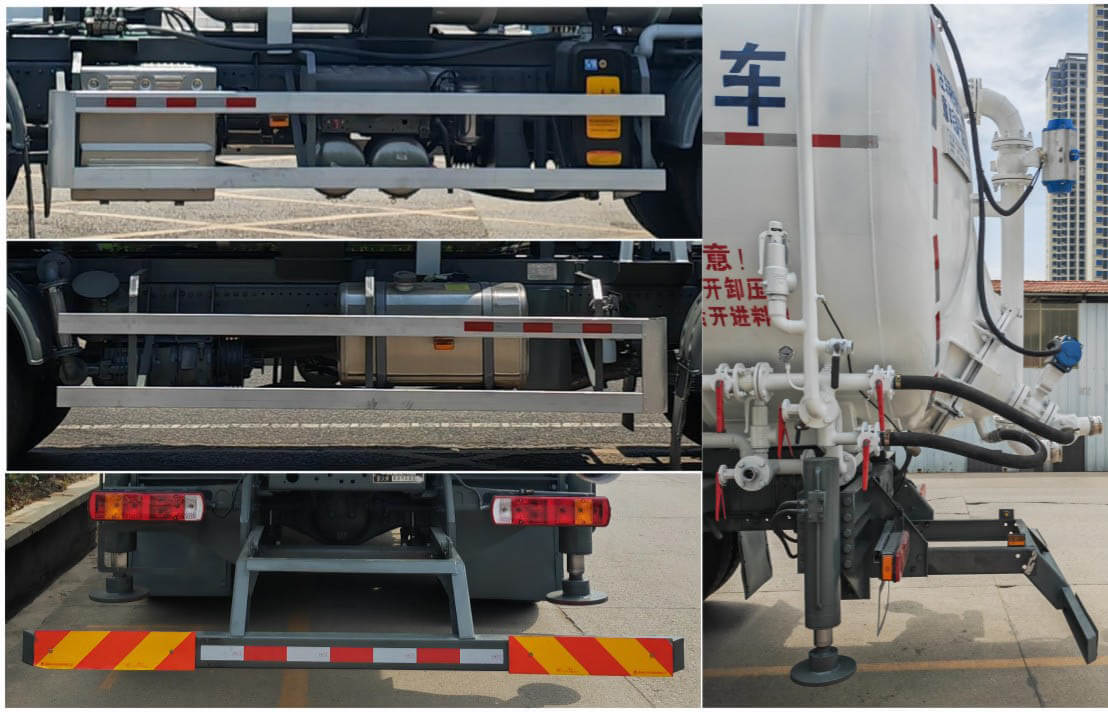

1,Equipped with vacuum pump, air compressor, lifting cylinder, dust filtration system, vacuum suction loading system and other special devices. 2, the special operation function is: through the vacuum pump to generate negative pressure, the secondary pollutants for sealed suction loading, complete the industrial production of pollutants collection bin cleaning, and through the dust removal filter system for the secondary pollutants mixed air separation dust removal, to avoid the air pollution during the operation, through the positive pressure generated by the special device to close the secondary pollutants The closed positive pressure discharge method is discharged into a special storage container. 3. Total capacity of the tank is 25.3 cubic meters, the effective volume of the tank :24.1 cubic meters.Tank size: Diameter × length of tank including head (mm)φ2400×7050. 4. Transport medium: soot powder, density :450 kg/cubic meter. 5. Chassis wheelbase 1800 + 4600 + 1350 mm The material used for side protection is aluminum alloy, which is bolted to the frame; The rear protection device material is Q235A, and it is connected with the frame bolts. The rear lower protection section size (H × W) is 120mm×60mm, and the height from the ground is 430mm. 6. Optional tail cover hydraulic locking device, bolt locking device, side opening form. 7. Optional rear optional pneumatic ball valve, pneumatic disc valve. 8. Optional cab with chassis. 9. Optional hydraulic back leg. 10. Optional tail ash discharge valve. 11. Install speed limiting device, the maximum speed is :80km/h or 89km/h. | ||||
Special devices include Roots vacuum pump, oil-free lubricating swing air compressor, filtration system, lifting oil cylinder, tank body, negative pressure suction, positive pressure discharge, dust filtration and transportation in the tank.
Suction operation steps:
1) When the suction pressure delivery tank truck arrives at the ground storage bin, the vacuum port of the vehicle is butted with the suction interface of the storage system;
2) After the butt joint is completed, the vacuum suction system of the vehicle is started, and the negative pressure in the storage bin is sucked into the bearing tank of the suction pressure delivery tank car through the ground device feeding system of the storage bin.
Layout operation steps:
1) When the material carried by the suction pressure conveying tank truck arrives at the ground material receiving bin, the material discharging interface of the positive pressure pressure discharging system of the vehicle is butted with the material receiving system input interface of the material receiving system device ①;
2) After the butt joint is completed, the positive pressure discharge system of the vehicle is started, and through the material receiving system of the ground device of the material receiving bin, the material in the vehicle bearing tank is pressurized and discharged to the ground material receiving bin by using the compressed gas of the vehicle
