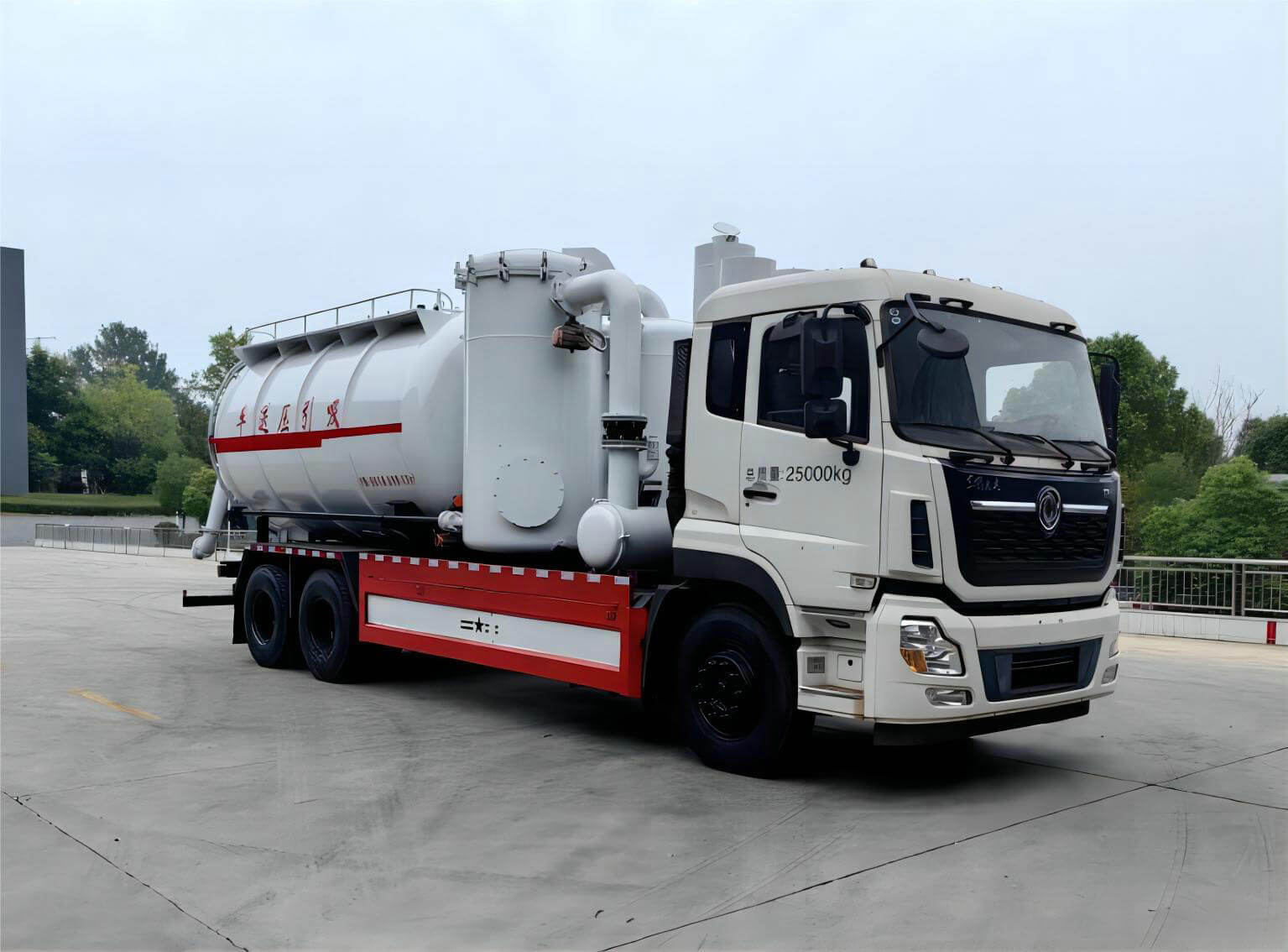

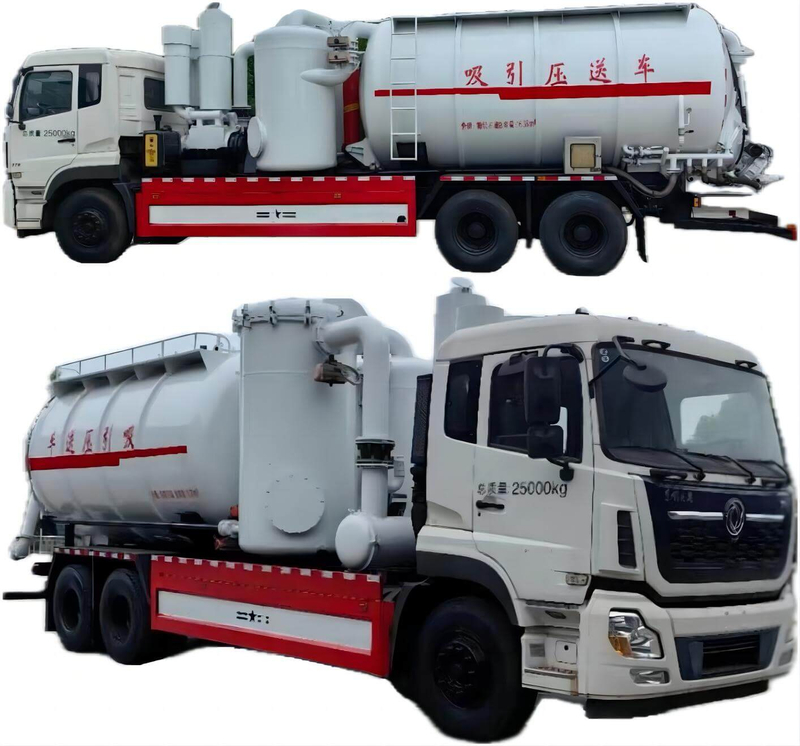

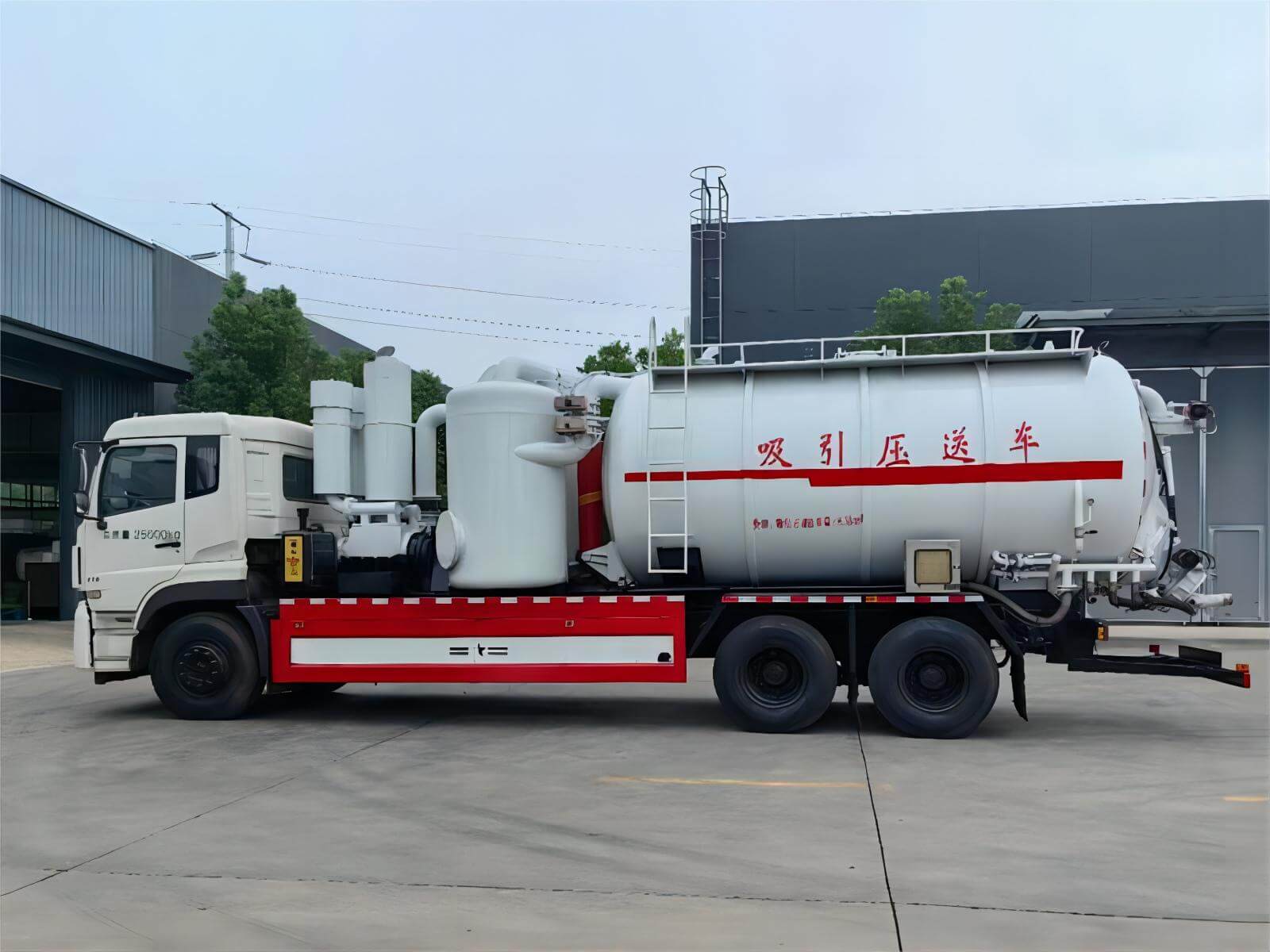

Customize DFAC Industrial Pneumatic Suction Vacuum Truck 16m3
Super Sucker Vacuum Trucks For Dry And Wet Substances
15-16m3 tank, Equipped with air compressor, Roots vacuum pump
Chassis Dongfeng DFH1250D4
| Quantity: | |
|---|---|
|
| |
-
5250GXY6ACC
-
DRZ
-
8705909990
Customize DFAC Industrial Pneumatic Suction Vacuum Truck 16m3
Super Sucker Vacuum Trucks For Dry And Wet Substances
15-16m3 tank, Equipped with air compressor, Roots vacuum pump
Chassis Dongfeng DF TL 6X4 DFH1250D4
Suction pressure delivery vehicle suction and discharge vehicle coal ash suction and discharge vehicle.
suction pressure conveyor, suction pressure conveyor, abbreviation suction discharge vehicle is suitable for metallurgy, chemical industry, energy, building materials, coal, mining, wharf transportation and other industries, for the collection, transfer and transportation of nearly 100 kinds of dust and powder materials under various working conditions. It can carry ironmaking, steelmaking, sintering, coking, raw materials, calcium carbide furnace purification and dust removal, gas burning lime density, refining desilication, dephosphorization agent, coke powder, aluminum powder, limestone, lime powder, mixed dust removal dust and other dust Material. Suction and discharge vehicle is a high-efficiency, safe and environment-friendly special vehicle for cleaning and transporting bulk materials.
Main technical parameters
Overall dimensions: | 10950,10970×2550×3850(mm) | Fuel Type: | Diesel oil |
G.W | 25000(Kg) | ||
NET | 17780(Kg) | Rated load | 7090,7025(Kg) |
Approach Angle/Departure Angle: | 20/9 (°) | Front/rear overhang: | 1480/2770,1500/2770(mm) |
Axle Load: | 7000/18000(two-axis ) | Wheelbase: | 4350+1350,5350+1350, 5700+1350,4600+1350, 4800+1350(mm) |
Number of shafts: | 3 | Maximum speed: | 89,98(km/h) |
Number of tires: | 10(PCS) | Tire Specifications: | 295/80R22.5 18PR,11.00R20 18PR |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 3/10,3/4,9/10 |
Front wheel base: | 2010,2040,2070(mm) | Rear wheel base: | 1860/1860,1880/1880(mm) |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
D6.7 NS6B290; DDi75E350-60; DDi75E300-60; DDi75E340-60; D6.7 NS6B320 | Dongfeng Cummins Engine Co., LTD | 6700; 7500; 7500; 7500; 6700 | 213; 257; 220; 250; 231 |

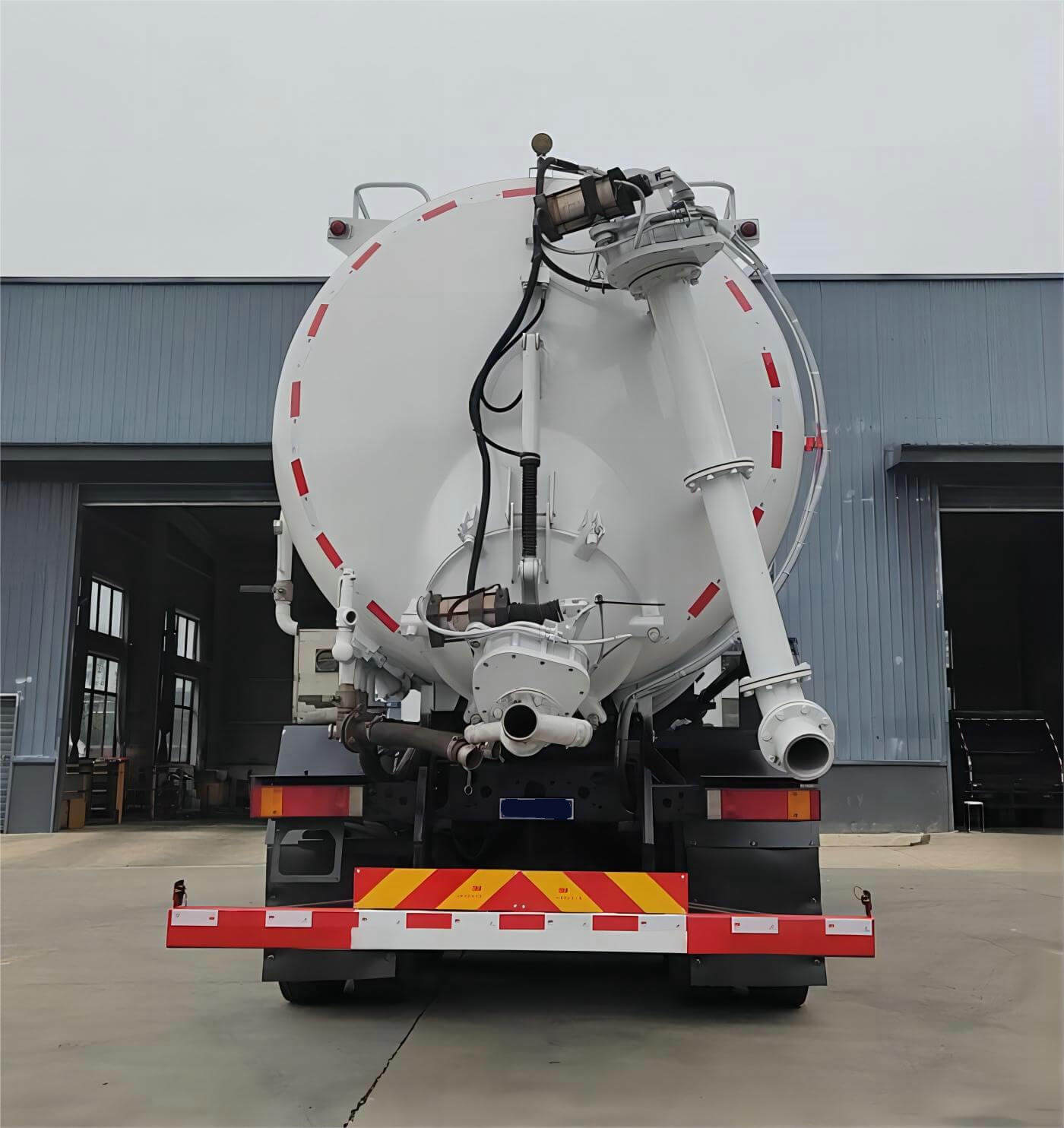

wheelbase 5350+1350(mm) Equipped with tank, air compressor, Roots vacuum pump, lifting cylinder and other special devices, through the ground vacuum pump to produce negative pressure for powder material suction loading, using the air compressor positive pressure discharge. The top closure cannot be slotted, and the rear cannot be opened. The total capacity of the tank is 16.38 cubic meters, the effective volume is 15.61 cubic meters, the overall size of the tank (length × diameter)(mm): 5150×2200, Transport medium is: powdered graphite, dephosphorization agent, coke powder, aluminum powder, limestone, lime powder, mixed dust density :450 kg/cubic meter. Transport medium : hydrated lime powder,Density :500 kg/cubic meters. Optional speed limiting device, speed limiting 89km/h. The rear installed with working lights | |||
Chassis configuration: This model adopts Dongfeng original chassis, D310 flat head standard top cab, Euro 5-6 Dongfeng D6.7NS6B290 electronically controlled high-pressure common rail engine, all-steel 350L main fuel tank, medium 430mm push diaphragm spring clutch, Shaanxi FAST 9-gear 9JS119T-B gearbox, front axle 7 tons single-stage deceleration ,double rear axle (Dongfeng 435), 11.00 R20 radial tire, air conditioner, ABS, driving recorder and lower protection. Special devices include Roots vacuum pump, oil-free lubricating swing air compressor, filtration system, lifting oil cylinder, tank body, negative pressure suction, positive pressure discharge, dust filtration and transportation in the tank.
Suction operation steps:
1) When the suction pressure delivery tank truck arrives at the ground storage bin, the vacuum port of the vehicle is butted with the suction interface of the storage system;
2) After the butt joint is completed, the vacuum suction system of the vehicle is started, and the negative pressure in the storage bin is sucked into the bearing tank of the suction pressure delivery tank car through the ground device feeding system of the storage bin.
Layout operation steps:
1) When the material carried by the suction pressure conveying tank truck arrives at the ground material receiving bin, the material discharging interface of the positive pressure pressure discharging system of the vehicle is butted with the material receiving system input interface of the material receiving system device ①;
2) After the butt joint is completed, the positive pressure discharge system of the vehicle is started, and through the material receiving system of the ground device of the material receiving bin, the material in the vehicle bearing tank is pressurized and discharged to the ground material receiving bin by using the compressed gas of the vehicle
