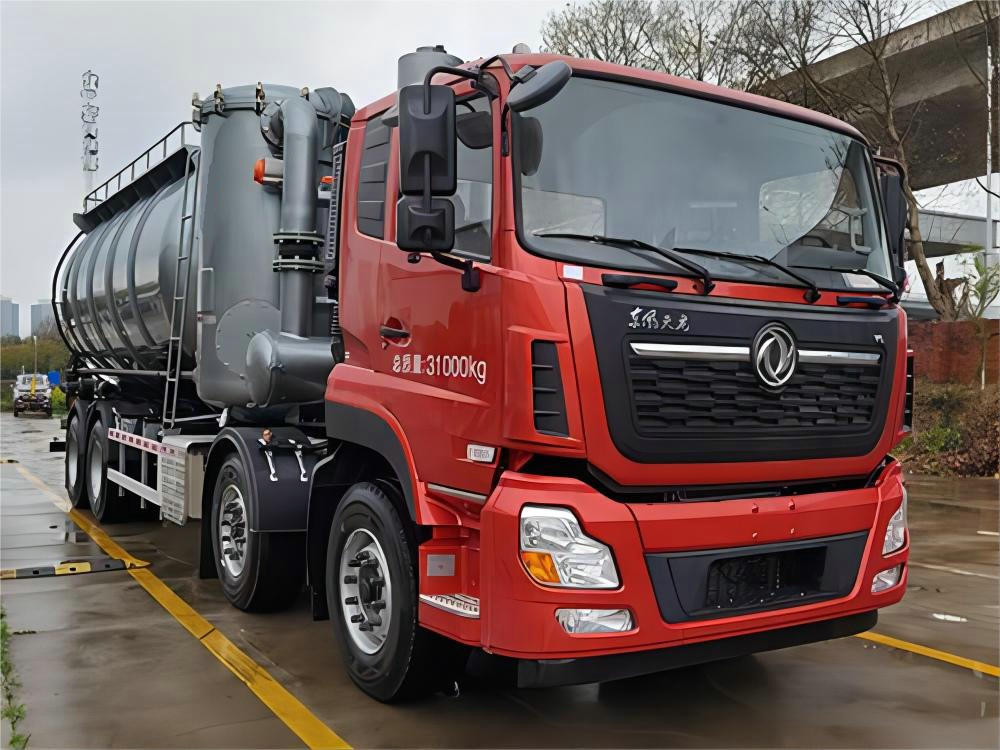

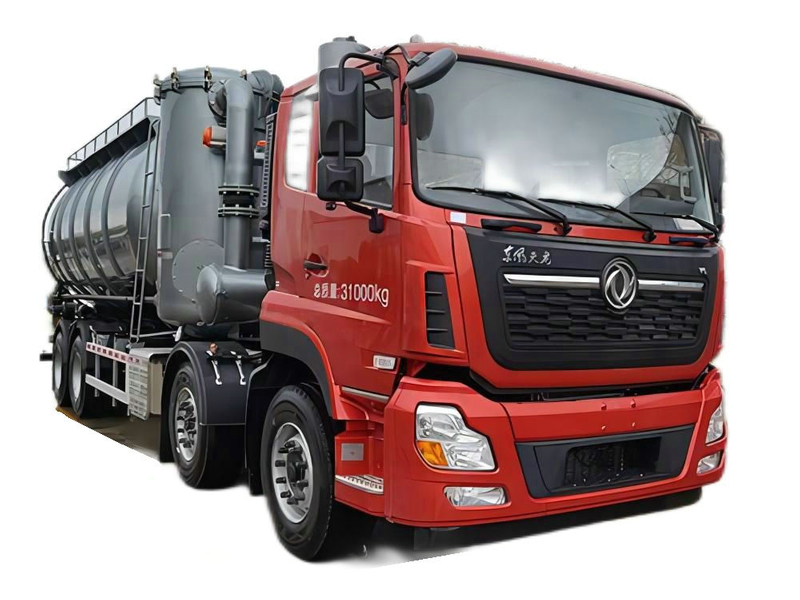

Customize Vacuum Dry Dust or Powder Industrial Tank Trucks 21m3
Supersucker Vacuum Tanker For Dry Dust or Powder Pressure Suck and Blow Vacuum Loader
21-22m3 Vac tank, Equipped with air compressor, Roots vacuum pump
Dongfeng Chassis DFH5440TA
| Quantity: | |
|---|---|
|
| |
-
5313GXY6
-
DRZ
-
8705909990
Customize Vacuum Dry Dust or Powder Industrial Tank Trucks 21m3
Supersucker Vacuum Tanker For Dry Dust or Powder Pressure Suck and Blow Vacuum Loader
21-22m3 Vac tank, Equipped with air compressor, Roots vacuum pump
Dongfeng Chassis DFH5440TA
Main technical parameters
Overall dimensions: | 12400×2550,2535,2500×3930(mm) | Fuel Type: | Diesel oil |
Total mass: | 31000(Kg) | ||
G.W | 21160(Kg) | Rated load | 9710(Kg) |
Approach Angle/Departure Angle: | 21/11 (°) | Front/rear overhang: | 1500/2800(mm) |
Axle Load: | 6500/6500/9000/9000 | Wheelbase: | 2100+4650+1350(mm) |
Number of shafts: | 4 | Maximum speed: | 89(km/h) |
Number of tires: | 12(PCS) | Tire Specifications: | 385/65R22.5 20PR/315/80R22.5 18PR,385/65R22.5 20PR/315/80R22.5 20PR |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 3/3/10 |
Front wheel base: | 2040/2040,2010/2010(mm) | Rear wheel base: | 1860/1860,1880/1880(mm) |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
DDi11E465-60 | Dongfeng Commercial Vehicle Co., LTD | 10800 | 343 |

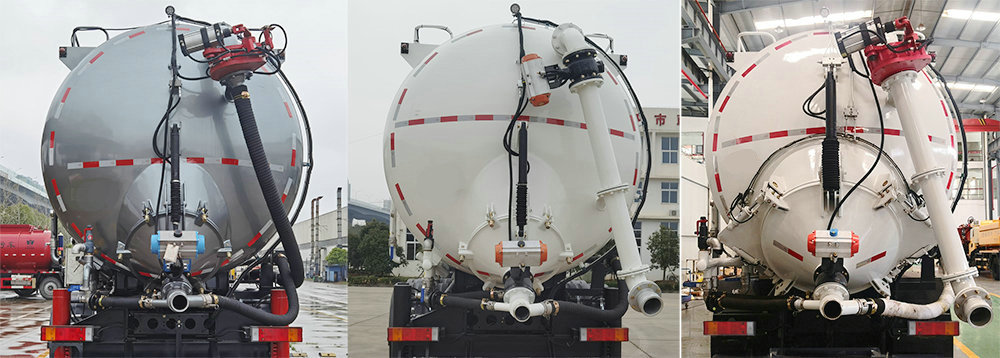

The vehicle is equipped with special devices such as tank body, vacuum pump, air compressor, dust removal filtration system and lifting cylinder. The vacuum pump generates negative pressure to carry out vacuum closed suction charging for secondary pollutants, and the dust removal and dust drop of the pollutant mixed air flow are carried out through the dust removal filtration system, and then the air compressor generates positive pressure to discharge secondary pollutants to the special storage by closed high pressure discharge In a container; Transport medium: powdered graphite, density :450 kg/m3; The total capacity of the tank is 22.6 cubic meters, and the effective volume is 21.5 cubic meters. Tank body Size 2400×6400MM; The material used for the side protection is aluminum alloy, which is connected with the vehicle bolt; The material used for the rear protection is Q235A, welded and fixed with the vehicle, the rear protection section size is (mm):140×80, and the height from the ground is 480mm; Select the rear metal suction tube, the rear rubber suction tube, the rear manual locking device, the rear hydraulic locking device, the rear pneumatic ball valve, the rear pneumatic disk valve. | |||
Suction pressure delivery vehicle suction and discharge vehicle coal ash suction and discharge vehicle.
suction pressure conveyor, suction pressure conveyor, abbreviation suction discharge vehicle is suitable for metallurgy, chemical industry, energy, building materials, coal, mining, wharf transportation and other industries, for the collection, transfer and transportation of nearly 100 kinds of dust and powder materials under various working conditions. It can carry ironmaking, steelmaking, sintering, coking, raw materials, calcium carbide furnace purification and dust removal, gas burning lime density, refining desilication, dephosphorization agent, coke powder, aluminum powder, limestone, lime powder, mixed dust removal dust and other dust Material. Suction and discharge vehicle is a high-efficiency, safe and environment-friendly special vehicle for cleaning and transporting bulk materials.
Special devices include Roots vacuum pump, oil-free lubricating swing air compressor, filtration system, lifting oil cylinder, tank body, negative pressure suction, positive pressure discharge, dust filtration and transportation in the tank.
Suction operation steps:
1) When the suction pressure delivery tank truck arrives at the ground storage bin, the vacuum port of the vehicle is butted with the suction interface of the storage system;
2) After the butt joint is completed, the vacuum suction system of the vehicle is started, and the negative pressure in the storage bin is sucked into the bearing tank of the suction pressure delivery tank car through the ground device feeding system of the storage bin.
Layout operation steps:
1) When the material carried by the suction pressure conveying tank truck arrives at the ground material receiving bin, the material discharging interface of the positive pressure pressure discharging system of the vehicle is butted with the material receiving system input interface of the material receiving system device ①;
2) After the butt joint is completed, the positive pressure discharge system of the vehicle is started, and through the material receiving system of the ground device of the material receiving bin, the material in the vehicle bearing tank is pressurized and discharged to the ground material receiving bin by using the compressed gas of the vehicle
