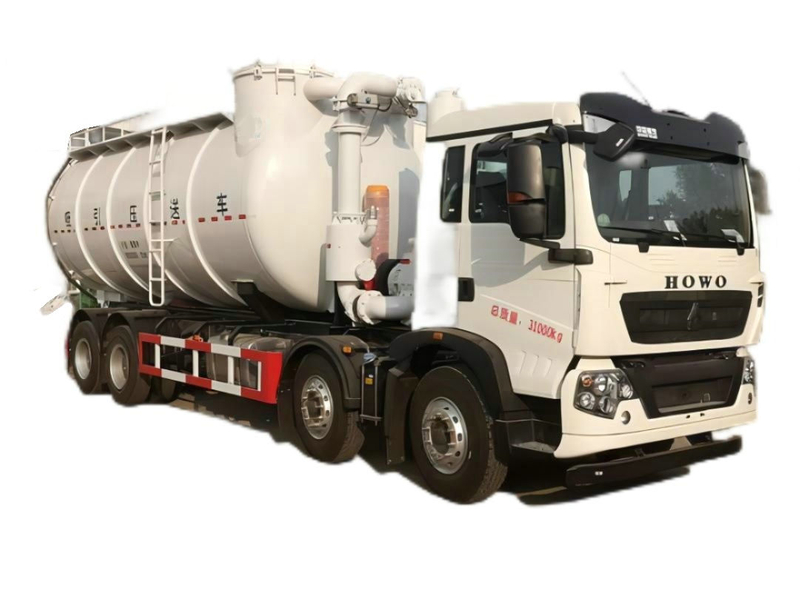

Customize HOWO Industrial Vacuum Tanker Truck For Dry Substances 25m3
Super Sucker Vacuum Trucks For Dry And Wet Substances
25-26m3 tank, Equipped with air compressor, Roots vacuum pump
SINTRUCK HOWO ZZ1317N466GF1
| Quantity: | |
|---|---|
|
| |
-
5315GXY
-
DRZ
-
8705909990
Customize HOWO Industrial Vacuum Tanker Truck For Dry Substances 25m3
Super Sucker Vacuum Trucks For Dry And Wet Substances
25-26m3 tank, Equipped with air compressor, Roots vacuum pump
Chassis SINTRUCK HOWO ZZ1317N466GF1
Suction pressure delivery vehicle suction and discharge vehicle coal ash suction and discharge vehicle.
suction pressure conveyor, suction pressure conveyor, abbreviation suction discharge vehicle is suitable for metallurgy, chemical industry, energy, building materials, coal, mining, wharf transportation and other industries, for the collection, transfer and transportation of nearly 100 kinds of dust and powder materials under various working conditions. It can carry ironmaking, steelmaking, sintering, coking, raw materials, calcium carbide furnace purification and dust removal, gas burning lime density, refining desilication, dephosphorization agent, coke powder, aluminum powder, limestone, lime powder, mixed dust removal dust and other dust Material. Suction and discharge vehicle is a high-efficiency, safe and environment-friendly special vehicle for cleaning and transporting bulk materials.
Main technical parameters
Overall dimensions: | 11990×2540×3995(mm) | Fuel Type: | Diesel oil |
G.W. | 31000(Kg) | Load mass utilization factor: | |
N.W. | 20260(Kg) | Rated load mass: | 10610,10545(Kg) |
Approach Angle/Departure Angle: | 19/11/11 12 (°) | Front/rear overhang: | 1500/2740,1430/2810(mm) |
Axle Load: | 6500/7000/17500(Two axes) | Wheelbase: | 1800+3800+1350,1800+3775+1400, 1800+4300+1350,1800+4275+1400, 1800+4600+1350,1800+4575+1400, 1950+3825+1350,1950+3800+1400, 1950+4625+1350,1950+4600+1400, 1800+3825+1350,1800+3800+1400, 1800+4625+1350,1800+4600+1400, 1800+3300+1350,1800+3275+1400(mm) |
Number of shafts: | 4 | Maximum speed: | 89,110(km/h) |
Number of tires: | 12(PCS) | Tire Specifications: | 315/80R22.5 18PR,295/80R22.5,12R22.5, 12.00R20 18PR,11.00R20,315/60R22.5 20PR |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 11/11/12,11/11/10,3/3/10,3/3/5,3/3/4,2/2/4, 3/3/-,2/2/-,3/3/-/-,2/2/-/-,4/4/5,4/4/-/-,4/4/12 |
Front wheel base: | 2015/2015,2035/2035,2060/2060(mm) | Rear wheel base: | 1830/1830,1850/1850,1870/1870(mm) |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
WP9H350E62; MC07H.33-60; MC11.40-60; MC11.44-60; MC09.38-60; WP8.350 E61. MC07.31-60; MC09.35 B - 60; WP10.5 H430E62; MC07.33-60; MC07H.35-60; WP10H400E62; MC09.35-60; MC11.43-61; MC07.34-60; MC11.46-61; MC11.40-61; MC11H.46-61; WP12.430 E62; WP12.460 E62; WP12.490 E62; MC07H.31-61; M | Weichai Power Co., LTD. China Heavy Duty Automobile Group Co., LTD.; | 8800; 7360; 10518; 10518; 8765; 7800; 6870; 8765; 10520; 6870; 7360; 9500; 8765; 10518; 6870; 10518; 10518; 11050; 11596; 11596; 11596; 7360; 7360; 7800; 11050; 11050; 7360 | 257; 240; 297; 327; 279; 257; 228; 260; 316; 240; 257; 294; 260; 319; 251; 341; 297; 341; 316; 338; 360; 228; 254; 257; 297; 319; 258 |
Equipped with tank body, air compressor, Roots vacuum pump, lifting cylinder, filtration system, hydraulic support leg, suction and discharge pipeline system and other special devices; Negative pressure is generated by the vacuum pump, and the secondary pollutants are attracted to the tank by vacuum closed charging, and the mixed air of secondary pollutants is separated by dust removal and dust reduction through the dust removal filter system. During discharge, the secondary pollutants are discharged into the special storage container by closed high pressure discharge through the air compressor. The entire operation process is carried out in the closed state and avoided Avoid pollution to the atmospheric environment; Total tank capacity :26.2 cubic meters, effective tank volume :25.0 cubic meters; Transport medium: soot powder, density :420 kg/m3; Tank size: Diameter × tank length (mm):Φ2400×7200; Chassis wheelbase (mm) 1800+4600+1350 leaf spring suspension; Optional pneumatic disc valve at the rear; Optional control valve style at the rear; The rear suction pipe is equipped with rotary adjusting clamp; The red light (operation warning light) installed on the left operation control box | |||
Special devices include Roots vacuum pump, oil-free lubricating swing air compressor, filtration system, lifting oil cylinder, tank body, negative pressure suction, positive pressure discharge, dust filtration and transportation in the tank.
Suction operation steps:
1) When the suction pressure delivery tank truck arrives at the ground storage bin, the vacuum port of the vehicle is butted with the suction interface of the storage system;
2) After the butt joint is completed, the vacuum suction system of the vehicle is started, and the negative pressure in the storage bin is sucked into the bearing tank of the suction pressure delivery tank car through the ground device feeding system of the storage bin.
Layout operation steps:
1) When the material carried by the suction pressure conveying tank truck arrives at the ground material receiving bin, the material discharging interface of the positive pressure pressure discharging system of the vehicle is butted with the material receiving system input interface of the material receiving system device ①;
2) After the butt joint is completed, the positive pressure discharge system of the vehicle is started, and through the material receiving system of the ground device of the material receiving bin, the material in the vehicle bearing tank is pressurized and discharged to the ground material receiving bin by using the compressed gas of the vehicle
