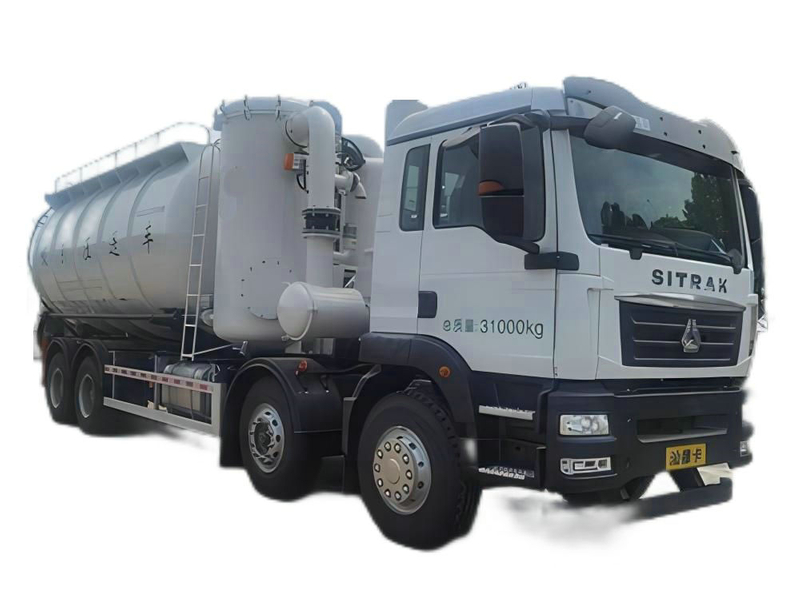

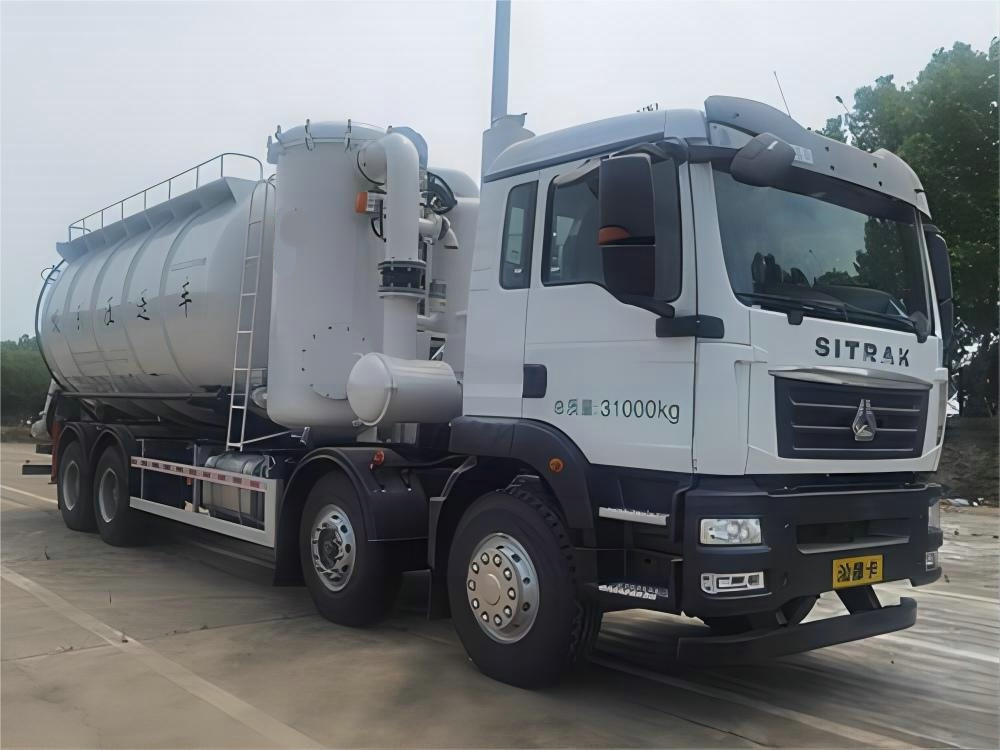

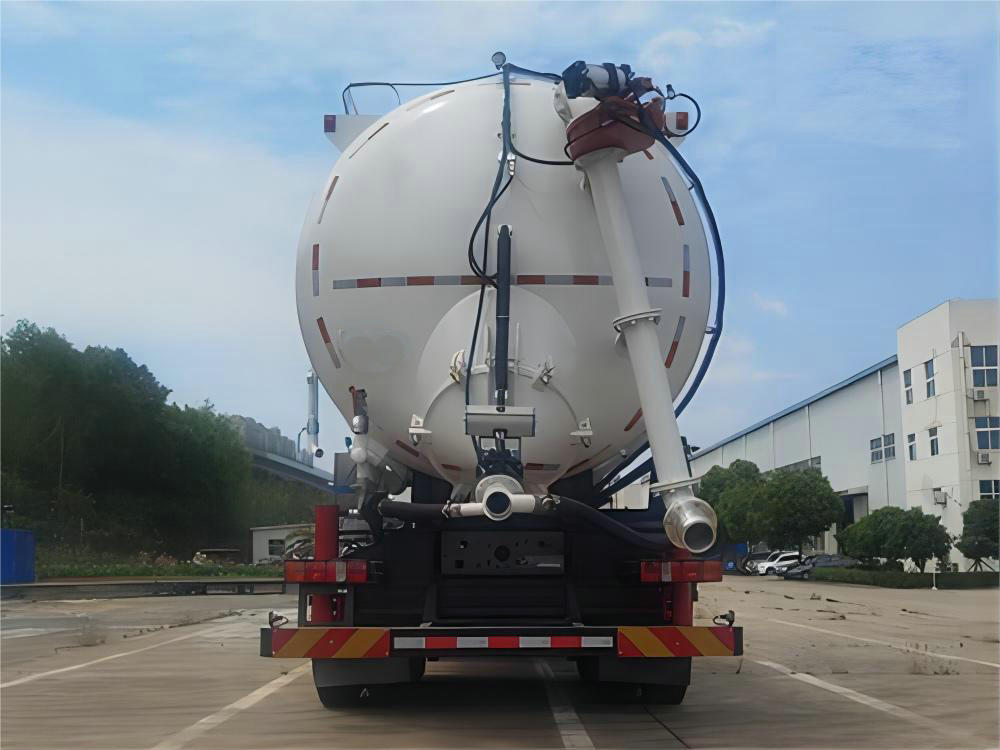

Customizing Supersucker SITRAK High Powered Industrial Vacuum Loader Truck 22M3

GW

31000(Kg)

NET

20510(Kg)

Rated load mass:

10360,10295(Kg)

Rated passenger capacity:

11995×2550×3980,3950(mm)

Anti-lock braking system:

Approach Angle/Departure Angle:

31000(Kg)

Front/rear overhang:

1450/2795(mm)

Axle Load:

6500/7000/17500 (Two axes)

Wheelbase:

1800+3775+1400,1800+3800+1350,

1800+4175+1400,1800+4200+1350,

1800+4375+1400,1800+4400+1350,

1800+4575+1400,1800+4600+1350,

1800+3025+1400,1800+3050+1350,

1800+3575+1400,1800+3600+1350,

1800+3200+1350,1800+3175+1400(mm)

Number of shafts:

4

Maximum speed:

110,80,89(km/h)

Number of tires:

12(PCS)

Tire Specifications:

295/80R22.5 18PR,12R22.5 18PR,11.00R20 18PR,12.00R20 18PR

Fuel consumption:

(L/100Km)

Number of spring pieces:

2/2/4,2/2/5,3/3/4,3/3/5,3/3/10,11/11/10,2/2/-/-,3/3/-/-,11/11/12

Front wheel base:

2015/2015,2035/2035(mm)

Rear wheel base:

1850/1850(mm)

MC07.34-60; MC07.31-60; WP7.300 E61. MC07H.35-60; MC07H.33-60; WP8.350 E61. MC07H.29-60; MC07.33-60; MC07H.31-61; MC07H.35-61; WP8.350 E62

China Heavy Duty Automobile Group Co., LTD.; Weichai Power Co., Ltd.

6870; 6870; 7470; 7360; 7360; 7800; 7360; 6870; 7360; 7360; 7800

251; 228; 220; 257; 240; 257; 213; 240; 228; 254; 257

Equipped with tank body, air compressor, vacuum pump, lifting cylinder and other special devices, through the vacuum pump to produce negative pressure for the powder material vacuum suction loading, using the air compressor positive pressure discharge;

Total tank capacity :24 cubic meters, effective volume :22.8 cubic meters;

Tank size (diameter × length)(mm):2400×6400;

Transport medium: powdered graphite, density :450 kg/m3;

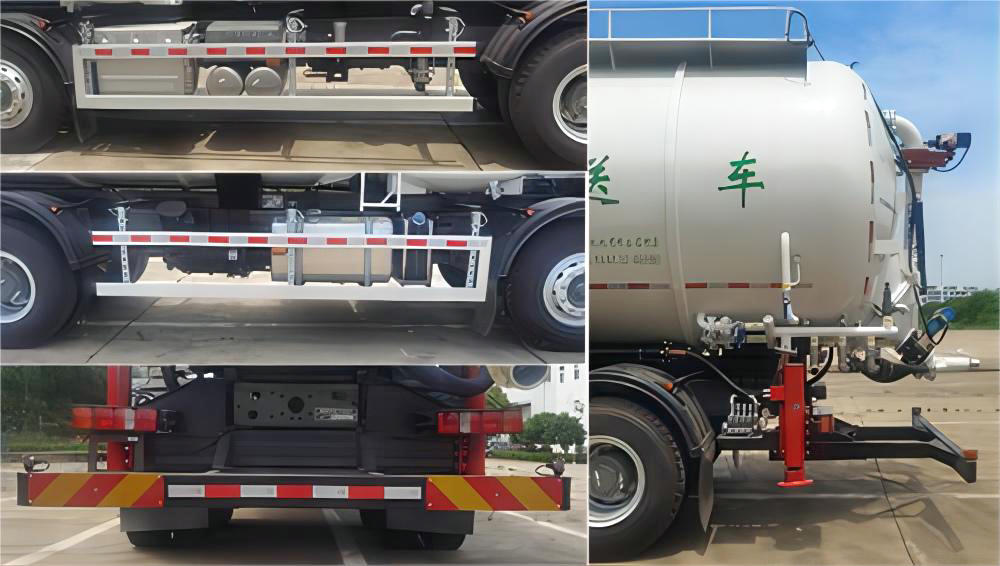

The material used for the side protection is aluminum alloy and is bolted to the subframe;

Wheelbase (mm) :1800+4600+1350;

Optional speed limiting device, speed limiting 80km/h, 89km/h;

Optional driving recorder with satellite positioning function;

optional ordinary cab, front light, Top air conditioning.

Tank volume (m ³ )

 22~24

Optional loading flour and other grain food grade stainless steel tank, pipeline  food grade fluorine rubber parts.

Seal head type

rotary press modelling

Maximum lifting Angle of the tank body

45 °

Maximum working

negative pressure in the tank (mpa)

-0.08

shell of tank

Inbuilt type integral type

With the lifting and unloading function

Landing Gear

Two-way rear leg

hydraulic pressure

Sucking system configuration parameters

vacuum pump

Roots

type

Drive type

PTO

Method of feeding

Negative

pressure suction material

Maximum working

negative pressure (MPa)

—0.05

Sucking speed (T / h)

30～80

According to the material nature and the actual bin site debugging of the optimal speed

Inner diameter of suction pipe (mm)

150

Dust filtration method

Five-level     filter dust removal : capacity expansion     gravity, dust removal, cyclone curve  dust  removal, line,  sexual  gravity dust  removal,  cloth bag     filter     dust removal,  micro-filter foreign           body filtration

50 filter bags (long service life of filter bags)

Exhaust dust content (mg / m³)

8

Filter bag ashcleaning mode

back flushing

Ultra-low emission design description:

1. The filtering system designed by proprietary technology, the first in China.

2,37 filter bag configuration, operation air emission 8 mg / m³ exhaust dust content, greatly improve the enterprise emission

environmental protection standards.

3. Proprietary technology design, larger internal space of the filter

system, reasonable filter bag distribution space, filter bag permeability better, longer service life, greatly saving the replacement cost of vulnerable parts.

Discharge system

remarks

Gas source equipment

air compressor

Or ground external air source

air compressor

The swing is oil- free

Discharge method

1. Pressure discharge

2, emergency open the back cover lifting and dumping

Maximum working

pressure (MPa)

0.2

(Ground air source is equipped with pressure educing valve, with

reduced pressure of <0.2MPa, flow rate >15m³ / min)

Discharge speed (T / h)

30~80 (In no external gas

source, discharge material Highly up to

23 m, reference material for cement)

According to the properties of the material and the actual material warehouse is present Field debugging gives the optimal speed

Inner diameter of

discharge pipe (mm)

100

External explosive materials must be

Transported Nitrogen gas. flour and other grain The air cooling system

should be installed.

Back cover opening mode

Hydraulic on

The rear Manhole cover

opens to the maximum angle

100 °

Manhole cover locking mode

The bolt lock

Residual material rate in the tank

2%

Hydraulic lifting

system configuration parameters

remarks

System pressure (MPa)

16

Hydraulic fuel tank volume (L)

About 80

Other configuration parameters

The suction valve

Valve DN 150 interface DN 150

Chosen Food Grade stainless steel

valve.when loading flour and other grains

Blow-off valve

Valve DN 125 interface DN 100

Other valves

DN50～DN200

Wear-resistant parts

Ceramic elbow and straight pipe (suction and discharge pipe elbow with special process of professional manufacturers)
