Customize Truck Mounted Tanks Cesspit Emptier Tank / Vacuum Truck Bodies Only For Sale Vacuum Tank Superstructure

Customize Truck Mounted Tanks Cesspit Emptier Tank / Vacuum Truck Bodies Only For Sale Vacuum Tank Superstructure
Price: $ 13800
Discount Price: $ 11800
Availability:
Quantity:

  • OEM
  • DRZ
  • 8705909990
  • Shanghai, China
  • 800
  • T/T
  • 1

Customize Truck Mounted Tanks Cesspit Emptier Tank / Vacuum Truck Bodies Only For Sale Vacuum Tank Superstructure

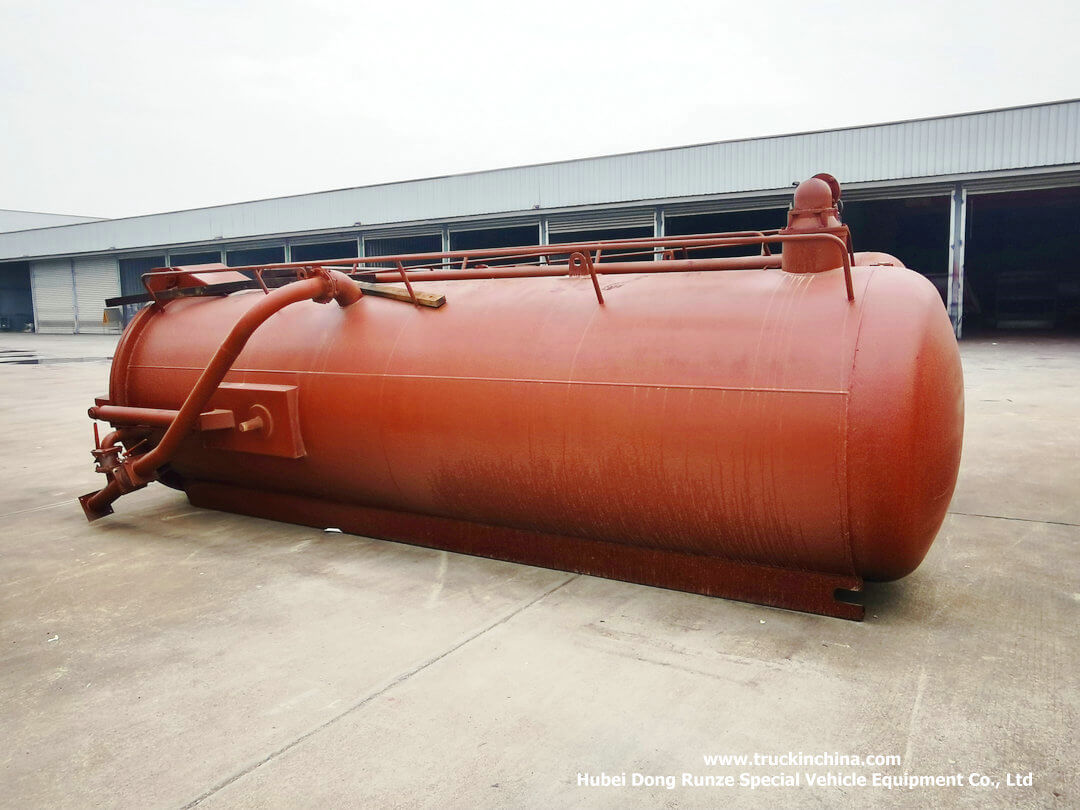

Vacuum Tanker Truck Tank body (7)

Cesspit Emptier  Vacuum Tanker Truck Cesspit Emptier

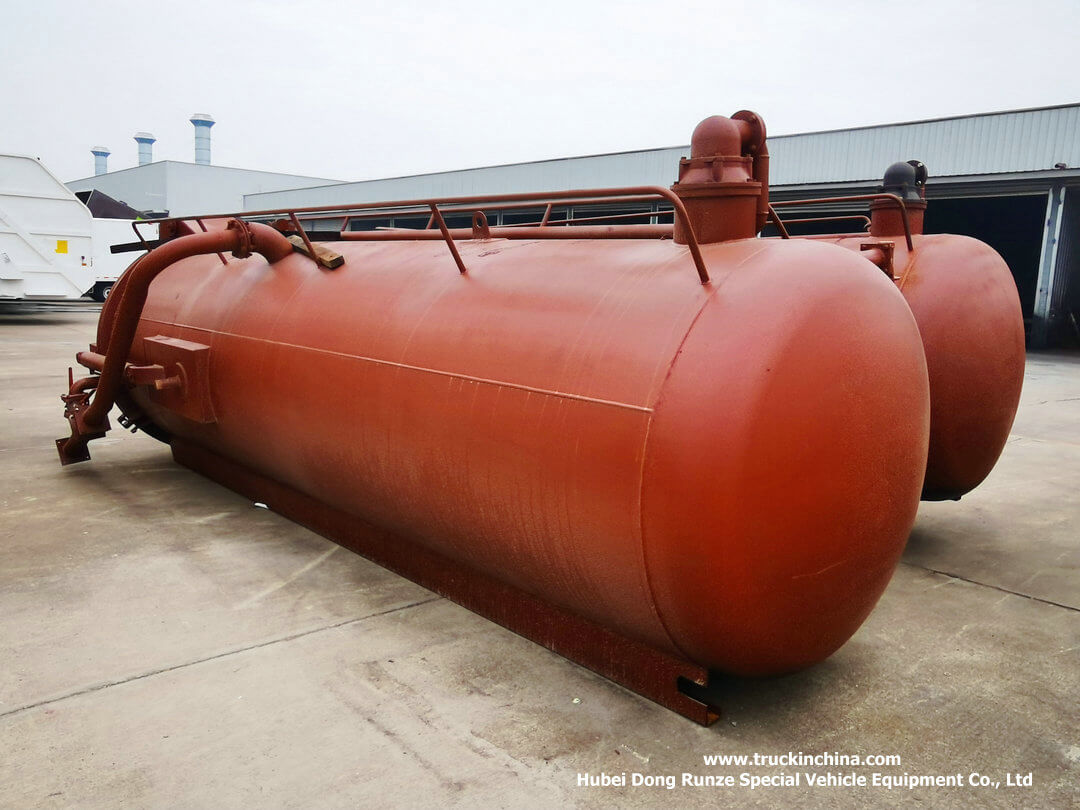

Vacuum Tanker Truck Tank body (9)Combined vacuum jetting tank body (also called vacuum jetting tank superstructure, jet vacuum cleaner body, combined vacuum jetting tanker, vacuum jetting tank body, sewage suction jet tank, sewage vacuum jet superstructure, etc.) will be used to mounted onto chassis to clean and collect liquid such as dirty water, sludge, septic, crude oil, and solid stuff such as small stones, bricks as well. It is suitable for cleaning the sewer, cesspit, cesspool, gully, etc. It is widely used in environment and sanitation field.


FOTON Industrial Vacuum Sewage Truck (17)FOTON Industrial Vacuum Sewage Truck (15)FOTON Industrial Vacuum Sewage Truck (10)FOTON Industrial Vacuum Sewage Truck (14)FOTON Industrial Vacuum Sewage Truck (7)

Sk Water Ring Vacuum Pump

 Liquid Ring Vacuum Pump



Model Remarks Configure Optional
Small Dollicar high pressure cleaning car
The volume is 5 cubic meters. It is made of 4mm high quality carbon steel plate. The high-pressure part is equipped with fu24 / 170 high-pressure plunger pump, two-stage filtration system, high-pressure pump blowing function, automatic return reel and 19 60m high-pressure pipe, 10 high-pressure nozzles, and other standard configurations. If there is a set of cleaning and dirt absorption certificate, it is necessary to add a tank opening (260) of the manure absorption truck, and a 100 ball valve with elbow (240) at the tail, with a total of 500
Small Dollicar cleaning suction truck Vacuum pump The tank has a volume of 5 cubic meters and is made of 5 mm high-quality carbon steel plate. The tank is divided into two compartments. The suction part adopts 5-ton vacuum pump, anti overflow valve, oil-gas separator, water vapor separator, four-way valve and a 108 / 6-meter special sewage suction pipe.The high-pressure part is equipped with fu24 / 170 high-pressure plunger pump, two-stage filtration system, high-pressure pump blowing function, automatic return reel, 19 high-pressure pipe of 60m, 10 high-pressure nozzles and other standard configurations. 5mm for 6mm plus 800, Weilong vacuum pump plus 1500, Sk-6 water circulating pump plus 1800

Water circulating pump The tank has a volume of 5 cubic meters and is made of 5mm high-quality carbon steel plate. The tank is divided into two compartments. The suction part adopts Sk-6 water circulation vacuum pump, anti overflow valve, four-way valve, independent water supply tank, 360 degree universal hanger seat and a 108 / 6m special sewage suction pipe.The other parts are equipped with high-pressure plunger pump and high-pressure coil system, high-pressure pump and high-pressure air distribution system. 5mm for 6mm plus 800
Small Dollicar cleaning and suction truck (hanging beside the water tank) Vacuum pump The volume of the sewage tank is 3.6 cubic meters, which is made of 5 mm high-quality carbon steel plate. The volume of the side hanging water tank is 1.5 cubic meters, which is made of 4 mm high-quality carbon steel plate. The suction part adopts 5 tons vacuum pump, anti overflow valve, oil-gas separator, water vapor separator, four-way valve, with a 108 / 6 meter special sewage suction pipe.The tank can be lifted and the back cover can be opened.The high-pressure part is equipped with fu24 / 170 high-pressure plunger pump, two-stage filtration system, high-pressure pump blowing function, automatic return reel, 19 60m high-pressure pipe and 10 high-pressure nozzles.100 outlet, other standard configuration. 5mm for 6mm plus 500, Sk-6 water circulating pump plus 1800

Water circulating pump The volume of the sewage tank is 3.6 cubic meters, which is made of 5 mm high-quality carbon steel plate. The volume of the side hanging water tank is 1.5 cubic meters, which is made of 4 mm high-quality carbon steel plate. The sewage suction part adopts Sk-6 water circulating pump, which is equipped with independent water supply tank, four-way valve, anti overflow valve and a 108 / 6 meter special sewage suction pipe.The tank can be lifted and the back cover can be opened.The high-pressure part is equipped with fu24 / 170 high-pressure plunger pump, two-stage filtration system, high-pressure pump blowing function, hydraulic automatic return reel, 19 60m high-pressure pipe and 10 high-pressure nozzles.The water and sewage in the rear of the tank are interconnected, 100 and 150 ball valves are installed together, and 100 feed port is installed at the upper part.The tail is equipped with a toolbox on the left and right, and the rest are standard. 5mm for 6mm plus 500, sk-9 water circulation pump plus 500, the above full configuration, vehicle weight 5.6 tons
Small Dollicar cleaning suction truck (water tank on tank) Vacuum pump The volume of the sewage tank is 3.6 cubic meters, which is made of 5 mm high-quality carbon steel plate. The volume of the side hanging water tank is 1.5 cubic meters, which is made of 4 mm high-quality carbon steel plate. The suction part adopts 5 tons vacuum pump, anti overflow valve, oil-gas separator, water vapor separator, four-way valve, with a 108 / 6 meter special sewage suction pipe.The tank can be lifted and the back cover can be opened.The high-pressure part is equipped with fu24 / 170 high-pressure plunger pump, two-stage filtration system, high-pressure pump blowing function, automatic return reel, 19 60m high-pressure pipe and 10 high-pressure nozzles.100 outlet, other standard configuration. 5mm for 6mm plus 500, Sk-6 water circulating pump plus 1800, front with rolling shutter plus 1000

Water circulating pump The volume of the sewage tank is 3.6 cubic meters, which is made of 5 mm high-quality carbon steel plate. The volume of the side hanging water tank is 1.5 cubic meters, which is made of 4 mm high-quality carbon steel plate. The sewage suction part adopts Sk-6 water circulating pump, which is equipped with independent water supply tank, four-way valve, anti overflow valve and a 108 / 6 meter special sewage suction pipe.The tank can be lifted and the back cover can be opened.The high-pressure part is equipped with fu24 / 170 high-pressure plunger pump, two-stage filtration system, high-pressure pump blowing function, automatic return reel, 19 60m high-pressure pipe and 10 high-pressure nozzles.The water and sewage in the rear of the tank are interconnected, 100 and 150 ball valves are installed together, and 100 feed port is installed at the upper part.The tail is equipped with a toolbox on the left and right, and the rest are standard. 5mm for 6mm plus 500, replace sk-9 water circulation pump plus 500, front with rolling shutter door plus 1000, install pinfu 24 / 170 high pressure pump, Sk-6 water ring pump, 5mm thick tank, two 100 ball valves installed at the tail, with rolling shutter door, vehicle weight 5.15 tons
Dollicar high pressure cleaning
The tank volume is 8 cubic meters. It is made of 4mm high-quality carbon steel plate. The high-pressure part is equipped with fu24 / 170 high-pressure plunger pump, two-stage filtration system, high-pressure pump blowing function, automatic return reel and 19 60m high-pressure pipe, 10 high-pressure nozzles, and other standard configurations. For a set of cleaning and dirt absorption certificate, it is necessary to add a tank opening (260) of a manure absorption truck and a 100 ball valve with elbow (240) at the tail, totaling 500
 cleaning suction dung Vacuum pump The tank has a volume of 8 cubic meters and is made of 5 mm high-quality carbon steel plate. The tank is divided into two compartments. The suction part adopts 5-ton vacuum pump, anti overflow valve, oil-gas separator, water vapor separator, four-way valve and a 108 / 6-meter special suction pipe.The high-pressure part is equipped with fu24 / 170 high-pressure plunger pump, two-stage filtration system, high-pressure pump blowing function, automatic return reel, 19 high-pressure pipe of 60m, 10 high-pressure nozzles and other standard configurations. Replace 8t vacuum pump with 600 and Weilong 5T vacuum pump with 1500

Water circulating pump The tank has a volume of 8 cubic meters and is made of 5mm high-quality carbon steel plate. The tank is divided into two compartments. Sk-6 water circulation vacuum pump, anti overflow valve, four-way valve, independent water supply tank, 360 degree universal hanger seat and a 108 / 6m special sewage suction pipe are used for the sewage suction part.The high-pressure part is equipped with fu24 / 170 high-pressure plunger pump, two-stage filtration system, high-pressure pump blowing function, automatic return reel, 19 high-pressure pipe of 60m, 10 high-pressure nozzles and other standard configurations. Replace sk-9 water circulating pump and add 500
 cleaning and suction vehicle (integrated tank) Vacuum pump The volume of sewage tank is 8 cubic meters, which is made of 5mm high-quality carbon steel plate. According to the customer's requirements, the tank is divided into two warehouses (4 cubic meters of sewage warehouse and 4 cubic meters of clean water warehouse). The sewage suction part adopts 8 ton vacuum pump, anti overflow valve, oil-gas separator, water vapor separator, four-way valve, and is equipped with a 108 / 6 meter special sewage suction pipe.The tank can be lifted and the back cover can be opened.The high-pressure part is equipped with a 24mp / 170 flow high-pressure plunger pump. The high-pressure pump adopts a two-stage filtration system for water inlet, and is equipped with a high-pressure pump blowing function (to prevent the high-pressure pipe residual water from freezing in winter), an automatic return reel and a 60m high-pressure pipe of 19, 10 high-pressure nozzles, and a tail outlet of 100.Other standard configuration.

Water circulating pump The volume of sewage tank is 8 cubic meters, which is made of 5mm high-quality carbon steel plate. According to the customer's requirements, it is divided into two warehouses (4 cubic meters for sewage warehouse and 4 cubic meters for clean water warehouse). The sewage suction part adopts sk-9 water circulating pump and is equipped with independent water supply tank. The air inlet pipe is equipped with filtering device, coupling drive, four-way valve, anti overflow valve, and a 108 / 6m special sewage suction pipe.The tank can be lifted and the back cover can be opened.The high-pressure part is equipped with a 24mp / 170 flow high-pressure plunger pump. The high-pressure pump adopts a two-stage filtration system for water inlet, and is equipped with a high-pressure pump blowing function (to prevent the high-pressure pipe residual water from freezing in winter), an automatic return reel and a 60m high-pressure pipe of 19, 10 high-pressure nozzles, and a tail outlet of 100.Other standard configuration.
 cleaning and suction truck (hanging beside the water tank) Vacuum pump The volume of sewage tank is 5.5 cubic meters, which is made of 5 mm high-quality carbon steel plate. The volume of side hanging water tank is 2.5 cubic meters, which is made of 4 mm high-quality carbon steel plate. The suction part adopts 8 ton vacuum pump, anti overflow valve, oil-gas separator, water vapor separator, four-way valve, and is equipped with a 108 / 6 meter special sewage suction pipe.The tank can be lifted and the back cover can be opened.The high-pressure part is equipped with fu24 / 170 high-pressure plunger pump, two-stage filtration system, high-pressure pump blowing function, automatic return reel, 19 60m high-pressure pipe and 10 high-pressure nozzles.100 outlet, other standard configuration. Replace sk-9 with 2000 and Tianjin Tongjie high pressure pump with 1800

Water circulating pump The volume of the sewage tank is 5.5 cubic meters, which is made of 5mm high-quality carbon steel plate. The volume of the side hanging water tank is 2.5 cubic meters, which is made of 4mm high-quality carbon steel plate. The sewage suction part adopts sk-9 water circulating pump, with independent water supply tank, four-way valve and a 108 / 6m special sewage suction pipe.The tank can be lifted and the back cover can be opened.The high-pressure part is equipped with fu24 / 170 high-pressure plunger pump, two-stage filtration system, high-pressure pump blowing function, automatic return reel, 19 60m high-pressure pipe and 10 high-pressure nozzles.The water and sewage are required to be interconnected at the rear, 100 and 150 ball valves are installed at the same time, and 100 feed port is installed at the upper part.The tail is equipped with a toolbox on the left and right, and the rest are standard. Replace Tianjin Tongjie high pressure pump with 1800
cleaning and sucking vehicles (large volume hanging beside the water tank) Vacuum pump The volume of sewage tank is 7 cubic meters, which is made of 5 mm high-quality carbon steel plate. The volume of side hanging water tank is 2.2 cubic meters, which is made of 4 mm high-quality carbon steel plate. The suction part adopts 8 tons vacuum pump, anti overflow valve, oil-gas separator, water vapor separator, four-way valve, and is equipped with a 108 / 6 meter special sewage suction pipe.The tank can be lifted and the back cover can be opened.The high-pressure part is equipped with fu24 / 170 high-pressure plunger pump, two-stage filtration system, high-pressure pump blowing function, automatic return reel, 19 60m high-pressure pipe and 10 high-pressure nozzles.100 outlet, other standard configuration. Replace sk-9 with 2000 and Tianjin Tongjie high pressure pump with 1800

Water circulating pump The volume of the sewage tank is 7 cubic meters, which is made of 5 mm high-quality carbon steel plate. The volume of the side hanging water tank is 2.2 cubic meters, which is made of 4 mm high-quality carbon steel plate. The sewage suction part adopts sk-9 water circulating pump, with independent water supply tank, four-way valve and a 108 / 6 meter special sewage suction pipe.The tank can be lifted and the back cover can be opened.The high-pressure part is equipped with fu24 / 170 high-pressure plunger pump, two-stage filtration system, high-pressure pump blowing function, automatic return reel, 19 60m high-pressure pipe and 10 high-pressure nozzles.The water and sewage are required to be interconnected at the rear, 100 and 150 ball valves are installed at the same time, and 100 feed port is installed at the upper part.The tail is equipped with a toolbox on the left and right, and the rest are standard. Replace Tianjin Tongjie high pressure pump with 1800
 cleaning and suction trucks (the water tank is on the box) Vacuum pump The volume of sewage tank is 7 cubic meters, which is made of 5 mm high-quality carbon steel plate. The volume of side hanging water tank is 2.2 cubic meters, which is made of 4 mm high-quality carbon steel plate. The suction part adopts 8 tons vacuum pump, anti overflow valve, oil-gas separator, water vapor separator, four-way valve, and is equipped with a 108 / 6 meter special sewage suction pipe.The tank can be lifted and the back cover can be opened.The high-pressure part is equipped with fu24 / 170 high-pressure plunger pump, two-stage filtration system, high-pressure pump blowing function, automatic return reel, 19 60m high-pressure pipe and 10 high-pressure nozzles.100 outlet, other standard configuration. Replace sk-9 with 2000 and Tianjin Tongjie high pressure pump with 1800
Install a 750 mm apron
Installation of warning light and arrow light

Water circulating pump The volume of the sewage tank is 7 cubic meters, which is made of 5 mm high-quality carbon steel plate. The volume of the side hanging water tank is 2.2 cubic meters, which is made of 4 mm high-quality carbon steel plate. The sewage suction part adopts sk-9 water circulating pump, with independent water supply tank, four-way valve and a 108 / 6 meter special sewage suction pipe.The tank can be lifted and the back cover can be opened.The high-pressure part is equipped with fu24 / 170 high-pressure plunger pump, two-stage filtration system, high-pressure pump blowing function, automatic return reel, 19 60m high-pressure pipe and 10 high-pressure nozzles.The water and sewage are required to be interconnected at the rear, 100 and 150 ball valves are installed at the same time, and 100 feed port is installed at the upper part.The tail is equipped with a toolbox on the left and right, and the rest are standard. Replace sk-12 water circulating pump with 1500, Tianjin Tongjie high pressure pump with 1800, install a apron tank mouth with 750, install warning arrow light with 700, install pf22mp / 215 flow, sk-12 water circulating pump with 5mm thick tank body, and the vehicle weight is 7.15t
Tianjin King Run cleaning and suction vehicle (integrated tank)
Upper configuration: the tank volume is 14.5m3, made of 6mm high-quality carbon steel plate. It is required to be divided into two warehouses (10 cubic meters of sewage warehouse and 5 cubic meters of water warehouse). The sewage suction part is equipped with 10 ton vacuum pump produced in Suizhou, oil-gas separator, water vapor separator, four-way valve, anti overflow valve, and a 6m special sewage suction pipe.In the middle of the tank, 100 water and sewage are interconnected. There is a 100 outlet ball valve at the rear of the tank. The back cover of the tank can be opened and the tank can be lifted.High pressure part: high pressure pump adopts PF22 / 215 (22 MPa, 215 flow) high-pressure plunger pump, two-stage filtration system, and equipped with high-pressure pump blowing function, automatic return reel (hydraulic control), 19 60m high-pressure pipe (high-pressure pipe), 10 high-pressure nozzles (factory standard).Other standard configuration.
Tianjin cleaning and suction truck (hanging beside the water tank) Optional It is made of Dongfeng Tianjin chassis, 4700 wheelbase, Kangji 210 HP engine, original ABS, air conditioner, direction assist, 1000 steel tire.Sewage suction part: the volume of sewage tank is 15 cubic meters, which is made of 8mm high-quality carbon steel plate. It is required to be divided into two bins (10 cubic meters of sewage bin and 5 cubic meters of water bin). The top is placed in the dump. There are two 100 ball valves at the rear of the tank (sewage discharge), 400 hydraulic quick opening discharge, two 100 feed ports at the side (direction of copilot), and 150 ball valves at the side of the tank (cylinder operation).Try to use iron pipe for hydraulic oil pipe.High pressure part: equipped with Tianjin Tongjie 19 / 250 high pressure plunger pump, pump head double water, two-stage filtration system, and equipped with high-pressure pump blowing function, with automatic return reel (hydraulic control) and 22 high-pressure pipe of 60m, 10 high-pressure nozzles (factory standard).Other standard configuration, vehicle color "yellow / red". Equipped with sk30 water circulation vacuum pump of old Weichai 370 engine plus 33000 (Used or renew engine)
Old Weichai 370 engine sk42 water circulation vacuum pump plus 35000 (OEM Weichai 420, Used or renew engine)
Equipped with sk42 water circulation vacuum pump of old Weichai 420 engine plus 40000 yuan (Used or renew engine)
Equipped with sk42 water circulation vacuum pump of old Weichai 420 engine plus 42000 (refurbished machine, Used or renew engine)
Add 45000 for 2be253 water circulation vacuum pump of old Weichai 420 engine (Guoer, Used or renew engine) and add 50000 for 2be253 water circulation vacuum pump of old Weichai 420 engine (Guosan, Used or renew engine)
Equipped with 2be253 water circulation vacuum pump of old Weichai 420 engine plus 55000 (refurbished machine, Used or renew engine)
Tianlong cleaning and suction truck Optional Made of Dongfeng Tianlong double bridge chassis, Kangji 270 HP engine, wheelbase 4350 + 1350.Sewage absorption part: the volume of sewage tank is 20 cubic meters, which is made of 8mm high-quality carbon steel plate. Three channel steel stirrups are added on the outside of the tank. It is required to be divided into two warehouses (sewage tank is 15 cubic meters, water tank is 5 cubic meters, partition plate is required to use spherical head). The two warehouses are connected by 100 ball valves. The upper part of clean water tank and sewage tank is made of water diffuser, and 50 steel valves are added on the left and right sides of clean water tank (convenient for hand washing).There is a ladder on the side of the tank, which is placed on the top during the self unloading.There is a 150 ball valve on the left side of the rear head, a 600 hydraulic quick open valve in the middle, two 100 ball valves on the right side and a 100 ball valve on the right side. The 150 ball valve at the lower part of the tank body is discharged secretly. The overflow valve is increased at the upper part of the tank body. The water circulating pump water tank is as large as possible, and the drainage ball valve is installed.Both sides of the tank are paved with patterned plate platform and equipped with an 8m sewage suction hose.High pressure part: pinfu 19 / 270 high-pressure plunger pump, two-stage filtration system, high-pressure pump blowing function, automatic return reel (hydraulic control), 22 60m high-pressure pipe and 10 high-pressure nozzles (factory standard) are adopted.
Other standard configuration, vehicle color "yellow / red".

Shuangyao 300 L flow high pressure pump can be selected. If Tongjie 300 L flow high pressure pump plus 6000
The rear reel requires hydraulic rotation plus 1000
2.0 stainless steel plate and 2000 stainless steel plate are laid inside the tank
Replace stainless steel and 3000 stainless steel in the aisle beside the tank
Arrow light 700, warning light 1000
Equipped with sk30 water circulation vacuum pump of old Weichai 370 engine plus 33000 (Used or renew engine)
Old Weichai 370 engine sk42 water circulation vacuum pump plus 35000 (OEM Weichai 420, Used or renew engine)
Equipped with sk42 water circulation vacuum pump of old Weichai 420 engine plus 40000 yuan (Used or renew engine)
Equipped with sk42 water circulation vacuum pump of old Weichai 420 engine plus 42000 (refurbished machine, Used or renew engine)
Equipped with 2be253 water circulation vacuum pump of old Weichai 420 engine plus 45000 (EURO 2 , Used or renew engine)
Equipped with 2be253 water circulation vacuum pump of old Weichai 420 engine plus 50000 (Guosan, Used or renew engine)
Equipped with 2be253 water circulation vacuum pump of old Weichai 420 engine plus 55000 (refurbished machine, Used or renew engine)

key Words:  Vacuum Jetting Tank Body, Vacuum Jet Body Superstructure, Vacuum Jetting Tank Skid

Customizing   Vacuum Pump

Cesspool Emptying Pump ,vacuum suction Pump , sewage Pump , slurry Pump

50QZXDF-98/8500 1000 8500Pa(91.5%) 98 5.5  For 3-5 Ton Vacuum tanker
50QZXDH-45/7000 800 7000Pa(93%) 45 4  For 1-3 Ton Vacuum tanker
50QZXDG-30/400 500 400Pa(99.6%) 30 3
50QZXDH-68/7000 800 7000Pa(93%) 68 5    For 5-8 Ton Vacuum tanker
50QZXDG-45/400 500 400Pa(99.6%) 45


65QZXDG-68/400 500 400Pa(99.6%) 68   For 8 -20Ton Vacuum tanker

65QZXDH-110/7000 800 7000Pa(93%) 6110   For 8-20 Ton Vacuum tanker

DFAC Vacuum Truck   (also called cesspit emptier vehicle, sewer cleaning truck, sewage tanker, sewer truck, cesspit emptier, gully emptier, vacuum truck, gully emptier, waste vacuum tanker, vacuum tanker, sewage truck) is used to collect, transport and discharge liquid such as dirty water, sludge, septic, crude oil, and solid stuff such as small stones, bricks as well. It is suitable for cleaning the sewer, cesspit, cesspool, gully, etc. It is widely used in environment and sanitation field.

---- DFAC chassis, perfect performance

---- CUMMINS technology engine option, super powerful, no overhaul within 100,000 km.

---- Vacuum Tanker body capacity from 3 to 20 Cublic Meter.

---- Easy operation and easy maintenance.

---- Virious types of refuse container lifter are available.

1. Chassis:
1) Drive type: 4x2, 4x4, 6x4, 8x4 etc.
2) Our factory has good business relationship with DONGFENG, FOTON, QL-ISUZU, FAW, SINOTRUCK, SHACMAN, JAC, JMC, etc.

2. Tanker body:From 2m3 to 30 m3 capacity.
3. Accessory of sewage suction factions: Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.
---- Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically.
---- Adopt EU vacuum pump (Italy brand) or equivalent China top brand double vacuum pumps, super powerful, highly efficient.
---- Pump can be operated by a hydraulic motor or by an auxiliary engine.
---- Adopt imported high pressure pump or equivalent China top brand pump.
---- Overfill system with music horn is equipped, preventing the vacuum pump damage from sewage water into vacuum pump when the tank is full.
---- Nice shape, rational structure, durable and long service life.
Combined vacuum jetting tank body (also called vacuum jetting tank superstructure, jet vacuum cleaner body, combined vacuum jetting tanker, vacuum jetting tank body, sewage suction jet tank, sewage vacuum jet superstructure, etc.) will be used to mounted onto chassis to clean and collect liquid such as dirty water, sludge, septic, crude oil, and solid stuff such as small stones, bricks as well. It is suitable for cleaning the sewer, cesspit, cesspool, gully, etc. It is widely used in environment and sanitation field.
It has two main parts. The high pressure jetting part to remove the blocked sewage, the other vacuum suction part collect the sewage.

used to collect, transport and discharge liquid such as dirty water, sludge, septic, crude oil, and solid stuff such as small stones, bricks as well. It is suitable for cleaning the sewer, cesspit, cesspool, gully, etc. It is widely used in environment and sanitation field.

 Combi Vacuum Jetting Truck

King Run Sewer Vacuum Trucks (VAC Tanker Mounted with Rotatble Boom Jib)

King Run Sewer Cleaning Sucking Combined Jetting Truck (Clean Water Tank 4m3; Sewage Tank 6m3 Suction Pipe With Rotary Jib)

Dongfeng High Pressure Vacuum Tanker Trucks Combined Sewer Jetting Clean Water Tank 7m3; Sewage Tank 9m3 Liquid Ring Vacuum Pump

500HP Df Chenglong H7 Combined Sewer Jetting Vacuum Tanker (Clean Water Tank 11800Liter, Sewage Tank 14700Liter)

Dongfeng High Pressure Vacuum Tanker Trucks Combined Sewer Jetting Clean Water Tank 7m3; Sewage Tank 9m3 Liquid Ring Vacuum Pump

Customizing Japan Brand Ftr 205HP Combined Sewer Jetting Vacuum Tank Truck (Clean Water Tank 4000Liter, Sewage Tank 4000Liter) with Jurop

Dongfeng High Pressure Vacuum Tanker Trucks Combined Sewer Jetting Clean Water Tank 7m3; Sewage Tank 9m3 Liquid Ring Vacuum Pump

King Run Sewer Vacuum Trucks (VAC Tanker Mounted with Rotatble Boom Jib)

Dongfeng High Pressure Vacuum Tanker Trucks Combined Sewer Jetting Clean Water Tank 7m3; Sewage Tank 9m3 Liquid Ring Vacuum Pump

Shacman 20 Ton Septic Tank Sewage Vacuum Truck, Cesspit Emptier, Sewer Vacuum Tanker Truck

Dongfeng High Pressure Vacuum Tanker Trucks Combined Sewer Jetting Clean Water Tank 7m3; Sewage Tank 9m3 Liquid Ring Vacuum Pump

Obm OEM ODM Combined 7m3 Clean Water Tank 9m3 Sewage Tank Foton 16 -20ton Sewer Jetting and Vacuum Tanker Trucks 6X4

Dongfeng High Pressure Vacuum Tanker Trucks Combined Sewer Jetting Clean Water Tank 7m3; Sewage Tank 9m3 Liquid Ring Vacuum Pump






Vacuum jetting tank SKD (also called vacuum jetting tank superstructure, jet vacuum cleaner body, combined vacuum jetting tanker, vacuum jetting tank body, sewage suction jet tank, sewage vacuum


Model

Model

Main Specification

Displacement

Unit Price

Biogas digester waste suction truck   waste suction truck

HLN5040GZXE5

Chassis model eq1041sj3bdf, engine model cy4bk551, Euro  5  emission, effective volume of sewage suction tank: 2m3, high-power vacuum sewage suction pump, water vapor, oil-gas separation, sewage suction vehicle is equipped with 6m sewage suction pipe as standard, equipped with air conditioner, ABS, central lock and electric glass

3707ml

US$23,175


HLN5070GZXE5

Chassis model eq1070sj3bdf, engine model cy4bk551, Euro  5  emission, tank effective volume of 5M3, standard configuration of 6m sewage suction pipe, high-power vacuum sewage suction pump, water vapor, oil-gas separator, air conditioner, ABS, central lock and electric glass

3707ml

US$24,444


HLN5110GZXE5

Chassis model: eq1110sj8bdc, engine model;Cy4sk251 (yc4s150-50) is discharged in the fifth Euro  5  year plan, with an effective volume of 7.5m3, a high-power vacuum sewage pump and a water vapor and oil-gas separator.Equipped with air conditioner, ABS, central lock, electric glass and 6m sewage suction pipe

3856ml

US$29,365


HLN5160GZXE5

Chassis model eq1165lj9bde, engine model yc4eg170-50, Euro  5  emission, tank effective volume of 12m3, equipped with air conditioner, ABS, central lock, electric glass, high-power vacuum sewage pump, water vapor, oil-gas separation, and 6m sewage suction pipe

4730ml

US$35,714


Dongfeng 145 manure suction truck

Clw5160gxee5

Chassis model: eq1168glj5 engine model: yc4e160-56, power: 118kW, wheelbase: 3950mm, 9.00-20,

4260ml

US$24,762

Most Lika suction trucks

Clw5081gxee5

Chassis model: eq1080sj8bdc engine model: cy4sk251, power: 115KW, wheelbase: 3800mm, 7.5or16

3856ml

US$20,952

Little Dorica dung truck

Clw5070gxed5

Chassis model: eq1070sj3bdf engine model: cy4bk551, power: 75kW, wheelbase: 3308mm, 7.00-16

3707ml

US$17,778

Fecal suction truck

Smq5070gzxeqe5 biogas digester suction truck

Chassis model: eq1070sj3bdf;Engine model / power (kw): cy4bk551 / 75 (see page 729 for details)

3707ml

US$20,814

Smq5081gxw sewage suction truck

Chassis model: bj1089vejca-aa;Engine model / power (kw): Kunming Yunnei yn36qne / 85 (see page 745 for details)

3612ml

US$29,943

Fecal suction truck

CGJ5073GXEE5

See the configuration table in the technical document

2892ml

US$38,889

Fecal suction truck

DLQ5080GXE5

Chassis model: eq1080sj8bdc, engine model: cy4sk251, power: 115KW, wheelbase: 3800mm, nylon tire, environmental protection

3856ml

US$28,048

Fecal suction truck

DLQ5070GXE5

Chassis model: eq1070dj3bdf, engine model: yc4fa115-50, power: 85KW, wheelbase: 3360mm, nylon tire, environmental protection

3707ml

US$24,730

12 cubic septic truck

SZD5160GXEZ5

Chassis model: eq1160gz5dj, engine model: isb190 50, power: 140kW, wheelbase: 4500mm, nylon tire, environmental protection,


US$34,079

9 cubic septic truck

SZD5110GXE5

Bottom chassis model: eq1110sj8bdc, engine model: cy4sk251, power: 115KW, wheelbase: 3800mm, nylon tire, environmental protection,


US$26,079

5 cubic septic truck

SZD5070GXE5

Chassis model: eq1070sj3bdf, engine model: cy4bk551, power: 75kW, wheelbase: 3308mm, nylon tire, environmental protection and


US$23,365

Tianjin 10m3 manure suction truck

SZD5160GXED5V

Chassis model: dfl1160bx1v, engine model: isb180 50, power: 1322kw, wheelbase: 4700mm, nylon tire, ABS, environmental protection


US$37,397

Fecal suction truck

Hys5122gxee septic truck

Chassis eq1211glnj engine model yc4d140n

4214

US$46,524

Chassis eq1211glnj engine model cy4102

3856


Hys5040gxee5 septic truck

Chassis eq1041sj3bdf engine model cy4bk551

3707

US$32,873

Chassis eq1041sj3bdf engine model yc4fa115-50

2982


Hys5070gxee5 septic truck

Chassis eq1070sj3bdf engine model cy4bk551 Yifeng pump, with Sight Glass level gauge , gravity port, cleaning device, dung suction pipe with boom seat, vacuum pump, water oil separator and anti overflow valve

3707

US$32,873

Chassis eq1070sj3bdf engine model yc4fa115-50 Yifeng pump, with Sight Glass level gauge , gravity port, cleaning device, dung suction pipe with boom seat, vacuum pump, water oil separator and anti overflow valve

2982


Hys5110gxee5 septic truck

Chassis eq1110sj8bdc engine model cy4sk251 Yifeng pump, with Sight Glass level gauge , gravity port, cleaning device, dung suction pipe, suspender seat, vacuum pump, water oil separator and anti overflow valve

3856

US$40,413

Chassis eq1110sj8bdc engine model yc4s150-50 Yifeng pump, with Sight Glass level gauge , gravity port, cleaning device, dung suction pipe with boom seat, vacuum pump, water oil separator and anti overflow valve

3767


Fecal suction truck

Jda5071gxeeq5 septic truck

Vacuum pump, water gas separator, oil gas separator, suspender seat, with Sight Glass level gauge

3707

US$43,127

2540


3298


Jda5080gxebj5 septic truck

Vacuum pump, water gas separator, oil gas separator, suspender seat, with Sight Glass level gauge

3760

US$47,651

2780


2771


Jda5110gxeeq5 septic truck

Vacuum pump, water gas separator, oil gas separator, suspender seat, with Sight Glass level gauge

3856

US$58,206

3857


3767


Fecal suction truck

Scs5030gxebj septic truck

Vacuum pump, water gas separator, oil gas separator, suspender seat, with Sight Glass level gauge

1499

US$26,389

Scs5041gxe5 septic truck

Vacuum pump, water gas separator, oil gas separator, suspender seat, with Sight Glass level gauge

3707

US$39,960

2545


3298


Scs5040gxecal septic truck

Vacuum pump, water gas separator, oil gas separator, suspender seat, with Sight Glass level gauge

3707

US$39,960

3298


3760


Scs5073gxebj septic truck

Vacuum pump, water gas separator, oil gas separator, suspender seat, with Sight Glass level gauge

2545

US$47,651

2672


Scs5080gxebj septic truck

Vacuum pump, water gas separator, oil gas separator, suspender seat, with Sight Glass level gauge

3760

US$49,159

2780


2771


Scs5072gxed5 septic truck

Vacuum pump, water gas separator, oil gas separator, suspender seat, with Sight Glass level gauge

3707

US$47,500

2545


3298


Scs5111gxebd5 septic truck

Vacuum pump, water gas separator, oil gas separator, suspender seat, with Sight Glass level gauge

3856

US$62,579

3767


3760


Scs5110gxe5 septic truck

Vacuum pump, water gas separator, oil gas separator, suspender seat, with Sight Glass level gauge

3856

US$70,119

3857


3767


Scs5160gxed5 septic truck

Vacuum pump, water gas separator, oil gas separator, suspender seat, with Sight Glass level gauge

4752

US$82,937

5900


6700


Scs5180gxeq5 septic truck

Vacuum pump, water gas separator, oil gas separator, suspender seat, with Sight Glass level gauge

4752

US$64,841

5900


6700


Fecal suction truck

BJ5073GXE-AA

Kangrui H2, wheelbase 3360, quanchai 4b2-115c50 national V power non breaking air brake resources, 5ts32 gearbox, NPR rear axle, 7.00R16 tire, metal paint installation, dynamic rotation, drying tank, shroud, air conditioner and multimedia
4-square manure suction truck, 5 / 6mm thick tank, 40 / 63 vacuum pump, with oil-gas separator, water vapor separator, anti overflow valve and other devices, with optional boom structure

2.545

US$19,095

Fecal suction truck

WFA5041GXEFE5

Chassis: bj1046v9pb4-k2

2270

US$28,571

Engine: 4a2-68c50 50KW vacuum pump model: xd-50


Tank volume: 2.3m3


Overall dimension: 6310×1770×2150mm


WFA5124GXEEE5

Chassis: Dongfeng dfh1120b1

4752

US$50,794

Engine: eqh160-52 118kW vacuum pump model: xd-50


Tank volume: 8.6m3


Overall dimension: 6820×2400×3510/3210/2980mm


WFA5161GXEEE5

Chassis: Dongfeng dfl1160bx1v

4500

US$56,984

Engine: isd180 50 132kw


Vacuum pump model: xd-50


Tank volume: 12.1m3


Overall dimension: 7615×2420×3370mm


WFA5071GXEEE5NG

Chassis: Dongfeng dfa1070sj12n5

3856

US$38,730

Engine: cy4102-n5d 84kw


Vacuum pump model: xd-50


Tank volume: 4.5m3


Overall dimension: 5805×2080×2770mm


WFA5082GXEFE5

Chassis: Futian bj5089xxy-fa

3760

US$43,492

Engine: isf38s5141 105KW


Vacuum pump model: xd-50


Tank volume: 5.6m3


Overall dimension: 6100 / 6125×2140×2890mm


WFA5162GXEEE5

Chassis: Dongfeng eq1160gz5dj

6700

US$53,968

Engine: isd210 50 155kw


Vacuum pump model: xd-50


Tank volume: 12.1m3


Overall dimension: 7740 / 7940×2470×3390mm


Fecal suction truck
(clean energy: natural gas)

WFA5163GXEEE5NG

Chassis: Dongfeng eq1160gd5nj

6494

US$62,063

Engine: yc6j210n-52 155kw


Vacuum pump model: xd-50


Tank volume: 11.2m3


Overall dimension: 7930×2500×3280mm


Fecal suction truck

Zlj5120gxedfe5 manure suction truck

Chassis model: dfh1120b1
Main engine model: eqh160-53
Maximum total mass kg: 12490
Maximum cleaning capacity (m2 / h):
Water tank volume (m)³) :6.9

4752

US$61,111

Zlj5160gxedfe5 manure suction truck

Chassis model: dfl1160bx1v
Main generator model: ISD 210 50
Maximum total mass kg: 15800
Water tank volume (m)³) 9.5

6700

US$67,460

Zlj5070gxeeqe5 manure suction truck

Chassis model: eq1070sj3bdf
Main engine model: cy4bk551
Maximum total mass kg: 7360
Water tank volume (m)³) :4.2

3707

US$43,238

Fecal suction truck

Xzl5070gxe5 septic truck

3308mm/YN27CRE1

2672

US$29,556

Xzl5169gxe5 septic truck

4500mm/ISB190 50

5900

US$49,000

Xzl5060gxe5 septic truck

3360mm/JX493ZLQ5

2771

US$28,048


Previous:
Next:

SUCCESS CASES

More >>

Contact Us

EMAIL:Sale@tictrucks.com,
TEL: +86-152-7135 7675 (Mr. King) ; TEL: +86-135-9782 8741 (Mr. Xi);
 WeiChat: king253725877 ; Keanxisong
truck in china weichat made in china truck
 Add:Wuhan Office 1: No.1 Taizong Avenue Gaoqiao Industry Park Taiwanese  Investment Area Dongxihu District Wuhan City, Hubei Province, P.R China
Address CRRC Factory : No. 8 Jiliangdadao,Zengdu Economic Development Zone,Suizhou City, Hubei Province, P.R China P.O. Box 441300
Address Yuchai DTA Truck Factory : No. 121, Liangshui 1St Road, Zengdu Economic Development Zone Suizhou City, P.R. China  P.O. Box 441300  .......

Hubei Dong Runze Special Vehicle Equipment Co., Ltd. All rights reserved. 2009-2024 XML Site Map webmail   Made-in-China.com    https://tictrucks.en.made-in-china.com/
 www.truckinchina.com ,www.tictrucks.com
