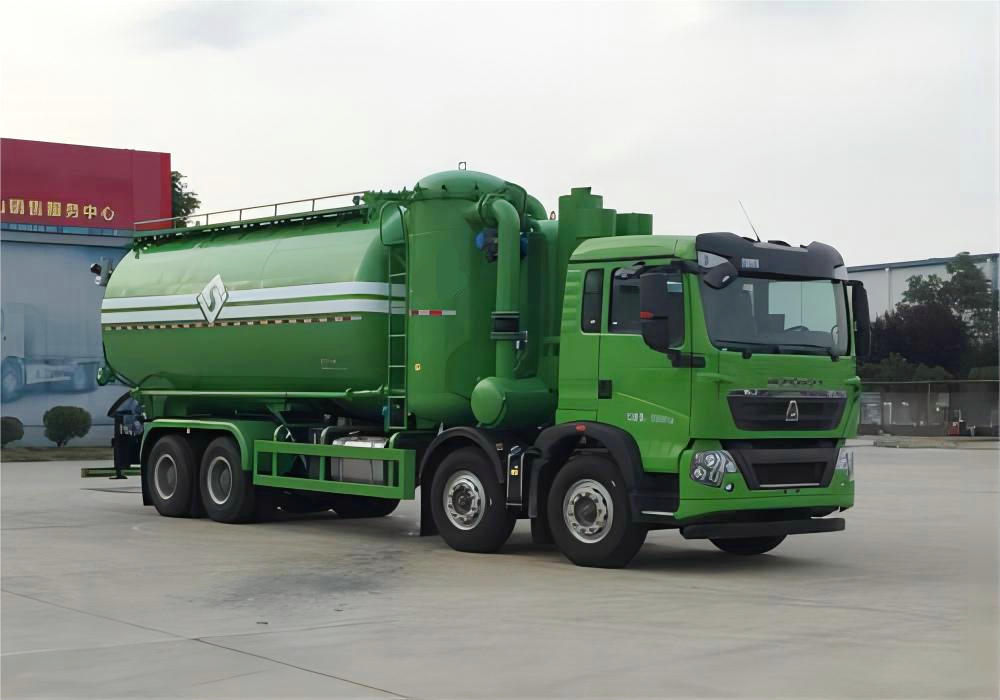

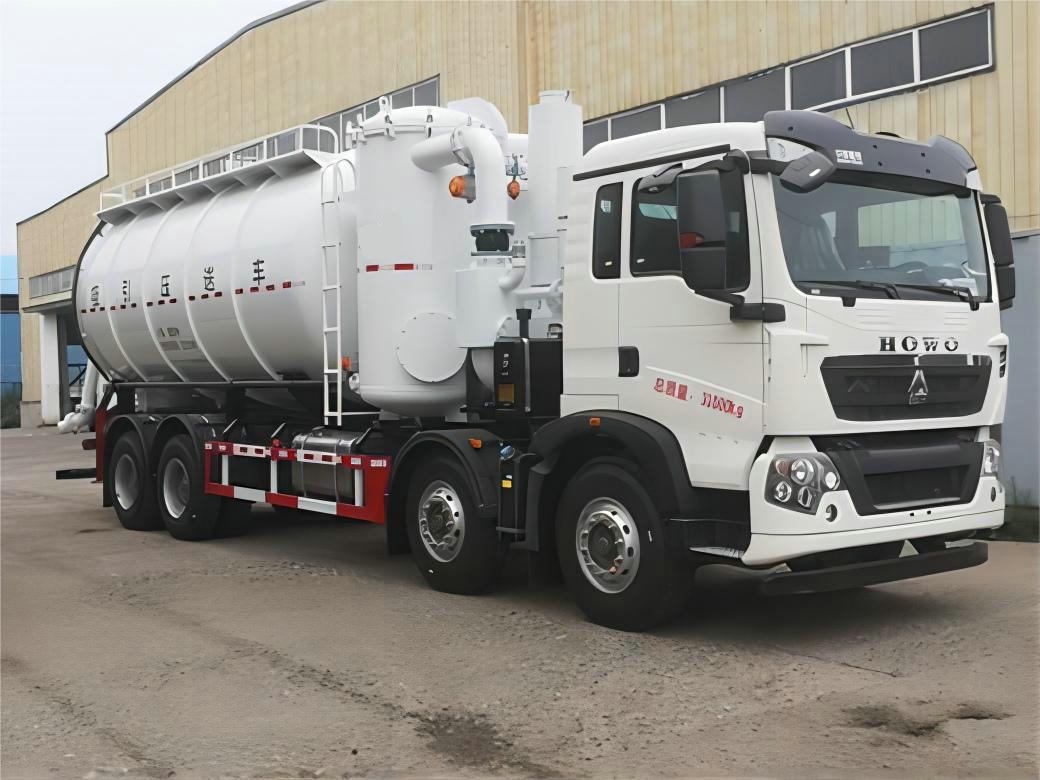

Customize HOWO Industrial Vacuum Loader Truck 22-24m3

Total mass:

31000(Kg)

GW

19575,19825(Kg),

21500kg

Rated load

11295,11045(Kg)

9305,9370(Kg) ,9705(Kg)

Approach Angle/Departure Angle:

17/13(°)

19/11,17/11(°)  ,19/10(°)

Front/rear overhang:

1500/3100,1500/2745(mm)

1500/2740,1430/2810(mm)

1430/2985(mm)

Axle Load:

6500/7000/17500(Two axes)

Wheelbase:

1800+3800+1350,1800+3775+1400,

1800+4300+1350,1800+4275+1400,

1800+4600+1350,1800+4575+1400,

1950+3825+1350,1950+3800+1400,

1950+4625+1350,1950+4600+1400,

1800+3825+1350,1800+3800+1400,

1800+4625+1350,1800+4600+1400,

1800+3300+1350,1800+3275+1400(mm)

Number of shafts:

4

Maximum speed:

89,80,110(km/h)

Number of tires:

12(PCS)

Tire Specifications:

315/80R22.5 18PR,295/80R22.5,12R22.5,

12.00R20 18PR,11.00R20,315/60R22.5 20PR

Fuel consumption:

(L/100Km)

Number of spring pieces:

11/11/12,11/11/10,3/3/10,3/3/5,3/3/4,2/2/4,3/3/-,

2/2/-,3/3/-/-,2/2/-/-,4/4/5,4/4/-/-,4/4/12

Front wheel base:

2015/2015,2035/2035,2060/2060(mm)

Rear wheel base:

1830/1830,1850/1850,1870/1870(mm)

WP9H350E62; MC07H.33-60; MC11.40-60; MC11.44-60; MC09.38-60; WP8.350 E61. MC07.31-60; MC09.35 B - 60; WP10.5 H430E62; MC07.33-60; MC07H.35-60; WP10H400E62; MC09.35-60; MC11.43-61; MC07.34-60; MC11.46-61; MC11.40-61; MC11H.46-61; WP12.430 E62; WP12.460 E62; WP12.490 E62; MC07H.31-61; M

Weichai Power Co., LTD. China Heavy Duty Automobile Group Co., LTD.;

8800; 7360; 10518; 10518; 8765; 7800; 6870; 8765; 10520; 6870; 7360; 9500; 8765; 10518; 6870; 10518; 10518; 11050; 11596; 11596; 11596; 7360; 7360; 7800; 11050; 11050

257; 240; 297; 327; 279; 257; 228; 260; 316; 240; 257; 294; 260; 319; 251; 341; 297; 341; 316; 338; 360; 228; 254; 257; 297; 319

1. Equipped with VAC tank body, vacuum pump, air compressor, lifting cylinder and other special devices, through the vacuum pump to produce negative pressure for the powder material vacuum suction loading, after the tank is lifted by the air compressor positive pressure discharge.

2. Total capacity of the tank is 25.2 cubic meters, the effective volume of the tank is 24 cubic meters, the external dimension of the tank is 6947mm(including the head), Φ2300×6947, Transportation medium is soot powder, and the density is 450 kg/cubic meter.

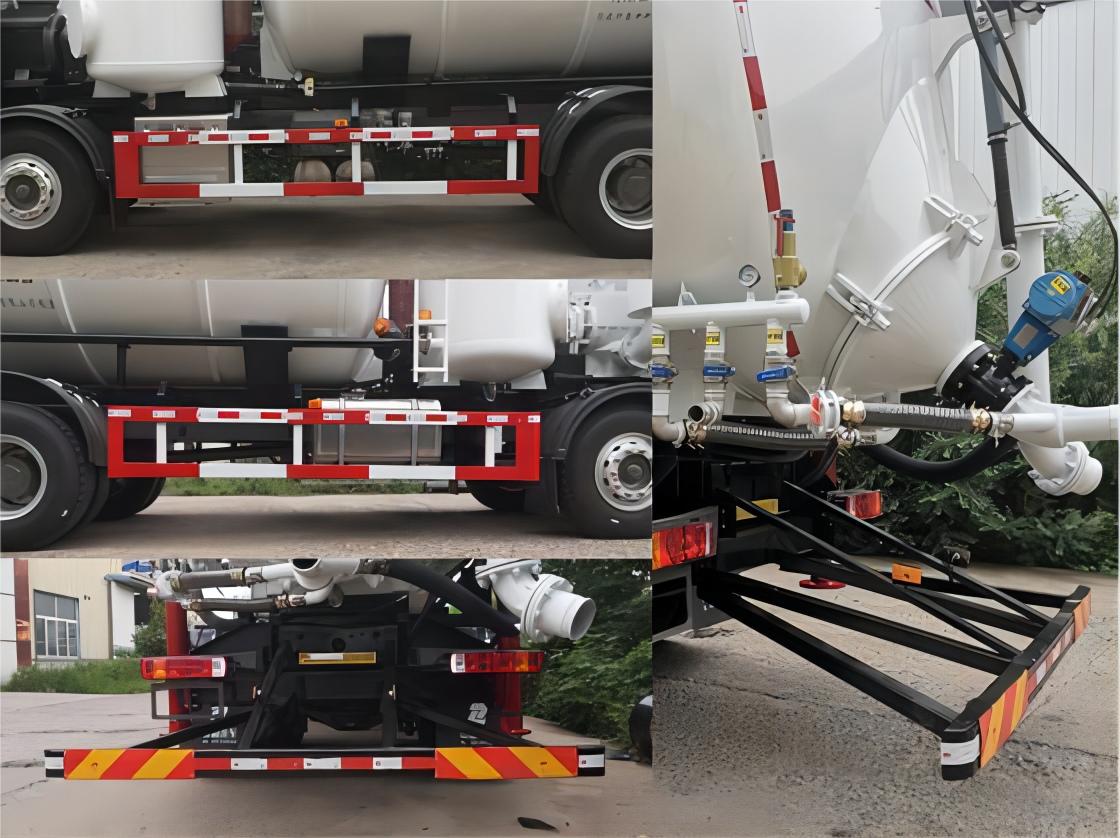

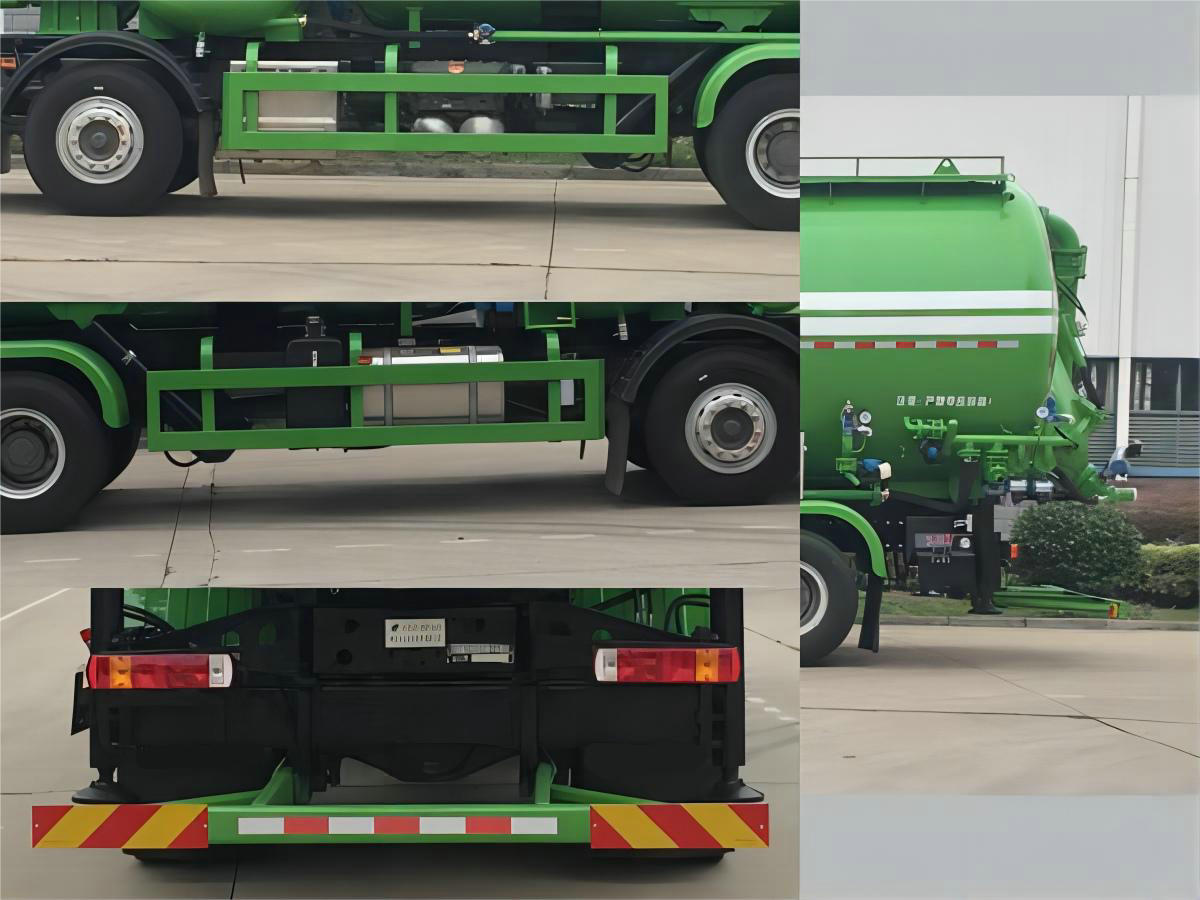

3. The material used for side protection is aluminum alloy, which is bolted to the frame; The rear protection device is made of Q235A, which is connected with the bolt of the frame. The rear protection section size (H x W) is 120mm x 60mm, and the height from the ground is 410mm.

4. Chassis wheelbase 1800+4600+1350.

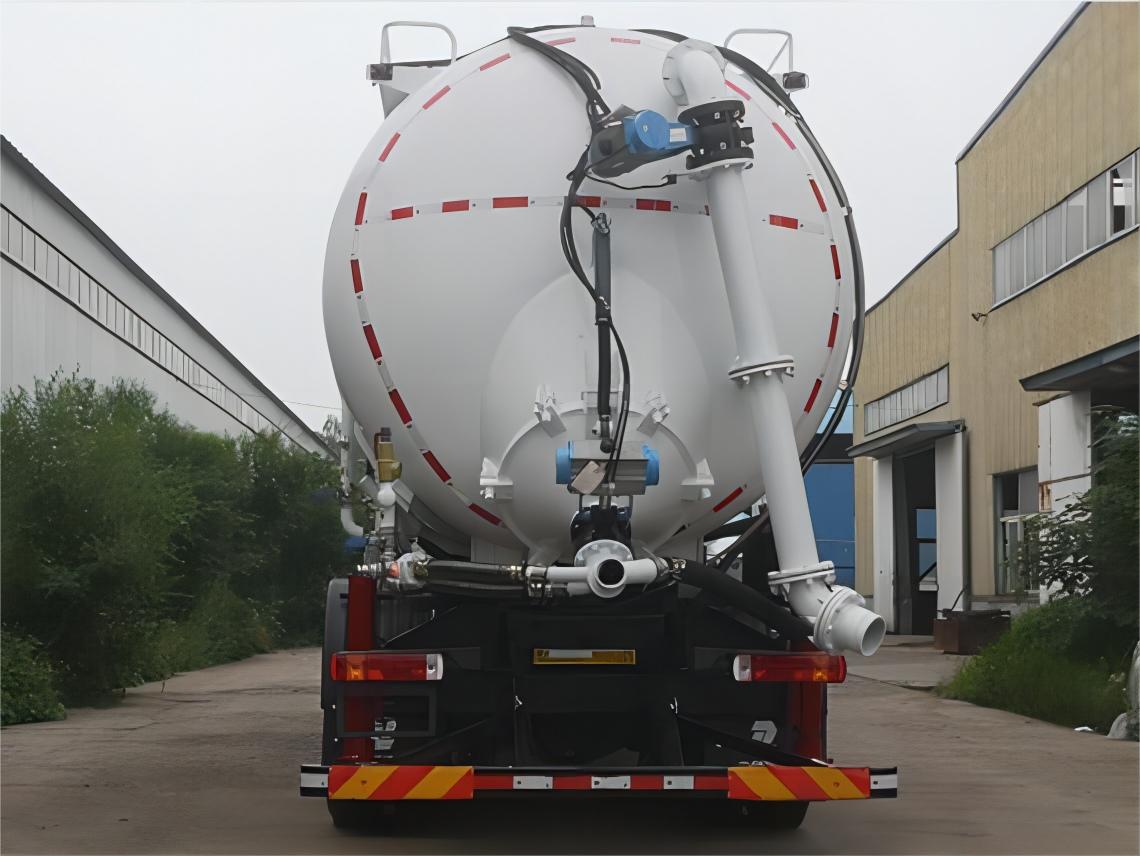

5. Optional tail cover hydraulic locking device, bolt locking device, side open form, the rear optional pneumatic ball valve, pneumatic disk valve.

6. Optional vacuum pump protective cover.

7. Optional cab and front and rear lamps.

8. Optional tail ash discharge valve.

9. Optional vacuum pump form.

10. Optional ground vacuum pump intake pipe on the side of the vehicle.

11. Optional hydraulic leg installation form and installation position.

12. Optional rear lower protection style.

13. Optional non-air compressor, transfer box form.

14. Optional anti-splash style.

15. Optional speed limiting device with chassis, speed limiting 80km/h, 89km/h.

16. Optional total capacity of the tank is 23.25 cubic meters, the effective volume of the tank is 22.15 cubic meters; Tank dimensions: Diameter × length (mm):Φ2400×6400 Transport medium: soot powder, density :420 kg/m3

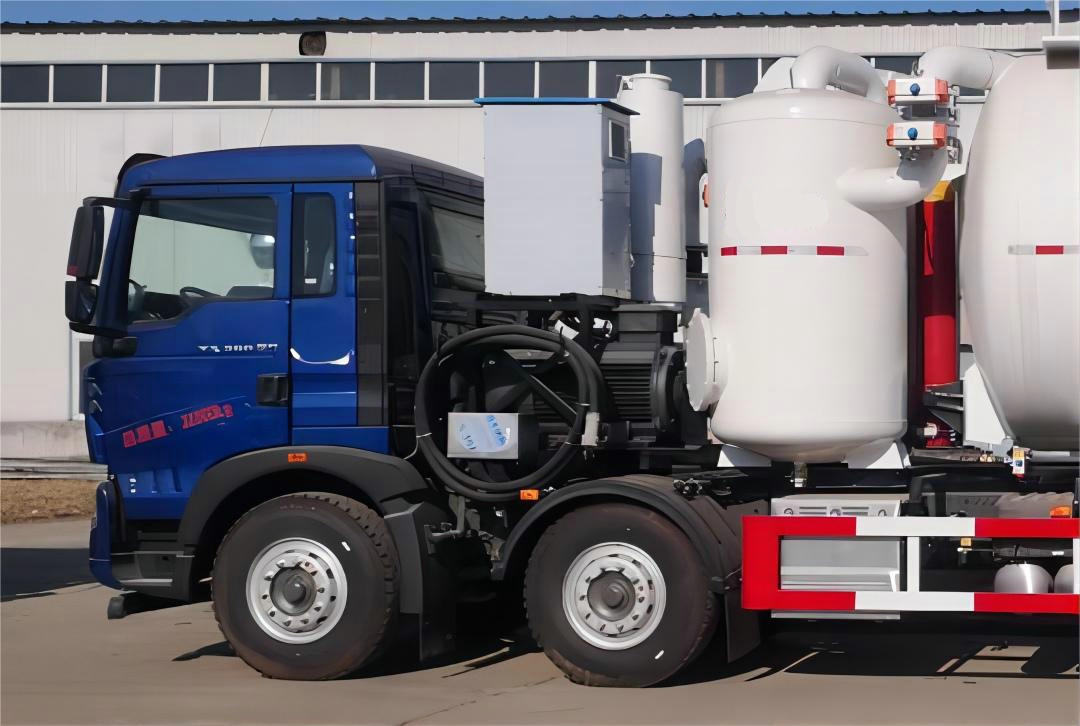

Special vehicle equipped with air compressor, Roots vacuum pump, lifting cylinder, dust filter system, vacuum suction loading system and other special devices; The vacuum pump generates negative pressure, and the secondary pollutants are attracted and charged in closed mode. The dust removal and filtration system is used to separate the mixed air of secondary pollutants and remove dust and dust. During discharge, the air compressor generates positive pressure and discharges the secondary pollutants into a special storage container by closed high-pressure discharge

Optional Total tank capacity :25.18 cubic meters; The effective volume of the tank is 24.26 cubic meters, and the overall size of the tank is: diameter × length (mm):Φ2500×6750

The vehicle is equipped with tank body, vacuum pump, filtration system and other special devices, through the vacuum pump to produce negative pressure for the powder material vacuum suction loading, using the external air source positive pressure discharge, the tank dust filtration, transportation and other processes are carried out under sealed conditions; Transport medium: ash powder, density :400 kg/m3

Rear selection pneumatic disc valve; Optional suction and discharge control valve style at the rear; The rear suction pipe is equipped with rotary adjusting clamp; Optional air compressor style; Optional vacuum pump drive motor external power cable plug-in; Optional EBS system,EBS system controller manufacturer/model is WABCO (Shanghai) Management Co., LTD. /EBS3; With the chassis optional speed limiting device, the maximum speed (km/h) is 89; The red light (operation warning light) installed on the left operation control box of the vehicle is only used in the operation state.
