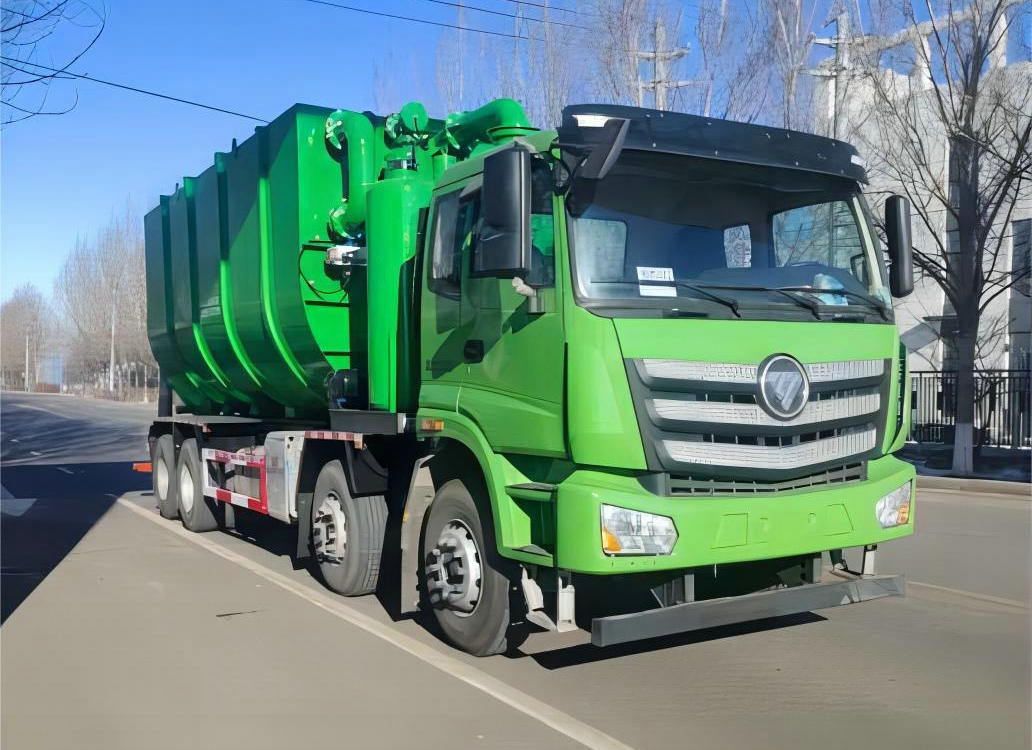

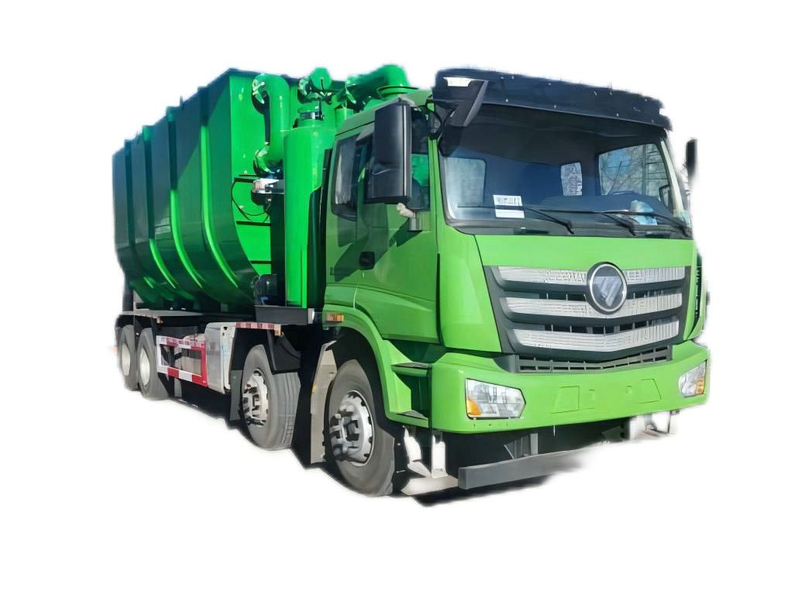

Customize FOTON Industrial Vacuum Loader Truck 23m3
Supersucker Vacuum Tanker For Dry Dust or Powder Pressure Suck and Blow
23m3 tank, Equipped with air compressor, Roots vacuum pump
FOTON 8x4 Chassis BJ5313JSQY6GRL-01
| Quantity: | |
|---|---|
|
| |
-
LZP5316GXY
-
DRZ
-
8705909990
Suction pressure delivery vehicle suction and discharge vehicle coal ash suction and discharge vehicle.
suction pressure conveyor, suction pressure conveyor, abbreviation suction discharge vehicle is suitable for metallurgy, chemical industry, energy, building materials, coal, mining, wharf transportation and other industries, for the collection, transfer and transportation of nearly 100 kinds of dust and powder materials under various working conditions. It can carry ironmaking, steelmaking, sintering, coking, raw materials, calcium carbide furnace purification and dust removal, gas burning lime density, refining desilication, dephosphorization agent, coke powder, aluminum powder, limestone, lime powder, mixed dust removal dust and other dust Material. Suction and discharge vehicle is a high-efficiency, safe and environment-friendly special vehicle for cleaning and transporting bulk materials.
Customize FOTON Industrial Vacuum Loader Truck 23m3
Supersucker Vacuum Tanker For Dry Dust or Powder Pressure Suck and Blow
23m3 tank, Equipped with air compressor, Roots vacuum pump
FOTON 8x4 Chassis BJ5313JSQY6GRL-01
Main technical parameters
Overall dimensions: | 11900×2490×3990(mm) | Fuel Type: | Diesel oil |
G.W | 31000(Kg) | ||
N .W | 21500(Kg) | Rated load | 9370(Kg) |
Approach Angle/Departure Angle: | 18/11 (°) | Front/rear overhang: | 1530/2520(mm) |
Axle Load: | 6500/6500/18000(Two axes) | Wheelbase: | 2100+4400+1350(mm) |
Number of shafts: | 4 | Maximum speed: | 89(km/h) |
Number of tires: | 12(PCS) | Tire Specifications: | 11.00R20 18PR,12.00R20 18PR,12.00R20 16PR,13R22.5 18PR,12R22.5 18PR,10.00R20 18PR,11.00R20 18PR,12.00R20 18PR,12.00R20 16PR,13R22.5 18PR,12R22.5 18PR,12R22.5 16PR,10.00R20 18PR |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 3/3/12,13/14/12,10/10/10,13/14/10,3/3/5,10/10/12 |
Front wheel base: | 2021/2021,2080/2080(mm) | Rear wheel base: | 1860/1860(mm) |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
X11NS6B360 | Beijing Foton Cummins Engine Co., LTD | 10500 | 265 |

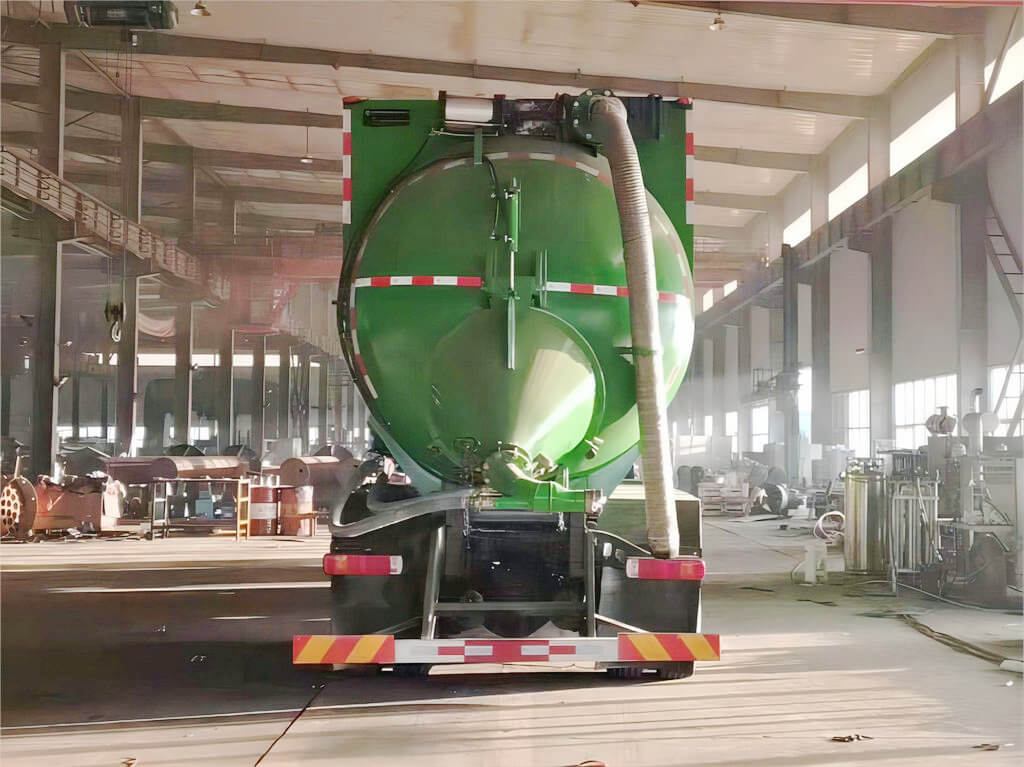

Equipped with tank body, vacuum pump, lifting cylinder and other special devices, through the vacuum pump to produce negative pressure for the powder material vacuum suction loading, using the external air source positive pressure discharge, the tank dust filtration, transportation and other processes are carried out under closed conditions. The tank body is composed of two parts: the bag room and the hopper. The filter device of the bag room is 1372mm from the front end to the back of the tank body. The device is not loaded with ash and the inspection door is set on the top to facilitate the maintenance and replacement of the filter bag. The hopper from the back end of the bag room to the back end of the tank is 5365mm, Effective volume of the hopper is 23.4 cubic meters; Tank size: tank length :6737mm, rectangular section length :2300mm, rectangular section width :1396mm. Semicircular section diameter :2300mm. Transport medium: soot powder, density :400 kg/m3. Optional speed limit device on the chassis speed limit is 89km/h. | |||

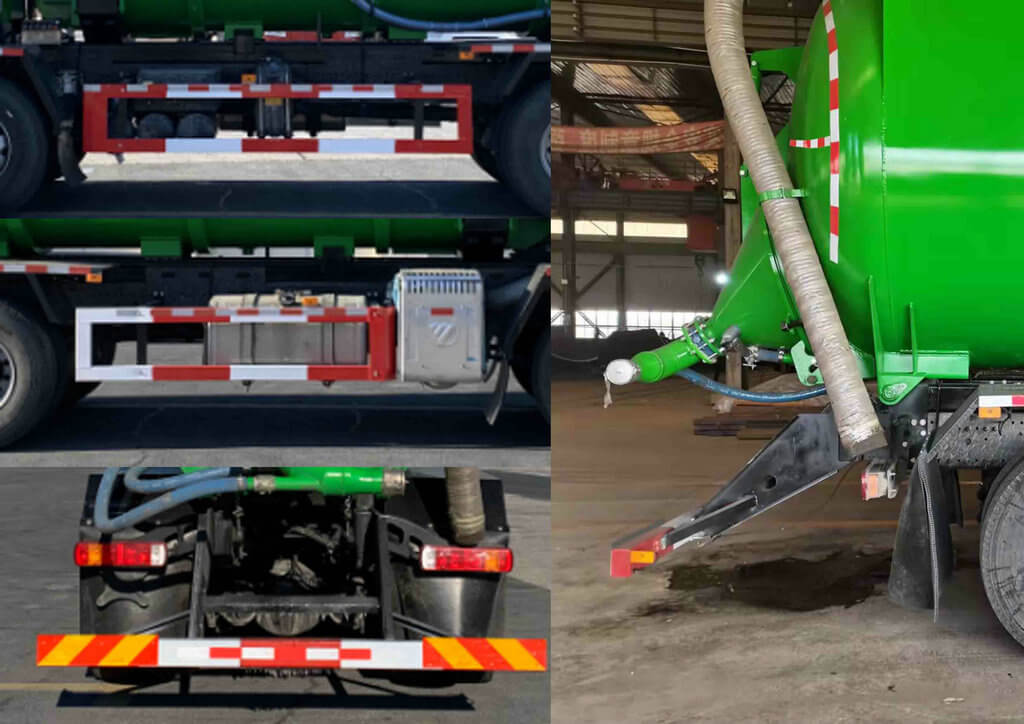

Special devices include Roots vacuum pump, oil-free lubricating swing air compressor, filtration system, lifting oil cylinder, tank body, negative pressure suction, positive pressure discharge, dust filtration and transportation in the tank.
Suction operation steps:
1) When the suction pressure delivery tank truck arrives at the ground storage bin, the vacuum port of the vehicle is butted with the suction interface of the storage system;
2) After the butt joint is completed, the vacuum suction system of the vehicle is started, and the negative pressure in the storage bin is sucked into the bearing tank of the suction pressure delivery tank car through the ground device feeding system of the storage bin.
Layout operation steps:
1) When the material carried by the suction pressure conveying tank truck arrives at the ground material receiving bin, the material discharging interface of the positive pressure pressure discharging system of the vehicle is butted with the material receiving system input interface of the material receiving system device ①;
2) After the butt joint is completed, the positive pressure discharge system of the vehicle is started, and through the material receiving system of the ground device of the material receiving bin, the material in the vehicle bearing tank is pressurized and discharged to the ground material receiving bin by using the compressed gas of the vehicle
