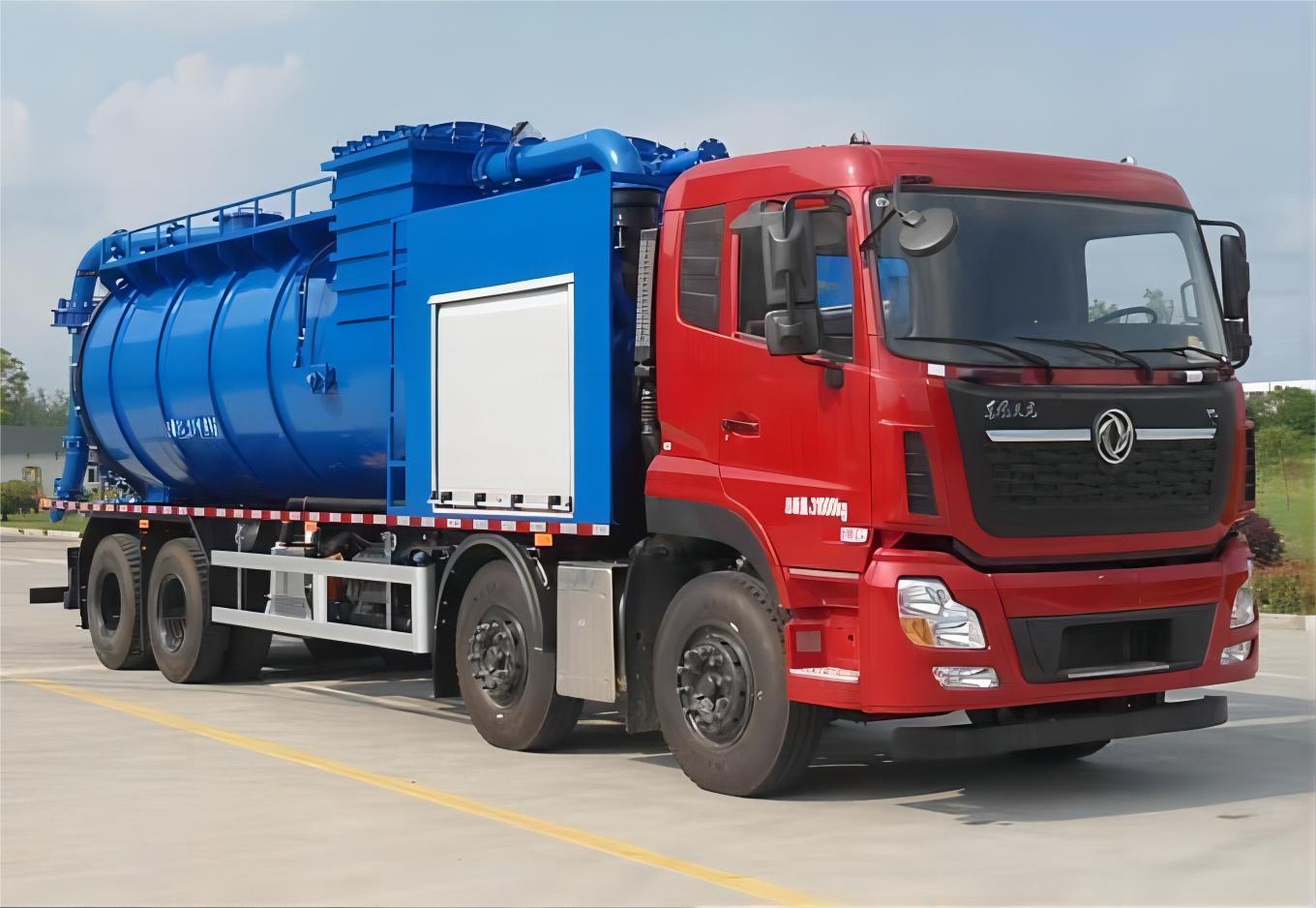

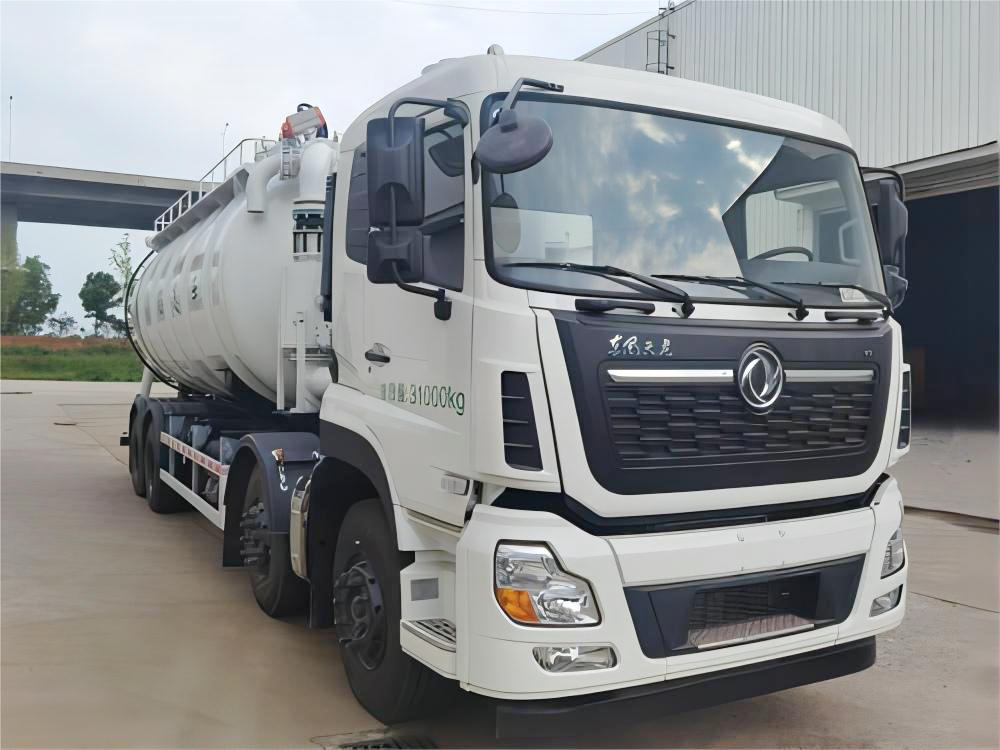

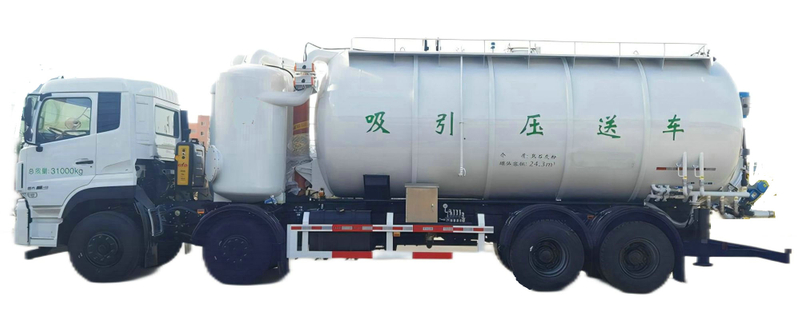

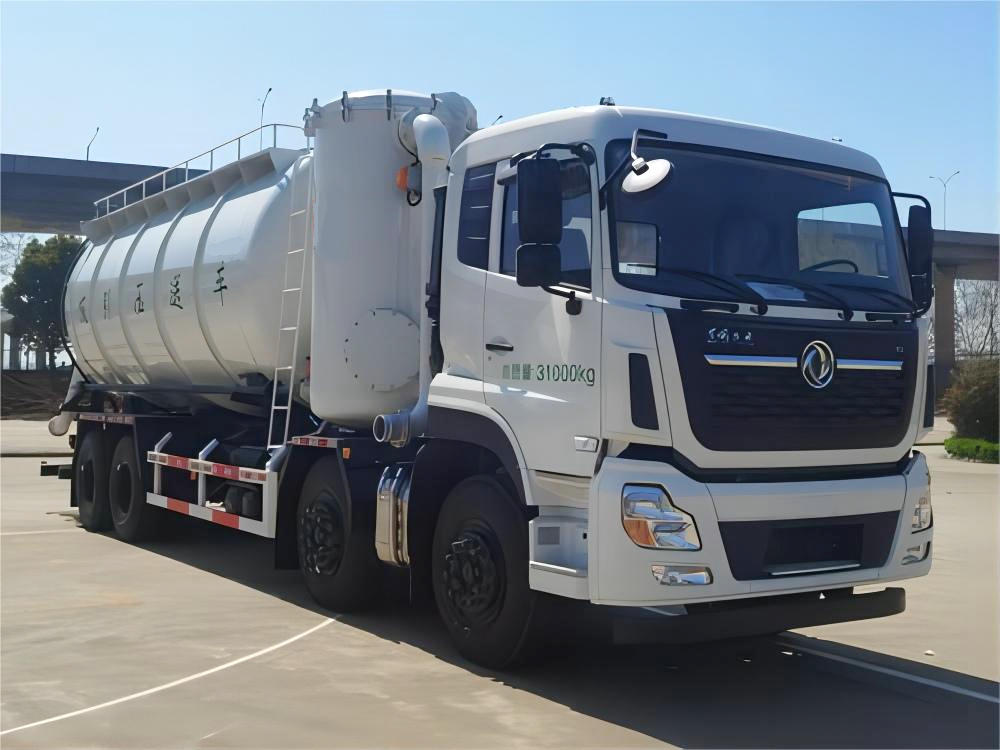

Customize Dongfeng Dry Hydrated Lime Powder Supersucker Vacuum Tanker Trucks 23m3
Supersucker Dry Material Vacuum Suction Truck for Suck and Bow Dust or Powder
21-23m3 tank, Equipped with air compressor, Roots vacuum pump
Chassis Dongfeng DFH1310A9
| Quantity: | |
|---|---|
|
| |
-
5315GXYE6,5310GXYD,5318GXYE6
-
DRZ
-
8705909990
Suction pressure delivery vehicle suction and discharge vehicle coal ash suction and discharge vehicle.
suction pressure conveyor, suction pressure conveyor, abbreviation suction discharge vehicle is suitable for metallurgy, chemical industry, energy, building materials, coal, mining, wharf transportation and other industries, for the collection, transfer and transportation of nearly 100 kinds of dust and powder materials under various working conditions. It can carry ironmaking, steelmaking, sintering, coking, raw materials, calcium carbide furnace purification and dust removal, gas burning lime density, refining desilication, dephosphorization agent, coke powder, aluminum powder, limestone, lime powder, mixed dust removal dust and other dust Material. Suction and discharge vehicle is a high-efficiency, safe and environment-friendly special vehicle for cleaning and transporting bulk materials.
Customize Dongfeng Dry Hydrated Lime Powder Supersucker Vacuum Tanker Trucks 23m3
Supersucker Dry Material Vacuum Suction Truck for Suck and Bow Dust or Powder
21-23m3 tank, Equipped with air compressor, Roots vacuum pump
Chassis Dongfeng DFH1310A9
Main technical parameters
Overall dimensions: | 11995×2500,2530,2550×3950(mm) 12075×2520×3900,3830(mm) 11995×2530,2550×3950(mm) | Fuel Type: | Diesel oil | |||||
G.W. | 31000(Kg) | |||||||
N.W. | 20060(Kg) 21550(Kg) | Rated load | 11100,11165(Kg) 11200,11265(Kg) 11650,11585(Kg) | |||||
Approach Angle/Departure Angle: | 17/10(°) 17/12(°) | Front/rear overhang: | 1500/2550(mm) 1500/2630(mm) | |||||
Axle Load: | 6500/6500/18000 (Two axes) | Wheelbase: | 1995+2855+1350,1995+3200+1350,1995+3800+1350,1995+4600+1350(mm) | |||||
Number of shafts: | 4 | Maximum speed: | 89,98(km/h) | |||||
Number of tires: | 12(PCS) | Tire Specifications: | 295/80R22.5 18PR,11.00R20 18PR,295/60R22.5 18PR,315/60R22.5 20PR,315/60R22.5 18PR | |||||
Fuel consumption: | (L/100Km) | Number of spring pieces: | 3/3/10 | |||||
Front wheel base: | 2010/2010,2030/2030(mm) | Rear wheel base: | 1860/1860,1880/1880(mm) | |||||
Engine type | Engine manufacturer | Volume (ml) | Power (kw) | |||||
DDi75E300-60; DDi75E350-60; DDi75E340-60 | Dongfeng Commercial Vehicle Co., LTD.; | 7500; 7500; 7500 | 220; 257; 250 | |||||

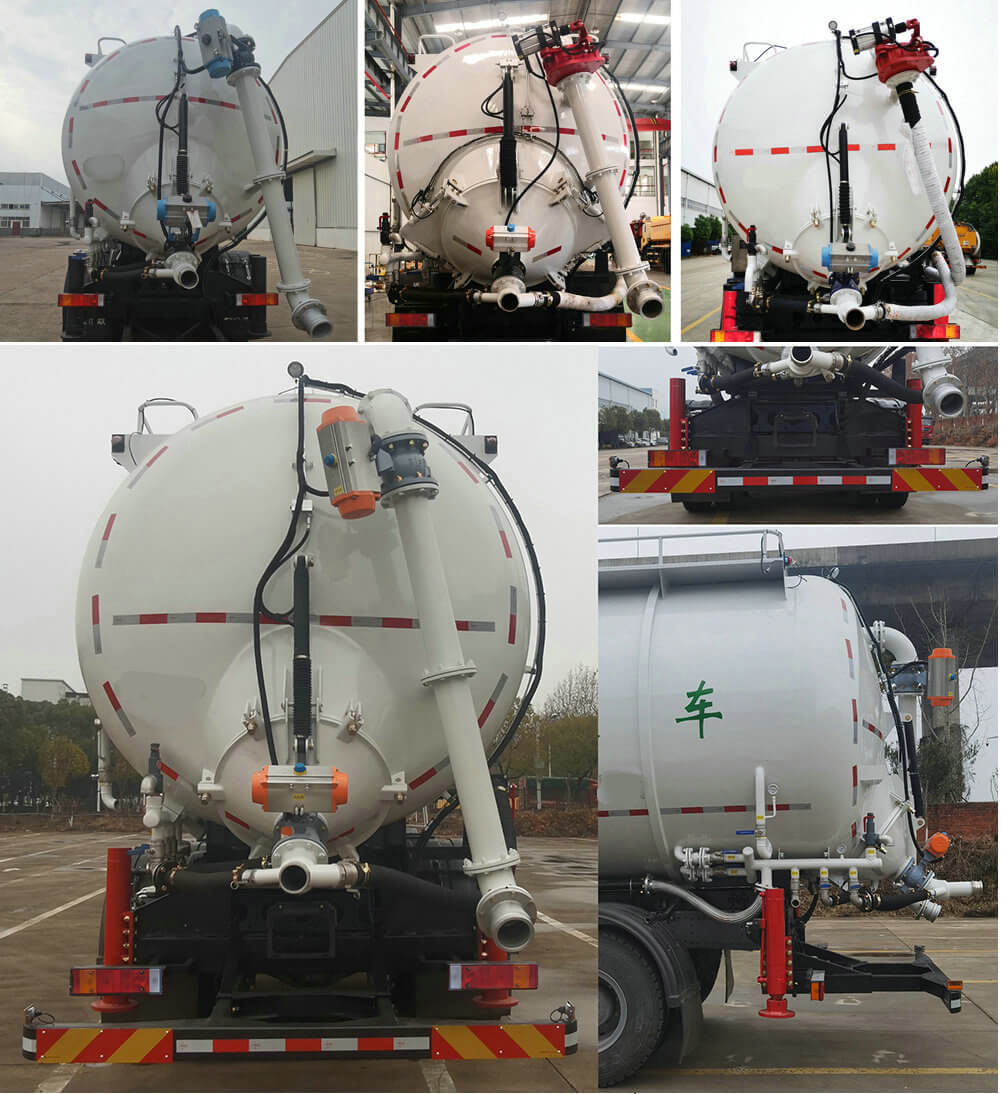

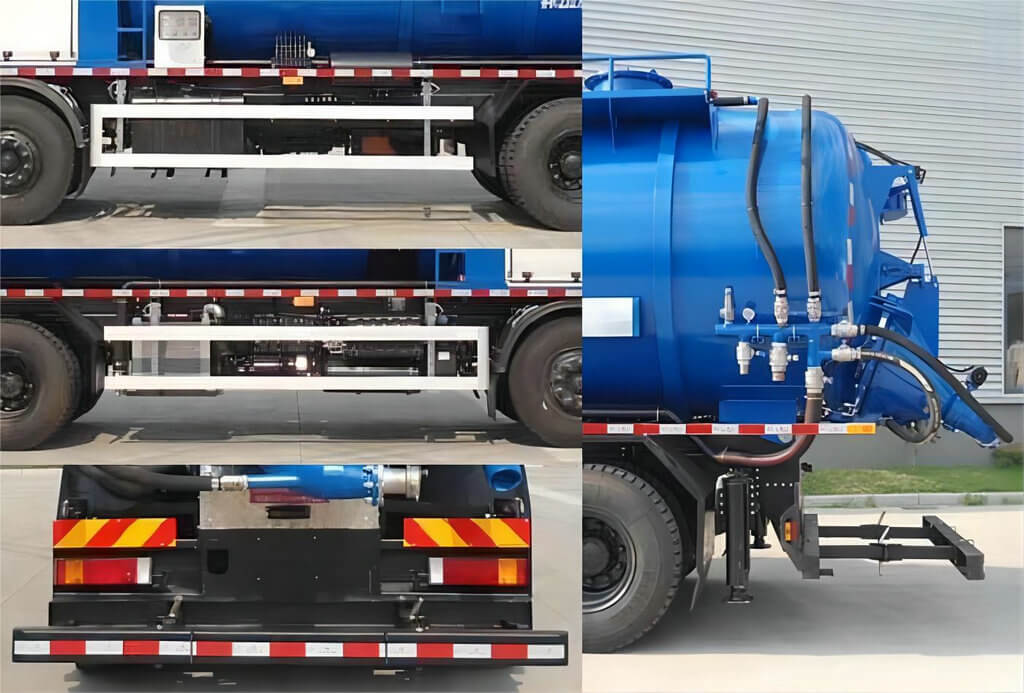

A: The vehicle is equipped with Vac tank body, air compressor, vacuum pump, lifting cylinder and other special devices, through the vacuum pump to produce negative pressure, vacuum closed suction and loading of secondary pollutants, and through the dust removal filter system to dust the mixed air of pollutants, and then through the air compressor to produce positive pressure to discharge secondary pollutants through the closed high pressure discharge into the special storage container; Transport medium: hydrated lime powder, density :500 kg/m3; The total capacity of the tank is 23.3 cubic meters, and the effective volume is 22.2 cubic meters. Tank size diameter × tank length (mm):2300×6900; The material used for the side protection is aluminum alloy and is bolted to the subframe; Wheelbase 1995+4600+1350; Optional speed limiting device, speed limiting 89km/h; Equipped with ABS,ABS model select the rear metal suction tube, the rear rubber suction tube, select the rear hydraulic locking device, the rear manual locking device, select the hydraulic rear leg, select the rear pneumatic grinding disc valve, the rear pneumatic ball valve, select the rear combination light installation position, B: Total capacity of the tank 23 cubic meters, the effective volume is 22.4 cubic meters, tank Diameter × length 2100× 6994mm C: Equipped with VAC tank body, air compressor, dust removal filter system, lifting cylinder and other special devices, through the ground vacuum pump to produce negative pressure, vacuum closed suction and loading of secondary pollutants, and through the dust removal filter system to dust the mixed air of pollutants, and then through the air compressor to produce positive pressure to discharge secondary pollutants through the closed high pressure discharge to the special storage container Medium. The top closure cannot be slotted, and the rear cannot be opened. The total capacity of the tank 24.3 cubic meters, and the effective volume is 23.1 cubic meters. Tank size (mm): Diameter × length 2400×6900. Transport medium: hydrated lime powder, density :500 kg/m3. select the rear metal suction tube, the rear rubber suction tube, select the rear manual locking device, the rear hydraulic locking device, select the rear pneumatic ball valve, the rear pneumatic grinding disc valve. Select the style of wheel protection plate. | ||||||||
Special devices include Roots vacuum pump, oil-free lubricating swing air compressor, filtration system, lifting oil cylinder, tank body, negative pressure suction, positive pressure discharge, dust filtration and transportation in the tank.
Suction operation steps:
1) When the suction pressure delivery tank truck arrives at the ground storage bin, the vacuum port of the vehicle is butted with the suction interface of the storage system;
2) After the butt joint is completed, the vacuum suction system of the vehicle is started, and the negative pressure in the storage bin is sucked into the bearing tank of the suction pressure delivery tank car through the ground device feeding system of the storage bin.
