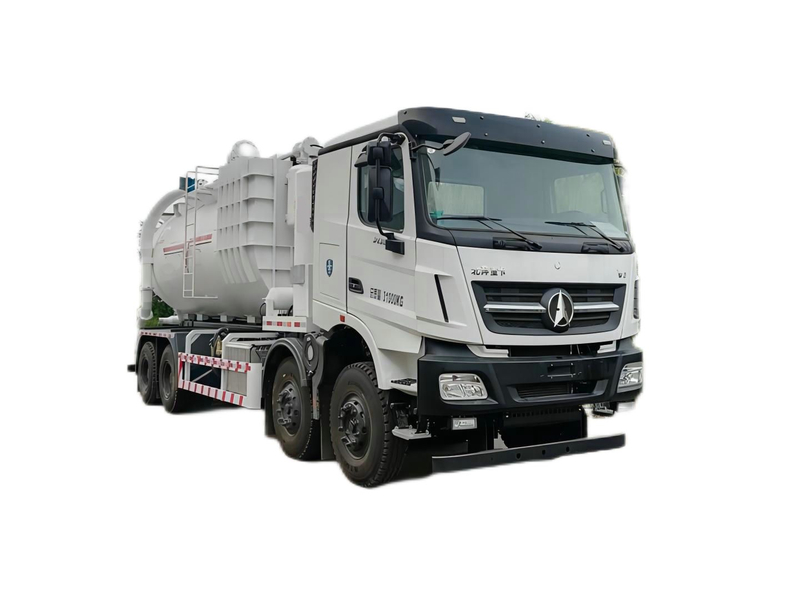

Customize Beiben Supersucker Vacuum Loader Truck 16m3
Supersucker Vacuum Tanker For Dry Dust or Powder Pressure Suck and Blow
16-18m3 VAC tank, Equipped with air compressor, Roots vacuum pump
Chassis BEIBEN Truck 8x4 ND1310DD6J7Z02
| Quantity: | |
|---|---|
|
| |
-
5312GXP-G6
-
DRZ
-
8705909990
Customize Beiben Supersucker Vacuum Loader Truck 16m3
Supersucker Vacuum Tanker For Dry Dust or Powder Pressure Suck and Blow
16-18m3 VAC tank, Equipped with air compressor, Roots vacuum pump
Chassis BEIBEN Truck 8x4 ND1310DD6J7Z02
Dust Suck Industrial Vaccum Cleaner Hydro Excavation Vehicle
Main technical parameters
Overall dimensions: | 11200×2550×3995(mm) | Fuel Type: | Diesel oil |
G.W | 31000(Kg) | ||
N.W | 22805(Kg) | Rated load | 8065(Kg) |
Approach Angle/Departure Angle: | 17/17 (°) | Front/rear overhang: | 1515/1985(mm) |
Axle Load: | 6500/6500/18000(Two axes) | Wheelbase: | 1500+4150+1450, 1500+4750+1450, 1500+5050+1450(mm) |
Number of shafts: | 4 | Maximum speed: | 89(km/h) |
Number of tires: | 12(PCS) | Tire Specifications: | 12.00R20 18PR |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 12/12/13,12/12/-,4/4/13 |
Front wheel base: | 1995/1995(mm) | Rear wheel base: | 1800/1800(mm) |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
WP10H350E62 | Weichai Power Co., Ltd. | 9500 | 257 |
Wheelbase 1500+4750+1450mm Tank size :6140×2170mm; Effective volume of tank 16.07m3; Special functions: for the suction and discharge of dust materials and transport work inside and outside the plant; | |||
Special devices include Roots vacuum pump, oil-free lubricating swing air compressor, filtration system, lifting oil cylinder, tank body, negative pressure suction, positive pressure discharge, dust filtration and transportation in the tank.
