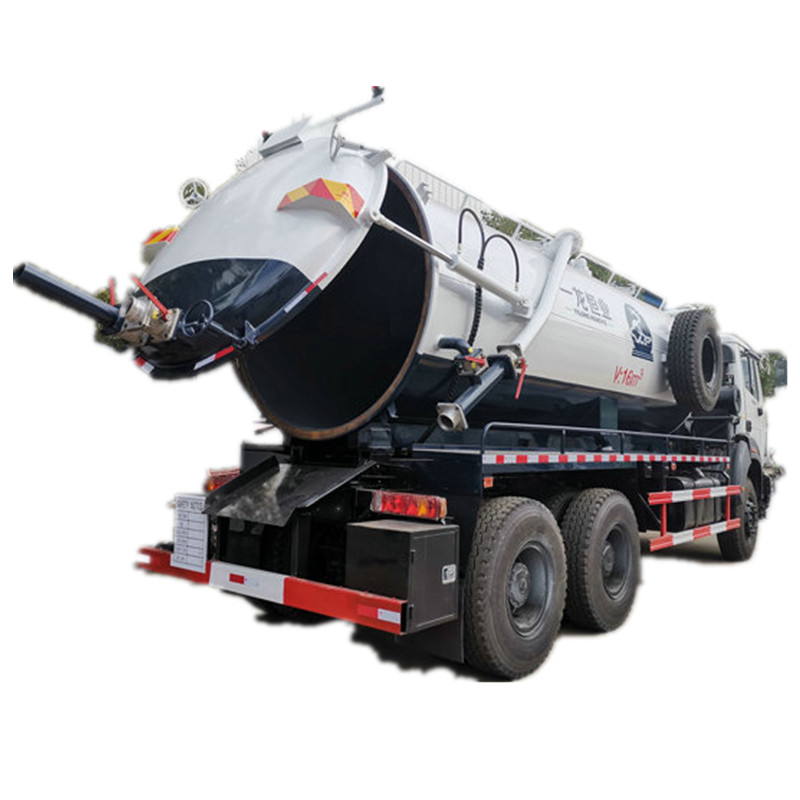

North Benz Heavy Duty 16000liters Sewage Disposal Vacuum Tanker Truck 2629

North Benz Heavy Duty 16000liters Sewage Disposal Vacuum Tanker Truck 2629
North Benz LHD 6X4 16000liters sewage suction truck
PTO, transmission shaft, vacuum pump, tanker, hydraulic system and pipe system.
Price: $ 60000
Discount Price: $ 53300
Availability:
Quantity:

  • DRZ5160GXWZ
  • Dong Run Ze
  • 8705909990

 North Benz Heavy Duty 16000liters Sewage Disposal Vacuum Tanker Truck 2629

Parameters for North Benz 16000liters sewage truck

Vehicle Parameter

Model/name

North Benz LHD 6X4 16000liters sewage suction truck

Gross weight(Kg)

25000

Overall size(mm)

9500X 2500 x 3500

Payload(Kg)

13065

Tank size(mm)

××

Curb weight(Kg)

11805

Wheelbase(mm)

4450+1450

Cab seats

2

Max speed(Km/h)

85

Chassis parameter

Chassis model

ND1254B

Brand name

North Benz

Manufacturer

North Benz Heavy Truck Group Co.,Ltd

Drive type

6x4

Steering Wheel

Left hand drive

Tyre number

10+1(spare tire)

Tire specification

11.00R20(Radial tire)

Fuel Type

Diesel

Emission Standard

Euro II

Engine parameter

Engine model

Engine manufacturer

Displacement

Power

WP10.270

Weifang Diesel Engine Co., Ltd.

9726ml

199KW

Performance

Tanker volume(m³)

16

Tanker material

Carbon steel

Designed hydraulic system working pressure

16-19Mpa

Control

Manual

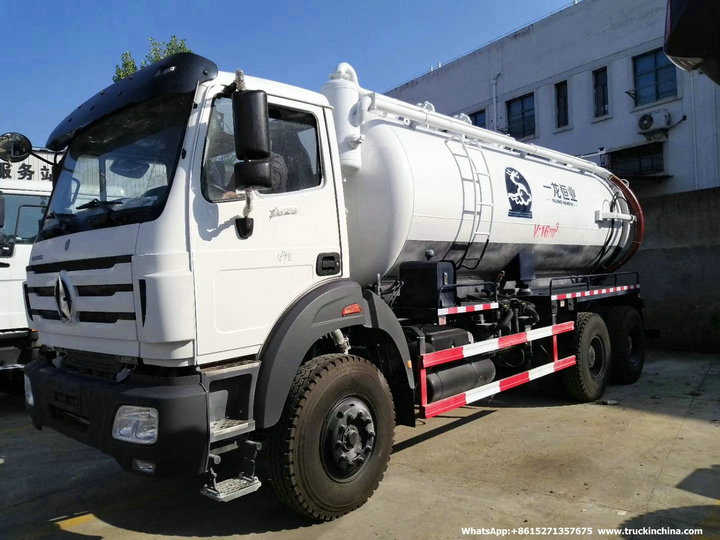

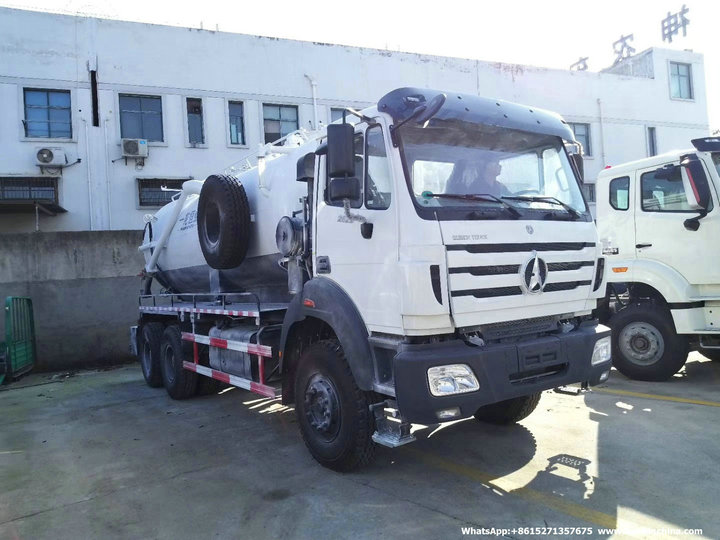

beiben truck vacuum tanker (4)beiben 2629 vacuum tanker truck (3)

Sewage truck Basic Equipment

Imported vacuum pump, power-take-off, hydraulic cylinders, control valves , pressure gauge,

water gas separator , oil water separator, level inspection window, suction hose,pipeline system,etc.

Septic Tank vacuum Sewage Suction Trucks 15m3-20CBM


Chassis Specification

General

Chassis Brand

BEIBEN 2629

Overall dimension

10000*2500*3050mm

GVW

26000kg

Mass in working order

9900kg

Cab

Cab Capacity

2 persons allowed

Air Conditioner

Heating or cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

BEIBEN

Power

290HP 12.00R20

Displacement

9760ml

Emission Standard

Euro 3

Chassis

Drive Type

6*4 / 6x6 offroad (left hand driving or right hand Drive)

Transmission

Manual

Wheelbase

4500+1350,4450+1450,

5050+1450mm

Tire

12.00R20

Max Speed

90km/h

Electric system

24v

Upper-Body Specification

Upper body

Body capacity

16cbm,18cbm,20cbm

Material

Carbon Steel

Suction Head Pipeline

7m

Vacuum Pump Brand

Italy BP/Weilong/Domestic

Vacuum Pump Advantage

High efficient,
Vacuum rate 93%,
Quick suction and discharge, suction lift 6 m



sewage suction truck advantages

1.Tank can be lifted hydraulically to 40 to 45 degree.Rear door can be opened&closed

hydraulically. With full opening design, discharge can be very quick&complete.

2.Overfill system with music horn is equipped to prevent the vacuum pump damage from sewage water into vacuum pump when the tank is full.

3.Super power of vacuum pump, seamless die casted sheel cover, designing for container  with high ability of pressure-resistance,double hydraulic jack system, morestrength then cesspit emptier.



BEIBEN fecal suction truck, fecal suction truck, Septic tank truck, Septic Tanker, Sewage water suction truck, vacuum suction truck, waste water suction truck is used to collect, transport and discharge dirty water , sludge , septic , etc . such liquid stuff , It is suitable for cleaning the septic tank , cesspit , cesspool , gully , etc . It is widely used in environment and sanitation field .

Key words:cesspit emptier truck,exhauster truck,sewage exhauster truck,honey sucker,vacuum truck,vacuum sewer truck,vacuum sewage truck,vacuum tanker,sucker truck,sewer sucker,hydro-vac,vac-trucks,sewer vacuum truck,septic suction truck,sewage vacuum truck,sewer cleaning truck,sewage tanker,gully emptier,drainage suction truck,vacuum truck,sewage truck,waste vacuum truck,drainage treatment truck
