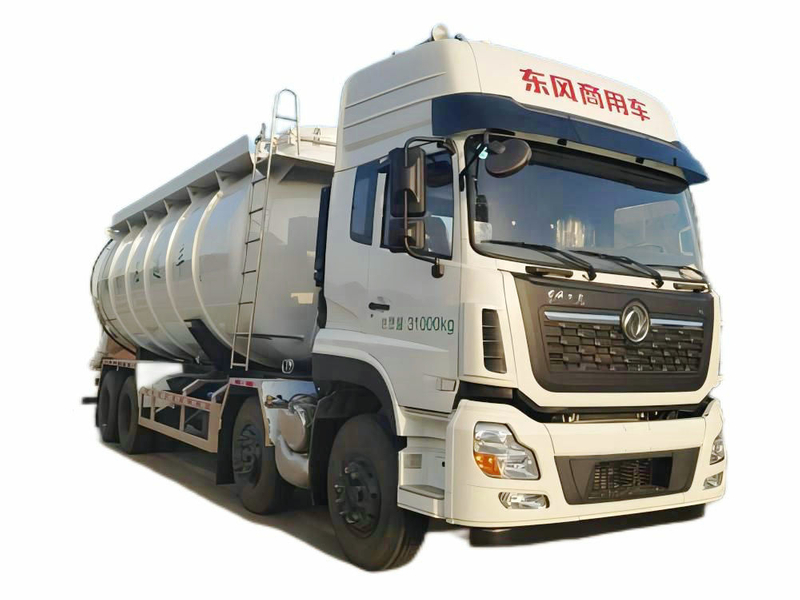

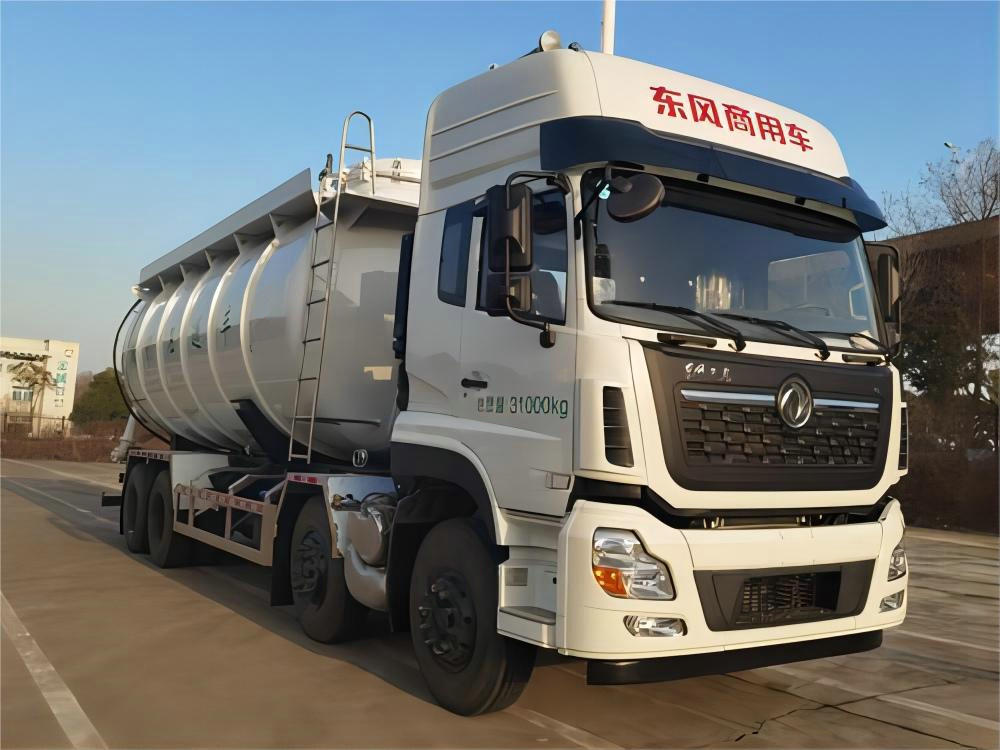

Customize Dongfeng Hydro Excavator Industrial Dry Vacuum Loader 20m3
Supersucker Dry Material Vacuum Suction Truck for Suck and Bow Dust or Powder
20-21m3 tank, Equipped with air compressor, Roots vacuum pump
Chassis Dongfeng DFH1310A12
| Quantity: | |
|---|---|
|
| |
-
5312GXYE6
-
DRZ
-
8705909990
Customize Dongfeng Hydro Excavator Industrial Dry Vacuum Loader 20m3
Supersucker Dry Material Vacuum Suction Truck for Suck and Bow Dust or Powder
20-21m3 tank, Equipped with air compressor, Roots vacuum pump
Chassis Dongfeng DFH1310A12
Main technical parameters
Overall dimensions: | 11980×2500,2530,2550×3980(mm) | Fuel Type: | Diesel oil |
G.W | 31000(Kg) | ||
Net | 20555(Kg) | Rated load | 10315,10250(Kg) |
Approach Angle/Departure Angle: | 13/14 (°) | Front/rear overhang: | 1500/2680(mm) |
Axle Load: | 6500/6500/18000 (Two axes) | Wheelbase: | 2050+4400+1350(mm) |
Number of shafts: | 4 | Maximum speed: | 89(km/h) |
Number of tires: | 12(PCS) | Tire Specifications: | 11.00R20 18PR,295/80R22.5 18PR,12R22.5 18PR,12.00R20 18PR |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 9/9/10,9/9/12 |
Front wheel base: | 2010/2010,2040/2040(mm) | Rear wheel base: | 1860/1860,1880/1880(mm) |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) | |
DDi11E465-60 | Dongfeng Commercial Vehicle Co., LTD | 10800 | 343 | |
Equipped with special devices such as tank body, air compressor, dust removal filter system and lifting cylinder. The negative pressure is generated by ground vacuum pump, and the secondary pollutants are attracted and loaded in vacuum closed, and the mixed air of pollutants is dust-removed through dust removal filter system, and then the secondary pollutants are discharged to the special storage container through closed high pressure discharge by air compressor Medium. Transport medium: hydrated lime powder, density :500 kg/m3. The total capacity of the tank is 21.5 cubic meters, and the effective volume is 20.5 cubic meters. The tank body is a circular section, the overall size of the tank (diameter × length of the tank)(mm):2400×7600, the tank body is divided into two compartments , one 1600mm long for filtering air, and the second 6000mm long for storing hydrated lime powder. The material used for side protection is stainless steel Optional cab with chassis, optional work warning light. | ||||

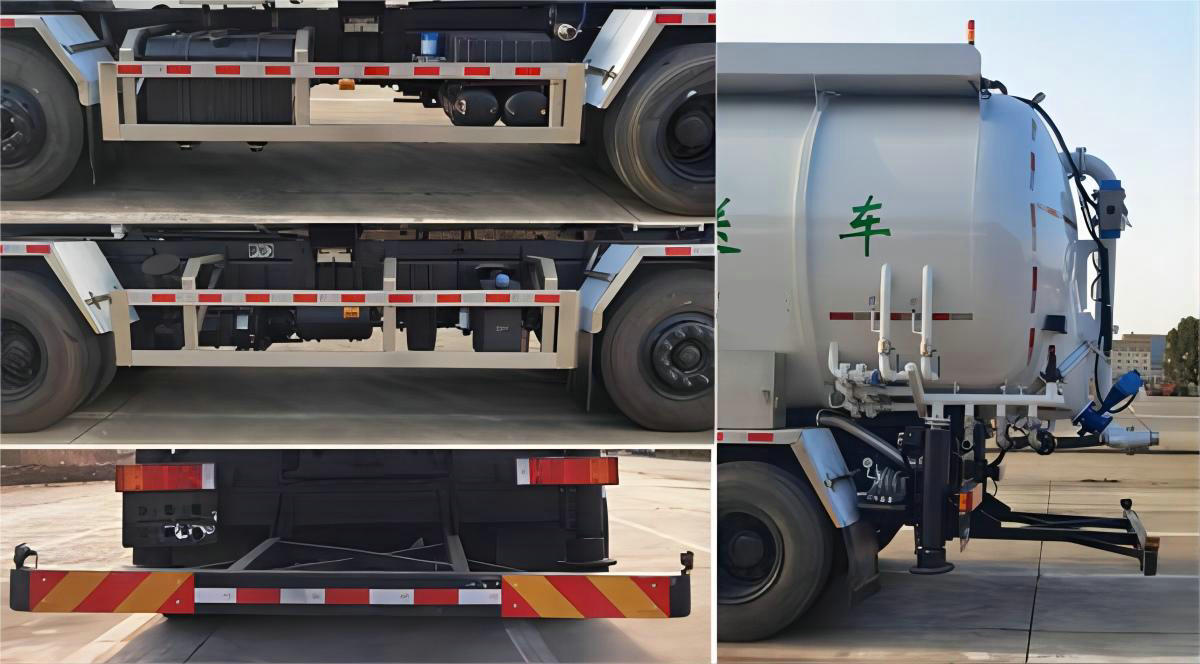

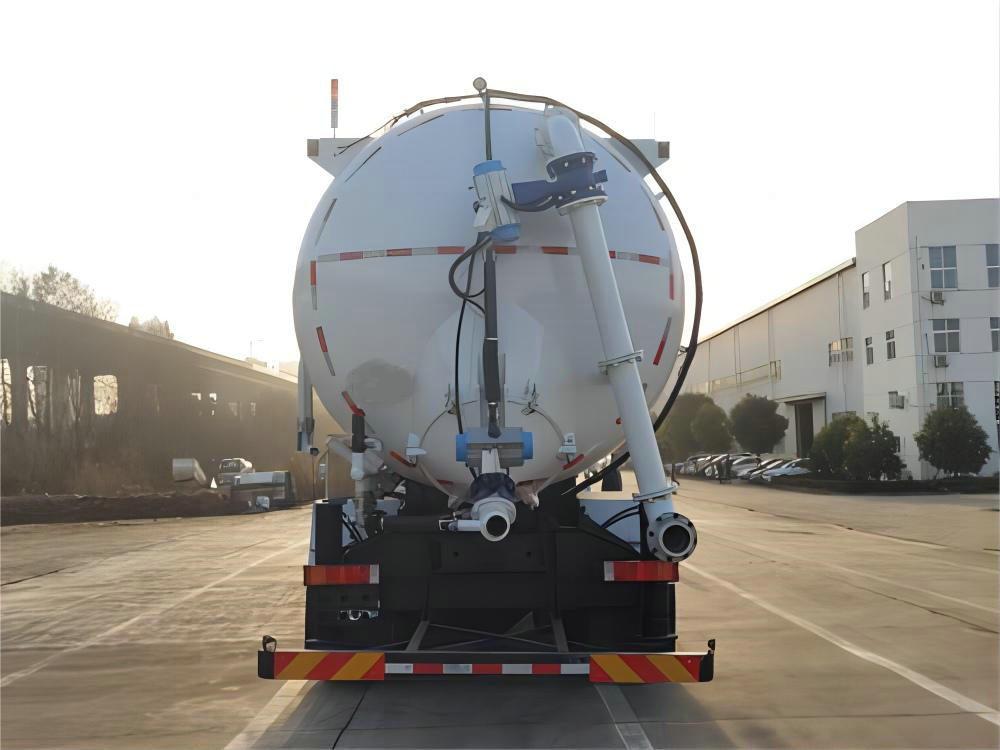

Special devices include Roots vacuum pump, oil-free lubricating swing air compressor, filtration system, lifting oil cylinder, tank body, negative pressure suction, positive pressure discharge, dust filtration and transportation in the tank.
