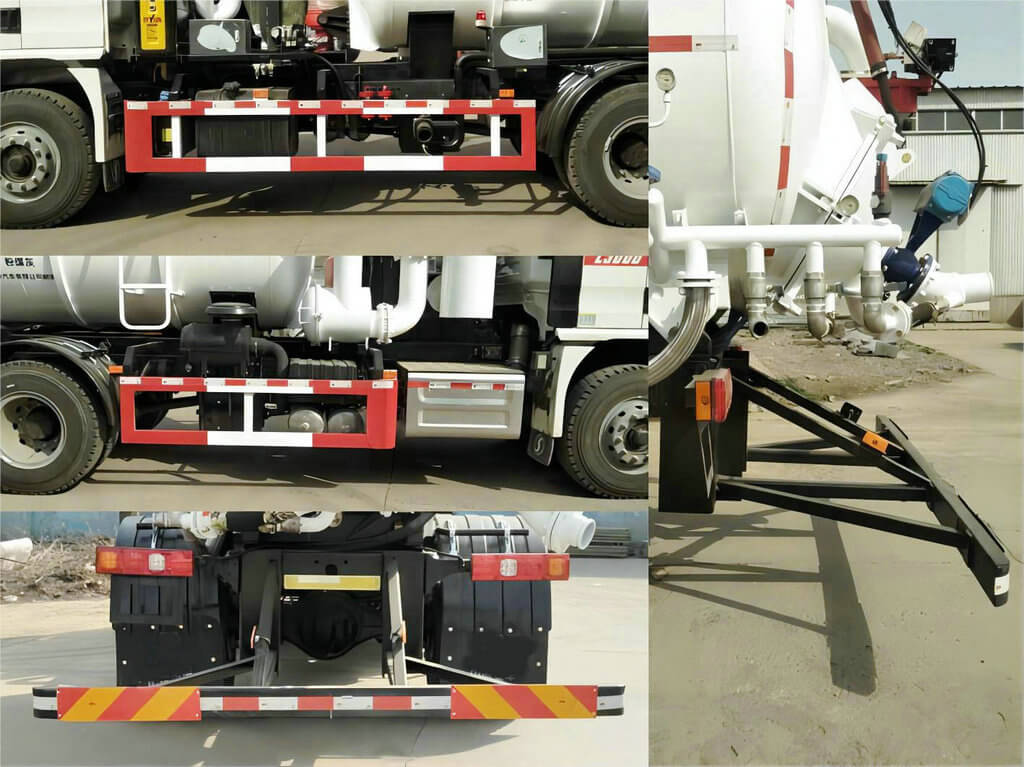

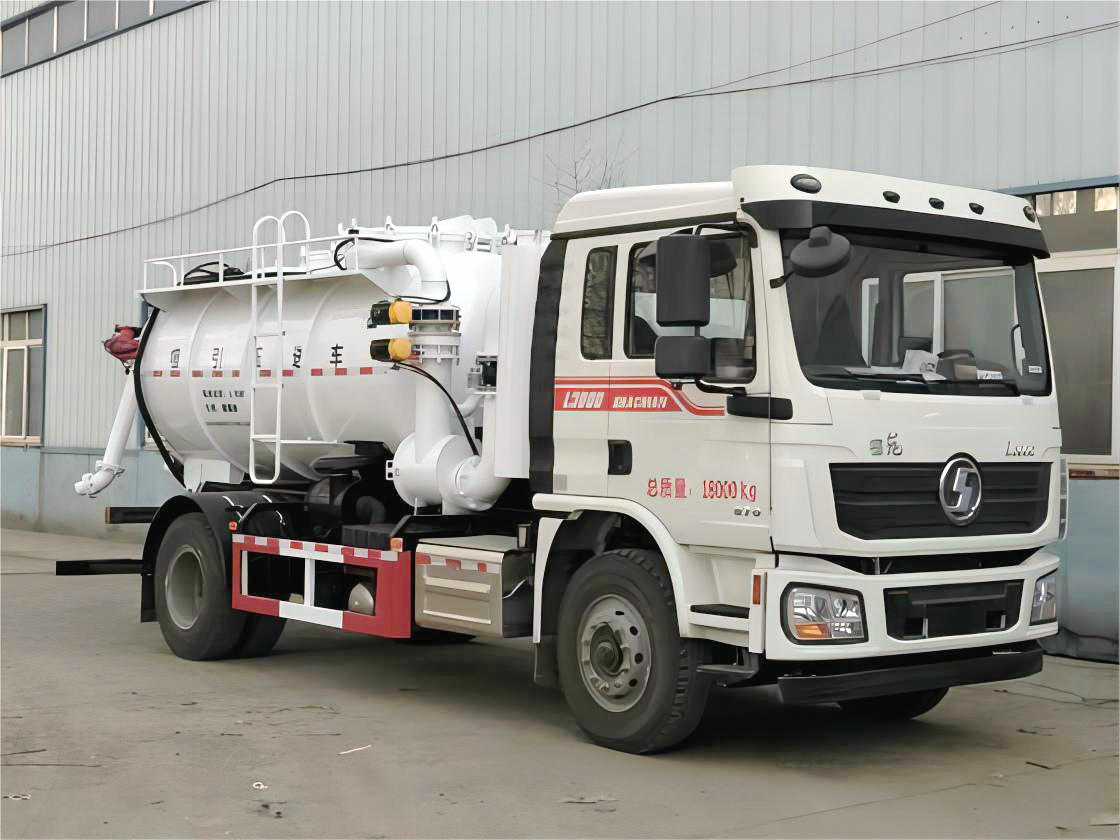

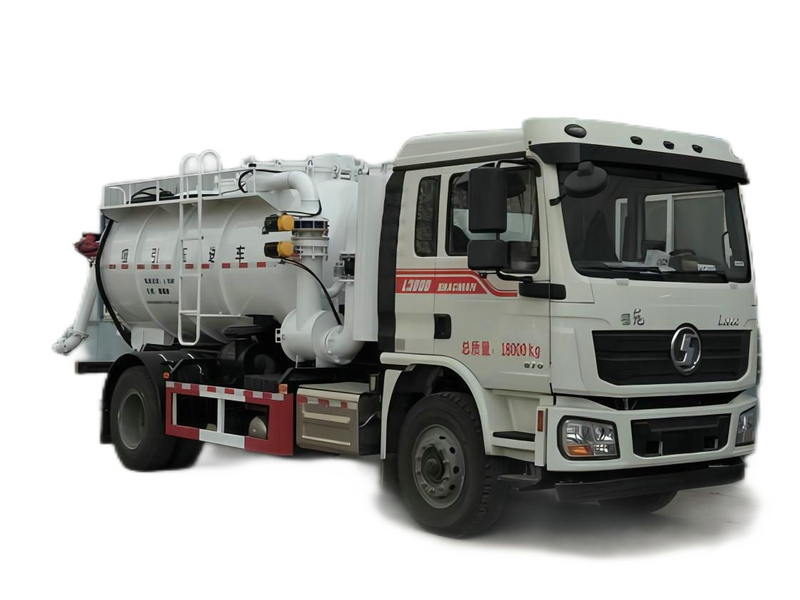

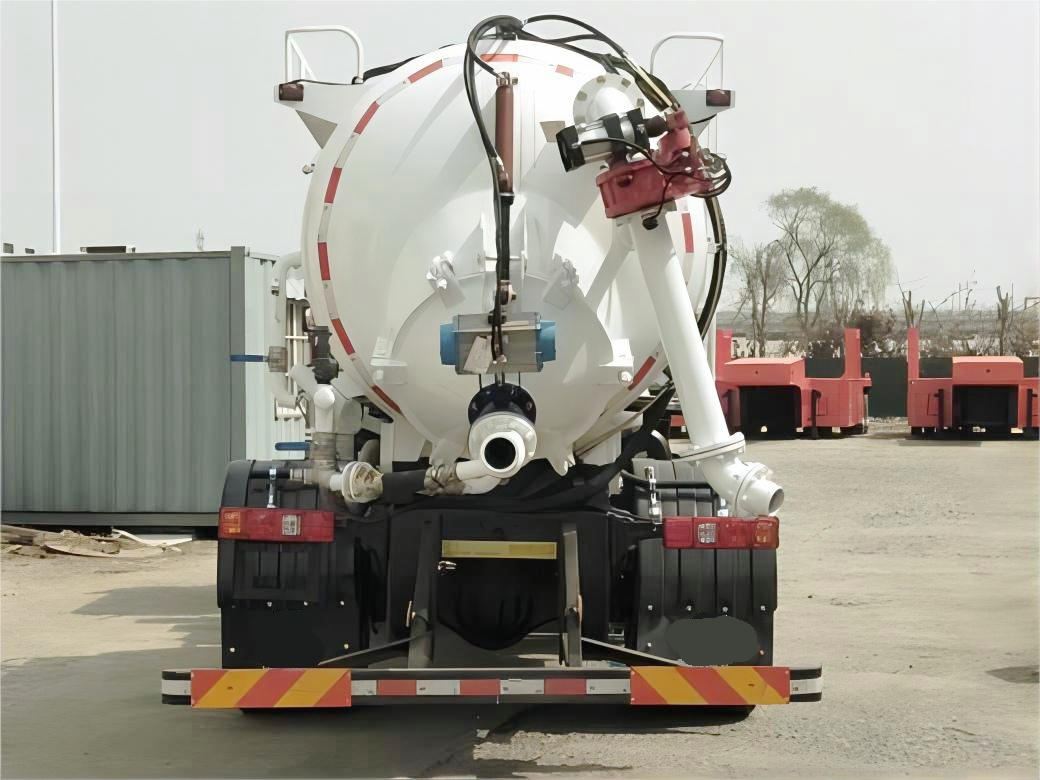

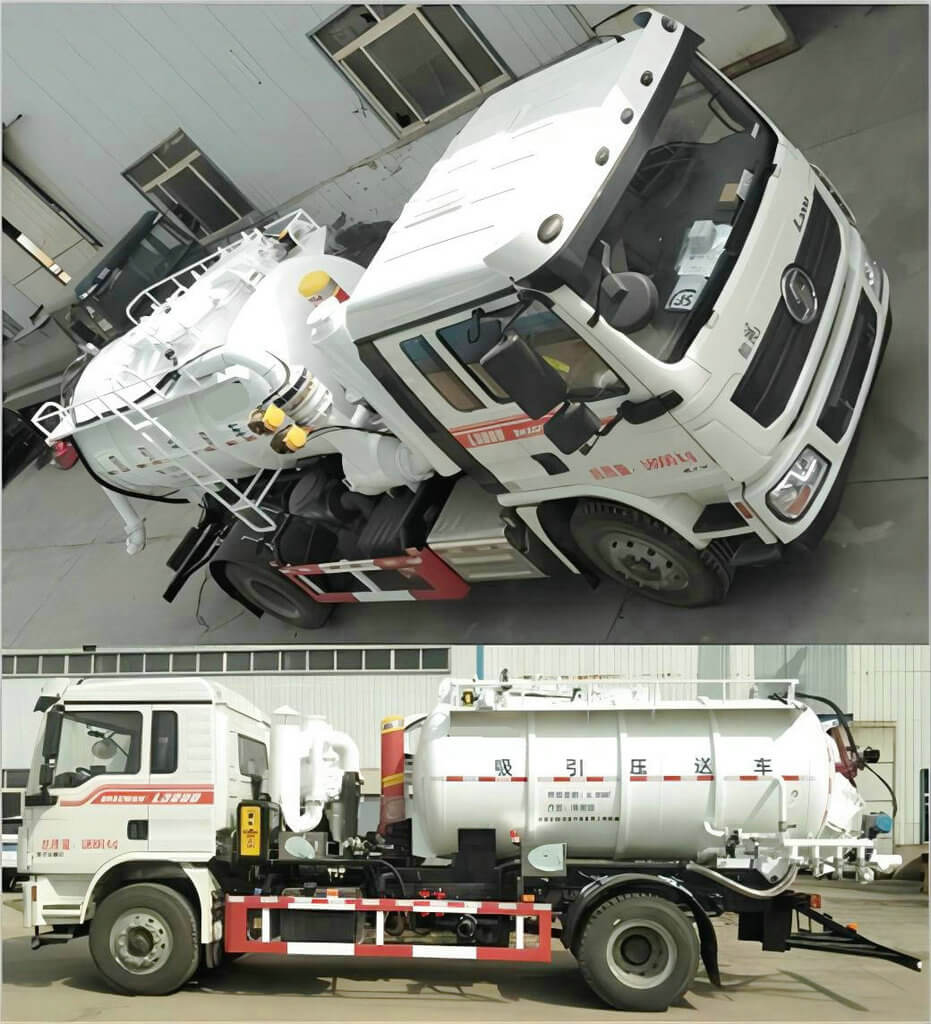

Customize SHACMAN Dry Vacuum Truck Vac Super Sucker 7 m3
Supersucker Vacuum Tanker For Dry Dust or Powder Pressure Suck and Blow
6-7m3 tank, Equipped with air compressor, Roots vacuum pump
SHACMAN 4x2 Chassis SX1189LA1F1C
| Quantity: | |
|---|---|
|
| |
-
5180GXY
-
DRZ
-
8705909990
Customize SHACMAN Dry Vacuum Truck Vac Super Sucker 7 m3
Supersucker Vacuum Tanker For Dry Dust or Powder Pressure Suck and Blow
6-7m3 tank, Equipped with air compressor, Roots vacuum pump
SHACMAN 4x2 Chassis SX1189LA1F1C
Main technical parameters
Overall dimensions: | 8600×2500×3150(mm) | Fuel Type: | Diesel oil |
G.W | 18000(Kg) | ||
Net | 11500(Kg) | Rated load : | 6370,6305(Kg) |
Approach Angle/Departure Angle: | 21/11 (°) | Front/rear overhang: | 1340/2760(mm) |
Axle Load: | 6500/11500 | Wheelbase: | 4500,3800,4200,4700,5100,5300,4000,5600(mm) |
Number of shafts: | 2 | Maximum speed: | 89(km/h) |
Number of tires: | 6(PCS) | Tire Specifications: | 10.00R20 18PR,11R22.5 18PR,295/80R22.5 18PR |
Fuel consumption: | (L/100Km) | Number of spring pieces: | 10/9+6,3/4+3,3/- |
Front wheel base: | 1935,1960(mm) | Rear wheel base: | 1860(mm) |
Engine type | Engine manufacturer | Volume (ml) | Power (kw) |
B6.2 NS6B230; B6.2 NS6B210; YCS06270-60; YCS06245-60; WP6H270E61; WP6H245E61; YCK05240-60; YCK05210-60; YCK05190-60; WP4.6 NQ220E61; B6.2 NS6B260; B6.2 NS6B245; YCS04200-68; WP4.6 NQ220E61A; WP7H270E68; WP4.6 NQ220E62 | Dongfeng Cummins Engine Co., LTD.; Guangxi Yuchai Machinery Co., LTD.; Weichai Power Co., LTD.
| 6200; 6200; 6234; 6234; 6220; 6220; 5132; 5132; 5132; 4580; 6200; 6200; 4156; 4580; 6800; 4580 | 169; 154; 199; 180; 199; 180; 176; 157; 140; 162; 191; 180; 147; 162; 199; 162 |
Equipped with VAC tank body, air compressor, Roots vacuum pump, lifting cylinder, filtration system, hydraulic support leg, suction and discharge pipeline system and other special devices; Negative pressure is generated by the vacuum pump, and the secondary pollutants are attracted to the tank in a vacuum closed way, and the dust removal and filtration system is used to separate the mixed air of secondary pollutants to remove dust and dust. During discharge, the air compressor generates positive pressure to discharge the secondary pollutants into a special storage container through a closed high-pressure discharge. Total tank capacity :7.0 cubic meters, effective tank volume :6.85 cubic meters. Tank dimensions: Diameter × length (mm):Φ1612×4100. Transport medium: fly ash, density :920 kg/m3. wheelbase 4500 mm , Select suction control valve and discharge control valve styles at the rear. Optional rotary adjusting clamp for rear suction pipe. | |||
