Customize Dry Material Supersucker Industrial Powdered Graphite Vacuum Truck 16m3
Supersucker Dry Material Vacuum Suction Truck for Suck and Bow Dust or Powder
16-17m3 tank, Equipped with air compressor, Roots vacuum pump
Chassis Dongfeng DFH1250D4
| Quantity: | |
|---|---|
|
| |
-
5250GXYD,5253GXYE6
-
DRZ
-
8705909990

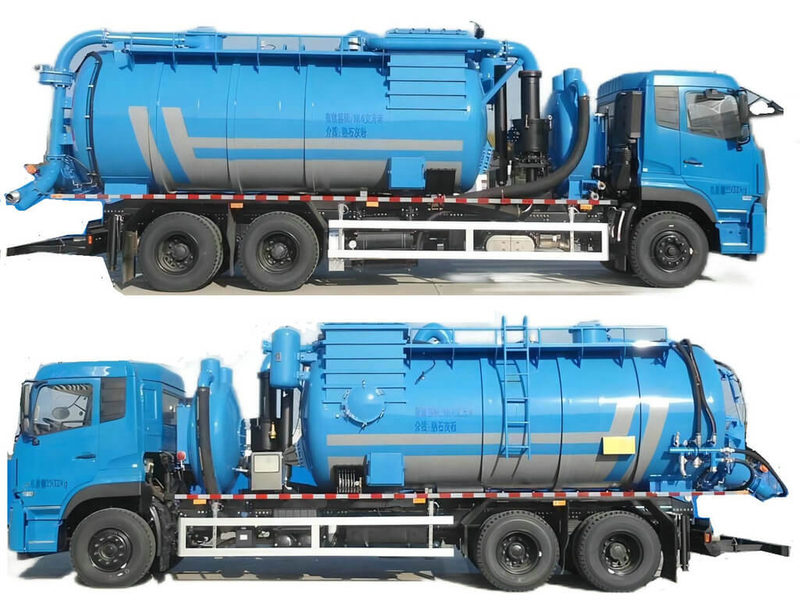

Customize Dry Material Supersucker Industrial Powdered Graphite Vacuum Truck 16m3
Supersucker Dry Material Vacuum Suction Truck for Suck and Bow Dust or Powder
16-17m3 tank, Equipped with air compressor, Roots vacuum pump
Chassis Dongfeng DFH1250D4
Applications for use of dry substances in vacuum equipment
Emergency clean-up
Catalyst work
Ground suction/excavation work
Industrial cleaning
Onshore activities
Petro-chemical activities
Well cleaning
Sewer cleaning
Shutdown cleaning work
Silo cleaning
Transport work
Vacuum cleaning work
Water surface cleaning
Ship cleaning
Ballast suction
Suction and blowing of dry and wet substances
Pressuring liquids
Oven cleaning
Fly ash removal
Blasting grit suction
Blast furnace slag suction
Stable/stall cleaning
Crawl space cleaning
Main technical parameters
Overall dimensions:
10980,11000×2500,2530×3950(mm)
Fuel Type:
Diesel oil
G.W
25000(Kg)
N.W
17255(Kg)
Rated load mass:
7550,7615(Kg)
Approach Angle/Departure Angle:
20/10 (°)
Front/rear overhang:
1480/2800,1500/2800(mm)
Axle Load:
7000/18000(two-axis group)
Wheelbase:
4350+1350,5350+1350,
5700+1350,4600+1350,
4800+1350(mm)
Number of shafts:
3
Maximum speed:
89,98(km/h)
Number of tires:
10(PCS)
Tire Specifications:
295/80R22.5 18PR,11.00R20 18PR
Fuel consumption:
(L/100Km)
Number of spring pieces:
3/10,3/4,9/10
Front wheel base:
2010,2040,2070(mm)
Rear wheel base:
1860/1860,1880/1880(mm)
Engine type
Engine manufacturer
Volume (ml)
Power (kw)
D6.7 NS6B290; DDi75E350-60; DDi75E300-60; DDi75E340-60; D6.7 NS6B320
Dongfeng Cummins Engine Co., LTD.; Dongfeng Commercial Vehicle Co., LTD.;
6700; 7500; 7500; 7500; 6700
213; 257; 220; 250; 231
A :Equipped with VAC tank body, air compressor, vacuum pump, lift cylinder and other special devices, through the vacuum pump to produce negative pressure, vacuum closed suction and loading of secondary pollutants, and through the dust removal filter system to dust the mixed air of pollutants, and then through the air compressor to produce positive pressure to discharge secondary pollutants through the closed high pressure discharge into the special storage container.
Transport medium: powdered graphite, density :450 kg/m3. Total tank capacity :17.6 cubic meters; The effective volume of the tank is 16.7 cubic meters, the overall dimension of the tank (mm): diameter × length of the tank :2200×6000;
Wheelbase :5350+1350.
Optional speed limiting device, speed limiting 89km/h.
Select the rear metal suction pipe, the rear rubber suction pipe, the rear hydraulic locking device, the rear manual locking device, the rear pneumatic ball valve, the rear pneumatic disk valve, the rear hydraulic leg, the air intake pipe.
B: Total capacity of the VAC tank 17.2 cubic meters, the effective volume is 16.4 cubic meters, the size of the tank: the length of the tank diameter × length of the tank :2100× 5794mm, Transport medium: hydrated lime powder, the density of the medium is 500 kg/cubic meters. Optional speed limiting device, speed limiting 89km /h; special function :suction of hydrated lime powder, and the special device is the Vac tank body (for storing hydrated lime powder) and the vacuum suction device (for pumping hydrated lime powder).
