Quantity: | |
---|---|

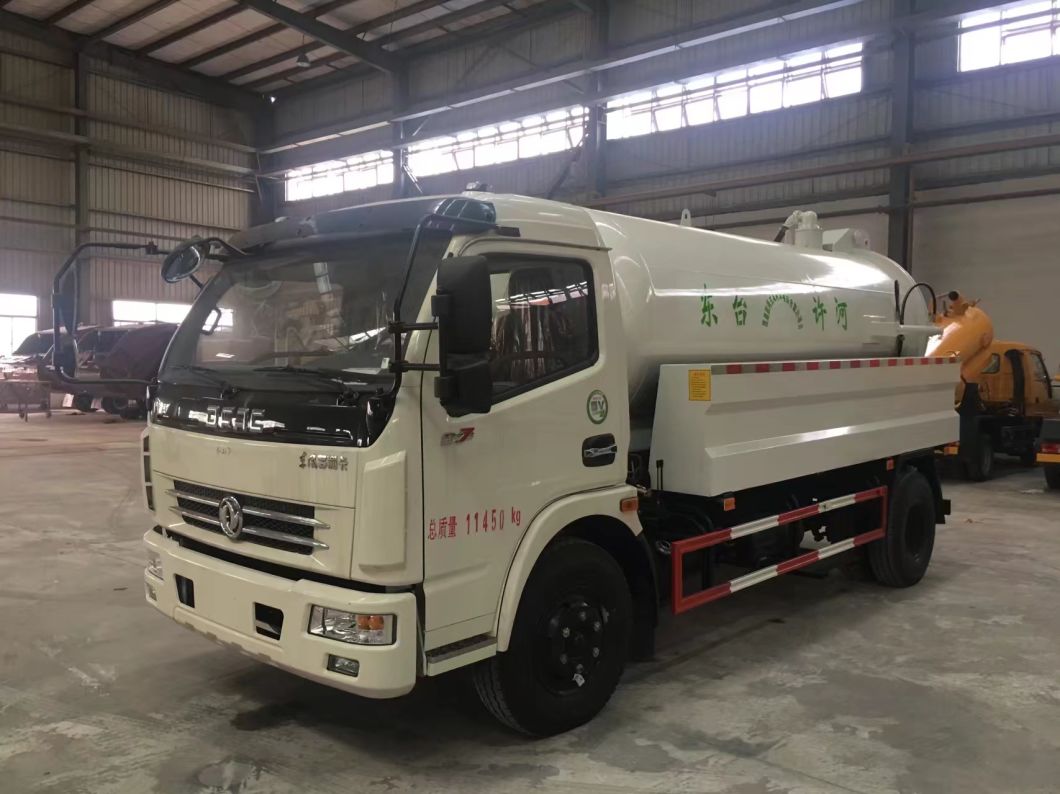

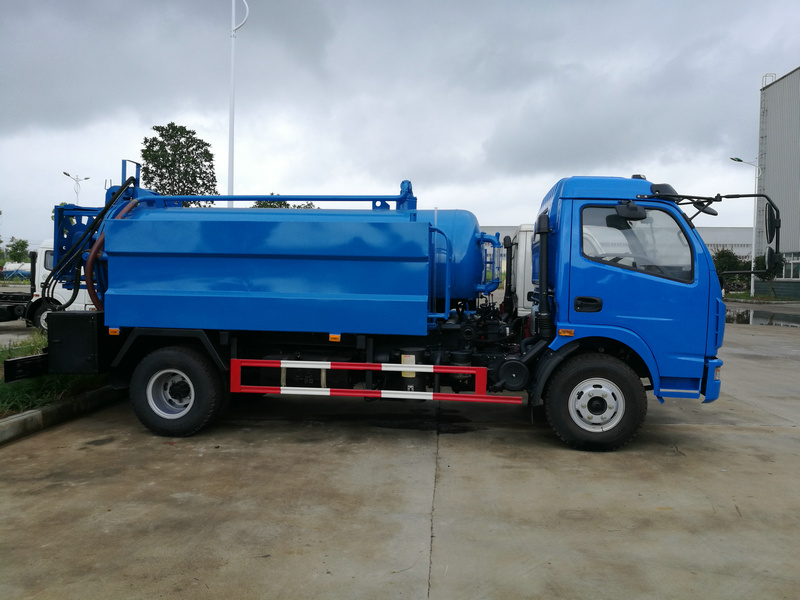

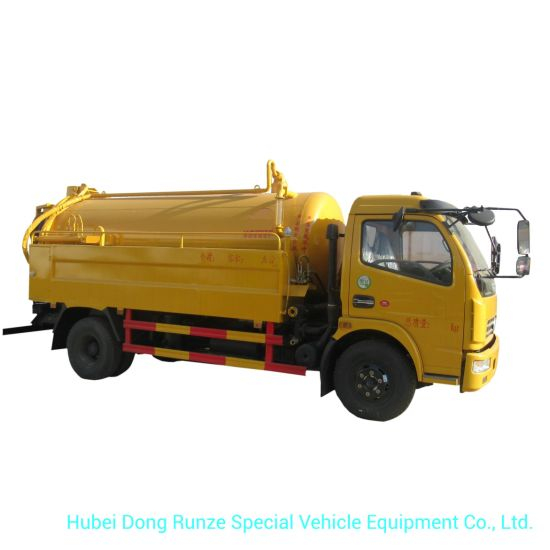

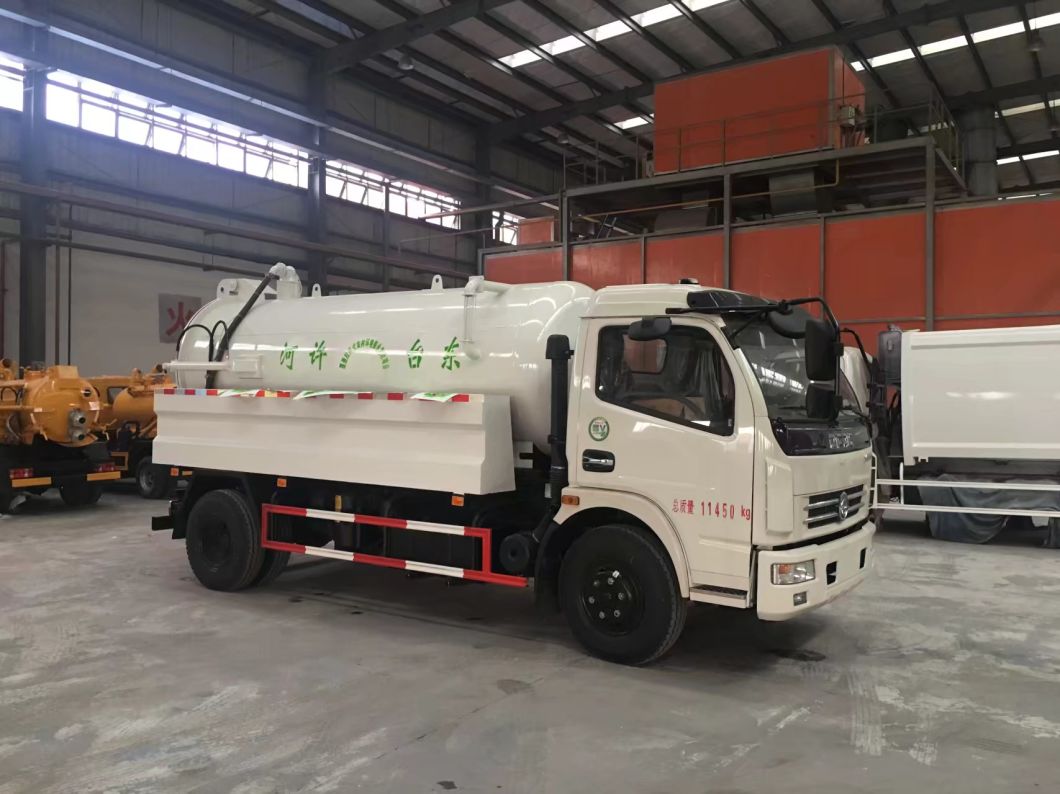

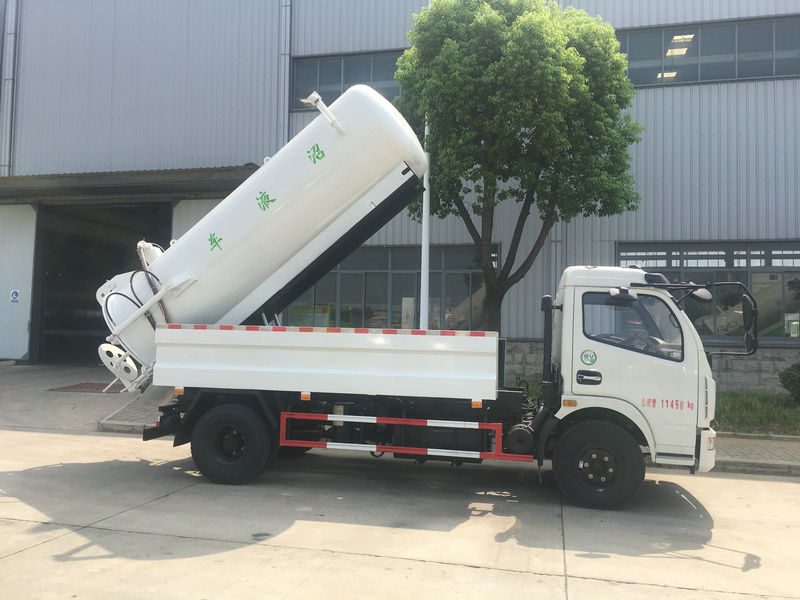

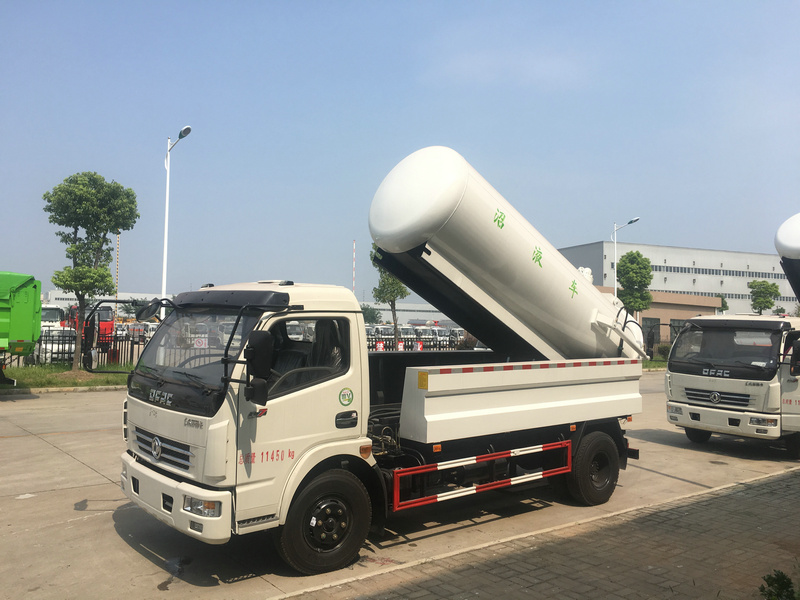

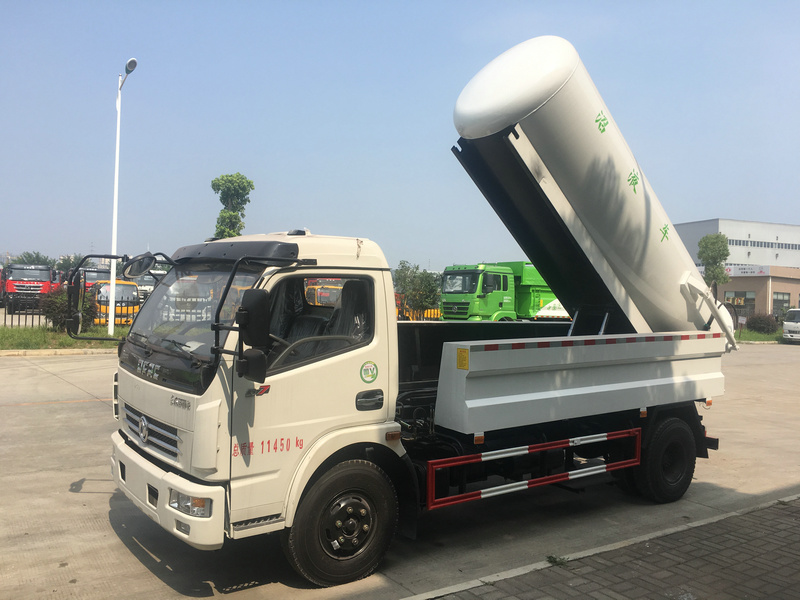

High Pressure Jetting Combined Sewer Truck 3cbm Vacuum Sewage Tank 1cbm Jetting Water Tank
carbon - stainless steel
RHD OR LHD 4x4 - 4x2
Clean water Tank Capacity 1000 Litres
Sewer water tank capacity 3000 litres
High pressure pump High pressure pump pressure 16mpa, flow rate 130L/min
Vacuum pump China famous brand water ring pump sk-6
RHD OR LHD Truck
The pictures are for your reference only.
Sewage suction truck capacity from 3000 litres to 20,000 litres
Fecal suction truck capacity from 3000 litres to 10,000 litres
septic tank truck, sewage suction truck, toilet truck,sewer truck, vacuum truck
Detailed Product Description
Items | Descriptions | Specifications and Types |
General | Truck Name | Sewage suction truck |
Drive Type | 4x2, left hand drive,right hand drive is optional | |
Gross Vehicle Weight(kg) | 9400 | |
Curb Weight (kg) | 4605 | |
Overall Dimensions L*W*H(mm) | 6450×2285×2700 | |
Engine | Engine Model | CY4102-E3C |
Engine Brand | CHAOCHAI | |
Fuel Type | Diesel | |
Power | 91kw/120HP | |
Emission Standard | Euro III | |
Displacement(ml) | 3856 | |
Engine Type | 4 cylinders in line,water cooling, turbo-charged diesel engine,inter-cooling | |
Chassis | Chassis Brand | Dongfeng |
Front/Rear Axle Load(KG) | 3885/5515 | |
Tire No. | 6 | |
Tire Specification | 7.50-16 Nylon tire | |
Wheelbase (mm) | 3800 | |
Axle No. | 2 | |
Gear Box | 5 speed forward with 1 reverse, manual | |
Brake | Air brake | |
Air Conditional | Suitable for tropical climate | |
Front/rear suspension(mm) | 1180/1715 | |
Leaf Spring No. | 11/9+7 | |
Sucking System | Tank Volume(L) | 5000 |
Tank shape | Cylindrical | |
Tank Material | 4mm thick carbon steel | |
Vacuum Pump | Weiyi pump(Weilong is optional) | |
Suction Depth(m) | More than 6 meter | |
Tank Tipping angle(°) | More than 45 | |
Rear door | Open and closed by hydraulic cylinders | |
Basic equipment of sludge tank truck
Imported vacuum pump, power-take-off, hydraulic cylinders, control valves , pressure gauge,
water gas separator , oil water separator, level inspection window, suction hose,pipeline system,etc.

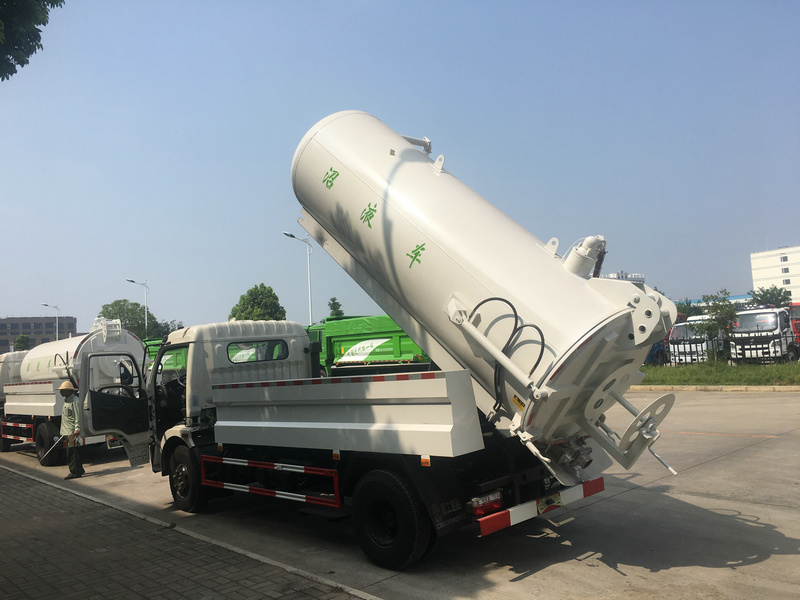

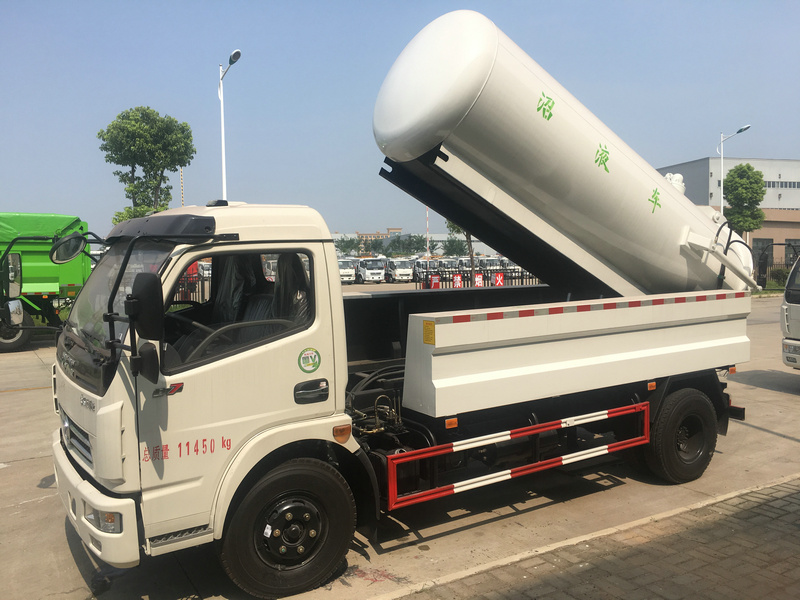

1.Tank can be lifted hydraulically to 40 to 45 degree.Rear door can be opened&closed
hydraulically. With full opening design, discharge can be very quick&complete.
2.Overfill system with music horn is equipped to prevent the vacuum pump damage from sewage water into vacuum pump when the tank is full.
3.Super power of vacuum pump, seamless die casted sheel cover, designing for container with high ability of pressure-resistance,double hydraulic jack system, morestrength then cesspit
emptier.
brand new high pressure vacuum suction truck
Dongfeng 4*2 combined sewer jetting truck | ||
# | Descriptions | Specifications and types |
General | Truck Brand | Dong Run Ze |
Chassis Brand | Dongfeng | |
Approx. Dimension | 6200*2030*2650 mm | |
GVW./Kerb Wt. | 7360/ 4930 kg | |
Cab | Cab Capacity | 3 persons' seat |
Air Conditioner | Air Conditioner is optional | |
Chassis | Drive Type | 4X2,right hand drive or left hand drive |
Fuel Type | Diesel | |
Engine Make & Model | Chaochai engine | |
Power | 120HP | |
Displacement | 3760 ml | |
Emission Standard | Euro 2 | |
Wheelbase/No.of axle | 3360 mm / 2 | |
Tyre Specfication | 7.00R16 | |
| Tyre Number | 6 tyres and 1 spare tyre |
| Axles weight | Front axle 2.4 ton rear axle 4.2 ton |
| Transmission | WLY6T46 6 forwards 1 reverse |
Max Speed | 80 km/h | |
Paint | Automative metallic paint | |
Upper part | Clean water Tank Capacity | 2500 Litres |
Sewer water tank capacity | 5500 litres | |
High pressure pump | High pressure pump pressure 16mpa, flow rate 130L/min | |
Vacuum pump | China famous brand water ring pump sk-6 | |
Equipped PTO. pressure gauges, one water-gas separator, one oil-gas separator ,one oil tank reservoir, a lever inspection window and a piece of 6m suction hose , rear cover open , sewage tank lifting ,etc |
The above information is for reference only. We can produce according to your needs so, If you have any questions you can contact me at any time.
Specification of DF Sewage Suction Truck DLK | |||
Item | Specification | Item | Specification |
General | |||
Truck Name | Sewage Suction Truck | Overall Dimension (mm) | 6500×2120×2700 |
Truck Brand | DF | Gross / Curb Weight (kg) | 8495 / 4300 |
Truck Model | DFA1080SJ11D3 | Approach / Departure Angle (°) | 24 / 12 |
Max. Speed (km/h) | 90 | Front / Rear Overhang (mm) | 1210 / 1490 |
Chassis | |||
Chassis Brand | DF | Chassis Model | DFA1080SJ11D3 |
Wheel Base (mm) | 3800 | Leaf Spring | 8/10+7; 11/9+7 |
Traction System | 4 x 2 | Quantity of Axles | 2 |
Cab Capacity | 1-3 | Front / Rear Axle Load (kg) | 3390 / 5105 |
Transmission | manual | Front / Rear Wheel Tread (mm) | 1770 / 1586 1831 / 1640 |
Tyre Model | 7.50-16 12PR, 8.25-16 14PR, 7.50R16 12PR, 8.25R16 14PR | Quantity of Tyre | 6 |
Engine (Motor) | |||
Brand | DF | Type of Fuel | Diesel |
Model | CY4102- | Displacement (ml) | 3856 |
Max. Power (KW/hp) | 100 / 136 | Emission Standard | Euro 3-5-6 |
Cylinder Stator | 4, all cylinders arranged vertically in line | Max Torque (N.m) | 420 |
Quantity of Valves Per Cylinder | 4 | Maximum Torque Speed (rpm) | 1300-1500 |
Cylinder Diameter × Stroke (mm) | 102 x 118 | Motor Rated Rotating Speed (rmp) | 2800 |
Full Load Minimum Fuel Consumption Rate (g/KW.h) | ≤200 | Engine Type | Electric control high pressure common rail, water cooling, vertical. |
Compression Ratio | 17 : 1 | Noise From 1 Meter (dB) | 114 |
Motor Net Weight (kg) | 430 | ABS | yes |
Equipments | |||
Tank Effective Capacity (L) | 5500 | Tank Material | carbon / stainless steel |
Tank Dimension (length x diameter) (mm) | 3780×1300 | Time to fulfill the tank (min) | ≤5 |
Suction Height (m) | ≥10 | ||
NOTE: 1. Any part can be customized depending on customers' demand. 2. 12 months whole vehicle warranty 3. We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance. 4. MOQ: 1 unit |
Looking forward to receiving your inquiry!
