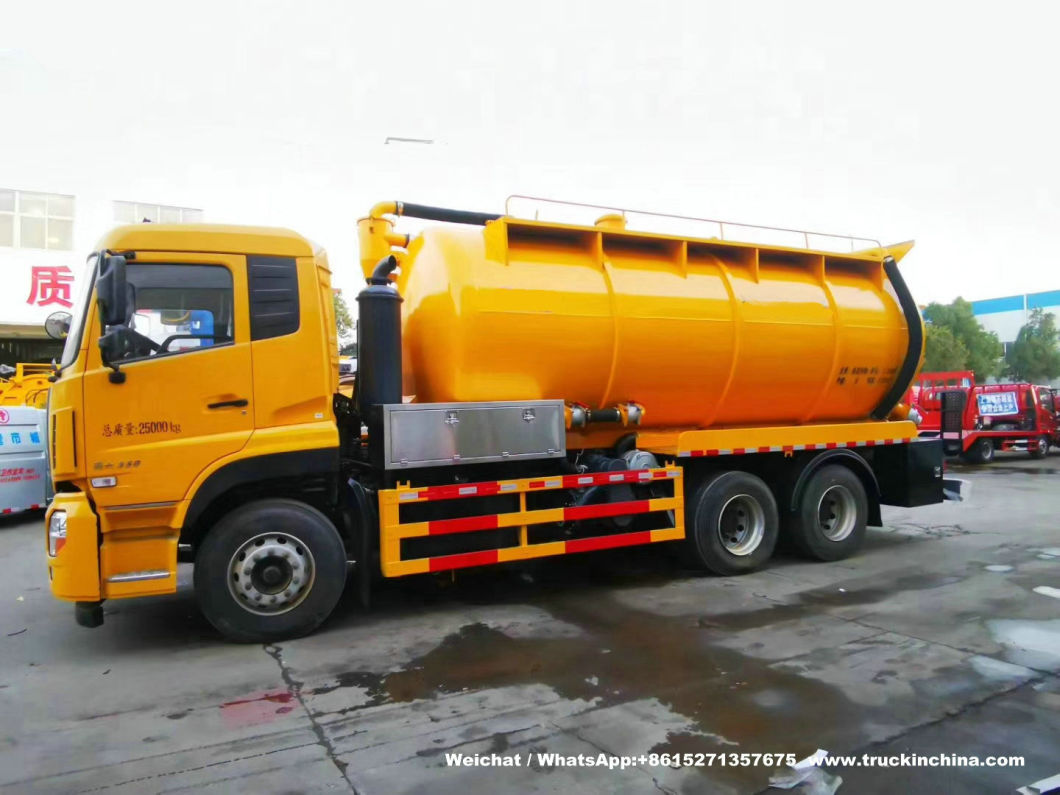

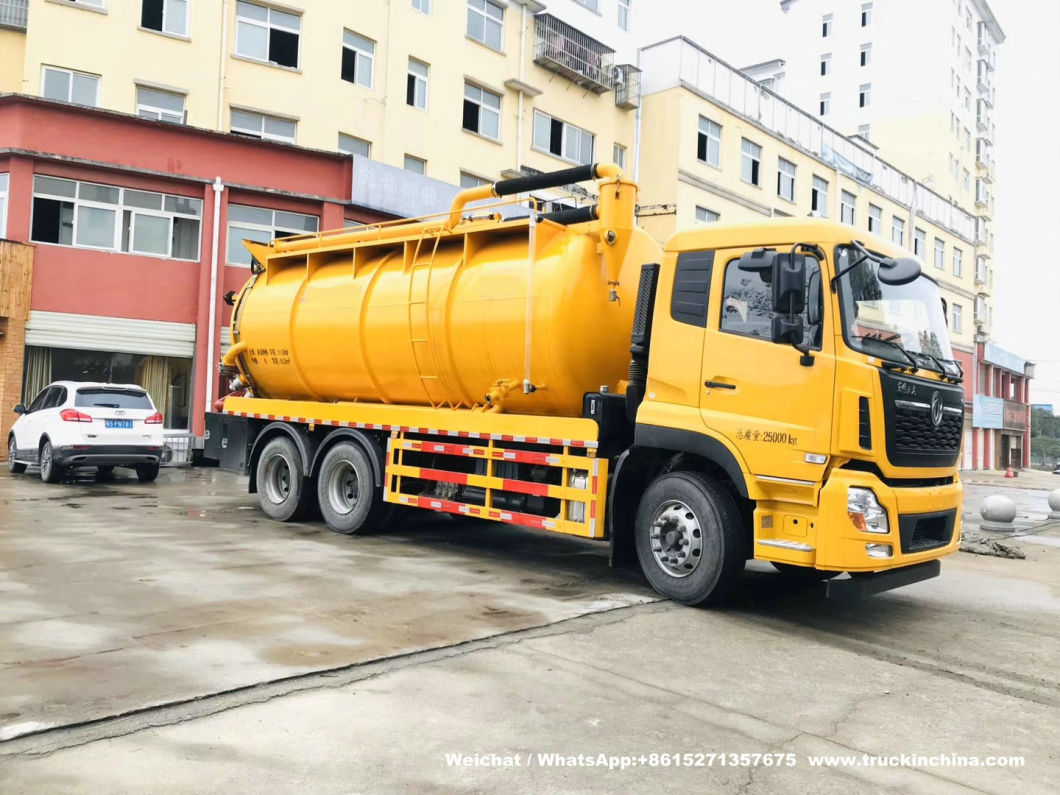

DFL SUPERSUCKER Combined Vacuum Jetting Tanker Trucks (9CBM Water tank and 11CBM Sewage tank Jet Vac Tanker)
25Ton-30Ton Vacuum Sewer Sewage Cleaning Truck (Sewer Septic Tank High Pressure Combined Water Jetting Truck )
High Pressure Combined Vacuum Sewage Sewer Water Jetting Truck

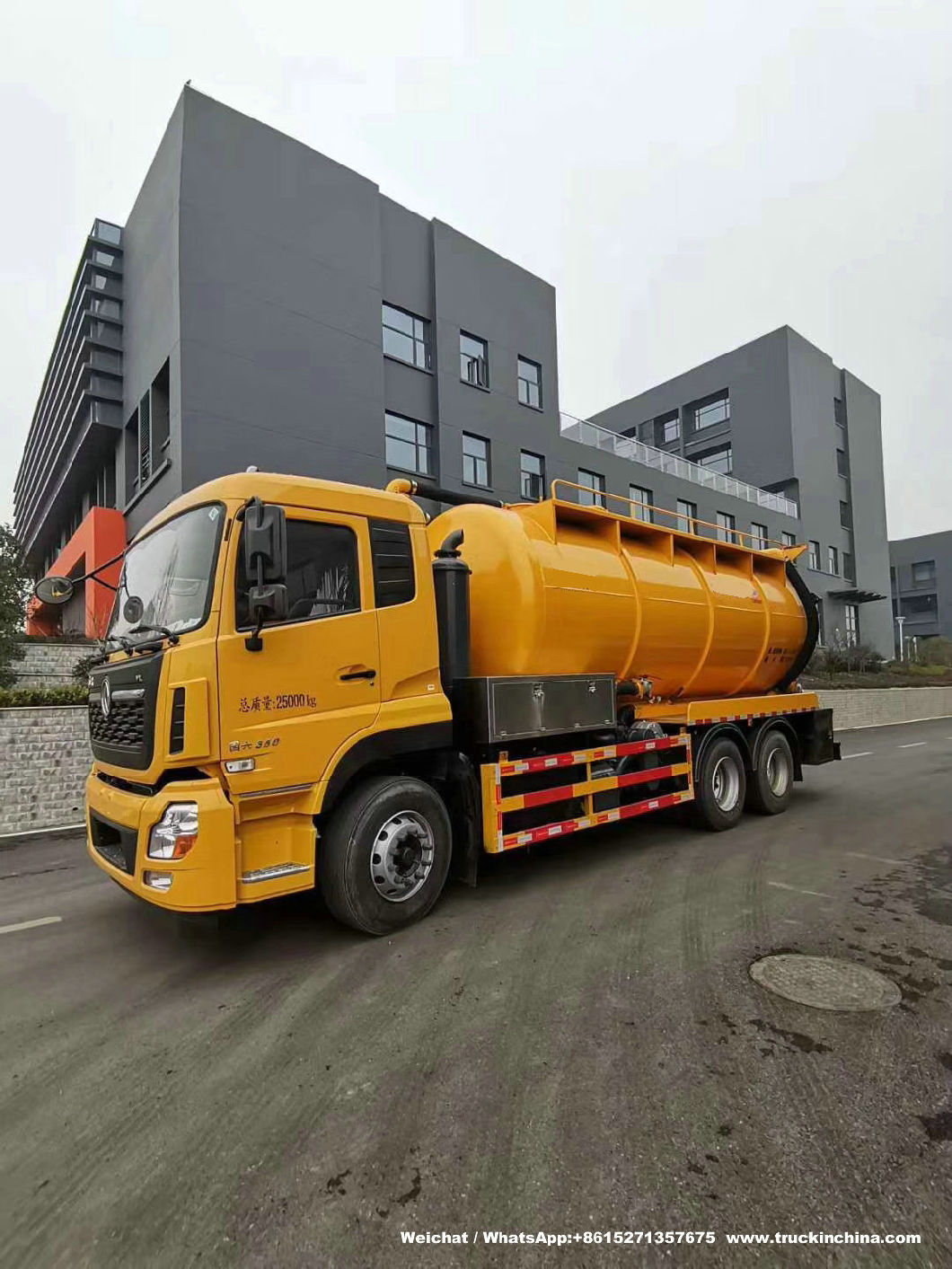

30Ton Vacuum Sewer Sewage Cleaning Truck (Sewer Septic Tank High Pressure Combined Water Jetting Truck 18m3 Wast Sludge 10m3 Clean Water Tank ) Cesspit Emptier Vacuum Tanker Truck
For Cesspool Emptier
DFH1310A1
carbon - stainless steel
Vac truck with 20000 -25000 l. capacity on truck chassis. The vacuum tank is manufactured of 5mm - 6 mm thick steel sheets. The dished bulkheads on both sides are always fabricated with 6 mm steel. The appropriate number of of inside baffles are made of 5 mm steel sheets. Of course the complete tank is hot-dip galvanized in-and outside.
Special custom-made Vacuum Tank superstructure with Telescopic Tipping Cylinder (HYVA® tipping cylinders, Germany). Including Pneumatic Interlock System for additional safety.
Tipping cylinders are not required for normal suction jobs but rather for very special applications.

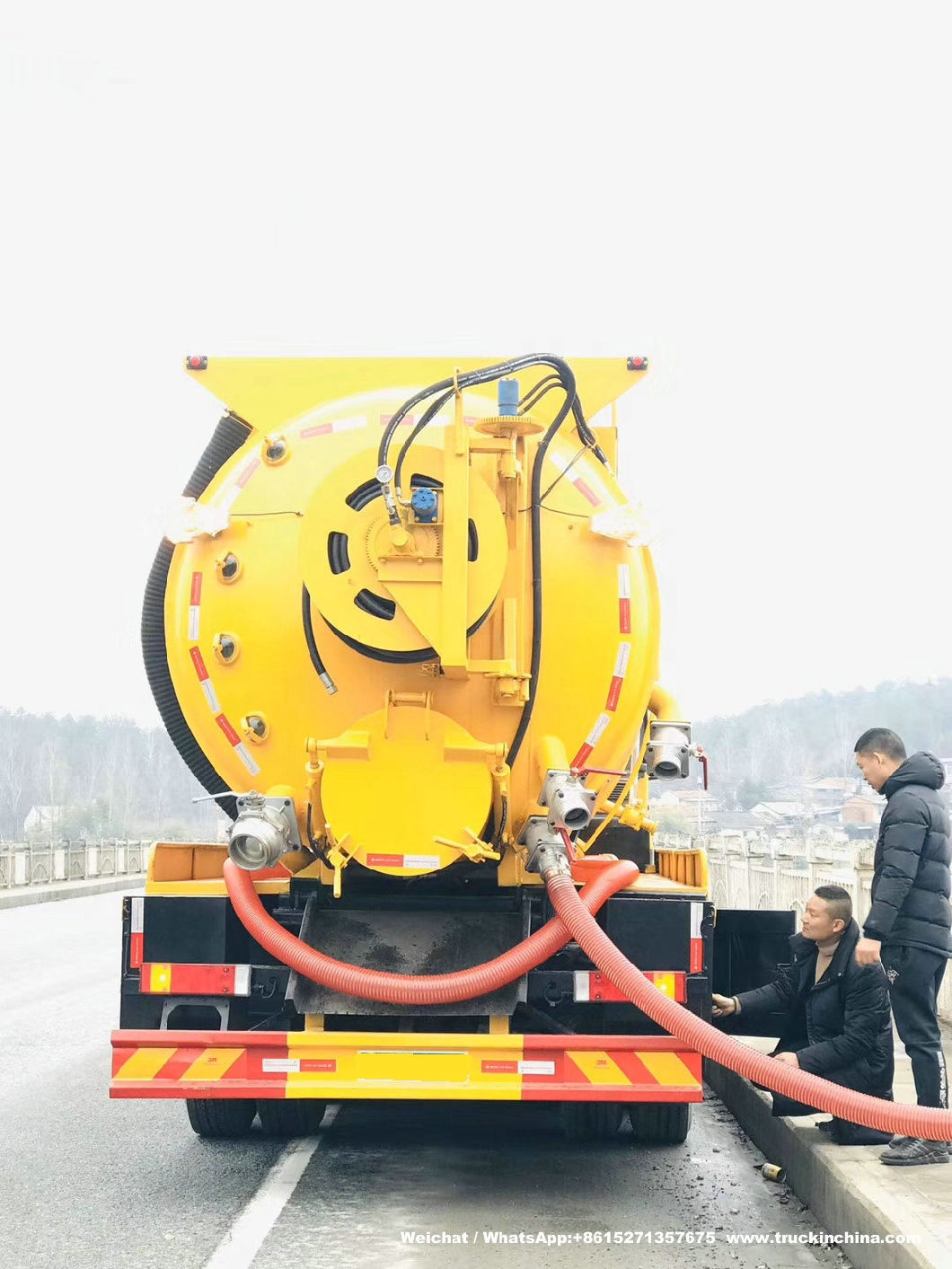

Full rear opening of the vacuum tank made of 6mm dished plate, hinged at the top and hydraulically operated. The debris tank door is securely fastened by hydraulic door locks or manually operated tightening bolts to secure the rear opening absolutely tight and pressure and vacuum proofed. The hydraulic rear door is fitted with an acid resistant sealing gasket. The debris tank body is made of European high-grade steel (thickness 4-5 mm) and electrically welded throughout. The vacuum tank can be provided hot dip galvanized in and out-side or inside painted with bitumen paint. Each vacuum tank will be supplied with an appropriate nos. of baffles of 5 mm thickness.
Instead of complete rear opening (hydraulically operated) of the vacuum tank you can just require a manhole with diameter of 600 mm. That solution is for "normal suction jobs" sufficient and will reduce the asset cost.
High-pressure flushing system with an effective high-pressure pump JUROP®, hydraulically driven by the PTO of truck. Our hydraulic system is including oil-cooler and fan. The hose reel is operated hydraulically. The 100 m. long high-pressure flushing hose DN 25 (yellow) is pushed into the dirty pipeline and with changeable nozzles (180 bar water pressure and 250 ltr. water per minute) all the debris such as stones, bottles, grease, sludge, grime etc. lodged in the pipe, will be flushed out. Our effective air vacuuming system sucks all the dislodged debris and forces it into the vacuum tank, finally the blocked sewer will be opened and effective cleaned in short time.
For high pressure cleaning tasks:

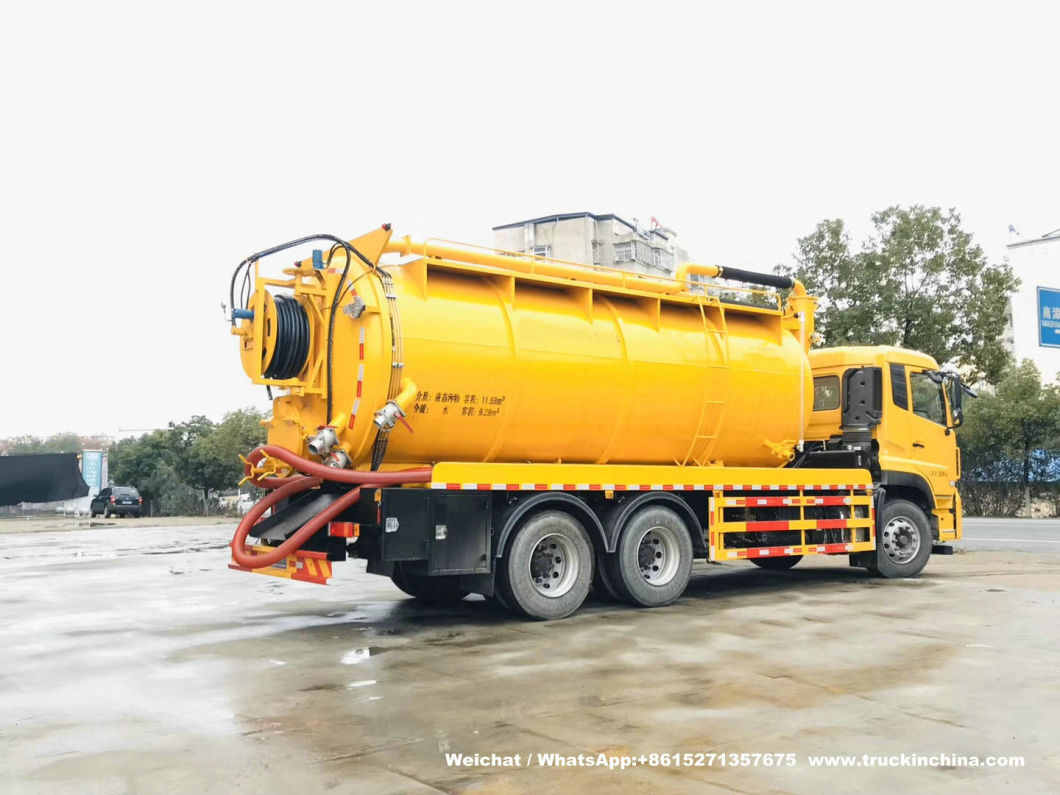

Hose-reel, located at the rear end of truck chassis, left- or right-hand side.
- Manual turning and hose guiding
- 40 m high pressure hose DN13 (1/2 inch). Operating pressure of 150 bar
- One (1) standard cleaning nozzle ½"
- 10m HD hose DN13 with high-pressure cleaning nozzle for general cleaning
Vacuum-Jetting-Flushing combination truck for vacuuming and transport of oil mud, waste-water (sewage) as well as for high-pressure sewer pipe cleaning operations. The tank capacity is 15 000-19000 ltr. vacuum tank and 3 000-10000 ltr. integrated fresh water tank. The complete unit is mounted on 6x4 or 6x6 all-terrain truck chassis. The RAC-Germany® vacuum and high pressure combination truck may also be used for street flushing and many different cleaning jobs with the additionally provided high pressure water handgun (hose length 40 m, DN 13). That hose reel installed on the opposite site of the truck.
Vacuum-Jetting-Tank truck with high pressure water pump, hydraulically driven by the PTO of the truck (capacity approx. 50 ltr. / min at 150 bar) and manual hose-reel with 40 m DN13, 1/2" high pressure hose, mounted at the rear right side of the truck. The tank superstructure is built up on truck chassis (6x4 -6x6 - 8x4).

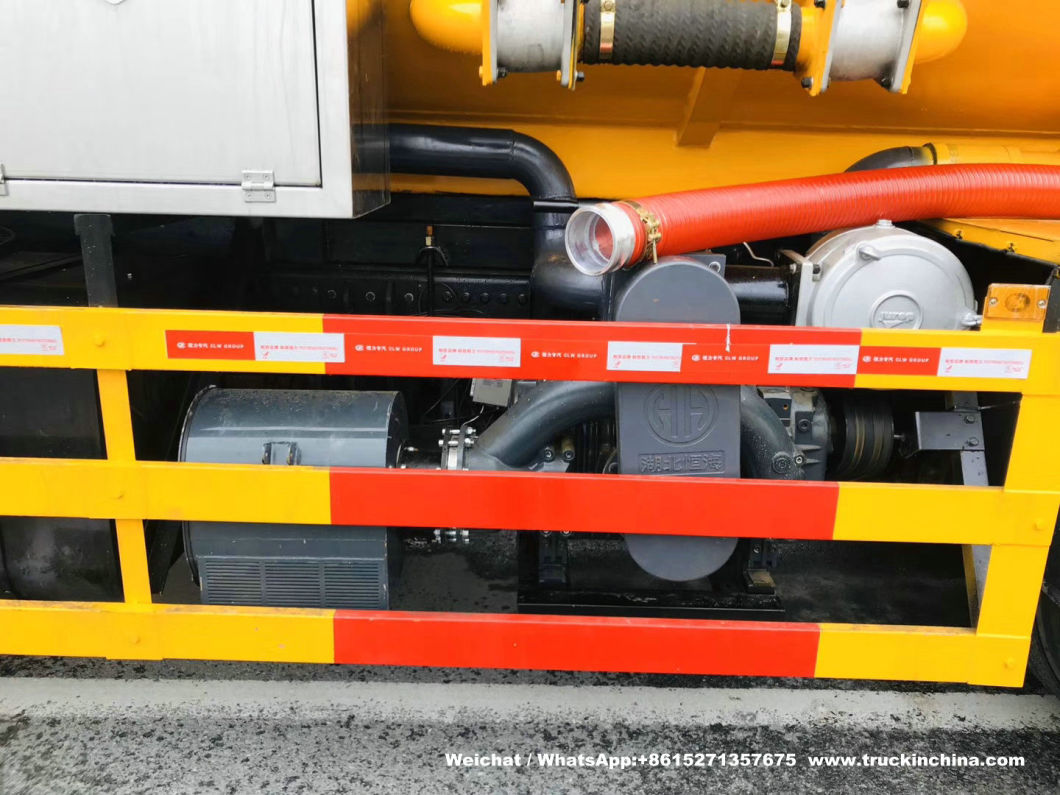

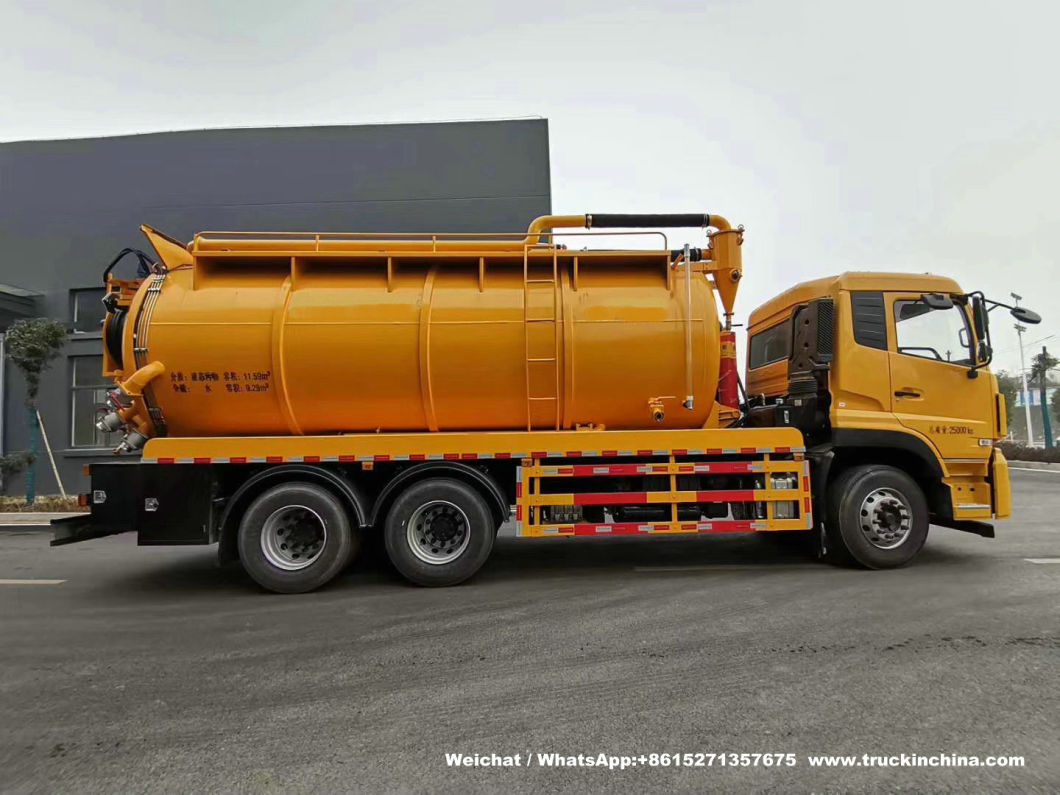

On the right side of the truck you can identify (on the above picture) the hydraulic system, consist of:
- Oil-tank with oil-cooler and fan
- Hydraulic pump
- Return filter
- Control valves with integrated pressure relief valves

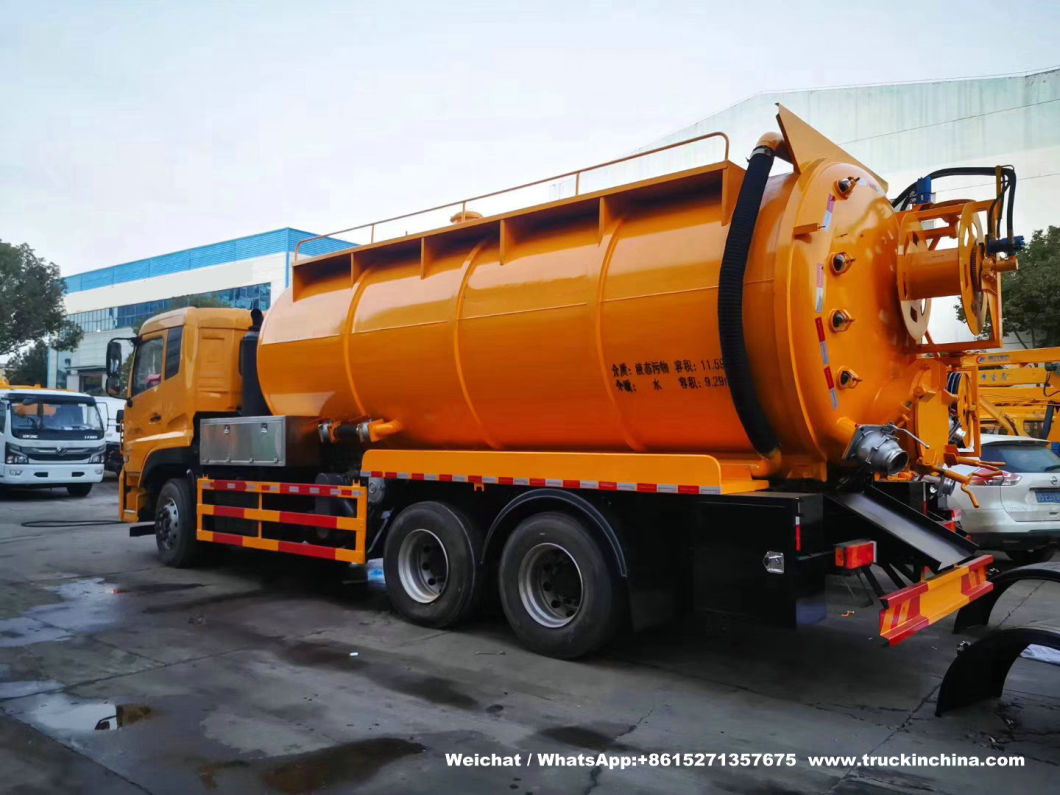

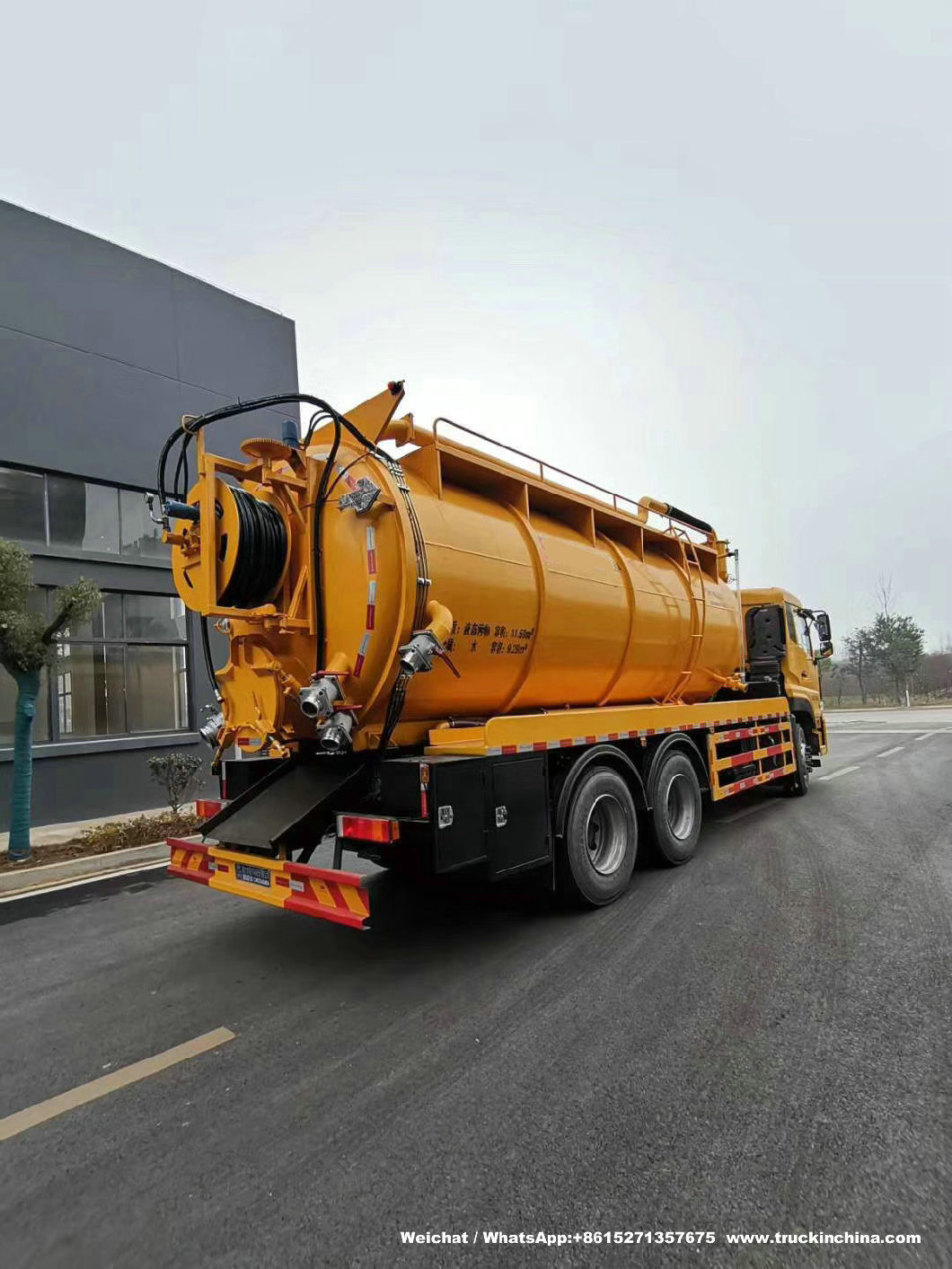

The rear end of the Vacuum-Jetting Tank superstructure can be furnished either with a 600 mm man hole or with complete rear opening, hydraulically operated, as shown on the above picture. However the Off-Loading Process of the tank content is always by pressure. The man hole as well as complete rear opening are only for (special) cleaning jobs. The tank needs not to be opened for loading or off-loading jobs.
Special custom-made Vacuum Tank superstructure with Telescopic Tipping Cylinder (HYVA® tipping cylinders, Germany). Including Pneumatic Interlock System for additional safety.
Tipping cylinders are not required for normal suction jobs but rather for very special applications.
Full rear opening of the vacuum tank made of 6mm dished plate, hinged at the top and hydraulically operated. The debris tank door is securely fastened by hydraulic door locks or manually operated tightening bolts to secure the rear opening absolutely tight and pressure and vacuum proofed. The hydraulic rear door is fitted with an acid resistant sealing gasket. The debris tank body is made of European high-grade steel (thickness 4-5 mm) and electrically welded throughout. The vacuum tank can be provided hot dip galvanized in and out-side or inside painted with bitumen paint. Each vacuum tank will be supplied with an appropriate nos. of baffles of 5 mm thickness.
Instead of complete rear opening (hydraulically operated) of the vacuum tank you can just require a manhole with diameter of 600 mm. That solution is for "normal suction jobs" sufficient and will reduce the asset cost.
High-pressure flushing system with an effective high-pressure pump JUROP®, hydraulically driven by the PTO of truck. Our hydraulic system is including oil-cooler and fan. The hose reel is operated hydraulically. The 100 m. long high-pressure flushing hose DN 25 (yellow) is pushed into the dirty pipeline and with changeable nozzles (180 bar water pressure and 250 ltr. water per minute) all the debris such as stones, bottles, grease, sludge, grime etc. lodged in the pipe, will be flushed out. Our effective air vacuuming system sucks all the dislodged debris and forces it into the vacuum tank, finally the blocked sewer will be opened and effective cleaned in short time.
For high pressure cleaning tasks:
Hose-reel, located at the rear end of truck chassis, left- or right-hand side.
- Manual turning and hose guiding
- 40 m high pressure hose DN13 (1/2 inch). Operating pressure of 150 bar
- One (1) standard cleaning nozzle ½"
- 10m HD hose DN13 with high-pressure cleaning nozzle for general cleaning
Vacuum-Jetting-Flushing combination truck for vacuuming and transport of oil mud, waste-water (sewage) as well as for high-pressure sewer pipe cleaning operations. The tank capacity is 15 000-19000 ltr. vacuum tank and 3 000-10000 ltr. integrated fresh water tank. The complete unit is mounted on 6x4 or 6x6 all-terrain truck chassis. The RAC-Germany® vacuum and high pressure combination truck may also be used for street flushing and many different cleaning jobs with the additionally provided high pressure water handgun (hose length 40 m, DN 13). That hose reel installed on the opposite site of the truck.
Vacuum-Jetting-Tank truck with high pressure water pump, hydraulically driven by the PTO of the truck (capacity approx. 50 ltr. / min at 150 bar) and manual hose-reel with 40 m DN13, 1/2" high pressure hose, mounted at the rear right side of the truck. The tank superstructure is built up on truck chassis (6x4 -6x6 - 8x4).
On the right side of the truck you can identify (on the above picture) the hydraulic system, consist of:
- Oil-tank with oil-cooler and fan
- Hydraulic pump
- Return filter
- Control valves with integrated pressure relief valves
The rear end of the Vacuum-Jetting Tank superstructure can be furnished either with a 600 mm man hole or with complete rear opening, hydraulically operated, as shown on the above picture. However the Off-Loading Process of the tank content is always by pressure. The man hole as well as complete rear opening are only for (special) cleaning jobs. The tank needs not to be opened for loading or off-loading jobs.
Custom-made Vacuum-Jetting-Flushing-Tank-Truck
For the transport and suction of oil, mud, waste-water (sewage) and for high-pressure cleaning.
Volume: approx. 20 000 ltr. (11.000 + 9.000)
Tank Body
| Tank shape | Cylindrical |
|---|---|
| Capacity | 20 000 ltr. |
| Tank compartments | Two (2) 11000 -19 000 ltr for Sewage / Oil / Mud / Sludge 1 000-9000 ltr for fresh water |
Tank body completely hot-galvanised in and out-side
Vacuum Tank with vacuum system
Full rear opening
Hydraulic operated rear opening made of 6mm dished plate and fitted with acid resistant sealing gasket.
Manual operated tightening bolts to secure the rear opening absolutely tight and pressure/vacuum proofed.
The rear opening is supported by heavy-duty hinges and to be opened hydraulically by manual operated pump with double acting hydraulic cylinders. A beaver tail is mounted for a smooth discharge after opening. At the lowest part of the rear dish-end, two (2) flanges mounted.
One flange 4" for suction and one flange 4" for pressure
Fresh-water-tank with Jetting System
Water tank
1 000 -9000ltr. water-tank integrated in main-tank, completed hot-deep galvanised
Upper man-hole cover DN550 with ventilation valve,
Side-filling via coupling
Side discharge pipe 2"
Level indicator with colour ball for measure the water level, mounted on the right-hand side
Access ladder with walkway
High pressure system
One (1) high-pressure pump, hydraulically driven by PTO of truck chassis. Hydraulic system with oil-cooler and fan.
Capacity, approx.: approx. 50ltr. / min at 150bar
All vacuum tank trucks and vacuum-jetting-flushing tank trucks are custom-made in accordance with your specific requirements.
Sludge and Water Tank
| Shape | Cylindrical shaped tank with external reinforce rings |
| Material | Mild steel |
| Primary shut off | SS float ball prevents overfilling sludge tank. |
| Shell thickness | 5mm,6mm |
| Tipping cylinder | Front tipping and double acting cylinder |
| Safety support | Support the tank to ensure safety when it's tipped up |
| Sight glasses | 3units are mounted at the rear of the tank |
| Over pressure safety | Over pressure relief valve on tank top |
| Full opening rear lid | Hydraulically opening and locking |
| Inlet and Outlet Valve | Pneumatically and Manual operation |
Vacuum system
| Vacuum pump | Liquid ring vacuum pump |
| Max vacuum level | 95% |
| Continuous vacuum level | 80% |
| Rotate speed | Max 900r/min |
| Pump cooling | Cooling Water tank 1,000L, mounted behind cab |
| Protection | 1.Aluminum filter 2. Vacuum pressure relief valve |
| Telescopic suction boom | Stainless steel material. Swivel in both vertical and horizontal plane. 270°horizontal rotation, 6m working radius, 6m below ground and 1.4m extension.. |
High Pressure Combined Vacuum Sewage Sewer Water Jetting Truck
Reverse discharge system
Pressure switch system allows reverse discharging filtered water via suction boom or outlet valve, with only mud or solid waste left in tank. This reduces cycle dumping time, no need to go and back many times.
DFH1310A1 ChassisTechnical specifications
| # | Engine model | Engine displacement | Engine power | Engine manufacturer | |||
|---|---|---|---|---|---|---|---|
| 1 | ISL9.5-292E51A | 9460 cc | 9.5 L | 577 cuin | 215 kW | 292 hp | Dongfeng Cummins Engine Co., Ltd. |
| 2 | ISL9.5-315E51A | 9460 cc | 9.5 L | 577 cuin | 232 kW | 315 hp | Dongfeng Cummins Engine Co., Ltd. |
| 3 | ISL9.5-340E51A | 9460 cc | 9.5 L | 577 cuin | 251 kW | 341 hp | Dongfeng Cummins Engine Co., Ltd. |
| 4 | ISL9.5-360E51A | 9460 cc | 9.5 L | 577 cuin | 268 kW | 364 hp | Dongfeng Cummins Engine Co., Ltd. |
| 5 | dCi350-51 | 11120 cc | 11.1 L | 679 cuin | 257 kW | 349 hp | Dongfeng Commercial Vehicle Co., Ltd. |
| 6 | dCi385-51 | 11120 cc | 11.1 L | 679 cuin | 283 kW | 385 hp | Dongfeng Commercial Vehicle Co., Ltd. |
| 7 | dCi420-51 | 11120 cc | 11.1 L | 679 cuin | 309 kW | 420 hp | Dongfeng Commercial Vehicle Co., Ltd. |
| 8 | DDi75S315-50 | 7530 cc | 7.5 L | 460 cuin | 232 kW | 315 hp | Dongfeng Commercial Vehicle Co., Ltd. |
| 9 | DDi75S350-50 | 7530 cc | 7.5 L | 460 cuin | 257 kW | 349 hp | Dongfeng Commercial Vehicle Co., Ltd. |
| Performance | ||||
|---|---|---|---|---|
| Fuel | diesel fuel | |||
| Environmental standard | GB17691-2005 National V / Euro 5, GB3847-2005 | |||
| Maximum speed | 90 km/h | 56 mph | ||
| ABS | have | |||
| Capacity | ||||
|---|---|---|---|---|
| Rated load capacity | 18170 kg, 18105 kg | 18.2 t, 18.1 t | 40,058 lbs, 39,915 lbs | |
| Quasi-total mass of trailer | 18000 kg | 18 t | 40,000 lbs | |
| Load factor (the ratio of the payload of a vehicle to its weight) | 1.44 | |||
| Weights and Ground pressure | ||||
|---|---|---|---|---|
| Curb weight | 12700 kg | 12.7 t | 28,000 lbs | |
| Gross vehicle weight rating | 31000 kg | 31 t | 68,000 lbs | |
| Axle load distribution | 6500 kg / 6500 kg / 18000 kg () 6.5 t / 6.5 t / 18 t () 14,300 lbs / 14,300 lbs / 40,000 lbs () | |||
| Dimensions | ||||
|---|---|---|---|---|
| Overall length | 11980 mm | 39′4″ | ||
| Overall width | 2500 mm / 2550 mm | 8′3″ / 8′5″ | ||
| Overall height | 3200 mm / 3870 mm | 10′6″ / 12′9″ | ||
| Cargo body | ||||
|---|---|---|---|---|
| Cargo body length | 9400 mm / 9600 mm | 30′11″ / 31′6″ | ||
| Cargo body width | 600 mm / 800 mm | 2′0″ / 2′8″ | ||
| Cargo body height | 2300 mm / 2400 mm / 2450 mm | 7′7″ / 7′11″ / 8′1″ | ||
| Undercarriage and Suspension | ||||
|---|---|---|---|---|
| Number of axles | 4 | |||
| Wheelbase | 1850+4600+1350 mm, 1850+4600+1400 mm, 2050+4400+1350 mm, 2050+4400+1400 mm | 6′1″+15′2″+4′6″, 6′1″+15′2″+4′8″, 6′9″+14′6″+4′6″, 6′9″+14′6″+4′8″ | ||
| Front track | 2040 mm / 2040 mm | 6′9″ / 6′9″ | ||
| Rear track | 1860 mm / 1860 mm | 6′2″ / 6′2″ | ||
| Front/rear overhang | 1500 mm / 2680 mm, 1500 mm / 2630 mm | 5′0″ / 8′10″, 5′0″ / 8′8″ | ||
| Angle of approach | 22° | |||
| Angle of departure | 9° | |||
| Leaf springs | 9 / 9 / 10, 8 / 8 / 10, 3 / 3 / 4, 9 / 9 / -, 3 / 3 / - | |||
| Tyres and Wheels | ||||
|---|---|---|---|---|
| Number of tyres | 12 | |||
| Tyres dimension | 11.00-20, 11.00R20, 295/80R22.5, 12R22.5 | |||
| Miscellaneous | ||||
|---|---|---|---|---|
| Seating capacity | 2, 3 | |||
| Steering control | steering wheel30Ton Vacuum Sewer Sewage Cleaning Truck (Sewer Septic Tank High Pressure Combined Water Jetting Truck ) | |||
| 25Ton Vacuum Sewer Sewage Cleaning Truck (Sewer Septic Tank High Pressure Combined Water Jetting Truck ) Main technical parameters of DRZ5258GQWES cleaning and suction truck | |||
| Product Name: | Cleaning and suction truck | Appearance size: | 945010050 x 2500 x 36503800 (mm) |
| Chassis type: | EQ1258GSZ5DJ | Cargo size: | X (mm) |
| Total quality: | 25000 (Kg) | Approach / departure angle: | 29/12 (degree) |
| Rated quality: | 10805 (Kg) | Suspension ahead: | 1515/31501250/34151450/3215 (mm) |
| Preparation quality: | 14000 (Kg) | Maximum speed: | 90 (km/h) |
| Engine | Engine manufacturing enterprise | Displacement (ML) | Power (kw) |
| ISD21050 YC6JA240-50 ISB21050 YC6A240-50 YC6A270-50 WP7.270E51 ISD24550 | Dongfeng Cummins Engine Co., Ltd. Guangxi Yuchai Machinery Limited by Share Ltd Dongfeng Cummins Engine Co., Ltd. Guangxi Yuchai Machinery Limited by Share Ltd Guangxi Yuchai Machinery Limited by Share Ltd Weichai power company limited Dongfeng Cummins Engine Co., Ltd. | 6700 6870 5900 7520 7520 7470 6700 | 155/211 177/241 155/211 177/241 199/271 199/271 180/245 |
| Emission standards: | GB17691-2005 country V, GB3847-2005 | ||
| Axle number: | Three | Front tread: | (mm) |
| Wheelbase: | 4350+1300 4750+1300 5900+1300 4900+1300 5350+1300 4350+1350 4750+1350 5900+1350 4900+1350 5350+1350 | Rear wheelbase: | (mm) |
| Tires: | Tire specifications: | ||
| Fuel types: | diesel oil | Spring number: | |
| Axle load: | 7000/18000 (two axis group) | Number of cab drivers: | Three |
| Vehicle notes: | 1. The purpose of the vehicle is to clean and absorb pollutants. The main equipment is vacuum pump and tank. The tank size is (straight section length * diameter) (mm): 5400 * 2100, of which the tank front is clear water tank (straight section 1965mm), the rear end is the sewage tank (straight length 3435mm). The two cans are independent and cannot be fully loaded at the same time. When cleaning function, use clean water tank and use sewage tank when absorbing sewage function. The effective volume of the sewage tank is 13.6 cubic meters, medium: liquid dirt, density: 800 kg / cubic meter; the effective volume of the water tank is 10.08 cubic meters, medium: water, density: 1000 kg / cubic meter, 2, only using wheelbase (mm): 4350+13004750+1300. The corresponding relationship between length / wheelbase / front suspension / rear suspension is (mm): 9450/4350+1300/1515/22859450/4350+1300/1250/25509450/4350+1300/1450/235010050/4750+1300/1515/248510050/4750+1300/1250/275010050/4750+1300/1450/2550. The side / rear protective material is Q235, the side bolt is connected, the rear welding is welded, the section size is 300 * 50mm, and the lower edge is 500mm from the ground. Select the tank top guardrail style - install side suction pipe - choose the rear opening hydraulic opening mode - select the rear valve - select the rear cleaning tube reel style; 3, with the chassis optional cab; install the satellite positioning function of the driving recorder; ABS manufacturer: East Kokno commercial vehicle braking system (Shiyan) Co., Ltd.; model: 3631010-C2000. | ||
30Ton Vacuum Sewer Sewage Cleaning Truck (Sewer Septic Tank High Pressure Combined Water Jetting Truck )
| Main technical parameters of DRZ5311GQWDV cleaning and suction truck | |||
| Product Name: | Cleaning and suction truck | Appearance size: | 11980 x 2550 x 3850 (mm) |
| Chassis type: | DFH1310A1 | Cargo size: | X (mm) |
| Total quality: | 31000 (Kg) | Approach / departure angle: | 22/11 (degree) |
| Rated quality: | 1387513810 (Kg) | Suspension ahead: | 1500/23001500/23601500/2410 (mm) |
| Preparation quality: | 16995 (Kg) | Maximum speed: | 90 (km/h) |
| Engine | Engine manufacturing enterprise | Displacement (ML) | Power (kw) |
| DCi350-51 DCi385-51 DCi420-51 DDi75S315-50 DDi75S350-50 DCi450-51 DCi465-51 | Dongfeng Cummins Engine Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Dongfeng Commercial Vehicle Co., Ltd. Dongfeng Commercial Vehicle Co., Ltd. Dongfeng Commercial Vehicle Co., Ltd. Dongfeng Commercial Vehicle Co., Ltd. | 9460 9460 9460 11120 11120 11120 7530 | 232/316 251/342 268/365 257/350 283/385 309/421 232/316 |
| Emission standards: | GB17691-2005 country V, GB3847-2005 | ||
| Axle number: | Four | Front tread: | (mm) |
| Wheelbase: | 1850+4600+1350 1850+4600+1400 2050+4400+1350 2050+4400+1400 1850+4100+1350 1995+4600+1350 | Rear wheelbase: | (mm) |
| Tires: | Tire specifications: | ||
| Fuel types: | diesel oil | Spring number: | |
| Axle load: | 6500/6500/18000 (two axis group) | Number of cab drivers: | 2,3 |
| Vehicle notes: | 1. The purpose of the vehicle is to clean and absorb pollutants. The main equipment is vacuum pump and tank. The size of the tank is straight section length * diameter (mm): 7100 * 2350, of which the tank front is clear water tank (the outer dimension is 2600mm), and the rear end is the sewage tank (the outer dimension is 4500mm). The two cans are independent and cannot be fully loaded at the same time. When cleaning function, use clean water tank and use sewage tank when absorbing sewage function. The effective volume of the sewage tank is 18 cubic meters, medium: liquid dirt, density: 800 kg / cubic meter; the effective volume of the water tank is 10 cubic meters, medium: water, density: 1000 kg / cubic meter, 2, wheelbase / rear suspension corresponding to (mm): 1850+4600+1350/26801850+4600+1400/ 26302050+4400+1350/26802050+4400+1400/2630. Optional rear valve; optional rear reel - pick up the aisle and guardrail on the top of the tank; the side / rear protective material is Q235, the side bolts are connected, the rear welding is welded, the section size is 300 50mm, the lower edge is 500mm from the ground. 3, with the chassis optional cab; install satellite positioning function of the travel recorder; ABS model / manufacturer: 3631010-C2000/ East knkner commercial vehicle braking system (Shiyan) Co., Ltd. | ||
DFL SUPERSUCKER Combined Vacuum Jetting Tanker Trucks (9CBM Water tank and 11CBM Sewage tank Jet Vac Tanker)
25Ton-30Ton Vacuum Sewer Sewage Cleaning Truck (Sewer Septic Tank High Pressure Combined Water Jetting Truck )
High Pressure Combined Vacuum Sewage Sewer Water Jetting Truck
30Ton Vacuum Sewer Sewage Cleaning Truck (Sewer Septic Tank High Pressure Combined Water Jetting Truck 18m3 Wast Sludge 10m3 Clean Water Tank ) Cesspit Emptier Vacuum Tanker Truck
For Cesspool Emptier
DFH1310A1
carbon - stainless steel
Vac truck with 20000 -25000 l. capacity on truck chassis. The vacuum tank is manufactured of 5mm - 6 mm thick steel sheets. The dished bulkheads on both sides are always fabricated with 6 mm steel. The appropriate number of of inside baffles are made of 5 mm steel sheets. Of course the complete tank is hot-dip galvanized in-and outside.
Special custom-made Vacuum Tank superstructure with Telescopic Tipping Cylinder (HYVA® tipping cylinders, Germany). Including Pneumatic Interlock System for additional safety.
Tipping cylinders are not required for normal suction jobs but rather for very special applications.
Full rear opening of the vacuum tank made of 6mm dished plate, hinged at the top and hydraulically operated. The debris tank door is securely fastened by hydraulic door locks or manually operated tightening bolts to secure the rear opening absolutely tight and pressure and vacuum proofed. The hydraulic rear door is fitted with an acid resistant sealing gasket. The debris tank body is made of European high-grade steel (thickness 4-5 mm) and electrically welded throughout. The vacuum tank can be provided hot dip galvanized in and out-side or inside painted with bitumen paint. Each vacuum tank will be supplied with an appropriate nos. of baffles of 5 mm thickness.
Instead of complete rear opening (hydraulically operated) of the vacuum tank you can just require a manhole with diameter of 600 mm. That solution is for "normal suction jobs" sufficient and will reduce the asset cost.
High-pressure flushing system with an effective high-pressure pump JUROP®, hydraulically driven by the PTO of truck. Our hydraulic system is including oil-cooler and fan. The hose reel is operated hydraulically. The 100 m. long high-pressure flushing hose DN 25 (yellow) is pushed into the dirty pipeline and with changeable nozzles (180 bar water pressure and 250 ltr. water per minute) all the debris such as stones, bottles, grease, sludge, grime etc. lodged in the pipe, will be flushed out. Our effective air vacuuming system sucks all the dislodged debris and forces it into the vacuum tank, finally the blocked sewer will be opened and effective cleaned in short time.
For high pressure cleaning tasks:
Hose-reel, located at the rear end of truck chassis, left- or right-hand side.
- Manual turning and hose guiding
- 40 m high pressure hose DN13 (1/2 inch). Operating pressure of 150 bar
- One (1) standard cleaning nozzle ½"
- 10m HD hose DN13 with high-pressure cleaning nozzle for general cleaning
Vacuum-Jetting-Flushing combination truck for vacuuming and transport of oil mud, waste-water (sewage) as well as for high-pressure sewer pipe cleaning operations. The tank capacity is 15 000-19000 ltr. vacuum tank and 3 000-10000 ltr. integrated fresh water tank. The complete unit is mounted on 6x4 or 6x6 all-terrain truck chassis. The RAC-Germany® vacuum and high pressure combination truck may also be used for street flushing and many different cleaning jobs with the additionally provided high pressure water handgun (hose length 40 m, DN 13). That hose reel installed on the opposite site of the truck.
Vacuum-Jetting-Tank truck with high pressure water pump, hydraulically driven by the PTO of the truck (capacity approx. 50 ltr. / min at 150 bar) and manual hose-reel with 40 m DN13, 1/2" high pressure hose, mounted at the rear right side of the truck. The tank superstructure is built up on truck chassis (6x4 -6x6 - 8x4).
On the right side of the truck you can identify (on the above picture) the hydraulic system, consist of:
- Oil-tank with oil-cooler and fan
- Hydraulic pump
- Return filter
- Control valves with integrated pressure relief valves
The rear end of the Vacuum-Jetting Tank superstructure can be furnished either with a 600 mm man hole or with complete rear opening, hydraulically operated, as shown on the above picture. However the Off-Loading Process of the tank content is always by pressure. The man hole as well as complete rear opening are only for (special) cleaning jobs. The tank needs not to be opened for loading or off-loading jobs.
Special custom-made Vacuum Tank superstructure with Telescopic Tipping Cylinder (HYVA® tipping cylinders, Germany). Including Pneumatic Interlock System for additional safety.
Tipping cylinders are not required for normal suction jobs but rather for very special applications.
Full rear opening of the vacuum tank made of 6mm dished plate, hinged at the top and hydraulically operated. The debris tank door is securely fastened by hydraulic door locks or manually operated tightening bolts to secure the rear opening absolutely tight and pressure and vacuum proofed. The hydraulic rear door is fitted with an acid resistant sealing gasket. The debris tank body is made of European high-grade steel (thickness 4-5 mm) and electrically welded throughout. The vacuum tank can be provided hot dip galvanized in and out-side or inside painted with bitumen paint. Each vacuum tank will be supplied with an appropriate nos. of baffles of 5 mm thickness.
Instead of complete rear opening (hydraulically operated) of the vacuum tank you can just require a manhole with diameter of 600 mm. That solution is for "normal suction jobs" sufficient and will reduce the asset cost.
High-pressure flushing system with an effective high-pressure pump JUROP®, hydraulically driven by the PTO of truck. Our hydraulic system is including oil-cooler and fan. The hose reel is operated hydraulically. The 100 m. long high-pressure flushing hose DN 25 (yellow) is pushed into the dirty pipeline and with changeable nozzles (180 bar water pressure and 250 ltr. water per minute) all the debris such as stones, bottles, grease, sludge, grime etc. lodged in the pipe, will be flushed out. Our effective air vacuuming system sucks all the dislodged debris and forces it into the vacuum tank, finally the blocked sewer will be opened and effective cleaned in short time.
For high pressure cleaning tasks:
Hose-reel, located at the rear end of truck chassis, left- or right-hand side.
- Manual turning and hose guiding
- 40 m high pressure hose DN13 (1/2 inch). Operating pressure of 150 bar
- One (1) standard cleaning nozzle ½"
- 10m HD hose DN13 with high-pressure cleaning nozzle for general cleaning

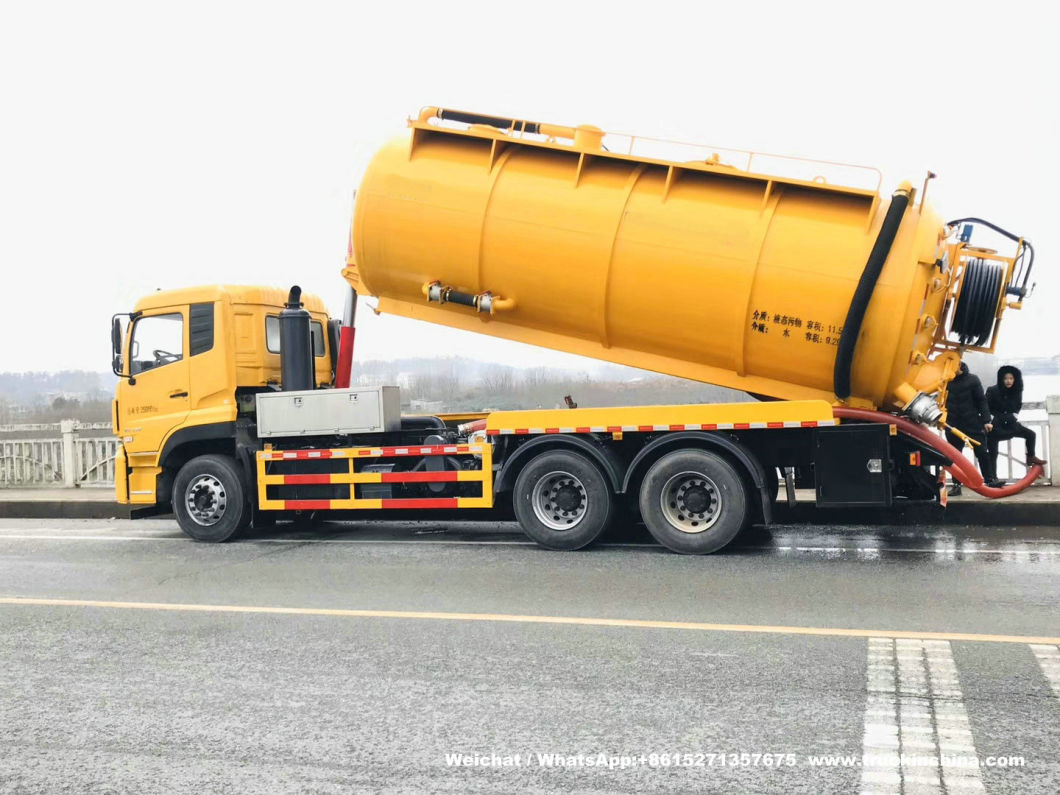

Vacuum-Jetting-Flushing combination truck for vacuuming and transport of oil mud, waste-water (sewage) as well as for high-pressure sewer pipe cleaning operations. The tank capacity is 15 000-19000 ltr. vacuum tank and 3 000-10000 ltr. integrated fresh water tank. The complete unit is mounted on 6x4 or 6x6 all-terrain truck chassis. The RAC-Germany® vacuum and high pressure combination truck may also be used for street flushing and many different cleaning jobs with the additionally provided high pressure water handgun (hose length 40 m, DN 13). That hose reel installed on the opposite site of the truck.

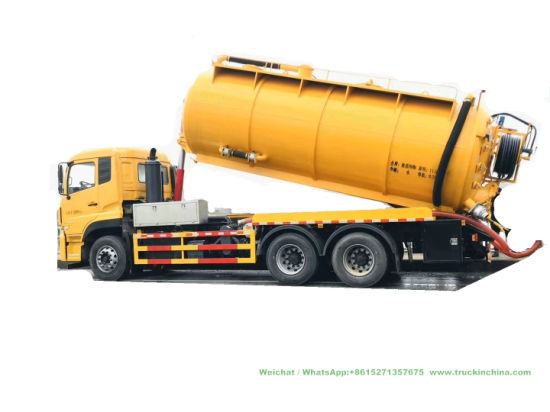

Vacuum-Jetting-Tank truck with high pressure water pump, hydraulically driven by the PTO of the truck (capacity approx. 50 ltr. / min at 150 bar) and manual hose-reel with 40 m DN13, 1/2" high pressure hose, mounted at the rear right side of the truck. The tank superstructure is built up on truck chassis (6x4 -6x6 - 8x4).
On the right side of the truck you can identify (on the above picture) the hydraulic system, consist of:
- Oil-tank with oil-cooler and fan
- Hydraulic pump
- Return filter
- Control valves with integrated pressure relief valves
The rear end of the Vacuum-Jetting Tank superstructure can be furnished either with a 600 mm man hole or with complete rear opening, hydraulically operated, as shown on the above picture. However the Off-Loading Process of the tank content is always by pressure. The man hole as well as complete rear opening are only for (special) cleaning jobs. The tank needs not to be opened for loading or off-loading jobs.

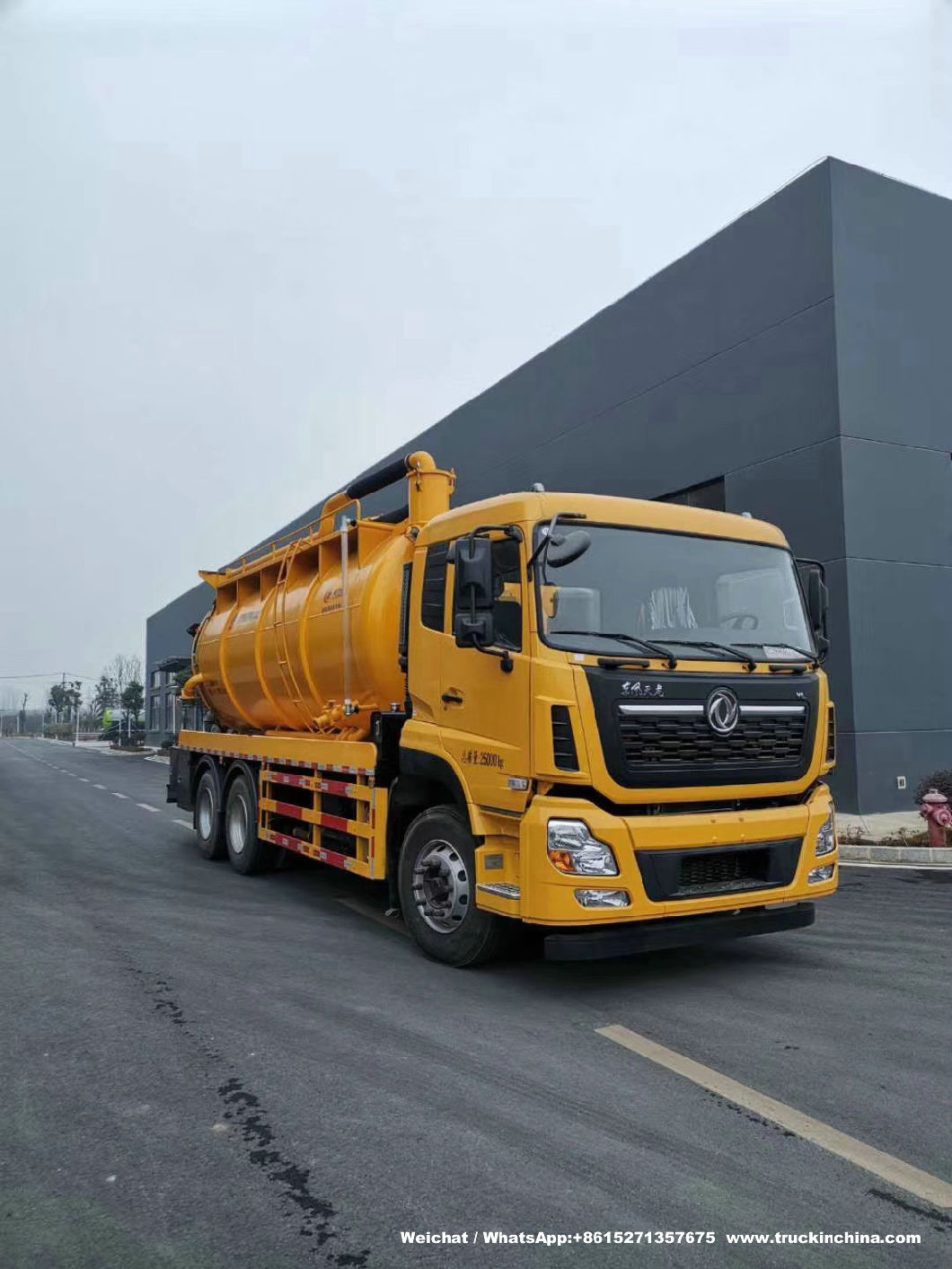

Custom-made Vacuum-Jetting-Flushing-Tank-Truck
For the transport and suction of oil, mud, waste-water (sewage) and for high-pressure cleaning.
Volume: approx. 20 000 ltr. (11.000 + 9.000)
Tank Body
| Tank shape | Cylindrical |
|---|---|
| Capacity | 20 000 ltr. |
| Tank compartments | Two (2) 11000 -19 000 ltr for Sewage / Oil / Mud / Sludge 1 000-9000 ltr for fresh water |
Tank body completely hot-galvanised in and out-side
Vacuum Tank with vacuum system
Full rear opening
Hydraulic operated rear opening made of 6mm dished plate and fitted with acid resistant sealing gasket.
Manual operated tightening bolts to secure the rear opening absolutely tight and pressure/vacuum proofed.
The rear opening is supported by heavy-duty hinges and to be opened hydraulically by manual operated pump with double acting hydraulic cylinders. A beaver tail is mounted for a smooth discharge after opening. At the lowest part of the rear dish-end, two (2) flanges mounted.
One flange 4" for suction and one flange 4" for pressure
Fresh-water-tank with Jetting System
Water tank
1 000 -9000ltr. water-tank integrated in main-tank, completed hot-deep galvanised
Upper man-hole cover DN550 with ventilation valve,
Side-filling via coupling
Side discharge pipe 2"
Level indicator with colour ball for measure the water level, mounted on the right-hand side
Access ladder with walkway
High pressure system
One (1) high-pressure pump, hydraulically driven by PTO of truck chassis. Hydraulic system with oil-cooler and fan.
Capacity, approx.: approx. 50ltr. / min at 150bar
All vacuum tank trucks and vacuum-jetting-flushing tank trucks are custom-made in accordance with your specific requirements.
Sludge and Water Tank
| Shape | Cylindrical shaped tank with external reinforce rings |
| Material | Mild steel |
| Primary shut off | SS float ball prevents overfilling sludge tank. |
| Shell thickness | 5mm,6mm |
| Tipping cylinder | Front tipping and double acting cylinder |
| Safety support | Support the tank to ensure safety when it's tipped up |
| Sight glasses | 3units are mounted at the rear of the tank |
| Over pressure safety | Over pressure relief valve on tank top |
| Full opening rear lid | Hydraulically opening and locking |
| Inlet and Outlet Valve | Pneumatically and Manual operation |
Vacuum system
| Vacuum pump | Liquid ring vacuum pump |
| Max vacuum level | 95% |
| Continuous vacuum level | 80% |
| Rotate speed | Max 900r/min |
| Pump cooling | Cooling Water tank 1,000L, mounted behind cab |
| Protection | 1.Aluminum filter 2. Vacuum pressure relief valve |
| Telescopic suction boom | Stainless steel material. Swivel in both vertical and horizontal plane. 270°horizontal rotation, 6m working radius, 6m below ground and 1.4m extension.. |
High Pressure Combined Vacuum Sewage Sewer Water Jetting Truck
Reverse discharge system
Pressure switch system allows reverse discharging filtered water via suction boom or outlet valve, with only mud or solid waste left in tank. This reduces cycle dumping time, no need to go and back many times.
DFH1310A1 ChassisTechnical specifications
| # | Engine model | Engine displacement | Engine power | Engine manufacturer | |||
|---|---|---|---|---|---|---|---|
| 1 | ISL9.5-292E51A | 9460 cc | 9.5 L | 577 cuin | 215 kW | 292 hp | Dongfeng Cummins Engine Co., Ltd. |
| 2 | ISL9.5-315E51A | 9460 cc | 9.5 L | 577 cuin | 232 kW | 315 hp | Dongfeng Cummins Engine Co., Ltd. |
| 3 | ISL9.5-340E51A | 9460 cc | 9.5 L | 577 cuin | 251 kW | 341 hp | Dongfeng Cummins Engine Co., Ltd. |
| 4 | ISL9.5-360E51A | 9460 cc | 9.5 L | 577 cuin | 268 kW | 364 hp | Dongfeng Cummins Engine Co., Ltd. |
| 5 | dCi350-51 | 11120 cc | 11.1 L | 679 cuin | 257 kW | 349 hp | Dongfeng Commercial Vehicle Co., Ltd. |
| 6 | dCi385-51 | 11120 cc | 11.1 L | 679 cuin | 283 kW | 385 hp | Dongfeng Commercial Vehicle Co., Ltd. |
| 7 | dCi420-51 | 11120 cc | 11.1 L | 679 cuin | 309 kW | 420 hp | Dongfeng Commercial Vehicle Co., Ltd. |
| 8 | DDi75S315-50 | 7530 cc | 7.5 L | 460 cuin | 232 kW | 315 hp | Dongfeng Commercial Vehicle Co., Ltd. |
| 9 | DDi75S350-50 | 7530 cc | 7.5 L | 460 cuin | 257 kW | 349 hp | Dongfeng Commercial Vehicle Co., Ltd. |
| Performance | ||||
|---|---|---|---|---|
| Fuel | diesel fuel | |||
| Environmental standard | GB17691-2005 National V / Euro 5, GB3847-2005 | |||
| Maximum speed | 90 km/h | 56 mph | ||
| ABS | have | |||
| Capacity | ||||
|---|---|---|---|---|
| Rated load capacity | 18170 kg, 18105 kg | 18.2 t, 18.1 t | 40,058 lbs, 39,915 lbs | |
| Quasi-total mass of trailer | 18000 kg | 18 t | 40,000 lbs | |
| Load factor (the ratio of the payload of a vehicle to its weight) | 1.44 | |||
| Weights and Ground pressure | ||||
|---|---|---|---|---|
| Curb weight | 12700 kg | 12.7 t | 28,000 lbs | |
| Gross vehicle weight rating | 31000 kg | 31 t | 68,000 lbs | |
| Axle load distribution | 6500 kg / 6500 kg / 18000 kg () 6.5 t / 6.5 t / 18 t () 14,300 lbs / 14,300 lbs / 40,000 lbs () | |||
| Dimensions | ||||
|---|---|---|---|---|
| Overall length | 11980 mm | 39′4″ | ||
| Overall width | 2500 mm / 2550 mm | 8′3″ / 8′5″ | ||
| Overall height | 3200 mm / 3870 mm | 10′6″ / 12′9″ | ||
| Cargo body | ||||
|---|---|---|---|---|
| Cargo body length | 9400 mm / 9600 mm | 30′11″ / 31′6″ | ||
| Cargo body width | 600 mm / 800 mm | 2′0″ / 2′8″ | ||
| Cargo body height | 2300 mm / 2400 mm / 2450 mm | 7′7″ / 7′11″ / 8′1″ | ||
| Undercarriage and Suspension | ||||
|---|---|---|---|---|
| Number of axles | 4 | |||
| Wheelbase | 1850+4600+1350 mm, 1850+4600+1400 mm, 2050+4400+1350 mm, 2050+4400+1400 mm | 6′1″+15′2″+4′6″, 6′1″+15′2″+4′8″, 6′9″+14′6″+4′6″, 6′9″+14′6″+4′8″ | ||
| Front track | 2040 mm / 2040 mm | 6′9″ / 6′9″ | ||
| Rear track | 1860 mm / 1860 mm | 6′2″ / 6′2″ | ||
| Front/rear overhang | 1500 mm / 2680 mm, 1500 mm / 2630 mm | 5′0″ / 8′10″, 5′0″ / 8′8″ | ||
| Angle of approach | 22° | |||
| Angle of departure | 9° | |||
| Leaf springs | 9 / 9 / 10, 8 / 8 / 10, 3 / 3 / 4, 9 / 9 / -, 3 / 3 / - | |||
| Tyres and Wheels | ||||
|---|---|---|---|---|
| Number of tyres | 12 | |||
| Tyres dimension | 11.00-20, 11.00R20, 295/80R22.5, 12R22.5 | |||
| Miscellaneous | ||||
|---|---|---|---|---|
| Seating capacity | 2, 3 | |||
| Steering control | steering wheel30Ton Vacuum Sewer Sewage Cleaning Truck (Sewer Septic Tank High Pressure Combined Water Jetting Truck ) | |||
| 25Ton Vacuum Sewer Sewage Cleaning Truck (Sewer Septic Tank High Pressure Combined Water Jetting Truck ) Main technical parameters of DRZ5258GQWES cleaning and suction truck | |||
| Product Name: | Cleaning and suction truck | Appearance size: | 945010050 x 2500 x 36503800 (mm) |
| Chassis type: | EQ1258GSZ5DJ | Cargo size: | X (mm) |
| Total quality: | 25000 (Kg) | Approach / departure angle: | 29/12 (degree) |
| Rated quality: | 10805 (Kg) | Suspension ahead: | 1515/31501250/34151450/3215 (mm) |
| Preparation quality: | 14000 (Kg) | Maximum speed: | 90 (km/h) |
| Engine | Engine manufacturing enterprise | Displacement (ML) | Power (kw) |
| ISD21050 YC6JA240-50 ISB21050 YC6A240-50 YC6A270-50 WP7.270E51 ISD24550 | Dongfeng Cummins Engine Co., Ltd. Guangxi Yuchai Machinery Limited by Share Ltd Dongfeng Cummins Engine Co., Ltd. Guangxi Yuchai Machinery Limited by Share Ltd Guangxi Yuchai Machinery Limited by Share Ltd Weichai power company limited Dongfeng Cummins Engine Co., Ltd. | 6700 6870 5900 7520 7520 7470 6700 | 155/211 177/241 155/211 177/241 199/271 199/271 180/245 |
| Emission standards: | GB17691-2005 country V, GB3847-2005 | ||
| Axle number: | Three | Front tread: | (mm) |
| Wheelbase: | 4350+1300 4750+1300 5900+1300 4900+1300 5350+1300 4350+1350 4750+1350 5900+1350 4900+1350 5350+1350 | Rear wheelbase: | (mm) |
| Tires: | Tire specifications: | ||
| Fuel types: | diesel oil | Spring number: | |
| Axle load: | 7000/18000 (two axis group) | Number of cab drivers: | Three |
| Vehicle notes: | 1. The purpose of the vehicle is to clean and absorb pollutants. The main equipment is vacuum pump and tank. The tank size is (straight section length * diameter) (mm): 5400 * 2100, of which the tank front is clear water tank (straight section 1965mm), the rear end is the sewage tank (straight length 3435mm). The two cans are independent and cannot be fully loaded at the same time. When cleaning function, use clean water tank and use sewage tank when absorbing sewage function. The effective volume of the sewage tank is 13.6 cubic meters, medium: liquid dirt, density: 800 kg / cubic meter; the effective volume of the water tank is 10.08 cubic meters, medium: water, density: 1000 kg / cubic meter, 2, only using wheelbase (mm): 4350+13004750+1300. The corresponding relationship between length / wheelbase / front suspension / rear suspension is (mm): 9450/4350+1300/1515/22859450/4350+1300/1250/25509450/4350+1300/1450/235010050/4750+1300/1515/248510050/4750+1300/1250/275010050/4750+1300/1450/2550. The side / rear protective material is Q235, the side bolt is connected, the rear welding is welded, the section size is 300 * 50mm, and the lower edge is 500mm from the ground. Select the tank top guardrail style - install side suction pipe - choose the rear opening hydraulic opening mode - select the rear valve - select the rear cleaning tube reel style; 3, with the chassis optional cab; install the satellite positioning function of the driving recorder; ABS manufacturer: East Kokno commercial vehicle braking system (Shiyan) Co., Ltd.; model: 3631010-C2000. | ||
30Ton Vacuum Sewer Sewage Cleaning Truck (Sewer Septic Tank High Pressure Combined Water Jetting Truck )
| Main technical parameters of DRZ5311GQWDV cleaning and suction truck | |||
| Product Name: | Cleaning and suction truck | Appearance size: | 11980 x 2550 x 3850 (mm) |
| Chassis type: | DFH1310A1 | Cargo size: | X (mm) |
| Total quality: | 31000 (Kg) | Approach / departure angle: | 22/11 (degree) |
| Rated quality: | 1387513810 (Kg) | Suspension ahead: | 1500/23001500/23601500/2410 (mm) |
| Preparation quality: | 16995 (Kg) | Maximum speed: | 90 (km/h) |
| Engine | Engine manufacturing enterprise | Displacement (ML) | Power (kw) |
| DCi350-51 DCi385-51 DCi420-51 DDi75S315-50 DDi75S350-50 DCi450-51 DCi465-51 | Dongfeng Cummins Engine Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Dongfeng Cummins Engine Co., Ltd. Dongfeng Commercial Vehicle Co., Ltd. Dongfeng Commercial Vehicle Co., Ltd. Dongfeng Commercial Vehicle Co., Ltd. Dongfeng Commercial Vehicle Co., Ltd. | 9460 9460 9460 11120 11120 11120 7530 | 232/316 251/342 268/365 257/350 283/385 309/421 232/316 |
| Emission standards: | GB17691-2005 country V, GB3847-2005 | ||
| Axle number: | Four | Front tread: | (mm) |
| Wheelbase: | 1850+4600+1350 1850+4600+1400 2050+4400+1350 2050+4400+1400 1850+4100+1350 1995+4600+1350 | Rear wheelbase: | (mm) |
| Tires: | Tire specifications: | ||
| Fuel types: | diesel oil | Spring number: | |
| Axle load: | 6500/6500/18000 (two axis group) | Number of cab drivers: | 2,3 |
| Vehicle notes: | 1. The purpose of the vehicle is to clean and absorb pollutants. The main equipment is vacuum pump and tank. The size of the tank is straight section length * diameter (mm): 7100 * 2350, of which the tank front is clear water tank (the outer dimension is 2600mm), and the rear end is the sewage tank (the outer dimension is 4500mm). The two cans are independent and cannot be fully loaded at the same time. When cleaning function, use clean water tank and use sewage tank when absorbing sewage function. The effective volume of the sewage tank is 18 cubic meters, medium: liquid dirt, density: 800 kg / cubic meter; the effective volume of the water tank is 10 cubic meters, medium: water, density: 1000 kg / cubic meter, 2, wheelbase / rear suspension corresponding to (mm): 1850+4600+1350/26801850+4600+1400/ 26302050+4400+1350/26802050+4400+1400/2630. Optional rear valve; optional rear reel - pick up the aisle and guardrail on the top of the tank; the side / rear protective material is Q235, the side bolts are connected, the rear welding is welded, the section size is 300 50mm, the lower edge is 500mm from the ground. 3, with the chassis optional cab; install satellite positioning function of the travel recorder; ABS model / manufacturer: 3631010-C2000/ East knkner commercial vehicle braking system (Shiyan) Co., Ltd. | ||
