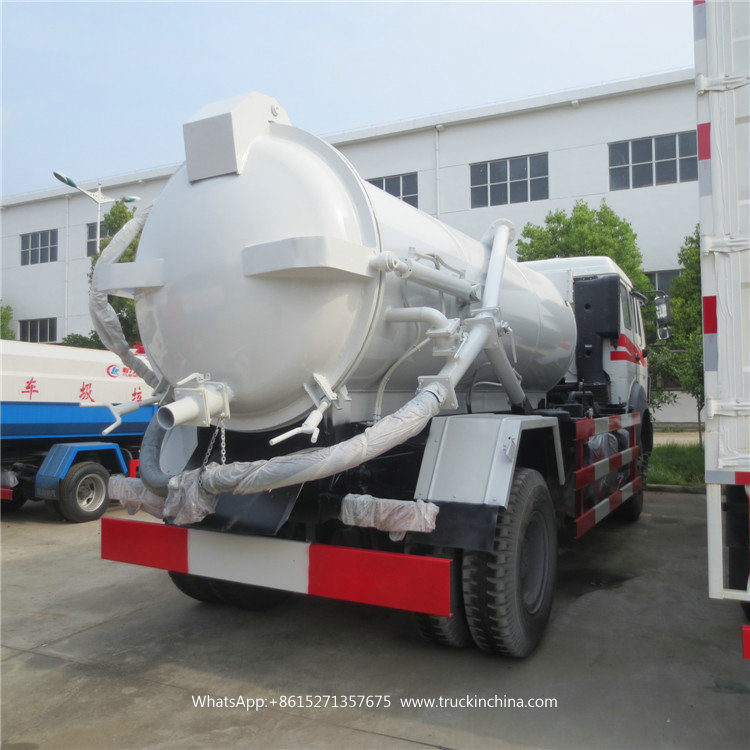

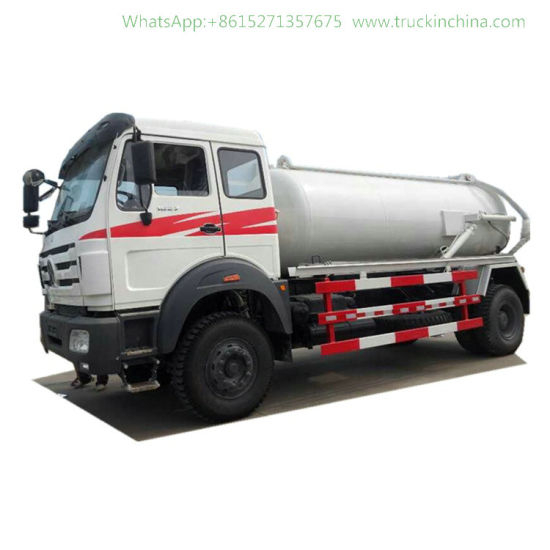

Beiben 1627 Vacuum Sewage Suction Tanker Truck 10000 L

Quantity:
  • Shanghai, China
  • 10000
  • T/T, Western Union
  • DRZ5160GXWND
  • 4x2
  • 251-350hp
  • New
  • 12.00-20, 12.00r20, 12.00r24,14.00-20
  • Mercedes Benz Technology
  • Weichai, Hino
  • Zf8098, Tas85
  • 6~9-Speed, Single, Dry
  • Euro 2, Euro 3, Euro 4
  • 6000~10000L
  • LHD /Rhd Optional
  • BEIBEN
  • Nil
  • military standard.
  • China
  • 8705909990
  • ISO9000, CCC
  • Euro 3
  • 20T
  • Manual
  • Diesel
  • 6000~10000L
Beiben 1627 Vacuum Sewage Suction tanker Truck
CONTACT US
Cellphone: (+86)15271357675
Website: www.truckinchina.com
Beiben 1627 Vacuum Sewage Suction Tanker Truck 10000 L

Hubei Dong Runze Special Vehicle Equipment Co., Ltd.
Beiben 1627 Vacuum Sewage Suction Tanker Truck 10000 L
Product name 1627 NORTH BENZ VACUUM SEWAGE SUCKING TANKER
Vehicle model TIC5160GXW beiben Vacuum Sewage Suction Truck
Dimension(Length*width*height) (mm) 8150×2500×3050
Chassis ND1624
Track(front/rear) (mm) 1995/1800
Approaching angle//Departure angle() 23/15
Suspension(front/rear) (mm) 1410/2200
Min distance to the ground(mm) 399
Wheel distance(front/rear) (mm) 4500
GVW (KG) 19000
Kerb weight (kg) 7500
Rated loadkg 10000
Configuration 4*2
Tank Volume (m³) 10
Design volume 10000 L 10
Main body material Q235A/6MM
Vacuum pumps model 50QZDG-45/400
Maximum AOB ° ≥45°
Effective suctionm ≥ 5
Vacuum systemMPa ≥11
Lifting times ≤45
Cover opening Angle° ≥75°
Cover open time (s)s ≤25
Suction pipe diameter (mm)(mm) 100
Tanks full sucked time (min) ≤12
Product Tags: Beiben 4x4 off road vacuum tanker truck sewage pump tanker Beiben vacuum tanker truck 4x4 north benz 4x4 tanker trucks
1.Beiben ND1160,ND2060 4 wheel drive sewage suction truck based on Mercedes Benz technology
2. Common rail engine, World famous weichai engine
3.FAST(Fuller) gearbox
4.Benz front axle and rear axle, for military using.

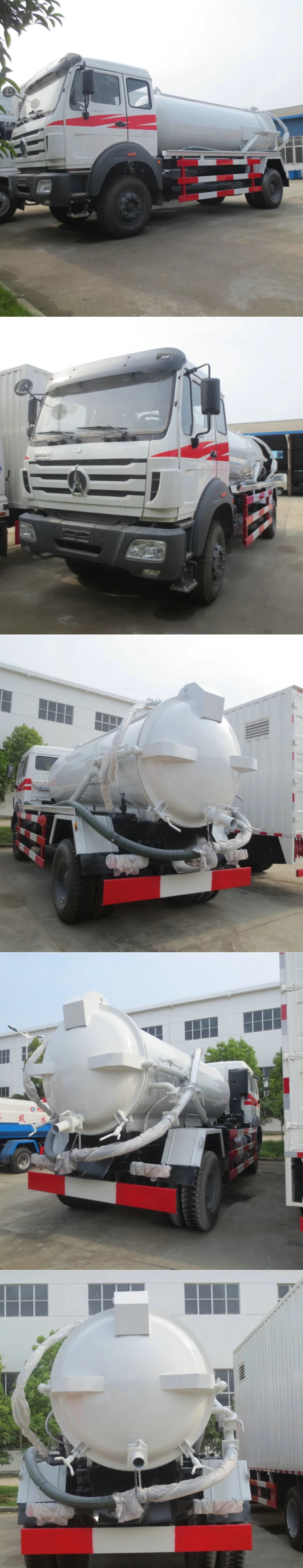

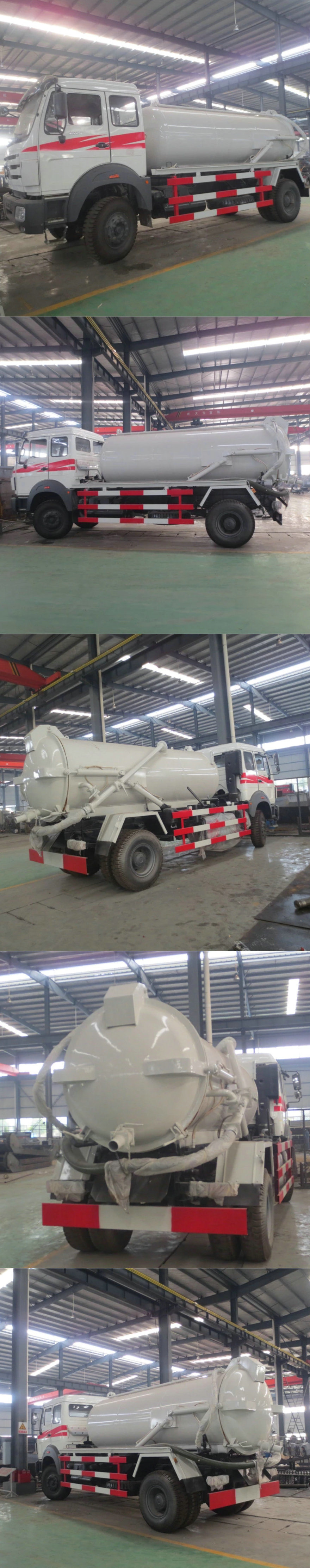

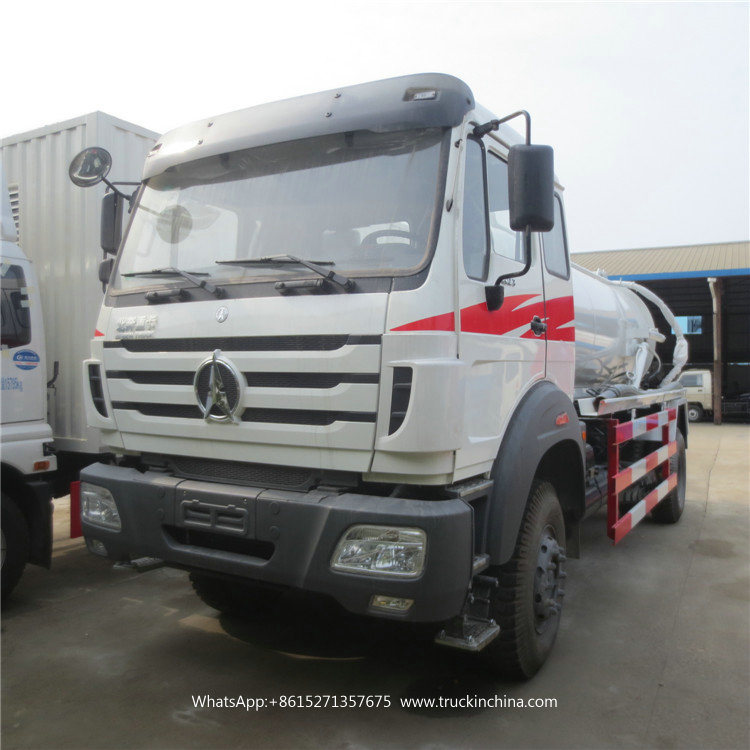

Beiben 1627 Vacuum Sewage Suction Tanker Truck 10000 L
Beiben 1627 Vacuum Sewage Suction Tanker Truck 10000 L
Beiben 1627 Vacuum Sewage Suction Tanker Truck 10000 L

Euro 3, Euro 4 septik truck sewage tanker Cesspool Emptying Truck Septic tank Truck
4*2/4x4 ND1160A41 4100 WP6.180
ND1163A48J 4800 WP10.270
WP10.290
4*4 ND2161E48 4800 WP10.270
ND2162E48J WP10.300N
ND21600E41J 4500 WP10.336

Model

ND2160E48J (4*4)

Engine

290 HP EURO II-V

chassis

BeiBen 4x4 military chassis

Outside dimension(mm)

8826×2500×3355

volume of tank

6000L~ 10000L

Material of tank

Carbon steel

Thickness

6mm

Total mass (kg)

16000

Kerb mass (kg)

7960

Rated payload(kg)

7910

Wheelbase (mm)

4800

Tread(front/rear)

1995/1800

Approach/departure angle

30/28

Front /rear suspension

1410/2616

Minimum turning diameter

20.4

Clutch type

GFX420, diaphragm spring clutch

Gear box type

9JS119,mechanical , 9 forwards, manual

Tire type

14.00R20 (6+1)

Fuel tank capacity (L)

300

Max.gradient

60

Max. Speed(Km/h)

85

Battery(V)

Electrical system storage battery 2X12V/135Ah

generator

28V-35A

Starter

5.4Kw/24V

A/C

YES

4x2

Beiben Vacuum Sewage Suction Tanker Truck 8cbm

Chassis

Model

ND11601A48J

Traction type

4X2

Driving type

LHD

Driver's cab

Long cabin, A/C

Dimensions in (mm)

Wheel base(mm): 4800


Overall size(mm): 8690x2500x3080

Engine

Maker: WEICHAI


Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & intercooling


Engine model: WP10.270E31


Emission Standard: EUROIII EGR


Maximum output: 270HP /1900 rpm


Number of cylinder:6


Displacement: 9.726L

Clutch

430mm, hydraulically operating with air assistance

Transmission

Fuller 9JS135

Steering

TAS85

Front Axle

Benz front axle 7.5 ton

Rear Axle

Benz strengthened type 13T, double reduction drive axle
Ratio: 5.263

Spring

10/8+6

Types

12.00-20 Bias tyre

No. of tyre

6+1(spare)

Fuel tank

400L Aluminium

PTO

QH50

Electrics

Operating voltage: 24V, negative grounded

Kerb weight(kg)

6920

Body

Tank Volume

8m3,9m3,10m3,12m3

Beiben vacuum tanker truck sewage pump tanker

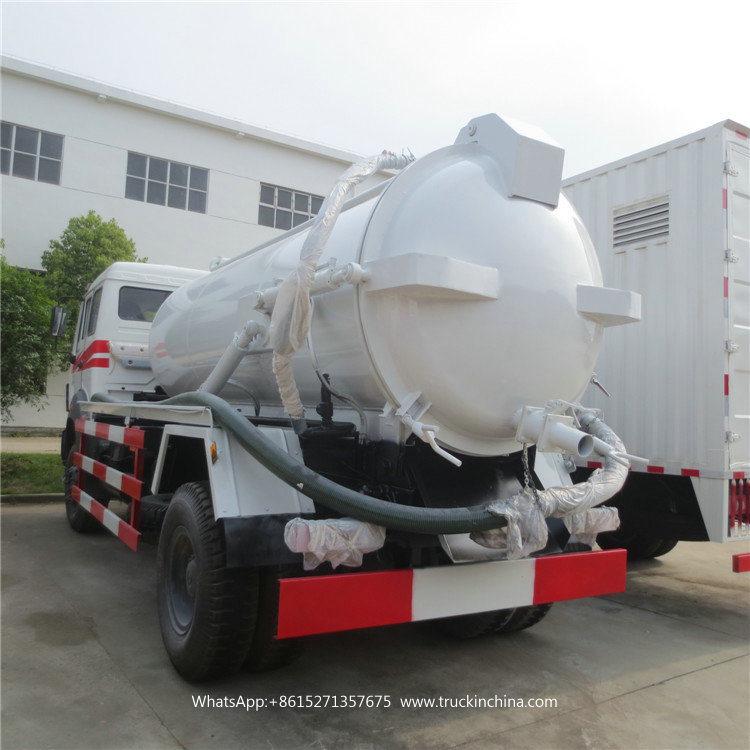

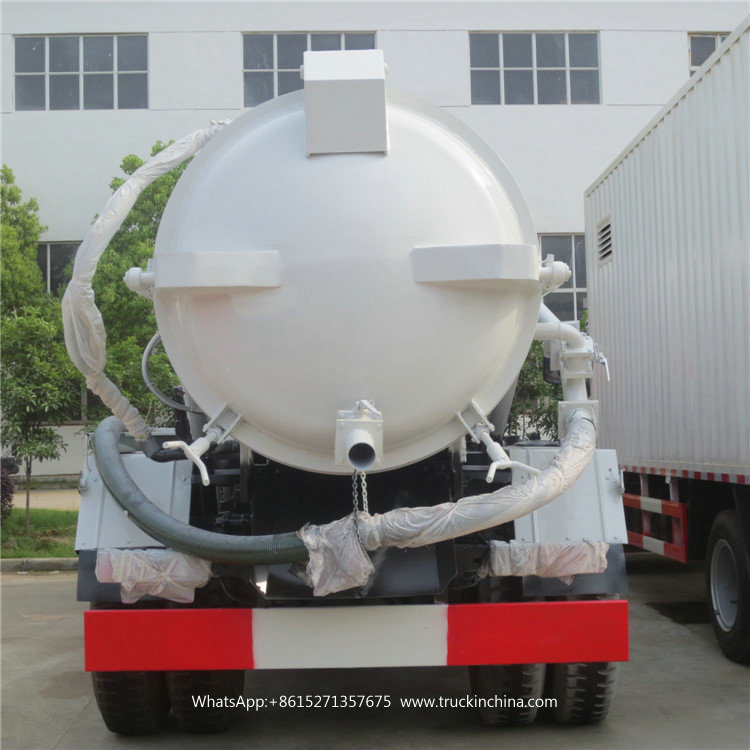

Beiben 1627 Vacuum Sewage Suction Tanker Truck 10000 L
Beiben 1627 Vacuum Sewage Suction Tanker Truck 10000 L
Beiben 1627 Vacuum Sewage Suction Tanker Truck 10000 L
Beiben 1627 Vacuum Sewage Suction Tanker Truck 10000 L


1.Benz 290hp 6000~10000L vacuum tanker truck
2. Benz truck chassis
3. Powerful engine 270hp /300HP/336HP
4. Tank capacity 6000~10000L
5. 4x4 military chassis

Specifications:
Chassis model ND2160E48J
Outside dimension(mm) 8826×2500×3355
Tread(front/rear) 1995/1800
Approach/departure angle 30/28
Fron suspension /rear suspension 1410/2616
Minimum turning diameter 20.4
Wheelbase (mm) 4800
Max.speed (km/h) 85
Total mass 16000
Kerb mass 7960
Rated payload 7910
Max.gradient 60
Eigine Model 290HP-300HP
Emission level E 3
Fuel tank capacity 300
Clutch type GFX420, diaphragm spring clutch
Gear box type 9JS119,mechanical , 9 forwards, manual
Tyre 14.00-20 (4+1)
Driving type 4*4
Electrical system storage battery 2X12V/135Ah
generator 28V-35A
Starter 5.4Kw/24V
Aircondition Equip
voulme of tank 10CBM 10000L more or less
Material of tank Carbon steel. Thickness: 6mm
Sewage Tank,Sewer JettingTruck,Vacuum Suction tanker , vacuum suction truck ,vacuum truck,Sewer Jet Truck ,vacuum sewage suction truck ,Septic Tank Truck ,Cesspit Emptier
