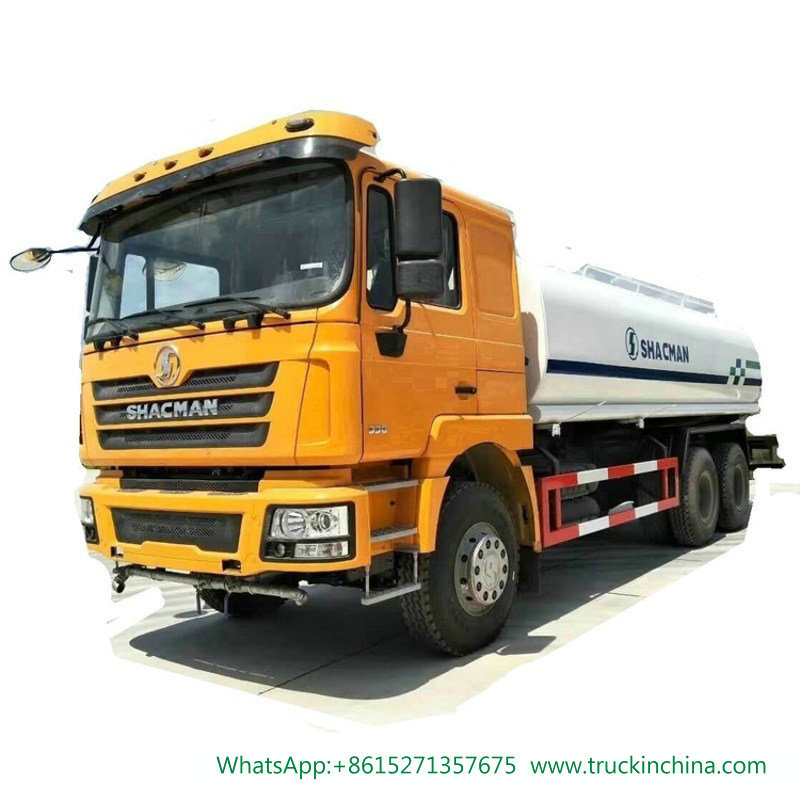

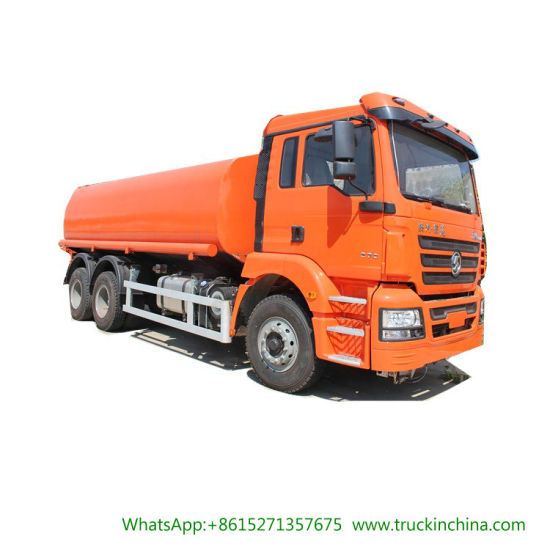

Shacman 10 Wheels Water Tanker Truck with Water Bowser 20cbm -25cbm
Shacman 10 Wheels Water Tanker Truck with Water Bowser 20cbm -25cbm
| Quantity: | |
|---|---|
-
Shanghai, China
-
3000
-
T/T
Shacman 10 wheeler water tanker truck With Water Bowser 20cbm -25cbm
Military Truck Water Tanker (Water Bowser) Good for Rought Road Transport Drinking Water Steel Tank Inner Lined Plastic

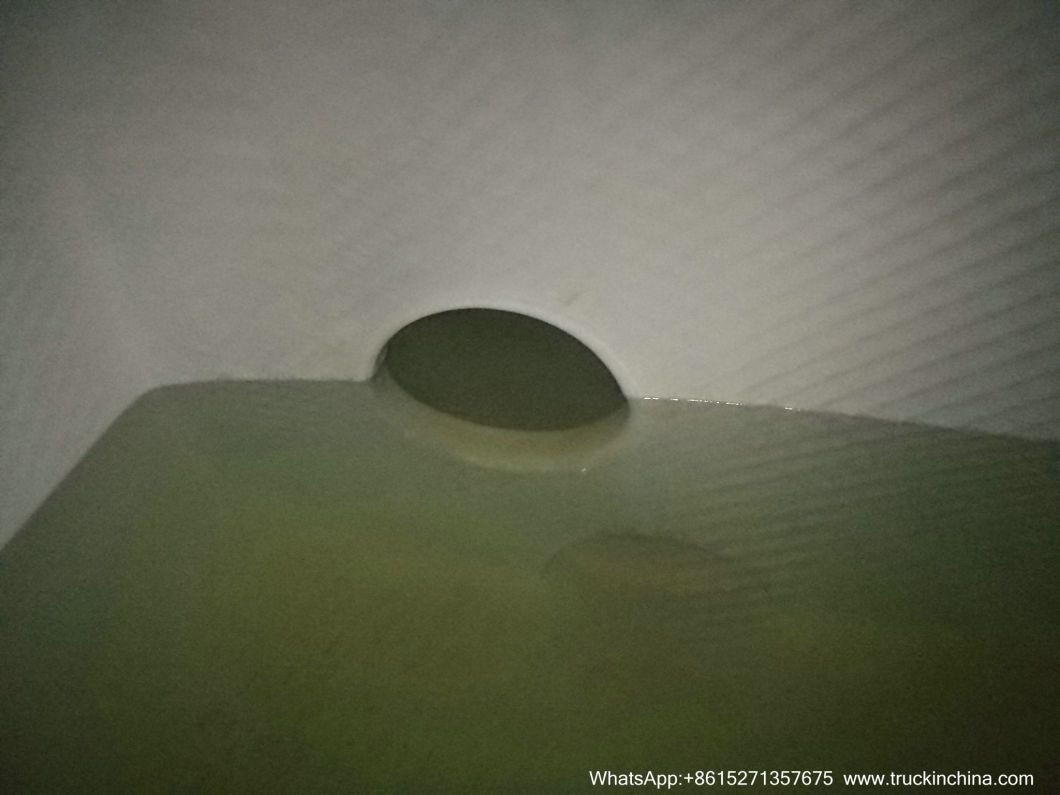

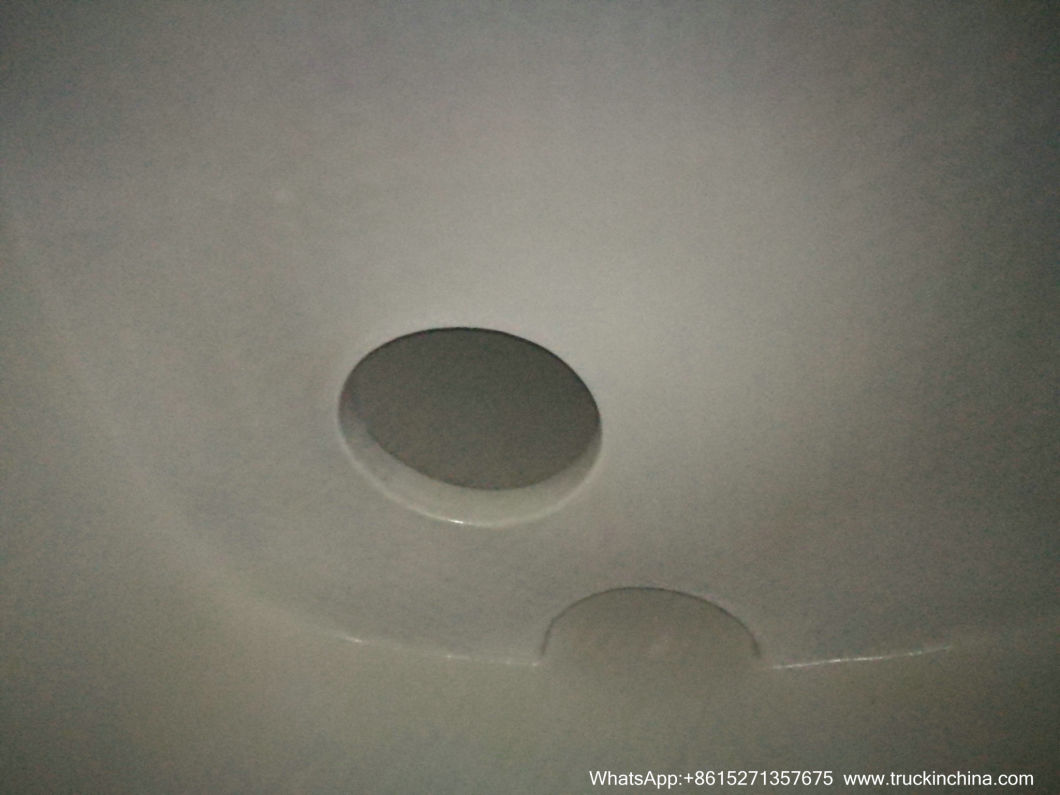

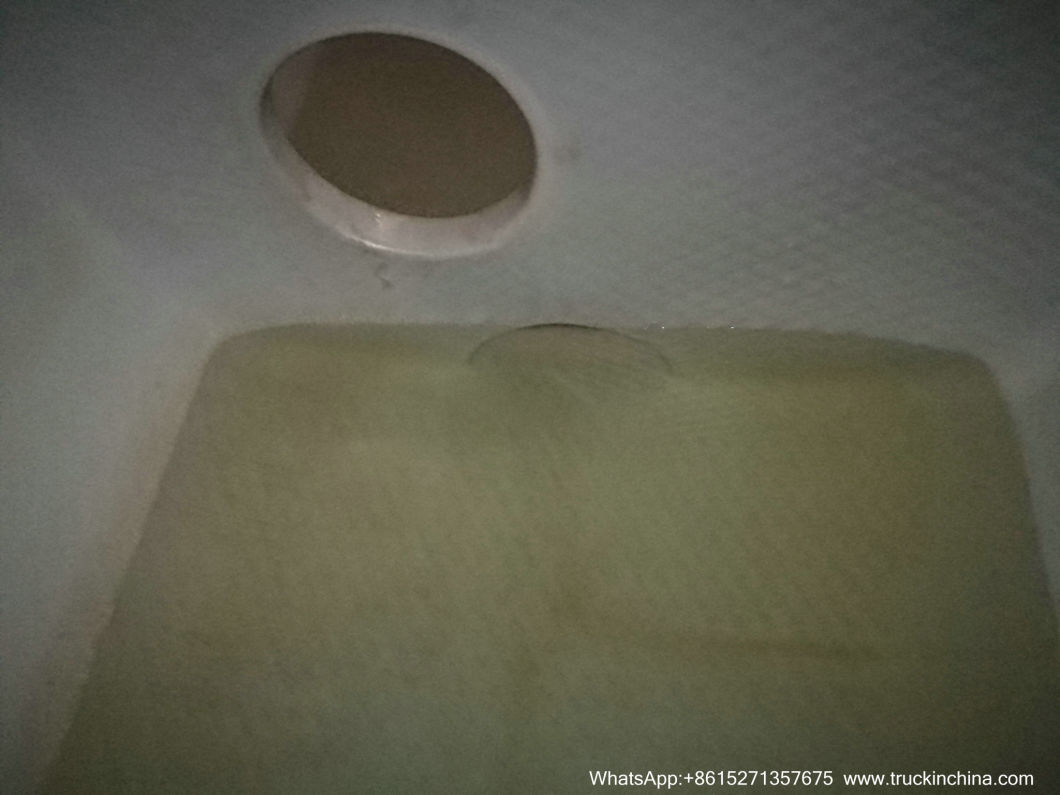

steel tank inner lined Plastic
Shaman 6X4 M3000 5000 Gallon 20m3 Water Tank Truck Ask for better price
Cell /+8615271357675
Cell /+8615271357675
The pictures are for your reference only.

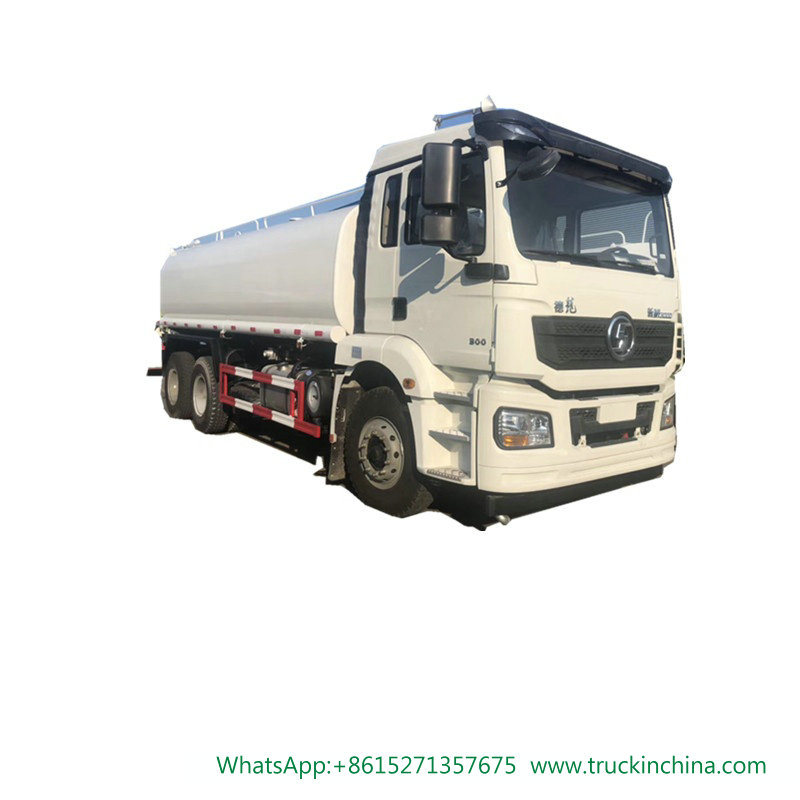

Shacman 6X4 25cbm Water Tank Spray Truck
| Overall size | 9990*2500*2950(mm) | Type | 6x4 |
| wheelbase | 4325+1350mm | Power steering | Equipped |
| Front Axle | 9ton | Rear axle | 16ton |
| Gearbox | Manual | Tire | 12.00R-20 |
| Engine | 266hp | Tank volume | 25000Liters |
| Water pump | Equipped | Width of sprinkler | ≥14m |
| Flow | 90m3/h | Range | ≥35m |
Specifications
1.SHACNMAN 6x4 water tank truck
2.Tank volume: 20000 - 25000Liters
3.Thickness:5mm,6 or lined PE plastic
4.we can do it according to your orders
carbon steel or stainless steel or Steel lined LLDPE plastic for Acid wast chemcial liquid tanker
SHACMAN 6x4 water tank truck
F3000
Technical parameter
1. Equipped with front(rear, side)sprinkler(sprinkling width>14m ) ;Equipped with rear working platform with water cannon ( range>28m );Equipped with water pump(suction lift>6m) ; Equipped with fire valve, water valve, and filter gauze
2. Equipped with front flushing, back sprinkle and side spray, high pressure gun in rear Platform, two water pipe, it length is equal to the tank's
3. Equipped with the working platform at the back, which can be installed green high-pressure water spray gun or sprayer.(The spray gun or sprayer shape can be adjustable: heavy rain, moderate rain, drizzling rain or haze.)
4. Equipped with the best quality water pumps in China, And with fire coupling, self-flow add self- priming function.
5.Tanker material : 4mm thickness high quality carbon steel
M3000
SHACMAN 6x4 water tank truck F3000
| Main specification | |
| Product Name | SHACMAN F2000,F3000,M3000 water 15-25m3 |
| Driving Type | 6×4,left/right hand drive |
| Color | Optional |
| Weights | |
| Payload (kg) | 20000 |
| Curb weight(kg) | 10400 |
| Dimensions | |
| Wheelbase (mm) | 4375+1400 |
| Overall Dimension (mm) | Approx.9600×2500×3720 |
| Tank capacity(m3) | 15-25m3 |
| Engine | |
| Engine Model | WP10.290E32(290HP) |
| Engine type | 6 cylinders , 4 stroke, Turbocharged,water-cooled,diesel |
| Displacement (L) | 9.726L |
| Rated power ((Kw) | 213kw |
| Emission standard | euro 2/euro 3 |
| Drive Line | |
| Transmission | 9JS119,9 forwards, 1 reverse gear, manual operation |
| Steering | With power steering |
| Brake system | Air brake |
| Cab | |
| Cab | with A/C |
| Tire specification | |
| Tire specification | 12.00R20, 10 tires+1 spare tire |
| Axles | |
| Front/Rear axles | MAN 7.5T /13T STR |
| Specification of water truck | |
| Water tanker material | Of high quality carbon steel (Q235). |
| Introduction | 1. Suction≥7m Sprinkler width≥14m Range≥28m |
| 2. with front spout, back spill and side spout function | |
| 3. with the working platform at the back, wich can be installed green high-pressure water spray gun.(The spray gun shape can be adjustable: heavy rain, moderate rain, drizzling rain or haze.) | |
| 4. Provide the best high-power sprinkle pumps quality of the national,And with fire coupling, self-flow add self- priming function. | |

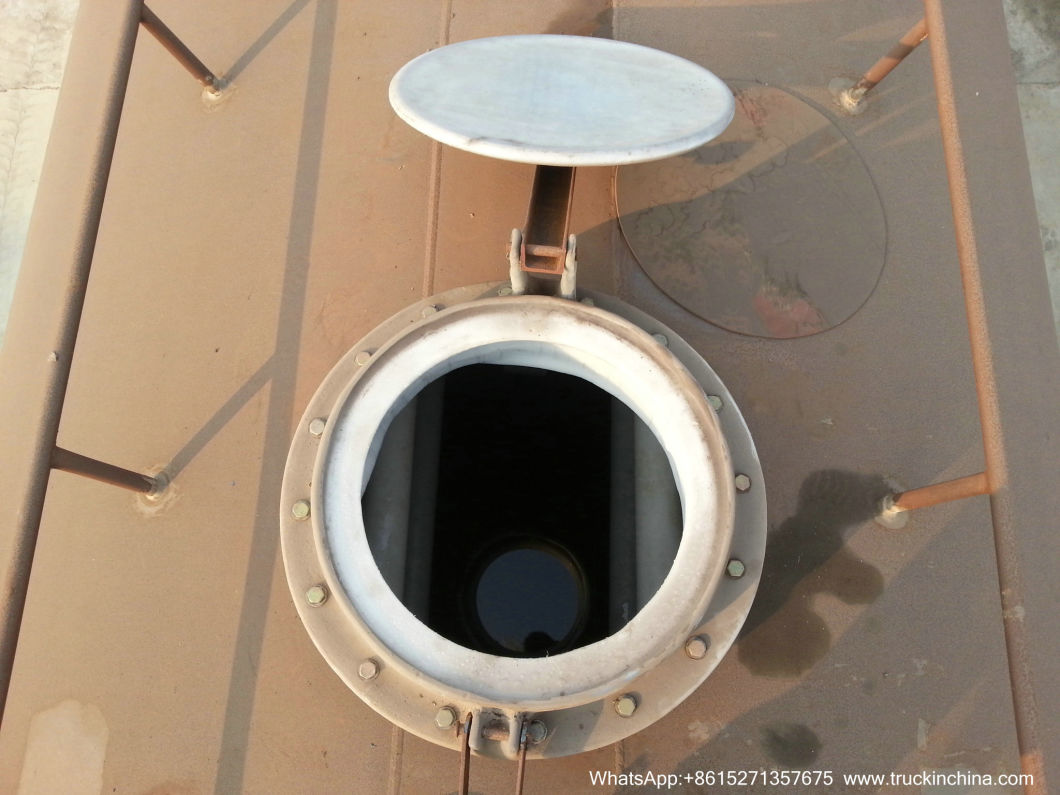

| Manhole | Man way access hole on top of tank;1 units DN500mm manhole |
| Horse reels | Two hose reels at each side of the truck |
| Water pump | Water pump model: CLW80QZF-60/90N (N/S) |
| Water pump flow rate(L/m): 60m3/h | |
| Head of delivery(m): 90m | |
| Self-priming function(min/4m):1.5 | |
| Efficiency(%):95% | |
| Related rotate speed(r/min)1180 | |
| matched power(kw):22 | |
Technical parameter
1. Equipped with front(rear, side)sprinkler(sprinkling width>14m ) ;Equipped with rear working platform with water cannon ( range>28m );Equipped with water pump(suction lift>6m) ; Equipped with fire valve, water valve, and filter gauze
2. Equipped with front flushing, back sprinkle and side spray, high pressure gun in rear Platform, two water pipe, it length is equal to the tank's
3. Equipped with the working platform at the back, which can be installed green high-pressure water spray gun or sprayer.(The spray gun or sprayer shape can be adjustable: heavy rain, moderate rain, drizzling rain or haze.)
4. Equipped with the best quality water pumps in China, And with fire coupling, self-flow add self- priming function.
5.Tanker material : 4mm thickness high quality carbon steel
M3000
| Vehicle main technical information: | |
| Product Name | SHACMAN 6x4 25m3 water sprinkler truck price |
| Product Model | SX5256GSSMM434 |
| Water tank size | 6100*2300*1500mm (length*long axis*minor axis) |
| Overall size(L*W*H) | 9885*2490*3170mm |
| Gross weight | 25000kgs |
| Rated capacity | 14000kgs |
| Curb weight | 10870kgs |
| Approaching/Departure Angle | 18/11(°) |
| Front/Rear suspension | 1485/2675mm |
| Max.speed | 92km/h |
| Chassis Parameters: | |
| Chassis Brand | Shaanxi automobile |
| Chassis model | SX1256MM434 |
| Drive type | 6*4 |
| Fuel Type | Diesel |
| Tire Specification | 11.00R20 16PR,11.00-20 18PR |
| Tire No. | 10 |
| Wheelbase | 4375+1350mm |
| Alex No. | 3 |
| Leaf Spring No. | 3/5,10/12 |
| Front trend | 2011mm |
| Rear trend | 1860/1860mm |
| Passengers in cab | 3 |
| Axle loading | 7000/18000 |
| Engine Parameters: | |
| Manufacturer | Weichai power Co.,Ltd. |
| Model | WP7.270 |
| Horse Power | 270HP |
| Displacement/Power | 7140ml/199kw |
| Emission standard | Euro 3-5-6 |
Water Truck,Shacman 25000L Water Truck,Shacman 25000L Water Bowser,Shacman25000L Spraying Truck,Shacman 25000L water tank lorry,Shacman 25000L Water Cart,Shacman 25000L Water Tanker, Shacman 25000L Water Wagon,Shacman 25000L Water Tanker Truck,Shacman 25000L Water Sprinkler Truck,Shacman 25000L Watering Vehicle,Shacman 25000L Watering Cart
water, suppressing dust, high and low spraying, pesticide spraying, rail and construction washing and other functions, but also has the function of water transport, milk transport, water drainage, emergency fire and so on.
| Chassis Specification | |||
| Main Parameter | Model | DRZ5250GSSSH25 | |
| Wheelbase (mm) | 4375+1350 | ||
| Driving Type | 6*4 left hand driving | ||
| Cab | One and a half row seats, a/c is optional | ||
| Max Speed (km/h) | 80 | ||
| GVW ( kg) | 25000 | ||
| Truck Tare Weight (kg) | 11400 | ||
| Overall Dimension (mm) | 9960 * 2500 * 3200 | ||
| Engine | Brand | WEICHAI | |
| Model | WP10.290E32 | ||
| Rated Output (hp) | 290 | ||
| Exhaust (ml) | 9726 | ||
| Fuel Type | Diesel fuel | ||
| Max. Torque (N.m) | 1160 | ||
| Emission Standard | Europe II | ||
| Tire | Number of Tires | 11 (including 1 spare tire) | |
| Tire Size | 11.00R20 | ||
| Gear Box | Type | 9JS119 | |
| Axle | Number of Axles | 3 | |
| Front Axle Type | MAN 5.5T | ||
| Rear Axle Type | Double 13T MAN | ||
| Load-bearing (kg) | 31T | ||
| Upper Parts Specification | |||
| Water Tank Capacity | 25CBM | ||
| Sprinkler | front, side, rear three sprinklers | ||
| Valves | Fire valve and water valve | ||
| Tank shape | Ellipse | ||
| Material of tanker | 5mm carbon steel | ||
| Color of the tanker | According your demands | ||
| Special function | Rating speed | 1450r/min | |
| flux | 60m³/h | ||
| self-suction height | 7.5m | ||
| sprinkler width | ≥14m | ||
| the range | when adjusted column,the range ≥30m | ||
| when adjusted fog, the range≤15m | |||
| Introduction of function | front rise and back sprinkler, side spray, with working platform at back of truck, with high pressure gun, which can be adjusted according to requirement, and assemble the high quality watering pump, with fire fighting connection and overflow valve, with self-suction function. | ||
| Fittings | PTO water pump | ||
| One Manhole | |||
| water hose box fitted on both side of tank | |||
| One spare tyre | |||
| Ladder: For access to top of tank complete with cat walk on top of tank | |||
| Heavy-duty rear bumper | |||
Water truck is composed of automobile chassis, and out of the water system and tanker. According to the different use of the environment and the purpose of a variety of spraying and water transport function. Multifunctional sprinkler set a variety of functions as one, generally can be used by the user requirements of special restructuring.
Water Truck is suitable for various pavement washing, trees, green belt, green lawn, roads, construction of factories and mines, high-altitude construction flushing.

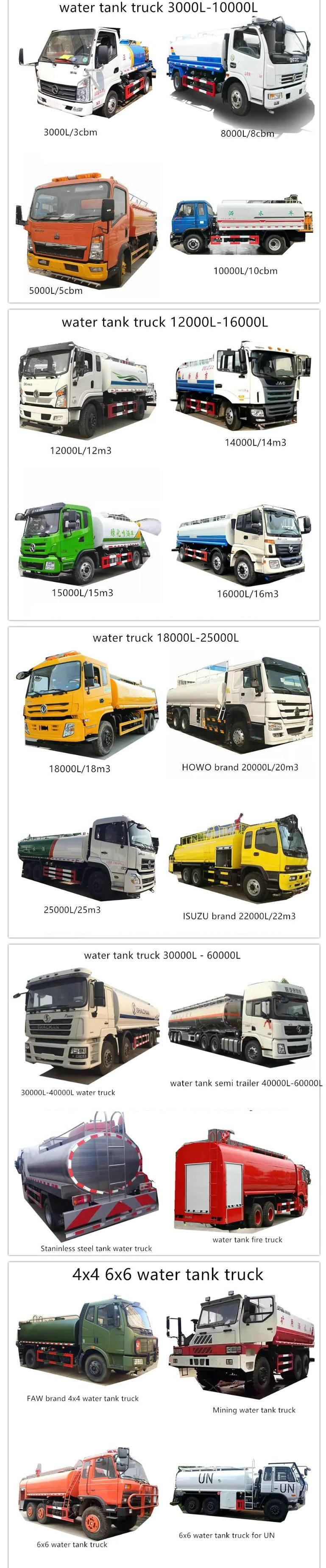

| Water tank truck Price list | |||||||||
| Standard configuration | Chassis, sub frame, carbon steel water tank, manhole, water pump, front/side/rear spray nozzle, rear working platform, water cannon, fire valve, water valve, filter gauze,water hose, climbing ladder. | ||||||||
| Selective configuration | 1.Stainless Steel/Aluminum Alloy Water Tank, Price Add $1000 /cbm ( $5000-$20000) 2.Insulation Layer For Water Tank, Price Add $2000-$3000 3.Stainless Steel Water Pump, Price Add $1500- $2000 4.Fire Pump, Fire Cannon CB10/20 Price Add $2800 ; CB10/30 Price Add $3100 5.Pesticide Cannon, Pump Price Add $100-$8000 6.Cabin Remote Control Front Cannon Price Add $2000 7.Honda Motor Pump Price Add $700 8.RHD Price add $3000 ( ISUZU only LHD) 9.Optional mounted with Crane, Man Lift Basket, Rear Spraying Device, Barrel Pesticide Spraying Device, Gasoline Pesticide Machine, Diesel Pesticide Machine, Led Arrow Lights | ||||||||
| Extended model | water transporting truck, thermal insulation water transporting truck, drinking water tank truck, liquid food truck, fire water tank truck, pesticide spraying truck, and etc. | ||||||||
| Vehicle model | Chassis brand | Chassis model | Tank | Overall dimensions | Wheel base | Engine model | HP/standard | Tire | FOB Price |
| Liters | mm | mm | USD | ||||||
| DRZ5240GSSH | CAMC | HN1240P29E2M3J | 20000 | 10420X2500X3560 | 5220+1350 | WP10.270E32 | 270/Euro 3 | 11.00R20 | $45,528 |
| DRZ5160GSSD | DONGFENG | DFL1160BX | 12000 | 8290X2370X2760 | 4700 | B190 33 | 190/Euro 3 | 9.00-20 | $26,175 |
| DRZ5250GSSD | DONGFENG | DFL1250A9 | 22000 | 10770X2480X3100 | 5350+1300 | C260 33 | 260/Euro 3 | 11.00R20 | $43,768 |
| DRZ5311GSSD | DONGFENG | DFL1311A4 | 30000 | 11980X2500X3690 | 1850+4600+1350 | C260 33 | 260/Euro 3 | 11.00R20 | $47,751 |
| DRZ5060GSSE | DONGFENG | EQ1060TJ20D3 | 5000 | 5980X1980X2180 | 3300 | CY4102-C3F | 95/Euro 3 | 7.00-16 | $11,603 |
| DRZ5090GSSE | DONGFENG | EQ1090T9ADJ3AC | 6000 | 6995X2285X2780 | 3800 | CY4102-E3C | 120/Euro 3 | 7.50R16 | $15,197 |
| DRZ5110GSSE | DONGFENG | EQ1100FKJ | 8000 | 7350X2440X2790 | 3950 | YC4E140-33 | 140/Euro 3 | 9.00-20 | $15,672 |
| DRZ5108GSSE | DONGFENG | EQ1108KJ | 10000 | 7450X2480X2985 | 3950 | B170 33 | 170/Euro 3 | 9.00-20 | $19,180 |
| DRZ5121GSSE | DONGFENG | EQ1121GKJ | 10000 | 7450X2480X2985 | 3950 | YC4E160-33 | 160/Euro 3 | 9.00-20 | $16,946 |
| DRZ5126GSSE | DONGFENG | EQ1126KJ1 | 12000 | 8500X2460X3000 | 4700 | B190 33 | 190/Euro 3 | 9.00-20 | $21,404 |
| DRZ5141GSSE | DONGFENG | EQ1141KJ | 15000 | 8105X2490X3050 | 4500 | B190 33 | 190/Euro 3 | 10.00-20 | $21,566 |
| DRZ5290GSSE | DONGFENG | EQ1290WFJ | 30000 | 11995X2495X3690 | 1950+4250+1300 | C280 33 | 280/Euro 3 | 11.00-20 | $44,243 |
| DRZ5253GSSE | DONGFENG | EQ5253GFJ2 | 22000 | 9950X2480X3550 | 4350+1300 | B210 33 | 210/Euro 3 | 10.00-20 | $29,769 |
| DRZ5250GSSC | FAW | CA1250P63K1L5T1AE4Z | 20000 | 10425X2495X3200 | 4800+1350 | BF6M1013-28E4 | 280/Euro 4 | 11.00R20 | $49,025 |
| DRZ5250GSSC3 | FAW | CA1250P63K2L3T1E | 20000 | 10350X2495X2900 | 4800+1350 | CA6DE3-24E3 | 240/Euro3 | 10.00R20 | $44,891 |
| DRZ1310GSSC | FAW | CA1310P63K2L6T4E | 30000 | 11860X2495X3100 | 1950+4550+1350 | CA6DL1-31E3F | 310/ Euro 3 | 11.00R20 | $49,834 |
| DRZ5073GSSB | FOTON | BJ1073VEJEA-A | 5000 | 5990X1955X2300 | 3360 | 4DW91-63NG2 | 98/ Euro 2 | 6.50-16 | $10,017 |
| DRZ5102GSSB | FOTON | BJ1102VDPEA-G1 | 6000 | 7225X2300X2680 | 3900 | 4102QBZL | 130/ Euro 2 | 8.25-16 | $14,723 |
| DRZ5163GSSB | FOTON | BJ1163VKPGG-1 | 12000 | 9000×2490×3150 | 5000 | Phaser160Ti-33 | 160/ Euro 3 | 9.00R20 | $24,588 |
| DRZ5257GPSB | FOTON | BJ5257GNFJH-S1 | 22000 | 10350X2490X3010 | 4725+1300 | SC9DK270Q3B1 | 270/ Euro 3 | 10.00-20 | $41,383 |
| DRZ5070GSSQ | ISUZU | QL1070A1KAY | 6000 | 7250X2300X2350 | 3815 | 4KH1-TCG40 | 120/ Euro 4 | 7.00-15 | $23,962 |
| DRZ5160GSSQ | ISUZU | QL1160ANFRY | 16000 | 9000X2465X2900 | 5000 | 6HK1-TCNG40 | 240/ Euro 4 | 10.00-20 | $54,357 |
| DRZ5250GSSQ | ISUZU | QL1250DNFZY | 20000 | 9480X2495X3550 | 4350+1300 | 6HK1-TCSG40 | 280/ Euro 4 | 1.00-20 | $68,928 |
| DRZ5050GSSQ | ISUZU | QL10503HARY | 5000 | 5990X1870X2250 | 3360 | 4JB1CN | 98/ Euro 4 | 7.00-15 | $19,493 |
| DRZ5090GSSQ | ISUZU | QL11009MARY | 10000 | 8490X2390X2550 | 4475 | 4HK1-TCG40 | 190/Euro 4 | 8.25-20 | $31,118 |
| DRZ5161GSSH | JAC | HFC1161P3K2A47F | 10000 | 8500X2500X3150 | 4700 | YC4E160-42 | 160/Euro 4 | 11.00R20 | $30,406 |
| DRZ5241GSSH | JAC | HFC1241P2K1C54F | 20000 | 11990X2500X3560 | 1900+5400 | CA6DF4-20E4 | 200/ Euro 4 | 11.00R20 | $42,343 |
| DRZ5311GSSH | JAC | HFC1311P2K4H45F | 30000 | 10980X2500X3755 | 1900+4500+1350 | WP10.270E40 | 270/ Euro 4 | 11.00R20 | $53,796 |
| DRZ5254GSSN | North-Benz | ND1254B41J | 20000 | 9770X2480X3030 | 4100+1350 | WP10.270E32 | 270/ Euro 3 | 11.00R20 | $42,495 |
| DRZ5310GSSN | North-Benz | ND1310D46J7Z01 | 30000 | 11960X2495X3100 | 1950+4650+1350 | WP10.310E32 | 310/ Euro 3 | 11.00R20 | $51,421 |
| DRZ5255GSSFS | SHACMAN | SX1255NN464 | 20000 | 9935X2490X3210 | 4575+1400 | WP10.290E32 | 290/ Euro 3 | 12.00R20 | $46,240 |
| DRZ5315GSSFS | SHACMAN | SX1315NN4561 | 30000 | 12000X2490X3340 | 1800+4575+1400 | WP10.270E31 | 270/ Euro 3 | 11.00R20 | $45,765 |
| DRZ5165GSSS | SHACMAN | SX1165UN461 | 15000 | 8620X2490X3100 | 4600 | WP10.270E31 | 270/ Euro 3 | 12.00R20 | $34,939 |
| DRZ5255GSSS434 | SHACMAN | SX1255UM434 | 20000 | 9800X2495X3130 | 4325+1350 | WP10.290E32 | 290/ Euro 3 | 12.00R20 | $41,858 |
| DRZ5315GSSS | SHACMAN | SX1315TM4561 | 30000 | 11996X2496X3474 | 1800+4500+1350 | WP10.310E32 | 310/Euro 3 | 12.00R20 | $50,860 |
| DRZ5167GSSZ | SINOTRUK | ZZ1167M4611W | 10000 | 8500X2500X3300 | 4600 | WD615.92 | 266/ Euro 2 | 12.00-20 | $35,738 |
| DRZ5257GSSZ | SINOTRUK | ZZ1257N4341W | 20000 | 9895X2496X2958 | 4325+1350 | WD615.69 | 336/ Euro 2 | 12R22.5 | $44,006 |
Cell :+8615271357675
Shacman 10 wheeler water tanker truck With Water Bowser 20cbm -25cbm
Military Truck Water Tanker (Water Bowser) Good for Rought Road Transport Drinking Water Steel Tank Inner Lined Plastic
steel tank inner lined Plastic
Shaman 6X4 M3000 5000 Gallon 20m3 Water Tank Truck Ask for better price
Cell /+8615271357675
Cell /+8615271357675
The pictures are for your reference only.
Shacman 6X4 25cbm Water Tank Spray Truck
| Overall size | 9990*2500*2950(mm) | Type | 6x4 |
| wheelbase | 4325+1350mm | Power steering | Equipped |
| Front Axle | 9ton | Rear axle | 16ton |
| Gearbox | Manual | Tire | 12.00R-20 |
| Engine | 266hp | Tank volume | 25000Liters |
| Water pump | Equipped | Width of sprinkler | ≥14m |
| Flow | 90m3/h | Range | ≥35m |
Specifications
1.SHACNMAN 6x4 water tank truck
2.Tank volume: 20000 - 25000Liters
3.Thickness:5mm,6 or lined PE plastic
4.we can do it according to your orders
carbon steel or stainless steel or Steel lined LLDPE plastic for Acid wast chemcial liquid tanker
SHACMAN 6x4 water tank truck
F3000
Technical parameter
1. Equipped with front(rear, side)sprinkler(sprinkling width>14m ) ;Equipped with rear working platform with water cannon ( range>28m );Equipped with water pump(suction lift>6m) ; Equipped with fire valve, water valve, and filter gauze
2. Equipped with front flushing, back sprinkle and side spray, high pressure gun in rear Platform, two water pipe, it length is equal to the tank's
3. Equipped with the working platform at the back, which can be installed green high-pressure water spray gun or sprayer.(The spray gun or sprayer shape can be adjustable: heavy rain, moderate rain, drizzling rain or haze.)
4. Equipped with the best quality water pumps in China, And with fire coupling, self-flow add self- priming function.
5.Tanker material : 4mm thickness high quality carbon steel
M3000
SHACMAN 6x4 water tank truck F3000
| Main specification | |
| Product Name | SHACMAN F2000,F3000,M3000 water 15-25m3 |
| Driving Type | 6×4,left/right hand drive |
| Color | Optional |
| Weights | |
| Payload (kg) | 20000 |
| Curb weight(kg) | 10400 |
| Dimensions | |
| Wheelbase (mm) | 4375+1400 |
| Overall Dimension (mm) | Approx.9600×2500×3720 |
| Tank capacity(m3) | 15-25m3 |
| Engine | |
| Engine Model | WP10.290E32(290HP) |
| Engine type | 6 cylinders , 4 stroke, Turbocharged,water-cooled,diesel |
| Displacement (L) | 9.726L |
| Rated power ((Kw) | 213kw |
| Emission standard | euro 2/euro 3 |
| Drive Line | |
| Transmission | 9JS119,9 forwards, 1 reverse gear, manual operation |
| Steering | With power steering |
| Brake system | Air brake |
| Cab | |
| Cab | with A/C |
| Tire specification | |
| Tire specification | 12.00R20, 10 tires+1 spare tire |
| Axles | |
| Front/Rear axles | MAN 7.5T /13T STR |
| Specification of water truck | |
| Water tanker material | Of high quality carbon steel (Q235). |
| Introduction | 1. Suction≥7m Sprinkler width≥14m Range≥28m |
| 2. with front spout, back spill and side spout function | |
| 3. with the working platform at the back, wich can be installed green high-pressure water spray gun.(The spray gun shape can be adjustable: heavy rain, moderate rain, drizzling rain or haze.) | |
| 4. Provide the best high-power sprinkle pumps quality of the national,And with fire coupling, self-flow add self- priming function. | |
| Manhole | Man way access hole on top of tank;1 units DN500mm manhole |
| Horse reels | Two hose reels at each side of the truck |
| Water pump | Water pump model: CLW80QZF-60/90N (N/S) |
| Water pump flow rate(L/m): 60m3/h | |
| Head of delivery(m): 90m | |
| Self-priming function(min/4m):1.5 | |
| Efficiency(%):95% | |
| Related rotate speed(r/min)1180 | |
| matched power(kw):22 | |
Technical parameter
1. Equipped with front(rear, side)sprinkler(sprinkling width>14m ) ;Equipped with rear working platform with water cannon ( range>28m );Equipped with water pump(suction lift>6m) ; Equipped with fire valve, water valve, and filter gauze
2. Equipped with front flushing, back sprinkle and side spray, high pressure gun in rear Platform, two water pipe, it length is equal to the tank's
3. Equipped with the working platform at the back, which can be installed green high-pressure water spray gun or sprayer.(The spray gun or sprayer shape can be adjustable: heavy rain, moderate rain, drizzling rain or haze.)
4. Equipped with the best quality water pumps in China, And with fire coupling, self-flow add self- priming function.
5.Tanker material : 4mm thickness high quality carbon steel
M3000
| Vehicle main technical information: | |
| Product Name | SHACMAN 6x4 25m3 water sprinkler truck price |
| Product Model | SX5256GSSMM434 |
| Water tank size | 6100*2300*1500mm (length*long axis*minor axis) |
| Overall size(L*W*H) | 9885*2490*3170mm |
| Gross weight | 25000kgs |
| Rated capacity | 14000kgs |
| Curb weight | 10870kgs |
| Approaching/Departure Angle | 18/11(°) |
| Front/Rear suspension | 1485/2675mm |
| Max.speed | 92km/h |
| Chassis Parameters: | |
| Chassis Brand | Shaanxi automobile |
| Chassis model | SX1256MM434 |
| Drive type | 6*4 |
| Fuel Type | Diesel |
| Tire Specification | 11.00R20 16PR,11.00-20 18PR |
| Tire No. | 10 |
| Wheelbase | 4375+1350mm |
| Alex No. | 3 |
| Leaf Spring No. | 3/5,10/12 |
| Front trend | 2011mm |
| Rear trend | 1860/1860mm |
| Passengers in cab | 3 |
| Axle loading | 7000/18000 |
| Engine Parameters: | |
| Manufacturer | Weichai power Co.,Ltd. |
| Model | WP7.270 |
| Horse Power | 270HP |
| Displacement/Power | 7140ml/199kw |
| Emission standard | Euro 3-5-6 |

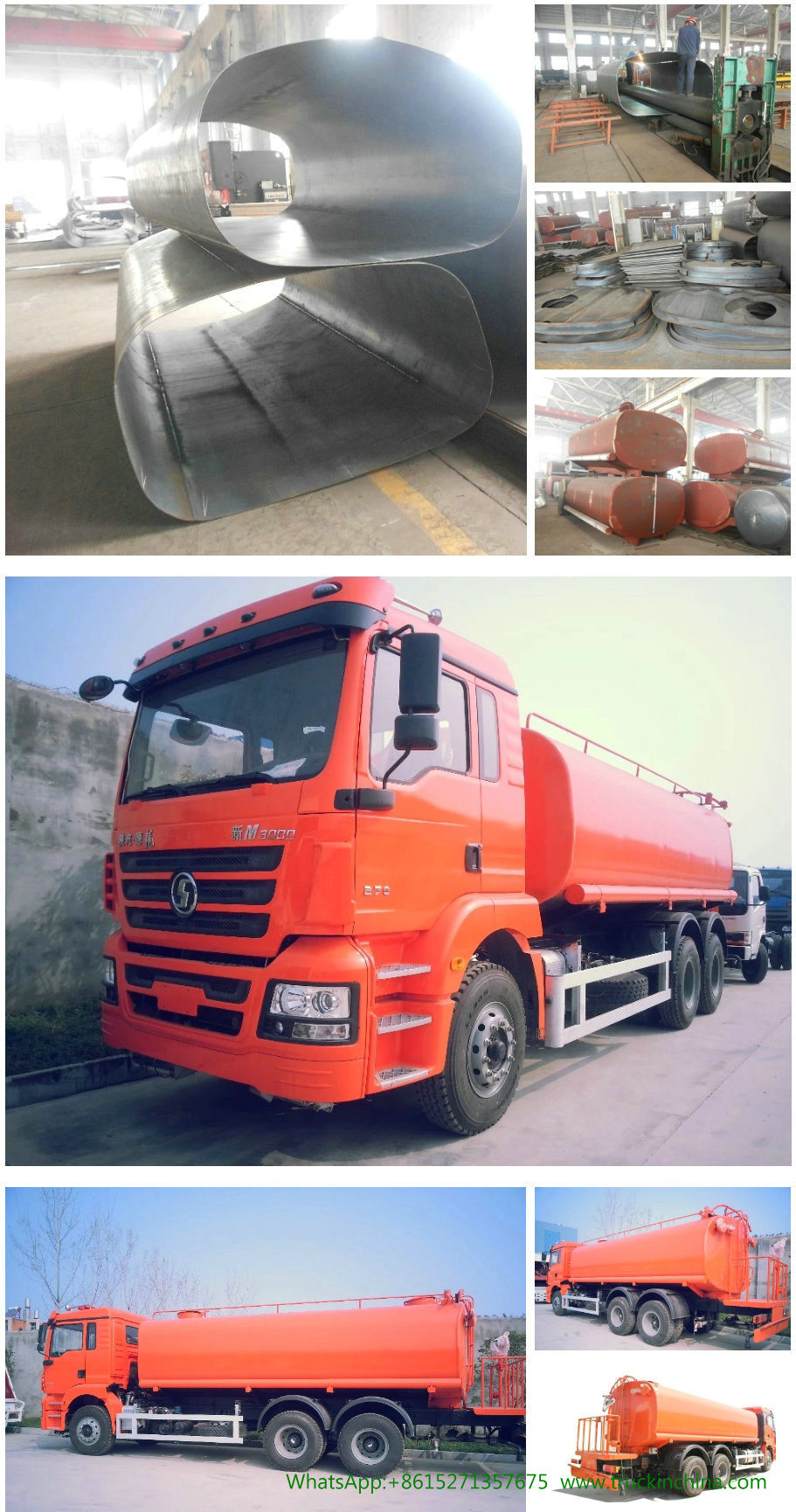

Water Truck,Shacman 25000L Water Truck,Shacman 25000L Water Bowser,Shacman25000L Spraying Truck,Shacman 25000L water tank lorry,Shacman 25000L Water Cart,Shacman 25000L Water Tanker, Shacman 25000L Water Wagon,Shacman 25000L Water Tanker Truck,Shacman 25000L Water Sprinkler Truck,Shacman 25000L Watering Vehicle,Shacman 25000L Watering Cart
water, suppressing dust, high and low spraying, pesticide spraying, rail and construction washing and other functions, but also has the function of water transport, milk transport, water drainage, emergency fire and so on.
| Chassis Specification | |||
| Main Parameter | Model | DRZ5250GSSSH25 | |
| Wheelbase (mm) | 4375+1350 | ||
| Driving Type | 6*4 left hand driving | ||
| Cab | One and a half row seats, a/c is optional | ||
| Max Speed (km/h) | 80 | ||
| GVW ( kg) | 25000 | ||
| Truck Tare Weight (kg) | 11400 | ||
| Overall Dimension (mm) | 9960 * 2500 * 3200 | ||
| Engine | Brand | WEICHAI | |
| Model | WP10.290E32 | ||
| Rated Output (hp) | 290 | ||
| Exhaust (ml) | 9726 | ||
| Fuel Type | Diesel fuel | ||
| Max. Torque (N.m) | 1160 | ||
| Emission Standard | Europe II | ||
| Tire | Number of Tires | 11 (including 1 spare tire) | |
| Tire Size | 11.00R20 | ||
| Gear Box | Type | 9JS119 | |
| Axle | Number of Axles | 3 | |
| Front Axle Type | MAN 5.5T | ||
| Rear Axle Type | Double 13T MAN | ||
| Load-bearing (kg) | 31T | ||
| Upper Parts Specification | |||
| Water Tank Capacity | 25CBM | ||
| Sprinkler | front, side, rear three sprinklers | ||
| Valves | Fire valve and water valve | ||
| Tank shape | Ellipse | ||
| Material of tanker | 5mm carbon steel | ||
| Color of the tanker | According your demands | ||
| Special function | Rating speed | 1450r/min | |
| flux | 60m³/h | ||
| self-suction height | 7.5m | ||
| sprinkler width | ≥14m | ||
| the range | when adjusted column,the range ≥30m | ||
| when adjusted fog, the range≤15m | |||
| Introduction of function | front rise and back sprinkler, side spray, with working platform at back of truck, with high pressure gun, which can be adjusted according to requirement, and assemble the high quality watering pump, with fire fighting connection and overflow valve, with self-suction function. | ||
| Fittings | PTO water pump | ||
| One Manhole | |||
| water hose box fitted on both side of tank | |||
| One spare tyre | |||
| Ladder: For access to top of tank complete with cat walk on top of tank | |||
| Heavy-duty rear bumper | |||
Water truck is composed of automobile chassis, and out of the water system and tanker. According to the different use of the environment and the purpose of a variety of spraying and water transport function. Multifunctional sprinkler set a variety of functions as one, generally can be used by the user requirements of special restructuring.
Water Truck is suitable for various pavement washing, trees, green belt, green lawn, roads, construction of factories and mines, high-altitude construction flushing.
| Water tank truck Price list | |||||||||
| Standard configuration | Chassis, sub frame, carbon steel water tank, manhole, water pump, front/side/rear spray nozzle, rear working platform, water cannon, fire valve, water valve, filter gauze,water hose, climbing ladder. | ||||||||
| Selective configuration | 1.Stainless Steel/Aluminum Alloy Water Tank, Price Add $1000 /cbm ( $5000-$20000) 2.Insulation Layer For Water Tank, Price Add $2000-$3000 3.Stainless Steel Water Pump, Price Add $1500- $2000 4.Fire Pump, Fire Cannon CB10/20 Price Add $2800 ; CB10/30 Price Add $3100 5.Pesticide Cannon, Pump Price Add $100-$8000 6.Cabin Remote Control Front Cannon Price Add $2000 7.Honda Motor Pump Price Add $700 8.RHD Price add $3000 ( ISUZU only LHD) 9.Optional mounted with Crane, Man Lift Basket, Rear Spraying Device, Barrel Pesticide Spraying Device, Gasoline Pesticide Machine, Diesel Pesticide Machine, Led Arrow Lights | ||||||||
| Extended model | water transporting truck, thermal insulation water transporting truck, drinking water tank truck, liquid food truck, fire water tank truck, pesticide spraying truck, and etc. | ||||||||
| Vehicle model | Chassis brand | Chassis model | Tank | Overall dimensions | Wheel base | Engine model | HP/standard | Tire | FOB Price |
| Liters | mm | mm | USD | ||||||
| DRZ5240GSSH | CAMC | HN1240P29E2M3J | 20000 | 10420X2500X3560 | 5220+1350 | WP10.270E32 | 270/Euro 3 | 11.00R20 | $45,528 |
| DRZ5160GSSD | DONGFENG | DFL1160BX | 12000 | 8290X2370X2760 | 4700 | B190 33 | 190/Euro 3 | 9.00-20 | $26,175 |
| DRZ5250GSSD | DONGFENG | DFL1250A9 | 22000 | 10770X2480X3100 | 5350+1300 | C260 33 | 260/Euro 3 | 11.00R20 | $43,768 |
| DRZ5311GSSD | DONGFENG | DFL1311A4 | 30000 | 11980X2500X3690 | 1850+4600+1350 | C260 33 | 260/Euro 3 | 11.00R20 | $47,751 |
| DRZ5060GSSE | DONGFENG | EQ1060TJ20D3 | 5000 | 5980X1980X2180 | 3300 | CY4102-C3F | 95/Euro 3 | 7.00-16 | $11,603 |
| DRZ5090GSSE | DONGFENG | EQ1090T9ADJ3AC | 6000 | 6995X2285X2780 | 3800 | CY4102-E3C | 120/Euro 3 | 7.50R16 | $15,197 |
| DRZ5110GSSE | DONGFENG | EQ1100FKJ | 8000 | 7350X2440X2790 | 3950 | YC4E140-33 | 140/Euro 3 | 9.00-20 | $15,672 |
| DRZ5108GSSE | DONGFENG | EQ1108KJ | 10000 | 7450X2480X2985 | 3950 | B170 33 | 170/Euro 3 | 9.00-20 | $19,180 |
| DRZ5121GSSE | DONGFENG | EQ1121GKJ | 10000 | 7450X2480X2985 | 3950 | YC4E160-33 | 160/Euro 3 | 9.00-20 | $16,946 |
| DRZ5126GSSE | DONGFENG | EQ1126KJ1 | 12000 | 8500X2460X3000 | 4700 | B190 33 | 190/Euro 3 | 9.00-20 | $21,404 |
| DRZ5141GSSE | DONGFENG | EQ1141KJ | 15000 | 8105X2490X3050 | 4500 | B190 33 | 190/Euro 3 | 10.00-20 | $21,566 |
| DRZ5290GSSE | DONGFENG | EQ1290WFJ | 30000 | 11995X2495X3690 | 1950+4250+1300 | C280 33 | 280/Euro 3 | 11.00-20 | $44,243 |
| DRZ5253GSSE | DONGFENG | EQ5253GFJ2 | 22000 | 9950X2480X3550 | 4350+1300 | B210 33 | 210/Euro 3 | 10.00-20 | $29,769 |
| DRZ5250GSSC | FAW | CA1250P63K1L5T1AE4Z | 20000 | 10425X2495X3200 | 4800+1350 | BF6M1013-28E4 | 280/Euro 4 | 11.00R20 | $49,025 |
| DRZ5250GSSC3 | FAW | CA1250P63K2L3T1E | 20000 | 10350X2495X2900 | 4800+1350 | CA6DE3-24E3 | 240/Euro3 | 10.00R20 | $44,891 |
| DRZ1310GSSC | FAW | CA1310P63K2L6T4E | 30000 | 11860X2495X3100 | 1950+4550+1350 | CA6DL1-31E3F | 310/ Euro 3 | 11.00R20 | $49,834 |
| DRZ5073GSSB | FOTON | BJ1073VEJEA-A | 5000 | 5990X1955X2300 | 3360 | 4DW91-63NG2 | 98/ Euro 2 | 6.50-16 | $10,017 |
| DRZ5102GSSB | FOTON | BJ1102VDPEA-G1 | 6000 | 7225X2300X2680 | 3900 | 4102QBZL | 130/ Euro 2 | 8.25-16 | $14,723 |
| DRZ5163GSSB | FOTON | BJ1163VKPGG-1 | 12000 | 9000×2490×3150 | 5000 | Phaser160Ti-33 | 160/ Euro 3 | 9.00R20 | $24,588 |
| DRZ5257GPSB | FOTON | BJ5257GNFJH-S1 | 22000 | 10350X2490X3010 | 4725+1300 | SC9DK270Q3B1 | 270/ Euro 3 | 10.00-20 | $41,383 |
| DRZ5070GSSQ | ISUZU | QL1070A1KAY | 6000 | 7250X2300X2350 | 3815 | 4KH1-TCG40 | 120/ Euro 4 | 7.00-15 | $23,962 |
| DRZ5160GSSQ | ISUZU | QL1160ANFRY | 16000 | 9000X2465X2900 | 5000 | 6HK1-TCNG40 | 240/ Euro 4 | 10.00-20 | $54,357 |
| DRZ5250GSSQ | ISUZU | QL1250DNFZY | 20000 | 9480X2495X3550 | 4350+1300 | 6HK1-TCSG40 | 280/ Euro 4 | 1.00-20 | $68,928 |
| DRZ5050GSSQ | ISUZU | QL10503HARY | 5000 | 5990X1870X2250 | 3360 | 4JB1CN | 98/ Euro 4 | 7.00-15 | $19,493 |
| DRZ5090GSSQ | ISUZU | QL11009MARY | 10000 | 8490X2390X2550 | 4475 | 4HK1-TCG40 | 190/Euro 4 | 8.25-20 | $31,118 |
| DRZ5161GSSH | JAC | HFC1161P3K2A47F | 10000 | 8500X2500X3150 | 4700 | YC4E160-42 | 160/Euro 4 | 11.00R20 | $30,406 |
| DRZ5241GSSH | JAC | HFC1241P2K1C54F | 20000 | 11990X2500X3560 | 1900+5400 | CA6DF4-20E4 | 200/ Euro 4 | 11.00R20 | $42,343 |
| DRZ5311GSSH | JAC | HFC1311P2K4H45F | 30000 | 10980X2500X3755 | 1900+4500+1350 | WP10.270E40 | 270/ Euro 4 | 11.00R20 | $53,796 |
| DRZ5254GSSN | North-Benz | ND1254B41J | 20000 | 9770X2480X3030 | 4100+1350 | WP10.270E32 | 270/ Euro 3 | 11.00R20 | $42,495 |
| DRZ5310GSSN | North-Benz | ND1310D46J7Z01 | 30000 | 11960X2495X3100 | 1950+4650+1350 | WP10.310E32 | 310/ Euro 3 | 11.00R20 | $51,421 |
| DRZ5255GSSFS | SHACMAN | SX1255NN464 | 20000 | 9935X2490X3210 | 4575+1400 | WP10.290E32 | 290/ Euro 3 | 12.00R20 | $46,240 |
| DRZ5315GSSFS | SHACMAN | SX1315NN4561 | 30000 | 12000X2490X3340 | 1800+4575+1400 | WP10.270E31 | 270/ Euro 3 | 11.00R20 | $45,765 |
| DRZ5165GSSS | SHACMAN | SX1165UN461 | 15000 | 8620X2490X3100 | 4600 | WP10.270E31 | 270/ Euro 3 | 12.00R20 | $34,939 |
| DRZ5255GSSS434 | SHACMAN | SX1255UM434 | 20000 | 9800X2495X3130 | 4325+1350 | WP10.290E32 | 290/ Euro 3 | 12.00R20 | $41,858 |
| DRZ5315GSSS | SHACMAN | SX1315TM4561 | 30000 | 11996X2496X3474 | 1800+4500+1350 | WP10.310E32 | 310/Euro 3 | 12.00R20 | $50,860 |
| DRZ5167GSSZ | SINOTRUK | ZZ1167M4611W | 10000 | 8500X2500X3300 | 4600 | WD615.92 | 266/ Euro 2 | 12.00-20 | $35,738 |
| DRZ5257GSSZ | SINOTRUK | ZZ1257N4341W | 20000 | 9895X2496X2958 | 4325+1350 | WD615.69 | 336/ Euro 2 | 12R22.5 | $44,006 |
Cell :+8615271357675
