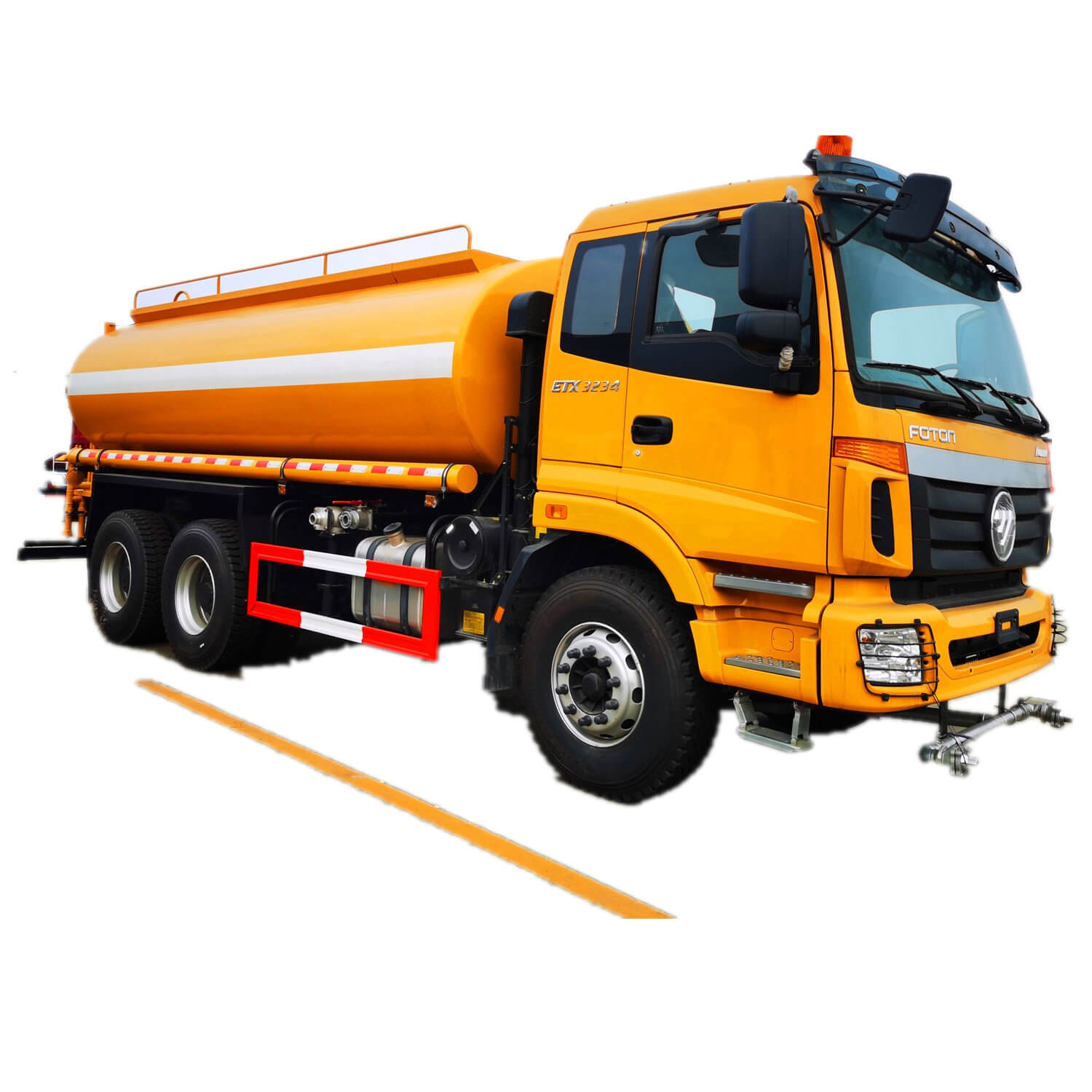

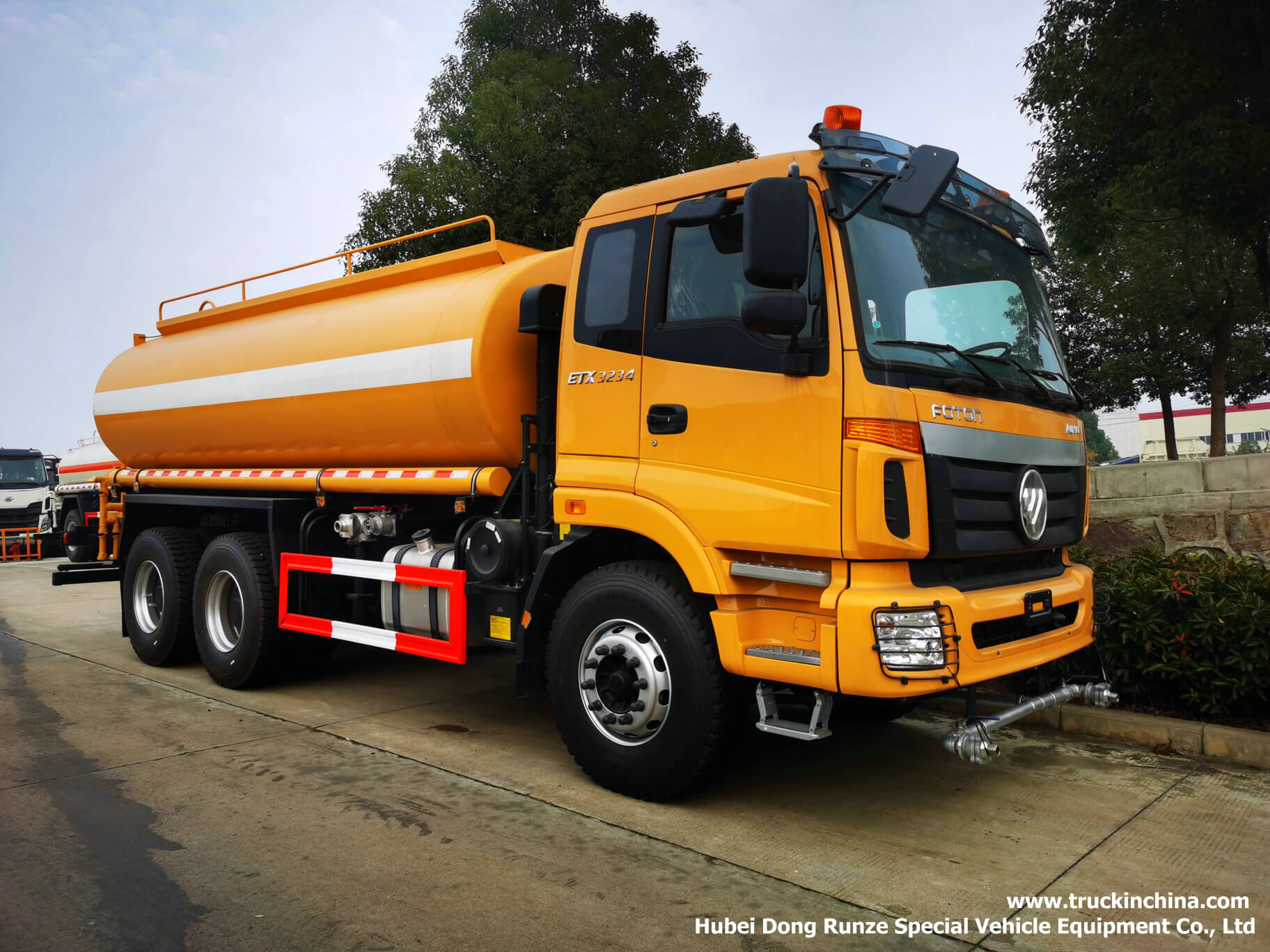

375HP Foton Auman 25ton Water Tank Truck with Front Spray Nozzles, Rear Water Sprinkler Cannon Two Sides Bowser for Dust Control
| FOB: | |
|---|---|
| Quantity: | |
|
| |
-
2638
-
FOTON
-
8705909990
-
Shanghai, China
-
1000
-
T/T, Western Union
-
Nil
-
1
375HP Foton Auman 25ton Water Tank Truck with Front Spray Nozzles, Rear Water Sprinkler Cannon Two Sides Bowser for Dust Control
FOTON Auman ETX3234 Stainless Steel Pure Water Bowser Tanker Sprinkler Truck
BJ3253DLPKB-AE,BJ3253DLPBJ-1 With Air Conditioner
18000L-25000L Stainless Steel Tank Pure Water Tanker Transport Truck
water truck oblique configuration: medicine dish, medication pumps, anticorrosion, tank intersectorial inlet and outlet water joint, solenoid valves, pneumatic valves, etc.
| Item No. | Parameters | |
| Chassis Brand | FOTON BJ3253DLPKB-AE,BJ3253DLPBJ-1 | |
| Overall Dimension | 9900×2500×3400mm | |
| Gross Vehicle Weight | 25000kg | |
| Curb Weight | 10605 kg | |
| Wheel Base | 4600+1350 mm | |
| Cabin | Row and half, Left Hand Driving | |
| Engine | Weichai, 270HP,310HP,340HP,380HP,430HP,460HP EURO 3 -6 | |
| Overhang( Front/Rear) | 1525/2460(mm) | |
| Fuel type | Diesel | |
| Axle load | 6000/12000(kg) | |
| Angle(Approach/departure) | 16/22(°) | |
| Transmission/Gearbox | 9 Forward & 1 Reverse Gear | |
| Brake System | Pneumatic | |
| Steering Gear | Power Assistant | |
| Tire | 12.00R20, 10 Pieces with 1 spare tire | |
| Maximum speed | 90(km/h) | |
| Superstructure | ||
| Water Tanker | Tank Volume | 25000 Liters / 25m3 |
| Tank Material | 5mm Q235B Carbon Steel | |
| Sprinkling System: | Suction height of Truck Pump | >7m |
| Full Tank Suction Time | <15 minutes | |
| Sprinkling width of front/rear/side Sprinkler | ≥14m | |
| Range of Water Cannon | ≥35m | |
| Remarks | Other Parts: Self-flow valve 1pc; Fire joint 1pc; Water pipe 2pcs | |
Left / | Body | ENGINE | Fuel | Power / Horsepower | Wheelbase | Transmission Case | Rear Axle | Model | Main Market |
Right Drive | |||||||||
RHD | TM1 | QUANCHAI QC480Q | diesel oil | 29 / 40 HP | 2400 | Mg700 (WanLiYang 5th gear) | 2.0T | BJ1030V5JV4-F1DA01 | Bengal |
LHD | TM2 | DAM15L | gasoline | 82/112 | 2850 | Dat18r (Dong'an 5th gear) | 2.5T | BJ1030V5JV5-ARDA06 | Nigeria |
LHD | TM1 | DAM15L | gasoline | 82/112 | 2750 | DAT18R | 2.0T | BJ1030V5JV2-AXDA06 | Basic model |
LHD | TM1 | DONG'AN DAM15L | gasoline | 82/112 | 2750 | DAT18R | 2.0T | BJ1030V5JV2-AXDA02 | Base model / Bolivia |
LHD | TM2 | DONG'AN DAM15L | gasoline | 82/112 | 2850 | Dat18r (5th gear) | 2.5T | BJ1030V5JV5-ARDA02 | Basic model |
LHD | T | BJ493ZLQV1 (EURO III) | diesel oil | 108 | 3360 | JC5-28 | 2.2/5 | BJ1049V9JDA-01DA06 | General country |
T | YC4D130-33 | diesel oil | 96/130 | 3360 | 6T120 | 5.5T | BJ1069VDJFA-FADA01 | Turkmenistan / Tajikistan / Uzbekistan / Kyrgyzstan / Moldova / Mongolia / Azerbaijan / Armenia | |
E | BJ493ZLQV1 (EURO III) | diesel oil | 108 | 3360 | ZF5S368 | 2.4/4.5 | BJ1065VDJD6-F1DA15 | Strategic customer Nigeria | |
E | YC4FA130-40 (EURO IV) | diesel oil | 130 | 3360 | 6T120 | 6T | BJ1078VEJEA-F2DA16 | Vietnam / Georgia / Mongolia | |
S | F3.8S3141 (EURO 3) | diesel oil | 141 | 3360 | 6S500 | 6T | BJ1088VEJEA-0FDA05 | Strategic client / Panama / Costa Rica / Haiti / Honduras / Guatemala / Mn / Myanmar Egypt Tunisia | |
S | ISF3.8S3154 | diesel oil | 115 | 3360 | 6S500 | 6T | 1088VFJEA-F1DA06 | GCC | |
RHD | T | BJ493ZLQV1 (OIL BRAKE) | diesel oil | 76 | 2800 | JC5-28 | 3.5T | BJ5041V9BBA-0SDA06 | Caribbean RHD / Antigua and Barbuda / Barbados / Guyana / Saint Lucia / Suriname / Trinidad and Tobago / Jamaica / Bangladesh |
C | F3.8S3141 | diesel oil | 141 | 3360 | 6TS55 | 2.2/5.5 | BJ1051VCJEA-RFDA07 | Caribbean RHD / Antigua and Barbuda / Barbados / Guyana / Saint Lucia / Suriname / Trinidad and Tobago / Jamaica / strategic customer | |
LHD | T | BJ493ZLQV1 | diesel oil | 80 | 3360 | JC5-28 | 5T | 1049V8ADA-01DA03 | Guatemala / Panama / Dominica / Haiti / Nicaragua / Venezuela / Ethiopia / Sultan / South Sultan / Djibouti / Eritrea / Rwanda / Burundi / Somalia / Seychelles / Madagascar / Garner / Cape Verde / Togo / Benin / Sierra Leone / / / / / gross / NIA / / Mali / / / Sao Tome / Cote d'Ivoire / Burkina Faso //Congo Brazzaville / Cameroon / Central Africa / Gabon / strategic customer |
C | ISF2.8S4148V | diesel oil | 110/148 | 3360 | 5S368 | 4.5T | BJ1041V8ADA-F1DA01 | Colombia / Peru / Iraq / strategic client / Mongolia / Angola | |
LHD | T | 4J28TC | diesel oil | 110 | 3360 | 6T100 | 2.2/5 | 1049V9JDA-01DA07 | Georgia / Turkmenistan / Tajikistan / Uzbekistan / Kyrgyzstan / Moldova / Mongolia / Azerbaijan / Armenia / Peru |
E | 4J28TC | diesel oil | 80/110 | 3360 | 6G40 | 4.5T | BJ1065VDJDA-F1DA03 | Columbia | |
LHD | T | YC4D130-33 | diesel oil | 130 | 3800 | 6T120 | 2.5/6 | BJ1089VEJFA-FADA01 | Bolivia / strategic customer / Turkmenistan, Tajikistan, Uzbekistan, Kyrgyzstan, Moldova, Mongolia, Azerbaijan, Armenia / BC / Mongolia |
RHD | C | F3.8S3141 | diesel oil | 105/141 | 3800 | 6TS55 | 6T | BJ1061VDJEA-RFDA11 | Caribbean RHD / Antigua and Barbuda / Barbados / Guyana / Saint Lucia / Suriname / Trinidad and Tobago / Jamaica / Bangladesh |
LHD | E | YC4D140-48 | diesel oil | 103/140 | 3800 | 6T120 | 6T | BJ1108VEJEA-FADA04 | Georgia / Vietnam |
C | ISF3.8S4141 | diesel oil | 105/141 | 3800 | 6S500 | 4.5T | 1069VDJEA-FBZA02 | Iran | |
LHD | C | ISF3.8S3168 | diesel oil | 125/168 | 4700 | 6T120 | 10T | BJ1129VFPEG-FADA01 | Honduras / Panama / Nicaragua / Paraguay |
LHD | EST-M | YC6A240-33 | diesel oil | 177kw | 4800 | 8JS105TA | 10T/4.875 | BJ1226VMPHG-01DA01 | Cameroon, Nigeria, Myanmar, etc |
LHD | EST-M | ISDE245 30 | diesel oil | 180 | 4800 | 8JS105TA | 10T/4.875 | BJ1226VMPHG-01ZA01 | GCC |
LHD | EST-M | YC6A240-33 | diesel oil | 177kw | 5150 | 8JS105TA | 10T/4.875 | BJ1226VMPHK-01DA01 | Cameroon, Nigeria, Myanmar, etc |
RHD | EST-M | YC6A240-33 | diesel oil | 177kw | 4800 | 8JS105TA | 10T/4.875 | BJ1226VMPHG-RADA01 | Kenya, Tanzania, Zambia, etc |
RHD | EST-M | YC6A240-33 | diesel oil | 177kw | 5150 | 8JS105TA | 10T/4.875 | BJ1226VMPHK-RADA01 | Kenya, Tanzania, Zambia, etc |
RHD | EST-M | ISF3.8S3168 | diesel oil | 125/168 | 4800 | 6s600 | 8T | BJ1126VGJEG-RFDA01 | Thailand |
LHD | ETX | WD615.50 (EURO II) | diesel oil | 290 | 4500+1350 | RTD11509C(Q) | 13T | BJ1253VLPJE-01TA01 | Nigeria |
ETX | WD615.50 (EURO II) | diesel oil | 213/2200 | 5700+1350 | Rtd11509c (q) iron | 13T/5.73 | BJ1253VLPJE-01TA02 | General country | |
ETX | WP10.340E32 (EURO 3) | diesel oil | 340 | 5100+1350 | 12jsd180t iron | 13T/4.444 | BJ1257VMPJP-01TA01 | GCC | |
LHD | ETX | WD615.34 (EURO II) | diesel oil | 340 | 3400+1350 | 12jsd160t (q) iron | 7.5T/16T | BJ3253DMPJB-01ZA01 | Ethiopia, Djibouti and other East African countries |
LHD | ETX | WD615.34 (EURO II) | diesel oil | 340 | 3825+1350 | RTD11509C（Q） | 13T | BJ3253DLPJB-01ZA02 | General country |
LHD | ETX | WP10.340E32 | diesel oil | 340 | 3575+1350 | 10JSD160T | 13T | BJ5253GJB00-20DA02 | General country |
LHD | ETX | WP10.340E32 | diesel oil | 340 | 3575+1350 | Rtd-11509c iron | 13T/4.875 | BJ5257GJB00-10DA01 | General country |
LHD | ETX | WP10.340E32 | diesel oil | 375 | 1800+4700+1350 | 12jsd160ta iron | 13T | BJ1317VNPJJ-31ZA01 | General country |
RHD | ETX | WD615.50 (EURO II) | diesel oil | 280 | 5700+1350 | 9JSD150T-B（Q） | 13T | BJ1253VLPJP-0RZA01 | General country |
RHD | ETX | WD615.44 (EURO II) | diesel oil | 330 | 3825+1350 | 9JSD150T-B（Q） | 13T | BJ3253DLPJB-RAZA01 | Indonesia |
RHD | ETX | WD615.44 (EURO II) | diesel oil | 330 | 4100+1350 | 9JSD150T-B | 13T | BJ5253GJB00-RADC01 | Malaysia |
RHD | ETX | WP12.380E32 (EURO 3) | diesel oil | 380 | 1800+4700+1350 | 12JSD180TA（Q） | 13T | BJ3313DPPKJ-R1ZA01 | Malaysia |
RHD | ISF128 | diesel oil | 120/163 | 3105 | JC538 | BJ2037Y3MDV-R8ZA01 | Tanzania Kenya Suriname | ||
RHD | ISF2.8S4161P | diesel oil | 120/163 | 3105 | JC538 | BJ2037Y3MDY-0RZA41 | Australia | ||
LHD | YC4D130-48 | diesel oil | 96/130 | 3600 | 545ZHF | 7.6T | BJ5145GJB00-01DA05 | the Philippines |
