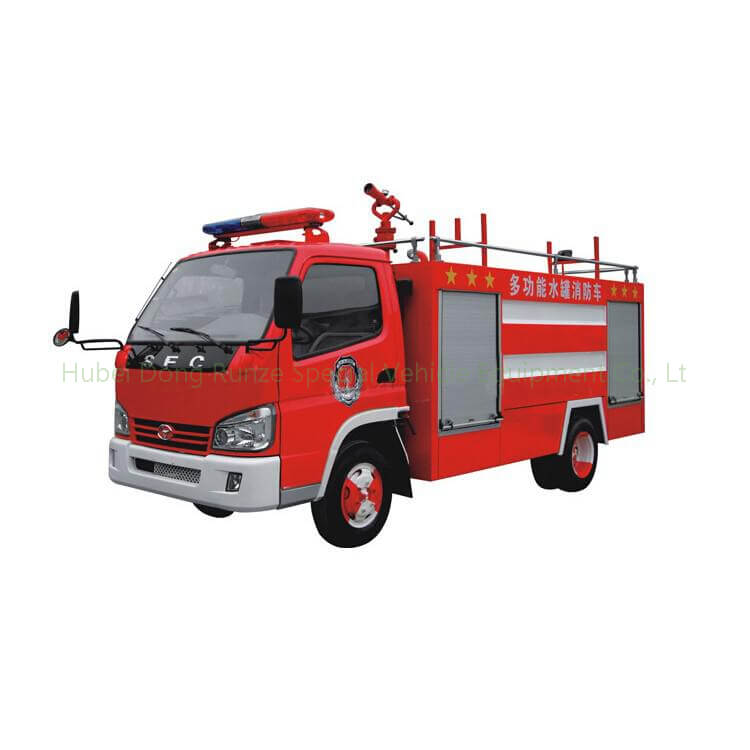

Quick Attack SFC Fire Service Truck
| FOB: | |
|---|---|
| Quantity: | |
|
| |
-
SSF5040GSS
-
DRZ
-
8705309000
small gasoline portable pump fire fighting truck for sale
Emergency Rescue Mini Fire Service Truck | |||
Superstructure | Water Capacity | 1,000 Litres (About 260 gallons) | |
Tank Material | Carbon steel | ||
Fire Pump | Flow speed | 20L/s | |
Pressure | 1.0MPa | ||
Fire Cannon | Flow speed | 20 L/s | |
Shot | 48 m | ||
Suction Head | 6 m | ||
Hose | High quality, wire strengthened hose, with cooper wire, anti-static | ||
All standard accessories: Typical modern fire apparatus carries equipment for a wide range of firefighting and rescue tasks. These include shovel, pike poles, axes and cutting equipment, halligan bars.… | |||
Optional | Ladders, floodlights... | ||
Item | MINI TRUCK | |
Model | SSF1040HDJ32 | |
Cabin | Fengling cabin | |
whole vehicel main demensions | Overall dimensions (L*W*H)mm | 4310*1600*1925 |
Dimensions of cargo body (L*W*H)mm | 3150*1500*350 | |
Driving type | 4×2 | |
Wheel base | 2300 | |
Wheel track(F/R)mm | 1280/1200 | |
Min groud clearance (mm) | 150 | |
Weight data | Curb weight (kg) | 1560 |
Rated payload(kg) | 1200 | |
Person in cab (persons) | 2 | |
whole vehicle main performance | Max.speed(km/h) | 80 |
Max.slope of climb(%) | 25 | |
Min.turning radius (m) | 5.5 | |
Engine | Engine type | 4D18F (4 Cylinders) |
Displacement (L) | 1809 | |
Rated power (KW) | 38 | |
Max torque (N.m/rpm) | 102 | |
Steering gear type | Merchanical | |
Brake system | Service brake and boosting type | oil brake |
Parking brake | Central drum brake | |
Auxiliary brake | N/A | |
Wheels and tyre size | 6.00-13/6.00-13 | |
Electric system | Rated voltage | 12V |
Battery | 100Ah | |
Item | FS1 | |
Model | SSF1040HDJ41 | |
Cabin | FS1 1.5 rows cabin | |
whole vehicel main demensions | Overall dimensions (L*W*H)mm | 4776*1690*2010 |
Dimensions of cargo body (L*W*H)mm | 2900*1700*400 | |
Driving type | 4×2 | |
Wheel base | 2400 | |
Wheel track(F/R)mm | 1385/1240 | |
Min groud clearance (mm) | 160 | |
Weight data | Curb weight (kg) | 1860 |
Rated payload(kg) | 3000 | |
Person in cab (persons) | 2 | |
whole vehicle main performance | Max.speed(km/h) | 90 |
Max.slope of climb(%) | 25 | |
Min.turning radius (m) | 7 | |
Engine | Engine type | 485(4 Cylinders) |
Displacement (L) | 2800 | |
Rated power (KW) | 43 | |
Max torque (N.m/rpm) | 200 | |
Steering gear type | Power steering/Merchanical | |
Brake system | Service brake and boosting type | oil brake |
Parking brake | Central drum brake | |
Auxiliary brake | N/A | |
Wheels and tyre size | 6.50-16/6.50-16 | |
Electric system | Rated voltage | 12V |
Battery | 120Ah | |
Item | FS2 | ||
Model No. | SSF1040HDJ54-3 | ||
Cabin | New FS2 Single Row | ||
Overall Dimension(mm) | 5910×1950×2250 | ||
Cargo BoxDimension(mm) | 4090×1780×430 | ||
Engine | FAW 490(4 Cylinders) | ||
Out Put (Kw) | 47 | ||
Displacement(cc) | 2540 | ||
Fuel Tank Capacity(L) | 70 | ||
Fuel Consumption(L) | 8.2 | ||
Structure Weight(Kg) | 2450 | ||
Rated Load Capacity(Kg) | 1990kg | ||
Tyre(F/R) | 7.00-16/7.00-16 | ||
Wheelbase(mm) | 3100 | ||
Tread(F/R)(mm) | 1400/1390 | ||
Brake System | Hydraulic Vacuum Assisted | ||
Max. Speed (Km/h) | 90 | ||
No. of Gears | 5+1 | ||
Clutch Model | Diaphragm Spring Clutch | ||
Steering gear type | Power steering/Merchanical | ||
MINI TRUCK Model SSF1040HDJ32 ;FS1 Model SSF1040HDJ41; FS2 Model No. SSF1040HDJ54-3 Cabin New FS2 Single Row ;Vehicle wheelbase(Mm) tonnage dimensions
SSF5040ZXX /2300/ 1.88 /3980×1580×1900
SSF5040XLC /2550 /1.5 /4810×1680×2380
SSF5040GSS/ 2700,2800 /1.49 /5280×1855×2100
SSF5080GSS 3200 4.2/ 5990×2100×2450
3200/2820/ 5300*2200*2500
SSF5090TQZ /3800/ 4.2 /7440×2300×2500 - See more at: http://www.truckinchina.com/Emergency-Rescue-Mini-Foton-Forland-Fire-Service-Truck-pd6824726.html#sthash.FeiXo6Py.dpuf
mini gasoline portable pump fire truck, adopts With the volume of 1,000L water, equips with portable pump, etc.
TIC TRUCKS , www.truckinchina.com
